BLOCK DIAGRAM OF THE REMOTE The RF codes are generated by modulating the RC codes with a 433.92 MHz RF IC which is present in the RF module. Remote transmits RF RCA codes and IR codes. Key- matrix Microcontroller Keyscan to read in the key depressed IR codes RF codes Carrier frequency is 433.92 MHz 8 MHz resonator 13.56 MHz quartz crystal BLOCK DIAGRAM OF RECEIVER The RF IC receives the RF signal of 433.92MHz and the RF signal is mixed and demodulated to the baseband signal. The baseband signal is then sent to the USB microcontroller for communications with the PC/laptop. USB Microcontroller Laptop/PC RF IC with external IF filter of 10.7MHz 6 MHz resonator 13.22563 MHz quartz crystal Antenna receiving RF signal at 433.92 MHz Demodulated signal

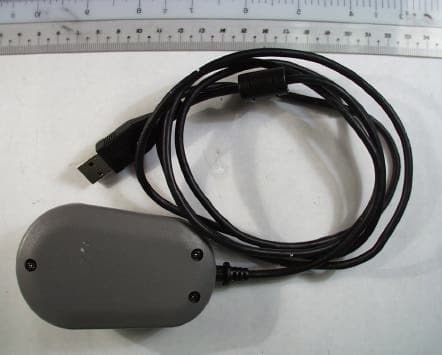

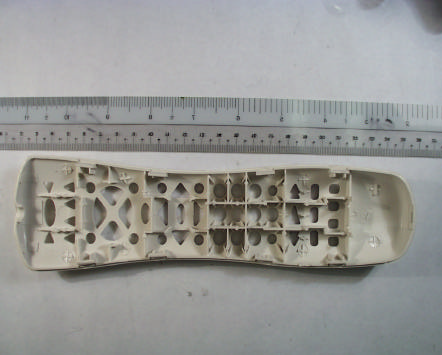

EUT PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040843/02 EUT PHOTOGRAPHS Front View – RF Dongle Rear View – RF Dongle EUT PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040843/02 EUT PHOTOGRAPHS Right View – RF Dongle Left View – RF Dongle EUT PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040843/02 EUT PHOTOGRAPHS Front View – RF Remote Controller Rear View – RF Remote Controller EUT PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040843/02 EUT PHOTOGRAPHS Rigth View – RF Remote Controller Left View – RF Remote Controller EUT PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040843/02 EUT PHOTOGRAPHS Top Housing External View – RF Dongle Top Housing Internal View – RF Dongle EUT PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040843/02 EUT PHOTOGRAPHS Bottom Housing External View – RF Dongle Bottom Housing Internal View – RF Dongle EUT PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040843/02 EUT PHOTOGRAPHS Top Housing External View – RF Remote Controller Top Housing Internal View – RF Remote Controller EUT PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040843/02 EUT PHOTOGRAPHS Bottom Housing External View – RF Remote Controller Bottom Housing Internal View – RF Remote Controller

EUT PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040843/02 PCB PHOTOGRAPHS Overall Internal View – RF Dongle EUT PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040843/02 PCB PHOTOGRAPHS Component Side – RF Dongle EUT PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040843/02 PCB PHOTOGRAPHS Trace Side – RF Dongle EUT PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040843/02 PCB PHOTOGRAPHS Overall Internal View (Main PCB) – RF Remote Controller EUT PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040843/02 PCB PHOTOGRAPHS Overall Internal View (RF Module) – RF Remote Controller EUT PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040843/02 PCB PHOTOGRAPHS Keypad Top View – RF Remote Controller EUT PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040843/02 PCB PHOTOGRAPHS Keypad Bottom View – RF Remote Controller EUT PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040843/02 PCB PHOTOGRAPHS Component Side (Main PCB)– RF Remote Controller EUT PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040843/02 PCB PHOTOGRAPHS Trace Side (Main PCB)– RF Remote Controller EUT PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040843/02 PCB PHOTOGRAPHS Component Side (RF Module)– RF Remote Controller EUT PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040843/02 PCB PHOTOGRAPHS Trace Side (RF Module)– RF Remote Controller RF Antenna

Page 1 of 9 DATE September 04,2004 PRODUCT DEVELOPMENT – REMOTE CONTROL INDEX SPECIFICATION FOR AWOX RF Dongle receiver This remote control family is approved under the responsibility of THOMSON QUALITY CENTER (TQC) based on THOMSON Green Book. This specification serves THOMSON OEM customers for general information and incoming inspection. Please revert back for changes/ comments deemed necessary. CUSTOMER PART NUMBER: 21266580 THOMSON EQU NUMBER: 21416780 Customer : THOMSON Sales Representative: Manufacturer : PT. Thomson Batam Address : BLOK 2, KAWASAN INDUSTRI BATAMINDO, MUKAKUNING, BATAM 29433 INDONESIA Telephone no. : +62-770-611178 Fax no. : +62-770-611736 History: Date Index Changes Written Checked Page 2 of 9 DATE September 04,2004 PRODUCT DEVELOPMENT – REMOTE CONTROL INDEX 1. GENERAL EXAMINATION 1.1 Operating Conditions 1.2.1 Temperature Range :- 1.2.2 Humidity Range :- 0 ~ 40 Deg. C 5 ~ 85 % RH 1.2 Storage Conditions 1.3.1 Temperature Range :- -20 ~ 60 Deg. C 1.3 General Test Conditions Supply voltage provided by new batteries of current type. 2. APPEARANCE, STRUCTURE AND DIMENSIONS 2.1 Appearance :- (Check visually for the followings) 2.1.1 Moulding Defects :- Sinks, Short, Flash, Bloom Mark, Splash Mark, Mould Contamination, Distorsion, Weld/Flow Line, Pulls, Ejector Mark, Gas Mark, Drag Mark, De-gating, Etc. Not to be Visible from 0.5m Viewing Distance. In accordance to TQC Green Book FP-CH-101-C, table A 2.1.2 Print Defects :- Poor Print, Spidering, Etc Print Miss, Extraneous Ink or Ink on Paint Clarity / Blur Not to be Visible from 0.5m Viewing Distance. No Breakdown to be evident from 0.5m Viewing Distance. TQC Green Book FP-CH-101-C, table D 2.1.3 Matching of Top/Bottom Casing Top case and bottom case matching ± 0.3 mm 2.2 Structure Approved by THOMSON Design Centre. Page 3 of 9 DATE September 04,2004 PRODUCT DEVELOPMENT – REMOTE CONTROL INDEX Page 4 of 9 DATE September 04,2004 PRODUCT DEVELOPMENT – REMOTE CONTROL INDEX 3. ELECTRICAL PERFORMANCE 3.1 Operation supply voltage limits :- DC [3 to 5.5 ] V 3.2 Run Mode supply current :- RF transmission MAX. 20 mA 3.3 MCU Oscillation frequency :- 6 MHz ± 5% 3.4 RF Receiving frequency :- 433.92 MHz ± 0.5% 3.6 Working distance :- Up to 20.0 m Open area without obstruction RF Dongle RCU (a) RCU (b) Page 5 of 9 DATE September 04,2004 PRODUCT DEVELOPMENT – REMOTE CONTROL INDEX 3.9 Schematic diagram Page 6 of 9 DATE September 04,2004 PRODUCT DEVELOPMENT – REMOTE CONTROL INDEX Page 7 of 9 DATE September 04,2004 PRODUCT DEVELOPMENT – REMOTE CONTROL INDEX 4. MECHANICAL PERFORMANCE 4.1 Dimensional Test The indication, construction, colour tone and characters of each portion In accordance with the Product Order Section 7. Approved by THOMSON Quality Centre. In accordance to TQC Green Book FP-FRC-1100-a, unless otherwise specified. 4.2 Mechanical Test 4.2.1 Drop Test Drop height shall be 1.0 m on flat and hard surface with batteries installed. 6 flat drop on each sample as indicated. Operation :- Normal. There should be no damage. Structure :- No plastic / component failure, no conspicuously cracks, no peeling off. Remarks :- The loosening of batteries, battery cover and other removable parts is not considered as a damage if the device is in working order after the removable parts are put back. In case of unsnapping defect, if the unit can be easily re-snapped, then it is acceptable. In accordance to TQC Green Book FP-FRC-1400-a, unless otherwise specified. 4.3 Climatic Test This test determines the resistance of remote control to deterioration of salt mist. Salt: dry NaCl containing > 0.1% sodium iodide and > 0.3% total impurities. 5% concentration. Criteria :- No abnormalities such as rusting shall not occur in the appearance. No electrical and mechanical damage must be observed. In accordance to TQC Green Book FP-FRC-1500-a, unless otherwise specified. 4.4 Environment Test 4.4.1 Operating life At 40 o C, 95%RH. 5 sec “on”; 5 sec “off”. Duration: 1000 hrs In accordance to TQC Green Book FP-FRC-1600-a, unless otherwise specified. 5. STORAGE TESTS 5.1 Cycling temperature 2 samples with packaging Temperature : -20 o C 2hrs; 40 o C 2hrs Duration : 250 hrs In accordance to TQC Green Book FP-FRC-1700-a, unless otherwise specified. F2 F4 F5 F6 F1 F3 Page 8 of 9 DATE September 04,2004 PRODUCT DEVELOPMENT – REMOTE CONTROL INDEX 5.2 High temperature 2 samples with packaging Temperature : 60 o C Duration : 250 hrs 6. PACKING INFORMATION 6.1 Commercial Reference Commercial reference of the remote control is VISIBLE on the top cover. 6.3 Export Carton 6.3.1 Dimension W x H x D(mm) Internal: 583 x 266 x 318 External: 595 x 290 x 330 Total quantity packed in 1 carton Remote control: 2 x 25 = 50 pcs 6.3.2 Min. box compression resistance at 23 o C and 55% RH 6700N 6.3.3 Max. stack height Standard container height. 6.3.4 Carton Label example TOCOM NO : MODEL : EPR NO : EQU CODE : QTY NO : S/O NO : DATE : 21421360 RCZ160 MBM1 AWOX 21421360 21416780 10 UNITS RP 603 Sept ember 09, 2004 Page 9 of 9 DATE September 04,2004 PRODUCT DEVELOPMENT – REMOTE CONTROL INDEX 7. PRODUCT ORDER Page 1 of 14 DATE September 15, 2004 PRODUCT DEVELOPMENT – REMOTE CONTROL INDEX SPECIFICATION FOR RCZ 160 MBLM1 (AWOX) REMOTE CONTROL This remote control family is approved under the responsibility of THOMSON QUALITY CENTER (TQC) based on THOMSON Green Book. This specification serves THOMSON OEM customers for general information and incoming inspection. Please revert back for changes/ comments deemed necessary. CUSTOMER PART NUMBER: 21409180 THOMSON EPR NUMBER: 21409170 Customer : THOMSON Sales Representative: Manufacturer : PT. Thomson Batam Address : BLOK 2, KAWASAN INDUSTRI BATAMINDO, MUKAKUNING, BATAM 29433 INDONESIA Telephone no. : +62-770-611178 Fax no. : +62-770-611736 History: Date Index Changes Written Checked Page 2 of 14 DATE September 15, 2004 PRODUCT DEVELOPMENT – REMOTE CONTROL INDEX 1. GENERAL EXAMINATION 1.1 Operating Conditions 1.2.1 Temperature Range :- 1.2.2 Humidi…

Text truncated - open the document above for the full version.

TEST REPORT Your Ref: Date: 06 December 2004 Our Ref: 56S040843/02Page: 1 of 20 DID: +65-6885 1448 Fax: +65-6777 6409 NOTE: This report is issued subject to PSB Corporation's "Terms and Conditions Governing Technical Services". The terms and conditions governing the issue of this report are set out as attached within this report. LA-2001-0212-A LA-2001-0213-F LA-2001-0214-E LA-2001-0215-B LA-2001-0216-G LA-2001-0217-G The results reported herein have been performed in accordance with the laboratory’s terms of accreditation unde r the Singapore Accreditation Council - Singapore Laboratory Accreditation Scheme Head Office: PSB Corporation • Testing Group • 1 Science Park Drive Singapore 118221 • Hotline:+65 6885 1333 • Fax:+65 6775 9725 • Email: [email protected] • Website: www.psbcorp.com Regional Offices: Bangkok • Guangzhou • Jakarta • Kuala Lumpur • Shanghai • Taipei FORMAL REPORT ON TESTING IN ACCORDANCE WITH FCC Parts 15B & C : 2004 OF A AWOX RF DONGLE AND RF REMOTE CONTROLLER [ Model : RCZ 160MBLM1 ] [ FCC ID : SKORC11602004A ] TEST FACILITY Telecoms & EMC, Testing Group, PSB Corporation 1 Science Park Drive, Singapore 118221 FCC REG. NO. 90937 (3m & 10m OATS) 99142 (10m Anechoic Chamber) 871638 (5m Anechoic Chamber) IND. CANADA REG. NO. IC 4257 (10m Anechoic Chamber) PREPARED FOR Mr Lim Chee Wan Thomson Asia Pacific Holdings Pte Ltd 8 Jurong Town Hall Road #26-01/03 The JTC Summit Singapore 609434 Tel : +65 6379 1389Fax : +65 6379 1636 JOB NUMBER 56S040843 TEST PERIOD 21 Sep 2004 – 11 Nov 2004 PREPARED BYAPPROVED BY ____________________ Lim Cher Hwee Engineer ____________________ Deng Junhong Assistance Vice President 56S040843/02AWOX RF Dongle and RF Remote ControllerPage 2 of 20 Thomson Asia Pacific Holdings Pte Ltd [ Model : RCZ 160MBLM1 ] [ FCC ID : SKORC11602004A ] TABLE OF CONTENTS TEST SUMMARY PRODUCT DESCRIPTION SUPPORTING EQUIPMENT LIST EUT OPERATING CONDITION TEST RESULTS ANNEX A-TEST INSTRUMENTATION & GENERAL PROCEDURES ANNEX B-EUT PHOTOGRAPHS / DIAGRAMS ANNEX C-USER MANUAL, TECHNICAL DESCRIPTION, BLOCK & CIRCUIT DIAGRAMS ANNEX D-FCC Label 56S040843/02AWOX RF Dongle and RF Remote ControllerPage 3 of 20 Thomson Asia Pacific Holdings Pte Ltd [ Model : RCZ 160MBLM1 ] [ FCC ID : SKORC11602004A ] TEST SUMMARY The product was tested in accordance with the client's specifications Test Results Summary Test StandardDescriptionPass / Fail FCC Parts 15B & C: 2004 15.107 & 15.207Conducted EmissionsPass 15.109, 15.209Radiated EmissionsPass 15.205Radiated Emissions (Restricted Band Requirements)Pass 15.231 (b)Radiated Emissions (Fundamental and Harmonics)Pass 15.231 (c)20dB BandwidthPass 15.35 (c)Duty Cycle FactorPass Modifications No modifications were done. Notes: 1.The Equipment Under Test (EUT) consists of following: a. RF dongle (receiver) b. RF remote controller (transmitter) 2.The EUT is a Class B device when operates in IrDA mode and meets the FCC Part15B Class B requirements. 3.The RF dongle and RF remote controller which carries model numbers RCT 160MBLM1 and RCR 160MBLM1 are identical to tested model number RCZ 160MBLM1 in term of circuit design, components used and PCB routing. The use of difference models are mainly on marketing purposes. 56S040843/02AWOX RF Dongle and RF Remote ControllerPage 4 of 20 Thomson Asia Pacific Holdings Pte Ltd [ Model : RCZ 160MBLM1 ] [ FCC ID : SKORC11602004A ] PRODUCT DESCRIPTION Description: The Equipment Under Test (EUT) is a RF Dongle and RF Remote Controller. The former is a receiver while the later is a transmitter. Both units also an IrDA receiver and transmitter. Manufacturer: PT. Thomson Batam Blok 2 Kawasan Industri Batamindo Mukakuning Batam 29433 Indonesia Model Number: RCZ 160MBLM1 FCC ID: SKORC11602004A (remote controller) Serial Number: Nil Microprocessor: ST26233 (dongle) Z86L81 (remote controller) Operating Frequency: 433.92MHz Clock / Oscillator Frequency:13.22563MHz (dongle and remote controller) 6MHz Resonator (dongle) Port / Connectors: USB port (receiver) Nil (remote controller) Rated Input Power: Powered via USB port of the connected host (receiver) 2 x AA batteries (remote controller) Accessories: Nil 56S040843/02AWOX RF Dongle and RF Remote ControllerPage 5 of 20 Thomson Asia Pacific Holdings Pte Ltd [ Model : RCZ 160MBLM1 ] [ FCC ID : SKORC11602004A ] SUPPORTING EQUIPMENT DESCRIPTION Equipment Description (Including Brand Name) Model, Serial & FCC ID Number Cable Description (List Length, Type & Purpose) M/N: PP05L S/N: 3Y220-REV A00 Dell Notebook FCC ID: CXSM507BR01-D480 Nil M/N: PA-1650-05D S/N: CN-05U092-71615-1001 Dell AC/DC Adapter FCC ID: Nil 2.0m unshielded power cable M/N: SLP-220 S/N: B011439700 Smart Label Printer FCC ID: DoC 2.0m unshielded power cable 2.0m shielded printer (parallel) cable M/N: SLP-220 S/N: B011439300 Smart Label Printer FCC ID: DoC 2.0m unshielded power cable 2.0m shielded serial (RS232) cable 56S040843/02AWOX RF Dongle and RF Remote ControllerPage 6 of 20 Thomson Asia Pacific Holdings Pte Ltd [ Model : RCZ 160MBLM1 ] [ FCC ID : SKORC11602004A ] EUT OPERATING CONDITIONS The dongle was powered via a USB connection from the host which was connected to a 110V, 60Hz supply. The remote controller was powered from 2 new AA batteries. The EUT was exercised in following conditions during the tests: RF Mode The remote controller was set to transmit RF signal continuously with maximum output power while the dongle was receiving this signal continuously. IrDA Mode The remote controller was set to transmit IrDA signal continuously with maximum output power while the dongle was receiving this signal continuously. 56S040843/02AWOX RF Dongle and RF Remote ControllerPage 7 of 20 Thomson Asia Pacific Holdings Pte Ltd [ Model : RCZ 160MBLM1 ] [ FCC ID : SKORC11602004A ] TEST RESULTS FCC Part 15 (15.107 & 15.207) Conducted Emission Results RF Mode (Worst Case Operating Mode) Frequency (MHz) Q-P Value (dBμV) Q-P Margin (dB) AV Value (dBμV) AV Margin (dB) Line 0.157649.1-16.721.6-34.2Live 0.205840.7-23.716…

Text truncated - open the document above for the full version.

56S040843/02 AWOX RF Dongle and RF Remote Controller Page 8 of 20 Thomson Asia Pacific Holdings Pte Ltd [ Model : RCZ 160MBLM1 ] [ FCC ID : SKORC11602004A ] TEST RESULTS Conducted Emission Setup (Front View) Conducted Emission Setup (Rear View) 56S040843/02 AWOX RF Dongle and RF Remote Controller Page 14 of 20 Thomson Asia Pacific Holdings Pte Ltd [ Model : RCZ 160MBLM1 ] [ FCC ID : SKORC11602004A ] TEST RESULTS Radiated Emission Setup (Front View) Radiated Emission Setup (Rear View)
