SKT-R308-0410CELLULAR PHONE BI-DIRECTIONAL BOOSTER

MAXUS Technologies, Inc. Nov. 26, 2004 1





  !"

 ###$"%&'$(  ITEM : CELLULAR REPETER MODEL : MGR-308 U U s s e e r r ’ ’ s s M M a a n n u u a a l l MAXUS Technologies, Inc. Nov. 26, 2004 2


 MAXUS Technologies, Inc. Nov. 26, 2004 3


 Contents pages 1. Scope......................................................................................... 2. Feature..................................................................................... 3. Electrical Specification..................................................................... 4. General Description........................................................................ 4.1 Structure...... .......................................................................... 4.2 Part Description......................................................................... 5. Installation..................................................................................... 5.1 Antenna Installation................................................................... 5.2 Installation of Repeater Body......................................................... 5.3 Power Supply & Operating Status Check............................................ 6. Trouble shooting............................................................................ 6.1 Troubles & Solutions.................................................................. 6.2 Performance Falloff & Repair...................................................... 4 4 5 6 6 6 7 7 9 10 13 13 13 MAXUS Technologies, Inc. Nov. 26, 2004 4


 1.Scope MGR-308 is a cellular phone repeater designed for the smooth call by amplifying the weak cellular phone signals, which can be installed in a place difficult to make cellular phone call due to weak signals. Note : It is recommended that you read carefully this manual before using this product. 2.Features - Extending the base station coverage into the weak signal areas. - Small size and light weight - Easy to install. Just follow the instruction for the installation. - Automatic Limit Control (ALC) - Shutdown Control (SDC) and Automatic recovery - 7dBm RF Power MAXUS Technologies, Inc. Nov. 26, 2004 5


 3. Electrical Specification SPECIFICATIONS ITEMS Up Link Down Link Remarks Frequency Range 824 ~ 849MHz 869 ~ 894MHz Pass Bandwidth 25MHz Output Power 7dBm ±2dBm 7dBm ±2dBm Gain 60dB ±2dB max. 60dB ±2dB max. ALC 7dBm ±2dBm VSWR <1:1.5 Gain Flatness <4dB Noise Figure <7dB IMD >45dBc 2-tone IMD CDMA Spurious >45dBc @885KHz RF Connector Type SMA Female Supply Power DC 9V /1A Dimension 130(W) x 200(H) x 25max(D) mm Mechanical Material Aluminum Operating Temperature -20
~ +60
*The specifications is subject to change without notice MAXUS Technologies, Inc. Nov. 26, 2004 6



     Outdoor Antenna Connector DC 5V Input Indoor Antenna Connector Power Switch Pilot Lamp
       4. General Description 4.1 Structure The repeater consists of the followings. MAXUS Technologies, Inc. Nov. 26, 2004 7


 5. Installation 5.1 Antenna Installation This is one of the most important processes in repeater installation, which gives very important influence to the performance of this equipment. 5.1.1 The system includes two omni directional antennas, one is for indoor and the other is for outdoor. First, decide a place to install the outdoor antenna, and then attach the antenna bracket to the selected place. Before attaching the bracket, fix the antenna firmly to the bracket by using a connector. [Fig. 5-1 Antenna Installation] 5.1.2 Once the antenna bracket with a connector is fixed as shown in Fig. 5-1, bring the coaxial cable to the place to connect with the repeater body. 5.1.3 Install the indoor antenna. In addition to an omni directional antenna supplied as basic accessory, this repeater may include a patch antenna as an option. The basic antenna should be pre-connected to the antenna connector in the lower part of the repeater, while the patch antenna should be connected to the direction for the cellular phone users. REPEATER SYSTEM PATCH ANTENNA OUTDOOR ANTENNA OPERATOR A OPERATOR B OPERATOR C RF CABLE AC POWER ANTENNA BRACKET BOOM COAXIAL CABLE OUTDOOR ANTENNA MOUNT MAXUS Technologies, Inc. Nov. 26, 2004 8


 MAXUS Technologies, Inc. Nov. 26, 2004 9


 5.2 Installation of Repeater Body 5.2.1 Fix the repeater to the wall with screws through the 4 holes on the flaps of the repeater. It is better to fix with plastic expansion anchors, if the wall is concrete or dry wall . 5.2.2 It is recommended that the repeater body should be installed by using shorter cable, but also should give enough distance from the outdoor antenna. Since the longer antenna cable gives more loss to the signal strength, less than 40m of the length is desirable (if 3D-FB). However, if the long cable is inevitable, you should use a low-loss cable. 5.2.3 Use an AC adapter to supply power for the repeater. As the repeater adapter for power supply is designed at 100V~270V free voltage, it is unnecessary to pay high attention to the voltage, however, it is safe to check it. 5.2.4 Connect the antenna cable and the power supplier to the repeater. Before connecting the power supplier, always make sure that the power switch on the lower part of the repeater is set to OFF position. MAXUS Technologies, Inc. Nov. 26, 2004 10


 5.3 Power Supply & Operating Status Check 5.3.1 Before turning on the power of the repeater, it is suggested to check the input power level from the outdoor antenna. If it is lower than -70dBm, the repeater coverage will be reduced. The optimum coverage can be obtained between the input power level of -60…

Text truncated - open the document above for the full version.

1

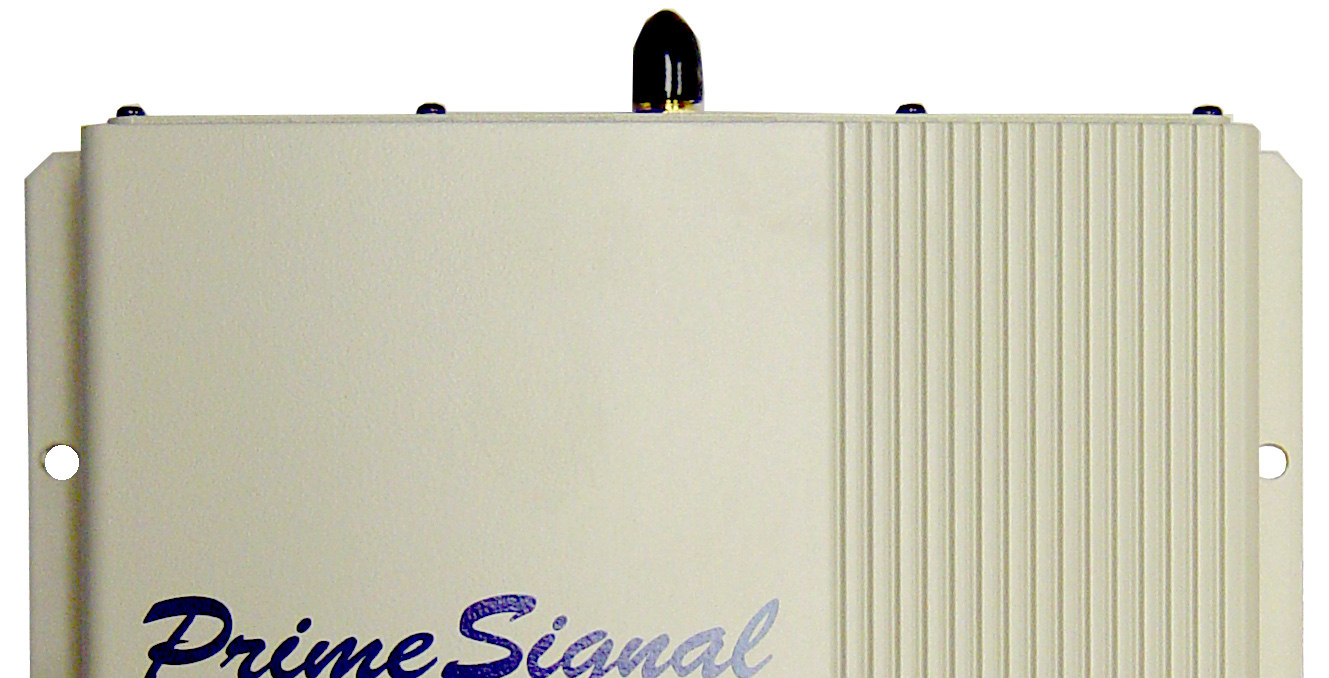

 MGR-308 PHOTO 1. FRONT VIEW 2

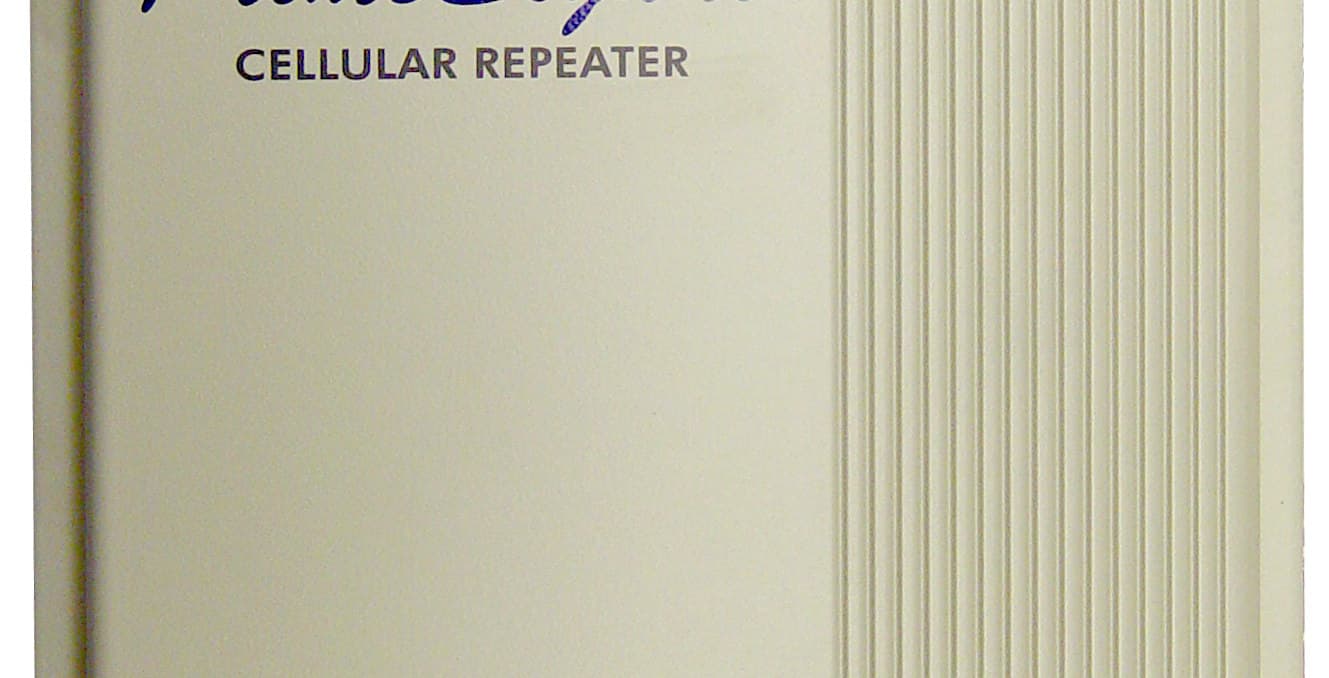

 2. REAR VIEW 3

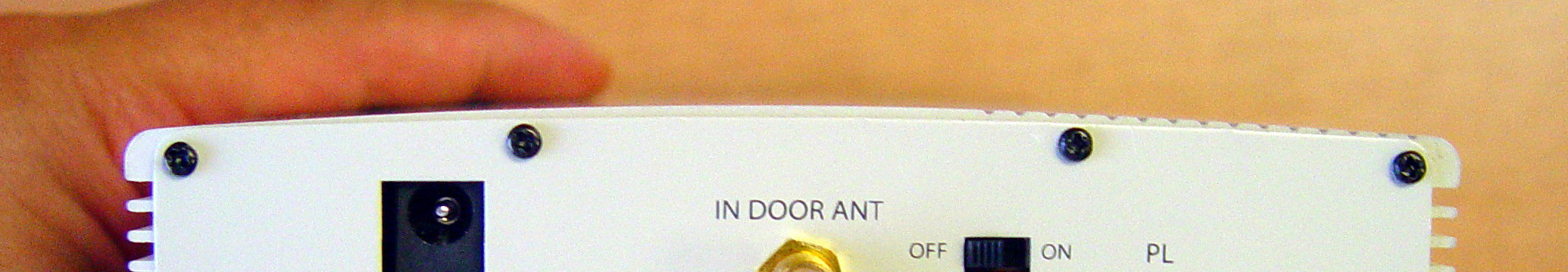

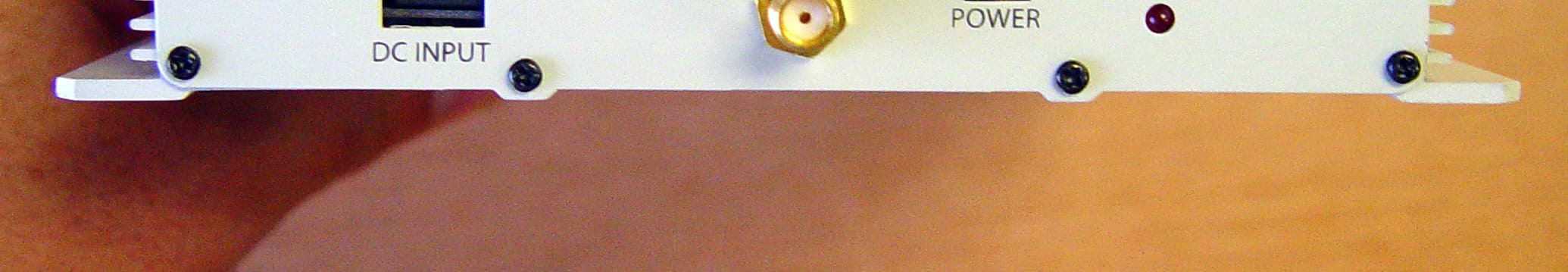

 3. TOP VIEW 4. BOTTOM VIEW
