SLBSBL-XWSELED BULB

Important Notice for the Product 1、 Indoor environment is used. 2、 Avoid installation in high temperature, high humidity environment. 3、 Avoid to use in airtight lamps and lanterns 4、 when installing or changing, please shut off the power and take care to the surface temperatures of the light bulb. 5、 There were high pressure, please do not disassemble or modify the lamp. FCC NOTE： This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45–30 MHz. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.

Working frequency 50 kHz Line Input Terminal Fuse Bridge Rectifiers Current control IC LED Module

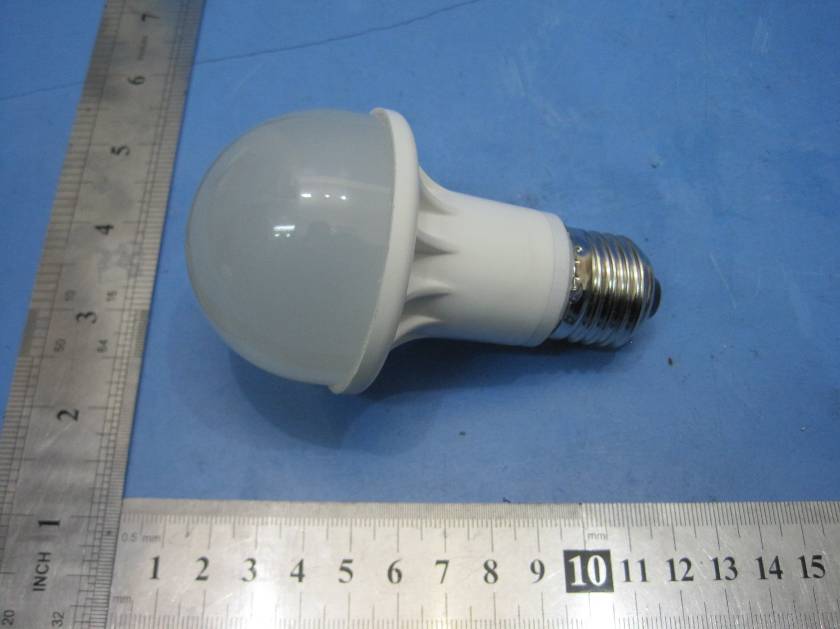

2.1 EUT – Appearance View

Page:23 of 23 SINBON Electronics Co., Ltd. FCC ID: SLBSBL-XWSE The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12020360-U-E-F 9 FCC Label This device complies with Part 18 of the FCC Rules. This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45–30 MHz. The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Side View/proposed FCC Label Location FCC ID: SLBSBL-XWSE This device complies with Part 18 of the FCC Rules.

FCC ID Label Sample for Models: SBL-7W-W3, SBL-7W-Y3, SBL-5W-W3, SBL-5W-Y3, SBL-5W-W3A, SBL-5W-Y3A FCC ID: SLBSBL-XWSE This device complies with Part 18 of the FCC Rules.

2.1 EUT – Open View 2.2 EUT - PCB View

This LED lighting engine module set is a direct AC-driven bulb lighting engine.The working frequency is 50 kHz . The module contains LED arrays and driver integrated circuits,and power protect circuits and is applicable to illuminating bulbs or luminaires designed for domestic power environments.

11 22 33 44 D D C C B B A A Title Number Revision Size A4 Date: 2011-12-23 Sheet of File: C:\Documents and Settings\..\220V 5WBall_fuse board_ .SchDoc Drawn By: AC 2 V+ 1 AC 4 V- 3 B1Bridge2 C8 C7 C6 C5 C1 C2 C3 C4 R50 ȍ R2R1R3R4 VR1 V111 0V 0 0 1 1 J1 Connector 1uF 1uF 1uF 1uF 0.1uF C9 1 1 2 2 3 3 4 4 DD CC BB AA Title NumberRevisionSize A4 Date:2011-12-23Sheet of File:C:\Documents and Settings\..\110V 7W Ball_Main Board_.SchDocDrawn By: D7 LED D8 LED D9 LED D10 LED D11 LED D12 LED D13 LED D14 LED D15 LED D16 LED D17 LED D18 LED D19 LED D20 LED D21 LED D22 LED D23 LED D24 LED D25 LED D26 LED D27 LED D28 LED D29 LED D30 LED D31 LED D32 LED D33 LED D34 LED D35 LED D36 LED D37 LED D38 LED D39 LED D40 LED D41 LED D42 LED D43 LED D44 LED D45 LED D46 LED D47 LED D48 LED D49 LED D50 LED D51 LED D52 LED D53 LED D54 LED D55 LED D56 LED D57 LED D58 LED D59 LED D60 LED D61 LED D62 LED D63 LED D64 LED D65 LED D66 LED D67 LED D68 LED D69 LED D70 LED D71 LED D72 LED 0.1uF C1 Z1 15V VCC J1 0Ω 750kΩ R1 J3 0Ω 0Ω J2 GND G N D 14 SH D N 13 G ND 12 SEL 11 N C 10 D 6 9 D 5 8 G ND 1 N C 2 V AC 3 D 1 4 D 2 5 D 3 6 D 4 7 DR3062 * D R3062 D1 LED D2 LED D3 LED D4 LED D5 LED D6 LED

Page: 1 of 23 FCC TEST REPORT The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12020360-U-E-F FCC ID : SLBSBL-XWSE Applicant : SINBON Electronics Co., Ltd. Address : 4F-13, No.79, Sec.1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan Equipment Under Test (EUT) : Product Name : LED Bulb Model No. : SBL-7W-W3, SBL-7W-Y3, SBL-5W-W3, SBL-5W-Y3, SBL-5W-W3A, SBL-5W-Y3A Standards : FCC CFR47 Part 18 Section 18.305:2010 Date of Test : February 6 ~ February 14, 2012 Date of Issue : February 20, 2012 Test Engineer : Hunk yan / Engineer Reviewed By : Philo zhong / Manager Test Result : PASS Prepared By: Waltek Services (Shenzhen) Co., Ltd. 1/F, Fukangtai Building, West Baima Rd., Songgang Street, Baoan District, Shenzhen 518105, China Tel :+86-755-27553488 Fax:+86-755-27553868 — The sample detailed above has been tested to the requirements of Council Directives ANSI C63.4:2003. The test results have been reviewed against the Directives above and found to meet their essential requirements. Page:2 of 23 SINBON Electronics Co., Ltd. FCC ID: SLBSBL-XWSE The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12020360-U-E-F 2 Test Summary Test Item Test Requirement Class / Severity Result Radiated Emission (30MHz to 1GHz) FCC CFR47 Part 18 Section 18.305 Class B PASS Conducted Emission (450KHz to 30MHz) FCC CFR47 Part 18 Section 18.307 Class B PASS Page:3 of 23 SINBON Electronics Co., Ltd. FCC ID: SLBSBL-XWSE The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12020360-U-E-F 3 Contents Page 1 COVER PAGE ........................................................................................................................................................ 1 2 TEST SUMMARY .................................................................................................................................................. 2 3 CONTENTS............................................................................................................................................................. 3 4 GENERAL INFORMATION ................................................................................................................................ 4 4.1 CLIENT INFORMATION........................................................................................................................................... 4 4.2 GENERAL DESCRIPTION OF E.U.T. ........................................................................................................................ 4 4.3 DETAILS OF E.U.T................................................................................................................................................. 4 4.4 DESCRIPTION OF SUPPORT UNITS.......................................................................................................................... 4 4.5 STANDARDS APPLICABLE FOR TESTING................................................................................................................ 4 4.6 TEST FACILITY...................................................................................................................................................... 5 4.7 TEST LOCATION.................................................................................................................................................... 5 5 EQUIPMENT USED DURING TEST .................................................................................................................. 6 6 CONDUCTED EMISSION DATA........................................................................................................................ 7 6.1 TEST EQUIPMENT.................................................................................................................................................. 7 6.2 TEST PROCEDURE.................................................................................................................................................. 7 6.3 CONDUCTED TEST SETUP...................................................................................................................................... 8 6.4 EUT OPERATING CONDITION................................................................................................................................8 6.5 CONDUCTED EMISSION LIMITS.............................................................................................................................. 9 6.6 SPECTRUM ANALYZER.......................................................................................................................................... 9 6.7 CONDUCTED EMISSION TEST RESULT................................................................................................................... 9 6.8 MEASUREMENT DATA........................................................................................................................................... 9 6.9 PHOTOGRAPH –CONDUCTED EMISSION TEST SETUP........................................................................................... 12 7 RADIATION EMISSION DATA ........................................................................................................................ 13 7.1 MEASUREMENT UNCERTAINTY........................................................................................................................... 13 7.2 EUT SETUP......................................................................................................................................................... 14 7.3 SPECTRUM ANALYZER SETUP.........…

Text truncated - open the document above for the full version.

2.1 Photograph –Conducted Emission Test Setup 2.2 Photograph – Radiation Emission Test Setup
