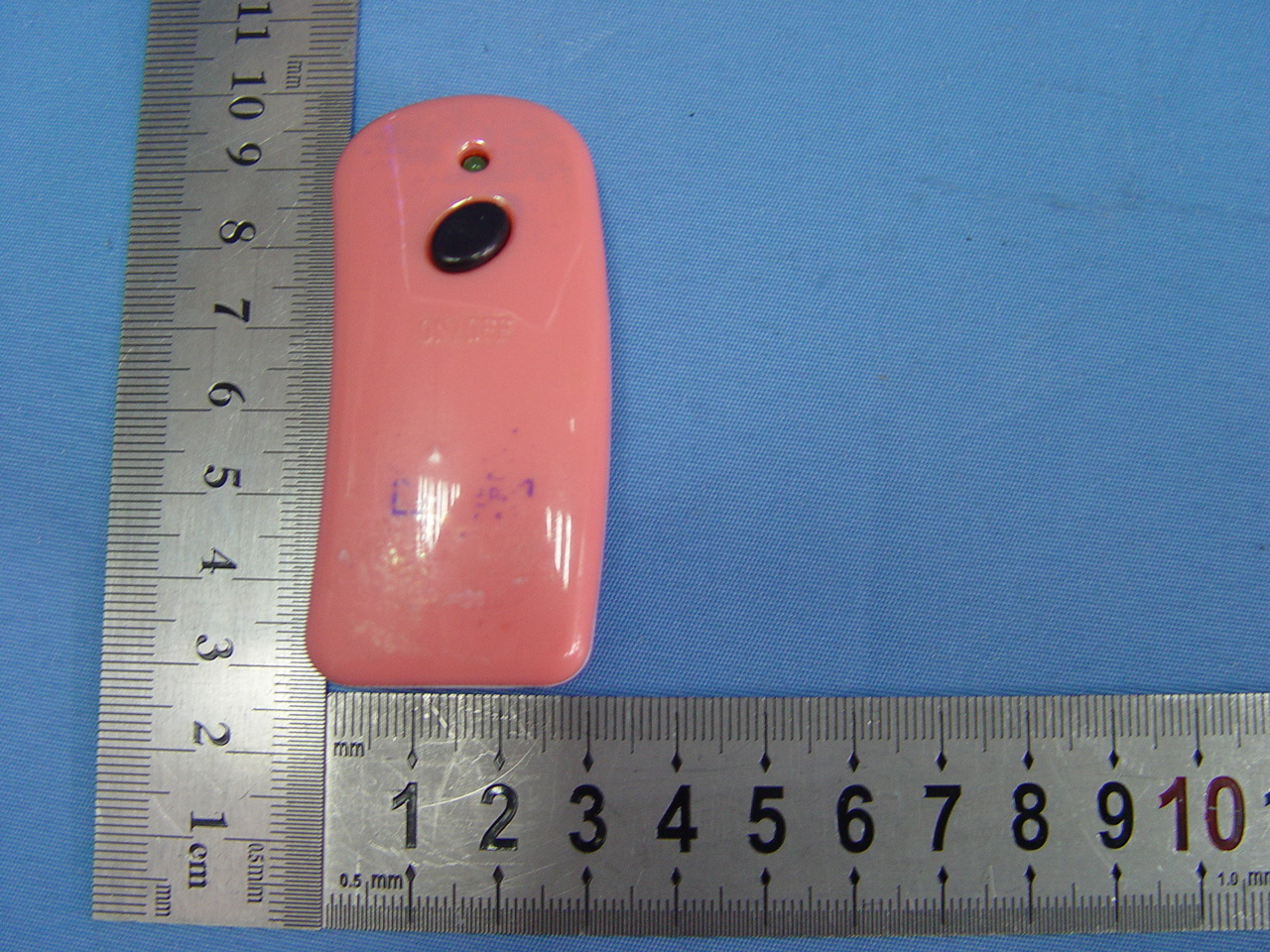

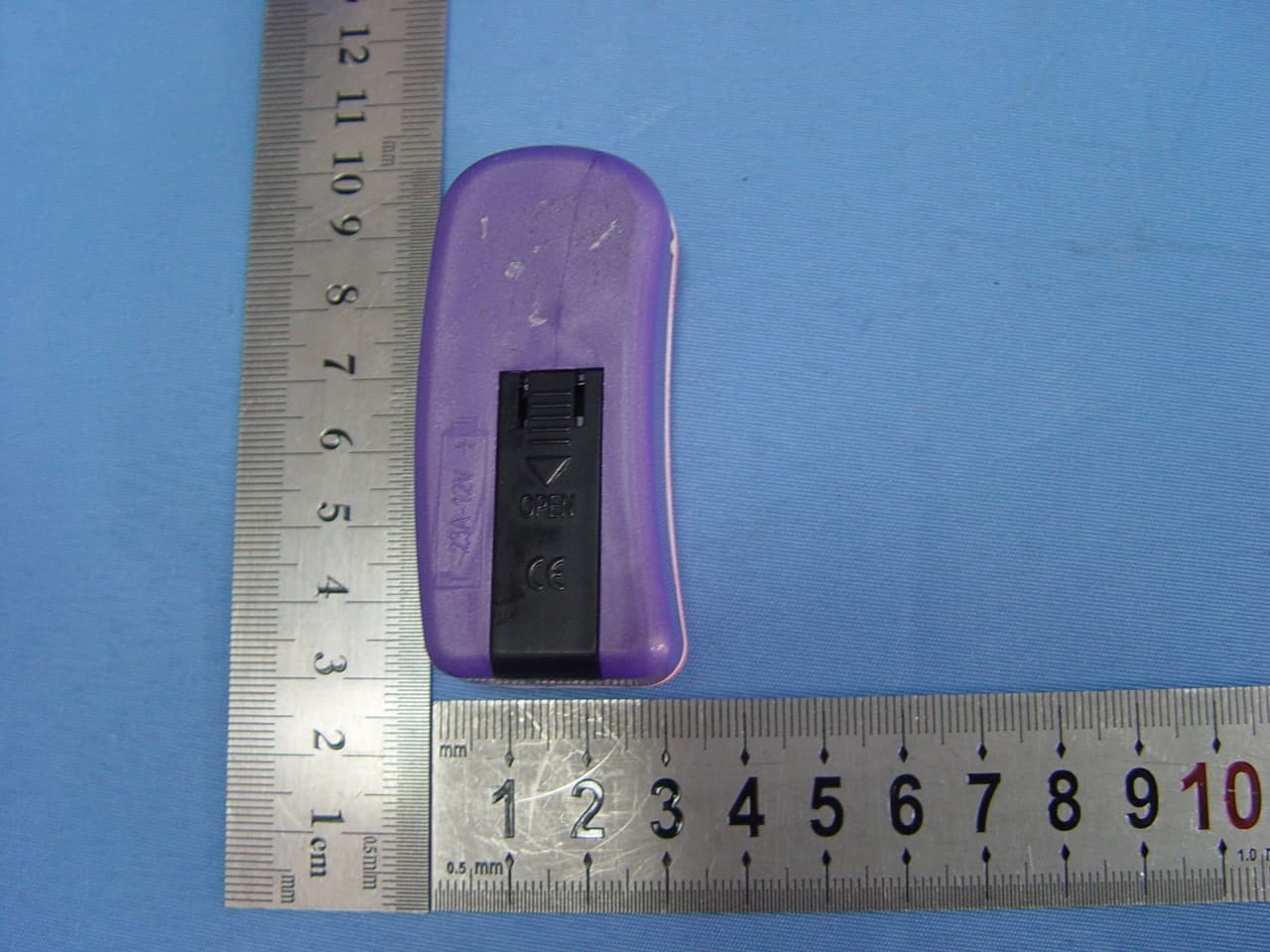

SLDF2K349Wireless Remote Control

Wireless control vibrating Manual z Warning: this device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. z Frequency: f =315.000MHZ ± 100KHZ. z It is smaller than 0 to launch the power 0. 5w. z Power supply of the transmitter: 12 Voltage. z battery encapsulation " 23A” . z Power supply of the receiver : 3 Voltage (1.5V *2 ); z battery encapsulation “N " type. z The distance is greater than 3 meters. z Press transmitter key once, the receiver begins vibration; According to the transmitter again, the receiver closes vibration, the circulation button, circulation switch. If send this group of signals in succession while pinning the key all the time. z Indicator lamp: every button one indicator lamp on one; Pin key take place this group of signal indicator lamps instruct the state of the button.

F2K349T Function Block Diagram F2K349T TX Block Diagram SAW Resonator 315MHz ± 100KHz MCU TX Oscillation Filter 3.58MHz ANT 315MHz Key Regulatorcurrent Battery DC:12V F2K349 、 F2K504 、 F2K699 、 F2K804 、 F2K806 RX Block Diagram Oscillation 3.58MHz ANT Power Battery 1.5V*2 Match Local Oscillation Demodulator AMP&COMP MCU Motor Driver Motor

Label Drawing 24mm Wireless remote control vibrator Type:F2K349T Work Frequency: 315MHz 15mm Voltage:12VDC(Battery 23A) 15mm FCC ID:SLDF2K349 24mm

Wireless control vibrating Operation Description z Model No.: F2K349T Transmit Frequency: 315.000MHz ± 100kHz Rated RF power output: 0.5mW Frequency tolerance: 10 ppm Power Supply: by a battery 12V Operation Description z The RF transmitter produces non-periodic signal. z The RF transmitter “ON/OFF” by manual, the operate duration time less 5 seconds. z The RF transmitter has one button to control signal: ♦ Press transmitter button once, the receiver begins vibration. ♦ Press the transmitter button again, the receiver closes vibration.

F2K349TV1.0.sch-1 - Tue Oct 05 11:41:21 2004

Page 1 of 12 FCC ID: SLDF2K349 ACCURATE TECHNOLOGY CO. LTD REPORT NO. ATE2004546 FCC CERTIFICATION On Behalf of J.B. INDUSTRIAL (SHENZHEN) CO. LTD Wireless Remote Control Vibrator Model No.: F2K349T Prepared for : J.B. INDUSTRIAL (SHENZHEN) CO. LTD Address : J.B. Industrial Center Beishandao Yantian Shenzhen City Guangdong P.R.C Prepared by : ACCURATE TECHNOLOGY CO. LTD Address : F1, Bldg. A, Changyuan New Material Port, Keyuan Rd. Science & Industry Park, Nanshan, Shenzhen, Guangdong P.R. China Tel: (0755) 26503290 Fax: (0755) 26503396 Report Number : ATE2004546 Date of Test : Oct 11, 2004 Date of Report : Oct 12, 2004 Page 2 of 12 FCC ID: SLDF2K349 ACCURATE TECHNOLOGY CO. LTD REPORT NO. ATE2004546 TABLE OF CONTENTS Description Page Test Report Certification 1. GENERAL INFORMATION .................................................................................................... 4 1.1. Description of Device (EUT)............................................................................................................. 4 1.2. Description of Test Facility ............................................................................................................... 4 1.3. Measurement Uncertainty.................................................................................................................. 4 2. MEASURING DEVICE AND TEST EQUIPMENT ............................................................... 5 3. THE FIELD STRENGTH OF RADIATION EMISSION ...................................................... 6 3.1. Block Diagram of Test Setup............................................................................................................. 6 3.2. The Field Strength of Radiation Emission Measurement Limits....................................................... 6 3.3. Configuration of EUT on Measurement ............................................................................................7 3.4. Operating Condition of EUT ............................................................................................................. 7 3.5. Test Procedure ................................................................................................................................... 7 3.6. The Field Strength of Radiation Emission Measurement Results ..................................................... 8 4. THE BANDWIDTH OF EMISSION ...................................................................................... 10 4.1. Block Diagram of Test Setup........................................................................................................... 10 4.2. The Bandwidth of Emission Limit................................................................................................... 10 4.3. EUT Configuration on Measurement .............................................................................................. 11 4.4. Operating Condition of EUT ........................................................................................................... 11 4.5. Test Procedure ................................................................................................................................. 11 4.6. The Bandwidth of Emission Measurement Result........................................................................... 12 Page 3 of 12 FCC ID: SLDF2K349 ACCURATE TECHNOLOGY CO. LTD REPORT NO. ATE2004546 Test Report Certification Applicant : J.B. INDUSTRIAL (SHENZHEN) CO. LTD Manufacturer : STABLE_ELECTRONING CO. LTD EUT Description : Wireless Remote Control Vibrator (A) MODEL NO.: F2K349T (B) SERIAL NO.: N/A (C) POWER SUPPLY: 12V DC (“23A” battery Type) Measurement Procedure Used: FCC Rules and Regulations Part 15 Subpart C Section 15.204,15.209,15.231: 2002 & ANSI C63.4: 2000 The device described above is tested by ACCURATE TECHNOLOGY CO. LTD to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 15 Subpart C Section 15.209,15.231 limits. The measurement results are contained in this test report and ACCURATE TECHNOLOGY CO. LTD is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the Equipment Under Test (EUT) is to be technically compliant with the FCC requirements. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of ACCURATE TECHNOLOGY CO. LTD. Date of Test : Oct 11, 2004 Prepared by : (Engineer) Reviewer : (Quality Manager) Approved & Authorized Signer : (Manager) Page 4 of 12 FCC ID: SLDF2K349 ACCURATE TECHNOLOGY CO. LTD REPORT NO. ATE2004546 1. GENERAL INFORMATION 1.1. Description of Device (EUT) EUT : Wireless Remote Control Vibrator Model Number : F2K349T Power Supply : 12V DC (“23A” battery Type) Applicant : J.B. INDUSTRIAL (SHENZHEN) CO. LTD Address : J.B. Industrial Center Beishandao Yantian Shenzhen City Guangdong P.R.C Manufacturer : STABLE_ELECTRONING CO. LTD Address : 3/F Building Jinxuan Industrial Center West Side 2 nd Road of East Loop Longhua Town Shenzhen City Guangdong P.R.C Date of sample received : Oct 10, 2004 Date of Test : Oct 11, 2004 1.2. Description of Test Facility EMC Lab : Accredited by TUV Rheinland Shenzhen, May 10, 2004 Accredited by FCC, May 10, 2004 The Certificate Registration Number is 253065 Accredited by Industry Canada, May 18, 2004 The Certificate Registration Number is IC 5077 Name of Firm : ACCURATE TECHNOLOGY CO. LTD Site Location : F1, Bldg. A, Changyuan New Material Port, Keyuan Rd. Science & Industry Park, Nanshan, Shenzhen, Guangdong P.R. China 1.3. Measurement Uncertainty Conducted Emission Uncertainty = ±2.66dB Radiated Emission Uncertainty = ±4.26dB Page 5 of 12 FCC ID: SLDF2K349 ACCURATE TECHNOLOGY CO. LTD REPORT NO. ATE2004546 2. MEASURING DEVICE AND TEST EQUIPMENT Table 1: List of Test and Measurement Equipment Kind of equipment Manufacturer Type S/N Calibrated until EMI Test Receiver Rohde&Schwarz…
