SLJ433WTGlass Transmitter Unit

Helen Zhao Subject: FW: Giant Innovation (Shenzhen) Ltd., FCC ID: SLJ433WT, Assessment NO.: AN04T4268, Notice#3 Importance: High 11/23/2004 From: hsieh Sent: Sun 11/21/2004 5:04 PM To: Mike Kuo Subject: Re: Giant Innovation (Shenzhen) Ltd., FCC ID: SLJ433WT, Assessment NO.: AN04T4268, Notice#3 Hi Mike, Attached please find the declaration letter. Best regards, Joe ----- Original Message ----- From: Mike Kuo To: hsieh Sent: Tuesday, November 16, 2004 7:48 PM Subject: RE: Giant Innovation (Shenzhen) Ltd., FCC ID: SLJ433WT, Assessment NO.: AN04T4268, Notice#3 Hi Joe: Attached technical document does not address the requirements. Please ask the manufacturer the following questions: 1) what is the component in the schematic will automatically enable the silent period for 15 seconds ? Please identify the component in the schematic diagram and provide the specification of this component. Best Regards Mike Kuo ----- Original Message ----- From: "Hsieh" To: "Mike Kuo" <[email protected]> Sent: Friday, November 12, 2004 9:24 PM Subject: Re: Giant Innovation (Shenzhen) Ltd., FCC ID: SLJ433WT, Assessment NO.: AN04T4268, Notice#3 > Hi Mike, > > Attached please find the new test report and document. > > Re-Q1: Please see page 8 of the test report. > > Re-Q2: Please see page 10 and page 13 of the test report. > > Re-Q3: Please see page 10 of the test report. > > Re-Q4: Please see the attached document. > > Best regards, > > Joe Hsieh > > -----Original Message----- > From: Compliance Certification Services [mailto:[email protected]] > Sent: Wednesday, November 10, 2004 1:42 PM > To: Mike Kuo > Subject: Giant Innovation (Shenzhen) Ltd., FCC ID: SLJ433WT, Assessment NO.: > AN04T4268, Notice#3 > > > Received revised test report and statement from manufacturer on Nov.10. > > Question #1: Section 3.1 of test report indicates wrong technical section in > 15.231. Please make necessary correction. > > Question #2: Duty Cycle calculation in section 3.4 of test report. Based > upon section 15.35(c) of FCC rules, additional 1/30 can not be taken into > the consideration. As indicated in the test report, you should use 20 log > 34x1 + 4x2 + 2.967 x 2 )/100 =-6.94 as the duty factor correction factor. > Please take this correction factor into consideration and make necessary > changes to section 3.4 and section 3.3 of test report. > > Question #3: In section 3.3 of test report, there are several spurious > emission / harmonics are within 15.205(a) restricted band table. As > required by section 15.205(b), all spurious emissions in the restricted band > must comply 15.209 general requirement. Please make necessary correction > when reply the question #2. > > Question #4: As required by section 15.231(e) of rules, a statement from > manufacturer to declare the silent period between each transmission is not > enough. The manufacturer provides a technical document to justify how the > device will be limited to have silent period of 14 seconds as declared by > manufacturer. > > Best Regards > > Mike Kuo > > > > The items indicated above must be submitted before processing can continue > on the above referenced application. Failure to provide the requested > information within 30 days of the original e-mail date may result in > application dismissal and forfeiture of the filing fee. Also, please note > that partial responses increase processing time and should not be submitted. > Any questions about the content of this correspondence should be directed to > the e-mail address listed below the name of the sender. > > > 11/23/2004

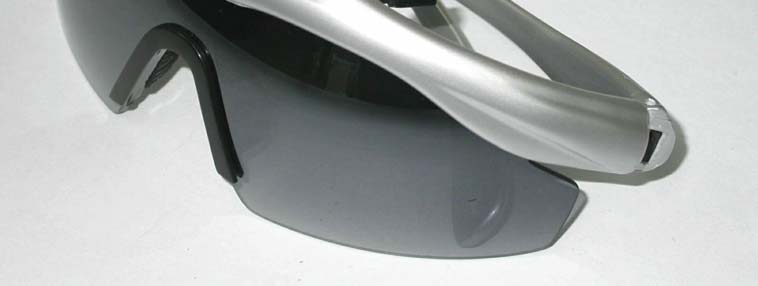

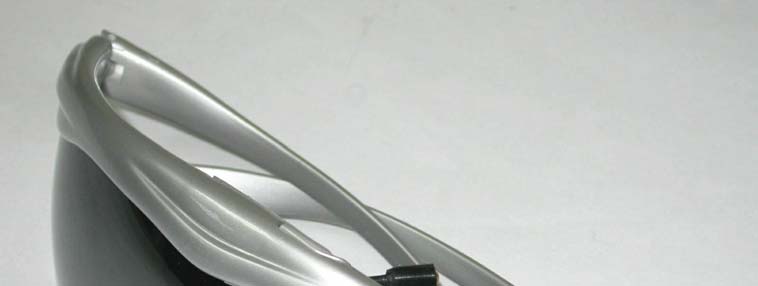

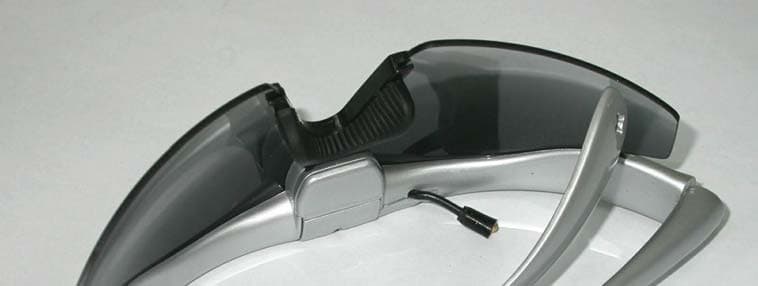

ETC Report No.: ET93S-10-087-01 Page A1 of A1 FCC ID: SLJ433WT ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT

FCC ID Label & Location FCC ID : SLJ433WT 38.25 mm 3.20 mm

ETC Report No.: ET93S-10-087-01 Page B1 of B2 FCC ID: SLJ433WT ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside View 1 of EUT 2. Front view of PCB ETC Report No.: ET93S-10-087-01 Page B2 of B2 FCC ID: SLJ433WT 3. Rear view of PCB

ETC Report No. : ET93S-10-087-01Sheet 1 of 24 Sheets FCC ID.: SLJ433WT Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC 47 CFR, Part 15 Subpart C Report No.: ET93S-10-087-01 Client:Giant Innovation (Shenzhen) Ltd. Product:Glass Transmitter Unit Model:433WT FCC ID:SLJ433WT Manufacturer/supplier:Giant Innovation (Shenzhen) Ltd. Date test item received:2004/10/11 Date test campaign completed:2004/10/11 Date of issue:2004/10/14 The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 24 pages Total number of pages of photos: External photos 1 pages Internal photos 2 pages Setup photos 2 pages Test EngineerChecked ByApproved By MarkJoe HsiehTsung-Ching Lin ELECTRONICS TESTING CENTER, TAIWAN NO.8, LANE 29, WEN-MING RD., LO-SHAN TSUN, KUI-SHAN HSIANG, TAOYUAN HSIEN 333 TAIWAN, R.O.C. TEL: (03) 3276170~4 INT: +886-3-3276170~4 FAX: (03) 3276188 INT: +886-3-3276188 ETC Report No. : ET93S-10-087-01Sheet 2 of 24 Sheets FCC ID.: SLJ433WT Rev. No 1.0 TEST REPORT CERTIFICATION Client: Giant Innovation (Shenzhen) Ltd. Address: 4/F., Elite Building, Nan Shan Road, Nan Shan District, Shenzhen, PR China Manufacturer: Giant Innovation (Shenzhen) Ltd. Address: 4/F., Elite Building, Nan Shan Road, Nan Shan District, Shenzhen, PR China EUT: Glass Transmitter Unit Trade name: Giant Model No.: 433WT Power Source: 3VDC Regulations applied: FCC 47 CFR, Part 15 Subpart C (2004) The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. The compliance test is only certified for the test equipment and the results of the testing report relate only to the item tested. The compliance test of this report was conducted in accordance with the appropriate standards. It’s not intention to assure the quality and performance of the product. This report shall not be reproduced except in full, without the approval of ETC. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Laboratory Introduction: Electronics Testing Center, Taiwan is recognized, filed and mutual recognition arrangement as following: n ISO9001: TüV Product Service o ISO/IEC 17025: BSMI, CNLA, DGT, NVLAP, CCIBLAC, UL, Compliance p Filing: FCC, Industry Canada, VCCI q MRA: Australia, Hong Kong, New Zealand, Singapore, USA, Japan, Korea, China, APLAC through CNLA NVLAP Lab Code 200133-0 ETC Report No. : ET93S-10-087-01Sheet 3 of 24 Sheets FCC ID.: SLJ433WT Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION ...................................................................................................................................... 4 1.1 P RODUCT D ESCRIPTION ................................................................................................................................................ 4 1.2 C HARACTERISTICS OF D EVICE : ...................................................................................................................................... 4 1.3 T EST M ETHODOLOGY .................................................................................................................................................... 4 1.4 T EST F ACILITY ............................................................................................................................................................... 4 2. DEFINITION AND LIMITS ....................................................................................................................................... 5 2.1 D EFINITION .................................................................................................................................................................... 5 2.2 R ESTRICTED B ANDS OF O PERATION .............................................................................................................................. 5 2.3 L IMITATION ................................................................................................................................................................... 6 2.4 L ABELING R EQUIREMENT .............................................................................................................................................. 7 2.5 U SER I NFORMATION ...................................................................................................................................................... 7 3. RADIATED EMISSION MEASUREMENT ............................................................................................................. 8 3.1 A PPLICABLE S TANDARD ................................................................................................................................................ 8 3.2 M EASUREMENT P ROCEDURE .......................................................................................................................................... 8 3.3 T EST D ATA .................................................................................................................................................................. 10 3.4 F IELD S TRENGTH C ALCULATION ................................................................................................................................. 13 3.5 R ADIATED T EST E QUIPMENT ....................................................................................................................................... 13 3.6 M EASURING I NSTRUMENT S ETUP ................................................................................................................................18 4. BANDWIDTH OF EMISSION.......................................................................................................................…

Text truncated - open the document above for the full version.

ETC Report No.:ET93S-10-087-01 Sheet 1 of 2 Sheets FCC ID.: SLJ433WT 1. Radiated Measurement Photos ETC Report No.:ET93S-10-087-01 Sheet 2 of 2 Sheets FCC ID.: SLJ433WT
