SLP27MHZ00160Remote Controller

Block diagram TX: Power Control SPRC12A OSC 27.145MHz + AMP 9V 27MHz TX

ID Label Label FCC ID: SLP27MHZ00160

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Refer to the below arrow.

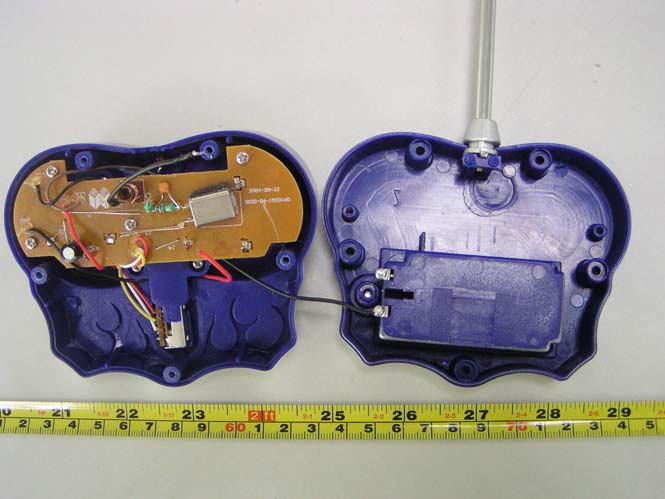

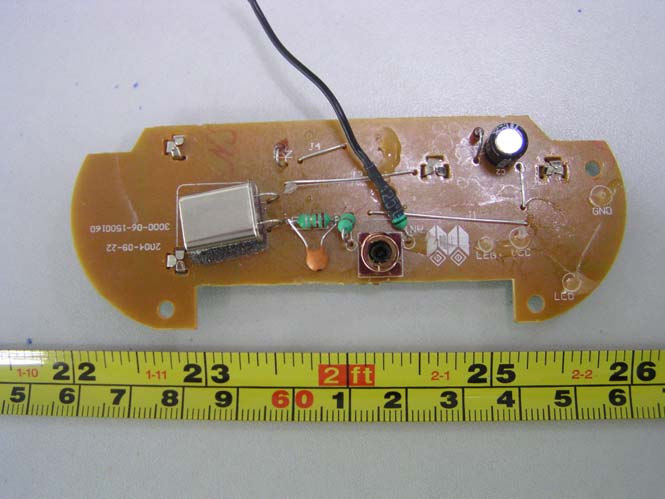

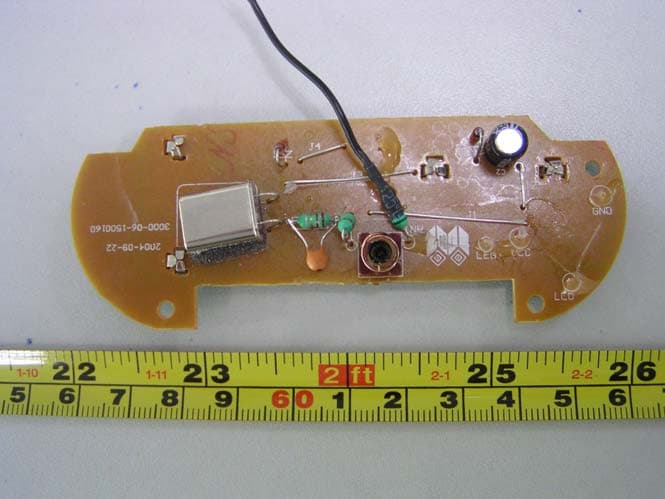

Internal Photos

Circuit Description 27Mhz 00160 1. TX (27MHz) TX is supplied by a 9V battery and regulate 4V3 to the IC SPRC12A. There is a four position selector S5 to select different ID for the TX. In the TX, there are four function keys S1, S2, S3 & S4 to control the RC car (left, right, backward & forward). The modulating signal from IOC1 of SPRC12A will be modulated by carrier frequency 27.145MHz. The modulated signal will be amplified and pass through Q2 & matching network to antenna. The matching network consists of L3, C13 & C14.

1 2 3 4 A B C D 4 3 2 1 D C B A Wah Lung (Shen Zhen) Toys Co. Pro j ect Pro j ect Drawn DatePart Part Sheet Revisio Size 地 ぅ 订 ( 瞏 ) ㄣ Τ そ ANT 27.156MH L4 5.6u C12 200P C1147P Q2 SC1815 L2 2.2u L1 2.2u C9100P Q1 SC1815 C647P R8300 Y1 27.145MH R630K R5 470 D3 S4 F S2R S1 L S3B R1 180 D14.3 + C2 100u C3 104 R7 15K CATX Sunn 11A4 2004-10- C1 223 1 2 BT1 9V L36T C13 100P R947 IOD1 30 IOD6 31 IOD7 32 IOC7 1 IOC6 2 IOC2 3 IOC1 4 VDD 5 VSS 6 ROS 7 TEST 8 RESE 9 AUD 10 VPP 11 VDDT 12 VDD 13 VSS 14 NC 15 VSS 16 OUT2 17 IN2 18 OUT1 19 IN1 20 EN 21 VDD 22 VDD 23 VSS 24 N C 25 N C 26 SCLK 27 SDIO 28 IODO 29 SPRS12A(PLC U1 SPRC12 C40.1u 1 2 4 3 S5 SW DIP- R2100 K R3 100 K D2 IN4148 R4 60.4 27.156M C10 104 C1418P C158P 27.145MHZ TX Schematic

Note: This test report is specially limited to the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC PART 15.227 EMI MEASUREMENT AND TEST REPORT For AHA Toys Inc 709 Main Street Lake Geneva WI 53147 FCC ID: SLP27MHZ00160 October 27, 2004 This Report Concerns: Original Report Equipment Type: Street Beatz RC Test Engineer: Louise Lu Report No.: RSZ04100901 Test Date: October 19-22, 2004 Reviewed By: Chris Zeng Prepared By: Bay Area Compliance Lab Corp. ShenZhen 6/F, the 3nd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, Guangdong 518038, P.R.China Tel: 86-755-33320018 Fax: 86-755-33320008 AHA Toys Inc FCC ID: SLP27MHZ00160 Report # S0410296Rpt.doc Page 2 of 12 FCC Part 15.227 Test Report TABLE OF CONTENTS GENERAL INFORMATION ...................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .................................................................................... 3 OBJECTIVE................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................ 3 TEST METHODOLOGY.................................................................................................................................................. 3 TEST FACILITY............................................................................................................................................................ 3 SYSTEM TEST CONFIGURATION ......................................................................................................................... 4 DESCRIPTION OF TEST CONFIGURATION...................................................................................................................... 4 EQUIPMENT MODIFICATIONS....................................................................................................................................... 4 CONFIGURATION OF TEST SYSTEM.............................................................................................................................. 4 TEST SETUP BLOCK DIAGRAM.................................................................................................................................... 4 SUMMARY OF TEST RESULTS............................................................................................................................... 5 §15.203 – ANTENNA REQUIREMENT .................................................................................................................... 6 §15.205, §15.209, §15.227- RADIATED EMISSION ................................................................................................. 7 MEASUREMENT UNCERTAINTY................................................................................................................................... 7 EUT SETUP................................................................................................................................................................. 7 SPECTRUM ANALYZER SETUP..................................................................................................................................... 7 TEST EQUIPMENT LIST AND DETAILS.......................................................................................................................... 8 TEST PROCEDURE........................................................................................................................................................ 8 CORRECTED AMPLITUDE & MARGIN CALCULATION................................................................................................... 8 TEST DATA.................................................................................................................................................................. 9 §15.227 – OUT OF BAND EMISSION ..................................................................................................................... 10 REQUIREMENT........................................................................................................................................................... 10 TEST PROCEDURE...................................................................................................................................................... 10 TEST EQUIPMENT LIST AND DETAILS........................................................................................................................ 10 AHA Toys Inc FCC ID: SLP27MHZ00160 Report # S0410296Rpt.doc Page 3 of 12 FCC Part 15.227 Test Report GENERAL INFORMATION Product Description for Equipment Under Test (EUT) The AHA Toys Inc’s product, model number: 00160 or the "EUT" as referred to in this report is a Street Beatz RC. The EUT is measured approximately 10.6cmL x 8.0cmW x 3.5cmH. * The test data gathered are from production sample, serial number: 0410001, provided by the manufacturer. Objective This Type approval report is prepared on behalf of AHA Toys Inc in accordance with Part 2,Subpart J, and Part 15, Subparts A, B and C of the Federal Communication Commissions rules. The objective to determine compliance with FCC rules, sec 15.203, 15.205, 15.209 and sec 15.227. Related Submittal(s)/Grant(s) No Related Submittals Test Methodology All measurements contained in this report were conducted with ANSI C63.4 - 2001, American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the range of 9 kHz to 40 GHz. All…

Text truncated - open the document above for the full version.

Test Setup Photos
