SNR-830-00000-00802.11 and Network Utility Application Platform

Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 136 of 152 APPENDIX I: MANUAL Please refer to the following pages. 1 of 26 Pronghorn 802.11 Application Platform Hardware Manual ADI Engineering, Inc. 1769A Worth Park Charlottesville, VA 22911 http://www.adiengineering.com Phone: (434) 978-2888 Fax: (434) 978-1803 2 of 26 COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. Copyright © 2004 ADI Engineering, All Rights Reserved. All other trademarks and brand names are the property of their respective proprietors. LIMITED WARRANTY ADI Engineering guarantees that every Pronghorn 802.11 Application Platform will be free from physical defects in material and workmanship for one year from the date of purchase, when used within the limits set forth in the Specifications section of this User Guide. If the product proves defective during this warranty period, call ADI Engineering Technical Support in order to obtain a Return Authorization number. When returning a product, mark the Return Authorization number clearly on the outside of the package and include a copy of your original proof of purchase. All customers shall be held responsible for return shipping and handling charges. IN NO EVENT SHALL ADI ENGINEERING’S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, ITS ACCOMPANYING SOFTWARE, OR ITS DOCUMENTATION. ADI ENGINEERING OFFERS NO REFUNDS FOR ITS PRODUCTS. ADI Engineering makes no warranty or representation, expressed, implied, or statutory, with respect to its products or the contents or use of this documentation and all accompanying software, and specifically disclaims its quality, performance, merchantability, or fitness for any particular purpose. ADI Engineering reserves the right to revise or update its products, software, or documentation without obligation to notify any individual or entity. Please direct all inquiries to: ADI Engineering, 1769A Worth Park, Charlottesville, VA 22911. SAFETY AND REGULATORY NOTICES FCC STATEMENT The Pronghorn 802.11 Application Platform has been tested and found to comply with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which is found by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment or devices • Connect the equipment to an outlet other than the receiver's • Consult a dealer or an experienced radio/TV technician for assistance FCC Caution: Any change or modification to the product not expressly approved by ADI Engineering could void the user's authority to operate the device. FCC Caution: Operation within the 5150 to 5250GHz band is restricted to indoor use only. FCC RF Radiation Exposure Statement To comply with the FCC and ANSI C95.1 RF exposure limits, the antenna(s) for this device must comply with the following: 3 of 26 • Access points with 2.4 GHz or 5 GHz integrated antenna must operate with a separation distance of at least 20 cm from all persons using the cable provided and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with specific operations for satisfying RF exposure compliance. Note: Dual antennas used for diversity operation are not considered co-located. Canadian Department of Communications Industry Canada (IC) Notice This Class B digital apparatus complies with Canadian ICES-003 and RSS-210. Cet appareil numérique de la classe B est conforme à la norme NMB-003 et CNR-210 du Canada. "To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing." " Pour empêcher que cet appareil cause du brouillage au service faisant l'objet d'une licence, il doit être utilisé à l'intérieur et devrait être placé loin des fenêtres afin de fournir un écran de blindage maximal. Si le matériel (ou son antenne d'émission) est installé à l'extérieur, il doit faire l'objet d'une licence. " Revisions Pronghorn 802.11 Application Platform 4 of 26 Revision 0.04 September 25, 2004 Date Revision Page-paragraph Remarks 6 Aug04 0.01 All New Document based off Coyote manual 20Sep04 0.02 All Incorporated comments from the team 25Sep04 0.03 All Incorporated further comments from team 25Oct04 0.04 All Added Antenna Gain, FCC language Table of Contents Pronghorn 802.11 Application Platform 5 of 26 Revision 0.04 September 25, 2004 1 INTRODUCTION ................................................................................................................................ 8 1.1 TERMS/ACRONYMS......................................................................................................................... 8 2 PLATFORM OVERVIEW.............................................................................…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 131 of 152 APPENDIX D: CONFIDENTIALITY REQUEST LETTER Please refer to the following page.

Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 130 of 152 APPENDIX C: AGENCY AUTHORIZATION LETTER Please refer to the following page.

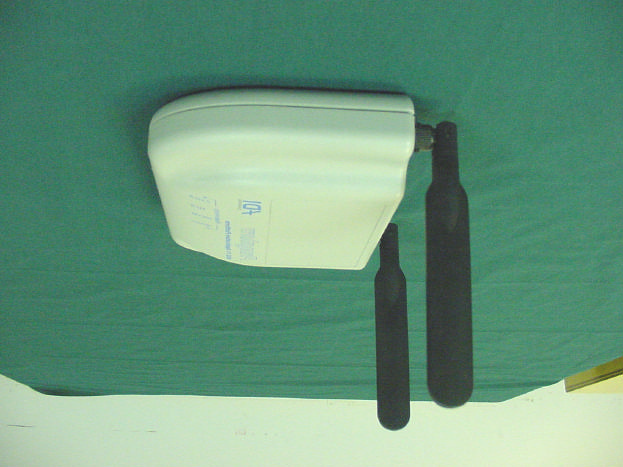

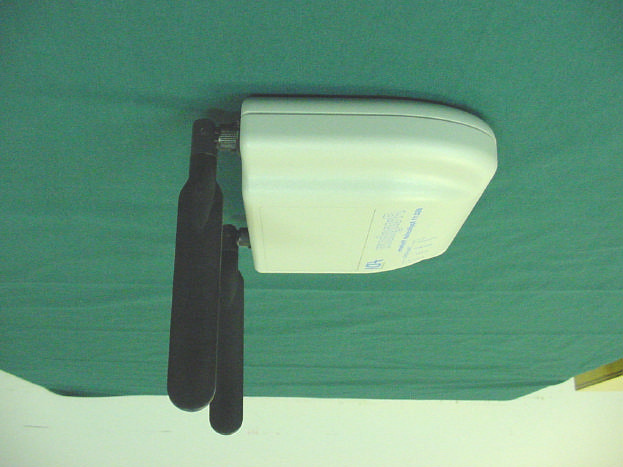

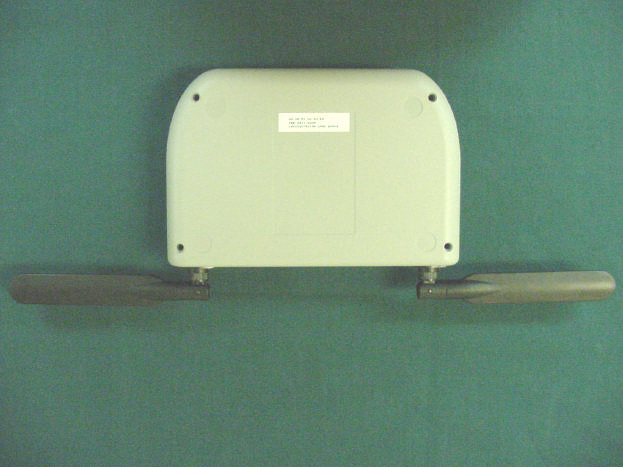

Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 141 of 152 APPENDIX K: EXTERNAL PHOTOGRAPHS PHOTOGRAPH 6: EUT FRONT VIEW Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 142 of 152 PHOTOGRAPH 7: EUT REAR VIEW Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 143 of 152 PHOTOGRAPH 8: EUT TOP VIEW Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 144 of 152 PHOTOGRAPH 9: EUT LEFT SIDE VIEW Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 145 of 152 PHOTOGRAPH 10: EUT RIGHT SIDE VIEW Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 146 of 152 PHOTOGRAPH 11: EUT BOTTOM VIEW

Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 127 of 152 APPENDIX A: RF EXPOSURE COMPLIANCE FCC Rule Part: 47 CFR §90; §2.1091; §1.1310 General Information: • FCC ID: SNR-830-00000-00 • Environment: Occupational (controlled) exposure • Device category: Mobile transceiver per Part 2.1093 Antenna Type(s) Frequency Range (MHz) Antenna Antenna Gain (dBi) Antenna Gain (Numeric) 2412-2462 ½ wave dipole 4.0 2.51 5150–5825 ½ wave dipole 5.0 3.16 Operating Conditions: The ADI Engineering Model Pronghorn 802.11 Application Platform is designed for wireless networks operating in the 2412-2462 MHz and 5150-5825 MHz bands. Test Signal, Maximum Output Power for 100% Duty Cycle: Frequency Range (MHz) Modulation Maximum Output Power (dBm) Maximum Output Power (W) 2412-2462 DSSS/CCK 17.3 0.054 5150-5825 DSSS/CCK 13.9 0.025 From FCC 1.1310 table 1A, the maximum permissible RF exposure for an uncontrolled environment is 1 mW/cm 2. The Electric field generated for a 1mW/cm 2 exposure (S) is calculated as follows: Z E S 2 = where: S = Power density E = Electric field Z = Impedance Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 128 of 152 Therefore, ZSmVE×=)/( 1 mW/cm 2 = 10 W/m 2 The impedance of free space is 337 ohms, where E and H fields are perpendicular. Thus: 37710)/(×=mVE = 61.4 V/m Using the relationship between Electric Field E, Power in watts P, and the distance in meters d, the corresponding Antenna numeric gain G and the transmitter output power. d GP E ×× = 30 Power density: P d (mW/cm 2 ) = 3700 2 E MPE Calculation: The maximum distance from the antenna at which MPE is met or exceeded is calculated from the equation relating field strength E in V/m, transmit power P in Watts, transmit antenna numeric gain G, and separation distance in meters above and solving for d below: E GP d ×× = 30 4.61 51.2054.030 033.0 ×× =m The limit for general population/uncontrolled exposure environment is 1 mW/cm 2 Frequency Range (MHz) Separation distance (cm) Separation distance (in) 2412-2462 3.3 1.3 5150-5825 2.5 0.98

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368; Fax: 703-689-2056; Metro: 703-471-6441 CERTIFICATION APPLICATION REPORT FCC PART 15.247/15.407 & INDUSTRY CANADA RSS-210 Test Lab: Rhein Tech Laboratories, Inc. Phone: 703-689-0368 360 Herndon Parkway Fax: 703-689-2056 Suite 1400 Web Site:www.rheintech.com Herndon, VA 20170 E-Mail: [email protected] Applicant: ADI Engineering Phone: 434-357-1676 1769A Worth Park Fax: 434-978-2888 Charlottesville, VA 22911 Contact: Ted Boone Email: [email protected] FCC ID / IC ID: SNR-830-00000-00 / 5473A-83000000 GRANTEE FRN NUMBER: 0011914082 PLATFORM: 802.11 Application Platform RTL WORK ORDER NUMBER: 2004142 MODEL NAME/NUMBER: Pronghorn / DEVKIT01 RTL QUOTE NUMBER: QRTL04-279B DATE OF TEST REPORT: November 19, 2004 American National Standard Institute: ANSI C63.4: Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz FCC Classification: DSS – Part 15 Spread Spectrum Transmitter FCC Rule Part(s): FCC Rules Part 15.247: Operation within the bands 920-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz Direct Sequence System FCC Rules Part 15.407 (Subpart E): Unlicensed National Information Infrastructure Devices 97-114: Amendment of Parts 2 and 15 of the Commission's Rules Regarding Spread Spectrum Transmitters; ET Docket No. 96-8 Industry Canada: RSS-210: Low Power License-Exempt Communications Devices Digital Interface Information Digital Interface was found to be compliant Frequency Range (MHz) Output Power (W) Frequency Tolerance Emission Designator 2412-2462 0.054 +/-0.01% N/A 5150-5350 0.026 +/-0.01% N/A 5725-5850 0.021 +/-0.01% N/A I, the undersigned, hereby declare that the equipment tested and referenced in this report conforms to the identified standard(s) as described in this test report. No modifications were made to the equipment during testing in order to achieve compliance with these standards. Furthermore, there was no deviation from, additions to, or exclusions from the FCC Part 2, FCC Part 15, FCC 97-114, ANSI C63.4, and Industry Canada RSS-210. Signature: Date: November 19, 2004 Typed/Printed Name: Desmond A. Fraser Position: President This report may not be reproduced, except in full, without the written approval of Rhein Tech Laboratories, Inc. The test results relate only to the item(s) tested. Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 2 of 152 TABLE OF CONTENTS 1 GENERAL INFORMATION..........................................................................................................9 1.1 Scope.............................................................................................................................................................................9 1.2 Description of EUT.......................................................................................................................................................9 1.3 Test Facility...................................................................................................................................................................9 1.4 Related Submittal(s)/Grant(s).....................................................................................................................................9 1.5 Modifications.................................................................................................................................................................9 2 TEST INFORMATION................................................................................................................10 2.1 Description of Test Modes........................................................................................................................................10 2.2 Exercising the EUT....................................................................................................................................................10 2.3 Test Result Summary................................................................................................................................................11 2.4 Test System Details...................................................................................................................................................12 2.5 Configuration of Tested System...............................................................................................................................13 3 COMPLIANCE WITH FCC §15.204............................................................................................13 4 TEST RESULTS FOR 802.11B AND 802.11G............................................................................14 4.1 Conducted Emissions Measurement Limits – FCC §15.207; RSS-210 §9.......................................................14 4.1.1 Limits of Conducted Emissions Measurement............................................................................................................14 4.1.2 Conducted Emissions Measurement Test Procedure.................................................................................................14 4.1.3 Conducted Test Data.................................................................................................................................................15 4.2 Radiated Emissions - §15.209; RSS-210 §6.2.1...................................................................................................19 4.2.1 Limits of Radiated Emissions Measurement...............................................................................................................19 4.2.2 Radiated Emissions Measurement Test Procedure..................................................................................…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 57 of 152 5 TEST RESULTS FOR 802.11A 5.1 CONDUCTED EMISSIONS MEASUREMENT – FCC §15.207; RSS-210 §9 5.1.1 LIMITS OF CONDUCTED EMISSIONS MEASUREMENT Frequency of Emission (MHz) Conducted Limit (dBuV) Quasi-peak Average 0.15-0.5 66-56 56-46 0.5-5.0 56 46 5.0-30.0 60 50 5.1.2 CONDUCTED EMISSIONS MEASUREMENT TEST PROCEDURE The EUT was placed 0.4 meters from the conducting bulkhead of the shielded room. The EUT was connected to mains through a line impedance stabilization network (LISN). The LISN provides 50 ohm/50 uH coupling impedance to the measuring receiver. The test frequency range was from 150 kHz to 30 MHz. TABLE 5-1: CONDUCTED EMISSIONS TEST EQUIPMENT RTL ASSET # MANUFACTURER MODEL PART TYPE SERIAL NUMBER CALIBRATION DUE DATE 900931 Hewlett Packard 8566B Spectrum Analyzer (100 Hz – 22 GHz) 3138A07771 6/23/05 900896 Hewlett Packard 85662A Display Section 2816A16471 2/27/05 900897 Hewlett Packard 8567A HP Spectrum Analyzer (10 kHz - 1.5 GHz) 2727A00535 2/27/05 900729 Solar 8130 Filter 947306 N/A 901084 AFJ International LS16/110VAC 16A LISN 16010020082 12/4/04 901083 AFJ International LS16 LISN 16010020080 3/24/06 900889 Hewlett Packard 85685A RF Preselector for HP 8566B or 8568B (20 Hz – 2 GHz) 3146A01309 3/10/05 900930 Hewlett Packard 85662A Spectrum Analyzer Display Section 3144A20839 6/23/05 Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 58 of 152 5.1.3 CONDUCTED TEST DATA PLOT 5-1: CONDUCTED TEST DATA; MODE TX, CHANNEL 1, NEUTRAL SIDE (LINE 1) Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 59 of 152 PLOT 5-2: CONDUCTED TEST DATA; MODE TX, CHANNEL 1, HOT SIDE (LINE 2) Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 60 of 152 PLOT 5-3: CONDUCTED TEST DATA; MODE TX, CHANNEL 4, NEUTRAL SIDE (LINE 1) Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 61 of 152 PLOT 5-4: CONDUCTED TEST DATA; MODE TX, CHANNEL 4, HOT SIDE (LINE 2) Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 62 of 152 PLOT 5-5: CONDUCTED TEST DATA; MODE TX, CHANNEL 5, NEUTRAL SIDE (LINE 1) Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 63 of 152 PLOT 5-6: CONDUCTED TEST DATA; MODE TX, CHANNEL 5, HOT SIDE (LINE 2) Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 64 of 152 PLOT 5-7: CONDUCTED TEST DATA; MODE TX, CHANNEL 8, NEUTRAL SIDE (LINE 1) Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 65 of 152 PLOT 5-8: CONDUCTED TEST DATA; MODE TX, CHANNEL 8, HOT SIDE (LINE 2) Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 66 of 152 PLOT 5-9: CONDUCTED TEST DATA; MODE TX, CHANNEL 9, NEUTRAL SIDE (LINE 1) Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 67 of 152 PLOT 5-10: CONDUCTED TEST DATA; MODE TX, CHANNEL 9, HOT SIDE (LINE 2) Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 68 of 152 PLOT 5-11: CONDUCTED TEST DATA; MODE TX, CHANNEL 11, NEUTRAL SIDE (LINE 1) Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 69 of 152 PLOT 5-12: CONDUCTED TEST DATA; MODE TX, CHANNEL 11, HOT SIDE (LINE 2) Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 70 of 152 PLOT 5-13: CONDUCTED TEST DATA; MODE TX, CHANNEL 13, NEUTRAL SIDE (LINE 1) Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 71 of 152 PLOT 5-14: CONDUCTED TEST DATA; MODE TX, CHANNEL 13, HOT SIDE (LINE 2) Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Mode…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 96 of 152 6.5 COMPLIANCE WITH THE BAND EDGE – FCC §15.247(C), §15.205; RSS-210 §6.6.2(Q1) 6.5.1 LIMITS OF BAND EDGE MEASUREMENT Below -20 dB of the highest emission level of operating band (in 100 kHz resolution bandwidth). 6.5.2 BAND EDGE TEST PROCEDURE The transmitter output was connected to a spectrum analyzer through a low loss cable. The RBW was set to 1 MHz and the VBW was set to 10 Hz with a suitable span including 100 MHz bandwidth from band edge. For signals in the restricted band above and below 5150 and 5350 MHz, a measurement of the amplitude of the spurious emissions was made with respect to the intentional signal. The relative amplitude, in dBc, was applied to the average measurement using the peak field strength which was measured on the OATS site to calculate the field strength of the unintentional signals. TABLE 6-9: BAND EDGE TEST EQUIPMENT RTL ASSET # MANUFACTURER MODEL PART TYPE SERIAL NUMBER CALIBRATION DUE DATE 900931 Hewlett Packard 8566B Spectrum Analyzer (100 Hz – 22 GHz) 3138A07771 6/23/05 Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 97 of 152 6.5.3 RESTRICTED BAND EDGE TEST RESULTS 6.5.3.1 CALCULATION OF LOWER BAND EDGE 72.2 dBuV/m is the field strength measurement, from which the delta measurement of 48.6 dB is subtracted (reference plots), resulting in a level of 23.6 dB. This level has a margin of 30.4 dB below the limit of 54 dBuV/m. Calculation: 72.2 dBuV/m – 48.6 dB – 54 dBuV/m = -30.4 dB Field strength of Lower Band Edge (1 MHz RBW/10 Hz VBW) = 72.2 dBuV/m Delta measurement = 48.6 dB PLOT 6-11: LOWER BAND EDGE: PEAK MEASUREMENT CHANNEL 1 (TX FREQUENCY: 5180 MHZ) Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 98 of 152 PLOT 6-12: LOWER BAND EDGE: AVERAGE MEASUREMENT CHANNEL 1 (TX FREQUENCY: 5180 MHZ) Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 99 of 152 6.5.3.2 CALCULATION OF UPPER BAND EDGE 95.27 dBuV/m is the field strength measurement, from which the delta measurement of 54.4 dB is subtracted (reference plots), resulting in a level of 40.76 dB. This level has a margin of 13.23 dB below the limit of 54 dBuV/m. Calculation: 95.27 dBuV/m – 54.4 dB – 54 dBuV/m = -13.23 dB Field strength of Lower Band Edge (1 MHz RBW/10 Hz VBW) = 95.27 dBuV/m Delta measurement = 54.4 dB PLOT 6-13: UPPER BAND EDGE: PEAK MEASUREMENT CHANNEL 8 (TX FREQUENCY: 5320 MHZ) Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 100 of 152 PLOT 6-14: UPPER BAND EDGE: AVERAGE MEASUREMENT CHANNEL 8 (TX FREQUENCY: 5320 MHZ) Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 101 of 152 6.5.3.3 CALCULATION OF LOWER BAND EDGE 72.71 dBuV/m is the field strength measurement, from which the delta measurement of 45.1 dB is subtracted (reference plots), resulting in a level of 27.61 dB. This level has a margin of 26.39 dB below the limit of 54 dBuV/m. Calculation: 103.4 dBuV/m – 45.1 dB – 54 dBuV/m = -26.39 dB Field strength of Lower Band Edge (1 MHz RBW/10 Hz VBW) = 72.71 dBuV/m Delta measurement = 45.1 dB PLOT 6-15: LOWER BAND EDGE: PEAK MEASUREMENT CHANNEL 1 TURBO (TX FREQUENCY: 5210 MHZ) Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 102 of 152 PLOT 6-16: LOWER BAND EDGE: AVERAGE MEASUREMENT CHANNEL 1 TURBO (TX FREQUENCY: 5210 MHZ) Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 103 of 152 6.5.3.4 CALCULATION OF UPPER BAND EDGE 72.71 dBuV/m is the field strength measurement, from which the delta measurement of 47.4 dB is subtracted (reference plots), resulting in a level of 25.31 dB. This level has a margin of 28.69 dB below the limit of 54 dBuV/m. Calculation: 72.71 dBuV/m – 47.4 dB – 54 dBuV/m = -28.69 dB Field strength of Lower Band Edge (1 MHz RBW/10 Hz VBW) = 72.71 dBuV/m Delta measurement = 47.4 dB PLOT 6-17: UPPER BAND EDGE: PEAK MEASUREMENT CHANNEL 1 TURBO (TX FREQUENCY: 5210 MHZ) Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 104 of 152 PLOT 6-18: UPPER BAND EDGE: AVERAGE MEASUREMENT CHANNEL 1 TURBO (TX FREQUENCY: 5210 MHZ) TEST PERSONNEL: Daniel W. Biggs September 28 & October 26, 2004 EMC Test Engineer Signature Dates Of Tests Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 105 of 152 6.6 ANTENNA CONDUCTED SPURIOUS EMISSIONS - §15.247(C); RSS-210 §6.6.2(Q1) …

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 137 of 152 APPENDIX J: TEST PHOTOGRAPHS PHOTOGRAPH 2: RADIATED TESTING – FRONT VIEW Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 138 of 152 PHOTOGRAPH 3: RADIATED TESTING – REAR VIEW Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 139 of 152 PHOTOGRAPH 4: CONDUCTED TESTING Rhein Tech Laboratories, Inc. Client: ADI Engineering 360 Herndon Parkway Model: Pronghorn Suite 1400 Standards: FCC 15.247/407 & RSS-210 FCC ID: SNR-830-00000-00 Herndon, VA 20170 http://www.rheintech.com Report #: 2004142 Page 140 of 152 PHOTOGRAPH 5: FREQUENCY STABILITY TESTING
