SO3U202528BSelf-ballasted lamp

Energy Saving Lamp Introduction ·Conserves natural resources by at least saving 80% electricity than incandescent bulbs. ·About 10 times lamp life than a standard incandescent bulb. Notice For Use ·N ever use with the following fixtures: dimming circuit emergency lighting fixtures electronic timer fixtures direct current fixtures ·Use only at the rated voltage and frequency circuit. The power voltage must be in the range of 120V±10%. ·Use indoor only. Never use it where water may drop on the lamp or where the atmosphere is humid. ·Do not use in enclosed fixture, Or the lamp’s life would be shorten. ·Always turn off the switch when replacing or cleaning the lamp. Remove and install it by grasping only the plastic portion of the lamp. ·Added weight may cause instability of free-standing portable lamps in which the distance from the bottom of the base to top of the lamp hold dose not exceed 3 times minimum vase width. Use only with portable lamps which are provided with lamp shade. ·This product complies with Part 18 of the FCC Rules but may cause interference to radios, television , wireless telephones, and remote controls. If interference occurs, move product away from the device or plug either into a different outlet. ·The lamps are designed to start at very low supply voltages down to about 108VAC and even lower if required, they are also designed to tolerate short term very high supply voltage surges up to 132VAC. These features are most important for developing area where the supply voltage can fluctuate widely. · They have short circuit protection ,all plastic materials used are certified Fire Retardant, they can be safely operated in the temperature range of -20°C to +65°C

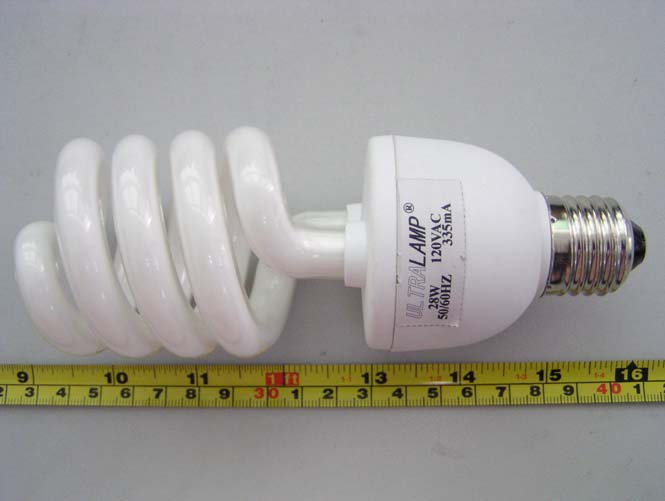

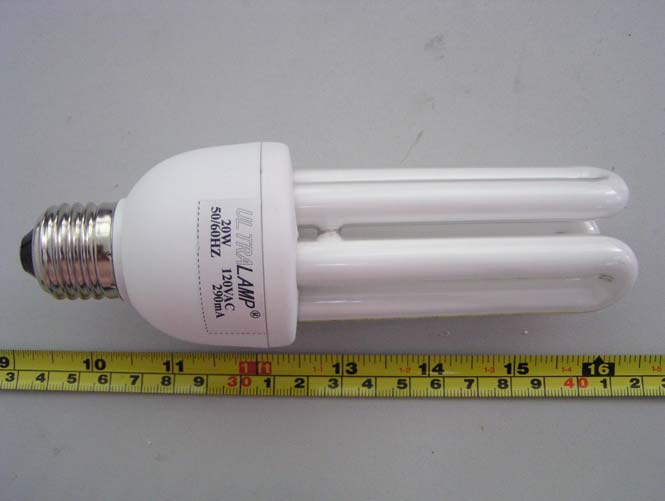

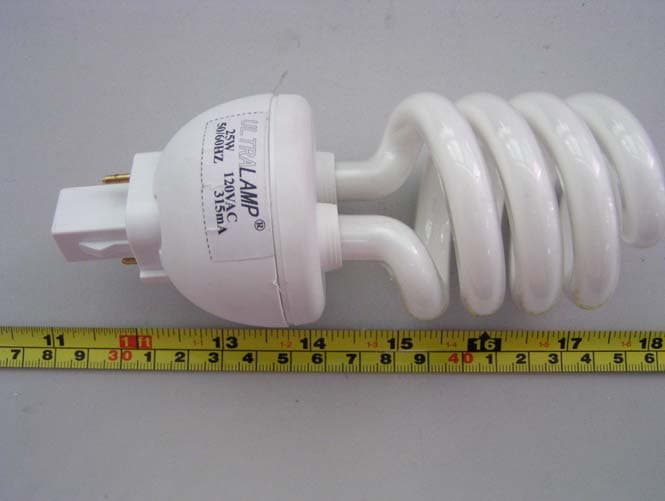

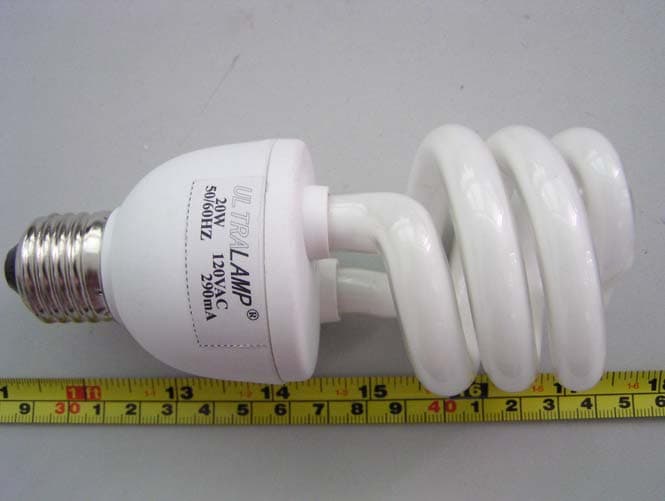

External Photos SL20B-120: EUT View SL25B-120: EUT View SL28B-120: EUT View IL20B-120: EUT View

ID Label Label

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Refer to the below arrow.

Internal Photos SL20B-120: EUT - Uncovered View SL20B-120: EUT - PCB Front View SL20B-120: EUT -PCB Rear View SL25B-120: EUT - Uncovered View SL25B-120: EUT - PCB Front View SL25B-120: EUT -PCB Rear View SL28B-120: EUT - Uncovered View SL28B-120: EUT - PCB Front View SL28B-120: EUT -PCB Rear View IL20B-120: EUT - Uncovered View IL20B-120: EUT - PCB Front View IL20B-120: EUT -PCB Rear View

NO Part No Component component Specification QTY Location Productiom Factory 1 HT026 Plastics - Component top-housing diameter：54mm 1 XIULISHENG COMPANY 2 HT027 Plastics - Component Bottom-housing diameter：54mm 1 XIULISHENG COMPANY 3 MH004 cap E 26 nickel plated bronze 1 GUANGMING OR DONG SHANG 4 BS021 tube 3U 20W 5000K lamplength ： 95 ± 2mm 1 SHANG AO/YILANG COMPANY 5 PB037 Printed Wiring Boards - Component IL25B-120-VER1 ETL-XPC-801 94-V0 1 ZHIXUAN ELECTRIC FACTORY 6 CM011 Capacitor MEF-473-150VAC+ 10% P=10mm 120 °C 2 C1C2 WannBao Capacitor Factory 7 CY061 Capacitor PEI-223-100VDC+ 10% 120 °C 1 C5 WannBao Capacitor Factory 8 CY062 Capacitor PEI-103-1000VDC+ 10% 120 °C 1 C7 WannBao Capacitor Factory 9 CY061 Capacitor PEI-392-1000VDC+ 10% 120 °C 1 C6 WannBao Capacitor Factory 10 CY056 Capacitor PEI-473-400VDC+ 10% 120 °C 1 C8 WannBao Capacitor Factory 11 CY107 Capacitor CL12-511-630VDC+ 10% 120 °C 1 C9 WannBao Capacitor Factory 12 CE038 Electrolytic capacitor 22uF/200VDC±20% 105 0 C RK 10m×20mm 2 C4 C3 HONGYI COMPANY 13 DO010 Diode 1N4007 V RMS =700V IO=1.0A T STG = -65to +175 °C 4 D1~D4 YINGHECOMPANY 14 DO004 Diode FR104 V RMS =280V IO=1.0A T STG =-65to +150 °C 3 D6D8D9 YINGHECOMPANY 15 DO002 Triggering Diode DB3 V BO =28-36V I BO =100mA T STG =-40to +125 °C 1 D7 YINGHECOMPANY 16 TR019 Transistor BUL128 T j =150 °C V CES =700V I C =4.0A TO-220 2 TR1TR2 SGS-THOMSON 17 RC125 Resistor RT-0.5-680K Ω + 5% 1 R2 JINGTIAN RESISTOR FACTORY 18 RC126 Resistor RT-0.5-470K Ω + 5% 1 R7 JINGTIAN RESISTOR FACTORY 19 RC127 Thermistor WMZH-75A&SPMZA-5 （ 200-300R ） 1 R8 XINGSHANGBAO FACTORY 20 RC128 Resistor RT-0.25-22 Ω + 5% 3 R3R4R9 JINGTIAN RESISTOR FACTORY 21 RC129 Resistor RT-0.25-0.5 Ω + 5% 2 R5R6 JINGTIAN RESISTOR FACTORY 22 RC130 Resistor RT-0.25-10K Ω + 5% 1 R10 JINGTIAN RESISTOR FACTORY 23 LI053 Inductor DR10*16 4.0mH OD:0.25mm/320T 1 L1 SHENZHEN TRANSFORMER ELECTORNICS CO.,LTD 24 LI016 Inductor EE19 3.6mH%±5% 1 L2 SHENZHEN TRANSFORMER ELECTORNICS CO.,LTD 25 LF004 Magnetic coil T9×5×3 3T:4T:3T 1 T DENGYI 26 WC003 Magnetic coil wire AWG#30 UL1423 L=140mm each red /green 2 T fittings1 YONGSHENG 27 WC003 Magnetic coil wire AWG#30 UL1423 L=120mm white 1 T fittings2 YONGSHENG 28 WS007 Appliance Wiring Material - Com p onen t UL1007 #22 1/0.643 5+75+15=90mm white 300V VW-1 2 LN CHINA LONSID ELECTRIC CO LTD 29 FT013 Fuses, Supplemental TSA, FAP+ 0.315/250VAC 3.6*10 1 F1 WALTER ELECTRONIC CO LTD 30 WS010 Sleeving, Flame Retardant -Component GS30-2E diameter:1.0mm length:12mm 4 ABCD fittings2 WISE-KEY INSULATORS & CHEMICALS MFG CO LTD 31 WS010 Sleeving, Flame Retardant -Component GS30-2E diameter:1.0mm length:10mm 2 C4 fittings2 WISE-KEY INSULATORS & CHEMICALS MFG CO LTD 32 WS010 Tubing, Extruded Insulating - Component KUHS-225 diameter:10mm length:18mm 1 L1 fittings2 UNICHEM CO LTD Product Model No ： IL20B-120 33 WS010 Tubing, Extruded Insulating - Component KUHS-225 diameter:10mm length:90mm 1 F1 fittings1 UNICHEM CO LTD NOPart NoComponentcomponent SpecificationQTY LocationProductiom Factory 1 HT026 Plastics - Component top-housing diameter：54mm 1 XIULISHENG COMPANY 2 HT027 Plastics - Component Bottom-housing diameter：54mm 1 XIULISHENG COMPANY 3 MH004capE26 nickel plated bronze1GUANGMING OR DONG SHANG 4 BS021tube 20W spiral 5000K lamplength：73± 2mm Turns:3 1 SHANG AO/YILANG COMPANY 5PB037 Printed Wiring Boards - Component IL25B-120-VER1 ETL-XPC-801 94-V0 1 ZHIXUAN ELECTRIC FACTORY 6CM011 Capacitor MEF-473-150VAC+ 10% 120°C 2 C1C2 WannBao Capacitor Factory 7CY061 Capacitor PEI-223-100VDC+ 10% 120°C 1 C5 WannBao Capacitor Factory 8CY062 Capacitor PEI-103-1000VDC+ 10% 120°C 1 C7 WannBao Capacitor Factory 9CY061 Capacitor PEI-392-1000VDC+ 10% 120°C 1C6 WannBao Capacitor Factory 10CY056 Capacitor PEI-473-400VDC+ 10% 120°C 1C8 WannBao Capacitor Factory 11CY107 Capacitor CL12-511-630VDC+ 10% 120°C 1C9 WannBao Capacitor Factory 12CE038 Electrolytic capacitor 22uF/200VDC±20% 105 0 C RK 10m×20mm 2C4 C3HONGYI COMPANY 13 DO010Diode 1N4007 V RMS =700V IO=1.0A T STG =-65to +175°C 4 D1~D4YINGHECOMPANY 14 DO004Diode FR104 V RMS =280V IO=1.0A T STG =-65to +150°C 3 D6D8D9YINGHECOMPANY 15 DO002 Triggering Diode DB3 V BO =28-36V I BO =100mA T STG =-40to +125°C 1 D7YINGHECOMPANY 16TR019Transistor BUL128 T j =150°C V CES =700V I C =4.0A TO-220 2TR1TR2SGS-THOMSON 17RC125Resistor RT-0.5-680KΩ+ 5% 1R2 JINGTIAN RESISTOR FACTORY 18RC126Resistor RT-0.5-470KΩ+ 5% 1R7 JINGTIAN RESISTOR FACTORY 19RC127Thermistor WMZH-75A&SPMZA-5（200-300R） 1R8XINGSHANGBAO FACTORY 20RC128Resistor RT-0.25-22Ω+ 5% 3R3R4R9 JINGTIAN RESISTOR FACTORY 21RC129Resistor RT-0.25-0.5Ω+ 5% 2R5R6 JINGTIAN RESISTOR FACTORY 22RC130Resistor RT-0.25-10KΩ+ 5% 1R10 JINGTIAN RESISTOR FACTORY 23LI053InductorDR10*16 4.0mH OD:0.25mm/320T1L1 SHENZHEN TRANSFORMER ELECTORNICS CO.,LTD 24LI016InductorEE19 3.6mH%±5% 1L2 SHENZHEN TRANSFORMER ELECTORNICS CO.,LTD 25LF004Magnetic coilT9×5×3 3T:4T:3T1TDENGYI 26WC003Magnetic coil wireAWG#30 UL1423 L=140mm each red /green2T fittings1YONGSHENG 27WC003Magnetic coil wireAWG#30 UL1423 L=120mm white1T fittings2YONGSHENG 28WS007 Appliance Wiring Material - Com ponent UL1007 #22 1/0.643 5+75+15=90mm white 300V VW-1 2LN CHINA LONSID ELECTRIC CO LTD 29FT013 Fuses, Supplemental TSA, FAP+ 0.315/250VAC 3.6*101F1 WALTER ELECTRONIC CO LTD 30WS010 Sleeving, Flame Retardant - Component GS30-2E diameter:1.0mm length:12mm 4 ABCD fittings2 WISE-KEY INSULATORS & CHEMICALS MFG CO LTD 31WS010 Sleeving, Flame Retardant - Component GS30-2E diameter:1.0mm length:10mm 2 C4 fittings2 WISE-KEY INSULATORS & CHEMICALS MFG CO LTD 32WS010 Tubing, Extruded Insulating - Component KUHS-225 diameter:10mm length:18mm 1 L1 fittings2 UNICHEM CO LTD 33WS010 Tubing, Extruded Insulating - Component KUHS-225 diameter:10mm length:90mm 1 F1 fittings1 UNICHEM CO LTD Product Model No：SL20B-120 NOPart NoComponentcomponent SpecificationQTY LocationProductiom Factory 1 HT026 Plastics - Component top-housing diameter：58mm 1 XIULISHENG COMPANY 2 HT027 Plastics - Component Bottom-housing …

Text truncated - open the document above for the full version.

Note: The test report is specially limited to the above company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 18 MEASUREMENT AND TEST REPORT For Dongguan Ultralite Electronics Co., Ltd. No. 48 Shangnan Road, Shangjiao, ChangAn, Dongguan, Guangdong, China FCC ID: SO3U202528B December 17, 2004 This Report Concerns: Original Report Equipment Type: Self-ballasted lamp Test Engineer: Louise Lu Report Number RSZ041112106 Test Date: December 11, 2004 Reviewed By: Chris Zeng Prepared By: Bay Area Compliance Lab Corp. (ShenZhen) 6/F, the 3nd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, Guangdong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 Dongguan Ultralite Electronics Co., Ltd. FCC ID: SO3U202528B Report # RSZ041112106.doc Page 2 of 11 FCC Part 18 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................4 JUSTIFICATION.............................................................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 CONFIGURATION OF TEST SYSTEM..............................................................................................................................4 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................4 CONDUCTED EMISSION...........................................................................................................................................5 MEASUREMENT UNCERTAINTY....................................................................................................................................5 EUT SETUP..................................................................................................................................................................5 EMI TEST RECEIVER SETUP........................................................................................................................................5 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................6 TEST PROCEDURE........................................................................................................................................................6 TEST DATA..................................................................................................................................................................6 PLOT(S) OF TEST DATA................................................................................................................................................8 Dongguan Ultralite Electronics Co., Ltd. FCC ID: SO3U202528B Report # RSZ041112106.doc Page 3 of 11 FCC Part 18 Report GENERAL INFORMATION Product Description for Equipment Under Test (EUT) The Dongguan Ultralite Electronics Co., Ltd. ’s model SL20B-120, SL25B-120, SL28B-120,IL20B-120 or the “EUT” as referred to in this report is a Self-ballasted lamp which measures approximately SL20B-120: 14.5cm L x 6.3cm W x 6.3cm H, SL25B-120: 15.2cm L x 6.3cm W x 6.3cm H, SL28B-120: 16.0cm L x 6.3cm W x 6.3cm H, IL20B-120: 16.5cm L x 5.5cm W x 5.5cm H, rated input voltage: AC 120 V/60 Hz. * The test data gathered are from production sample, SL20B-120 serial number: 0001200202901, SL25B-120 serial number: 0001200253150, SL28B-120 serial number: 0001200283350, IL20B-120 serial number: 0001200202900, provided by the manufacturer. Objective The following test report is prepared on behalf of Dongguan Ultralite Electronics Co., Ltd. in accordance with Part 2, Subpart J, and Part 18, Subparts A, B, and C of the Federal Communication Commissions rules and regulations. The objective is to determine compliance with FCC rules. Related Submittal(s)/Grant(s) No Related Submittals. Test Methodology All measurements contained in this report were conducted with MP-5, FCC Methods of Measurements of Radio Noise Emissions from ISM Equipment, February 1986. All radiated and conducted emissions measurement was performed at Bay Area Compliance Laboratory Corp. The radiated testing was performed at an antenna-to-EUT distance of 3 Meters. Test Facility Test site at Bay Area Compliance Laboratory Corporation has been fully described in reports submitted to the Federal Communication Commission (FCC) and Voluntary Control Council for Interference (VCCI). The details of these reports has been found to be in compliance with the requirements of Section 2.948 of the …

Text truncated - open the document above for the full version.

Test Setup Photos SL20B-120: Conducted Emission– Front View SL20B-120: Conducted Emission– Side View SL25B-120: Conducted Emission– Front View SL25B-120: Conducted Emission– Side View SL28B-120: Conducted Emission– Front View SL28B-120: Conducted Emission– Side View IL20B-120: Conducted Emission– Front View IL20B-120: Conducted Emission– Side View
