SP2-CC4-S02

Toshiba Information Systems (UK) Ltd, Mobile Communications Division

GSM 900/1800/1900/UMTS Mobile phone with Bluetooth

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Mar 02, 2006
Application Purpose: Original Equipment
Date of Application: Mar 02, 2006
Equipment Note: GSM 900/1800/1900/UMTS Mobile phone with Bluetooth
Frequency Range: 1850.20000000 - 1909.80000000
Company: Toshiba Information Systems (UK) Ltd, Mobile Communications Division
Country: United Kingdom

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

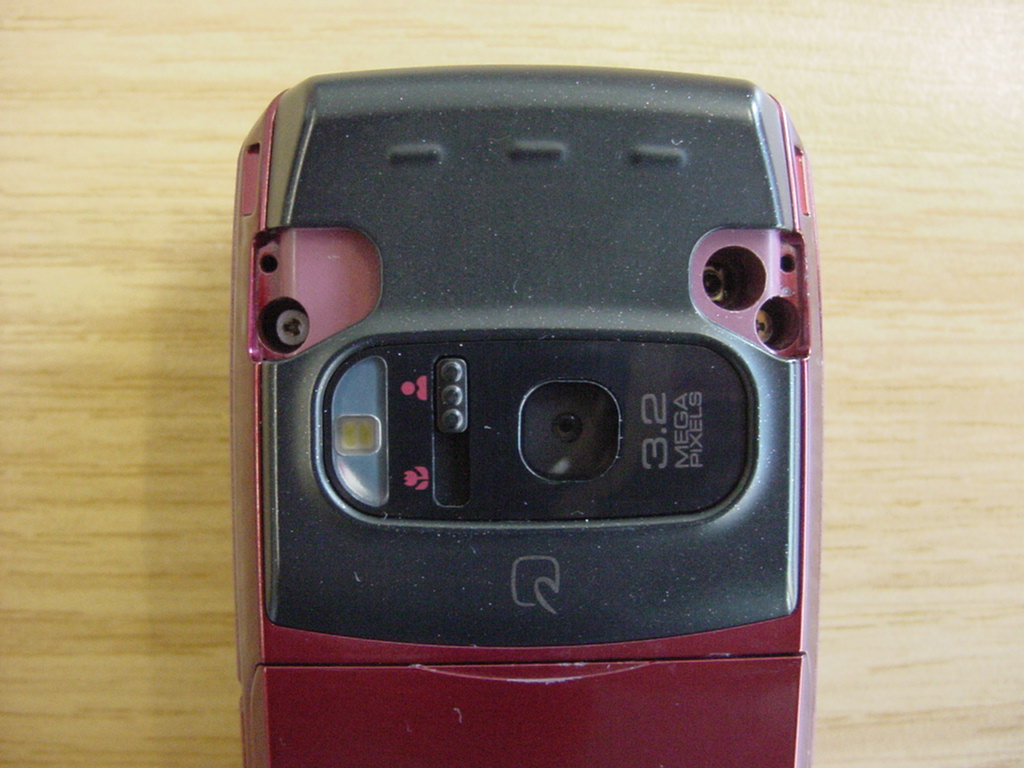

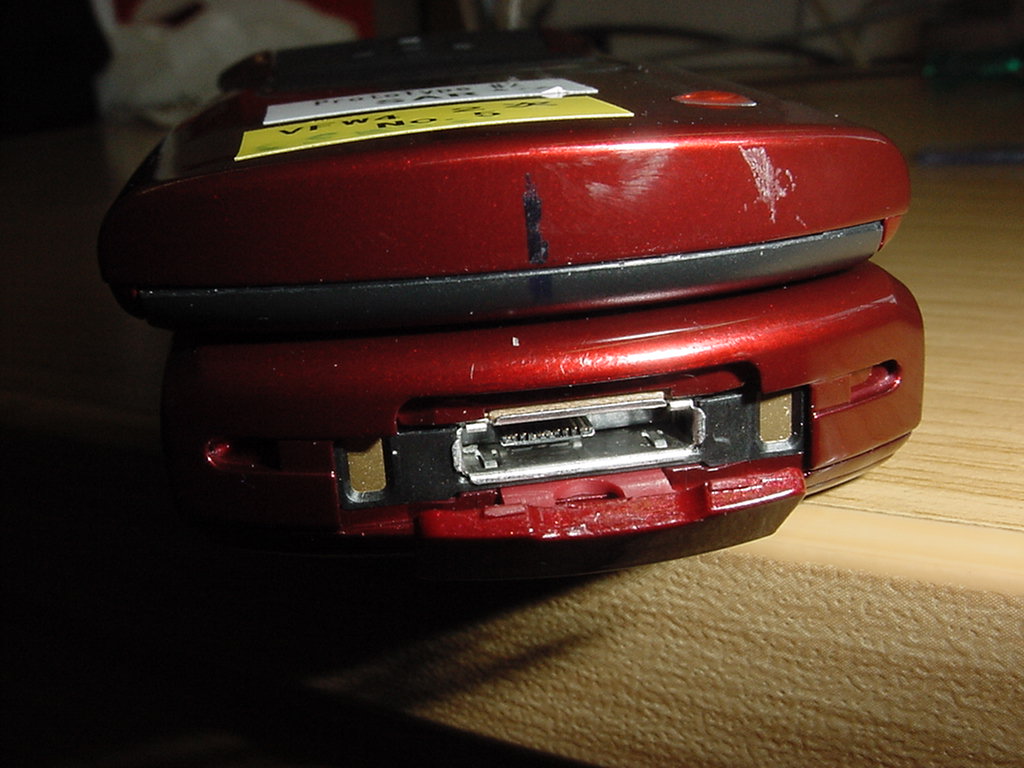

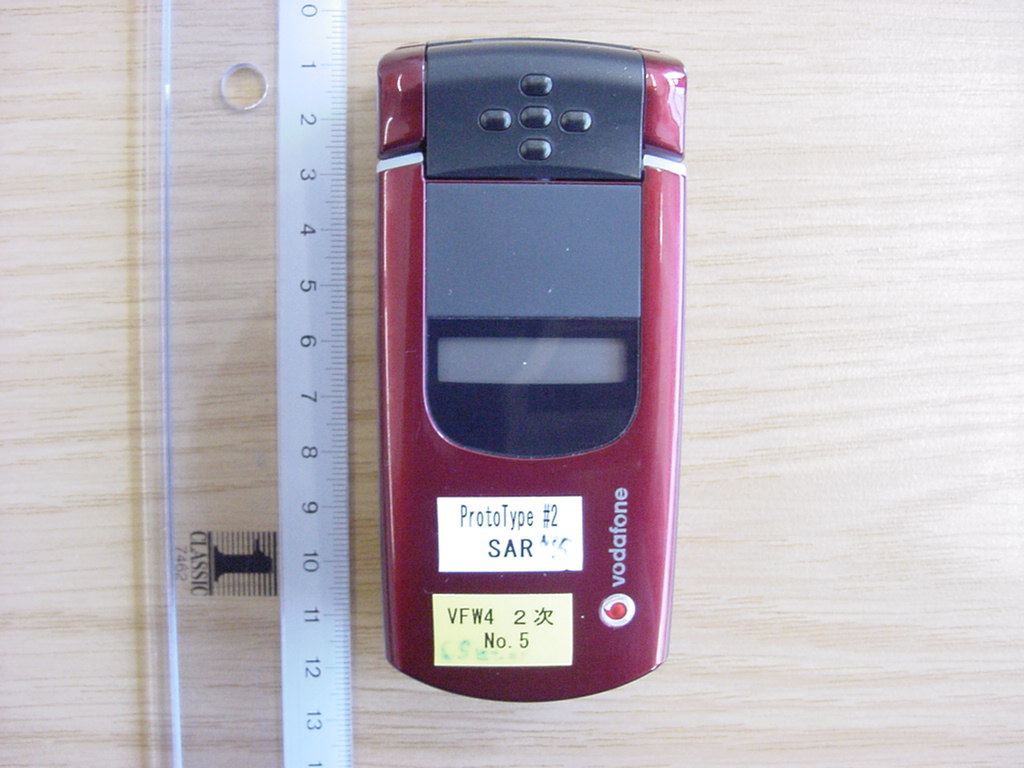

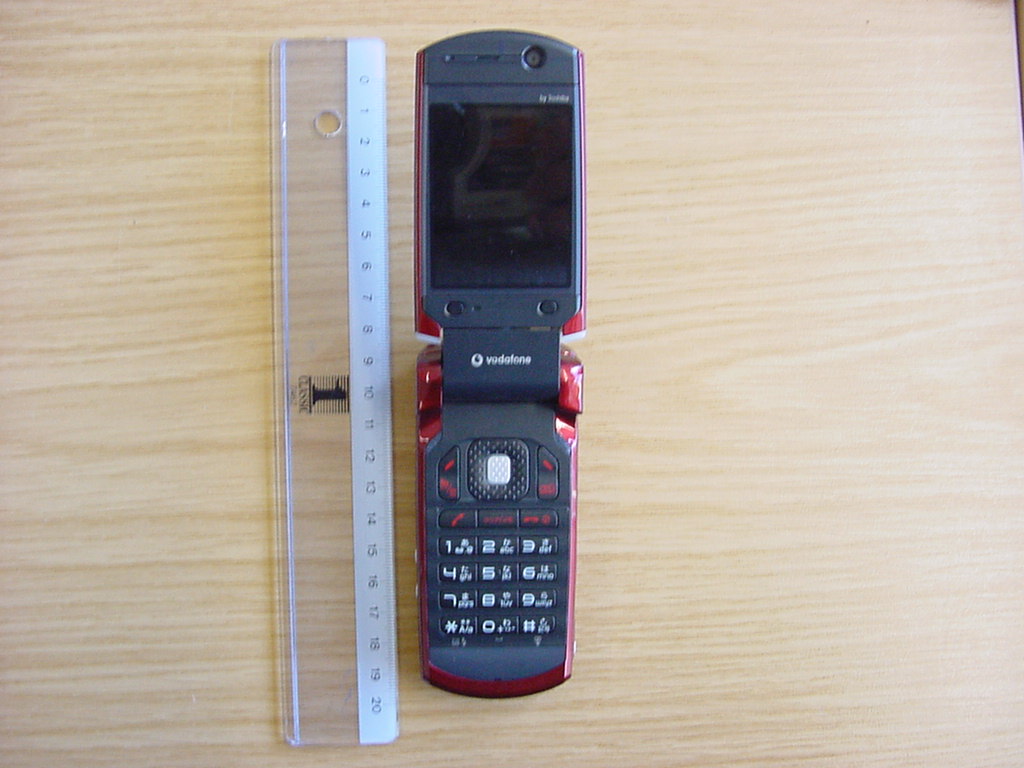

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
1	24E	1.85 GHz - 1.91 GHz	912.00 mW	300KGXW	0.0340000000 ppm

Confidentiality

Long Term

Grant Notes

Output power is EIRP. This device contains GSM 900/1800 MHz and European W-CDMA functions that are not operational in U.S. Territories. This filing is only applicable for 1900 MHz PCS operations. SAR compliance for body-worn operating configurations is limited to the specific configuration tested for this filing. Body-worn operations are restricted to belt-clips,holsters or similar accessories that have no metallic component in the assembly and must provide at least 1.5 cm separation between the device, including its antenna, and the users body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR values with GSM, GPRS and Bluetooth activated simultaneously are: Head: 0.619 W/kg Body-worn: 0.749 W/kg
