SPNT3-27A-YRADIO CONTROL SYSTEM

珠海星宇模型实业有限公司 ZHU HAI XING YU MODEL PRODUCTS CO., LTD. Confirmation Letter Product: Radio Control System Model No.: T3-27A-Y Note: None of the components with the listed discrepancies can be changed or modified by the user to make this device operate on the none US frequencies. Sincerely, ZHU HAI XING YU MODEL PRODUCTS CO., LTD. ------------------------------- Sep.20, 2007

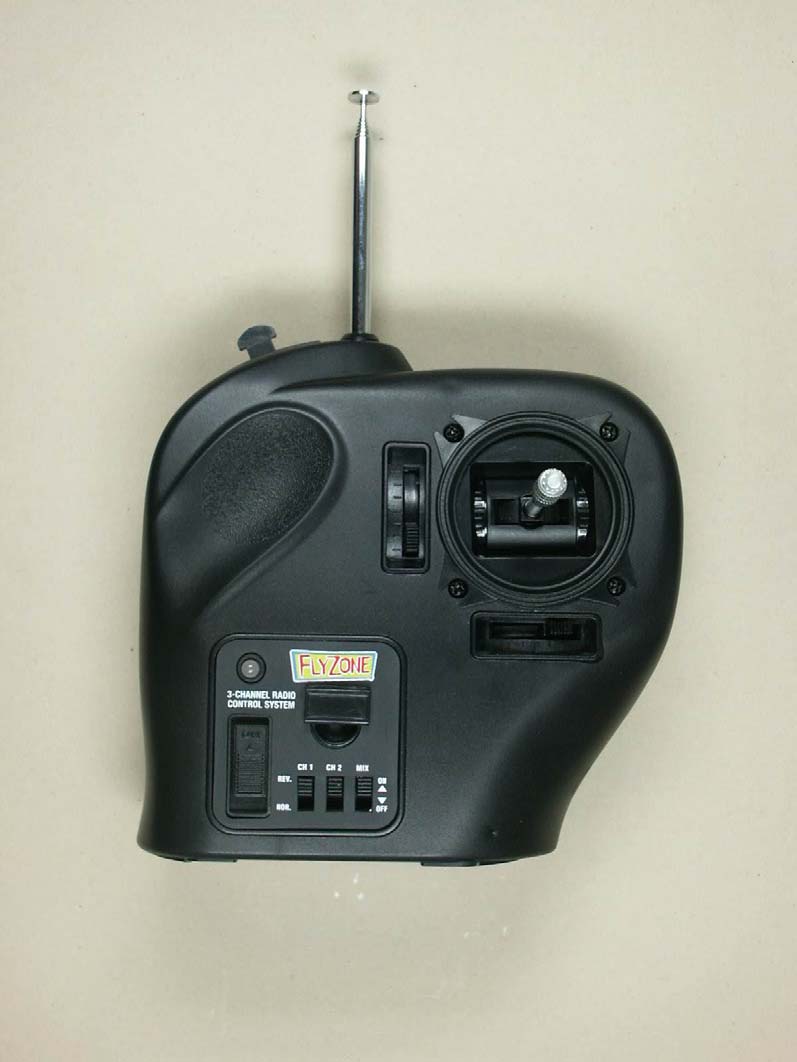

EUT–Front View EUT–Back View

FCC ID Label Sample for Model: T3-27A-Y FCC ID: SPNT3-27A-Y This device complies with Part 95 of the FCC Rules.

FCC ID Label This device complies with Part 95 of the FCC Rules. The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Top View/ proposed FCC Mark Location FCC-ID: SPNT3-27A-Y This device complies with Part 95 of the FCC Rules.

PCB– Front View PCB –Back View

T3-27A-Y Radio Control Transmitter Instruction Manuals 1、Summarize of circuit The T3-27A-Y transmitter is made up with the High-Frequency circuit, modulation circuit, rectify circuit, programmable circuit and external auxiliary circuit .Separately, the high-frequency circuit includes the Radio Frequency oscillation circuit, the Radio Frequency amplifier and power amplifier. Auxiliary circuit includes 5V stabilized power supply circuit and power indicate circuit. This transmitter contains three proportional control channels.P1~P3 are the control pots of each proportional channels. When different voltages are sent into input-pin of MCU EN78P259P/M.The output-pin generates different pulse widths modulated to the carrier signal. Then, the high-frequency signal modulated is sent out through high-frequency circuits and antennas 2、Using guide ● Install eight new “AA” NiCd or NINH batteries into the battery holder. ● Switch on the power button and check the LED on the front of the transmitter, When the green light is on, it is safe to fly. When the yellow light is on, it shows that the electricity of batteries is shortage .when the red light is on or flashing, you need to change the batteries. ● The control stick, on the left of the transmitter, controls the model aircraft to fly left-to-right or up-to-down .The other is throttle lever, on the edge of the transmitter, used to control the motor speed. ● On the front of the transmitter are three switches .The two switches on the left are for reversing the direction of the servos .The throttle inverter switch on the right .Mixing switch in the battery hatch.

FCC TEST REPORT Page 1 of 21 FCC ID : SPNT3-27A-Y Applicant : Zhu Hai Xing Yu Model Products Co., Ltd. Equipment Under Test (EUT) : Product description : Radio Control System Model No. : T3-27A-Y Standards : FCC RULES PART 95-Personal Radio Service Subpart C-Radio Control (R/C) Radio Service Subpart E-Technical Regulations FCC RULES PART 2- Frequency Allocations and Treaty Matters General Rules and Regulations Date of Test : Sep.24, 2007 Test Engineer : Tiger Su Reviewed By : PERPARED BY: Waltek Services (Shenzhen) Co., Ltd. 8C,West Tower, Aidi Building, No.5003 Binhe Rd, Futian District, Shenzhen 518045, Guangdong, China. Tel: 86-755-83551033 Fax: 86-755-83552400 Zhu Hai Xing Yu Model Products Co., Ltd. FCC ID:SPNT3-27A-Y Page 2 of 21 2 Contents Page 1 COVER PAGE..........................................................................................................................................................1 2 CONTENTS ..............................................................................................................................................................2 3 TEST SUMMARY....................................................................................................................................................3 4 GENERAL INFORMATION..................................................................................................................................4 4.1 CLIENT INFORMATION............................................................................................................................................4 4.2 GENERAL DESCRIPTION OF E.U.T...........................................................................................................................4 4.3 DETAILS OF E.U.T. .................................................................................................................................................4 4.4 DESCRIPTION OF SUPPORT UNITS...........................................................................................................................4 4.5 STANDARDS APPLICABLE FOR TESTING..................................................................................................................4 4.6 TEST FACILITY........................................................................................................................................................5 4.7 TEST LOCATION......................................................................................................................................................5 5 EQUIPMENT USED DURING TEST ...................................................................................................................6 6 CONDUCTED EMISSION TEST ..........................................................................................................................8 7 PERSONAL RADIO SERVICE IN FCC PART95 ...............................................................................................9 7.1 OUTPUT POWER RADIATED....................................................................................................................................9 7.1.1 Test Procedure .............................................................................................................................................9 7.1.2 Test Setup .....................................................................................................................................................9 7.1.3 Measurement Record: ................................................................................................................................11 7.2 UNWANTED EMISSIONS RADIATED TEST...............................................................................................................12 7.2.1 Test Procedure ...........................................................................................................................................12 7.2.2 Test Setup ...................................................................................................................................................12 7.2.3 Measurement Record: ................................................................................................................................13 7.3 MODULATIONS CHARACTERISTICS/EMISSION TYPES TEST...................................................................................14 7.4 OCCUPIED BANDWIDTH........................................................................................................................................14 7.4.1 Test Procedure ...........................................................................................................................................14 7.4.2 Test Setup ...................................................................................................................................................14 7.4.3 Measurement Record: ................................................................................................................................15 7.4.4 Test result:..................................................................................................................................................16 7.5 FREQUENCY STABILITY.........................................................................................................................................16 7.5.1 Test Procedure ...........................................................................................................................................16 7.5.2 Test Setup ...................................................................................................................................................16 7.5.3 Measurement Record: ................................................................................................................................17 8 PHOTOGRAPHS — EUT TEST SETUP .............................................................................................…

Text truncated - open the document above for the full version.

Photographs –Radiation Emission Test Setup
