SPP9500TR12-WAY Transceiver

Two Way Car Alarm System User Manual Always read carefully and must be fully understood the product notices and user indirections before you attempt to use your two way car alarm system, to assure its safe use. Always store this User’s Manual for convenient future reference © TYNTEK Corporation Tyntek is an ISO 9001 and QS 9000 certified manufacturer and this product is carrying the DGT、FCC、CE、E-Mark. TYNTEK Corporation V1.4 - 1 - Introducing the two way car alarm system Thank you very much for purchasing this two way car alarm system. This system is the multifunctional vehicle security system with colorful LCD monitor and graphic icons, which can be installed to work with any vehicle with its normal voltage of 12 volt. You can master of any vehicle’s situation immediately by using the Tyntek two way car alarm system. Check all devices and buttons can proper work. Must to be fully understood the User’s Manual before using this system, in order to use the system properly This user’s manual has been validated and reviewed for accuracy. However, succeeding product and user’s manual are subject to change without notice Tyntek assumes no liability for damages incurred directly or indirectly from errors, omissions, or discrepancies between the two way car alarm system and the user’s manual. Tyntek reserve all rights. No part of this publication can be reproduced, photocopying, or transmitted in any form by any means TYNTEK Corporation V1.4 - 2 - Table of Contents
Introducing the two way car alarm system
General precaution
Special features
Package contents
Quick operation guide
Getting to know your two way remote controller
The icon’s features on LCD
Before using the remote controller Replacing the battery Setting the time
The two way remote controller’s melodies
The two way remote controller’s features Arm mode Disarm mode Remote engine start Remote engine stop Checking vehicle’s latest status Car locator Audible arming mode Mute arming mode Trunk release Backlight Remote anti-car jacking ON TYNTEK Corporation V1.4 - 3 - Remote anti-car jacking OFF Function selection mode
Other features while vehicle is running Lock/ Unlock doors mode Warning speed mode
The functional selection mode Operation The icon’s features on LCD -- Key lock -- Auto Key -- Programmable auto hour/temperature engine start -- Valet mode -- Power save mode -- Programmable engine running time -- Adjusting levels of shock sensor’s sensitivity -- setting moving car notice feature
Auto alarm and other features
Getting to know your one way remote controller The one way remote controller’s features Replacing the battery
The RF transceiver and moving car notice features
The function/override switch’s feature
How to register your remote controller
Default setting TYNTEK Corporation V1.4 - 4 -
Trouble shooting
Product specification
Installation diagram
Certificates approvals
Limited warranty TYNTEK Corporation V1.4 - 5 - General precaution General condition 1. Do not use your product over the following environmental range: temperature:-20°C~+80°C 2. Do not exposure your product to direct sunlight; it may cause the deformation of shell and breakdown. 3. Do not direct use your product outside when it is raining or snowing, it may cause a short circuit. WARNING 1. Avoid the short circuit, do not attempt to disassemble or repair the product by your self. Always contact an authorized service provider for appropriate assistance. 2. Always contact with professional technicians to install your product, in order to ensure the alarm system cans proper work. CAUTION 1. Use Only AAA Size 1.5V batteries approved by official recognition 2. Dispose of the battery as required by local ordinance or regulations. TYNTEK Corporation V1.4 - 6 - The product’s features
Two way car alarm system can remote the vehicle to take action and also monitor the vehicle’s latest status immediately.
Use hopping -code and rolling-code and 1KK ID to prevent copying and scanning remote controller
Embedded the intelligent transponder which will immobilize the vehicle when the vehicle is in arm mode. Only can drive the vehicle when you carry the remote controller and car key simultaneously
AUTO KEY- Only some luxury vehicles equipped this feature. Your vehicle can identify you on approach and unlock doors automatically
When the main board is temporarily have a short circuit by intruder in arm mode. The system will still record the previously setting and auto re arm to prevent intruding.
Portable in size and attractive in physique
The remote controller can be used from a distance rang to one kilometer, which emits a strong sensor and cutting edge technology. (General 2 way remote controller ranges approximately 300 – 500 meters).
Preset the hours/temperatures, the system will turn on ignition to warm up the engine automatically (depend on models)
User friendly interface that utilizes a color display. Users will be very easy to control and set the system without reading user manual.
Display the time and car’s interior temperatures
The system will memorize the intruded records and occurrence time during your absence. TYNTEK Corporation V1.4 - 7 - Package contents 1. 2 way LCD remote controller x 1 2. AAA battery x1 3. 1 way remote controller x 14. 3V CR2032 battery x1 5. Transceiver x16. Main board x1 7. Function switch + 2 pin harness wire x1 8. Hood switch sensor x1 TYNTEK Corporation V1.4 - 8 - 9. 18pin harness wire x110. 10pin harness wire x1 11.6pin harness wire x112. User’s manual x1 Quick operation guide 1. Inserting the battery. Make sure the battery’s direction of (+/-) poles are right (Page20) TYNTEK Corporation V1.4 - 9 - 2. Arm/Disarm mode(Page26) 3. Remote engine start(Page27) 4. Press button: checking vehicle’s latest status Press button for 1.5 seconds: car locator (Page28) 5. Press button: Audible arming/Mute arming mode Press button for 1.5 seconds: open truck (depend on models) (Page29) 6. P…

Text truncated - open the document above for the full version.

241 台北縣三重市重新路五段609巷6號7樓之8（湯城園區） 統編 16130465 Tel: 886-2-29990077 7F. -8, No.6, Lane 609, Sec. 5, Chongsin Rd., Sanchong City, Taipei County Taiwan 241, R.O.C. Fax: 886-2-29990062 ------------------------------------------------------------------------------------------------------------------------------------------------------------------ ------------------------------------------------------------------------------------------------------------------------------------------------------------------ http://rf.tyntek.com.tw FCC ID: SPP9500TR1 Federal Communications Commission Dear Sir: We, the undersigned, hereby authorize ELECTRONICS TESTING CENTER, TAIWAN to act on our behalf in all matters relating to application for “ 2-WAY Transceiver ( Model : TR1 FCC ID : SPP9500TR1 )”authorization, including the signing of all documents relating to these matters. Any and all acts carried out by ELECTRONICS TESTING CENTER, TAIWAN TESTING LAB. on our behalf shall have the same effect as acts of our own. The applicant certifies that in the case of an individual applicant ( e.g., corporation ), no party to the applicant is subject to a denial of federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-drug abuse Act of 1988, 21 U.S.C. 862. For a definition of a “party” for these purposes See 47 C.F.R. 1.2002(b). By: By:I Kang Su Title : Electronic Engineer Applicant : TYNTEK CORPORATION Address : 1387 Ren - Ay Rd. Chunan – Jenn , Miaulih 350 , Taiwan , R.O.C. Tel : 886-2-29990077 Ext.313Fax: 886-2-29990662 Date : 2004/11/25 E_Mail :[email protected]

241 台北縣三重市重新路五段609巷6號7樓之8（湯城園區） 統編 16130465 Tel: 886-2-29990077 7F. -8, No.6, Lane 609, Sec. 5, Chongsin Rd., Sanchong City, Taipei County Taiwan 241, R.O.C. Fax: 886-2-29990062 ------------------------------------------------------------------------------------------------------------------------------------------------------------------ ------------------------------------------------------------------------------------------------------------------------------------------------------------------ http://rf.tyntek.com.tw FCC ID: SPP9500TR1 Federal Communications Commission Dear Sir: This is to request confidentiality on information submitted for above application. We would like to request confidentiality on some exhibits we submitted for above original application for the reason of trade secret. If those exhibits are available for public inspection, any person who once gets the information contained in those exhibits will be able to design and to make the same products very easily. This is a very serious problem and huge loss for us, because we did invest so much on it. Please be not made the Exhibit Types listed below routinely available for public inspection: Block Diagram Schematics. Operational Descriptions By: By:I Kang Su Title : Electronic Engineer Applicant : TYNTEK CORPORATION Address : 1387 Ren - Ay Rd. Chunan – Jenn , Miaulih 350 , Taiwan , R.O.C. Tel : 886-2-29990077 Ext.313Fax: 886-2-29990662 Date : 11/25/04 E_Mail : [email protected]

1 Helen Zhao Subject:FW: TYNTEK CORPORATION, FCC ID: SPP9500TR1, Assessment NO.: AN04T4437, Notice#1 Operational Description.pdf External Photo.doc -----Original Message----- From: hsieh Sent: Thursday, December 23, 2004 5:35 PM To: Helen Zhao Subject: Re: TYNTEK CORPORATION, FCC ID: SPP9500TR1, Assessment NO.: AN04T4437, Notice#1 Hi Helen, Attached please find the revised External Photo and Operational Description. Re-Q#1: Please see the new external photo document. Re-Q#2: The supporting equipment is the Car Alarm Main Board. It support DC power and signal to 2-Way Transceiver. Detailed description please see the revised Operation Description. Re-Q#3: Please see the new Operation Description. Best regards and Merry X'mas . Joe -----Original Message----- From: Compliance Certification Services [mailto:[email protected]] Sent: Thursday, December 23, 2004 3:48 PM To: Helen Zhao Subject: TYNTEK CORPORATION, FCC ID: SPP9500TR1, Assessment NO.: AN04T4437, Notice#1 Question #1: Please check the External photos. Only one photo can be properly displayed. Question #2: The setup photos show the transmitter was tested with other supporting equipment. Please explain what kind of supporting equipment was used. Question #3: The Operational Description is not related to this filing. Please resubmit. Best Regards, Helen Zhao 2 The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

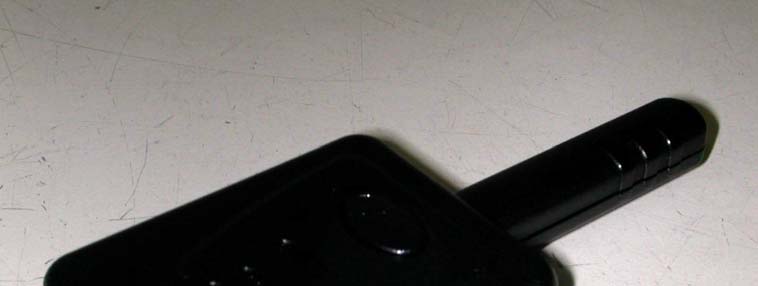

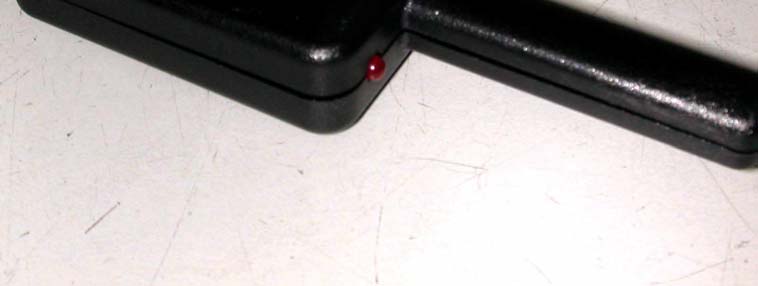

ETC Report No.: ET93S-09-024-03 Page A1 of A1 FCC ID: SPP9500TR1 ANN×EX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT

ETC Report No.: ET93S-09-024-03 Page B1 of B2 FCC ID: SPP9500TR1 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside View 1 of EUT 2. Front view of PCB ETC Report No.: ET93S-09-024-03 Page B2 of B2 FCC ID: SPP9500TR1 3. Rear view of PCB

ETC Report No. : ET93S-09-024-03Sheet 1 of 28 Sheets FCC ID.: SPP9500TR1 Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC 47 CFR, Part 15 Subpart C Report No.: ET93S-09-024-03 Client:TYNTEK CORPORATION Product:2-WAY Transceiver Model:TR1 FCC ID:SPP9500TR1 Manufacturer/supplier:TYNTEK CORPORATION Date test item received:2004/08/16 Date test campaign completed:2004/09/04 Date of issue:2004/12/02 The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 28 pages Total number of pages of photos: External photos 1 pages Internal photos 2 pages Setup photos 1 pages Test EngineerChecked ByApproved By Lee-Ying HsuJoe HsiehTsung-Ching Lin ELECTRONICS TESTING CENTER, TAIWAN NO.8, LANE 29, WEN-MING RD., LO-SHAN TSUN, KUI-SHAN HSIANG, TAOYUAN HSIEN 333 TAIWAN, R.O.C. TEL: (03) 3276170~4 INT: +886-3-3276170~4 FAX: (03) 3276188 INT: +886-3-3276188 ETC Report No. : ET93S-09-024-03Sheet 2 of 28 Sheets FCC ID.: SPP9500TR1 Rev. No 1.0 TEST REPORT CERTIFICATION Client: TYNTEK CORPORATION Address: 1387 Ren-Ay Rd. Chunan-Jenn , Miaulih 350 , Taiwan , R.O.C Manufacturer: TYNTEK CORPORATION Address: 1387 Ren-Ay Rd. Chunan-Jenn , Miaulih 350 , Taiwan , R.O.C EUT: 2-WAY Transceiver Trade name: TYNTEK Model No.: TR1 Power Source: 5 VDC Regulations applied: FCC 47 CFR, Part 15 Subpart C (2003) The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. The compliance test is only certified for the test equipment and the results of the testing report relate only to the item tested. The compliance test of this report was conducted in accordance with the appropriate standards. It’s not intention to assure the quality and performance of the product. This report shall not be reproduced except in full, without the approval of ETC. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Laboratory Introduction: Electronics Testing Center, Taiwan is recognized, filed and mutual recognition arrangement as following:
ISO9001: TüV Product Service  ISO/IEC 17025: BSMI, CNLA, DGT, NVLAP, CCIBLAC, UL, Compliance  Filing: FCC, Industry Canada, VCCI  MRA: Australia, Hong Kong, New Zealand, Singapore, USA, Japan, Korea, China, APLAC through CNLA NVLAP Lab Code 200133-0 ETC Report No. : ET93S-09-024-03Sheet 3 of 28 Sheets FCC ID.: SPP9500TR1 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION ...................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION................................................................................................................................................. 4 1.2 CHARACTERISTICS OF DEVICE: ...................................................................................................................................... 4 1.3 TEST METHODOLOGY.................................................................................................................................................... 4 1.4 TEST FACILITY............................................................................................................................................................... 4 2. DEFINITION AND LIMITS........................................................................................................................................ 5 2.1 D EFINITION.................................................................................................................................................................... 5 2.2 RESTRICTED BANDS OF OPERATION............................................................................................................................... 5 2.3 LIMITATION.................................................................................................................................................................... 6 2.4 LABELING REQUIREMENT.............................................................................................................................................. 7 2.5 USER INFORMATION....................................................................................................................................................... 7 3. RADIATED EMISSION MEASUREMENT.............................................................................................................. 8 3.1 APPLICABLE STANDARD................................................................................................................................................. 8 3.2 MEASUREMENT PROCEDURE......................................................................................................................................... 8 3.3 TEST DATA.................................................................................................................................................................. 10 3.4 F IELD STRENGTH CALCULATION.................................................................................................................................. 20 3.5 RADIATED TEST EQUIPMENT....................................................................................................................................... 20 3.6 MEASURING INSTRUMENT SETUP................................................................................................................................. 23 4. BANDWIDTH OF EMISSION.................................................................................................................................. 24 4.1 A PPLICABLE STANDARD PLOT GRAPHIC OF BANDWIDTH.........................................................…

Text truncated - open the document above for the full version.

ETC Report No.:ET93S-09-024-03 Sheet 1 of 1 Sheets FCC ID.: SPP9500TR1 Radiated Measurement Photos
