SPWE-FLYTX100FM Proportional Radio Control System

Applicant Name: Shenzhen ART-Tech Electronic Technology Co., Ltd. FCC ID: SPWE-FLYTX100 Operating Manual for the radio control system 1， The radio control system is 4 channels. For rudder, elevator, motor control and throttle, respectively. 2， The transmitter needs 8 AA dry batteries. After you install the batteries, you can turn on the transmitter, the green will come on. If the voltage of battery is too low, the transmitter will beep automatically, then you must install new batteries. 3， When you bush the joystick on the right horizontally, the rudder will turn in response to your action. It will make the plane turn right or left. When you push the joystick vertically, the elevator will turn as will. It will make the plane climb or dive. The function of the system: Transmitter: Model: E-FLY TX 100 Work voltage : +12V DC Frequency:72M Receiver: Model: E-FLY RX 100 Work voltage : +5V DC Frequency:72M

Applicant Name: Shenzhen ART-Tech Electronic Technology Co., Ltd. FCC ID: SPWE-FLYTX100

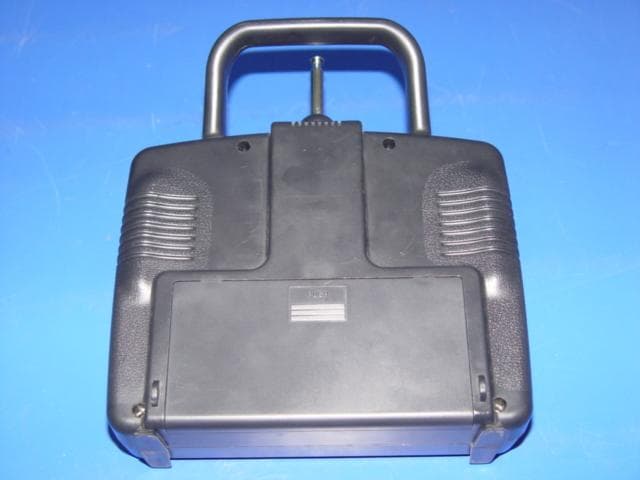

Applicant Name: Shenzhen ART-Tech Electronic Technology Co., Ltd. FCC ID: SPWE-FLYTX100 Photo 1 The appearance of Transmitter Photo 2 The appearance of Transmitter

Applicant Name: Shenzhen ART-Tech Electronic Technology Co., Ltd. FCC ID: SPWE-FLYTX100 Photo 3 Inside of Transmitter Photo4 PCB of Transmitter Photo5 PCB of Transmitter

Applicant Name: Shenzhen ART-Tech Electronic Technology Co., Ltd. FCC ID: SPWE-FLYTX100 Working elements of the radio control system The transmitter Coding the control single to the pulse single, then using the single to modulate the oscillation high frequency signal on the frequency, it is FM signal, transit the amplifier and transmit by the antenna. The receiver Using the antenna receive the FM single to the amplifier, the signal of the amplifier output mixer with the oscillation, then get an IF single, by the IF demodulation, the signal is separated into two parts, one cross the LF amplifier to the demodulation and output. The other is used to control the muting circuit ,control the output.

Applicant Name: Shenzhen ART-Tech Electronic Technology Co., Ltd. FCC ID: SPWE-FLYTX100 SHEN ZHNE ART-TECH ELECTRONIC TECHNOLOGY CO., LTD 深 圳 市 艾 特 电 子 技 术 有 限 公 司 72M发射机物料清单 序号 名称 规格 位置 用量(PCS) 备注 1 IC HT46R47/DIP IC1 1 2 IC HT7150-1/SOP89 IC2 1 3 三极管 9018/SMD Q1,Q2 2 4 三极管 C2314/E/DIP Q3 1 5 三极管 C945/SMD Q4,Q5 2 6 电阻 0805 2.2Ω 5%/SMD R8,R12,R13 3 7 电阻 0805 22Ω 5%/SMD R2,R6 2 8 电阻 0805 56Ω 5%/SMD R7 1 9 电阻 0805 100Ω 5%/SMD R15,R16,R17,R18 4 10 电阻 0805 220Ω 5%/SMD R10,R14,R20 3 11 电阻 0805 470Ω 5%/SMD R23,R24 2 12 电阻 0805 680Ω 5%/SMD R3,R11 2 13 电阻 0805 1K 5% R31 1 13 电阻 0805 1.5K 5%/SMD R5 1 14 电阻 0805 2.4K 5%/SMD R4,R9 2 15 电阻 0805 10K 5%/SMD R19,R27,R28 3 16 电阻 0805 20K 5%/SMD R32 1 17 电阻 0805 47K 5%/SMD R21,R22,R26 3 18 电阻 0805 220K 5%/SMD R1 1 19 电容 0805 2P 10%/SMD C4 1 20 电容 0805 18P 10%/SMD C13 1 21 电容 0805 20P 10%/SMD C3,C5,C7 3 22 电容 0805 47P 10%/SMD C12,C15 2 23 电容 0805 56P 10%/SMD C6,C14 2 24 电容 0805 68P 10%/SMD C1 1 25 电容 0805 100P 10%/SMD C2 1 26 电容 0805 1000P 10%/SMD C9,C10,C28,C36,C37 5 27 电容 0805 2200P 10%/SMD C35 1 C8,C11C16,C17,C18,C19 C21,C22,C23,C24,C26 C31,C32,C33,C34,C38 28 电容 0805 0.1U 10%/SMD C39,C40,C41,C44 20 C20,C25,C27,C29,C30 29 电解电容 100U/16V/DIP C42,C43 7 30 电感 1/2W 2.2UH/DIP L1 1 31 跳线 10MM L2 1 制定： 审核： SHEN ZHNE ART-TECH ELECTRONIC TECHNOLOGY CO., LTD 深 圳 市 艾 特 电 子 技 术 有 限 公 司 72M发射机物料清单 序号 名称 规格 位置 用量(PCS) 备注 32 变容二极管 0805/HVU300/SMD D1 1 33 稳压管 7.5V/SMD D2 1 34 二极管 IN4001/DIP D3 1 35 稳压管 6B2/DIP D4 1 36 二极管 IN4148/SMD D5 1 37 指示灯 绿LED/DIP D6 1 38 晶体 72M晶体/U50 G1 1 39 晶体座 晶体座/DIP G1 1 40 晶体 4M晶体/卧式/DIP G2 1 41 反相开关 柄长10MM K1，K2，K3，K4 4 42 电源开关 柄长7MM/无耳 BZ 1 43 总成电位器 5K RT1, RT2, RT3, RT4 4 44 电阻 1/6W/2.4K/DIP R25 1 45 电位器 1K/DIP R29 1 46 电位器 4.7K/DIP R30 1 47 中周 TT71(7*7) T1 1 48 中周 TT72(7*7) T2 1 49 中周 TT73(7*7) T3 1 50 中周 TT74(7*7) T4 1 51 中周 TT75(7*7) T5 1 52 耳机座 J1 1 53 跳线 13MM JP1, JP2, JP3, JP4 4 54 蜂鸣器 5VDC DY 1 55 IC插座 18PIN IC1 1 56 电源排座 2PIN POWEWR 1 57 总成线材 170*2.0 RT1, RT2, RT3, RT4 4 58 电源线 1 59 PCB 72M发射机 157MM*57MM 1 编号：PCB72T01 60 电阻 1206 0Ω/SMD 000 2 61 插座 3PIN/2.0/SMD RT1, RT2, RT3, RT4 4 制定： 审核：

Applicant Name: Shenzhen ART-Tech Electronic Technology Co., Ltd. FCC ID: SPWE-FLYTX100

Applicant Name: Shenzhen ART-Tech Electronic Technology Co., Ltd. FCC ID: SPWE-FLYTX100

EMC TEST REPORT For FM Proportional Radio Control System Model Number: E-FLYTX100 FCC ID: SPWE-FLYTX100 Report Number : KSZ2004111601J Test Laboratory : Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory Site Location : Bldg. of Metrology &Quality Inspection, Longzhu Road, Shenzhen, Guangdong, China Tel : 0086-755-26941637, 26941531 Fax : 0086-755-26941545 Report No.: KSZ2004111601J Page 2/12 TABLE OF CONTENTS Description Page Test Report Certification 1. TEST RESULTS.................................................................................................................4 2. GENERAL INFORMATION............................................................................................4 2.1. Description of EUT..............................................................................................................4 2.2. Test Facility..........................................................................................................................5 3. TEST EQUIPMENT..........................................................................................................5 3.1. For Conducted Disturbance Test...............................................................................................5 3.2. For Radiated Disturbance Test.................................................................................................5 4. RADIATED EMISSION MEASUREMENT....................................................................6 4.1. Block Diagram of Test Setup....................................................................................................6 4.2. Test Procedure.........................................................................................................................7 4.3. Operating Condition of EUT.....................................................................................................7 4.4. Test Data.................................................................................................................................7 5. FREQUENCY STABILITY...............................................................................................8 5.1. Block Diagram of Test Setup....................................................................................................8 5.2. Test Standard and Limit...........................................................................................................9 5.3. Test Procedure.........................................................................................................................9 5.4. Test Data...............................................................................................................................10 6. BAND EDGES TESTING................................................................................................11 6.1 Test Procedure..............................................................................................................................11 6.2 Test Equipment.............................................................................................................................11 6.3 Test Results..................................................................................................................................11 7. CRYSTAL ACCESS RESTRICTIONS...................................................................12 Report No.:300319-IT/WT Page3/12 CERTIFICATION Applicant : Shenzhen ART-Tech Electronic Technology Co., Ltd. Address : 2/F, No.2 Bai wang 2 nd Industrial Park, baimang, Xili Town, Nanshan District, Shenzhen China. Manufacturer : Same applicant . Address : Same applicant . EUT Description : FM Proportional Radio Control System Model No : E-FLYTX100 Test Standards: FCC PART 95, SUBPART C & E : 2003 FCC PART 2, SUBPART J : 2003 ANSI C63.4 2001 The EUT described above is tested by Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory to determine the maximum emissions from the EUT. Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory is assumed full responsibility for the accuracy of the test results. Also, this report shows that the EUT technically complies with FCC requirements. The test report is valid for above tested sample only and shall not be reproduced in part without written approval of the laboratory. Tested by : Date : November 6,2004 (Peter Lin) Approved by : Date : November 16,2004 (Apollo Liu) Report No.: KSZ2004111601J Page 4/12 1. TEST RESULTS Table 1 Test Results Test Items Test Results 95.210(a) Transmitter Power Test Pass 95.635 Unwanted Radiated Test Pass 95.623(c) Frequency Stability Test Pass 95.633(b) Emission Bandwidth Test Pass 95.647 Transmitter antenna Pass 95.651 Crystal Access Restrictions Test Pass 2. GENERAL INFORMATION 2.1. Description of EUT Description : FM Proportional Radio Control System Model Number : E-FLYTX100 Applicant : Shenzhen ART-Tech Electronic Technology Co., Ltd Manufacturer : Shenzhen ART-Tech Electronic Technology Co., Ltd Transmitter: Working Frequency : 72.1512MHz Channel : 1 Emission Designator : 8K00F1D Transmitting Power : -35dBm Power Supply : DC12V Adaptor: Input Power: N/A Output Power: N/A The system is FM proportional radio control system. According to FCC Part 95 Section 95.647, the antenna of each R/C station transmitting in 72~76 MHz band, must be an integral part of the transmitter. The antenna must have no gain and must be vertically polarized. The system’s rod antenna is designed as a fixed, permanent, non-user replaceable with no gain and vertically polarized unit integrated to EUT. Report No.: KSZ2004111601J Page 5/12 2.2. Test Facility Name of Facility : Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory Site Location : Bldg. of Metrology &Quality Inspection, Longzhu R oad, Shenzhen, Guangdong, China Site Description June 02, 2004 file on Federal Communications Commission Registration Number: 274801 Aug. 11, 2000 certificated by TUV Rheinland, Shenzhen. 3. TEST …

Text truncated - open the document above for the full version.

Applicant Name: Shenzhen ART-Tech Electronic Technology Co., Ltd. FCC ID: SPWE-FLYTX100 Test Setup for Radiated Disturbance Test Test Setup for Radiated Disturbance Test
