SQ3WPC2931126802.11b Wireless LAN Card (Card Bus)

IEEE802.11b WPC293 Wireless LAN Card User’s Manual Ver. 1.0 (Dec., 2004) AWIND Incorporated 1. Overview....................................................................................................................................3 1.1. Overview.......................................................................................................................................3 1.2. Key Features.................................................................................................................................3 1.3. Specifications ...............................................................................................................................3 1.4. Supported OS................................................................................................................................3 2. Driver Install ...............................................................................................................................4 2.1. Supported OS................................................................................................................................4 2.2. Driver Install .................................................................................................................................4 2.2.1. Windows XP Driver .............................................................................................................. .4 2.2.2. Windows2000 .........................................................................................................................7 3. Utility ..........................................................................................................................................8 3.1. Utility setup....................................................................................................................................8 2 1.1. Overview This reference card is provided to the customers to confirm performance of KSC chipset, firmware and driver software for 802.11b Wireless LAN. This device is designed to be compliant with Radio Law in the reigns where this might be used. Though the device is tested, it is not actually certified by Radio Law of each area, so be sure to use it in the environment where the other devices are not negatively affected by the radio. 1.2. Key Features z Unlicensed 2.4GHz band, power-saving communication system. z Use of Direct Sequence Spectrum Spread z IEEE802.11b- compliant, Data rate of 11Mbp z Supports 128/40 Bit WEP 1.3. Specifications (1) Frequency Bandwidth: 2,400MHz to 2,483.5MHz (1 to 13CH) (2)Transmit Power: +10dBm（Note that this is a set value and not actual value of chip ability.） (3)Frequency Deviation: ±25ppm (4) Bit Rate & Modulation: 1Mbps: DBPSK / 2Mbps: DQPSK / 5.5 and 11Mbps: CCK (5)Receive Sensitivity: Less than -80dBm (PER≦8%) (6) Antenna: Embedded diversity antenna 1.4. Supported OS Windows 2000 Windows XP 3 2. Driver Install 2.1. Supported OS Windows 2000 Windows XP 2.2. Driver Install 2.2.1. Windows XP Driver (1) Start up PC. (2) Insert the Wireless LAN Card (3) Refer to Figure 1. ‘Found New Hardware Wizard 1.’ Click “Install from a list or specific location...” then click ‘Next.’ Figure2-1. Found New Hardware Wizard 1 4 (4) In the following dialog, check “Include this location in the search:” then click ‘Browse.’ After selecting the folder, which includes the driver, click ‘Next.’ Figure2-2. Found New Hardware Wizard 2 5 (5) In the following dialog, click ‘Continue Anyway’ to continue installation. It operates without any problem. Figure2-3. Found New Hardware Wizard 3 6 (6) In the following dialog, Click ‘Finish’ to finish the wizard. Figure2-4. Found New Hardware Wizard 4 (7) In the following dialog, Click ‘Yes’ to restart the system. Figure2-5. Found New Hardware Wizard 5 2.2.2. Windows2000 Refer to the procedure in ‘2.2.1 Windows XP Driver’ for Windows2000 Driver install. 7 3. Utility 3.1 Utility setup (1) Click ‘Control Panel’ (2) Click ‘Network connections’ (3) In the following dialog, Select ‘WPC293 Wireless...’ and click ‘right button’ of mouse Figure3-1. Network connections 8 (4) In the following dialog, Click ‘Configure’ Figure3-2. Properties of local area connection 9 (5) In the following dialog, Click ‘Advanced’ Figure3-3. Properties of WPC293 10 (6) Advanced setup Figure3-4. Advanced setup of WPC293 Beacon Lost Count ‘Beacon Lost Count’ reflects to ‘Loaming function’, which automatically switches the access points when the node moved from a service area to another, at the situation that there are many access points. Larger count takes longer time to detect APs. Power Management Mode Sets the function of low power consumption. By setting this mode ‘on’, it becomes Power Save Mode. This mode can be set only when Infrastructure Mode. RTS Sets RTS Threshold value. Set within the range of 0 to 2347. Fragmentation Sets Fragmentation Threshold value. Set within the range of 256 to 2346. 11 12 . Network Mode ● Pseudo Adhoc Pseudo Adhoc Mode, A network composed solely of PCs within mutual communication range of each other (no Access Point connected). ● Infrastructure Infrastructure Mode. A wireless network centered about an AP. ● 802.11 Adhoc 802.11 Adhoc Mode. A network composed solely of PCs within mutual communication range of each other (no Access Point connected) with the communication format of the 802.11 standard. SSID (Service Set ID) Service Set ID. A group name shared by every member in a wireless network. Only client PCs with the same SSID are allowed to establish a connection. Channel A medium used to pass protocol data units that can be used simultaneously in the same volume of space by other channels of the same physical layer, with an acceptably low frame error ratio due to mutual interference. Channel can be set when in Adhoc mode. Transmit Rate Data transfer rate in communication. WEP Select WEP function of Off／64bit／128bit. 13 FEDERAL COMMUNICATIONS COMMISSION This device complies with Part 15 of the FCC Rules.…

Text truncated - open the document above for the full version.

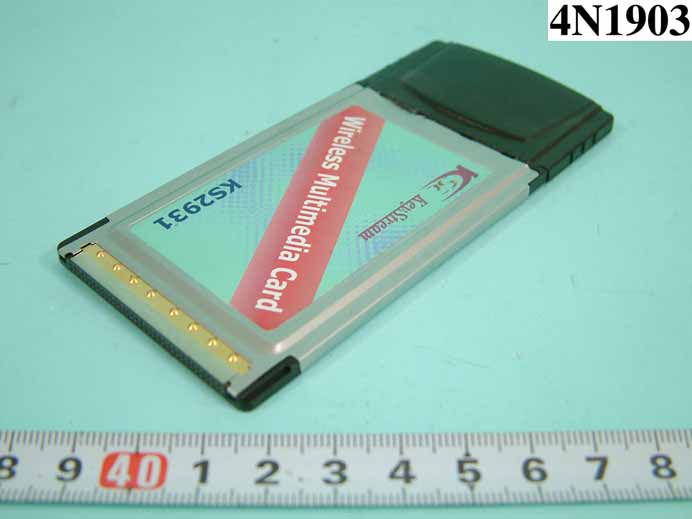

REPORT NO. : FR4N1903 SPORTON International Inc. PAGE NUMBER : A1 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 21, 2004 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT REPORT NO. : FR4N1903 SPORTON International Inc. PAGE NUMBER : A2 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 21, 2004 FAX : 886-2-2696-2255

REPORT NO. : FR4N1903 SPORTON International Inc. PAGE NUMBER : A3 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 21, 2004 FAX : 886-2-2696-2255 REPORT NO. : FR4N1903 SPORTON International Inc. PAGE NUMBER : A4 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 21, 2004 FAX : 886-2-2696-2255 REPORT NO. : FR4N1903 SPORTON International Inc. PAGE NUMBER : A5 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 21, 2004 FAX : 886-2-2696-2255 REPORT NO. : FR4N1903 SPORTON International Inc. PAGE NUMBER : A6 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 21, 2004 FAX : 886-2-2696-2255 REPORT NO. : FR4N1903 SPORTON International Inc. PAGE NUMBER : A7 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 21, 2004 FAX : 886-2-2696-2255 REPORT NO. : FR4N1903 SPORTON International Inc. PAGE NUMBER : A8 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 21, 2004 FAX : 886-2-2696-2255 REPORT NO. : FR4N1903 SPORTON International Inc. PAGE NUMBER : A9 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 21, 2004 FAX : 886-2-2696-2255

FCC ID:SQ3WPC9231126 Description of Operation EUT is a 801.11b WLAN CardBus with 11 channels. This device provided of transmitting speed 11/5.5/2/1Mbps . The device of RF carrier is CCK/DQPSK/DBPSK. The device adapts Direct Sequence Spread Spectrum modulation ( DSSS ). An embedded system can become WLAN enabled by inserting the 802.11b WLAN Card that interfaces to the embedded processor via CardBus interface . There are two Ceramic Chip Antennas, and there is no antenna connector. With embedded system becoming 802.11b WLAN-enable by the 802.11b WLAN CardBus, many wireless applications will become possible, such as: Communicate with each other wirelessly (between embedded systems, laptops, PCs, and others), including sharing or exchanges of data (i.e. wireless file transfers between WLAN-enabled devices).

© 2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA4N1903-1-2-01 Specific Absorption Rate (SAR) Test Report for Awind Inc. on the 802.11b Wireless LAN Card (Card Bus) Report No. : FA4N1903-1-2-01 Trade Name : Awind Model Name : WPC293 FCC ID : SQ3WPC2931126 Date of Testing : Dec. 20, 2004 Date of Report : Dec. 24, 2004 Date of Review : Dec. 27, 2004 ‚ The test results refer exclusively to the presented test model / sample only. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. 1190 ILAC MRA ©2004 SPORTON International Inc..SAR Testing Lab Tel:886-22696-2468 Fax:886-2-2696-2255 FCC SAR Test Report Test Report No ﹕ FA4N1903-1-2-01 Table of Contents 1. Statement of Compliance ..........................................................................................................................................1 2. Administration Data ...................................................................................................................................................2 2.1. Testing Laboratory ...............................................................................................................2 2.2. Detail of Applicant ................................................................................................................2 2.3. Detail of Manufacturer..........................................................................................................2 2.4. Application Detail .................................................................................................................2 3. Scope ...........................................................................................................................................................................3 3.1. Description of Device Under Test (DUT) ..............................................................................3 3.2. Product Photo ......................................................................................................................4 3.3. Applied Standards:...............................................................................................................5 3.4. Device Category and SAR Limits .........................................................................................6 3.5. Test Conditons .....................................................................................................................6 3.5.1. Ambient Condition:.....................................................................................................6 3.5.2. Test Configuration: .....................................................................................................6 4. Specific Absorption Rate (SAR)................................................................................................................................7 4.1. Introduction ..........................................................................................................................7 4.2. SAR Definition......................................................................................................................7 5. SAR Measurement Setup...........................................................................................................................................8 5.1. DASY4 E-Field Probe System .............................................................................................9 5.1.1. ET3DV6 E-Field Probe Specification........................................................................10 5.1.2. ET3DV6 E-Field Probe Calibration...........................................................................10 5.2. DATA Acquisition Electronics (DAE)................................................................................... 11 5.3. Robot .................................................................................................................................12 5.4. Measurement Server .........................................................................................................12 5.5. SAM Twin Phantom ...........................................................................................................12 5.6. Data Storage and Evaluation .............................................................................................14 5.6.1. Data Storage ............................................................................................................14 5.6.2. Data Evaluation........................................................................................................14 5.7. Test Equipment List............................................................................................................17 6. Tissue Simulating Liquids .......................................................................................................................................18 7. Uncertainty Assessment..........................................................................................................................................20 8. SAR Measurement Evaluation ................................................................................................................................22 8.1. Purpose of System Performance check .............................................................................22 8.2. System Setup.....................................................................................................................22 8.3. Validation Results ..............................................................................................................23 9. Description for DUT Testing Position............................................................................................…

Text truncated - open the document above for the full version.

FCC ID: SQ3WPC2931126 Issued on Dec. 20, 2004 Report No.: FR4N1903 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT CATEGORY : Portable PRODUCT NAME : 802.11b Wireless LAN Card (Card Bus) FCC ID. : SQ3WPC2931126 FILING TYPE : Certification MODEL NAME : WPC293 APPLICANT : Awind Inc. 11F-5, 150, Jian-i Road, Chung- Ho City, Taipei Hsien, Ta i w a n MANUFACTURER : Same as applicant ISSUED BY : SPORTON INTERNATIONAL INC. 6F, No. 106, Sec. 1, Hsin Tai Wu Rd., His Chih, Taipei Hsien, Taiwan, R.O.C. Statements: The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. Certificate or Test Report could not be used by the applicant to claim the product endorsement by CNLA, NVLAP or any agency of U.S. government. The test equipment used to perform the test are calibrated and traceable to NML/ROC or NIST/USA. Dr. Alan Lane Vice General Manager Sporton International Inc. Lab Code: 200079-0 FCC ID: SQ3WPC2931126 Issued on Dec. 20, 2004 Report No.: FR4N1903 SPORTON International Inc. Page No. : i TEL : 886-2-2696-2468 Issued Date : Dec. 20, 2004 FAX : 886-2-2696-2255: Table of Contents HISTORY OF THIS TEST REPORT .....................................................................................................................II CERTIFICATE OF COMPLIANCE.......................................................................................................................III 1. GENERAL DESCRIPTION OF EQUIPMENT UNDER TEST...........................................................................1 1.1. Applicant ......................................................................................................................................................................................... 1 1.2. Manufacturer ................................................................................................................................................................................... 1 1.3. Basic Description of Equipment under Test.................................................................................................................................... 1 1.4. Features of Equipment under Test ................................................................................................................................................. 1 1.5. Antenna Description........................................................................................................................................................................ 2 1.6. Table for Carrier Frequencies ......................................................................................................................................................... 2 2. TEST CONFIGURATION OF THE EQUIPMENT UNDER TEST .....................................................................3 2.1. Connection Diagram of Test System .............................................................................................................................................. 3 2.2. The Test Mode Description............................................................................................................................................................. 3 2.3. Description of Test Supporting Units .............................................................................................................................................. 3 3. GENERAL INFORMATION OF TEST ..............................................................................................................4 3.1. Test Facility ..................................................................................................................................................................................... 4 3.2. Test Conditions ............................................................................................................................................................................... 4 3.3. Standards for Methods of Measurement......................................................................................................................................... 4 3.4. DoC Statement ............................................................................................................................................................................... 4 3.5. Frequency Range Investigated ....................................................................................................................................................... 4 3.6. Test Distance .................................................................................................................................................................................. 4 3.7. Test Software .................................................................................................................................................................................. 4 4. LIST OF MEASUREMENTS .............................................................................................................................5 4.1. Summary of the Test Results.......................................................................................................................................................... 5 5. TEST RESULT ..................................................................................................................................................6 5.1. Test of 6dB Spectrum Bandwidth ................................................................................................................................................... 6 5.2. Test of Maximum Conducted Output Power ................................................................................................................................... 9 5.3. Test of Peak Power Spectral Density ........................................................…

Text truncated - open the document above for the full version.

FRONT VIEW REAR VIEW FRONT VIEW REAR VIEW
