SQO80592R004Wireless Guitar Controller for PS-2

2006-11-8 PS2-004 EVER SPARKLE TECHNOLOGIES LTD A 1 HANSON <Code> B <Scale> 1 1 REV: SIZE: CODE: DRAWN: DATED: DATED: CHECKED:QUALITY CONTROL: DATED:DATED: RELEASED: COMPANY:TITLE: DRAWING NO: SHEET: OF SCALE: REVISION RECORD APPROVED: ECO NO: ABD DATE: 1 2 3 4 5 6 DCAB C LTR CRYSTAL 26MHZ PCB-ANTENNA RF-MODULE CC2500 MCU-MCS289-01A Buttons Conrtroller side PS2- bus MCU-MCS299-01A RF-MODULE CC2500 PCB-ANTENNA CRYSTAL 26MHZ POWER 3.3V Host side 12MHZ Crystal DATA DATA Joystick 3*AASIZEBttery 3.0V Regulator

EUT EXTERIOR PHOTO Applicant: EVER SPARKLE TECHNOLOGIES LTD. FCC ID: SQO8052R004

Applicant: EVER SPARKLE TECHNOLOGIES LTD. FCC ID: SQO80592R004 FCC ID: SQO80592R004 This device complies with part 15 the FCC rules. Operation is subject to the following two condition: (1). This device may not case harmful interference, (2).This device must accept any interference received, including interference that may cause undesired operation Proposed Label Location On EUT EUT Bottom View/Proposed FCC ID LABEL location

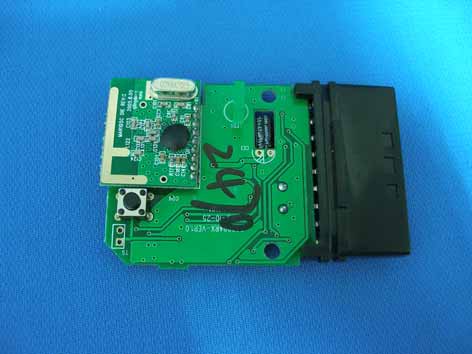

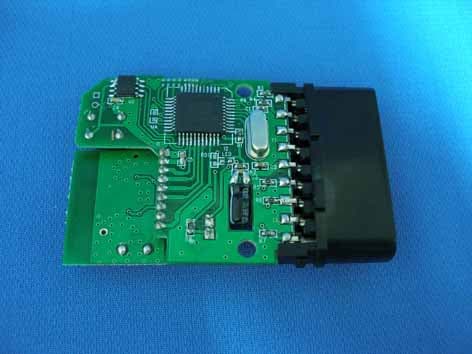

EUT INSIDE PHOTO Applicant: EVER SPARKLE TECHNOLOGIES LTD. FCC ID: SQO80592R004

FCC ID: SQO80592R004 Applicant: EVER SAPARKLE TECHNOLOGIES LTD. Working Principle CC2500 is the transceiver of Wireless Guitar Controller for PS2.This device was designed to be used with the popular Guitar Hero and Guitar Hero 2 games available for the PS2 entertainment console. At the same time, this two devices operate as a transceiver by FSK modulation and they establish a communication link as below figure. The RF transceiver is integrated with a highly configurable baseband modem.The modem supports various modulation formats and has a configurable data rate between 1.2-500 kbps. The communication range can be increased by enabling a Forward Error Correction option,which is integrated in the modem. CC2500 provides extensive hardware support for packet handling, data buffering,burst transmissions, clear channel assessment, link quality indication and wake-on-radio. The main operating parameters and the 64-byte transmit/receive FIFOs of CC2500 can be controlled via an SPI interface.In a typical system, the CC2500 will be used together with a microcontroller and a few additional passive components. CC2500 is based on Chipcon’s SmartRF 04 technology in 0.18 um CMOS.

FCC 47 CFR PART 15 SUBPART C TEST REPORT For EVER SPARKLE TECHNOLOGIES LTD. Wireless Guitar Controller for PS-2 Model: 80592 Trade Name: NYKO Prepared for EVER SPARKLE TECHNOLOGIES LTD. Unit B, 6/F., Kingswell Commercial Tower, 171~173 lockhart Road, Wanchai,HONG Kong Prepared by SINTEK LABORATORY CO., LTD. No. 7, XINSHIDAI INDUSTRIAL, GUANTIAN VILLAGE, SHIYAN TOWN, BAOAN DISTRICT, SHENZHEN, GUANGDONG, P.R.C. TEL: 86-755-27604866 FAX: 86-755-27608359 Note: This report shall not be reproduced except in full, without the written approval of Sintek Laboratory CO., Ltd. This document may be altered or revised by Sintek Laboratory Co., Ltd. personnel only, and shall be noted in the revision section of the document. Page 1 of23 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.............................................................................................3 2. EUT DESCRIPTION....................................................................................................................4 3. TEST METHODOLOGY.............................................................................................................5 3.1 EUT CONFIGURATION...................................................................................................................5 3.2 EUT EXERCISE...............................................................................................................................5 3.3 GENERAL TEST PROCEDURES........................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS...................................................6 3.5 DESCRIPTION OF TEST MODES......................................................................................................6 4. INSTRUMENT CALIBRATION.................................................................................................7 5. FACILITIES AND ACCREDITATIONS...................................................................................8 5.1 FACILITIES ...................................................................................................................................8 5.2 EQUIPMENT...................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING.............................................................................8 6. SETUP OF EQUIPMENT UNDER TEST..................................................................................9 6.1 SETUP CONFIGURATION OF EUT....................................................................................................9 6.2 SUPPORT EQUIPMENT............................................................................................................9 7. FCC PART 15.249 REQUIREMENTS......................................................................................10 7.1 BAND EDGES MEASUREMENT...........................................................................................10 7.2 RADIATED EMISSIONS................................................................................................................12 7.3 POWER LINE CONDUCTED EMISSIONS.......................................................................................19 8. APPENDIX 1 PHOTOGRPHS OF TEST SETUP...................................................................22 Page 2 1. TEST RESULT CERTIFICATION Applicant: EVER SPARKLE TECHNOLOGIES LTD. Unit B, 6/F., Kingswell Commercial Tower, 171~173 Lockhart Road, Wanchai, Hong Kong Equipment Under Test: Wireless Guitar Controller for PS-2 Tra de Na me: NYKO Model: 80592 Date of Test: Nov 21~Dec 1, 2006 Report No. : ST0611024 FCC ID : SQO80592R004 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by SINTEK LABORATORY CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2001 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.249. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Page 3 2. EUT DESCRIPTION Product Wireless Guitar Controller for PS-2 Tra de Na me NYKO Model Number 80592 Model Discrepancy N/A Power Supply DC 3.3V Frequency Range 2410 ~ 2470 MHz Antenna Specification The EUT’S antenna is integrated on the main PCB Number of Channels 59 Channels Note: This submittal(s) (test report) is intended for FCC ID: SQO80592R004 filing to comply with Section 15.249 of the FCC Part 15, Subpart C Rules. Page 4 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, and 15.249. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the TX frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.249 under the FCC Rules Part 15 Subpart C. 3.3 GENERAL TEST PROCEDURES Conducted Emissions The EUT is placed on the turntable, which is 0.8 m above ground plane. According to the requirements in Section 13.1.4.1 of ANSI C63.4: 2001, Conducted emissions from the EUT measured in the frequency range between 0.15 MHz and 30MHz using CISPR Quasi-peak and average detector modes. Radiated Emissions The EUT is placed on a turn table, which is 0.8 m above ground plane. The turntable shall rotate 360 degrees to determine the position of…
