SQO87027R03Wii Wireless Kama

User manunal The device which was inserted to the REMOTO is the DONGLE, and the handle port is NUNCHUCK. 1. Connect the WII correctly, in order to make the REMOTE work normally. 2. Insert the DONGLE to the REMOTE, then the DONGLE will start automatically and the LED will blink. At this moment, if you press the key “LINK” for one second, the LED will blink more rapidly. 3. Load the 2*AAA battery to the NUNCHUCK, then press the POWER key to start it (pressing any key can start it) .If the LED blinks, it expresses it starts normally. Then press the key “LINK”, it will connect with the DONGLE after 1 to 3 seconds. When the LED of NUNCHUCK and DONGLE are on, it stands for connecting successfully. Remarks: Step 2 and 3 above, which should be operated when the equipment was connected firstly. If the equipment had been connected before, it needn’t connect again. And when you start it, it will be connected automatically without pressing any key. 4. we can play games normally after connecting correctly. 5. We can turn off the DONGLE by pressing the POWER key of DONGLE for three seconds, and we can start it by pressing the POWER key. So does the NUNCHUCK POWER key. 6.Put the optical disk “WII SPORTS” into the WII, and join the games according to the operating hints, and choose the BOXING to play games. (You must choose the BOXING to join games firstly, because the other games can’t support NUNCHUCK)

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 8-Jan-2007 Sheet of File: D:\product\WII\w ii-5003\ NUNCHUK.ddb Drawn By: FLASH MEMORY W39VF040 MCU MUS300A CRYSTAL 4M MCU MUS100A WII REMOTE INTERFACE RF-MODULECC2500 CRYSTAL 26M DATA DATA PCB ANTENNA CRYSTAL 12M 2*AAA BATTERY 3D SENSORMMA7260 MCU MUS200E CRYSTAL 6M BUTTONS STICK RF-MODULECC2500 CRYSTAL 26M PCB ANTENNA DATA DATA DATA Dongle Block Diagram Nunchuck Block Diagram BLOCK DIAGRAM EVS SHILIBO

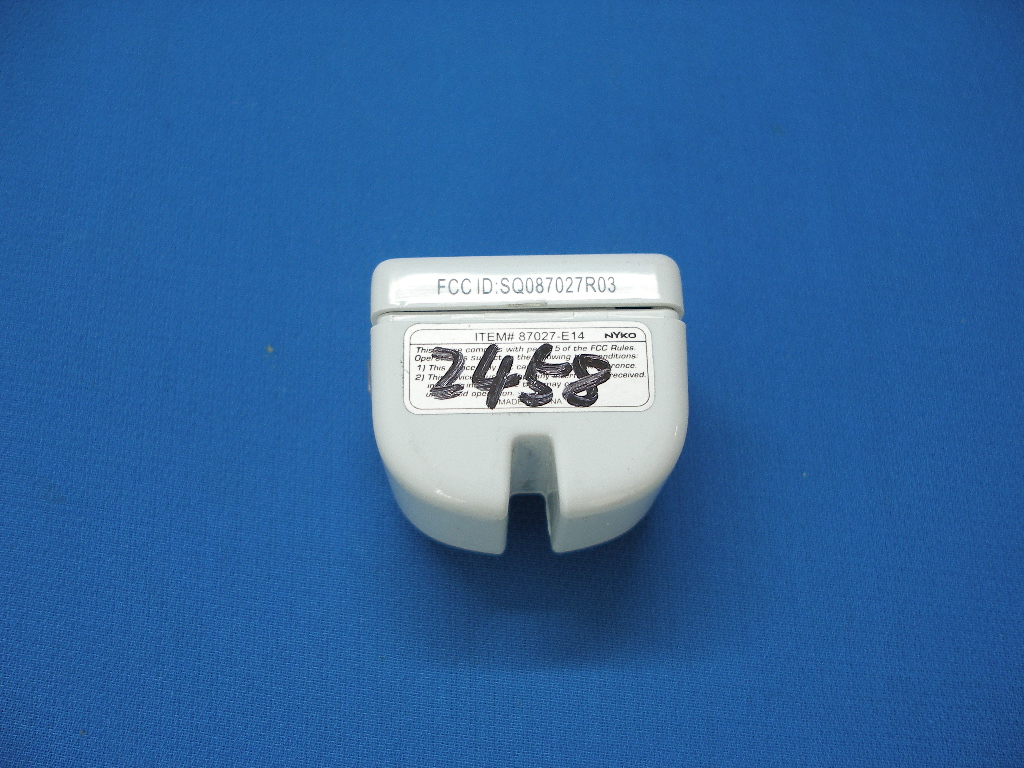

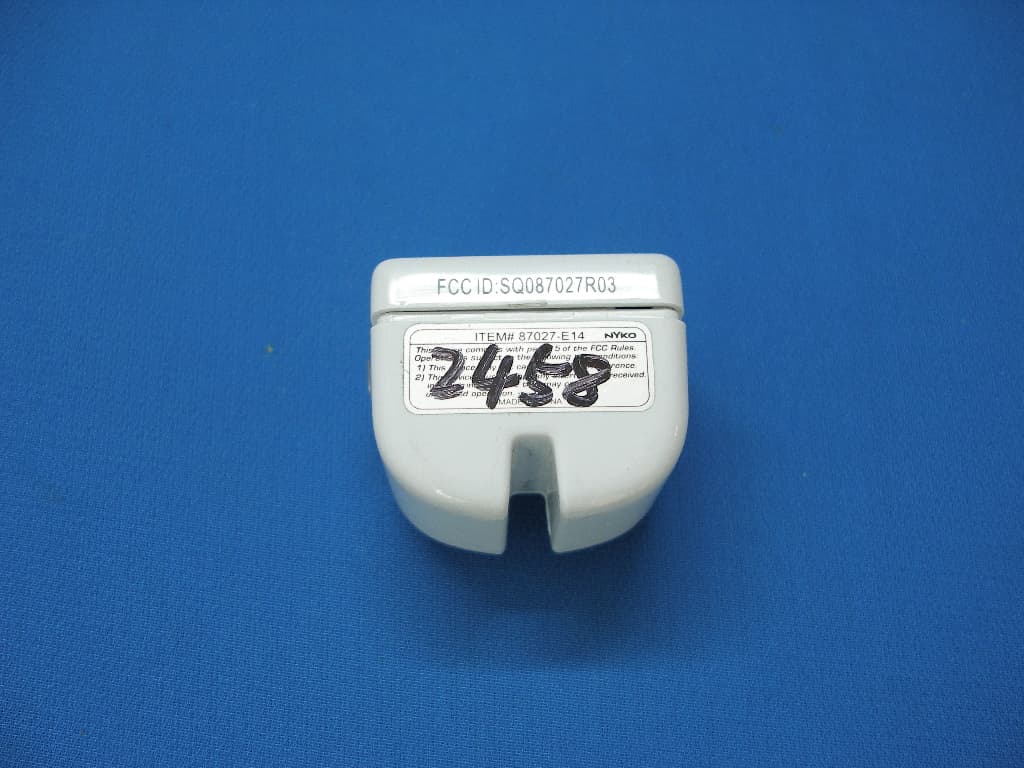

EUT EXTERIOR PHOTO Applicant: EVER SPARKLE TECHNOLOGIES LTD. FCC ID: SQO87027R03

Applicant: EVER SPARKLE TECHNOLOGIES LTD. FCC ID: SQO87027R03 This device complies with part 15 the FCC rules. Operation is subject to the following two condition: (1). This device may not case harmful interference, (2).This device must accept any interference received, including interference that may cause undesired operation Proposed Label Location On EUT EUT Bottom View/Proposed FCC ID LABEL location FCC ID: SQO87027R03

EUT INSIDE PHOTO Applicant: EVER SPARKLE TECHNOLOGIES LTD. FCC ID: SQO87027R03

FCC ID: SQO87027R03 Applicant: EVER SAPARKLE TECHNOLOGIES LTD. Working Principle CC2500 is the transceiver of Wii Wireless Kama.The CC2500 is a low cost true single chip 2.4GHz transceiver designed for very low power wireless application .The circuit is intended for the ISM (Industrial,Scientific and Medical) and SRD(Short Range Device) frequency band at 2400-2483.5MHz. The RF transceiver is integrated with a highly configurable baseband modem.The modem supports various modulation formats and has a configurable data rate between 1.2-500 kbps. The communication range can be increased by enabling a Forward Error Correction option,which is integrated in the modem. CC2500 provides extensive hardware support for packet handling, data buffering,burst transmissions, clear channel assessment, link quality indication and wake-on-radio. The main operating parameters and the 64-byte transmit/receive FIFOs of CC2500 can be controlled via an SPI interface.In a typical system, the CC2500 will be used together with a microcontroller and a few additional passive components. CC2500 is based on Chipcon’s SmartRF 04 technology in 0.18 um CMOS.

08-16 EVER SPARKLE TECHNOLOGIES LTD hanson <Code> B a <Scale> 6 6 REV: SIZE: CODE: DRAWN: DATED: DATED: CHECKED:QUALITY CONTROL: DATED:DATED: RELEASED: COMPANY:TITLE: DRAWING NO: SHEET: OF SCALE: REVISION RECORD APPROVED: ECO NO: ABD DATE: 1 2 3 4 5 6 DCAB C LTR RF-MODEL 2.4GHZ Antenna (50 Ohm) Folded dipole PCB antenna (no external components needed0 C81 15P C101 18P C51 100N C121 100p C131 100p X1 26M R171 56k L131 1.2nH L121 1.2nH L122 1.2nH ANT C124 1.5P C132 1p C123 1.8P C151 100N C141 100N C181 1u C122 1p 1 SCLK 2 SO 3 GDO2 4 DVDD 5 DCOUPL 6 GDO0 7 CSN 8 XOSC_Q1 9 AVDD 10 XOSC_Q2 11 AVDD 12 RF_P 13 RF_N 14 AVDD 15 AVDD 16 GND 17 RBIAS 18 DGUARD 19 GND 20 SI U8 CC2500A C111 100n C20 10P 8 CS 7 GDO0 6 GND 5 GDO2 4 SO 3 SCLK 2 SI 1 VCC 9 OSC0 CO*1 9PIN2.0MMA

1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 18-Sep-2007 Sheet of File: F:\WII 手柄 \ 电路图 \Tes tBoard .dd b Drawn By: VCC Q2 3906 R25 4.7k VCCM PWCM C1522U C16104 A11 1 A9 2 A8 3 A13 4 A14 5 A17 6 NWE 7 VCC 8 A18 9 A16 10 A15 11 A12 12 A7 13 A6 14 A5 15 A4 16 A3 17 A2 18 A1 19 A0 20 D0 21 D1 22 D2 23 GND 24 D3 25 D4 26 D5 27 D6 28 D7 29 NCE 30 A10 31 NOE 32 IC1MUS400A P70 1 SEG14 2 SEG13 3 SEG12 4 SEG11 5 COM3 6 COM2 7 COM1 8 COM0 9 VB 10 VA 11 VLCD2 12 VLCD3 13 RESET 14 GND 15 R-OSCI 16 OSCO 17 VDD 18 Xin 19 Xout 20 P54/INT0 21 P55/INT1 22 P56/TCC 23 P57/IROUT 24 P60 25 P61 26 P62 27 P63 28 P64 29 P65 30 P66 31 P67 32 P84 33 P83 34 P82 35 P81 36 P80 37 P77 38 P76 39 P75 40 P74 41 P73 42 P72 43 P71 44 IC3MUS300A MA0MA1MA2MA3 MA4MA5MA6MA7MA8MA9 MA10 MA11MA12MA13MA14MA15MA16MA17MA18 MA0 MA1 MA2 MA3 MA4 MA5 MA6 MA7 MA8MA9MA10MA11MA12MA13MA14MA15 MA16 MA17 MA18 MD0MD1MD2MD3MD4MD5MD6MD7MRD VCCM GND MMT0 MMT1 MMT2MMT3MMT5 R33 47k VCCM MMT4 GND MRST2 C17 104C18 104C19 104C20 104 LVC0LVC1 LVC2 LVC3 LVC0LVC1LVC2LVC3 R2815k VCCM R34 15k X2 4M C2222p C2122p MOSCI MOSCIMOSCO MOSCO MCE R2447k Q33906 MRST2 R267.5kR2722k VCCM 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 JP1BHEADER 10X2 MD0 MD1 MD2 MD3 MD4 MD5 MD6 MD7 VCC VCC GND GND MCEX MRDX 12345678910 JP2BHEADER 10 PWCMVCCVCCVCCVCCGNDGNDGNDGND MMT0 MMT1 MMT2 MMT3 MMT4 MMT5 MCEX R29 4.7k VCC R30 47kR31 4.7k MRD MRDX R32 47k VCC MCE

1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 18-Sep-2007 Sheet of File: F:\WII 手柄 \ 电路图 \Tes tBoard .dd b Drawn By: MRST1 R4 10k C1 104 VCC SYNC VCCWSTC R5 470 1 2 3 4 5 6 WII_EXT GNDVCC MD1 MD2 MRST1MD0 1 2 3 4 5 6 7 8 TP_LINK K_POWK_SYNC MTSR STMR X1 12M C722p C622p I2C_SDA I2C_SCL MRST1 SPI_CKSPI_SOSPI_SI C8104 WSTC MGO0 SPI_CS PWCM GND 1 VCC 2 SI 3 SCLK 4 SO 5 GDO2 6 GND 7 GDO0 8 CS 9 MAR106MAR106 SPI_SISPI_SOSPI_CKVCCNGNDMGO0SPI_CSGND R7R8R9 R10 47k R11 R6 22 K_POW K_SYNC R12 PWCN VCC MKA0MKA1 R15 47k R16 22k R17 22k R18 47k MKA1 PB5/MOSI 1 PB6/MISO 2 PB7/SCK 3 RESET 4 VCC 5 GND 6 XTAL2 7 XTAL1 8 PD0/RXD 9 PD1/TXD 10 PD2/INT0 11 PD3/INT1 12 PD4 13 PD5 14 PD6 15 PD7 16 VCC 17 GND 18 PC0/SCL 19 PC1/SDA 20 PC2 21 PC3 22 PC4 23 PC5 24 PC6 25 PC7 26 AVCC 27 GND 28 AREF 29 PA7/ADC7 30 PA6/ADC6 31 PA5/ADC5 32 PA4/ADC4 33 PA3/ADC3 34 PA2/ADC2 35 PA1/ADC1 36 PA0/ADC0 37 VCC 38 GND 39 PB0 40 PB1 41 PB2 42 PB3 43 PB4/SS 44 IC1MUS100A MD0MD1MD2 MD3 MD4 MD5 MD6 MD7 MTSRSTMR GND MMT0 MMT1 MMT2 MMT3 MMT4MMT5MKA0MKA1 GND GND GND GND VCC VCC VCC I2C_SDAI2C_SCLGND R19 4.7R21 4.7R20 0 C13 47p C1447p C123p C1147pC1047p C9 3p SDAX SDAX SCLX SCLXGNDX GNDX VCC MRDX 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 JP1AHEADER 10X2 MD0 MD1 MD2 MD3 MD4 MD5 MD6 MD7 VCC VCC GND GND MCEX MRDX 12345678910 JP2AHEADER 10 PWCMVCCVCCVCCVCCGNDGNDGNDGND MMT0 MMT1 MMT2 MMT3 MMT4 MMT5 POWER C4 22U C5 104 LED VCC Q13906 R1 4.7K VCCN PWCN C222U C3104 R2470 R347k STMR R22 4.7kR23 4.7k VCCNVCCN SPI_SIXMGO0X R13R14 VCCN SPI_SIXMGO0X 1.5k X5 47k X2 MCEX

Note: This report shall not be reproduced except in full, without the written approval of Sintek Laboratory CO., Ltd. This document may be altered or revised by Sintek Laboratory Co., Ltd. personnel only, and shall be noted in the revision section of the document. Page 1 of23 FCC 47 CFR PART 15 SUBPART C TEST REPORT For EVER SPARKLE TECHNOLOGIES LTD. Wii WLL Nunchuck Model: 87027 Trade Name: NYKO Prepared for EVER SPARKLE TECHNOLOGIES LTD. Unit B, 6/F., Kingswell Commercial Tower, 171~173 lockhart Road, Wanchai,HONG Kong Prepared by SINTEK LABORATORY CO., LTD. No. 7, XINSHIDAI INDUSTRIAL, GUANTIAN VILLAGE, SHIYAN TOWN, BAOAN DISTRICT, SHENZHEN, GUANGDONG, P.R.C. TEL: 86-755-27604866 FAX: 86-755-27608359 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION...................................................................................................................5 3.2 EUT EXERCISE...............................................................................................................................5 3.3 GENERAL TEST PROCEDURES........................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS....................................................6 3.5 DESCRIPTION OF TEST MODES......................................................................................................6 4. INSTRUMENT CALIBRATION................................................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES ..................................................................................................................................8 5.2 EQUIPMENT...................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING.............................................................................8 6. SETUP OF EQUIPMENT UNDER TEST .................................................................................. 9 6.1 SETUP CONFIGURATION OF EUT....................................................................................................9 6.2 SUPPORT EQUIPMENT ............................................................................................................9 7. FCC PART 15.249 REQUIREMENTS...................................................................................... 10 7.1 BAND EDGES MEASUREMENT ...........................................................................................10 7.2 RADIATED EMISSIONS................................................................................................................14 7.3 POWER LINE CONDUCTED EMISSIONS........................................................................................21 8. APPENDIX 1 PHOTOGRPHS OF TEST SETUP ................................................................... 24 Page 3 1. TEST RESULT CERTIFICATION Applicant: EVER SPARKLE TECHNOLOGIES LTD. Unit B, 6/F., Kingswell Commercial Tower, 171~173 Lockhart Road, Wanchai, Hong Kong Equipment Under Test: Wii WL Nunchuck Tra de Na me : NYKO Model: 87027 Date of Test: Feb 18~20, 2008 Report No. : ST0801011 FCC ID : SQO87027R03 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by SINTEK LABORATORY CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2001 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.249. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Page 4 2. EUT DESCRIPTION Product Wii WL Nunchuck Tra de Name NYKO Model Number 87027 Model Discrepancy N/A Power Supply DC 3.3V Frequency Range 2410 ~ 2458 MHz Antenna Specification The EUT’S antenna is integrated on the main PCB Number of Channels 49 Channels Note: This submittal(s) (test report) is intended for FCC ID: SQO87027R03 filing to comply with Section 15.249 of the FCC Part 15, Subpart C Rules. Page 5 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, and 15.249. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the TX frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.249 under the FCC Rules Part 15 Subpart C. 3.3 GENERAL TEST PROCEDURES Conducted Emissions The EUT is placed on the turntable, which is 0.8 m above ground plane. According to the requirements in Section 13.1.4.1 of ANSI C63.4: 2001, Conducted emissions from the EUT measured in the frequency range between 0.15 MHz and 30MHz using CISPR Quasi-peak and average detector modes. Radiated Emissions The EUT is placed on a turn table, which is 0.8 m above ground plane. The turntable shall rotate 360 degrees to determine the position of maximum emission level. EUT is set 3m aw…

Text truncated - open the document above for the full version.

TEST SETUP PHOTO Applicant: EVER SPARKLE TECHNOLOGIES LTD. FCC ID: SQO87027R03
