SQO87027T03Wii Wireless Kama

User manunal The device which was inserted to the REMOTO is the DONGLE, and the handle port is NUNCHUCK. 1.Connect the WII correctly, in order to make the REMOTE work normally. 2.Insert the DONGLE to the REMOTE, then the DONGLE will start automatically and the LED will blink. At this moment, if you press the key “LINK” for one second, the LED will blink more rapidly. 3. Load the 2*AAA battery to the NUNCHUCK, then press the POWER key to start it (pressing any key can start it) .If the LED blinks, it expresses it starts normally. Then press the key “LINK”, it will connect with the DONGLE after 1 to 3 seconds. When the LED of NUNCHUCK and DONGLE are on, it stands for connecting successfully. Remarks: Step 2 and 3 above, which should be operated when the equipment was connected firstly. If the equipment had been connected before, it needn’t connect again. And when you start it, it will be connected automatically without pressing any key. 4. we can play games normally after connecting correctly. 5. We can turn off the DONGLE by pressing the POWER key of DONGLE for three seconds, and we can start it by pressing the POWER key. So does the NUNCHUCK POWER key. 6. Put the optical disk “WII SPORTS” into the WII, and join the games according to the operating hints, and choose the BOXING to play games. (You must choose the BOXING to join games firstly, because the other games can’t support NUNCHUCK)

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 8-Jan-2007 Sheet of File: D:\product\WII\w ii-5003\ NUNCHUK.ddb Drawn By: FLASH MEMORY W39VF040 MCU MUS300A CRYSTAL 4M MCU MUS100A WII REMOTE INTERFACE RF-MODULECC2500 CRYSTAL 26M DATA DATA PCB ANTENNA CRYSTAL 12M 2*AAA BATTERY 3D SENSORMMA7260 MCU MUS200E CRYSTAL 6M BUTTONS STICK RF-MODULECC2500 CRYSTAL 26M PCB ANTENNA DATA DATA DATA Dongle Block Diagram Nunchuck Block Diagram BLOCK DIAGRAM EVS SHILIBO

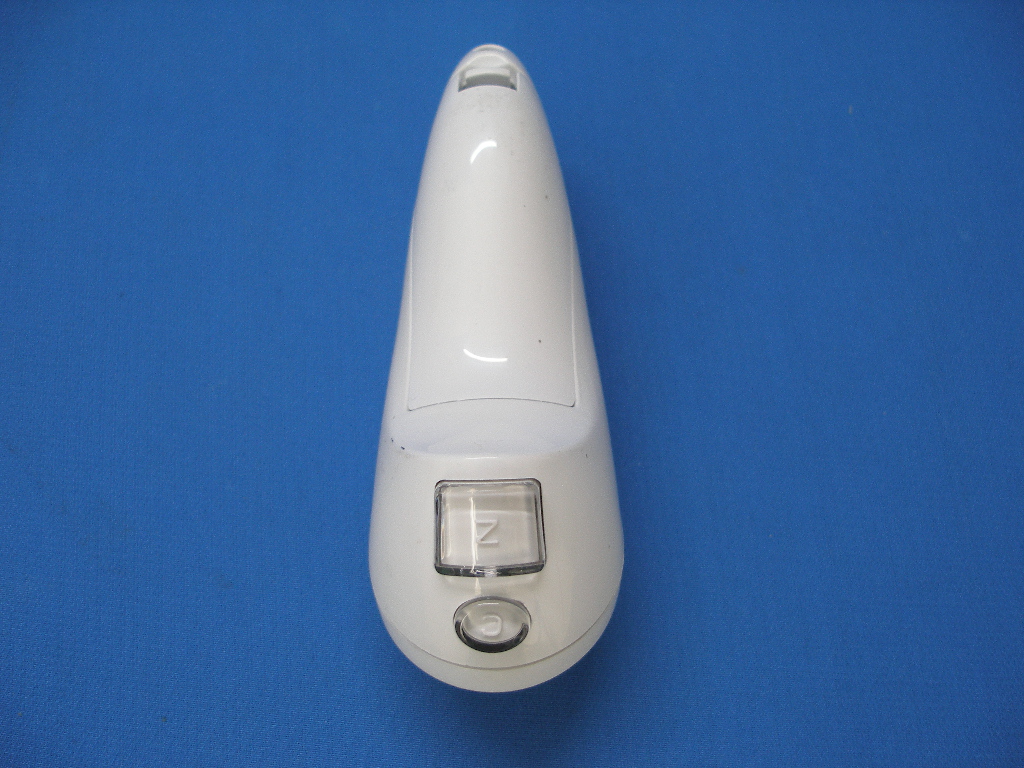

EUT EXTERIOR PHOTO Applicant: EVER SPARKLE TECHNOLOGIES LTD. FCC ID: SQO87027T03

EUT EXTERIOR PHOTO Applicant: EVER SPARKLE TECHNOLOGIES LTD. FCC ID: SQO87027T03

Applicant: EVER SPARKLE TECHNOLOGIES LTD. FCC ID: SQO87027T03 This device complies with part 15 the FCC rules. Operation is subject to the following two condition: (1). This device may not case harmful interference, (2).This device must accept any interference received, including interference that may cause undesired operation Proposed Label Location On EUT EUT Bottom View/Proposed FCC ID LABEL location FCC ID: SQO87027T03

EUT INSIDE PHOTO Applicant: EVER SPARKLE TECHNOLOGIES LTD. FCC ID: SQO87027T03

FCC ID: SQO87027T03 Applicant: EVER SAPARKLE TECHNOLOGIES LTD. Working Principle CC2500 is the transceiver of Wii Wireless Kama.The CC2500 is a low cost true single chip 2.4GHz transceiver designed for very low power wireless application .The circuit is intended for the ISM (Industrial,Scientific and Medical) and SRD(Short Range Device) frequency band at 2400-2483.5MHz. The RF transceiver is integrated with a highly configurable baseband modem.The modem supports various modulation formats and has a configurable data rate between 1.2-500 kbps. The communication range can be increased by enabling a Forward Error Correction option,which is integrated in the modem. CC2500 provides extensive hardware support for packet handling, data buffering,burst transmissions, clear channel assessment, link quality indication and wake-on-radio. The main operating parameters and the 64-byte transmit/receive FIFOs of CC2500 can be controlled via an SPI interface.In a typical system, the CC2500 will be used together with a microcontroller and a few additional passive components. CC2500 is based on Chipcon’s SmartRF 04 technology in 0.18 um CMOS.

08-16 EVER SPARKLE TECHNOLOGIES LTD hanson <Code> B a <Scale> 6 6 REV: SIZE: CODE: DRAWN: DATED: DATED: CHECKED:QUALITY CONTROL: DATED:DATED: RELEASED: COMPANY:TITLE: DRAWING NO: SHEET: OF SCALE: REVISION RECORD APPROVED: ECO NO: ABD DATE: 1 2 3 4 5 6 DCAB C LTR RF-MODEL 2.4GHZ Antenna (50 Ohm) Folded dipole PCB antenna (no external components needed0 C81 15P C101 18P C51 100N C121 100p C131 100p X1 26M R171 56k L131 1.2nH L121 1.2nH L122 1.2nH ANT C124 1.5P C132 1p C123 1.8P C151 100N C141 100N C181 1u C122 1p 1 SCLK 2 SO 3 GDO2 4 DVDD 5 DCOUPL 6 GDO0 7 CSN 8 XOSC_Q1 9 AVDD 10 XOSC_Q2 11 AVDD 12 RF_P 13 RF_N 14 AVDD 15 AVDD 16 GND 17 RBIAS 18 DGUARD 19 GND 20 SI U8 CC2500A C111 100n C20 10P 8 CS 7 GDO0 6 GND 5 GDO2 4 SO 3 SCLK 2 SI 1 VCC 9 OSC0 CO*1 9PIN2.0MMA

1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 28-Nov-2007 Sheet of File: F:\WII 手柄 \ 电路图 \Tes tBoard .dd b Drawn By: MOVEPOT2D C9 103 C10103 MOV_XMOV_Y ACZ MOV_X MOV_Y VCCMGND GND MRST R410k C1105 VCC ACY ACX 1234 BATTERY VCCGND C4 22U C5 104 LED VCC Q13906 R1 4.7K VCCM PWC C222U C3104 LED R2470 GND 1 VCC 2 SI 3 SCLK 4 SO 5 GDO2 6 GND 7 GDO0 8 CS 9 MMAR106 SPI_SISPI_SOSPI_CKVCCMGNDSPI_GISPI_CSGND R7R8R9 R10 47k R11 R6 22 R12 GND SPI_SISPI_SOSPI_CKSPI_GISPI_CSLEDPWC MRST VCC 1234 MCU_TP PIN4 MTX MTX VCCGND C6103 C7103 C8 103 VCCM ACZACYACX KCM 1 VSS 2 VDD 3 VSS 4 NC 5 NC 6 NC 7 NC 8 NC 9 NC 10 NC 11 KCS 12 U2 13 U1 14 U0 15 NC 16 IC2MUACC R1547k R1610k WCS R17R18R19 WCS BTN_CBTN_Z * 1k X 3 SYNCPOWER K_POWK_SYNC K_POWK_SYNC R20 4.7k SPI_SIXMGO0X R21R22 VCCM SPI_SIXMGO0X 47k X2 1.5k X5 A0 1 A1 2 A2 3 VSS 4 SDA 5 SCL 6 WP 7 VCC 8 IC324WC01 VCCM SCLSDA SCLSDA R13 4.7kR14 4.7k X6M C1122p C1222p R347k * 2.7V OSCIOSCO BTN_CBTN_Z 2 1 35 4 6 SW_KZZ 2 1 35 4 6 SW_KCC P74/INT0 1 P75/INT1 2 P76/INT2 3 P77/INT3 4 VDD 5 VSS 6 OSCO 7 OSCI 8 VDD 9 PC2/XIN 10 PC3/XOUT 11 RESET 12 P82/INT8/AD8 13 P83/INT9/AD7 14 P84/VREF 15 P85/AD6 16 P86/AD5 17 P87/AD4 18 P90/AD3 19 P91/AD2 20 P92/AD1 21 P93/AD0 22 P94 23 P95 24 P96 25 P97 26 PA0 27 PA1 28 PA2 29 PA3 30 PA4/SI 31 PA5/SO 32 PA6/SCK 33 PA7/SS 34 PB0/INT4/AD9 35 PB1/INT5/AD10 36 PB2/INT6/AD11 37 PB3/INT7 38 P70 39 P71 40 P72 41 P73 42 PB4/RX 43 PB5/TX 44 IC1MUS200E VCCOSCOOSCI

Note: This report shall not be reproduced except in full, without the written approval of Sintek Laboratory CO., Ltd. This document may be altered or revised by Sintek Laboratory Co., Ltd. personnel only, and shall be noted in the revision section of the document. Page 1 of23 FCC 47 CFR PART 15 SUBPART C TEST REPORT For EVER SPARKLE TECHNOLOGIES LTD. Wii WLL Nunchuck Model: 87027 Trade Name: NYKO Prepared for EVER SPARKLE TECHNOLOGIES LTD. Unit B, 6/F., Kingswell Commercial Tower, 171~173 lockhart Road, Wanchai,HONG Kong Prepared by SINTEK LABORATORY CO., LTD. No. 7, XINSHIDAI INDUSTRIAL, GUANTIAN VILLAGE, SHIYAN TOWN, BAOAN DISTRICT, SHENZHEN, GUANGDONG, P.R.C. TEL: 86-755-27604866 FAX: 86-755-27608359 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION...................................................................................................................5 3.2 EUT EXERCISE...............................................................................................................................5 3.3 GENERAL TEST PROCEDURES........................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS....................................................6 3.5 DESCRIPTION OF TEST MODES......................................................................................................6 4. INSTRUMENT CALIBRATION................................................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES ..................................................................................................................................8 5.2 EQUIPMENT...................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING.............................................................................8 6. SETUP OF EQUIPMENT UNDER TEST .................................................................................. 9 6.1 SETUP CONFIGURATION OF EUT....................................................................................................9 6.2 SUPPORT EQUIPMENT ............................................................................................................9 7. FCC PART 15.249 REQUIREMENTS...................................................................................... 10 7.1 BAND EDGES MEASUREMENT ...........................................................................................10 7.2 RADIATED EMISSIONS................................................................................................................14 7.3 POWER LINE CONDUCTED EMISSIONS........................................................................................21 8. APPENDIX 1 PHOTOGRPHS OF TEST SETUP ................................................................... 24 Page 3 1. TEST RESULT CERTIFICATION Applicant: EVER SPARKLE TECHNOLOGIES LTD. Unit B, 6/F., Kingswell Commercial Tower, 171~173 Lockhart Road, Wanchai, Hong Kong Equipment Under Test: Wii WL Nunchuck Tra de Na me : NYKO Model: 87027 Date of Test: Feb 18~20, 2008 Report No. : ST0801010 FCC ID : SQO87027T03 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by SINTEK LABORATORY CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2001 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.249. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Page 4 2. EUT DESCRIPTION Product Wii WL Nunchuck Tra de Name NYKO Model Number 87027 Model Discrepancy N/A Power Supply DC 3.3V Frequency Range 2410 ~ 2458 MHz Antenna Specification The EUT’S antenna is integrated on the main PCB Number of Channels 49 Channels Note: This submittal(s) (test report) is intended for FCC ID: SQO87027T03 filing to comply with Section 15.249 of the FCC Part 15, Subpart C Rules. Page 5 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, and 15.249. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the TX frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.249 under the FCC Rules Part 15 Subpart C. 3.3 GENERAL TEST PROCEDURES Conducted Emissions The EUT is placed on the turntable, which is 0.8 m above ground plane. According to the requirements in Section 13.1.4.1 of ANSI C63.4: 2001, Conducted emissions from the EUT measured in the frequency range between 0.15 MHz and 30MHz using CISPR Quasi-peak and average detector modes. Radiated Emissions The EUT is placed on a turn table, which is 0.8 m above ground plane. The turntable shall rotate 360 degrees to determine the position of maximum emission level. EUT is set 3m aw…
