SQVGNX-10GPRS Vehicle Location Device

GNX-10 Installation Guide GenX Mobile, Incorporated Version 1.01 Confidential and Proprietary 10/28/2004 All Rights Reserved Page 1 of 1 GNX-10 Installation Guide (For Professional Installers Only) GNX-10 Installation Guide GenX Mobile, Incorporated Version 1.01 Confidential and Proprietary 10/28/2004 All Rights Reserved Page 2 of 2 GNX-10 Installation Guide PLEASE READ! FCC Compliance This device complies with part 15 of the FCC rules Operation and is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC RF Exposure Information Warning: To satisfy the FCC RF exposure requirements, a minimum separation distance of 20 cm must be maintained between the antenna and the operator. The antenna supplied with this device must be used for installation and operation. Substitution of other antennas must be approved by the manufacturer for compliance to radiation safety limits where the antenna gain, including any cable loss, must not exceed 3 dBi. Cautions: All persons must be at least 20 cm from the transmitting antenna to meet FCC RF exposure limits. GNX-10 Installation Guide GenX Mobile, Incorporated Version 1.01 Confidential and Proprietary 10/28/2004 All Rights Reserved Page 3 of 3 Hardware Overview Feature Highlights 10 Base-T Wired Ethernet port • Network connection in the field via laptop computer, PDA, 802.11 or other Ethernet compatible equipments • Dual stacked protocol to automatically accommodate dynamic wireless network IP assignment. On-Board Storage of over 200 user configurable landmarks and over 20 true zones (with user configurable vertices) for direct alert or exceptional reporting. 2 or more months of on-board storage of vehicle operating information On-Board Low Power Motion Detector • Enables services requiring long duration battery based operation • Extended location coverage using on board accelerometers Dual Processors with Power Management Design • Enables services requiring low power standby active operation such as battery powered security monitor operation 50 MIPS Main CPU Processing Capability • Ample process throughput allows full speed Ethernet connection • Full speed processing of customized user on-board applications TCPIP, TFTP, NAT Routing Functions • Facilitates DHCP, network assigned transfer for the Ethernet equipment • Facilitates easy network connection • Flat data file format for server-less connection or direct enterprise server connection Data encryption and compression • Secure over-the-air data transfer with reduced airtime expense GNX-10 Installation Guide GenX Mobile, Incorporated Version 1.01 Confidential and Proprietary 10/28/2004 All Rights Reserved Page 4 of 4 GNX-10 Specifications Location Technology: GPS L1 C/A code Accuracy: 5 meter CEP Wireless Networks: • GSM/GPRS (850/1900) • CDMA 1xRTT (800/1900) •802.11 through Ethernet Port Size: 5.15” x 4 .15” x 0.95” Weight: 0.5 lbs Power Input: 8 – 30 Vdc Power Consumption: • Full operating mode: 140 mA @ 12 Volt • Low power active mode: < 10 mA @ 12 Volt Environmental: • Operational Temp: -20° C to +60° C • Functional Temp: -20° C to +70° C • Storage Temp: -40° C to +85° C • Humidity: 5% to 95% non condensing • Shock and Vibration: SAE J1455 • EMC/EMI: SAE J 1113 Processing capability: • 50 Mips equiv at full power Storage capacity: • Flash Memory: 1M – 8M Bytes • NVSRAM: 512k – 4M Bytes Low power sensing mode: • All external input ports • On board temperature sensor • On board accelerometer • Vehicle battery voltage monitor List of Input/Output • 1 10Base-T Ethernet Port (full NAT router) • 1 Serial Interface (AT, PPP, custom) • 1 Analog input port (0 to supply voltage) • 2 Discrete vehicle voltage input sensor ports • 2 Discrete ground sensor ports • 2 Relay control output port • 1 Switched 12v output port On Board Sensors • Temperature sensor and Voltage sensor • 2 axis accelerometer (±1.5g 50-900Hz) Communication protocols: • IP, ICMP, UDP, TCP, DNS, DHCP, PPP, TFTP, SMTP,Telnet, and others GNX-10 Installation Guide GenX Mobile, Incorporated Version 1.01 Confidential and Proprietary 10/28/2004 All Rights Reserved Page 5 of 5 PRE-INSTALLATION PROCEDURES 1. VERIFY INSTALLATION CONTENTS You must have the proper tools before installing the GNX-10 device. Please ask your manufacturer if they provide a full installation kit. Tools • Standard crimping tool (not included) • Digital voltmeter • Wire cutting tool • Insulation tape • Silicone Sealant (for roof mount antennas only) • Optional flathead and Philips screwdrivers • Optional butane soldering tool • Optional power drill to create ½ inch hole (for roof mount antennas only) GNX-10 Installation Contents • Antenna • Wiring harnesses • Optional Ethernet adapter Wiring Harness Key Red: Connect to 12V Constant White: Connect to Vehicle’s True Ignition Black: Connect to Ground Optional Installation Contents • Self-tapping screws • Fuse packs GNX-10 Installation Guide GenX Mobile, Incorporated Version 1.01 Confidential and Proprietary 10/28/2004 All Rights Reserved Page 6 of 6 • Butt Connectors • Tie Wraps • Star Washers 2. VERIFY VEHICLE DETAILS Note all important vehicle details, including vehicle #, VIN #, vehicle model and year in the VEHICLE ADMINISTRATION WORKSHEET. (See Vehicle Administration Worksheet towards end). 3. INSPECT VEHICLE FOR DAMAGE Before installing, do a thorough inspection of the interior and exterior of the vehicle, noting any obvious vehicle damage. Mark damage here: Exterior Damage Dents Windshield cracks Chips Broken side mirrors Other: Interior Damage Headliner rip Broken door handles Torn seats Other: REPORT DAMAGE TO VEHICLE MANAGER/ OWNER! 4. VERIFY VEHICLE OPERATION Verify normal vehicle operation before proceeding with installation. Perform basic checks on vehicle’s engine, electrical, and lighting system. 5. VERIFY POWER SOURCES / CONNECTION POINTS GNX-10 Installat…

Text truncated - open the document above for the full version.

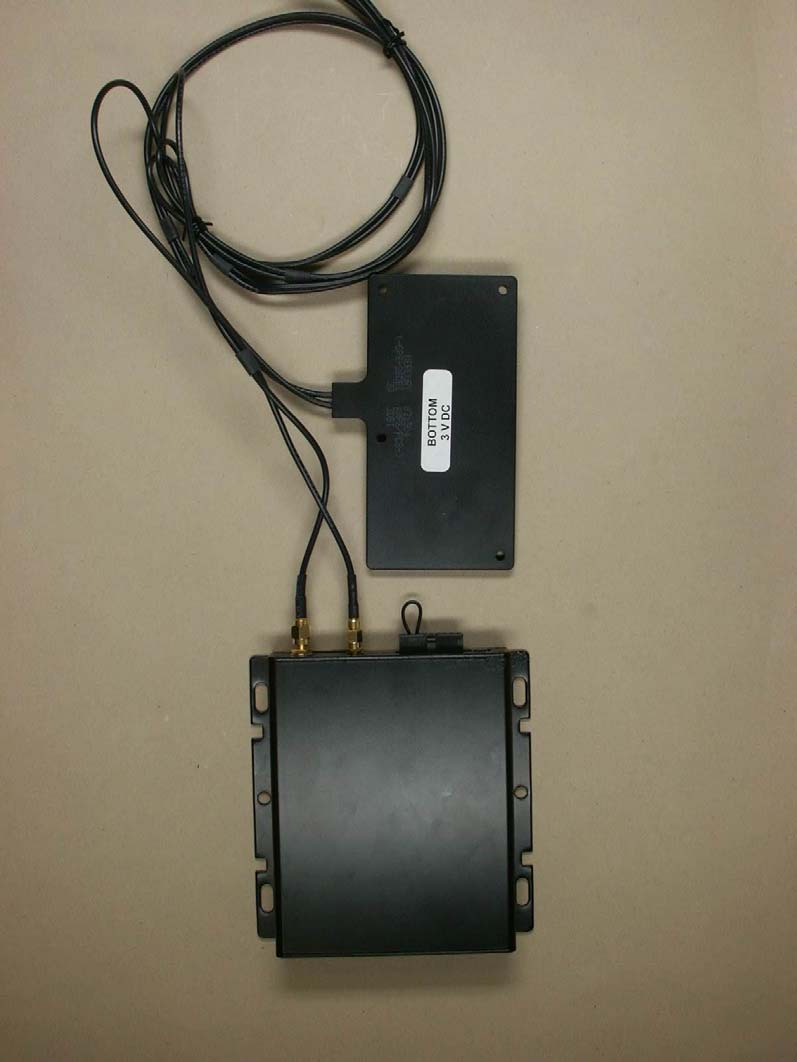

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20408-8940-P-2224 Page 1 of 13 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20408-8940-P-2224 Page 2 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20408-8940-P-2224 Page 3 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20408-8940-P-2224 Page 4 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20408-8940-P-2224 Page 5 of 13

GenX Mobile, Incorporated 2362 Qume Drive, Suite D San Jose, CA 95131 www.genxmobile.com FCC and IC Label Location The FCC label is affixed to the TOP side of the GNX-10 device.

GenX Mobile, Incorporated 2362 Qume Drive, Suite D San Jose, CA 95131 www.genxmobile.com GNX-10 FCC LABEL SAMPLE FCC Statement Label WARNING: ALL PERSONS MUST KEEP A MINIMUM SEPARATION 20cm FROM THE TRANSMITTER’S ANTENNA WHEN DEVICE IS OPERATING TO MEET THE CURRENT FCC RF EXPOSURE GUIDELINES. Contains GSM/GPRS modem transmitter module FCC ID: SQVGNX-10 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20408-8940-P-2224 Page 6 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20408-8940-P-2224 Page 7 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20408-8940-P-2224 Page 8 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20408-8940-P-2224 Page 9 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20408-8940-P-2224 Page 10 of 13

GenX Mobile, Incorporated 2362 Qume Drive, Suite D San Jose, CA 95131 (408) 943-9882 October 28, 2004 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 RF Exposure Calculation Model# GNX-10 Applicant: GenX Mobile, Incorporated FCC ID: SQVGNX-10 The external antennas used for this mobile transmitter must provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. A safety statement regarding the minimum separation distances from the GNX-10 Mobile Tracking Unit GSM/GPRS 850/1900 unit is included in the user’s manual providing end-users with transmitter operating conditions for satisfying RF exposure compliance. Calculations can be mode to predict RF field strength and power density levels around typical RF sources using the general equations (3) and (4) on page 19 of the FCC documents titled “OET Bulletin 65, Edition 97-01 – Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields” These equations are generally accurate in the far field of an antenna but will over predict power density in the near field, where they could be used for a “worst case” prediction. S = PG/4 π R 2 (3) Where; S = power density (mW/cm 2 ) P = power input to the antenna (mW) G = power gain of the antenna in the direction of interest relative to the isotropic radiator R = distance to the center of radiation of the antenna (cm) Or, S = EIRP/4πR 2 (4) Where; EIRP = Equivalent Isotropically Radiated Power Calculations Cellular Band 824-894 MHz, Limit = f/1500 = 0.549mW/cm 2 EIRP = 1.78 W S = 1780mW / (4π * [20cm] 2 ) = 0.354 mW/cm 2 < 0.549mW/cm 2 PCS Band 1850 – 1990 MHz, Limit = 1mW/cm 2 EIRP = 1.78 W S = 1780mW / (4π * [20cm] 2 ) = 0.354 mW/cm 2 < 1mW/cm 2

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH FCC - TEST - REPORT FCC RULES PARTS 22 and 24 FCC ID: SQVGNX-10 Test report no.: G0M20408-8940-P-2224 ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, Germany Registration number: G0M20408-8940-P-2224 Page 1 of 40 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 General Test Procedure 3 Test Results 4 RF Power Output, FCC 2.1046 4.1 Test Procedure 4.2 Test Results 5 Radiated Power FCC 22.913, FCC 24.232 5.1 Test Procedure 5.2 Test Results 6 Modulation Deviation Limiting, FCC 2.1047, 22.915(b)(c) 6.1 Test Procedure 6.2 Test Results 7 Audio Filter Characteristics, FCC 22.915(d) 7.1 Test Procedure 7.2 Test Results 8 Emission Limitations, , FCC 2.1049 8.1 Test Procedure 8.2 Test Results 9 Occupied Bandwidth FCC 22.917(b)(d); FCC 2.1049 9.1 Test Procedure 9.2 Test Results 10 Out of Band Emissions at Antenna Terminals, FCC 24.238(a) 10.1 Test Procedure 10.2 Test results 11 Field Strength of Spurious Radiation, FCC 2.1053, 24.236 11.1 Test Procedure 11.2 Test Results ETS Dr. Genz GmbH, Germany Registration number: G0M20408-8940-P-2224 Page 2 of 40 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 12 Line Conducted Emissions, FCC 15.207 12.1 Test Procedure 12.2 Test Results 13 Frequency Stability vs Temperature, FCC 2.1055, 22.355, 24. 235 13.1 Test Procedure 13.2 Test Equipment 14 Frequency Stability vs Voltage, FCC 2.1055, 22.355, 24.235 14.1 Test Procedure 14.2 Test Equipment ETS Dr. Genz GmbH, Germany Registration number: G0M20408-8940-P-2224 Page 3 of 40 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 01.10.2004 N. Kaspar Date ETS-Lab. Name Signature Technical responsibility for area of testing: 01.10.2004 Dr. Genz Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G0M20408-8940-P-2224 Page 4 of 40 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Telefax : +49 33631 888 66 1.2.2 Details of accreditation status A CCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 A CCREDITED COMPETENT BODY DAR-REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY: BLUETOOTH QUALIFICATION REVIEW BOARD (BQRF) I NDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number: 1983-01 1.3 Details of approval holder Name : GenX Mobile, Inc. Street : 2362 Qume Drive Suite D Town : CA 95131 San Jose, California Country : USA Telephone : (408)943-9891 Fax : (408) 943-9897 Contact : Mr. Dave Mleczko E-Mail : [email protected] ETS Dr. Genz GmbH, Germany Registration number: G0M20408-8940-P-2224 Page 5 of 40 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4 Application details Date of receipt of application : 16.09.2004 Date of receipt of test item : 16.09.2004 Date of test : 21.09.2004 – 23.09.2004 1.5 Test item Description of test item : Mobile Tracking Unit GPRS 850/1900 w/ GPS Type identification : GNX-10 Serial number : Test model without serial number. Photos : See annex A. Technical data Frequency range Tx – GSM 850 : 824.2 – 848.80 MHz Frequency range Tx – PCS : 1850.2 – 1909.8 MHz Frequency range Rx - GSM 850 : 869.2 – 893.8 MHz Frequency range Rx - PCS : 1930.2 – 1989.8 MHz Antenna transmitter : 3 V AMPS, PCS & GPS Telematics Antenna Antenna Gain : 3 dBi Power supply : 12 V DC Operating mode : duplex Type of modulation : GMSK (GSM modulation) Emission : GXW Manufacturer: (if applicable) Name : Street : Town : Country : ETS Dr. Genz GmbH, Germany Registration number: G0M20408-8940-P-2224 Page 6 of 40 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6 Test standards Technical standard : FCC Parts 22, 24, 2, 15 Additional information : Because of using the GSM 850 as an alternative technology in 850 MHz band, not all test cases of FCC Part 22 are required. 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 23 o C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa ETS Dr. Genz GmbH, Germany Registration number: G0M20408-8940-P-2224 Page 7 of 40 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 2.3 Test equipment utilized No. Test equipment Type Manufacturer ETS 0001 Test receiver ESHS 10 Rohde & Schwarz ET…
