SQX-JD60-DB-819Wireless Cellular Repeater

JD60_8 Manual_2.qxp:Layout 1 31/05/10 8:52 PM Page 1 1 81 JD60_8 Manual_2.qxp:Layout 1 31/05/10 8:52 PM Page 2 21 7 JD60_8 Manual_2.qxp:Layout 1 31/05/10 8:52 PM Page 3 FCC Radiation Exposure Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 1 63 JD60_8 Manual_2.qxp:Layout 1 31/05/10 8:52 PM Page 4 415 JD60_8 Manual_2.qxp:Layout 1 31/05/10 8:52 PM Page 5 145 JD60_8 Manual_2.qxp:Layout 1 31/05/10 8:52 PM Page 6 613 JD60_8 Manual_2.qxp:Layout 1 31/05/10 8:52 PM Page 7 127 JD60_8 Manual_2.qxp:Layout 1 31/05/10 8:52 PM Page 8 811 JD60_8 Manual_2.qxp:Layout 1 31/05/10 8:52 PM Page 9 109 JD60_8 Manual_2.qxp:Layout 1 31/05/10 8:52 PM Page 10

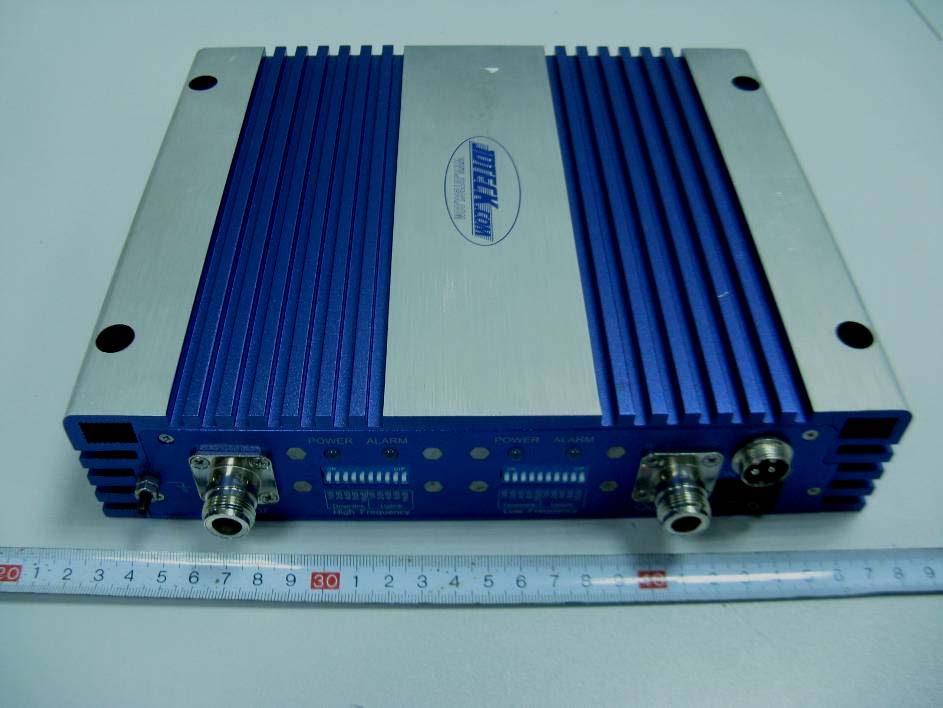

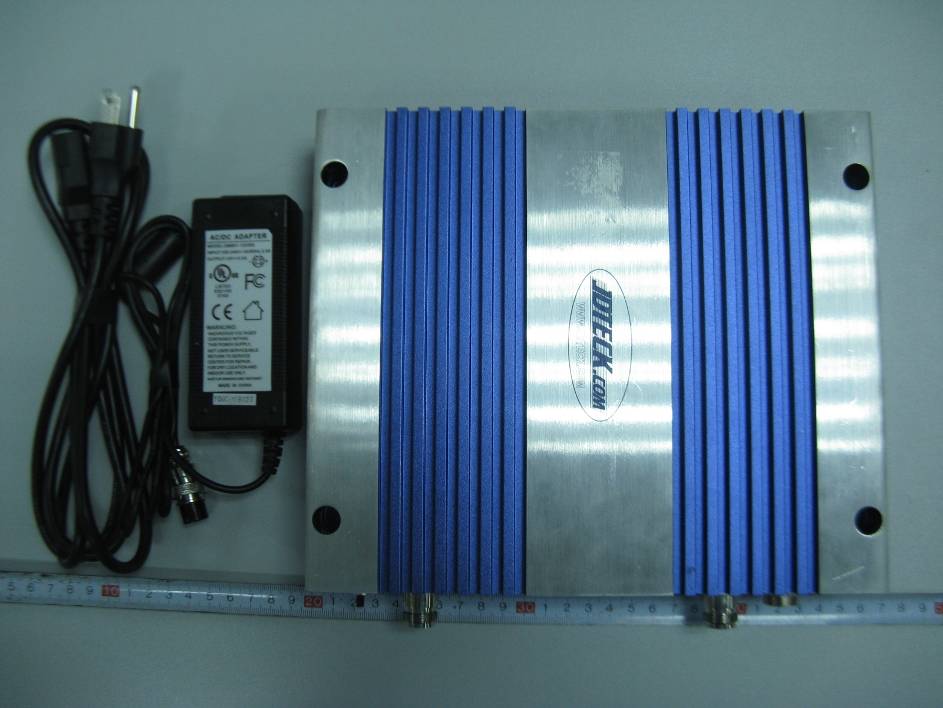

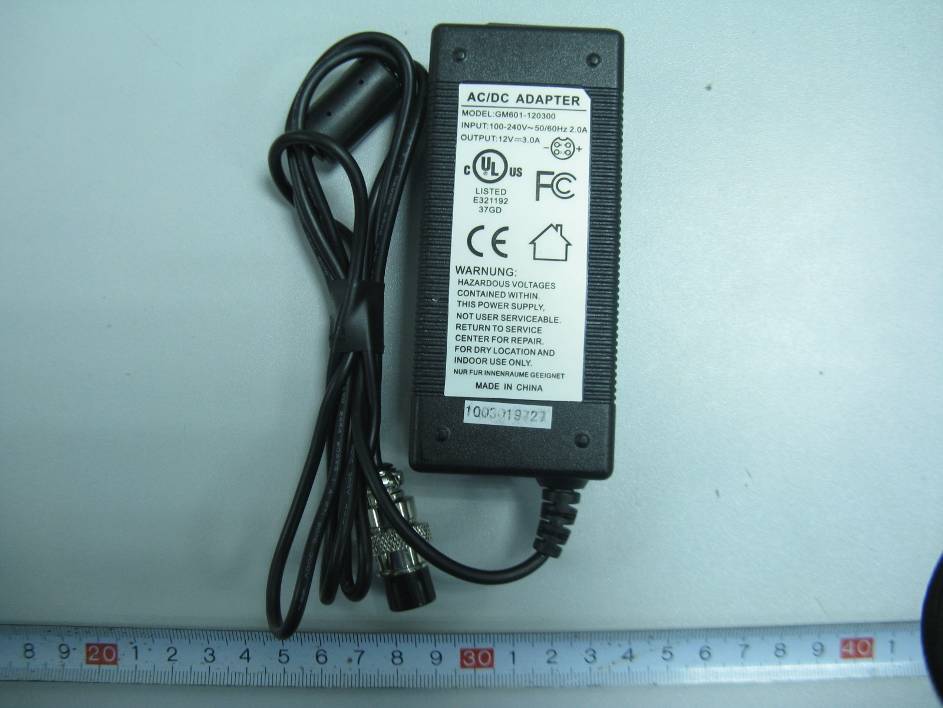

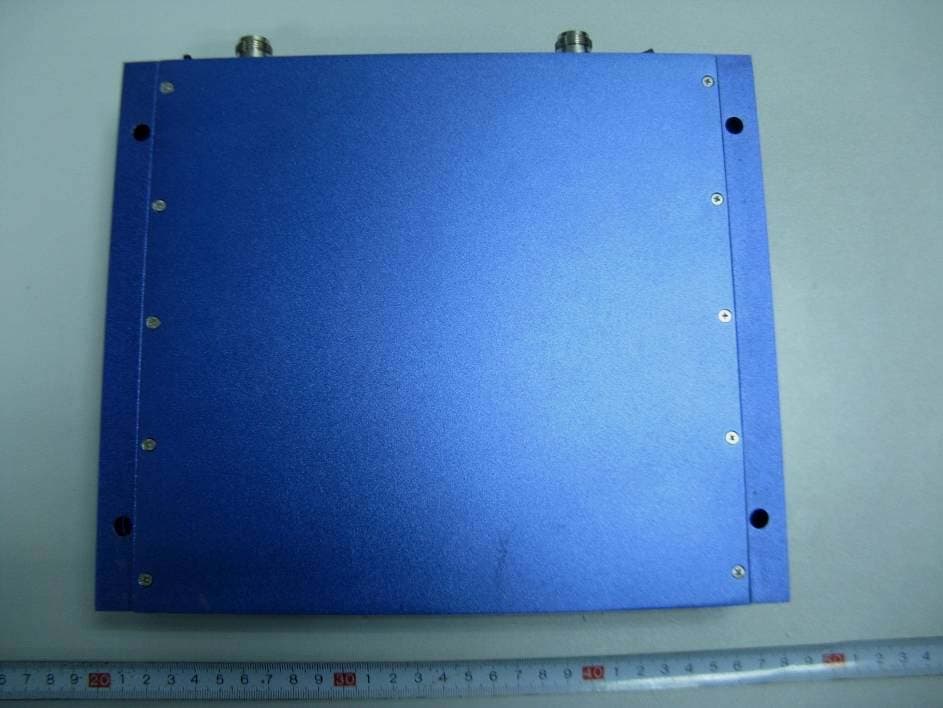

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT with AC/DC Adaptor View EUT – Top View EUT – Bottom View EUT – Side View EUT – Adaptor View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location Label here The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover Off View EUT – Main Board 1 Top View EUT – Main Board 1 Bottom View EUT – Main Board 2 Top View EUT – Main Board 2 Bottom View EUT – DIP Switch Board Top View EUT – DIP Switch Board Bottom View

JDTECK INC FCC ID: SQX-JD60-DB-819 Report No.: RSZ10051805 Page 8 of 42 FCC Part 22H/24E Test Report FCC §1.1307 & §2.1091 - RF EXPOSURE Applicable Standard According to FCC §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to FCC §1.1310 and §2.1091 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Test Data Predication of MPE limit at a given distance S = PG/4πR² Where: S = power density (in appropriate units, e.g. mW/cm2) P = output power to antenna G= Antenna Gain R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) GSM850 Band: Antenna Gain Conducted Power Frequency Band Frequency (MHz) (dBi) (numeric)(dBm)(mW) Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) Uplink 836.0 14 25.12 14.9631.33 20 0.157 0.557 Downlink 881.0 7 5.01 23.87243.7820 0.243 0.587 JDTECK INC FCC ID: SQX-JD60-DB-819 Report No.: RSZ10051805 Page 9 of 42 FCC Part 22H/24E Test Report PCS1900 Band: Antenna Gain Conducted Power Frequency Band Frequency (MHz) (dBi) (numeric)(dBm)(mW) Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) Uplink 1880 14 25.12 14.9831.48 20 0.157 1 Downlink 1960 7 5.01 23.34215.7720 0.215 1 Result: Pass The predicted power density level at 20 cm is 0.157 mw/cm 2 for uplink, which is below the ordinary/controlled exposure limit of 0.557 mw/cm 2 , and the predicted power density level at 20 cm is 0.243 mw/cm 2 for downlink, which is below the ordinary/controlled exposure limit of 0.587 mw/cm 2 for GSM band , The predicted power density level at 20 cm is 0.157 mw/cm 2 for uplink, 0.215 mw/cm 2 for downlink, which is below the ordinary/controlled exposure limit of 1 mw/cm 2 for PCS band, The EUT is used at least 20 cm away from user’s body. It is determined as mobile equipment and complies with the MPE limit.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 22H & 24E MEASUREMENT AND TEST REPORT For JDTECK INC 107 South Hoagland Blvd, Kissimmee, FL 34741, USA FCC ID: SQX-JD60-DB-819 Report Type: Original Report Product Type: Wireless Cellular Repeater Test Engineer: Bruce Zhang Report Number: RSZ10051805 Report Date: 2010-06-29 Reviewed By: Merry Zhao EMC Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 JDTECK INC FCC ID: SQX-JD60-DB-819 Report No.: RSZ10051805 Page 2 of 42 FCC Part 22H/24E Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 EUT PHOTO.................................................................................................................................................................3 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................5 EXTERNAL I/O CABLE..................................................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................6 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................6 SUMMARY OF TEST RESULTS...............................................................................................................................7 FCC §1.1307 & §2.1091 - RF EXPOSURE..................................................................................................................8 APPLICABLE STANDARD..............................................................................................................................................8 TEST DATA..................................................................................................................................................................8 FCC §2.1047 - MODULATION CHARACTERISTIC ............................................................................................10 FCC § 2.1046, § 22.913 (A) & § 24.232 - RF OUTPUT POWER ............................................................................11 APPLICABLE STANDARD............................................................................................................................................11 TEST PROCEDURE......................................................................................................................................................11 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................11 TEST DATA................................................................................................................................................................11 FCC §2.1049, §22.917, §22.905 & §24.238 - OCCUPIED BANDWIDTH ..............................................................13 APPLICABLE STANDARDS...........................................................................................................................................13 TEST PROCEDURE......................................................................................................................................................13 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................13 TEST DATA................................................................................................................................................................13 FCC §2.1051, §22.917(A) & §24.238(A) - SPURIOUS EMISSIONS AT ANTENNA TERMINALS ..................21 APPLICABLE STANDARDS.......................................................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Below 1 GHz: Spurious Radiated Emissions - Front View Below 1 GHz: Spurious Radiated Emissions - Rear View Above 1 GHz: Spurious Radiated Emissions - Front View Above 1 GHz: Spurious Radiated Emissions - Rear View
