SQXJD55-PR8-AWSWireless Cellular Repeater

JD55-PR Manual_2.qxp:Layout 1 31/05/10 9:12 AM Page 1 181 JD55-PR Manual_2.qxp:Layout 1 31/05/10 9:12 AM Page 2 FCC Radiation Exposure Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 217 JD55-PR Manual_2.qxp:Layout 1 31/05/10 9:12 AM Page 3 163 JD55-PR Manual_2.qxp:Layout 1 31/05/10 9:12 AM Page 4 415 JD55-PR Manual_2.qxp:Layout 1 31/05/10 9:12 AM Page 5 145 JD55-PR Manual_2.qxp:Layout 1 31/05/10 9:12 AM Page 6 613 JD55-PR Manual_2.qxp:Layout 1 31/05/10 9:12 AM Page 7 127 JD55-PR Manual_2.qxp:Layout 1 31/05/10 9:12 AM Page 8 811 JD55-PR Manual_2.qxp:Layout 1 31/05/10 9:12 AM Page 9 109 JD55-PR Manual_2.qxp:Layout 1 31/05/10 9:12 AM Page 10

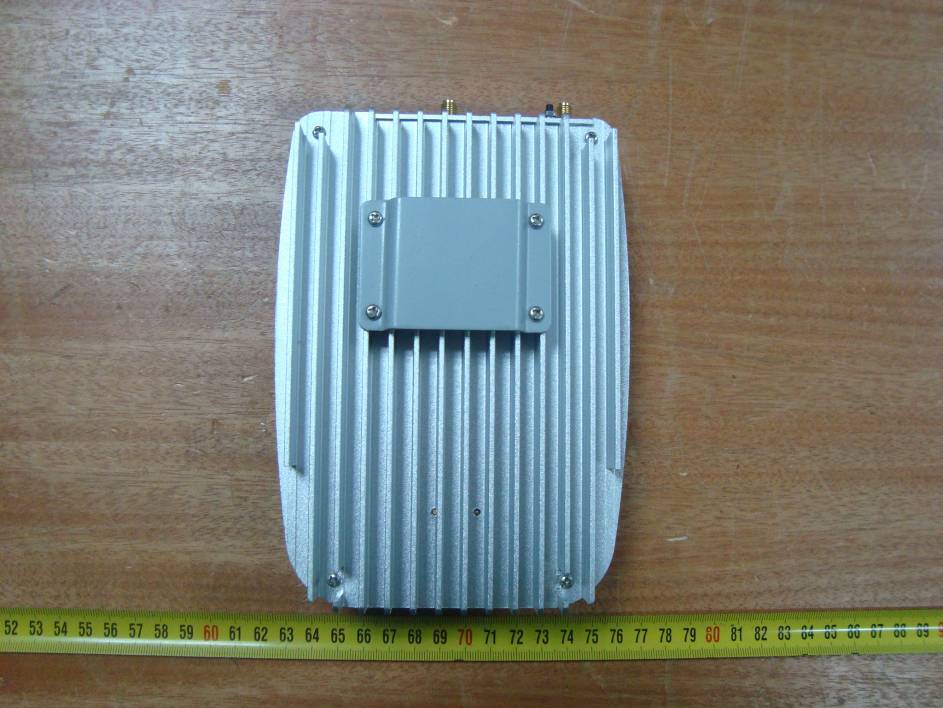

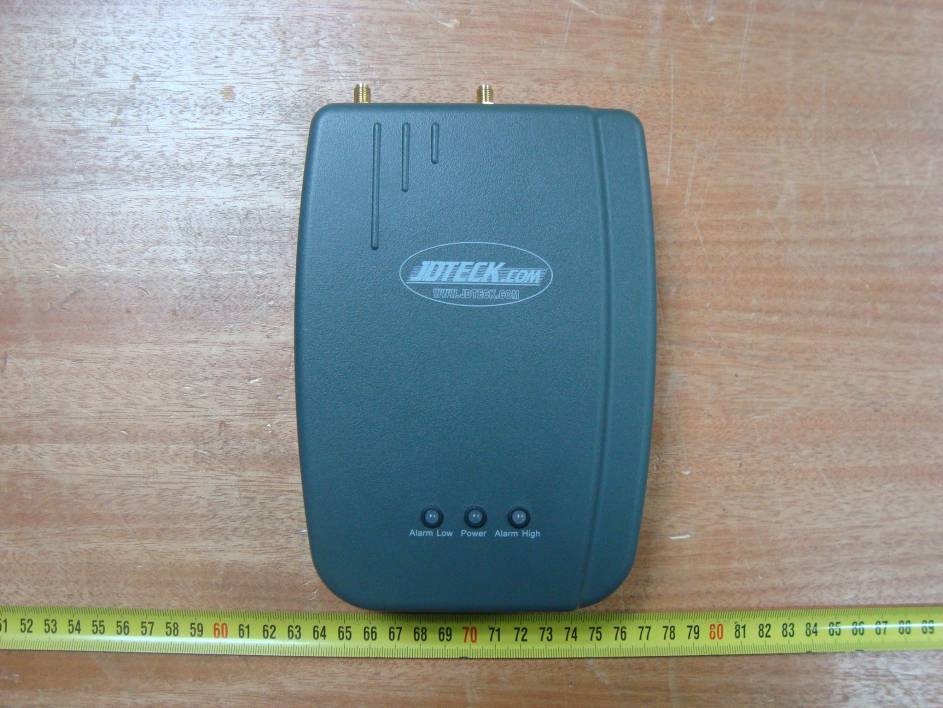

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View EUT – Top View EUT – Bottom View EUT – Adapter View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Front Cover Off View EUT – Rear Cover Off View EUT – Main Board Top View EUT – Main Board Bottom View EUT – LED View

JDTECK INC FCC ID: SQXJD55-PR8-AWS Report No.: RSZ10063004-27 Page 9 of 39 FCC Part 27 Test Report FCC §1.1307 (b)(1) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Standard Applicable According to subpart 1.1307 (b)(1), 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mw/cm 2 ) Averaging Time (Minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Test Data Predication of MPE limit at a given distance S = PG/4πR² Where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Antenna Gain Conducted Power Mode Frequency (MHz) (dBi) (numeric)(dBm)(mW) Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) Uplink 1732.4 18 63.10 13.9124.60 > 400 0.00077 1.0 Downlink 2132.4 18 63.10 11.5414.26 > 400 0.00045 1.0 The predicted power density level at more than 400 cm is 0.00077 mw/cm 2 for uplink, 0.00045 mw/cm 2 for downlink, which is below the general population/uncontrolled exposure limit of 1.0 mw/cm 2 , The EUT is used at least 400 cm away from user’s body. It is determined as mobile equipment and complies with the MPE limit. Result: compliant

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 27 MEASUREMENT AND TEST REPORT For JDTECK INC 107 South Hoagland Blvd, Kissimmee, FL 34741, USA FCC ID: SQXJD55-PR8-AWS Report Type: Original Report Product Type: Wireless Cellular Repeater Test Engineer: Sula Huang Report Number: RSZ10063004-27 Report Date: 2010-07-26 Reviewed By: Merry Zhao EMC Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 JDTECK INC FCC ID: SQXJD55-PR8-AWS Report No.: RSZ10063004-27 Page 2 of 39 FCC Part 27 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................4 EUT PHOTO.................................................................................................................................................................4 OBJECTIVE...................................................................................................................................................................5 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................5 TEST METHODOLOGY..................................................................................................................................................5 TEST FACILITY.............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 JUSTIFICATION.............................................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................6 EXTERNAL I/O CABLE..................................................................................................................................................6 CONFIGURATION OF TEST SETUP.................................................................................................................................6 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................7 SUMMARY OF TEST RESULTS...............................................................................................................................8 FCC §1.1307 (B)(1) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ....................................................9 STANDARD APPLICABLE..............................................................................................................................................9 TEST DATA..................................................................................................................................................................9 FCC §2.1047 - MODULATION CHARACTERISTIC ............................................................................................10 FCC §2.1046 & §27.50 (D) – EFFECTIVE RADIATED POWER .........................................................................11 APPLICABLE STANDARD............................................................................................................................................11 TEST PROCEDURE......................................................................................................................................................11 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................11 TEST DATA................................................................................................................................................................11 FCC §2.1049 & §27.53(H) - 99% & -26 DB OCCUPIED BANDWIDTH ..............................................................16 APPLICABLE STANDARDS REQUIREMENTS:................................................................................................................16 TEST PROCEDURE......................................................................................................................................................16 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................16 TEST DATA................................................................................................................................................................16 FCC §2.1051 & §27.53(H) - SPURIOUS EMISSIONS AT ANTENNA TERMINALS ........................................27 APPLICABLE STANDARDS...........................................................................................................................................27 TEST PROCEDURE................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Below 1GHz: Spurious Radiated Emissions - Front View Below 1GHz: Spurious Radiated Emissions - Rear View Above 1GHz: Spurious Radiated Emissions - Front View Above 1GHz: Spurious Radiated Emissions - Rear View Frequency Stability Test View
