May12 th 2011 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC Confidential Authorization To Whom It May Concern Confidentiality Request regarding application for certification of FCC ID: SQXJD60-7-TB-US Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: • Detailed Circuit Schematics of EUT--- (Long term)  Block Diagram--- (Long term)  Circuit Description--- (Long term) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Yours sincerely, ___________________ Dennison Jurawan Sales Manager

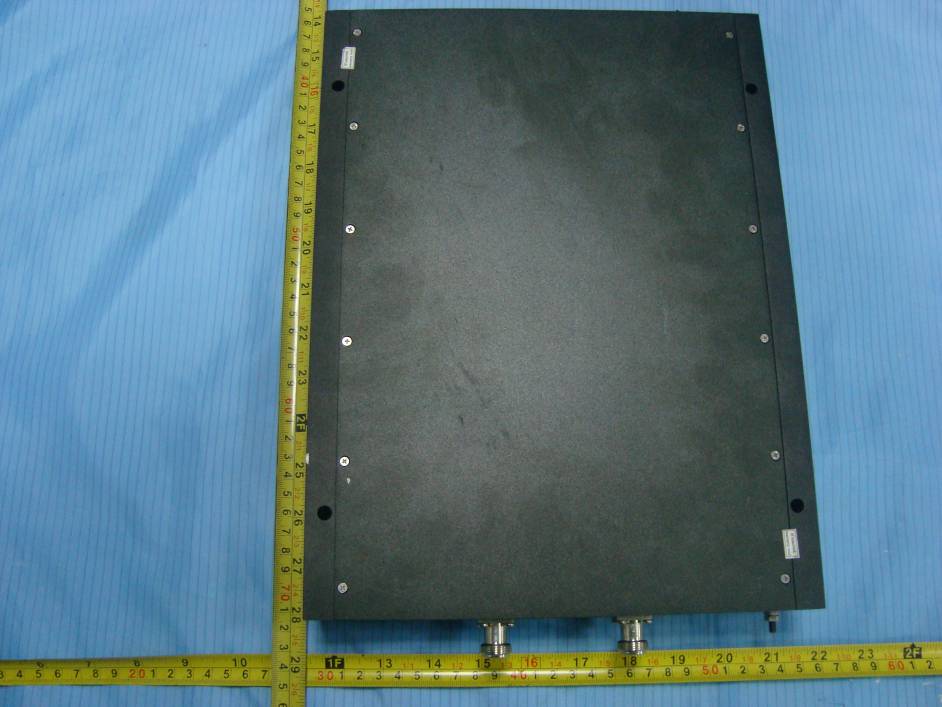

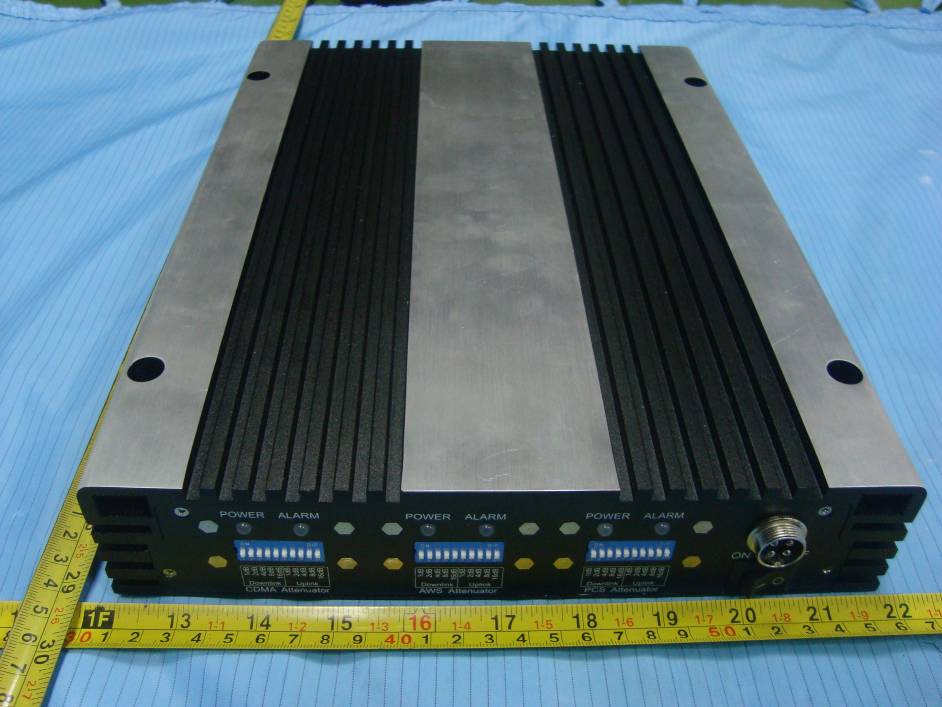

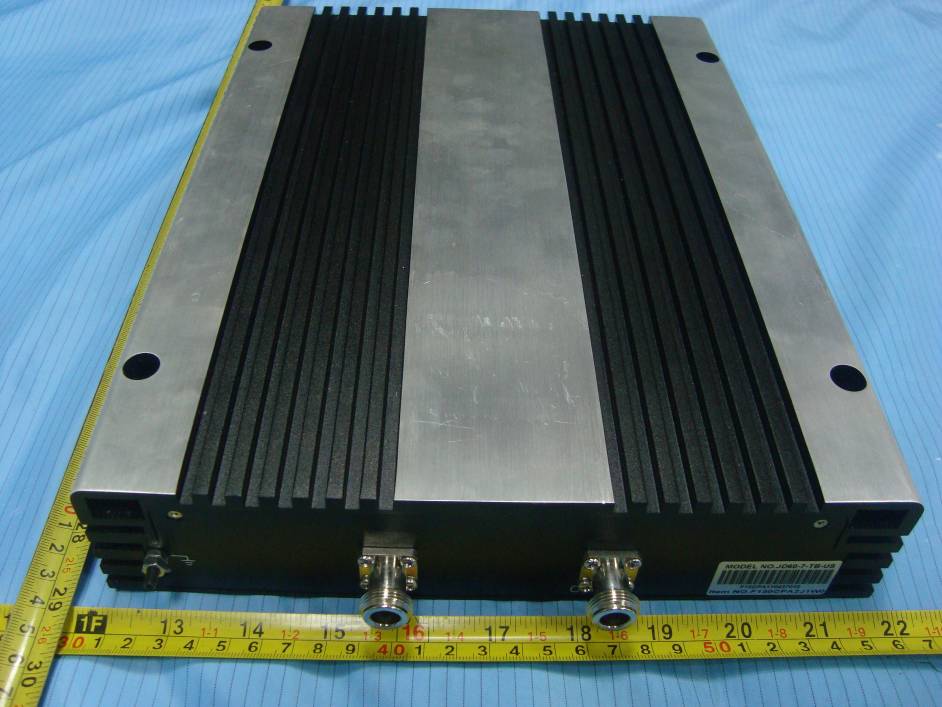

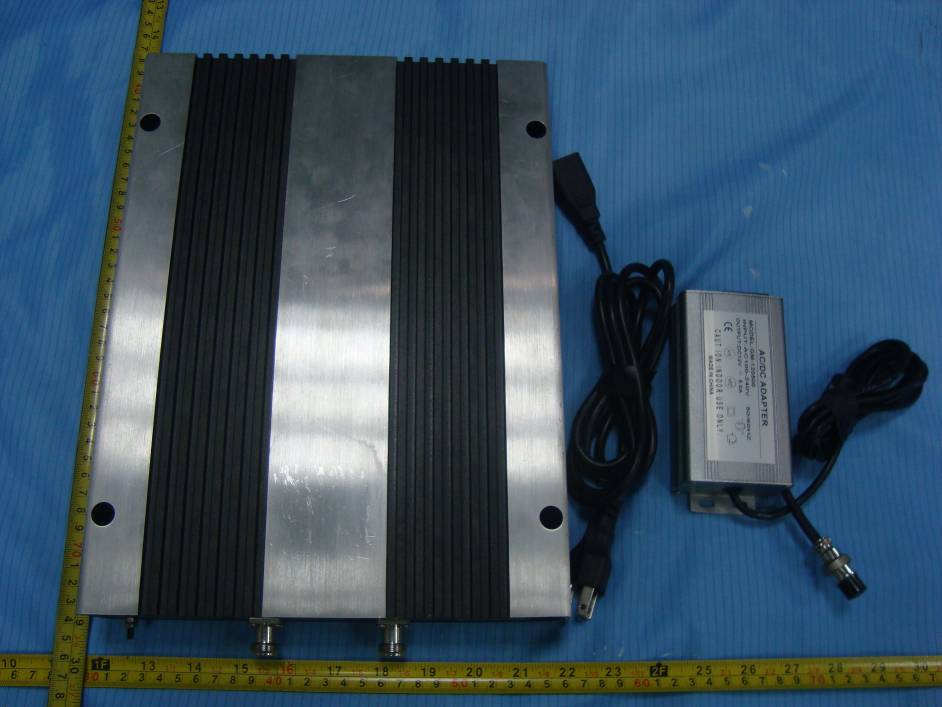

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – All View EUT – Top View EUT – Bottom View EUT – Port View EUT – Switch View EUT – Adapter View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location Label here The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View 1 EUT – Cover off View 2 EUT – Main Board Top View EUT – Main Board Shielding off Top View EUT – Main Board Bottom View EUT – Dial Switch Top View EUT – Dial Switch Top View

JDTECK INC FCC ID: SQXJD60-7-TB-US Report No.: RSZ11050503 Page 8 of 152 FCC Part 22H/24E/27 Test Report FCC §1.1307 & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart FCC §1.1307 (b)(1) and §2.1091 systems operating under the provisions of t his section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mw/cm 2 ) Averaging Time (Minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Test Data Predication of MPE limit at a given distance S = PG/4πR² Where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) GSM Cellular Band (Part 22H): Antenna Gain Conducted Power Mode Frequency (MHz) (dBi) (numeric)(dBm)(mW) Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) Uplink 836.6 14 25.119 8.6 7.244 > 400 0.00009 0.558 Downlink 881.6 8 6.310 14.59 28.774> 400 0.00009 0.588 JDTECK INC FCC ID: SQXJD60-7-TB-US Report No.: RSZ11050503 Page 9 of 152 FCC Part 22H/24E/27 Test Report GSM PCS Band (Part 24E): Antenna Gain Conducted Power Mode Frequency (MHz) (dBi) (numeric)(dBm)(mW) Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) Uplink 1880.0 14 25.119 9.10 8.128 > 400 0.00010 1.00 Downlink 1960.0 8 6.310 14.19 26.242> 400 0.00008 1.00 CDMA Cellular Band (Part 22H): Antenna Gain Conducted Power Mode Frequency (MHz) (dBi) (numeric)(dBm)(mW) Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) Uplink 836.52 14 25.119 9.95 9.886 > 400 0.00012 0.558 Downlink 881.52 8 6.310 14.19 26.242> 400 0.00008 0.588 CDMA PCS Band (Part 24E): Antenna Gain Conducted Power Mode Frequency (MHz) (dBi) (numeric)(dBm)(mW) Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) Uplink 1880.0 14 25.119 9.60 9.120 > 400 0.00012 1.00 Downlink 1960.0 8 6.310 14.45 27.861> 400 0.00008 1.00 WCDMA AWS Band (Part 27): Antenna Gain Conducted Power Mode Frequency (MHz) (dBi) (numeric)(dBm)(mW) Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) Uplink 1732.4 14 25.119 9.35 8.610 > 400 0.000108 1.0 Downlink 2132.4 8 6.310 14.70 29.512> 400 0.000093 1.0 Result: The device meets FCC MPE limit at 400 cm distance.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, or any agency of the Federal Government. * This report contains data that are not covered by the NVLAP accreditation and are marked with an asterisk “★” (Rev.2) FCC PART 22H, 24E & 27 MEASUREMENT AND TEST REPORT For JDTECK INC 107 South Hoagland Blvd., Kissimmee, FL 34741, USA FCC ID: SQXJD60-7-TB-US Report Type: Original Report Product Type: Wireless Cellular Repeater Test Engineer: Phoenix Liu Report Number: RSZ11050503 Report Date: 2011-06-22 Reviewed By: Merry Zhao EMC Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 JDTECK INC FCC ID: SQXJD60-7-TB-US Report No.: RSZ11050503 Page 2 of 152 FCC Part 22H/24E/27 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................5 EXTERNAL I/O CABLE..................................................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................6 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................6 SUMMARY OF TEST RESULTS ...............................................................................................................................7 FCC §1.1307 & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE).............................................................8 APPLICABLE STANDARD..............................................................................................................................................8 TEST DATA..................................................................................................................................................................8 FCC §2.1047 - MODULATION CHARACTERISTIC ............................................................................................10 FCC §2.1046, §22.913(A), §24.232(C) & §27.50 - RF OUTPUT POWER ..............................................................11 APPLICABLE STANDARD............................................................................................................................................11 TEST PROCEDURE......................................................................................................................................................11 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................11 TEST DATA................................................................................................................................................................12 FCC §2.1049, §22.917, §22.905, §24.238 &§27.53 - OCCUPIED BANDWIDTH ..................................................14 APPLICABLE STANDARDS...........................................................................................................................................14 TEST PROCEDURE......................................................................................................................................................14 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................14 TEST DATA................................................................................................................................................................14 FCC §2.1051, §22.917(A), §24.238(A) & §27.53 - SPURIOUS EMISSIONS AT ANTENNA TERMINALS .....49 APPLICABLE STANDARDS...........................................................................................................................................49 TEST PROCEDURE......................................................................................................................................................49 TEST EQUIPMENT LIST AND DETAILS.............…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Uplink: Below 1 GHz: Spurious Radiated Emissions - Front View Below 1 GHz: Spurious Radiated Emissions - Rear View Above 1 GHz: Spurious Radiated Emissions - Front View Above 1 GHz: Spurious Radiated Emissions - Rear View Downlink: Below 1 GHz: Spurious Radiated Emissions - Front View Below 1 GHz: Spurious Radiated Emissions - Rear View Above 1 GHz: Spurious Radiated Emissions - Front View Above 1 GHz: Spurious Radiated Emissions - Rear View
