SQXJD65-XTPCS 1.9G Pico Repeater

JDTECK LTD 1page Rev. 1.0 User’s Manual for Wireless Repeater Model No : JD65-XT ( PCS 1.9G Pico Repeater ) JDTECK LTD JDTECK LTD 2page Rev. 1.0 n Introduction The JD65-XT model, a mobile communications repeater, is affected by neither configuration of the ground nor base station’s signals. To improve call quality at small- sized area with radio wave interference ( 50 ) or mobile communications service interference area, the repeater amplifies and transmits signals of base station and mobile station. Being suitable to frequency bandwidth of customer, the repeater is to be produced enough to handle, install and maintain it with ultra small-sized model. To maintain specific level of output signal, the repeater has built-in AGC and ALC circuits, which can automatically control gain of the repeater depending upon strength of input signals. In addition, to prevent the repeater from producing errors due to excessive from outside or oscillation phenomenon and having adverse effects on base station, the repeater runs auto shutdown functions, which switches the repeater’s power automatically. Feature & Functions 1. AGC : Automatic Gain Control 2. ALC : Automatic Limit Control 3. Automatic output interception function (MUTE) 4. RSSI : Received Signal Strength Emission 5. Small size, light - weight 6. Simple installation & Maintenance JDTECK LTD 3page Rev. 1.0 Name & Function by each parts - Front- - Side - - Back Side - JDTECK LTD 4page Rev. 1.0 ÿ Repeater The repeater amplifies and transmits signals of base station and mobile station. The Patch antenna, as remote antenna, is built in front of repeater. Donor ANT Donor Ant., which has a SMA(F) connector to be connected with the feeding cables RSSI ( Received Signal Strength Emission ) Indicator The lamp at bottom in front of the repeater shows operation status. Green-colored lamp turns ON, on the basis of received signal RX LED Status -less than56dB: -53dB1.5 dB : -50dB1.5 dB : -47dB1.5 dB : -44dB1.5 dB : -41dB1.5 dB : -38dB1.5 dB : -35dB1.5 dB : -32dB1.5 dB : -More than 9dB: MUTE ( Auto Shut Down ) Mute prevents abnormal output from being radiated by reading strength of output signal at emission of abnormal output. It is shut down against more than +9dBm signal automatically. - MUTE LED ( Red Colored Lamp ) : ON for a 5sec and OFF for a 2sec, repeatedly - RSSI LED ( Green Colored Lamp ) : OFF JDTECK LTD 5page Rev. 1.0 PWR Exterior adapter having AC 110-220 V input supplies DC 7 V power to the repeater to run active circuits. LED on DC Jack DC Jack is a terminal to supply required powers into repeater through the power supply adapter. Patch Antenna Patch Antenna, which can forward the RF signal from base station to cellular subscriber station, receive the signal from cellular subscriber station ÿ Power Supply Adapter Exterior adapter having AC 100– 240V input supplies DC 7 V power to the repeater to run active circuits. ÿ RG400 RF Cable RG 400 RF Cable, which is used for connecting with feeding cable coming from Donor antenna. ÿ Bracket The bracket is used for fixing the repeater on the wall. JDTECK LTD 6page Rev. 1.0 How to install the system Typical Installation Instructions Install Repeater inside at convenient location on a wall Fix repeater body on a wall Installation exterior antenna & Laying Feeding Cables Connect power supply adapter Completion Testing for calling quality Inspection Checking the contents Measurement of Receiving Level from Base Station Adjust the direction of Antenna JDTECK LTD 7page Rev. 1.0 ÿ Checking the contents ÿ Put the repeater at the place where to install it ÿ Install Repeater inside at convenient location on a wall ÿ Installation Exterior Antenna & Laying Feeding Cables ÿ Measurement of Receiving Level from Base Station 1) Connect feeding cable, which has been connected with directional antenna for base station, with input of spectrum analyzer. 2) Set measurement environment of Frequency, Span, BW and Amplitude, etc of the spectrum analyzer. 3) Verify Channel Power value of input signal. ÿ Connect to RG 400 RF Cable ÿ Connect power supply adapter Caution: Make sure 120V available to connect power transformer (do not power up) ÿ Adjust the direction of Antenna To improve calling qualities, adjust the direction of Patch Antenna in front of body. ÿ Testing for calling qualities JDTECK LTD 8page Rev. 1.0 User Attention ÿ Do not open the case of repeater ÿ Do not excessive pressure to Repeater. ÿ Please use a rated voltage. ÿ The repeater must have been installed considering environmental factor. n Troubleshooting 1) The power LED at the front turns OFF Causes Auction Power cable of the power supply unit has not been connected. Check connection of power system Failure of the LED Replace the LED 2) The repeater transmits no signal Causes Action Coaxial cable connecting the repeater and measuring system is defective Replace coaxial cable Power system of interior of the repeater has not been connected. Check power connection of PCB of interior of the repeater Auto shutdown Check a failure of the repeater and input of wrong signal into the repeater JDTECK LTD 9page Rev. 1.0 Specifications Electrical Specifications Frequency Range Gain Gain Flatness Frequency Stability Shutdown Level Tx/Rx Isolation Noise Figure Spurious Emission 29dBc@885KHz VSWR Propagation Delay Input Level (max) Output Level (max) ALC Range 50 ± 2 dB FWD: 1930 ~ 1990MHz, RVS: 1850 ~ 1910 MHz ≤ 4.5 dB (@ 60 MHz BW) ≥ 85 dB 14 ~ 16 dBm/Total@1FA ≤ 5 dB ≤ 1.5:1 10 dBm / Total -120 ~ -40 dBm ≤ 1 us 30dB Control Impedance No Control Interface 50 ≤ ± 0.03 ppm Mechanical Specifications Cooling Operating Temp. Dimensions (W x H x D) Weight Input/Output Connector Power Convection -10 ~ +50 °C 800 g 180x120x50 mm 7 V DC / 100 ~ 240 V AC SMA (Female) [email protected]

BWS TECH Inc. 1 of 1 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea FCC Part 24 Certification Report No: BWS-04-RF-020 Date of Issue : December 24, 2004 JDTECK LTD RF Repeater FCC ID:SQXJD65-XT (Model:JD65-XT) Appendix 5. Block Diagram

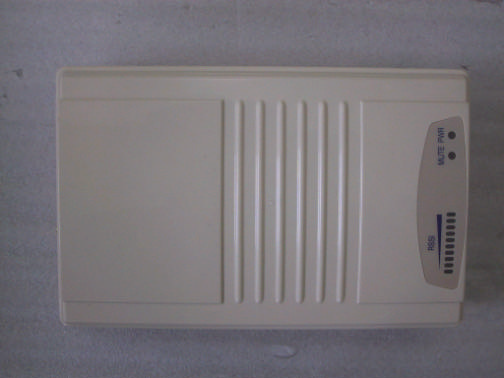

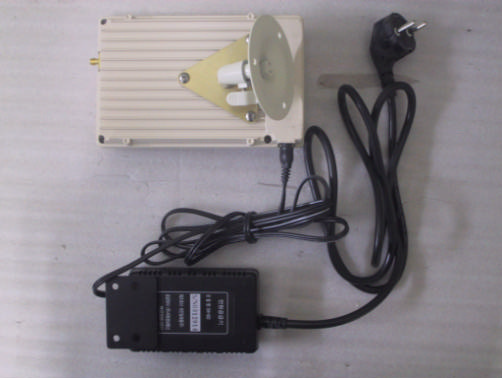

BWS TECH Inc. 1 of 2 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea FCC Part 24 Certification Report No: BWS-04-RF-020 Date of Issue : December 24, 2004 JDTECK LTD RF Repeater FCC ID:SQXJD65-XT (Model:JD65-XT) Appendix 3. External Photos of EUT BWS TECH Inc. 2 of 2 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea FCC Part 24 Certification Report No: BWS-04-RF-020 Date of Issue : December 24, 2004 JDTECK LTD RF Repeater FCC ID:SQXJD65-XT (Model:JD65-XT)

BWS TECH Inc 1 of 1 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea FCC Part 24 Certification Report No: BWS-04-RF-020 Date of Issue : December 24, 2004 JDTECK LTD RF Repeater FCC ID:SQXJD65-XT (Model:JD65-XT) Appendix 1. FCC ID Label & Location Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier is marked in the product label. The following FCC Warning statement will be described in the user manual. FCC Warning CAUTION : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment Label Location The label shown above shall be permanently affixed at a conspicuous location(cabinet out side) on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) JDTECK LTD RF Repeater Model : JD65-XT FCC ID : SQXJD65-XT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. JDTECK LTD RF Repeater Model : JD65 - XT FCC ID : SQXJD65 - XT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this d evice may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

BWS TECH Inc. 1 of 4 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea FCC Part 24 Certification Report No: BWS-04-RF-020 Date of Issue : December 24, 2004 JDTECK LTD RF Repeater FCC ID:SQXJD65-XT (Model:JD65-XT) Appendix 4. Internal Photos of EUT BWS TECH Inc. 2 of 4 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea FCC Part 24 Certification Report No: BWS-04-RF-020 Date of Issue : December 24, 2004 JDTECK LTD RF Repeater FCC ID:SQXJD65-XT (Model:JD65-XT) BWS TECH Inc. 3 of 4 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea FCC Part 24 Certification Report No: BWS-04-RF-020 Date of Issue : December 24, 2004 JDTECK LTD RF Repeater FCC ID:SQXJD65-XT (Model:JD65-XT) BWS TECH Inc. 4 of 4 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea FCC Part 24 Certification Report No: BWS-04-RF-020 Date of Issue : December 24, 2004 JDTECK LTD RF Repeater FCC ID:SQXJD65-XT (Model:JD65-XT)

www.jdteck.com iDEN, CDMA 800 / 1900,GSM 900iDEN, CDMA 800 / 1900,GSM 900 Home Repeater SystemHome Repeater System Repeater System www.jdteck.com Need Instant InNeed Instant In--Door Cellular Coverage?Door Cellular Coverage? Then the Then the JDTECKJDTECK’’ssPico Repeater will be serving for youPico Repeater will be serving for you...... The The JDTECKJDTECK’’ssPico Repeater can provide improved reception to Pico Repeater can provide improved reception to a room in the quickest possible timea room in the quickest possible time. The JD65-XT(GSM Repeater) full duplex communications repeater from JDTECK is the ideal solution for providing a wireless improvement in the cellular reception of a home, office, restaurant of building, inthe quickest possible time, on the GSM Networks. The current system only covers GSM but we are going to upgrade with the additional technology like as CDMA/iDEN/PCS/DCS1800. It is designed to improve the call quality of an area by receiving, amplifying and re-transmitting signals of the base station into a specified area. Installation is extremely simple and can be done in a few minutes. No special tools, test equipment of technical knowledge of your network is required. The repeater is fully adjustable and will fine-tune itself as conditions change. Multiple units can also be deployed to cover larger office areas and working locations. To maintain safe and specific output signal levels, the repeaterhas built- in ALC circuits, which can automatically control the level of the repeater depending upon the strength of input signals. In addition, to prevent the repeater from re-producing errors due to excessive signal strengths from outside or, oscillation which can have adverse effects on a basestation, the repeater runs an auto shutdown function, which switches the repeater’s power off automatically if this ever occurs. Repeater system SpecificationsSpecifications www.jdteck.com Home RepeaterHome Repeater Specifications can be modified based on customer’s needs Electrical Specifications Frequency Range Gain Gain Flatness Frequency Stability Shutdown Level Tx/Rx Isolation Noise Figure Spurious Emission ETS-300 VSWR Propagation Delay Input Level (max) Output Level (max) ALC Range 60 ±2 dB FWD: 935 ~ 960 MHz, RVS: 890 ~ 915 MHz ≤3 dB (@ 25 MHz BW) ≥85 dB 14 ~ 16 dBm/Total @ Total 12 CHs ETS300 ≤5 dB (@ Gain 60 ~ 45) ≤1.5:1 FWD & RVS: +10 dBm/Total @ Total 12 CHs FWD: -30 dBm/Total, RVS: -30 dBm/Total ≤1 us 30dB Control Impedance No Control Interface 50 ≤±0.03 ppm IMD(IIP3)≥-18dBm Specifications Mechanical Specifications Cooling Operating Temp. Dimensions (W x H x D) Weight Power Input Connector Output Connector Convection -10 ~ +60 °C/ 24 ~ 140 °F 800 g / 1.764 lbs 180x120x50 mm / 7.0x4.7x1.97 inch 7 V DC / 115 V AC SMA (Female) SMA (Female) Model NO. JD65-XT GSM Home Repeater Repeater system SpecificationsSpecifications www.jdteck.com Home RepeaterHome Repeater Specifications can be modified based on customer’s needs Electrical Specifications Frequency Range Gain Gain Flatness Frequency Stability Shutdown Level Tx/Rx Isolation Noise Figure Spurious Emission 29dBc@750KHz VSWR Propagation Delay Input Level (max) Output Level (max) ALC Range 60 ±2 dB FWD: 869 ~ 894MHz, RVS: 824 ~ 849 MHz ≤3 dB (@ 25 MHz BW) ≥85 dB 14 ~ 16 dBm/Total@1FA ≤5 dB ≤1.5:1 10 dBm/ Total -120 ~ -40 dBm ≤1 us 30dB Control Impedance No Control Interface 50 ≤ ±0.03 ppm Specifications Mechanical Specifications Cooling Operating Temp. Dimensions (W x H x D) Weight Power Input Connector Output Connector Convection -10 ~ +60 °C / 24 ~ 140 °F 800 g / 1.764 lbs 180x120x50 mm / 7.0x4.7x1.97 inch 7 V DC / 115 V AC SMA (Female) SMA (Female) Model NO. JD65-XT CDMA Cellular Home Repeater [email protected] Repeater system SpecificationsSpecifications www.jdteck.com Home RepeaterHome Repeater Specifications can be modified based on customer’s needs Electrical Specifications Frequency Range Gain Gain Flatness Frequency Stability Shutdown Level Tx/Rx Isolation Noise Figure Spurious Emission 29dBc@885KHz VSWR Propagation Delay Input Level (max) Output Level (max) ALC Range 60 ±2 dB FWD: 1930 ~ 1965MHz, RVS: 1850 ~ 1885 MHz ≤4.5 dB (@ 35 MHz BW) ≥85 dB 14 ~ 16 dBm/Total@1FA ≤5 dB ≤1.5:1 10 dBm/ Total -120 ~ -40 dBm ≤1 us 30dB Control Impedance No Control Interface 50 ≤ ±0.03 ppm Specifications Mechanical Specifications Cooling Operating Temp. Dimensions (W x H x D) Weight Power Input Connector Output Connector Convection -10 ~ +60 °C / 24 ~ 140 °F 800 g / 1.764 lbs 180x120x50 mm / 7.0x4.7x1.97 inch 7 V DC / 115 V AC SMA (Female) SMA (Female) Model NO. JD65-XT PCS (ADB Band) Home Repeater [email protected] Repeater system SpecificationsSpecifications www.jdteck.com Home RepeaterHome Repeater Specifications can be modified based on customer’s needs Electrical Specifications Frequency Range Gain Flatness Frequency Stability Shutdown Level Tx/Rx Isolation Noise Figure Spurious Emission 29dBc@885KHz VSWR Propagation Delay Input Level (max) Output Level (max) ALC Range 60 ±2 dB FWD: 1965 ~ 1990MHz, RVS: 1885 ~ 1910 MHz ≤4 dB (@ 25 MHz BW) ≥85 dB 14 ~ 16 dBm/Total@1FA ≤5 dB ≤1.5:1 10 dBm/ Total -120 ~ -40 dBm ≤1 us 30dB Control Impedance No Control Interface 50 ≤ ±0.03 ppm [email protected] Specifications Mechanical Specifications Cooling Operating Temp. Dimensions (W x H x D) Weight Power Input Connector Output Connector Convection -10 ~ +60 °C / 24 ~ 140 °F 800 g / 1.764 lbs 180x120x50 mm / 7.0x4.7x1.97 inch 7 V DC / 115 V AC SMA (Female) SMA (Female) Model NO. JD65-XT PCS (EFC Band) Home Repeater Repeater system FeaturesFeatures www.jdteck.com Home RepeaterHome Repeater Features •Cellular RF Repeater •Easy To Install & Maintain •Auto Level Control •Auto Shutdown Feature •Low Output Power •Compact Design •RSSI -Received Signal Strength Emission •Indoor Application Coverage about 165 Repeater system Side ViewSide View www.jdteck.com Home RepeaterHome Repeater Side View #16 Olympia Avenue,MilleniumPark,Trincity, Trinidad and Tobago Hom…

Text truncated - open the document above for the full version.

BWS TECH Inc. 1 of 3 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea FCC Part 24 Certification Report No: BWS-04-RF-020 Date of Issue : December 24, 2004 JDTECK LTD RF Repeater FCC ID:SQXJD65-XT (Model:JD65-XT) Appendix 8. Part List / Tune up Procedure BWS TECH Inc. 2 of 3 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea FCC Part 24 Certification Report No: BWS-04-RF-020 Date of Issue : December 24, 2004 JDTECK LTD RF Repeater FCC ID:SQXJD65-XT (Model:JD65-XT) BWS TECH Inc. 3 of 3 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea FCC Part 24 Certification Report No: BWS-04-RF-020 Date of Issue : December 24, 2004 JDTECK LTD RF Repeater FCC ID:SQXJD65-XT (Model:JD65-XT)

BWS TECH Inc. 1 of 1 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea FCC Part 24 Certification Report No: BWS-04-RF-020 Date of Issue : December 24, 2004 JDTECK LTD RF Repeater FCC ID:SQXJD65-XT (Model:JD65-XT) Appendix 10. RF Exposure statement RF Exposure requirement per FCC Rules and Regulation CFR 47 Part 1.1307 Per the FCC Rules and Regulations as described in the OET Bulletin 65, this equipment is categorically excluded from routine evaluation because this equipment’s donor antenna is used at fixed installations with antenna mounted on outdoor, permanent structurers. The remote antenna is built in front of repeater. This antenna is patch antenna. This transmitter is intended for use at fixed station sites only, and is not to be marketed for mobile use. Under the Section 1.1307 of the FCC Rules, this transmitter is not subject to the Commission’s environmental rules pertaining to the Routine Evaluation for RF exposure prior to equipment authorization.

This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the BWS TECH,Inc. Licensed Non-Broadcasting Transceiver RF MEASUREMENT REPORT VERIFICATION OF COMPLIANCE PRODUCT : PCS 1.9G Pico Repeater MODEL/TYPE NO : JD65-XT FCC ID : SQXJD65-XT TRADE NAME : JDTECK APPLICANT : JDTECK LTD #16 Olympia Avenue, Millenium Park, Trincity, Trinidad and Tobago FCC RULE PART(S) : FCC Part 24 & Part 2 FCC PROCEDURE : Certification FCC CLASSIFICATION : Licensed Non-Broadcast Station Transmitter (TNB) EMISSION DESIGNATOR : F9W(CDMA), DXW(NADC), GXW(GSM) FREQUENCY RANGE : FWD : 1930 MHz ~ 1990 MHz RVS : 1850 MHz ~ 1910 MHz RF OUTPUT POWER : 10 mWatts (10 dBm) CDMA – Single Channel NADC – Composite Multiple Channel GSM - Composite Multiple Channel DATES OF TEST : April 09, 2004 DATES OF ISSUE : December 24, 2004 TEST REPORT No. : BWS-04-RF-020 TEST LAB. BWS Tech., Inc. (Registration No. : 553281) This RF Reapter Model JD65-XT has been tested in accordance with the measurement procedures specified CFR 47 Part 2.947 and ANSI C63.4-2000 at the BWS TECH/RF Test Laboratory and has been shown to be complied with the FCC Technical Specification described above. I attest to the accuracy of data. All measurement herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Kang, Bong Chul Chief of Laboratory Division BWS TECH Inc. BWS TECH Inc. www.bws.co.kr 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, 464-080, Korea TEL: +82 31 762 0124 FAX: +82 31 762 0126 BWS TECH Inc . 2 of 46 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea FCC Part 24 Certification Report No: BWS-04-RF-020 Date of Issue : December 24, 2004 JDTECK LTD RF Repeater FCC ID:SQXJD65-XT (Model:JD65-XT) TABLE OF CONTENTS Pages 1. General Information 3 2. DESCRIPTION OF ATTACHMENTS 4 3. INTRODUCTION 5 4. PRODUCT INFORMATION 6 5. DESCRIPTION OF TESTS 7~12 6. TEST RESULTS 13 7. TEST Data 14~45 8. TEST EQUIPMENT LIST 46 Appendix 1. FCC ID Label and Location Appendix 2. Test Setup Photos Appendix 3. External Photos Appendix 4. Internal Photos Appendix 5. Block Diagram Appendix 6. Schematics Appendix 7. Operational Instruction Appendix 8. Part List / Tune up Procedure Appendix 9. User Manual Appendix 10. RF Exposure statement BWS TECH Inc . 3 of 46 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea JDTECK LTD RF Repeater FCC ID:SQXJD65-XT (Model:JD65-XT) FCC Part 24 Certification Report No: BWS-04-RF-020 Date of Issue : December 24, 2004 RF TEST REPORT Scope – Measurement and determination of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of relevant international standard 1. General Information Applicant Information Other Information l EUT Type : RF Broad Band Repeater l Model Name : JD65-XT l FCC Identifier : SQXJD65-XT l Brand Name : JDTECK LTD l S/N : Prototype l Freq. Range : FWD : 1930 MHz ~ 1990 MHz RVS : 1850 MHz ~ 1910 MHz l Max. Power Output : 10 mWatts (10 dBm) CDMA – Single Channel NADC – Composite Multiple Channel GSM - Composite Multiple Channel l Emission Designator : F9W(CDMA), DXW(NADC), GXW(GSM) l FCC Classfication : Licensed Non-Broadcast Station Transmitter (TNB) l Rule Part(s) : FCC Part 24 & Part 2 l Test Procedure : Certification l Dates of Tests : April 09, 2004 l Place of Tests : BWS TECH Inc. 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do 464-080, Korea EMC Testing Laboratory (FCC Registration Number : 553281) TEL: +82 31 762 0124 FAX: +82 31 762 0126 l Test Report No. : BWS-04-RF-020 Company Name : JDTECK LTD Company Address : #16 Olympia Avenue, Millenium Park, Trincity, Trinidad and Tobago Phone/Fax : Phone : 868-640-4816 Fax : 868-640-4611 BWS TECH Inc . 4 of 46 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea JDTECK LTD RF Repeater FCC ID:SQXJD65-XT (Model:JD65-XT) FCC Part 24 Certification Report No: BWS-04-RF-020 Date of Issue : December 24, 2004 2. DESCRIPTION OF ATTACHMENTS Appendix 1. FCC ID Label and Location -. Sample FCC ID Label and location information is shown Appendix 2. Test Setup Photos -. Radiated Emission Test setup photos are shown Appendix 3. External Photos -. External photos are shown Appendix 4. Internal Photos -. Internal photos are shown Appendix 5. Block Diagram -. The block diagram is shown Appendix 6. Schematics -. The circuit diagrams are shown Appendix 7. Operational Instruction -. Explanation of operational instruction for circuit is shown. Appendix 8. Part List / Tune up Procedure -. The part lists are shown. Appendix 9. User Manual -. The alignment procedure are shown. Appendix 10. RF Exposure statement -. The user operating manual is shown. BWS TECH Inc . 5 of 46 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea JDTECK LTD RF Repeater FCC ID:SQXJD65-XT (Model:JD65-XT) FCC Part 24 Certification Report No: BWS-04-RF-020 Date of Issue : December 24, 2004 3. INTRODUCTION The measurement tests were conducted at the open area test site of BWS TECH Inc. facility located at 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, Korea. The measurement facilities were constructed in conformance with the requirements of the ANSI C63.4-2000 and CISPR Publication 16. The BWS has site descriptions on file with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2000 and registered to the Federal Communications Commission(Registration Number : 553281). All measurements contained in this application w…

Text truncated - open the document above for the full version.

BWS TECH Inc . 28 of 46 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea JDTECK LTD RF Repeater FCC ID:SQXJD65-XT (Model:JD65-XT) FCC Part 24 Certification Report No: BWS-04-RF-020 Date of Issue : December 24, 2004 7.3 Spurious Emission at Antenna Termianal Downlink (Forward) Measured Emission Level (dBm) Frequency Range Limit (dBm) Low Mid High 30MHz < f 0 < 1GHz < -13 dBm - - - 1GHz < f 0 < 12.5GHz < -13 dBm -23.83 -31.50 -39.33 Intermodulation (CDMA) < -13 dBm -32.67 Intermodulation (NADC) < -13 dBm -35.83 Intermodulation (GSM) < -13 dBm -40.50 Uplink (Reverse) Measured Emission Level (dBm) Frequency Range Limit (dBm) Low Mid High 30MHz < f 0 < 1GHz < -13 dBm - - - 1GHz < f 0 < 12.5GHz < -13 dBm -22.33 -22.33 -33.50 Intermodulation (CDMA) < -13 dBm -28.00 Intermodulation (NADC) < -13 dBm -39.67 Intermodulation (GSM) < -13 dBm -42.00 Note : 1. The input to the amplifier is CDMA, NADC, GSM modulated signal tuned such that the output power is set to its maximum rated output power. 2. The RF output ports were properly terminated by the RF load and were connected to the RF Power Meter and Spectrum analyzer through the directional coupler. 3. The spectrum analyzer for this measurement was set with the RBW 100kHz in the range of 30MHz ~1GHz, and RBW 1MHz in the range of 1GHz~26.5GHz, as recorded in the plots. The VBW was set the same as RBW. 4. The measurements were performed at the shielded room.with environmental conditions of 23.9, 55%RH 5. Plots were taken with single input at low, mid, and high of the band. Plots were taken of the out-of-band emissions from 30MHz to the 10th harmonic of the carrier frequency. 6. For measuring emissions above 0.9 GHz, a high-pass filter was used to eliminate the fundamental transmit frequency to prevent possible saturation effects on the front end of the spectrum analyzer. 7. The emissions shall not be more than 43 + 10 log (P) dBc below the mean power output, which is equivalent to –13 dBm. 8. Frequency Table Test Standard :FCC Part 24.238 & 2.1051 Operating Frequency : Forward 1930 - 1990 MHz Reverse 1850 - 1910 MHz Channel :Low / Mid/ High RF Power Output : 10 mW CDMA – Single Channel NADC – Composite Multiple Channel GSM - Composite Multiple Channel BWS TECH Inc . 29 of 46 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea JDTECK LTD RF Repeater FCC ID:SQXJD65-XT (Model:JD65-XT) FCC Part 24 Certification Report No: BWS-04-RF-020 Date of Issue : December 24, 2004 Low Channel / Forward 30 MHz ~ 1 GHz Nothing 1 GHz ~ 26.5 GHz -23.83 dBm BWS TECH Inc . 30 of 46 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea JDTECK LTD RF Repeater FCC ID:SQXJD65-XT (Model:JD65-XT) FCC Part 24 Certification Report No: BWS-04-RF-020 Date of Issue : December 24, 2004 Middle Channel / Forward 30 MHz ~ 1 GHz Nothing 1 GHz ~ 26.5 GHz -31.50 dBm BWS TECH Inc . 31 of 46 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea JDTECK LTD RF Repeater FCC ID:SQXJD65-XT (Model:JD65-XT) FCC Part 24 Certification Report No: BWS-04-RF-020 Date of Issue : December 24, 2004 High Channel / Forward 30 MHz ~ 1 GHz Nothing 1 GHz ~ 26.5 GHz -39.33 dBm BWS TECH Inc . 32 of 46 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea JDTECK LTD RF Repeater FCC ID:SQXJD65-XT (Model:JD65-XT) FCC Part 24 Certification Report No: BWS-04-RF-020 Date of Issue : December 24, 2004 Low Channel / Reverse 30 MHz ~ 1 GHz Nothing 1 GHz ~ 26.5 GHz -22.33 dBm BWS TECH Inc . 33 of 46 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea JDTECK LTD RF Repeater FCC ID:SQXJD65-XT (Model:JD65-XT) FCC Part 24 Certification Report No: BWS-04-RF-020 Date of Issue : December 24, 2004 Middle Channel / Reverse 30 MHz ~ 1 GHz Nothing 1 GHz ~ 26.5 GHz -22.33 dBm BWS TECH Inc . 34 of 46 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea JDTECK LTD RF Repeater FCC ID:SQXJD65-XT (Model:JD65-XT) FCC Part 24 Certification Report No: BWS-04-RF-020 Date of Issue : December 24, 2004 High Channel / Reverse 30 MHz ~ 1 GHz Nothing 1 GHz ~ 26.5 GHz -33.50 dBm BWS TECH Inc . 35 of 46 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea JDTECK LTD RF Repeater FCC ID:SQXJD65-XT (Model:JD65-XT) FCC Part 24 Certification Report No: BWS-04-RF-020 Date of Issue : December 24, 2004 CDMA Intermodulation Plot Forward 1957.6 MHz -32.67 dBm Reverse 1877.6 MHz -28.00 dBm BWS TECH Inc . 36 of 46 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea JDTECK LTD RF Repeater FCC ID:SQXJD65-XT (Model:JD65-XT) FCC Part 24 Certification Report No: BWS-04-RF-020 Date of Issue : December 24, 2004 NADC Intermodulation Plot Forward 1957.6 MHz -35.83 dBm Reverse 1877.6 MHz -39.67 dBm BWS TECH Inc . 37 of 46 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea JDTECK LTD RF Repeater FCC ID:SQXJD65-XT (Model:JD65-XT) FCC Part 24 Certification Report No: BWS-04-RF-020 Date of Issue : December 24, 2004 GSM Intermodulation Plot Forward 1957.6 MHz -40.50 dBm Reverse 1877.6 MHz -42.00 dBm BWS TECH Inc . 38 of 46 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea JDTECK LTD RF Repeater FCC ID:SQXJD65-XT (Model:JD65-XT) FCC Part 24 Certification Report No: BWS-04-RF-020 Date of Issue : December 24, 2004 7.4 Field Strength of Spurious Radiation 7.4.1 Forward / Low Channel / 1930.2 MHz Frequency Tuned (MHz) Antenna Polarization (V/H) ERP (dBm) Limit (dBm) Margin (dB) 3860.4 H -32.6 -13.0 -19.6 5790.6 H -72.2 -13.0 -59.2 7720.8 - - - - 9651.0 - - - - 11581.2 - - - - 13511.4 - - - - 15441.6 - - - - 17371.8 - - - - 19302.0 - - - - Note : 1. The spectrum bandwidth was set to RBW 100 kHz (freq. up to 1GHz) and RBW 1 MHz(freq above 1GHz). 2. Transmitter was set to the rated power output(10 mW) condition. 3. The spectrum was checked from 30 MHz up to the 10 th harmonic of the carrier frequency. 4. All emission not reported were found to be more than 30dB below the limit. 5. The EUT was positioned through 3 orthogonal axis and worst-case are reported. 6. ERP measurements were performed using the rated supply voltage con…

Text truncated - open the document above for the full version.

BWS TECH Inc. 1 of 1 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea FCC Part 24 Certification Report No: BWS-04-RF-020 Date of Issue : December 24, 2004 JDTECK LTD RF Repeater FCC ID:SQXJD65-XT (Model:JD65-XT) Appendix 2. Test Setup Photos Radiated Emission Test Setup
