SRLFRS37755-6FRS walkie talkie

Model: 37755-TRU/ 37756-TRU 1.0 Installation. 1.1 Removing the Belt Clip a. Pull the Belt Clip latch forward (away from the FX-250) b. While pulling the Belt clip pertinent latch, push up the Belt clip as shown in Figure1. 1.2 Installing the Belt Clip a. Slide the Belt clip into the slot A “click” indicates the Belt clip is locked into position. 2.0 Installing the Batteries Caution: Observe the proper battery polarity orientation when installing batteries. Incorrect positioning can damage both the batteries and the unit. a. Pull up on the battery door latch to remove the battery compartment door. b. Install the rechargeable batteries by following the orientation as shown in Figure 3 (the arrow is showing and pointing upward.) c. Replace the Battery compartment cover. See Figure 4. Important -Read these Safety Warnings before you charge the batteries. -When placing the 37755-TRU in the charger, use only the power supplies listed in the user instructions supplied with the 37755-TRU. -Don’t try to recharge non-rechargeable batteries. -Make sure the battery compartment cover is securely locked in place when you are charging the batteries. -Dispose of used batteries safely and in a way that will not harm the environment, never try to burn them or put them anywhere, they could get burnt or punctured. - Risk of explosion if battery is replaced by an incorrect type. USER GUIDE WARNING : - ALL ELECTRICAL AND ELECTRONIC PRODUCTS INCLUDING BATTERIES SHOULD BE DISPOSED OF SEPARATELY FROM THE MUNICIPAL WASTE STREAM VIA DESIGNATED COLLECTION FACILITIES APPOINTED BY THE GOVERNMENT OF THE LOCAL AUTHORITIES 3.0 Charging the batteries EN60950-1 and will invalidate any approvals & warranty. a. Place the 37755-TRU units in the charge cradle in an upright position and facing outward. The Charge LED indicators will light up. b.It takes about 12 hours to fully recharge the batteries if they are completely run down. New batteries take up to 14 hours to fully Charge. Note: Use onl y power supplies listed in the user instruction, TGE050P055 EU, 5V 550mA /100-240Vac Dongguan Guanjin Electronics tech., Co., Ltd. Note: Transmit and receiving not advisable during charging at “power On” mode basis Battery meter The battery icon is located in the left corner of the LCD panel. This battery icon will displayed when low battery status. These indicate that the battery level reaches its minimum level, at this stage the handset will emit two beep tones and then it will automatically turn Off the power. Battery life The PMR has a built in power saver feature to make the batteries last longer. But when you are not using the handset, it's better to switch off to save the battery power. Note : Use only the batteries listed in the user-instruction – CEL brand; Jiang Su CEL Co., Ltd., Model EPT-43AAA60h, 1.2VAAA /600mAh Ni-MH rechargeable battery Important: Always turn off the PMR units when charging. This will shorten the charging time. 4.0 Operation 4.1 Turning the Unit ON/OFF To Turn ON; a. Press and hold the / (Power) button. A special “beep" sound will be heard. The LCD screen will display the current channel. To switch OFF; b. Press and hold the / (Power) button. A special “beep" sound will be heard and the LCD screen will turn blank. 4.2 Adjusting the Speaker volume There are 8 volume levels, the current speaker volume level is displayed on the LCD screen. To adjust the speaker volume level, press the (UP) button to increase, or press the (DOWN) button to decrease. The LCD screen will display the speaker volume icon bars ascending, or descending respectively. 4.3 Receiving a Call The unit is continuously in receive mode when the unit is turned ON and not transmitting. When a signal is received on the current channel, the receive signal icon“RX” will be displayed on the LCD screen. 4.4 Transmitting (sending) a. Press and hold the PTT (Push to Talk) button to transmit your voice. The transmit signal icon “TX” will display on the LCD screen. b. Hold the unit in a vertical position with the Mic (Microphone) 5 cm away from the mouth. While holding the PTT button, speak into the microphone in a normal tone of voice. c. Release the PTT button when you have finished transmitting. Important: ·In order for other people to receive your transmission, they must also be on the same channel that you are currently using. Refer to the "Changing Channel" section for more information. ·When the PTT and/or CALL buttons are continuously pressed, your PMR cannot receive any transmissions. 4.5 Roger Beep The Roger Beep is a tone which is automatically transmitted whenever the PTT button is released. This alerts the receiving party that you have ended the transmission, and you are now in receive mode. 4.6 Changing Channels The PMR has 8 available channels. To change channels, in normal mode; a. Press the Menu button, the channel icon “1 ” on the LCD screen will start blinking. b. While the Channel icon is blinking, press the (UP) or (DOWN) button to select the desired channel. The channel changes from 1 to 8, or vice versa. c. Press the / (Menu) button to confirm your setting and return to the standby mode. Note: ·Refer to the "Channel Table" section of this Owner’s Manual for detailed frequency listing. 4.7 Calling (Paging) Tone You can use the CALL button to send a tone to other users on the same channel. To activate this feature; a. With the PMR in normal mode, press and release the CALL button. The unit will transmit a 2-second page tone to the other unit/s set with the same channel within transmitting range . 4.8 Power Saving Your PMR unit has special circuitry designed to extend the life of your battery. When the unit is not used for 4 seconds, it will automatically switch into a low power mode. The Power Saving feature does not affect the PMR ability to receive transmissions. When a signal is detected, it automatically returns to full power mode. 4.9 Low Battery Meter Indicator The PMR can detect the low battery level when battery voltage g…

Text truncated - open the document above for the full version.

Statement To whom it may concern: About the product FRS walkie talkie, FCC ID: SRLFRS37755-6, As user manual states that the PTT cannot support VOX function and without any Headset, so cannot TX when for Body and body SAR is therefore exemption. Yours sincerely, Signatory Name Jamy Yu Position Manager Company Name Dongguan Dongdian Testing Service Co.,Ltd. Address 17, Zongbu Road 2, Songshan Lake Sci&Tech, Industry Park, Dongguan City, Guangdong Province, China, 523808 Tel / Fax Tel: +86-0769-22891499 fax:+86-0769-22895596 E-Mail [email protected]

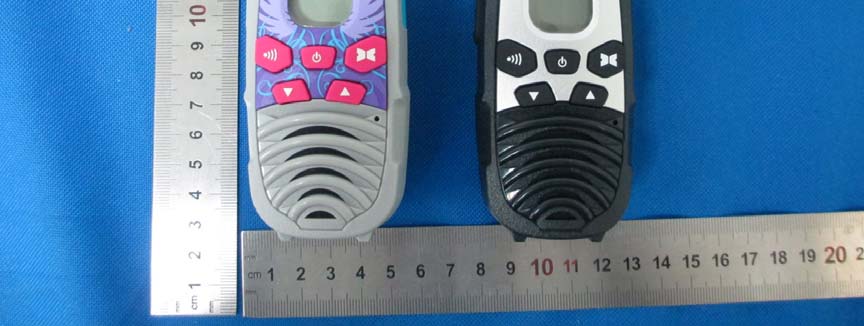

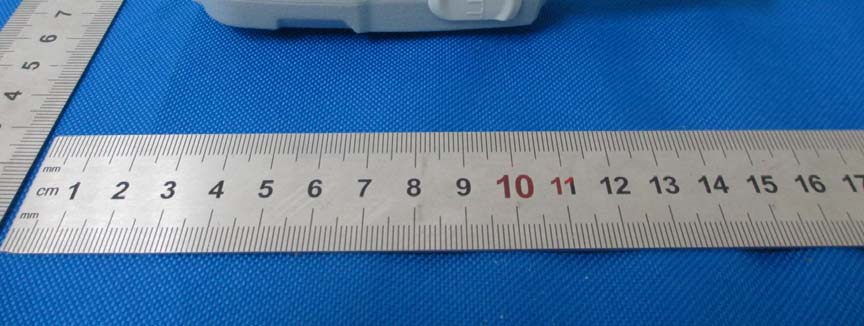

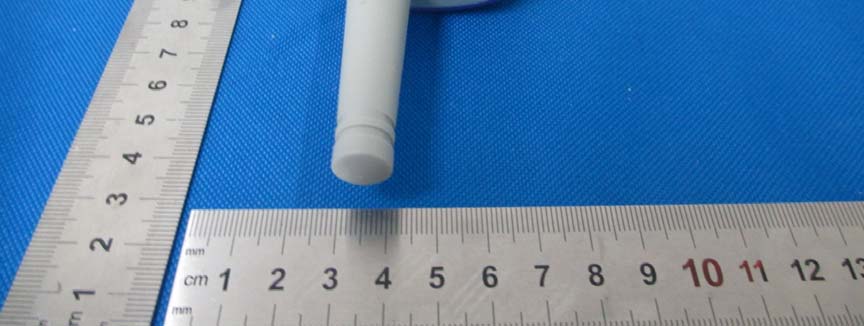

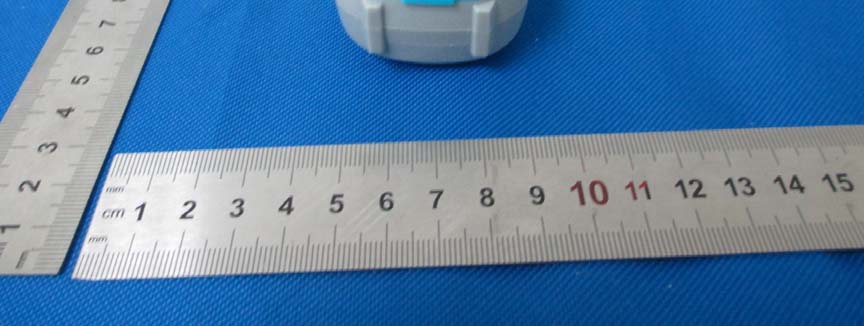

Dongguan Dongdian Testing Service Co., Ltd Report No: DDT-REN140338 Page 30 of 35 9. Photos of the EUT Dongguan Dongdian Testing Service Co., Ltd Report No: DDT-REN140338 Page 31 of 35 Dongguan Dongdian Testing Service Co., Ltd Report No: DDT-REN140338 Page 32 of 35

FX-250 RADIO LABEL 1.尺寸:19.5x9.5mm 2.材质：周光膜 3.颜色：白底黑字 FCC ID : SRLFRS37755-6 Model : 37755-6 TRU This device complies with part 15 of the FCC Rules,Operation is subject to the following two conditions: (1.) This device may not cause harmful interference,and; (2.) This device must accept any interference received, including interference that may cause undesired operation. On Real Limited FCC ID : SRLFRS37755-6 Model : 37755-6 TRU On Real Limited FCC ID : SRLFRS37755-6 Model : 37755-6 TRU This device complies with part 15 of the FCC Rules,Operation is subject to the following two conditions: (1.) This device may not cause harmful interference,and; (2.) This device must accept any interference received, including interference that may cause undesired operation. On Real Limited

Dongguan Dongdian Testing Service Co., Ltd Report No: DDT-REN140338 Page 33 of 35 Dongguan Dongdian Testing Service Co., Ltd Report No: DDT-REN140338 Page 34 of 35 Dongguan Dongdian Testing Service Co., Ltd Report No: DDT-REN140338 Page 35 of 35 END OF REPORT

FCC SAR TEST REPORT FOR Issued By: Dongguan Dongdian Testing Service Co., Ltd. Add: No. 17, Zongbu Road 2, Songshan Lake Sci&Tech, Industry Park, Dongguan City, Guangdong Province, China, 523808 Tel: +86-0769-22891499 Http://www.dgddt.com Applicant On Real Ltd Address Unit 1015,10/F,Technology Park, 18 On Lai Street, Shatin, N.T.,Hong Kong Equipment under Test FRS walkie talkie Model No 37755-TRU,37756-TRU Trade Mark Rebelle,Nerf FCC ID SRLFRS37755-6 Manufacturer On Real Electronics (Shenzhen)Ltd Address No.3 Tangxiayong Industrial Zone,Songgang, Bao`an,Shenzhen,Guangdong,China Report No: DDT-REN140339 Issued Date: Oct.13,2014 Dongguan Dongdian Testing Service Co., Ltd Report No:DDT-REN140339 TEST REPORT DECLARE We Declare: The equipment described above is evaluation by Dongguan Dongdian Testing Service Co., Ltd and in the configuration tested the equipment complied with the standards specified above. The test results are contained in this test report and Dongguan Dongdian Testing Service Co., Ltd is assumed of full responsibility for the accuracy and completeness of these tests. Report No: DDT-REN140339 Date of Test: 2014/10/09~2014/10/09 Date of Report: 2014/10/13 Prepared By: Approved By: ________________ _____________________ Leo Liu/Engineer Jamy Yu/EMC Manager Note: This report applies to above tested sample only. This report shall not be reproduced in parts without written approval of Dongguan Dongdian Testing Service Co., Ltd. Applicant On Real Ltd Address Unit 1015,10/F,Technology Park, 18 On Lai Street,Shatin, N.T., Hong Kong Equipment under Test FRS walkie talkie Model No 37755-TRU,37756-TRU Trade Mark Rebelle,Nerf FCC ID SRLFRS37755-6 Manufacturer On Real Electronics (Shenzhen)Ltd Address No.3 Tangxiayong Industrial Zone,Songgang, Bao`an, Shenzhen, Guangdong,China Dongguan Dongdian Testing Service Co., Ltd Report No:DDT-REN140339 Contents 1. TEST STANDARDS/PROCEDURES REFERENCE/FCC KDBS............. 4 2. SUMMARY............................................................................. 5 2.1. General Remarks 5 2.2. Accessories of EUT 5 2.3. Short description of the Equipment under Test (EUT) 5 2.4. TEST Configuration 5 2.5. EUT operation mode 6 2.6. EUT configuration 6 3. TEST ENVIRONMENT............................................................... 7 3.1. Address of the test laboratory 7 3.2. Environmental conditions 7 3.3. SAR Limits 7 3.4. Equipments Used during the Test 8 4. SAR MEASUREMENTS SYSTEM CONFIGURATION......................... 9 4.1. SAR Measurement Set-up 9 4.2. DASY5 E-field Probe System 10 4.3. Phantoms 11 4.4. Device Holder 11 4.5. Scanning Procedure 12 4.6. Data Storage and Evaluation 12 4.7. SAR Measurement System 14 4.8. Tissue equivalent liquid properties 14 4.9. System Check 14 4.10. SAR measurement procedure 15 5. TEST CONDITIONS AND RESULTS ............................................ 18 5.1. Conducted Power Results 18 5.2. Test reduction procedure 18 5.3. SAR Measurement Results 18 5.4. SAR Measurement Variability 19 5.5. Measurement Uncertainty(300MHz-3GHz) 19 5.6. System Check Results 21 5.7. SAR Test Graph Results 22 6. CALIBRATION CERTIFICATE ................................................... 24 6.1. Probe Calibration Ceriticate 24 6.2. D450V3 Dipole Calibration Ceriticate 35 6.3. DAE4 Calibration Ceriticate 43 7. TEST SETUP PHOTOS ............................................................ 46 8. EXTERNAL PHOTOS OF THE EUT ............................................. 47 Dongguan Dongdian Testing Service Co., Ltd Report No:DDT-REN140339 1. TEST STANDARDS/PROCEDURES REFERENCE/FCC KDBs The tests were performed according to following standards: IEEE 1528-2003 (2003-04) : Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques: IEEE 1528-2013 (2014-06): Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques IEEE Std. C95-3 (2002): IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields – RF and Microwave IEEE Std. C95-1 (1992): IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. IEC 62209-2 (2010): Human exposure to radio frequency fields from hand-held and bodymounted wireless communication devices. Human models, instrumentation, and procedures. Procedure to determine the specific absorption rate (SAR) for wireless communication devices used in close proximity to the human body (frequency range of 30 MHz to 6 GHz) KDB 865664D01v01r03 (February 7, 2014): SAR Measurement Requirements for 100 MHz to 6 GHz KDB 865664D02v01r01 (May 28, 2013): RF Exposure Compliance Reporting and Documentation Considerations KDB 447498D01v05r02 (February 7, 2014): Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies Dongguan Dongdian Testing Service Co., Ltd Report No:DDT-REN140339 2. SUMMARY 2.1. General Remarks Note1: EUT is the ab.of equipment under test. 2.2. Accessories of EUT Description of Accessories Manufacturer Model number or Type Serial No. Other / / / / 2.3. Short description of the Equipment under Test (EUT) FRS Radio; The spatial peak SAR values were assessed for systems. Battery and accessories shell be specified by the manufacturer. The EUT battery must be fully charged and checked periodically during the test to ascertain uniform power output. 2.4. TEST Configuration Face-Held Configuration Face-held Configuration- per FCC KDB447498 page 22: “A test separation distance of 25 mm must be applied for in-front-of the face SAR test exclusion and SAR measurements.” Body-worn Configuration Body-worn measurements-per FCC KDB447498 page 22 “When body-worn accessory SAR testing is required, the body-worn accessory requirements in section 4.2.2 should be applied. PTT two-way radios that sup…

Text truncated - open the document above for the full version.

Dongguan Dongdian Testing Service Co., Ltd Report No:DDT-REN140338 Page 1 of 35 FCC CERTIFICATION TEST REPORT FOR Issued By: Dongguan Dongdian Testing Service Co., Ltd. Add: No. 17, Zongbu Road 2, Songshan Lake Sci&Tech, Industry Park, Dongguan City, Guangdong Province, China, 523808 Tel: +86-0769-22891499 Http://www.dgddt.com Applicant On Real Ltd Address Unit 1015,10/F,Technology Park, 18 On Lai Street, Shatin, N.T.,Hong Kong Equipment under Test FRS walkie talkie Model No 37755-TRU,37756-TRU Trade Mark Rebelle,Nerf FCC ID SRLFRS37755-6 Manufacturer On Real Electronics (Shenzhen)Ltd Address No.3 Tangxiayong Industrial Zone,Songgang, Bao`an, Shenzhen,Guangdong,China Report No: DDT-REN140338 Issued Date: Oct.13,2014 Dongguan Dongdian Testing Service Co., Ltd Report No:DDT-REN140338 Page 2 of 35 TABLE OF CONTENTS Test report declares......................................................................................................................4 1. Summary of test results ............................................................................................................... 5 2. General test information .............................................................................................................. 6 2.1. Description of EUT ..................................................................................................................... 6 2.2. Accessories of EUT..................................................................................................................... 6 2.3. Channel Information ................................................................................................................... 6 2.4. Block diagram of EUT configuration for test ............................................................................. 7 2.5. Test environment conditions ....................................................................................................... 7 2.6. Test laboratory............................................................................................................................. 7 2.7. Measurement uncertainty ............................................................................................................ 7 3. Maximum Transmitter Power...................................................................................................... 8 3.1. Test equipment ............................................................................................................................ 8 3.2. Block diagram of test setup ......................................................................................................... 8 3.3. Limits .......................................................................................................................................... 8 3.4. Test Procedure............................................................................................................................. 9 3.5. Test Result................................................................................................................................. 10 4. Occupied bandwidth and emission mask .................................................................................. 11 4.1. Test equipment .......................................................................................................................... 11 4.2. Block diagram of test setup ....................................................................................................... 11 4.3. Limits ........................................................................................................................................ 11 4.4. Test Procedure........................................................................................................................... 11 4.5. Test Result................................................................................................................................. 12 4.6. Original test data ....................................................................................................................... 13 5. Modulation Characteristics ....................................................................................................... 15 5.1. Test equipment .......................................................................................................................... 15 5.2. Block diagram of test setup ....................................................................................................... 15 5.3. Limits ........................................................................................................................................ 15 5.4. Test Procedure........................................................................................................................... 16 5.5. Test Result................................................................................................................................. 17 6. Radiated Spurious Emission...................................................................................................... 21 6.1. Test equipment .......................................................................................................................... 21 6.2. Block diagram of test setup ....................................................................................................... 22 6.3. Limit .......................................................................................................................................... 22 6.4. Test Procedure........................................................................................................................... 22 6.5. Test result .................................................................................................................................. 23 7. Frequency Stability ................................................................................................................... 25 Dongguan …

Text truncated - open the document above for the full version.

Dongguan Dongdian Testing Service Co., Ltd Report No: DDT-REN140338 Page 29 of 35 8. Test setup photograph
