SRO04100Z360Mobile Phone

Haier Z360 User Manual Table of contents Safety and use ......................................................................................................................................... 4 General information ................................................................................................................................ 7 Protection against theft.................................................................................................................... 7 Your mobile.............................................................................................................................. 7 1.1 keys ....................................................................................................................... 7 1.2 Main screen icons (1) ............................................................................................. 8 Getting started ......................................................................................................................................... 9 2.1 Set-up ................................................................................................................................9 2.2 Switching your telephone ON .................................................................................................11 2.3 Switching your telephone OFF ...............................................................................................11 Calls .......................................................................................................................................... 11 3.1 Making a call................................................................................................................... 11 3.2 Calling your voicemail (1) ........................................................................................................ 12 3.3 Receiving a call ....................................................................................................................... 13 3.5 Conference calls (1) ............................................................................................... 14 Call memory.......................................................................................................................................... 14 Menu ..................................................................................................................................................... 15 5.1 Accessing the menu ............................................................................................. 15 5.2 Organisation of functions................................................................................ 15 Directory ............................................................................................................................................... 18 6.1 Consulting your directory (2) ................................................................................................... 18 6.1.1 Searching for a name by its first letter .................................................................................19 6.1.2 Read a contact file................................................................................................................ 19 6.1.3 Making the call..................................................................................................................... 19 6.2 Creating a file.......................................................................................................................... 19 6.2.1 SIM Directory ...................................................................................................................... 19 6.2.2 Phone directory (Z300 only) ................................................................................................ 19 6.3 Available options in the SIM directory ................................................................................... 20 6.4 Available options in the phone directory (Z300 only).......................................................... 20 6.5 My phone number ................................................................................................. 21 Messages ............................................................................................................................................... 21 7.1 Create an SMS ........................................................................................................................ 21 7.3 Outbox ........................................................................................................................... 22 7.4 Canned messages .................................................................................................. 22 7.5 Archives (Z300 only) ......................................................................................... 23 7.6 Parameters.................................................................................................................. 23 7.7 SMS CB (Cell Broadcast) .............................................................................. 23 Customise.............................................................................................................................................. 23 8.1 Ring tones ................................................................................................................... 24 8.3 Graphical environment (Z300 only) ....................................................... 24 8.4 Settings.......................................................................................................................... 24 8.6 Keys setup Keys ..................................................................................................... 25 8.7 Security ......................................................................................................................... 25 Tool ..................................................................................................................…

Text truncated - open the document above for the full version.

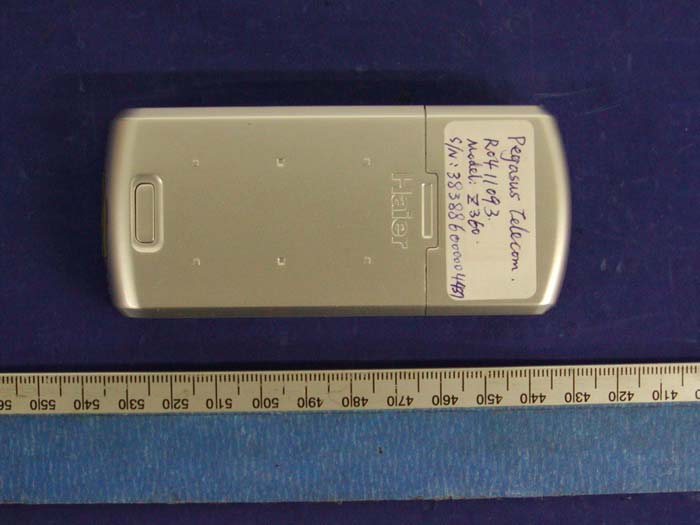

Pegasus Telecom (Qingdao) Co., Ltd FCC ID: SRO04100Z360 EXHIBIT C - EUT PHOTOGRAPHS EUT Front View EUT Rear View

EXHIBIT A - FCC ID LABELING AND WARNING STATEMENT Proposed FCC ID Label Specifications: Text is black or white in color and is left justified. Labels are silk-screened and shall be “permanently affixed” at a conspicuous location on the EUT. Proposed Label Location on EUT Rear View of the EUT/Proposed ID Label Location FCC Warning Statement A FCC Warning Statement is provided in the product manual. FCC ID: SRO04100Z360

Note: This test report is specially limited to the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the U.S. Government. SAR EVALUATION REPORT For Pegasus Telecom (Qingdao) Co., Ltd No. 1, Haier Road, Hi-tech Zone,Qingdao, 266101,P.R.China FCC ID: SRO04100Z360 This Report Concerns: Original Report Equipment Type: GSM850 & PCS1900 Cell Phone Test Engineer: Eric Hong Report No.: R0411093S Test Date: 2004-12-08 / 2004-12-18 Reviewed By: Daniel Deng Prepared By: Bay Area Compliance Laboratory Corporation (BACL) 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 2 of 89 DECLARATION OF COMPLIANCE SAR EVALUATION Rule Part(s): FCC §2.1093 Test Procedure(s): FCC OET Bulletin 65 Supplement C Device Classification: Licensed Portable Transmitter Held to Ear (PCE) Device Type: Phone, Mobile, GSM, GPRS FCC ID: SRO04100Z360 Model Number: Z360 Modulation: GSM TX Frequency Range: 824 – 848 MHz / 1850 – 1890 MHz Max. Conducted Power Tested: 32.33 dBm Antenna Type(s): Integral Antenna Battery Type(s): Rechargeable Body-Worn Accessories: Headset Face-Head Accessories: None Max. SAR Level(s) Measured: 0.299 W/kg (Face-Held) / 0.352 W/kg (Body-Worn) BACL Corp. declares under its sole responsibility that this device was found to be in compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in the relevant regulatory rules, e.g. FCC §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in the appropriate directives, e.g. FCC OET Bulletin 65, Supplement C, Edition 01-01 and Industry Canada RSS-102 Issue 1 (Occupational Environment/Controlled Exposure). I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results and statements contained in this report pertain only to the device(s) evaluated. /signature/ Eugene Peyzner Bay Area Compliance Laboratory Corp. Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 3 of 89 TABLE OF CONTENTS INTRODUCTION AND OVERVIEW ........................................................................................................................4 REFERENCE, STANDARDS, AND GUILDELINES ...............................................................................................5 SAR LIMITS.................................................................................................................................................................5 EUT DESCRIPTION ....................................................................................................................................................6 DESCRIPTION OF TEST SYSTEM ..........................................................................................................................7 MEASUREMENT SYSTEM DIAGRAM.............................................................................................................................8 SYSTEM COMPONENTS.................................................................................................................................................9 TESTING EQUIPMENT............................................................................................................................................13 EQUIPMENTS LIST & CALIBRATION INFO...................................................................................................................13 SAR MEASUREMENT SYSTEM VERIFICATION ..............................................................................................14 LIQUID VALIDATION..................................................................................................................................................14 SYSTEM ACCURACY VERIFICATION...........................................................................................................................18 EUT TEST STRATEGY AND METHODOLOGY .................................................................................................19 SAR EVALUATION PROCEDURE.................................................................................................................................19 CONCLUSION ............................................................................................................................................................20 SAR BODY AND HEAD WORST-CASE TEST DATA.....................................................................................................20 APPENDIX A – MEASUREMENT UNCERTAINTY ............................................................................................21 APPENDIX B – PROBE CALIBRATION CERTIFICATES .................................................................................22 APPENDIX C – DIPOLE CALIBRATION CERTIFICATES ...............................................................................48 APPENDIX D - TEST SYSTEM VERIFICATIONS SCANS .................................................................................63 LIQUID MEASUREMENT RESULT................................................................................................................................63 APPENDIX E - EUT SCANS .....................................................................................................................................68 APPENDIX F – CONDUCTED OUTPUT POWER MEASUREMENT ....................................................…

Text truncated - open the document above for the full version.

Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 31 of 89 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 32 of 89 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 33 of 89 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 34 of 89 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 35 of 89 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 36 of 89 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 37 of 89 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 38 of 89 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 39 of 89 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 40 of 89 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 41 of 89 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 42 of 89 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 43 of 89 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 44 of 89 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 45 of 89 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 46 of 89 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 47 of 89 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 48 of 89 APPENDIX C – DIPOLE CALIBRATION CERTIFICATES Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 49 of 89 2004-04-12 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 50 of 89 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 51 of 89 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 52 of 89 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 53 of 89 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 54 of 89 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 55 of 89 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 56 of 89 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 57 of 89 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 58 of 89 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 59 of 89 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 60 of 89

Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 61 of 89 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 62 of 89 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 63 of 89 APPENDIX D - TEST SYSTEM VERIFICATIONS SCANS Liquid Measurement Result 2004-12-18 Simulant Freq [MHz] Parameters Liquid Temp [ºC] Target Value Measured Value Deviation Limits [%] ε r 22.0 55.2 55.4 0.36 ±5 σ 22.0 0.97 0.93 -4.12 ±5 Body 835 1g SAR 22.0 8.872 8.93 0.65 ±10 ε r 22.0 41.5 41.4 -0.24 ±5 σ 22.0 0.90 0.91 1.11 ±5 Head 835 1g SAR 22.0 9.5 9.99 5.11 ±10 ε r = relative permittivity, σ = conductivity and ρ=1000kg/m 3 Body Forward Power = 20.41 dBm = 109.90 mW Head Forward Power = 20.30 dBm = 107.16 mW 2004-12-08 Simulant Freq [MHz] Parameters Liquid Temp [ºC] Target Value Measured Value Deviation Limits [%] ε r 22.0 53.3 53.4 -0.19 ±5 σ 22.0 1.52 1.50 1.32 ±5 Body 1900 1g SAR 22.0 24.97 24.89 0.32 ±10 ε r 22.0 40.0 39.2 2.00 ±5 σ 22.0 1.4 1.41 -0.71 ±5 Head 1900 1g SAR 22.0 39.7 38.64 2.67 ±10 ε r = relative permittivity, σ = conductivity and ρ=1000kg/m 3 Body Forward Power = 20.24 dBm = 105.68 mW Head Forward Power = 20.04 dBm = 100.93 mW Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 64 of 89 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 65 of 89 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 66 of 89 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 67 of 89 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 68 of 89 APPENDIX E - EUT SCANS Plot #1 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 69 of 89 Plot #2 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 70 of 89 Plot #3 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 71 of 89 Plot #4 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 72 of 89 Plot #5 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 73 of 89 Plot #6 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 74 of 89 Plot #7 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 75 of 89 Plot #8 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 76 of 89 Plot #9 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 77 of 89 Plot #10 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 78 of 89 APPENDIX F – CONDUCTED OUTPUT POWER MEASUREMENT Provision Applicable According to FCC §22.913 (a), the ERP of mobile transmitters and auxiliary test transmitters must not exceed 7 watts. According to FCC § 24.232(b), EIRP peak power for mobile/portable stations are limited to 2 watts. Test Procedure The RF output of the transmitter was connected to the input of the spectrum analyzer through sufficient attenuation. Test equipment Hewlett Packard HP8564E Spectrum Analyzer, Calibration Due Date: 2005-08-01. Hewlett Packard HP 7470A Plotter, Calibration not required. A.H. Systems SAS200 Horn Antenna, Calibration Due Date: 2005-05-31 Com-Power AB-100 Dipole Antenna, Calibration Due Date: 2005-09-05 Test Results GMS: Frequency (MHz) Output Power in dBm Output Power in W Limit (W) 836.60 32.33 1.710 7 1880.00 29.83 0.962 2 Please refer to the following plots. Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 79 of 89 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 80 of 89 APPENDIX G – Z-AXIS PLOT Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 81 of 89 Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 82 of 89 APPENDIX H – EUT TEST POSITION PHOTOS 1.5 Separation to Flat Phantom with Headset Left Head, Cheek Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 83 of 89 Left Head, Tilted Right Head, Cheek Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 84 of 89 Right Head, Tilted Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 85 of 89 APPENDIX I – EUT & ACCESSORIES PHOTOS EUT Front View EUT Rear View Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 86 of 89 Board and Housing View Board Top View Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 87 of 89 Board Bottom View Board Bottom Cover Removed View Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 88 of 89 Headset View Pegasus Telecom (Qingdao) Co., Ltd. FCC ID: SRO04100Z360 Report #R0411093S SAR Evaluation Report Page 89 of 89 APPENDIX J - INFORMATIVE REFERENCES [1] Federal Communications Commission, \Report and order: Guidelines for evaluating the environmental effects of radiofrequency radiation", Tech. Rep. FCC 96-326, FCC, Washington, D.C. 20554, 1996. [2] David L. Means Kwok Chan, Robert F. Cleveland, \Evaluating compliance with FCC guidelines for human exposure to radiofrequency electromagnetic fields", Tech. Rep., Federal Communication Commission, O_ce of Engineering & Technology, Washington, DC, 1997. [3] Thomas S…

Text truncated - open the document above for the full version.

Note: This test report is specially limited to the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the U.S. Government. FCC PART 22, 24 TYPE APPROVAL EMI MEASUREMENT AND TEST REPORT For Pegasus Telecom (Qingdao) Co., Ltd NO. 1 Haier Road, Hi-tech Zone, Qingdao P.R.China 266101 FCC ID: SRO04100Z360 This Report Concerns: Original Report Equipment Type: GSM850 & PCS1900 Cell Phone Test Engineer: Ming Jin / Report No.: R0411093 Report Date: 2004-12-10 Reviewed By: Daniel Deng / Prepared By: Bay Area Compliance Laboratory Corporation (BACL) 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 Pegasus Telecom (Qingdao) Co., Ltd FCC ID: SRO04100Z360 Report # R0411093Rpt Page 2 of 28 FCC Part 22, 24 Type Approval Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 JUSTIFICATION.............................................................................................................................................................6 BLOCK DIAGRAM.........................................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 SUPPORT EQUIPMENT LIST AND DETAILS....................................................................................................................6 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................7 SUMMARY OF TEST RESULTS ...............................................................................................................................8 §2.1047 - MODULATION CHARACTERISTIC .......................................................................................................9 APPLICABLE STANDARD..............................................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 ENVIRONMENTAL CONDITIONS....................................................................................................................................9 TEST RESULTS.............................................................................................................................................................9 §2.1053 - SPURIOUS RADIATED EMISSIONS .....................................................................................................11 APPLICABLE STANDARD............................................................................................................................................11 TEST PROCEDURE......................................................................................................................................................11 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................11 ENVIRONMENTAL CONDITIONS..................................................................................................................................11 TEST RESULT.............................................................................................................................................................12 §2.1046, §22.912(D), & §24.232 - RF POWER OUTPUT ........................................................................................13 APPLICABLE STANDARD............................................................................................................................................13 TEST PROCEDURE......................................................................................................................................................13 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................14 ENVIRONMENTAL CONDITIONS..................................................................................................................................14 TEST RESULTS...........................................................................................................................................................14 §2.1046, §22.913(A), & §24.232 – CONDUCTED OUTPUT POWER .....…

Text truncated - open the document above for the full version.

Pegasus Telecom (Qingdao) Co., Ltd FCC ID: SRO04100Z360 EXHIBIT B - TEST SETUP PHOTOGRAPHS Radiated Emission Front View Radiated Emission Rear View
