SRQ-BLADEA570LTE Digital Mobile Phone

1 ZTE Blade A570 Quick Start Guide 2 LEGAL INFORMATION Copyright © 2015 ZTE CORPORATION. All rights reserved. No part of this publication may be quoted, reproduced, translated or used in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. Notice ZTE Corporation reserves the right to make modifications on print errors or update specifications in this guide without prior notice. We offer self-service for our smart terminal device users. Please visit the ZTE official website (at www.ztedevice.com) for more information on self-service and supported product models. Information on the website takes precedence. Visit http://www.ztedevice.com to download the user manual. Just click Support > Manuals from the home page and then select your location, product type, and name to search for related support information. Disclaimer ZTE Corporation expressly disclaims any liability for faults and damages caused by unauthorized modifications of the software. Images and screenshots used in this guide may differ from the actual product. Content in this guide may differ from the actual product or software. Trademarks ZTE and th Google and trademark of such tra d m Qualcomm Technologi Qualcomm registered permission Other trad e owners. Version N Edition Ti Manual N he ZTE logos are tra d Android are trade and logos are owne demarks by ZTE Co microSDHC Logo is ® Snapdragon™ pr es, Inc. and Snapdragon a in the United States . emarks and trade n No. : R1.0 me :August 30, 2 No. : 3 ademarks of the ZT emarks of Google, I ed by the Bluetooth orporation is under s a trademark of SD rocessors are produ are trademarks of Q s and other countrie ames are the prope 2015 TE Corporation. nc. The Bluetooth ® h SIG, Inc. and any r license. D-3C, LLC. ucts of Qualcomm Qualcomm Incorpor es. Used with erty of their respect use rated, tive 4 Getting to Know Your Phone Front camera Proximity & li ght sensor Ear piece Menu key Home key Back key Touch screen Front flash Indicator li ght NOTE The positio through Se Back c Bac Volu Po w S E: ons of the Menu key ettings > Custom b camera ck flash me ke y wer key Speaker 5 y and the Back key bottom key. y are interchangeab Headset jac Charging/ micro-USB j ble ck jack 6 Key Function Power Key • Press and hold to turn on or off airplane mode, enable no interruptions mode, priority interruptions only mode, silent mode with vibration, disable silent mode, power off or reboot the phone. • Press to turn off or on the screen display. Home Key • Touch to return to the home screen. • Touch and hold to open Google Search. Back Key Touch to go to the previous screen. Menu Key • Touch to view the options for the current screen. • Touch and hold to see recently used applications. Volume Key Press or hold either end of the key to turn the volume up or down. Installing the micro-SIM cards Switch off your phone before installing or replacing the battery or the micro-SIM cards. You phone has two micro-SIM card slots. You can install one or both micro-SIM cards into the slots. 1. Insert your fingernail into the slot at the bottom left of the back cover and lift it up gently. 2. Hold th slip the N The mi cards, W To avo or any a stan d he micro-SIM cards em into the card ho NOTE: icro-SIM card tray 1 while tray 2 suppor WARNING! oid damage to the p non-standard micr o dard micro-SIM car 7 s with the cut corner lders. 1 supports GSM/W rts GSM micro-SIM hone, do not use a o-SIM cards cut fro rd from your service r oriented as shown CDMA/LTE micro-S cards. ny other kind of SI M m a SIM card. You e provider. n and SIM M cards, can get 3. Align the back into gaps aro Installi The microSD turned on. Un 1. Remove 2. Hold yo u slide it in NO Some a p data on i you kee p unnecess 3. Replace Chargi e back cover with th o place. Ensure that ound the cover. ing the mi DHC card can be ins nmount the microS the back cover. ur microSDHC card . TE: pplications may req t and to work prop e p a microSDHC car sarily. the back cover. ing the Ba 8 he back of the phon t all the tabs are se icroSDHC stalled and remove DHC card before re with the metal con uire a microSDHC erly. Therefore, it is rd installed and not attery e and press the co ecure and there are ™ Card ed while the phone emoving it. tacts facing down a card to store certai recommended tha remove or replace ver e no is and n t it When you this: 1. Conne 2. Conne 3. Disco n WAR Use only Z accessorie CAU T Do not cha The batter y provider. NO T  If th pho cha first get your new p ct the adapter to th ct the charger to a nnect the charger w RNING! TE-approved char g s could damage yo TION: nge the built-in rec h y can only be chang TE: he battery is extrem one even when it is arging the phone for 9 phone you’ll need to e charging jack. standard AC powe when the battery is f gers and cables. Th our phone or cause hargeable battery in ged by ZTE or ZTE ely low, you may be being charged. In t r at least 30 minute o charge the battery r outlet. fully charged. he use of unapprov the battery to expl o n your phone by yo E authorised service e unable to power o this case, try again es. Contact custome y like ed ode. urself. e on the after er 10 service if you still cannot power on the phone after prolonged charging.  The battery is not removable, do not remove the rear cover please.  Press and hold the power key for about 10 seconds to force the mobile phone restart. Powering On/Off Your Phone Ensure that the battery is charged. ● Press and hold the Power Key to turn on your phone. ● To turn it off, press and hold the Power Key to open the options menu. Touch Power off and then touch OK. You can also press and hold the Power Key for about 10 seconds to turn off your phone. Waking Up Your Phone Your phone automatically goes into sleep mode when it is not in use for some time. The display is turned off to save power and the keys are locked to prevent accidental operations. You …

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 ZTE Corporation 2015-10-28 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, _____ ZTE Corporation _____hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product: LTE Digital Mobile Phone Model: ZTE Blade A570, Blade A570, Blade D Lux, ZTE Blade D Lux, ZTE T617 FCC ID: SRQ-BLADEA570 Sincerely, Signature: Name/Title: Min Zhang/Certification Manager Company name: ZTE Corporation Tel: +86-021-68897541 E-Mail: [email protected] Address: ZTE Plaza, Keji Road South Shenzhen China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 ZTE Corporation 2015-10-28 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: SRQ-BLADEA570 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description - Tune up procedure - - BOM/Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature: Name/Title: Min Zhang/Certification Manager Company name: ZTE Corporation Tel: +86-021-68897541 E-Mail: [email protected] Address: ZTE Plaza, Keji Road South Shenzhen China

SZTE CORPORATION Model Declaration Letter To who concern The EUT is LTE Digital Mobile Phone，it contains five models，they are ZTE Blade A570, Blade A570, Blade D Lux, ZTE Blade D Lux, ZTE T617. They have the same size, appearance and internal structure, the only difference is the model number. Thank you! Signature: Name/Title: Min Zhang/Certification Manager Company name: ZTE CORPORATION Tel: +86-021-68897541 E-Mail: [email protected] Address: ZTE Plaza, Keji Road South, Shenzhen, China Date: 2015-10-28

ZTE Corporation WIFI Channel 12 & 13 Declaration Letter To whom it may concern : We have declared below featured for FCC equipment authorization in regard to 802.11b/g/n channel 12 & 13 operating capability for FCC ID : SRQ-BLADEA570 Please check Product hardware does not have the capability to operate on channel 12 & 13 Product hardware has the capability to operate on channel 12 & 13. However , these 2 channels will be disabled via software and user will not able to enable these 2 channels Product hardware has the capability to operate on channel 12 & 13. And meeting KDB 594280 D01 requirement. Pls explain detail here. Others Pls explain detail here. Sincerely, Signature: Name/Title: Min Zhang/Certification Manager Company name: ZTE Corporation Tel: +86‐021‐68897541 E‐Mail: [email protected] Address: ZTE Plaza, Keji Road South Shenzhen China Date: 2015‐10‐28

2015-11-17 To: FCC From: CCIC-SET RE: Applicant: ZTE Corporation , FCC ID: SRQ-BLADEA570, Request for supercede of WIFI test report exhibit The original WIFI report, and report No.: SET2015-15145 page 51~53 shows 802.11n40 spurious emission, but the EUT not support 802.11n40 mode, this is a mistake. So our customer request to revise/supercede the report and the grant. The new version WIFI report only delete page 51~53 spurious emission data and no influence on the test results. Therefore, we are asking to kindly replace the WIFI report with revised copies. You can find the changes on page 51~53 of the revised test report, Thank you, Signature: Name: Shuangwen Zhang Test Lab: CCIC-SET Address: Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen, China. Tel: 86-755-26627338 Fax: 86-755-26627238

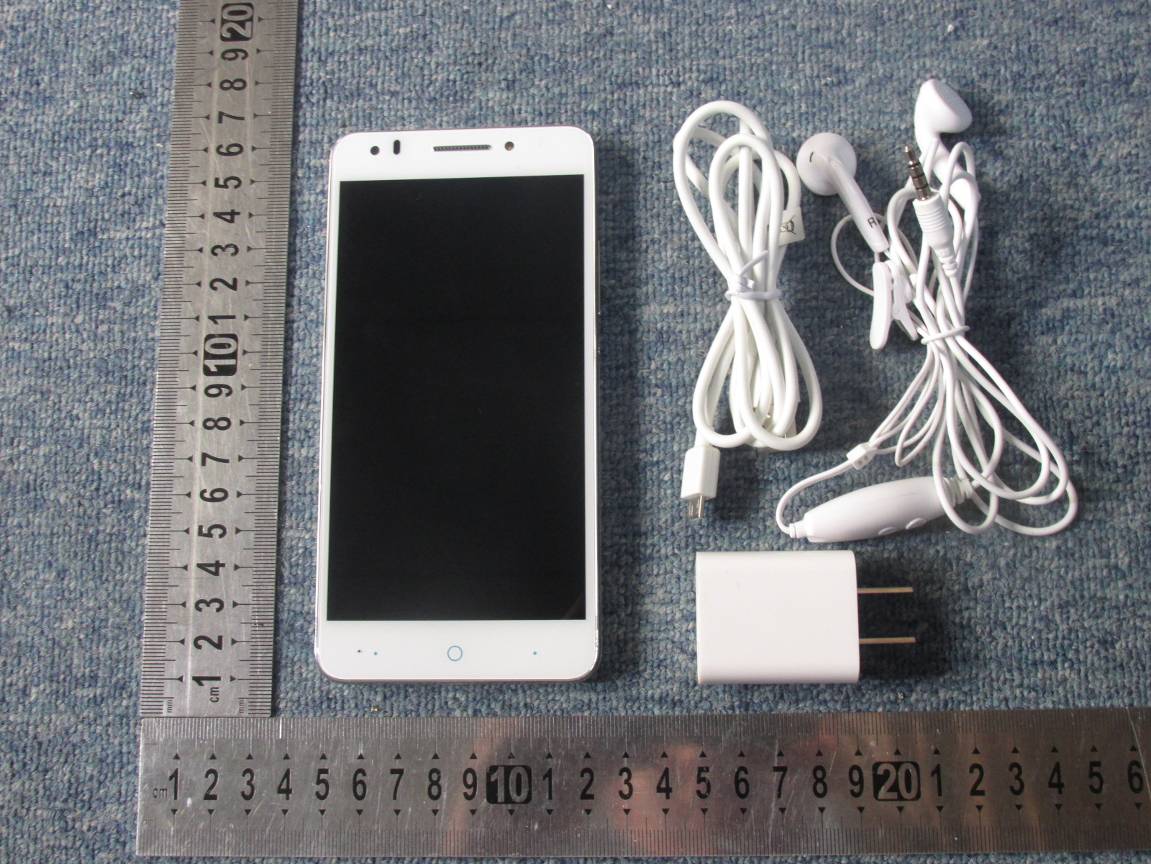

External Photo

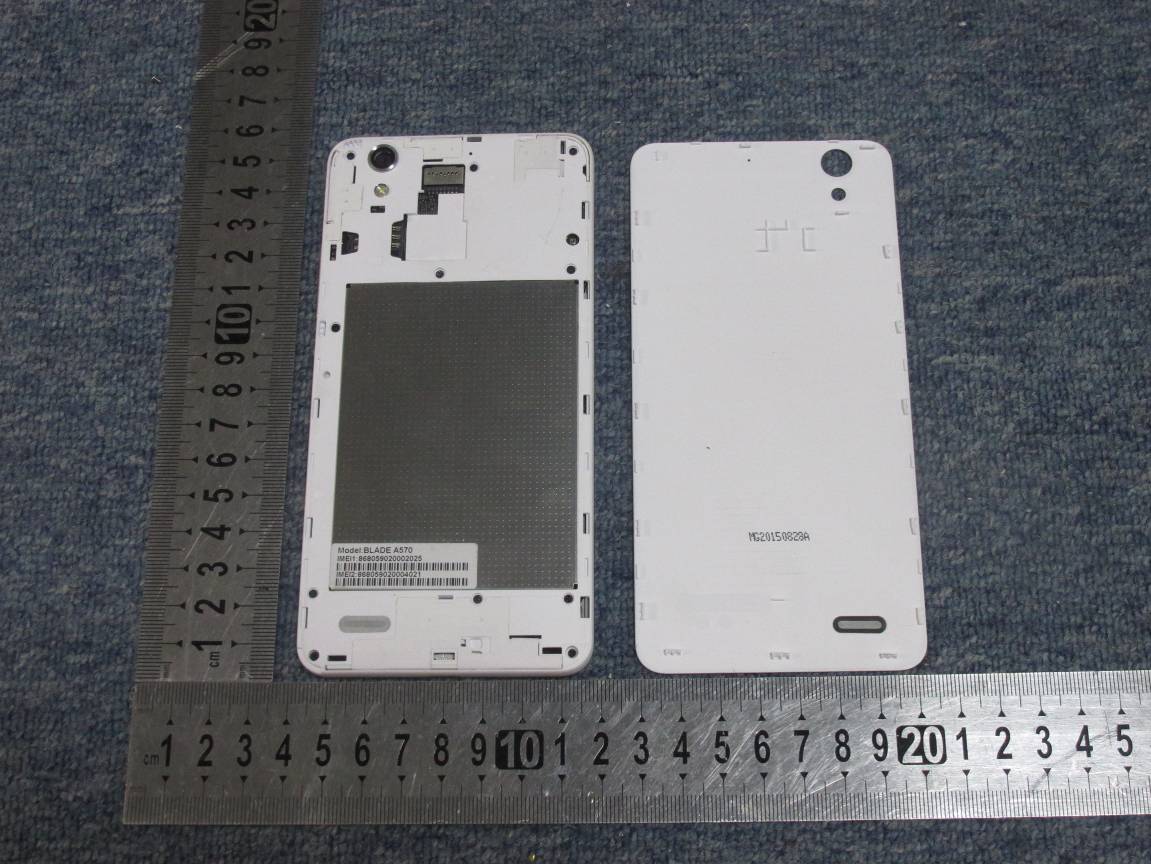

Internal Photo WWAN ANT WIFI/BT ANT LTE Band 7 Sub ANT Sub ANT

Report No. SET2015-15028 CCIC-SET/T-I (00) Page 1 of 193 FCC SAR TEST REPORT Report No.： SET2015-15028 Product： LTE Digital Mobile Phone Brand Name: ZTE Model No.： ZTE Blade A570, Blade A570, Blade D Lux, ZTE Blade D Lux, ZTE T617 FCC ID： SRQ-BLADEA570 Applicant： ZTE Corporation Address： ZTE Plaza, Keji Road South, Shenzhen, China Issued by： CCIC-SET Lab Location： Electronic Testing Building, Shahe Road，Xili, Nanshan District, Shenzhen, 518055, P. R. China Tel： 86 755 26627338 Fax：86 755 26627238 Mail： [email protected] Website：http://www.ccic-set.com This test report consists of 193 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No. SET2015-15028 CCIC-SET/T-I (00) Page 2 of 193 Test Report Product. ...................: LTE Digital Mobile Phone Model No. .................: ZTE Blade A570, Blade A570, Blade D Lux, ZTE Blade D Lux, ZTE T617 Brand Name..............: ZTE FCC ID.......................: SRQ-BLADEA570 Applicant....................: ZTE Corporation Applicant Address.......: ZTE Plaza, Keji Road South, Shenzhen, China Manufacturer............: ZTE Corporation Manufacturer Address: ZTE Plaza, Keji Road South, Shenzhen, China Test Standards..........: 47CFR §2.1093- Radiofrequency Radiation Exposure Evaluation: Portable Devices; ANSI C95.1–1992: Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz – 300 GHz.( IEEE Std C95.1-1991) IEEE 1528–2013: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques; Test Result...............: Pass Tested by ..............: 2015-10-27 Chun Mei, Test Engineer Reviewed by.............: 2015-10-27 Shuangwen Zhang,Senior Egineer Approved by...............: 2015-10-27 Wu Li’an , Manager Report No. SET2015-15028 CCIC-SET/T-I (00) Page 3 of 193 Contents 1. GENERAL CONDITIONS-----------------------------------------------------------------4 2. ADMINISTRATIVE DATA-----------------------------------------------------------------5 2.1. Identification of the Responsible Testing Laboratory--------------------------------5 2.2. Identification of the Responsible Testing Location(s)--------------------------------5 2.3. Organization Item-------------------------------------------------------------------------5 2.4. Identification of Applicant---------------------------------------------------------------5 2.5. Identification of Manufacture-----------------------------------------------------------5 3. EQUIPMENT UNDER TEST (EUT)-----------------------------------------------------6 4. SAR SUMMAY--------------------------------------------------------------------------------7 5. Specific Absorption Rate(SAR)------------------------------------------------------------9 5.1. Introduction--------------------------------------------------------------------------------9 5.2. SAR Definition----------------------------------------------------------------------------9 5.3. Phantoms-----------------------------------------------------------------------------------10 5.4. Device Holder-----------------------------------------------------------------------------10 5.5. Probe Specification----------------------------------------------------------------------11 6. OPERATIONAL CONDITIONS DURING TEST------------------------------------12 6.1. Schematic Test Configuration---------------------------------------------------------12 6.2. SAR Measurement System--------------------------------------------------------------12 6.3. Equipments and results of validation testing------------------------------------------15 6.4. SAR measurement procedure-----------------------------------------------------------17 6.5. Antennas position and test position----------------------------------------------------18 7. CHARACTERISTICS OF THE TEST--------------------------------------------------19 7.1. Applicable Limit Regulations----------------------------------------------------------19 7.2. Applicable Measurement Standards---------------------------------------------------19 8. LABORATORY ENVIRONMENT-------------------------------------------------------20 9. CONDUCTED RF OUTPUT POWER---------------------------------------------------20 10. TEST RESULTS------------------------------------------------------------------------------41 11. MEASUREMENT UNCERTAINTY-----------------------------------------------------51 12. MAIN TEST INSTRUMENTS------------------------------------------------------------54 This Test Report consists of the following Annexes: Annex A: Test Layout ---------------------------------------------------------------------55 Annex B: Sample Photographs----------------------------------------------------------62 Annex C: System Performance Check Data and Highest SAR Plots------------64 Annex D: Calibration Certificate of Probe and Dipoles----------------------------119 Report No. SET2015-15028 CCIC-SET/T-I (00) Page 4 of 193 1．GENERAL CONDITIONS 1.1 This report only refers to the item that has undergone the test. 1.2 This report standalone does not constitute or imply by its own an approval of the product by the certification Bodies or competent Authorities. 1.3 This document is only valid if complete; no partial reproduction can be made without written approval of CCIC-SET 1.4 This report cannot be used partially or in full for publicity and/or promotional purposes without p…

Text truncated - open the document above for the full version.

Report No. SET2015-15028 CCIC-SET/T-I (00) Page 106 of 193 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 1.4936 1.0113 0.6150 0.3814 0.2479 3D screen shot Hot spot position Report No. SET2015-15028 CCIC-SET/T-I (00) Page 107 of 193 LTE Band 5, 10MHz, Left Cheek, High Type: Phone measurement Date of measurement: 12/10/2015 Measurement duration: 6 minutes 21 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Left head Device Position Cheek Band LTE Band 5 Channels 20525 Signal WCDMA (Duty cycle: 1:1) B. SAR Measurement Results E-Field Probe SATIMO SN_04/13_EP166 Frequency (MHz) 836.5 Relative permittivity (real part) 41.34 Relative permittivity (imaginary part) 18.64 Conductivity (S/m) 0.88 Variation (%) 0.70 ConvF: 5.69 SURFACE SAR VOLUME SAR Maximum location: X=-55.00, Y=-35.00 SAR Peak: 0.23W/kg SAR 10g (W/Kg) 0.121928 SAR 1g (W/Kg) 0.177029 Report No. SET2015-15028 CCIC-SET/T-I (00) Page 108 of 193 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.1672 0.1438 0.1204 0.1028 0.0895 3D screen shot Hot spot position Report No. SET2015-15028 CCIC-SET/T-I (00) Page 109 of 193 LTE Band 5, 10MHz, Back, Middle Type: Phone measurement Date of measurement:19/10/2015 Measurement duration: 7 minutes 24 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Body Band LTE Band 5 Channels 20525 Signal WCDMA (Duty cycle: 1:1) B. SAR Measurement Results E-Field Probe SATIMO SN_04/13_EP166 Frequency (MHz) 836.5 Relative permittivity (real part) 54.82 Relative permittivity (imaginary part) 23.04 Conductivity (S/m) 0.96 Variation (%) 0.26 ConvF: 5.82 SURFACE SAR VOLUME SAR Maximum location: X=-9.00, Y=47.00 SAR Peak: 0.31 W/kg SAR 10g (W/Kg) 0.210654 SAR 1g (W/Kg) 0.262248 Report No. SET2015-15028 CCIC-SET/T-I (00) Page 110 of 193 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.2486 0.2193 0.1866 0.1582 0.1333 3D screen shot Hot spot position Report No. SET2015-15028 CCIC-SET/T-I (00) Page 111 of 193 LTE Band 7,20MHz, Left Cheek, Middle Type: Phone measurement Date of measurement: 15/10/2015 Measurement duration: 6 minutes 22seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Left head Device Position Cheek Band LTE Band 7 Channels 21100 Signal LTE(Duty cycle: 1:1) B. SAR Measurement Results E-Field Probe SATIMO SN_04/13_EP166 Frequency (MHz) 2535 Relative permittivity (real part) 38.91 Relative permittivity (imaginary part) 13.43 Conductivity (S/m) 1.94 Variation (%) -1.15 ConvF: 5.08 SURFACE SAR VOLUME SAR Maximum location: X=-48.00, Y=-42.00 SAR Peak: 2.02 W/kg SAR 10g (W/Kg) 0.596332 SAR 1g (W/Kg) 1.155331 Report No. SET2015-15028 CCIC-SET/T-I (00) Page 112 of 193 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.4370 0.2781 0.1543 0.0865 0.0513 3D screen shot Hot spot position Report No. SET2015-15028 CCIC-SET/T-I (00) Page 113 of 193 LTE Band 7, Edge C, High Type: Phone measurement Date of measurement:22/10/2015 Measurement duration: 7 minutes 34 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Body Band LTE Band 7 Channels 21350 Signal LTE (Duty cycle: 1:1) B. SAR Measurement Results E-Field Probe SATIMO SN_04/13_EP166 Frequency (MHz) 2560 Relative permittivity (real part) 52.73 Relative permittivity (imaginary part) 14.95 Conductivity (S/m) 2.16 Variation (%) 3.18 ConvF: 5.22 SURFACE SAR VOLUME SAR Maximum location: X=10.00, Y=8.00 SAR Peak: 2.67W/kg SAR 10g (W/Kg) 0.662133 SAR 1g (W/Kg) 1.207369 Report No. SET2015-15028 CCIC-SET/T-I (00) Page 114 of 193 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 1.7017 1.0409 0.5426 0.2832 0.1564 3D screen shot Hot spot position Report No. SET2015-15028 CCIC-SET/T-I (00) Page 115 of 193 Wi-Fi 802.11b ,Right Tilt, Low Type: Phone measurement ( 11 points in the volume) Date of measurement: 15/10/2015 Measurement duration: 7 minutes 08 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 7x7x8,dx=5mm dy=5mm dz=4mm Phantom Right head Device Position Tilt Band IEEE 802.11b ISM Channels 1 Signal DSSS (Crest factor: 1:1) B. SAR Measurement Results E-Field Probe SATIMO SN_04/13_EP166 Frequency (MHz) 2412 Relative permittivity (real part) 38.97 Relative permittivity (imaginary part) 13.22 Conductivity (S/m) 1.80 Variation (%) 1.49 ConvF: 4.93 SURFACE SAR VOLUME SAR Maximum location: X=-33.00, Y=-18.00 SAR Peak: 0.70 W/kg SAR 10g (W/Kg) 0.124395 SAR 1g (W/Kg) 0.259656 Report No. SET2015-15028 CCIC-SET/T-I (00) Page 116 of 193 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.7004 0.3674 0.1485 0.0576 0.0254 3D screen shot Hot spot position Report No. SET2015-15028 CCIC-SET/T-I (00) Page 117 of 193 Wi-Fi 802.11b , Back , Middle Type: Phone measurement Date of measurement: 22/10/2015 Measurement duration: 07 minutes 26 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 7x7x8,dx=5mm dy=5mm dz=4mm Phantom Validation plane Device Position Body Band IEEE 802.11b Channels 1 Signal DSSS (Crest factor: 1:1) B. SAR Measurement Results E-Field Probe SATIMO SN_04/13_EP166 Frequency (MHz) 2412 Relative permittivity (real part) 52.47 Relative permittivity (imaginary part) 14.25 Conductivity (S/m) 1.94 Variation (%) -3.24 ConvF: 5.09 SURFACE SAR VOLUME SAR Maximum location: X=0.00, Y=18.00 SAR Peak: 0.10W/kg SAR 10g (W/Kg) 0.029441 SAR 1g (W/Kg) 0.056200 Report No. SET2015-15028 CCIC-SET/T-I (00) Page 118 of 193 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.2282 0.1344 0.0654 0.0307 0.0147 3D screen shot Hot spot position Report No. SET2015-15028 CCIC-SET/T-I (00) Page 119 of 193 ANNEX E of CCIC-SET CONFORMANCE TEST REPORT FOR HUMAN EXPOSURE TO ELECTROMAGNETIC FIELDS SET2015-15028 LTE Digital Mobile Phone Type Name: ZTE Bl…

Text truncated - open the document above for the full version.

Report No. SET2015-15028 CCIC-SET/T-I (00) Page 157 of 193 Report No. SET2015-15028 CCIC-SET/T-I (00) Page 158 of 193 Report No. SET2015-15028 CCIC-SET/T-I (00) Page 159 of 193 Report No. SET2015-15028 CCIC-SET/T-I (00) Page 160 of 193 Report No. SET2015-15028 CCIC-SET/T-I (00) Page 161 of 193 Report No. SET2015-15028 CCIC-SET/T-I (00) Page 162 of 193 SID2450 Dipole Calibration Certificate Report No. SET2015-15028 CCIC-SET/T-I (00) Page 163 of 193 Report No. SET2015-15028 CCIC-SET/T-I (00) Page 164 of 193 Report No. SET2015-15028 CCIC-SET/T-I (00) Page 165 of 193 Report No. SET2015-15028 CCIC-SET/T-I (00) Page 166 of 193 Report No. SET2015-15028 CCIC-SET/T-I (00) Page 167 of 193 Report No. SET2015-15028 CCIC-SET/T-I (00) Page 168 of 193 Report No. SET2015-15028 CCIC-SET/T-I (00) Page 169 of 193 Report No. SET2015-15028 CCIC-SET/T-I (00) Page 170 of 193 Report No. SET2015-15028 CCIC-SET/T-I (00) Page 171 of 193 Report No. SET2015-15028 CCIC-SET/T-I (00) Page 172 of 193 Report No. SET2015-15028 CCIC-SET/T-I (00) Page 173 of 193 SID2600 Dipole Calibration Certificate Report No. SET2015-15028 CCIC-SET/T-I (00) Page 174 of 193 . Report No. SET2015-15028 CCIC-SET/T-I (00) Page 175 of 193 Report No. SET2015-15028 CCIC-SET/T-I (00) Page 176 of 193 Report No. SET2015-15028 CCIC-SET/T-I (00) Page 177 of 193 Report No. SET2015-15028 CCIC-SET/T-I (00) Page 178 of 193 Report No. SET2015-15028 CCIC-SET/T-I (00) Page 179 of 193 Report No. SET2015-15028 CCIC-SET/T-I (00) Page 180 of 193 Report No. SET2015-15028 CCIC-SET/T-I (00) Page 181 of 193 Report No. SET2015-15028 CCIC-SET/T-I (00) Page 182 of 193 Report No. SET2015-15028 CCIC-SET/T-I (00) Page 183 of 193 Report No. SET2015-15028 CCIC-SET/T-I (00) Page 184 of 193 <Justification of the extended calibration> Referring to KDB 450824, if dipoles are verified in return loss(<-20dB, within 20% of prior calibration),and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. Head 835MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2014.08.28 -23.17 - 57.40 - 2015.08.26 -22.96 4.95 57.88 0.48 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Head 835MHz Report No. SET2015-15028 CCIC-SET/T-I (00) Page 185 of 193 Body 835MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2014.08.28 -24.50 - 55.00 - 2015.08.26 -24.60 -2.28 55.06 0.06 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Body 835MHz Report No. SET2015-15028 CCIC-SET/T-I (00) Page 186 of 193 Head 1800MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2014.08.28 -25.01 - 46.70 - 2015.08.26 -25.36 -7.74 47.72 1.02 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Head 1800MHz Report No. SET2015-15028 CCIC-SET/T-I (00) Page 187 of 193 Body 1800MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2014.08.28 -26.43 - 45.80 - 2015.08.26 -26.50 -1.60 45.60 -0.2 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Body 1800MHz Report No. SET2015-15028 CCIC-SET/T-I (00) Page 188 of 193 Head 1900MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2014.08.28 -23.44 - 55.40 - 2015.08.26 -23.79 -7.74 55.33 -0.07 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Head 1900MHz Report No. SET2015-15028 CCIC-SET/T-I (00) Page 189 of 193 Body 1900MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2014.08.28 -27.36 - 51.70 - 2015.08.26 -26.94 10.15 51.18 -0.52 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Body 1900MHz Report No. SET2015-15028 CCIC-SET/T-I (00) Page 190 of 193 Head 2450MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2014.08.28 -27.50 - 51.70 - 2015.08.26 -27.09 9.90 50.99 -0.71 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Head 2450MHz Report No. SET2015-15028 CCIC-SET/T-I (00) Page 191 of 193 Body 2450MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2014.08.28 -27.56 - 54.30 - 2015.08.26 -27.30 6.17 55.11 0.81 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Body 2450MHz Report No. SET2015-15028 CCIC-SET/T-I (00) Page 192 of 193 Head 2600MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2014.08.28 -31.53 - 51.30 - 2015.08.26 -31.75 -4.94 50.99 -0.31 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Head 2600MHz Report No. SET2015-15028 CCIC-SET/T-I (00) Page 193 of 193 Body 2600MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2014.08.28 -24.53 - 45.00 - 2015.08.26 -24.76 -5.16 46.23 1.23 The …

Text truncated - open the document above for the full version.

Report No.: SET2015-15147 CCIC-SET/T（00） Page 1 of 33 RF TEST REPORT Report No.: SET2015-15147 Product Name: LTE Digital Mobile Phone FCC ID: SRQ-BLADEA570 Model No. : ZTE Blade A570, Blade A570, Blade D Lux, ZTE Blade D Lux, ZTE T617 Applicant: ZTE Corporation Address: ZTE Plaza, Keji Road South, Shenzhen, China Dates of Testing: 09/20/2015 — 10/20/2015 Issued by: CCIC-SET Lab Location: Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen, 518055, P. R. China Tel: 86 755 26627338 Fax: 86 755 26627238 This test report consists of 33 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval o…
