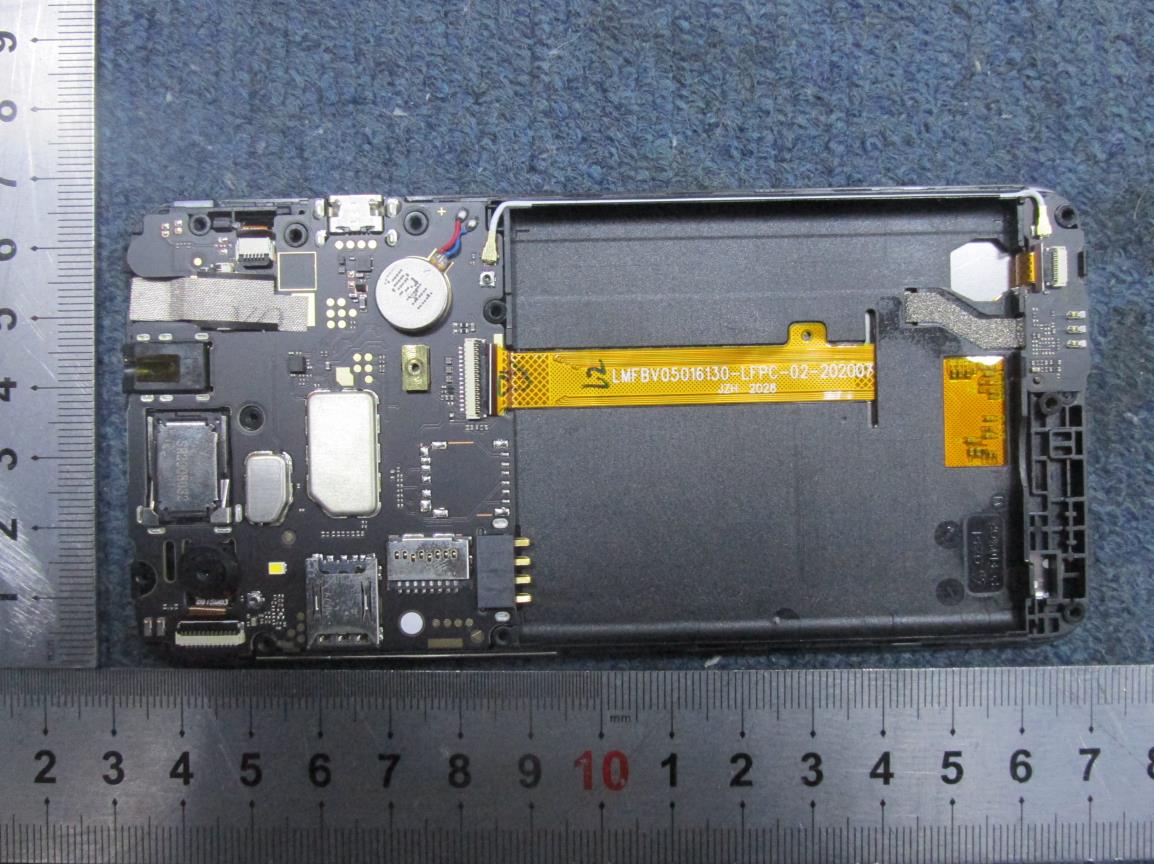

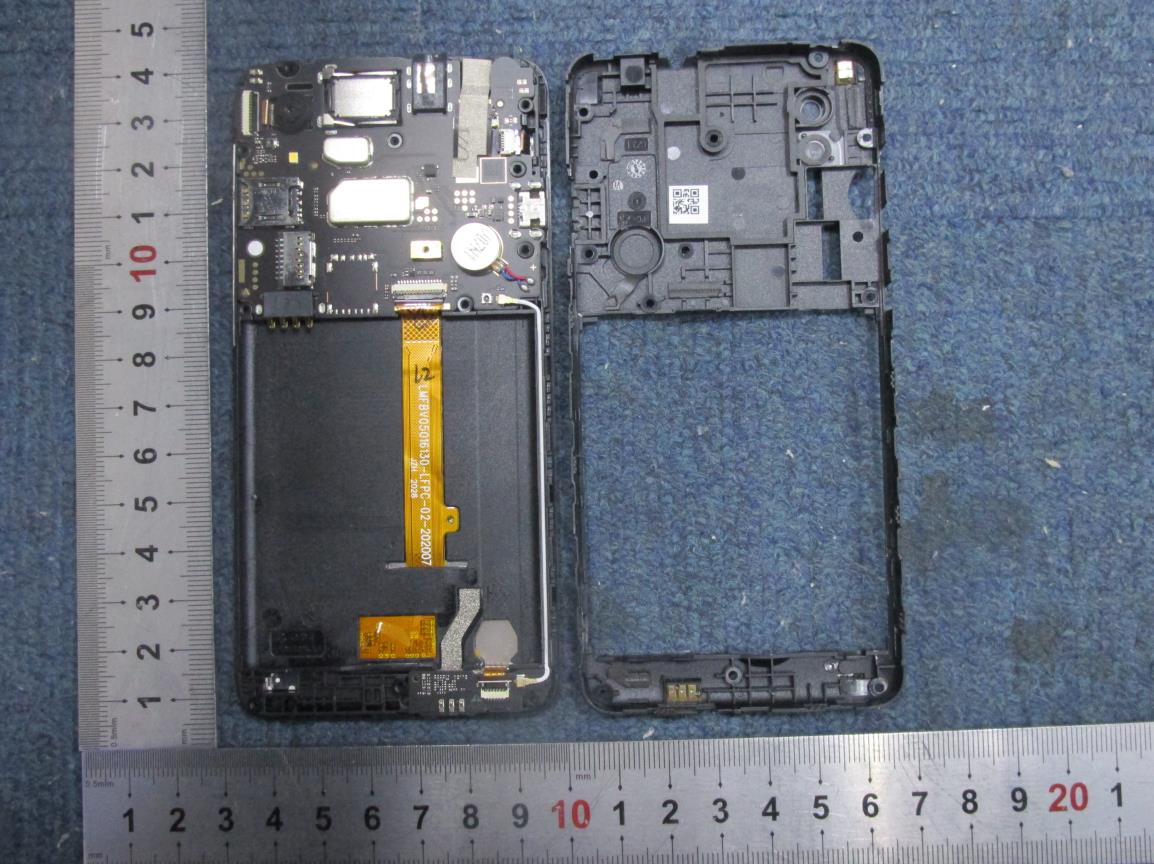

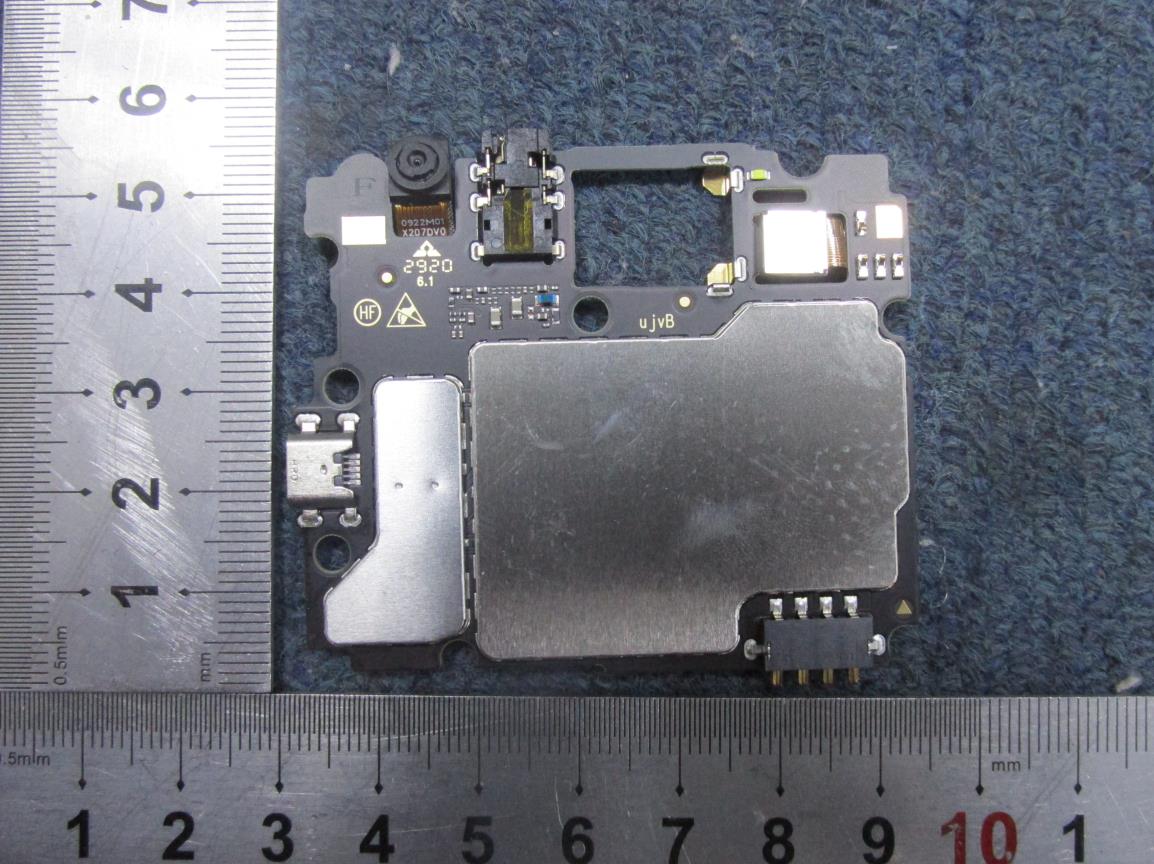

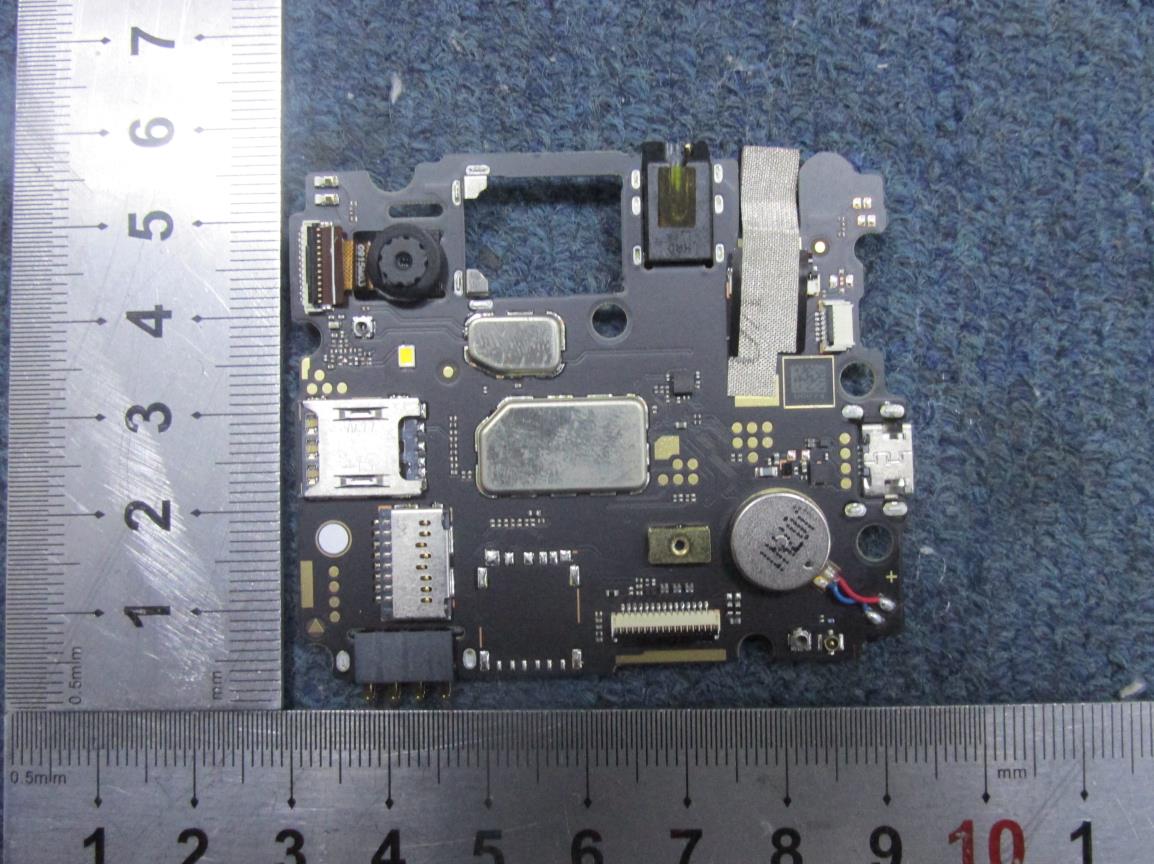

SRQ-BLADEL9WCDMA/GSM(GPRS)Dual-Mode Digital Mobile Phone

1 ZTE Blade L9 Quick Start Guide 2 LEGAL INFORMATION Copyright © 2019 ZTE CORPORATION. All rights reserved. No part of this publication may be quoted, reproduced, translated or used in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. Notice ZTE Corporation reserves the right to make modifications on print errors or update specifications in this guide without prior notice. We offer self-service for our smart terminal device users. Please visit the ZTE official website (at www.ztedevices.com) for more information on self-service and supported product models. Information on the website takes precedence. Disclaimer ZTE Corporation expressly disclaims any liability for faults and damages caused by unauthorized modifications of the software. Images and screenshots used in this guide may differ from the actual product. Content in this guide may differ from the actual product or software. Trademarks ZTE and the ZTE logos are trademarks of ZTE Corporation. Android™ is a trademark of Google LLC. The Bluetooth ® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by ZTE Corporation is under license. microSDXC Logo is a trademark of SD-3C, LLC. Other trademarks and trade names are those of their respective owners. Version No.: R1.0 Edition Time : December 21, 2018 Manual No.: 3 Getting to Know Your Phone * Supports CTIA headsets only. Front camera Touch screen Earpiece/ Speaker Volume key Power key Flash Charging/ micro-USB jack Headset jack* Back camera Back cover Indicator light 4 Setting Up Your Phone The nano-SIM card can be installed or removed while the phone is turned on. Power off your phone before removing or replacing the battery. WARNING! To avoid damage to the phone, do not use any other kind of SIM cards, or any non-standard nano-SIM card cut from a SIM card. You can get a standard nano-SIM card from your service provider. 1. Insert your fingernail into the slot at the bottom left of the back cover and lift it up gently. 2. Hold the nano-SIM card and the microSDXC card (optional) as shown and slip them into the card slots. microSDXC card nano-SIM card 5 3. Insert the battery, making sure the connectors align. 4. Replace the back cover. Charging the Phone Your phone’s battery should have enough power for the phone to turn on, find a signal, and make a few calls. You should fully charge the battery as soon as possible. WARNING! Use only ZTE-approved chargers and USB cables. The use of unapproved accessories could damage your phone or cause the battery to explode. NOTE: If the battery is extremely low, you may be unable to power on the phone even when it is being charged. In this case, try again after charging the phone for at least 20 minutes. Contact the customer service if you still cannot power on the phone after prolonged charging. 6 Product Safety Information Don’t make or receive phone calls while driving. Never text while driving. Keep your phone at least 10 mm away from your body while making calls. Small parts may cause choking. Your phone can produce a loud sound. To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your phone near your ear while the loudspeaker is in use. Avoid contact with anything magnetic. Keep away from pacemakers and other electronic medical devices. Turn off when asked to in hospitals and medical facilities. Turn off when told to on aircraft and at airports. Turn off when near explosive materials or liquids. Don’t use at gas stations. Your phone may produce a bright or flashing light. Don’t dispose of your phone in fire. Avoid extreme temperatures. Avoid contact with liquids. Keep your phone dry. Do not attempt to disassemble your phone. Only use approved accessories. 7 For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible. Don’t rely on your phone as a primary device for emergency communications. FCC RF Exposure Information (SAR) This phone is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the United States. During SAR testing, this device was set to transmit at its highest certified power level in all tested frequency bands, and placed in positions that simulate RF exposure in usage against the head with no separation, and near the body with the separation of 10 mm. Although the SAR is determined at the highest certified power level, the actual SAR level of the device while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. The exposure standard for wireless devices employing a unit of measurement is known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. This device is complied with SAR for general population/uncontrolled exposure limits in ANSI/IEEE C95.1-1992 and had been tested in accordance with the measurement methods and procedures specified in IEEE1528. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC ID: 8 SRQ-BLADEL9. The FCC ID also can be found on the device when you swipe on the home screen and touch Settings > System > About phone > FCC ID. For this device, the highest reported SAR value for usage against the head is 0.607W/kg, and for usage near the body is 0.962W/kg. While there may be differences between the SAR levels of various phones and a…

Text truncated - open the document above for the full version.

Declaration letter Dear Regulatory Authority, Please be notified that our Product: WCDMA/GSM（GPRS）Dual-Mode Digital Mobile Phone Model name: ZTE Blade L9 Use the orginal LTE Base Station, FCC ID: SRQ-BLADEL8 RF conducted/And Radiate Part test data. The EUT only replace with a new cover, and no other RF Parameter and PCB change. FCC ID SRQ-BLADEL8(Original) SRQ-BLADEL9(NEW) EUT Size(mm) 137.35*67.5*10.55 137.35*67.5*10.9 EUT display EUT Display Signateru: Contact Name: Yu Gong Title: Certification Manager Company: ZTE Corporation Address: ZTE Plaza, Keji Road South Shenzhen China E-mail: [email protected] Tel: +86-21-6889539 Date: 2021/06/08

ZTE Corporation Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2021/6/03 Subject; Request for Confidentiality FCC ID: SRQ-BLADEL9 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Bom List Tune up procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Yu Gong Title: Certification Manager

ZTE Corporation. Letter of Authorization Company: ZTE Corporation Address: ZTE Plaza, Keji Road South, Shenzhen, China Product Name: WCDMA/GSM（GPRS）Multi-Mode Digital Mobile Phone Model Number: ZTE Blade L9 FCC Identifier: SRQ-BLADEL9 We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Yu Gong Date: 2021/6/03 Title: Certification Manager Signature of applicant:

WWAN ANT BT/WIFI ANT

Label & Location

1 ZTE Blade L9 Quick Start Guide 2 LEGAL INFORMATION Copyright © 2019 ZTE CORPORATION. All rights reserved. No part of this publication may be quoted, reproduced, translated or used in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. Notice ZTE Corporation reserves the right to make modifications on print errors or update specifications in this guide without prior notice. We offer self-service for our smart terminal device users. Please visit the ZTE official website (at www.ztedevices.com) for more information on self-service and supported product models. Information on the website takes precedence. Disclaimer ZTE Corporation expressly disclaims any liability for faults and damages caused by unauthorized modifications of the software. Images and screenshots used in this guide may differ from the actual product. Content in this guide may differ from the actual product or software. Trademarks ZTE and the ZTE logos are trademarks of ZTE Corporation. Android™ is a trademark of Google LLC. The Bluetooth ® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by ZTE Corporation is under license. microSDXC Logo is a trademark of SD-3C, LLC. Other trademarks and trade names are those of their respective owners. Version No.: R1.0 Edition Time : December 21, 2018 Manual No.: 3 Getting to Know Your Phone * Supports CTIA headsets only. Front camera Touch screen Earpiece/ Speaker Volume key Power key Flash Charging/ micro-USB jack Headset jack* Back camera Back cover Indicator light 4 Setting Up Your Phone The nano-SIM card can be installed or removed while the phone is turned on. Power off your phone before removing or replacing the battery. WARNING! To avoid damage to the phone, do not use any other kind of SIM cards, or any non-standard nano-SIM card cut from a SIM card. You can get a standard nano-SIM card from your service provider. 1. Insert your fingernail into the slot at the bottom left of the back cover and lift it up gently. 2. Hold the nano-SIM card and the microSDXC card (optional) as shown and slip them into the card slots. microSDXC card nano-SIM card 5 3. Insert the battery, making sure the connectors align. 4. Replace the back cover. Charging the Phone Your phone’s battery should have enough power for the phone to turn on, find a signal, and make a few calls. You should fully charge the battery as soon as possible. WARNING! Use only ZTE-approved chargers and USB cables. The use of unapproved accessories could damage your phone or cause the battery to explode. NOTE: If the battery is extremely low, you may be unable to power on the phone even when it is being charged. In this case, try again after charging the phone for at least 20 minutes. Contact the customer service if you still cannot power on the phone after prolonged charging. 6 Product Safety Information Don’t make or receive phone calls while driving. Never text while driving. Keep your phone at least 10 mm away from your body while making calls. Small parts may cause choking. Your phone can produce a loud sound. To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your phone near your ear while the loudspeaker is in use. Avoid contact with anything magnetic. Keep away from pacemakers and other electronic medical devices. Turn off when asked to in hospitals and medical facilities. Turn off when told to on aircraft and at airports. Turn off when near explosive materials or liquids. Don’t use at gas stations. Your phone may produce a bright or flashing light. Don’t dispose of your phone in fire. Avoid extreme temperatures. Avoid contact with liquids. Keep your phone dry. Do not attempt to disassemble your phone. Only use approved accessories. 7 For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible. Don’t rely on your phone as a primary device for emergency communications. FCC RF Exposure Information (SAR) This phone is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the United States. During SAR testing, this device was set to transmit at its highest certified power level in all tested frequency bands, and placed in positions that simulate RF exposure in usage against the head with no separation, and near the body with the separation of 10 mm. Although the SAR is determined at the highest certified power level, the actual SAR level of the device while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. The exposure standard for wireless devices employing a unit of measurement is known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. This device is complied with SAR for general population/uncontrolled exposure limits in ANSI/IEEE C95.1-1992 and had been tested in accordance with the measurement methods and procedures specified in IEEE1528. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC ID: 8 SRQ-BLADEL9. The FCC ID also can be found on the device when you swipe on the home screen and touch Settings > System > About phone > FCC ID. For this device, the highest reported SAR value for usage against the head is 0.607W/kg, and for usage near the body is 0.962W/kg. While there may be differences between the SAR levels of various phones and a…

Text truncated - open the document above for the full version.

Report No. SET2021-05834 CCIC-SET/T-I (00) 1 / 19 Appendix A: SAR System performance Check Plots Measurement Liquid Frequency Test Date System Check Head 850 2019-01-22 System Check Body 850 2019-01-22 System Check Head 1900 2019-01-24 System Check Body 1900 2019-01-24 System Check Head 2450 2019-01-25 System Check Body 2450 2019-01-25 System Check Body 835 2021-05-10 System Check Body 1900 2021-05-11 System Check Body 2450 2021-05-12 Report No. SET2021-05834 CCIC-SET/T-I (00) 2 / 19 System Performance Check (Head, 850MHz) Type: Phone measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 01/22/2019 Measurement duration: 22 minutes 16 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 5x5x7,dx=8mm dy=8mm dz=5mm Device Position Dipole Band 850MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_04/13_EP166 Frequency (MHz) 850 Relative permittivity (real part) 41.44 Relative permittivity 18.27 Conductivity (S/m) 0.87 Power drift (%) -0.15 Ambient Temperature: 22.2°C Liquid Temperature: 22.6°C ConvF: 5.85 Crest factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=16.00, Y=-17.00 SAR 10g (W/Kg) 0.065131 SAR 1g (W/Kg) 0.098424 Report No. SET2021-05834 CCIC-SET/T-I (00) 3 / 19 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.1374 0.1015 0.0705 0.0466 0.0353 3D screen shot Hot spot position Report No. SET2021-05834 CCIC-SET/T-I (00) 4 / 19 System Performance Check (Body, 850MHz) Type: Phone measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 01/22/2019 Measurement duration: 22 minutes 22 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 5x5x7,dx=8mm dy=8mm dz=5mm Device Position Dipole Band 850MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_04/13_EP166 Frequency (MHz) 850 Relative permittivity (real part) 55.18 Relative permittivity 21.12 Conductivity (S/m) 0.98 Power drift (%) -2.33 Ambient Temperature: 22.2°C Liquid Temperature: 22.6°C ConvF: 6.17 Crest factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=16.00, Y=-17.00 SAR 10g (W/Kg) 0.065124 SAR 1g (W/Kg) 0.098741 Report No. SET2021-05834 CCIC-SET/T-I (00) 5 / 19 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.1345 0.1036 0.0774 0.0484 0.0383 3D screen shot Hot spot position Report No. SET2021-05834 CCIC-SET/T-I (00) 6 / 19 System Performance Check (Head, 1900MHz) Type: Validation measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 01/24/2019 Measurement duration: 22 minutes 15 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 5x5x7,dx=8mm dy=8mm dz=5mm Device Position Dipole Band 1900MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_04/13_EP166 Frequency (MHz) 1900 Relative permittivity (real part) 40.55 Relative permittivity 13.54 Conductivity (S/m) 1.43 Power Drift (%) -0.11 Ambient Temperature: 22.1°C Liquid Temperature: 22.6°C ConvF: 5.90 Duty factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=18.00, Y=14.00 SAR 10g (W/Kg) 0.184143 SAR 1g (W/Kg) 0.396781 Report No. SET2021-05834 CCIC-SET/T-I (00) 7 / 19 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.7642 0.4233 0.1876 0.0812 0.0381 3D screen shot Hot spot position Report No. SET2021-05834 CCIC-SET/T-I (00) 8 / 19 System Performance Check (Body, 1900MHz) Type: Validation measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 01/24/2019 Measurement duration: 22 minutes 42 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 5x5x7,dx=8mm dy=8mm dz=5mm Device Position Dipole Band 1900MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_04/13_EP166 Frequency (MHz) 1900 Relative permittivity (real part) 53.32 Relative permittivity 14.40 Conductivity (S/m) 1.51 Power Drift (%) -0.13 Ambient Temperature: 22.1°C Liquid Temperature: 22.6°C ConvF: 6.10 Duty factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=18.00, Y=14.00 SAR 10g (W/Kg) 0.185142 SAR 1g (W/Kg) 0.397641 Report No. SET2021-05834 CCIC-SET/T-I (00) 9 / 19 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.7675 0.4251 0.1884 0.0821 0.0388 3D screen shot Hot spot position Report No. SET2021-05834 CCIC-SET/T-I (00) 10 / 19 System Performance Check (Head, 2450MHz) Type: Phone measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=5mm, dy=5mm, dz=4mm Date of measurement: 01/25/2019 Measurement duration: 22 minutes 51 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 7x7x8,dx=5mm dy=5mm dz=4mm Device Position Dipole Band 2450MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_04/13_EP166 Frequency (MHz) 2450 Relative permittivity (real part) 39.25 Relative permittivity 13.44 Conductivity (S/m) 1.83 Power Drift (%) -0.66 Duty factor: 1:1 ConvF: 5.35 SURFACE SAR VOLUME SAR Maximum location: X=-2.00, Y=25.00 SAR 10g (W/Kg) 0.224517 SAR 1g (W/Kg) 0.521435 Report No. SET2021-05834 CCIC-SET/T-I (00) 11 / 19 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.9112 0.5275 0.2535 0.1210 0.0612 3D screen shot Hot spot position Report No. SET2021-05834 CCIC-SET/T-I (00) 12 / 19 System Performance Check (Body, 2450MHz) Type: Phone measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=5mm, dy=5mm, dz=4mm Date of measurement: 01/25/2019 Measurement duration: 22 minutes 48 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 7x7x8,dx=5mm dy=5mm dz=4mm Device Position Dipole Band 2450MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_04/13_EP166 Frequency (MHz) 2450 Relative permittivity (real part) 52.74 Relative permittivity 14.54 Conductivity (S/m) 1.98 Power Drift (%) -0.26 Duty factor: 1:1 ConvF: 5.56 SURFACE SAR VOLUME SAR Maximum location: X=-2.00, Y=25.00 SAR 10g (W/Kg)…

Text truncated - open the document above for the full version.

Report No. SET2021-05834 CCIC-SET/T-I (00) 1 / 31 Appendix B: SAR Measurement results Plots Plot Frequency/Mode Testing Position and Channel Test Date 1 GSM850 Left Cheek Middle 2019/01/22 2 GSM850/GPRS4Tx Body Back, Middle ,10mm 2019/01/22 3 GSM1900 Right Cheek Middle 2019/01/24 4 GSM1900/GPRS4Tx Body Back Middle ,10mm 2019/01/24 5 WCDMA850 Right Cheek Middle 2019/01/22 6 WCDMA850 Body Back, Middle ,10mm 2019/01/22 7 WCDMA1900 Right Cheek Middle 2019/01/24 8 WCDMA1900 Body Back, Middle ,10mm 2019/01/24 9 WIFI 2.4G 802 11b Left Cheek Middle 2019/01/25 10 WIFI 2.4G 802 11b Body Back, Middle ,10mm 2019/01/25 11 GSM850/GPRS4Tx Body Back, Middle ,10mm 2021/05/10 12 GSM1900/GPRS4Tx Body Back, Middle ,10mm 2021/05/11 13 WCDMA1900 Body Back, Middle ,10mm 2021/05/11 14 WCDMA850 Body Back, Middle ,10mm 2021/05/10 15 WIFI 2.4G 802.11b Body Back, Middle ,10mm 2021/05/12 Report No. SET2021-05834 CCIC-SET/T-I (00) 2 / 31 Plot 1: GSM850, Left Cheek, Middle Type: Phone measurement Date of measurement: 01/22/2019 Measurement duration: 22 minutes 25 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Left Cheek Band GSM850 Channels 190 Signal GSM (Duty cycle: 1:8.3) B. SAR Measurement Results E-Field Probe SATIMO SN_04/13_EP166 Frequency (MHz) 836.6 Relative permittivity (real part) 41.44 Relative permittivity (imaginary part) 18.27 Conductivity (S/m) 0.87 Variation (%) 4.25 ConvF: 5.85 SURFACE SAR VOLUME SAR Maximum location: X=-48.00, Y=-30.00 SAR Peak: 0.70W/kg SAR 10g (W/Kg) 0.401998 SAR 1g (W/Kg) 0.543400 Report No. SET2021-05834 CCIC-SET/T-I (00) 3 / 31 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.6975 0.5543 0.4252 0.3413 0.2888 3D screen shot Hot spot position Report No. SET2021-05834 CCIC-SET/T-I (00) 4 / 31 Plot 2: GPRS850, Back, Middle,10mm Type: Phone measurement Date of measurement: 01/22/2019 Measurement duration: 22 minutes 15 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Back Band GSPRS850_4Tx Channels 190 Signal GPRS(Duty cycle: 1:2) B. SAR Measurement Results E-Field Probe SATIMO SN_04/13_EP166 Frequency (MHz) 836.6 Relative permittivity (real part) 55.18 Relative permittivity (imaginary part) 21.12 Conductivity (S/m) 0.98 Variation (%) 0.77 ConvF: 6.17 SURFACE SAR VOLUME SAR Maximum location: X=-9.00, Y=35.00 SAR Peak: 1.22 W/kg SAR 10g (W/Kg) 0.650058 SAR 1g (W/Kg) 0.879641 Report No. SET2021-05834 CCIC-SET/T-I (00) 5 / 31 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 2.8906 1.0077 0.6013 0.6220 0.3730 3D screen shot Hot spot position Report No. SET2021-05834 CCIC-SET/T-I (00) 6 / 31 Plot3: GSM1900, Right Cheek Middle Type: Phone measurement Date of measurement: 01/24/2019 Measurement duration: 22 minutes 31 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Right Cheek Band GSM1900 Channels 661 Signal GSM (Duty cycle: 1:8.3) B. SAR Measurement Results E-Field Probe SATIMO SN_04/13_EP166 Frequency (MHz) 1880 8 Relative permittivity (real part) 40.55 Relative permittivity (imaginary part) 13.54 Conductivity (S/m) 1.45 Variation (%) 0.24 ConvF: 5.90 SURFACE SAR VOLUME SAR Maximum location: X=-50.00, Y=-41.00 SAR Peak: 0.20W/kg SAR 10g (W/Kg) 0.064263 SAR 1g (W/Kg) 0.116494 Report No. SET2021-05834 CCIC-SET/T-I (00) 7 / 31 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.1958 0.1219 0.0652 0.0350 0.0197 3D screen shot Hot spot position Report No. SET2021-05834 CCIC-SET/T-I (00) 8 / 31 Plot4: GPRS1900, Back Middle ,10mm Type: Phone measurement Date of measurement: 01/24/2019 Measurement duration: 22 minutes 35 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Back Band GPRS1900_4Tx Channels 661 Signal GPRS(Duty cycle: 1:2) B. SAR Measurement Results E-Field Probe SATIMO SN_04/13_EP166 Frequency (MHz) 1880 8 Relative permittivity (real part) 53.36 Relative permittivity (imaginary part) 14.40 Conductivity (S/m) 1.52 Variation (%) -0.31 ConvF: 6.10 SURFACE SAR VOLUME SAR Maximum location: X=13.00, Y=1.00 SAR Peak: 0.76W/kg SAR 10g (W/Kg) 0.164921 SAR 1g (W/Kg) 0.377489 Report No. SET2021-05834 CCIC-SET/T-I (00) 9 / 31 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.7402 0.4036 0.1744 0.0732 0.0339 3D screen shot Hot spot position Report No. SET2021-05834 CCIC-SET/T-I (00) 10 / 31 Plot 5: WCDMA850, Right Cheek, Middle Type: Phone measurement Date of measurement: 01/22/2019 Measurement duration: 22 minutes 26 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Right Cheek Band Band5_WCDMA850 Channels 4183 Signal WCDMA (Duty cycle: 1:1) B. SAR Measurement Results E-Field Probe SATIMO SN_04/13_EP166 Frequency (MHz) 836.6 Relative permittivity (real part) 41.44 Relative permittivity (imaginary part) 18.27 Conductivity (S/m) 0.87 Variation (%) 3.29 ConvF: 5.85 SURFACE SAR VOLUME SAR Maximum location: X=-39.00, Y=-23.00 SAR Peak: 0.49W/kg SAR 10g (W/Kg) 0.341733 SAR 1g (W/Kg) 0.437360 Report No. SET2021-05834 CCIC-SET/T-I (00) 11 / 31 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.4935 0.4456 0.3848 0.3238 0.2645 3D screen shot Hot spot position Report No. SET2021-05834 CCIC-SET/T-I (00) 12 / 31 Plot 6: WCDMA850, BACK, Middle,10mm Type: Phone measurement Date of measurement: 01/22/2019 Measurement duration: 22 minutes 26 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Back Band Band5_WCDMA850 Channels 4183 Signal WCDMA (Duty cycle: 1:1) B. SAR Measurement Results E-Field Probe SATIMO SN_04/13_EP166 Frequency (MHz) …

Text truncated - open the document above for the full version.

Report No. SET2021-05834 CCIC-SET/T-I (00) 1 / 3 Appendix D: SAR Test Setup Photo 1: Measurement System SATIMO Photo 2: Left Cheek Photo 3: Left Tilt 15° Photo 4: Right Cheek Photo 5: Right Tilt 15° Photo 6: Face upward 10mm Report No. SET2021-05834 CCIC-SET/T-I (00) 2 / 3 Photo 7: Back Upward 10mm Photo 8: Edge A 10mm Photo 9: Edge B 10mm Photo 10: Edge C 10mm Photo 11: Edge D 10mm Photo 12: Liquid deep(15cm) Report No. SET2021-05834 CCIC-SET/T-I (00) 3 / 3 EUT Front View EUT Back View

Report No. SET2021-05834 CCIC-SET/TRF:ISAR(2019-05-23) Page 1 of 36 FCC SAR TEST REPORT Report No.： SET2021-05834 Product： WCDMA/GSM（GPRS）Dual-Mode Digital Mobile Phone Brand Name: ZTE Model No.： ZTE Blade L9 FCC ID： SRQ-BLADEL9 Applicant： ZTE CORPORATION Address： ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Issued by： CCIC Southern Testing Co., Ltd. Lab Location： Electronic Testing Building, No. 43 Shahe Road Xili Street, Nanshan District,Shenzhen, Guangdong 518055, China Tel： 86 755 26627338 Fax：86 755 26627238 Mail： [email protected] Website：http://www.ccic-set.com This test report consists of 36 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No. SET2021-05834 CCIC-SET/TRF:ISAR(2019-05-23) Page 2 of 36 Test Report Product. ...................: WCDMA/GSM（GPRS）Dual-Mode Digital Mobile Phone Model No. .................: ZTE Blade L9 Brand Name..............: ZTE FCC ID.......................: SRQ-BLADEL9 Applicant....................: ZTE CORPORATION Applicant Address.......: ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Manufacturer............: ZTE CORPORATION Manufacturer Address: ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Test Standards..........: 47CFR §2.1093- Radiofrequency Radiation Exposure Evaluation: Portable Devices; ANSI C95.1–1992: Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz – 300 GHz.( IEEE Std C95.1-1991) IEEE 1528–2013: IEEE Recommended Practice for Determini…
