SRQ-C370WCDMA Digital Mobile Handset

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China Tel: +86 -755-86360379 ; Fax: +86 -755-86360298 Date: NOV. 4, 2014 Power of Attorney To whom it may concern, Please be notified that I, Zhang Min, have designated Ivy.Zhu in Shenzhen Morlab Communications Technology Co., Ltd. and David Gong in ZTE CORPORATION as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Ivy Zhu in Shenzhen Morlab Communications Technology Co., Ltd., and David Gong in ZTE CORPORATION on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: SRQ-C370 If you ha ve a ny acknowledgement a nd response, pl ease s end i t t o Shenzhen Mo rlab Communications Technology Co., Ltd. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Min Zhang Company: ZTE CORPORATION TEL: +86 -21-68897541 FAX: +86 -21-68891070 E- mail: [email protected]

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China Tel: +86-755-86360379 ; Fax: +86-755-86360298 2014/12/29 Fe deral Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: SRQ-C370 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Parts List Operation Description Tune Up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Yours Sincerely, Zhang Mi n ZTE product approval manager

Declaration 2014/12/31 To whom it may concern, With r egards to the ap plication for ZTE C370, Blade L2 Plus ; According to the designer, ZTE Corporation, we hereby dec lare the 2 models have same hardware and software, the only difference i s t hat they h ave di fferent m odel n ame f or marketing requirements. Sincerely yours, Contact Person: Min Zhang Company: ZTE CORPORATION TEL: +86-21-68897541 FAX: +86-21-68891070 E- mail: [email protected]

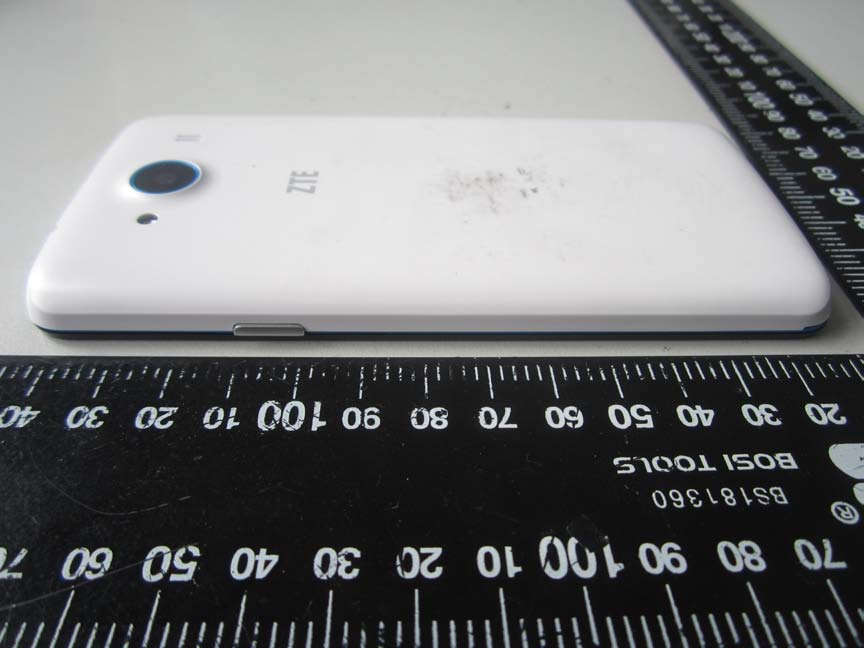

External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view 7. Accessory view

FCC label and label location 1. Label 2. Label location

Internal Photos 1. EUT uncover view 2. Mainboard front view 3. Mainboard rear view 4. GSM/WCDMA chip view 5. CPU chip view 6. BT/WIFI/GPS/FM chip view 7. GSM/WCDMA antenna view 8. BT/WIFI/GPS antenna view

MORLAB GROUP FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Tel: 86-755-36698555 Fax: 86-755-36698525 Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. ChinaHttp://www.morlab.com E-mail: [email protected] Page 2 0f 6 REPORTNo.：SZ14120093S01 1. EUT Right Head Touch Cheek Position 2. EUT Right Head Tilt15 Position MORLAB GROUP FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Tel: 86-755-36698555 Fax: 86-755-36698525 Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. ChinaHttp://www.morlab.com E-mail: [email protected] Page 3 0f 6 REPORTNo.：SZ14120093S01 3 EUT Left Head Touch Cheek Position 4 EUT Left Head Tilt15 Position MORLAB GROUP FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Tel: 86-755-36698555 Fax: 86-755-36698525 Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. ChinaHttp://www.morlab.com E-mail: [email protected] Page 4 0f 6 REPORTNo.：SZ14120093S01 5 Back Side Position 6 Front Side Position 10mm 10mm MORLAB GROUP FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Tel: 86-755-36698555 Fax: 86-755-36698525 Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. ChinaHttp://www.morlab.com E-mail: [email protected] Page 5 0f 6 REPORTNo.：SZ14120093S01 7. Edge A 8. Edge B 10mm 10mm MORLAB GROUP FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Tel: 86-755-36698555 Fax: 86-755-36698525 Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. ChinaHttp://www.morlab.com E-mail: [email protected] Page 6 0f 6 REPORTNo.：SZ14120093S01 9. Edge C 10. Edge D 10mm 10mm MORLAB GROUP FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Tel: 86-755-36698555 Fax: 86-755-36698525 Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. ChinaHttp://www.morlab.com E-mail: [email protected] Page 7 0f 6 REPORTNo.：SZ14120093S01 Liquid Level Photo Head Liquid Liquid depth: 15.1cm Liquid Level Photo Body Liquid Liquid depth :15.5cm

MORLAB GROUP FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Tel: 86-755-36698555 Fax: 86-755-36698525 Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. ChinaHttp://www.morlab.com E-mail: [email protected] Page 2 0f 173 SZ14120093S01 DIRECTORY TEST REPORT DECLARATION ······················································································· 4 1.TECHNICAL INFORMATION ························································································· 5 1.1 IDENTIFICATION OF APPLICANT ······················································································· 5 1.2 IDENTIFICATION OF MANUFACTURER ················································································ 5 1.3 EQUIPMENT UNDER TEST (EUT) ····················································································· 5 1.3.1 PHOTOGRAPHS OF THE EUT ······················································································· 6 1.3.2 IDENTIFICATION OF ALL USED EUT ················································································· 6 1.4 APPLIED REFERENCE DOCUMENTS ·················································································· 6 1.5 DEVICE CATEGORY AND SAR LIMITS ··············································································· 6 2. SPECIFIC ABSORPTION RATE (SAR) ··········································································· 7 2.1 INTRODUCTION ··········································································································· 7 2.2 SAR DEFINITION ········································································································ 7 3. SAR MEASUREMENT SETUP ······················································································ 8 3.1 THE MEASUREMENT SYSTEM ························································································· 8 3.2 PROBE ····················································································································· 8 3.3 PROBE CALIBRATION PROCESS ····················································································· 10 3.3.1 DOSIMETRIC ASSESSMENT PROCEDURE ········································································ 10 3.3.2 FREE SPACE ASSESSMENT PROCEDURE ········································································ 10 3.3.3 TEMPERATURE ASSESSMENT PROCEDURE ····································································· 10 3.4 PHANTOM ················································································································ 11 3.5 DEVICE HOLDER ········································································································ 11 4. TISSUE SIMULATING LIQUIDS ··················································································· 12 5. UNCERTAINTY ASSESSMENT ···················································································· 14 5.1 UNCERTAINTY EVALUATION FOR EUT SAR TEST ······················································· 14 5.2 UNCERTAINTY FOR SYSTEM PERFORMANCE CHECK ················································ 15 MORLAB GROUP FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Tel: 86-755-36698555 Fax: 86-755-36698525 Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. ChinaHttp://www.morlab.com E-mail: [email protected] Page 3 0f 173 SZ14120093S01 6. SAR MEASUREMENT EVALUATION ············································································ 17 6.1 SYSTEM SETUP ········································································································· 17 6.2 VALIDATION RESULTS ································································································· 18 7. OPERATIONAL CONDITIONS DURING TEST ································································ 19 7.1 INFORMATION ON THE TESTING ······················································································ 19 7.2 BODY-WORN CONFIGURATIONS ····················································································· 20 7.3 MEASUREMENT PROCEDURE ························································································· 20 7.4 DESCRIPTION OF INTERPOLATION/EXTRAPOLATION SCHEME ·················································· 21 8. HOTSPOT MODE EVALUATION PROCEDURE ······························································ 22 9. MEASUREMENT OF CONDUCTED OUTPUT POWER ···················································· 23 10. TEST RESULTS LIST ······························································································· 27 11. REPEATED SAR MEASUREMENT ············································································· 32 12. MULTIPLE TRANSMITTERS EVALUATION ································································· 33 ANNEX A GRAPH TEST RESULTS ················································································· 36 ANNEX B GENERAL INFORMATION ············································································· 172 Change History Issue Date Reason for change 1.0 2014-12-26 First edition MORLAB GROUP FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Tel: 86-755-36698555 Fax: 86-755-36698525 Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. ChinaHttp://www.morlab.com E-mail: [email protected] Page 5 0f 173 SZ14120093S01 1.TECHNICAL INFORMATION Note: the Following data is based on the information by the applicant. 1.1 Identification of Applicant Company Name: ZTE Corporation Address: ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China 1.2 Identification of Manufacturer Company Name: ZTE Corporation Address: ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China 1.3 Equipment Under Test (EUT) Model Name: ZTE C370/Blade L2 Pl…

Text truncated - open the document above for the full version.

REPORT No.: SZ14120093W01 MORLAB GROUP FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Tel: 86-755-36698555 Fax: 86-755-36698525 Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. ChinaHttp://www.morlab.com E-mail: [email protected] TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................... 4 1.1 EUT DESCRIPTION .................................................................................................................................... 4 1.2 TEST STANDARDS AND RESULTS .............................................................................................................. 6 1.3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 7 2. 47 CFR PART 2, PART 22H & 24E REQUIREMENTS .......................................................................... 8 2.1 CONDUCTED RF OUTPUT POWER ............................................................................................................. 8 2.2 PEAK TO AVERAGE RADIO ....................................................................................................................... 20 2.3 99% OCCUPIED BANDWIDTH ................................................................................................................... 26 2.4 FREQUENCY STABILITY ............................................................................................................................ 49 2.5 CONDUCTED OUT OF BAND EMISSIONS ................................................................................................... 56 2.6 BAND EDGE ............................................................................................................................................. 94 2.7 TRANSMITTER RADIATED POWER (EIRP/ERP) ..................................................................................... 107 2.8 RADIATED OUT OF BAND EMISSIONS ..................................................................................................... 118 Change History Issue Date Reason for change 1.0 Dec 25, 2014 First edition REPORT No.: SZ14120093W01 MORLAB GROUP FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Tel: 86-755-36698555 Fax: 86-755-36698525 Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. ChinaHttp://www.morlab.com E-mail: [email protected] 1. GENERAL INFORMATION 1.1 EUT Description Frequency Range ................ : GSM 850MHz: Tx: 824.20 - 848.80MHz (at intervals of 200kHz); Rx: 869.20 - 893.80MHz (at intervals of 200kHz) GSM 1900MHz: Tx: 1850.20 - 1909.80MHz (at intervals of 200kHz); Rx: 1930.20 - 1989.80MHz (at intervals of 200kHz) WCDMA 850MHz Tx: 826.4 - 846.6MHz (at intervals of 200kHz); Rx: 871.4 - 891.6MHz (at intervals of 200kHz) WCDMA 1900MHz Tx: 1852.4 - 1907.6MHz (at intervals of 200kHz); Rx: 1932.4 - 1987.6MHz (at intervals of 200kHz) Modulation Type ................... : GSM,GPRS Mode with GMSK Modulation EDGE Mode with 8PSK Modulation WCDMA Mode with QPSK Modulation HSDPA Mode with QPSK Modulation HSUPA Mode with QPSK Modulation HSPA+ Mode with QPSK Modulation Multislot Class ...................... : GPRS: Multislot Class 12,EGPRS: Multislot Class 12 Antenna Type ....................... : PIFA Antenna Emission Designators .......... : GSM 850:253KGXW,GSM 1900:247KGXW EGPRS850:251KG7W, EGPRS1900:251KG7W, WCDMA 850:4M17F9W ,WCDMA1900:4M17F9W Note 1: The transmitter (Tx) frequency arrangement of the Cellular 850MHz band used by the EUT can be represented with the formula F(n)=824.2+0.2*(n-128), 128<=n<=251; the lowest, middle, highest channel numbers (ARFCHs) used and tested in this report are separately 128 (824.2MHz), 190 (836.6MHz) and 251 (848.8MHz). Note 2: The transmitter (Tx) frequency arrangement of the PCS 1900MHz band used by the EUT can be represented with the formula F(n)=1850.2+0.2*(n-512), 512<=n<=810; the lowest, middle and highest channel numbers (ARFCHs) used and tested in this report are separately 512 (1850.2MHz), 661 (1880.0MHz) and 810 (1909.8MHz). Note 3: The transmitter (Tx) frequency arrangement of the WCDMA 850MHz band used by the EUT can be represented with the formula F(n)=826.4+0.2*(n-4132), 4132<=n<=4233; the lowest, middle and highest channel numbers (ARFCHs) used and tested in this report are separately 4132 (826.4MHz), 4175(835MHz) and 4233 (846.6MHz). Note 4: The transmitter (Tx) frequency arrangement of the WCDMA 1900MHz band used by the EUT can REPORT No.: SZ14120093W01 MORLAB GROUP FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Tel: 86-755-36698555 Fax: 86-755-36698525 Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. ChinaHttp://www.morlab.com E-mail: [email protected] be represented with the formula F(n)=1852.4+0.2*(n-9262), 9262<=n<=9538; the lowest, middle and highest channel numbers (ARFCHs) used and tested in this report are separately 9262 (1852.4MHz), 9400 (1880MHz) and 9538 (1907.6MHz). Note 5: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. REPORT No.: SZ14120093W01 MORLAB GROUP FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Tel: 86-755-36698555 Fax: 86-755-36698525 Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. ChinaHttp://www.morlab.com E-mail: [email protected] 1.2 Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 2, Part 22 and Part 24 for the EUT FCC ID Certification: No. Identity Document Title 1 47 CFR Part 2 (10-1-13 Edition) Frequency Allocations and Radio Treaty Matters; General Rules and Regulations 2 47 CFR Part 22 (10-1-13 Edition) Public Mobile Services 3 47 CFR Part 24 (10-1-13 Edition) Personal Communications Services Test detailed items/section required by FCC rules and results are as below: No. Section Description Result 1 2.1046 C…
