SRQ-K4607-ZDC-HSPA+ USB Modem

K4607-Z DC-HSPA+ USB Modem Quick Guide ZTE CORPORATION NO. 55, Hi-tech Road South, ShenZhen, P.R.China Postcode: 518057 Tel: +86-755-26779999 URL: http://www.zte.com.cn E-mail: [email protected] LEGAL INFORMATION Copyright © 2013 ZTE CORPORATION. All rights reserved. No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice. Version No.: 1.0 Edition Time: 2013, 07 Confidential and Proprietary Information of ZTE CORPORATION 1 Quick Guide Introduction The ZTE K4607-Z USB modem is a multi-mode USB modem, working in HSPA+/HSUPA/HSDPA/WCDMA/EDGE/GPRS/GSM networks. With USB interface connecting to a laptop or a desktop PC, it integrates the functionality of a modem and a mobile phone (SMS), and combines mobile communication with Internet perfectly. It supports data and SMS services through the mobile phone network, enabling you to communicate anytime and anywhere. Getting to know your device The following figure shows the appearance of the K4607-Z. It is only for your reference. The actual product may be different. 1. microSD card slot 2. SIM/USIM card slot 3. USB Connector 4. Modem Cap 5. Front Cover NOTE： The microSD Logo () is a trademark of SD-3C, LLC. Indicator Indicator Status Description Red Turn on but not register. Green Bright Register to 2G/3G network. Green Twinkling Connect to 2G/3G network. 2 Confidential and Proprietary Information of ZTE CORPORATION Hardware Installation 1. Open the front cover to remove it from the modem. NOTE: Do not open the front cover rudely to avoid the damage of the front cover. 2. Insert the SIM card into the SIM card slot. 3. Insert the microSD card into the microSD card slot. NOTE: This modem only supports microSD card. 4. Replace the front cover and click it into place. Confidential and Proprietary Information of ZTE CORPORATION 3 5. Connect the Modem to your laptop or desktop PC. Plug the USB connector into your computer’s USB port and make sure that it is tightly inserted. The OS will automatically recognize the new hardware, and then start the installation wizard. Warning and Notice To the Owner • Some electronic devices are susceptible to electromagnetic interference sent by modem if inadequately shielded, such as the electronic system of vehicles. Please consult the manufacturer of the device before using the modem if necessary. • Operating the modem may interfere with medical devices like hearing aids and pacemakers. Please always keep them more than 20 centimeters away from such medical devices when they are turned on. Turn the modem off if necessary. Consult a physician or the manufacturer of the medical device before using the modem. • Be aware of the usage limitation when using a modem at places such as oil warehouses or chemical factories, where there are explosive gases or explosive products being processed. Turn off your modem if required. • The use of electronic transmitting devices is forbidden in aircrafts, at petrol stations and in hospitals. Please observe and obey all warning signs and switch off your modem in these conditions. 4 Confidential and Proprietary Information of ZTE CORPORATION • Do not touch the inner antenna area if not necessary. Otherwise it will affect your modem’s performance. • Store the modem out of the reach of little children. The modem may cause injury if used as a toy. • Do not touch the metallic parts of the modem so as to avoid a burn, when the modem is working. Use Your USB Modem • Please use original accessories or accessories that are authorized. Using any unauthorized accessories may affect your modem’s performance, and violate related national regulations about telecom terminals. • Avoid using the modem near or inside metallic structures or establishments that can emit electromagnetic waves. Otherwise it may influence signal reception. • The modem is not waterproof. Please keep it dry and store in a shady and cool place. • Do not use the modem immediately after a sudden temperature change. In such case, it will produce dew inside and outside the modem, so don’t use it until it becomes dry. • Handle the modem carefully. Do not drop, bend or strike it. Otherwise the modem will be damaged. • No dismantling by non-professionals and only qualified technicians can undertake repair work. • Operating temperature range of -10 °C ~ +55 °C and humidity range of 5% ~ 95% are recommended. Limited Warranty • This warranty does not apply to defects or errors in the Product caused by: i. Reasonable abrasion. ii. End User’s failure to follow ZTE’s installation, operation or maintenance instructions or procedures. iii. End User’s mishandling, misuse, negligence, or improper installation, disassembly, storage, servicing or operation of the Product. Confidential and Proprietary Information of ZTE CORPORATION 5 iv. Modifications or repairs not made by ZTE or a ZTE-certified individual. v. Power failures, surges, fire, flood, accidents, actions of third parties or other events outside ZTE’s reasonable control. vi. Usage of third-party products, or usage in conjunction with third-party products provided that such defects are due to the combined usage. vii. Any other cause beyond the range of normal usage intended for the Product. End User shall have no right to reject or return the Product, or receive a refund for the Product from ZTE under the above-mentioned situations. • This warranty is End User’s sole remedy and ZTE’s sole liability for defective or nonconforming items, and is in lieu of all other warranties, expressed, implied or statutory, including but not limited to the implied warranties of merchantability and fitness for a particular purpose, unless otherwise required under the mandatory provisions…

Text truncated - open the document above for the full version.

ZTE Corporation ZTE Plaza, Keji Road South, Shenzhen, China Statement We, ZTE Corporation, states that our device, FCC ID: SRQ-K4607-Z. The label will put in the internal of this dongle and it is visible to the users as they purchase the products and install the SIM card. Contact Person: Min Zhang Company: ZTE Corporation TEL: +86-21-68897541 FAX: +86-21-50801070 E-mail: [email protected]

Rev. 1/1/03 ZTE Corporation ZTE Plaza, Keji Road South, Shenzhen, China Date: April 23, 2014 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: SRQ-K4607-Z Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Parts List Operation Description Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Contact Person: Min Zhang Company: ZTE Corporation TEL: +86-21-68897541 FAX: +86-21-50801070 E-mail: [email protected]

ZTE Corporation ZTE Plaza, Keji Road South, Shenzhen, China Tel: +86-21-68897541 ; Fax: +86-21-50801070 Date: April 23, 2014 Power of Attorney To whom it may concern, Please be notified that I, Min Zhang, have designated Michael Lin in Sporton International Inc. as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Michael Lin in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: SRQ-K4607-Z If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Min Zhang Company: ZTE Corporation TEL: +86-21-68897541 FAX: +86-21-50801070 E-mail: [email protected]

1/1 ZTE Corporation Date: April 23, 2014 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : SRQ-K4607-Z To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which ZTE Corporation deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Min Zhang Company: ZTE Corporation TEL: +86-21-68897541 FAX: +86-21-50801070 E-mail: [email protected]

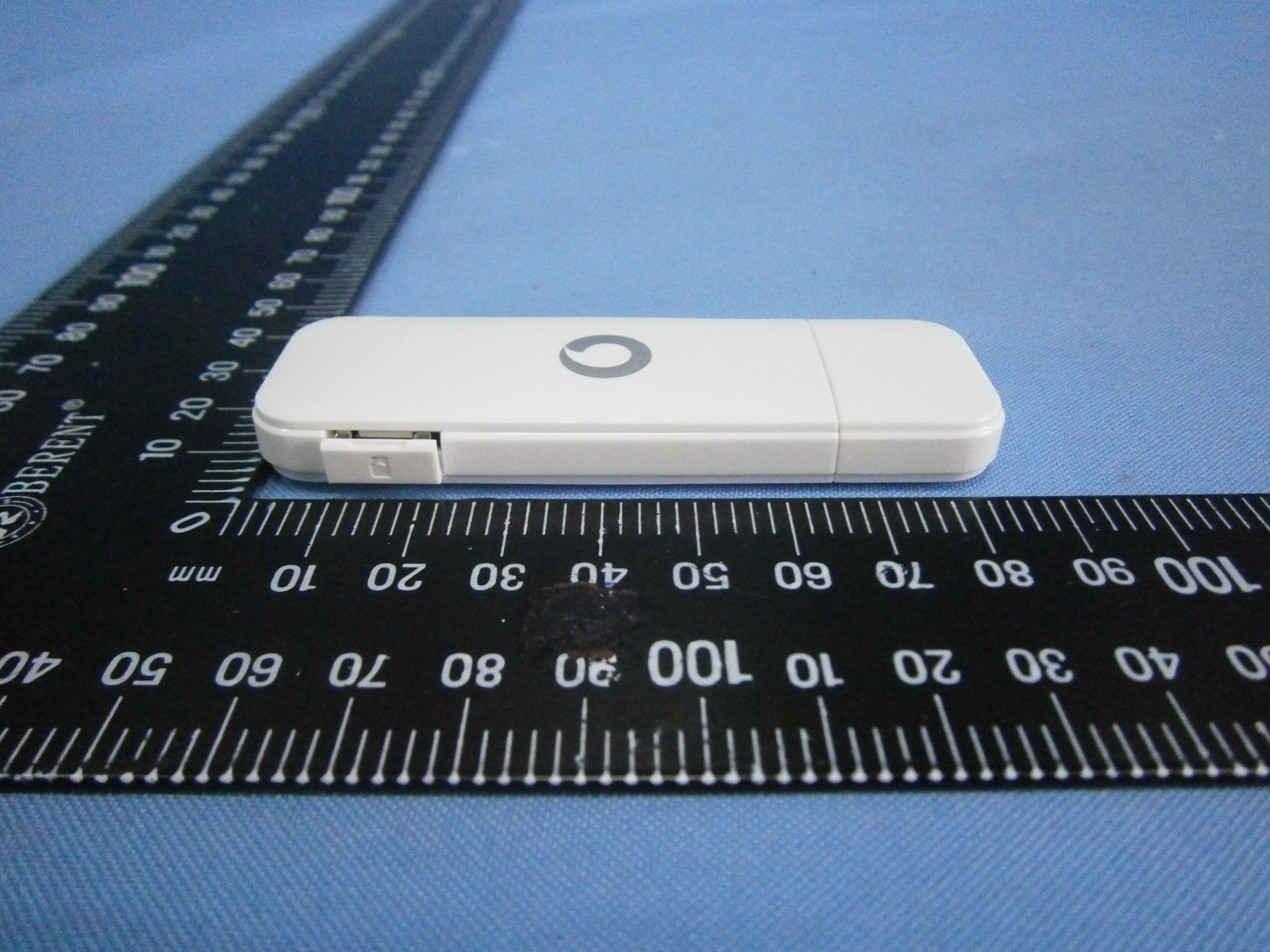

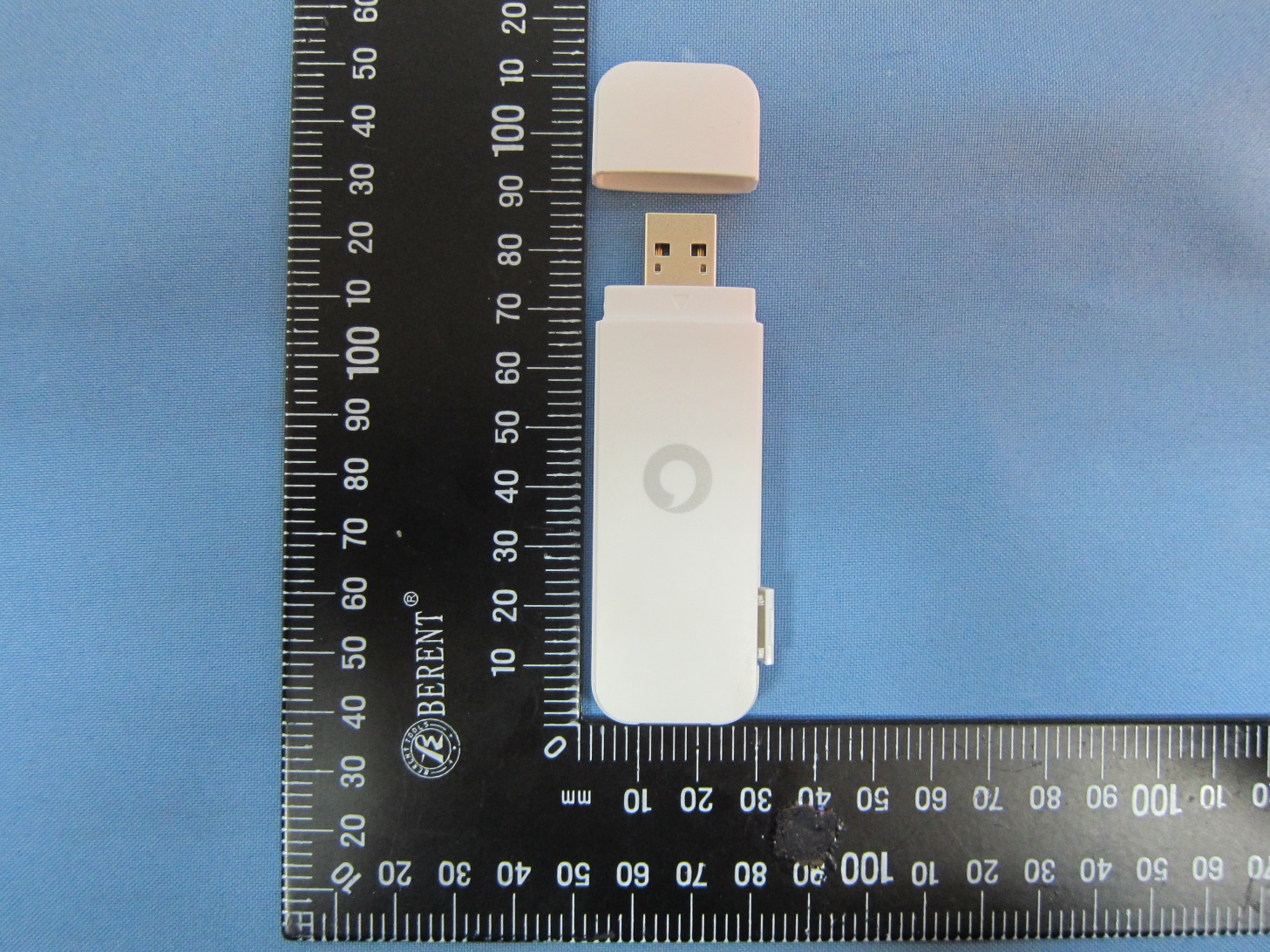

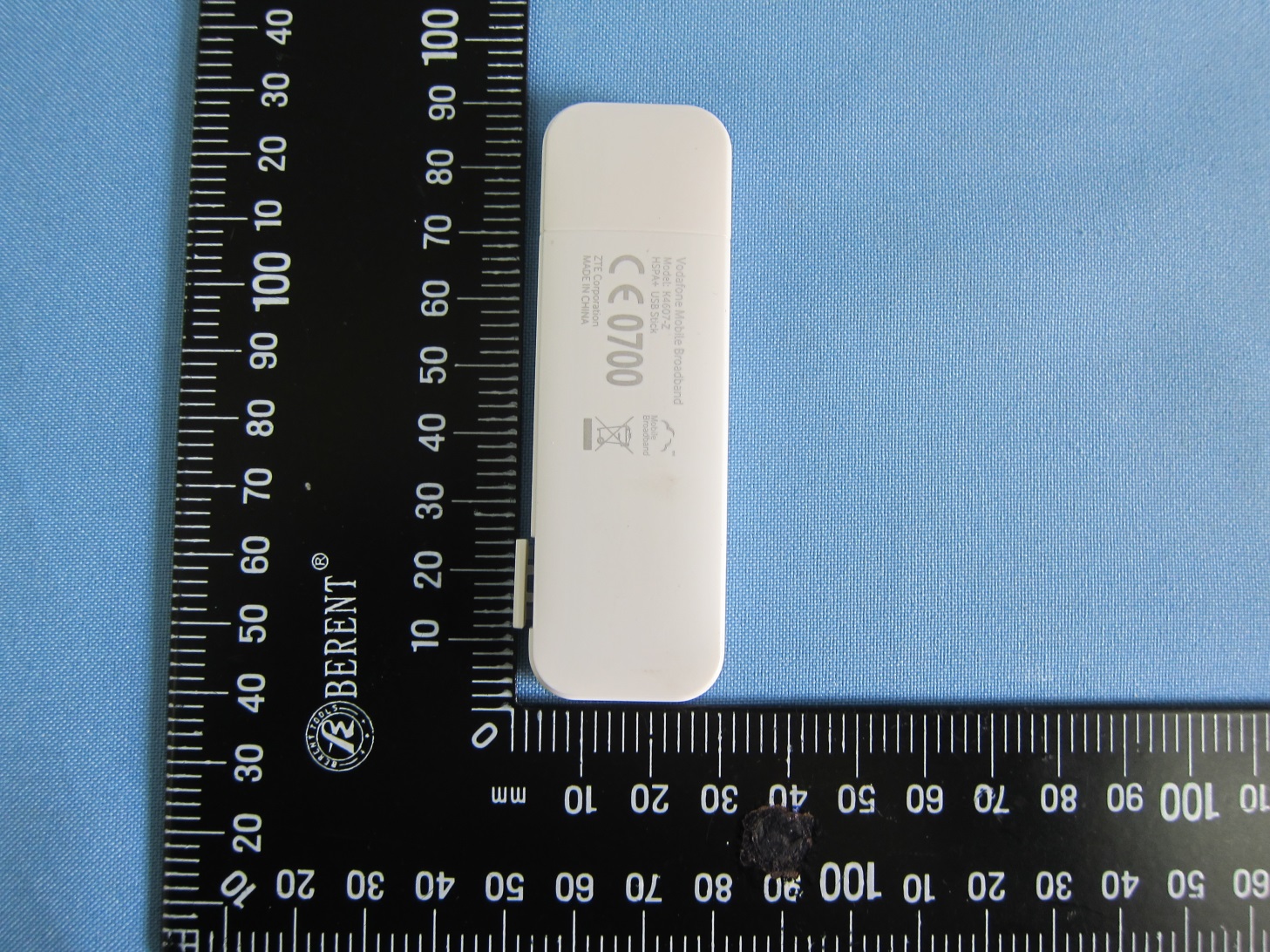

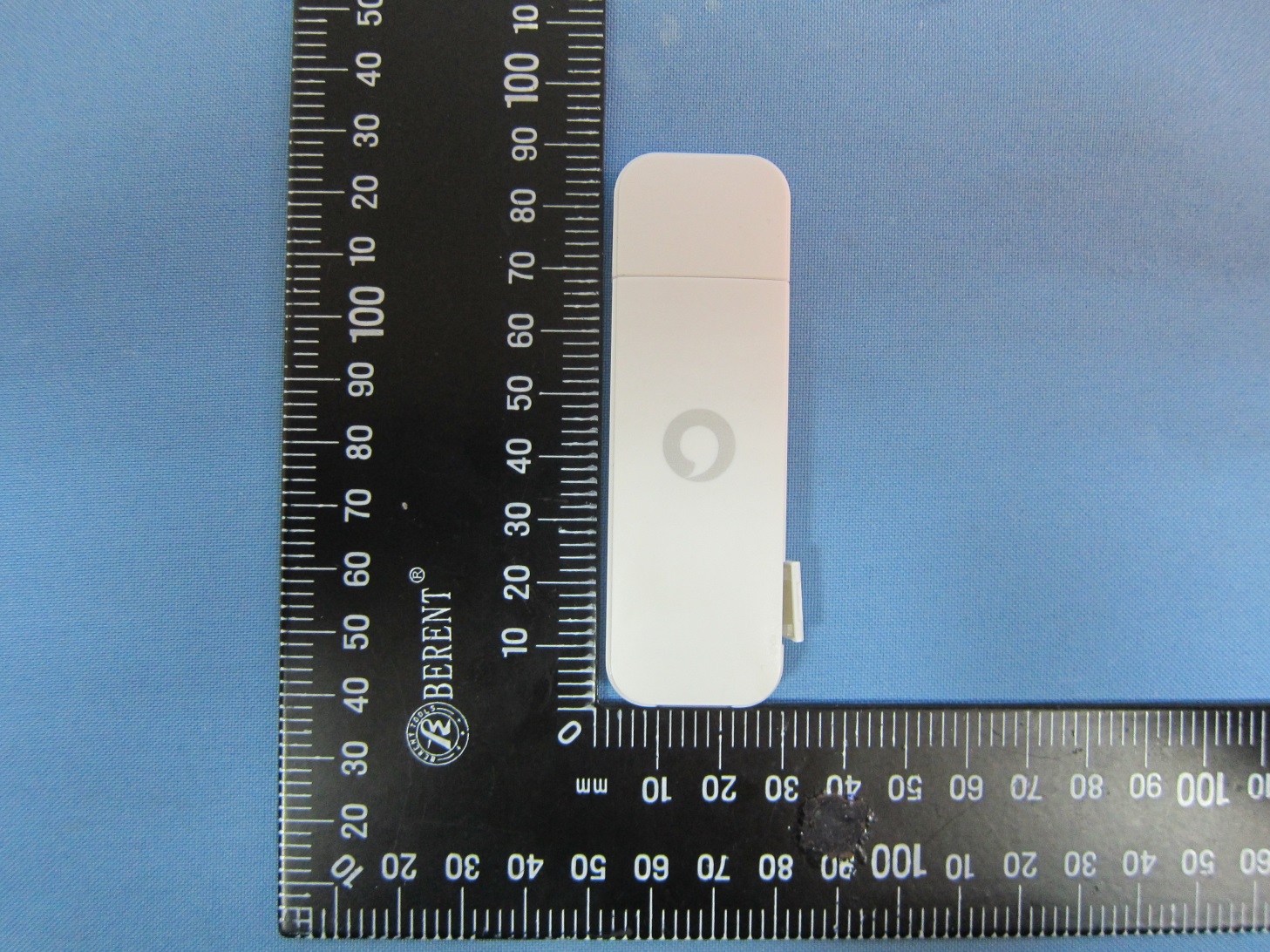

Photographs of EUT Report No.: EP440105 Brand Name: ZTE / Model Name: K4607-Z SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 21 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 23, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-K4607-Z 1. External Photograph of EUT Photographs of EUT Report No.: EP440105 Brand Name: ZTE / Model Name: K4607-Z SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 21 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 23, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-K4607-Z Photographs of EUT Report No.: EP440105 Brand Name: ZTE / Model Name: K4607-Z SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 21 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 23, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-K4607-Z Photographs of EUT Report No.: EP440105 Brand Name: ZTE / Model Name: K4607-Z SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 21 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 23, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-K4607-Z Photographs of EUT Report No.: EP440105 Brand Name: ZTE / Model Name: K4607-Z SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 21 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 23, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-K4607-Z Photographs of EUT Report No.: EP440105 Brand Name: ZTE / Model Name: K4607-Z SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 21 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 23, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-K4607-Z Photographs of EUT Report No.: EP440105 Brand Name: ZTE / Model Name: K4607-Z SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 21 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 23, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-K4607-Z Photographs of EUT Report No.: EP440105 Brand Name: ZTE / Model Name: K4607-Z SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 21 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 23, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-K4607-Z Photographs of EUT Report No.: EP440105 Brand Name: ZTE / Model Name: K4607-Z SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 21 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 23, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-K4607-Z

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 23, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-K4607-Z FCC Test Report Report No. : FC440105 FCC Test Report APPLICANT : ZTE CORPORATION EQUIPMENT : DC-HSPA+ USB Modem BRAND NAME : ZTE MODEL NAME : K4607-Z FCC ID : SRQ-K4607-Z STANDARD : FCC 47 CFR FCC Part 15 Subpart B CLASSIFICATION : Certification The product testing was completed on Apr. 18, 2014. We, SPORTON INTERNATIONAL (KUNSHAN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.4-2003 and shown to be compliant with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Louis Wu / Manager Approved by: Jones Tsai / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 23, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-K4607-Z FCC Test Report Report No. : FC440105 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1. GENERAL DESCRIPTION .......................................................................................................................... 5 1.1. Applicant ............................................................................................................................................ 5 1.2. Manufacturer ..................................................................................................................................... 5 1.3. Feature of Equipment Under Test ..................................................................................................... 5 1.4. Product Specification of Equipment Under Test ............................................................................... 6 1.5. Modification of EUT ........................................................................................................................... 7 1.6. Test Site ............................................................................................................................................ 7 1.7. Applied Standards ............................................................................................................................. 7 2. TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 8 2.1. Test Mode ......................................................................................................................................... 8 2.2. Connection Diagram of Test System ................................................................................................ 9 2.3. Support Unit used in test configuration and system .......................................................................... 9 2.4. EUT Operation Test Setup ................................................................................................................ 9 3. TEST RESULT ........................................................................................................................................... 10 3.1. Test of AC Conducted Emission Measurement .............................................................................. 10 3.2. Test of Radiated Emission Measurement ....................................................................................... 14 4. LIST OF MEASURING EQUIPMENT ........................................................................................................ 18 5. UNCERTAINTY OF EVALUATION ........................................................................................................... 19 APPENDIX A. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 23, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-K4607-Z FCC Test Report Report No. : FC440105 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FC440105 Rev. 01 Initial issue of report Apr. 23, 2014 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 23, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-K4607-Z FCC Test Report Report No. : FC440105 SUMMARY OF TEST RESULT Report Section FCC Rule Description Limit Result Remark 3.1 15.107 AC Conducted Emission < 15.107 limits PASS Under limit 14.12 dB at 5.680 MHz 3.2 15.109 Radiated Emission < 15.109 limits PASS Under limit 4.42 dB at 30.000 MHz SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 23, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-K4607-Z FCC Test Report Report No. : FC440105 1. General Description 1.1. Applicant ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China 1.2. Manufacturer ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China 1.3. Feature of Equipment Under Test Product Feature Equipment DC-HSPA+ USB Modem Brand Name ZTE Model Name K4607-Z FCC ID SRQ-K4607-Z EUT supports Radios application GPRS/EGPRS/WCDMA/HSPA/HSPA+/DC-HSDPA HW Version dcnA SW Version BD_K4607V0.2_0314 EUT Stage Identical Prototype Remark: The above EUT's information was declared by manufacturer. Please refer to the specifications or user's manual f…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : A1 of A2 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 23, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-K4607-Z FCC Test Report Report No. : FC440105 Appendix A. Setup Photographs <Conducted Emission> SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : A2 of A2 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 23, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-K4607-Z FCC Test Report Report No. : FC440105 <Radiated Emission> LF HF
