SRQ-K85LTE Digital Mobile Phone Handset

Tablet User Manual The manual is applicable for the K85 . Copyright © 2015 ZTE CORPORATION. All rights reserved. No part of this publication may be quoted, reproduced, translated or used in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. ZTE Corporation reserves the right to make modifications on print errors or update specifications in this manual without prior notice. The Bluetooth word and logos are registered trademarks of the Bluetooth SIG, Inc., and any use of such marks by ZTE Corporation is under license. Google, Android, Android Market, Google Mail are trademarks of Google, Inc. Other trademarks and trade names are the property of their respective owners. Third-party Software Statement When you install the software from a third-party, the tablet might be restarted repeatedly or the software might not be used normally due to the incompatibility of the software itself. It is not the fault of the tablet itself. Version 1.0 in May 2015 -1- Using your tablet Thanks for choosing the K85. Powered by Android TM , the tablet supports 3G high-speed Internet access, which brings you brand new experiences. Don’t worry if the pictures we use to demonstrate your tablet’s functions look a little different from what you see on the screen. It’s the functions that matter. -2- Before getting started Inserting and removing the SIM 1. Switch off your tablet and disconnect any external power. 2. Remove the back cover. 3. Hold your SIM on the cut corner, and slide it face down into the card holder. 4. Replace the back cover. Inserting a memory card 1. Remove the back cover. 2. Push tightly until the card is installed in the correct position and replace the back cover. -3- Charging the battery The battery is not fully charged when you unpack it for the first time. Please exhaust the capacity of the battery before you recharge it for the first time.To ensure the battery is always in its best condition, please charge the battery 8 hours for the first time and recharge it later at least 2 hours each time. 1. Connect the charger to the tablet, and insert the charger to the standard power socket. 2. Please disconnect the charger from the power socket after the charging is completed. Tips:  To charge the battery, you can also connect the tablet to the PC through the USB cable. -4-  During charging, the tablet and charger may normally become hot. -5- Camer Headset Front Power key Volume keys Touch Speak Microphone USB t Getting to know your tablet -6- Descriptions of Keys Keys Functions Menu key Touch it to open a menu with items that affect the current screen or application. Home key Touch it to open the home screen. If you’re viewing the left or right extended home screen, Press it to open the central home screen. Back key Touch it to open the previous screen you were working in. If the onscreen keyboard is open, touch it to close the keyboard. Power key Press it to turn on/off the display. Long press it to open a menu with options for Airplane mode, for Silent mode, for Vibration mode, and for powering off and for rebooting the tablet. Volume keys Adjust the volume. Long press it to quickly adjust the ring tone volume to maximum or minimum. Onscre Icon s een icons Descriptions Full battery You have an un E-mail. Alarm clock on Vibration mode Wi-Fi function o -7- Icon s nread on Descriptions Charging Music playing Airplane mode Silent mode Bluetooth ® function on n is -8- Power on/off Powering on Long press the Power key until the power-on animation appears. Powering off Long press the Power key to display the tablet options and select Power off. -9- Screen Control You can control your tablet through a series of operations on the screen. - Tap: tap once on an item on the screen to select it or open whatever you tap. - Slide to scroll: slide your fingers on the screen to move through what’s on the screen. - Press & hold: press your finger down and leave it there for a few seconds to open a menu specific to what you're doing. - Drag: drag an item on the screen to perform certain operations. - Pinch or stretch: In some applications (e.g., Gallery, Browser), touch the screen with two or more fingers, and then pinch your fingers together on the screen or stretch them apart to zoom out or in. -10- - Rotate: In most screens, rotate your tablet sideways to switch the screen from portrait mode to landscape mode. Home screen The home screen appears as the tablet is in idle mode. On the home screen, you can check the status of the tablet and access applications. Extend home screen The home screen can be extended to exceed the width of the screen to provide more space for newly added applications, shortcuts, widgets, etc. Slide to scroll the home screen to move to the left or right side of the home screen. Tap the small dot at the lower part of the screen to directly move to the corresponding screen. Press & hold the small dot area and drag to quickly start navigation. -11- Quick Launch Toolbar There are icons at the bottom of the screen. You can move the applications or shortcuts that you need access most frequently into the quick launch toolbar. 1. Press & hold an icon at the toolbar and drag it to the area outside the toolbar. 2. Press & hold another icon on the screen you want to move, and then drag it to an empty area inside the toolbar. Show/hide notification bar As a new notification icon appears in the notification bar, you can pull down the notification bar to view the list of notifications, and touch a notification to perform detailed operation. Swipe up from any place on the screen to hide the notification bar. Move icons on home screen To move an icon on the home screen, press & hold the icon you -12- want to move, drag it to your desired position on the screen and release it. Drag the icon to the navigation bar to quickly switch to other screen. Press & hold the icon you want to move and release it, the ico…

Text truncated - open the document above for the full version.

Ad-HocCountry Code Cover Letter We, ZTE Corporation, declare that this EUT (FCC ID: SRQ-K85) doesn’t have Ad Hoc Mode function on “non-US/Canada frequencies”. In addition, the frequency selection feature is disabled by firmware for device marketed to the US/Canada. For DTS part of this device, only channel 1~11 will be used in North America. Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Zhang Min ZTE Corporation Certification Manager Te l : +86-21-68897541 Fax: +86-21-50801070 Email: [email protected]

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China Tel: +86-755-86360379 ; Fax: +86-755-86360298 Date: July 27, 2015 Power of Attorney To whom it may concern, Please be notified that I, Zhang Min, have designated Ivy.Zhu in Shenzhen Morlab Communications Technology Co., Ltd. and David Gong in ZTE CORPORATION as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Ivy Zhu in Shenzhen Morlab Communications Technology Co., Ltd., and David Gong in ZTE CORPORATION on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: SRQ-K85 If you have any acknowledgement and response, please send it to Shenzhen Morlab Communications Technology Co., Ltd. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Min Zhang Company: ZTE CORPORATION TEL: +86-21-68897541 FAX: +86-21-68891070 E-mail: [email protected]

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China Tel: +86-755-86360379 ; Fax: +86-755-86360298 2015/7/27 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: SRQ-K85 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Parts List Operation Description Tune Up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Yours Sincerely, Zhang Min ZTE product approval manager

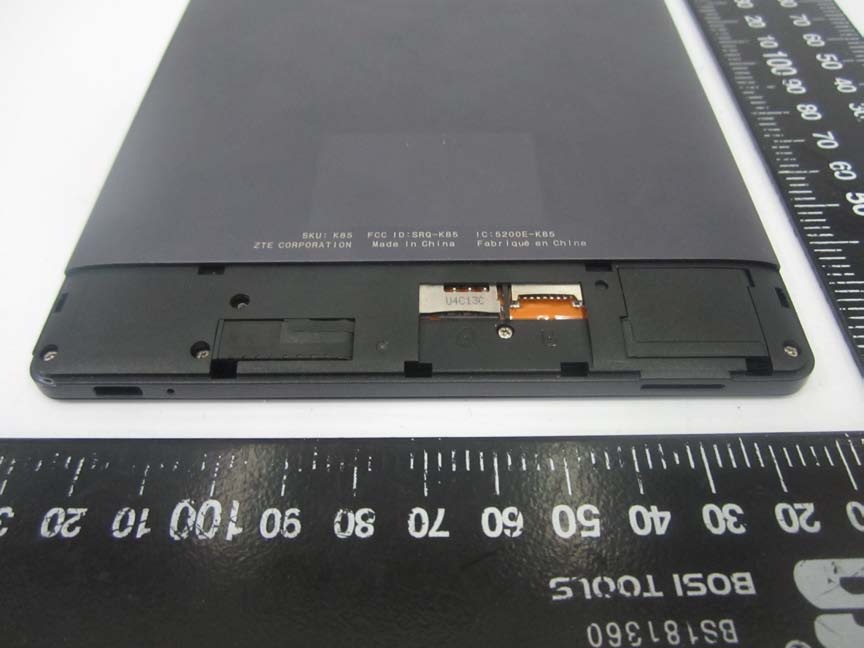

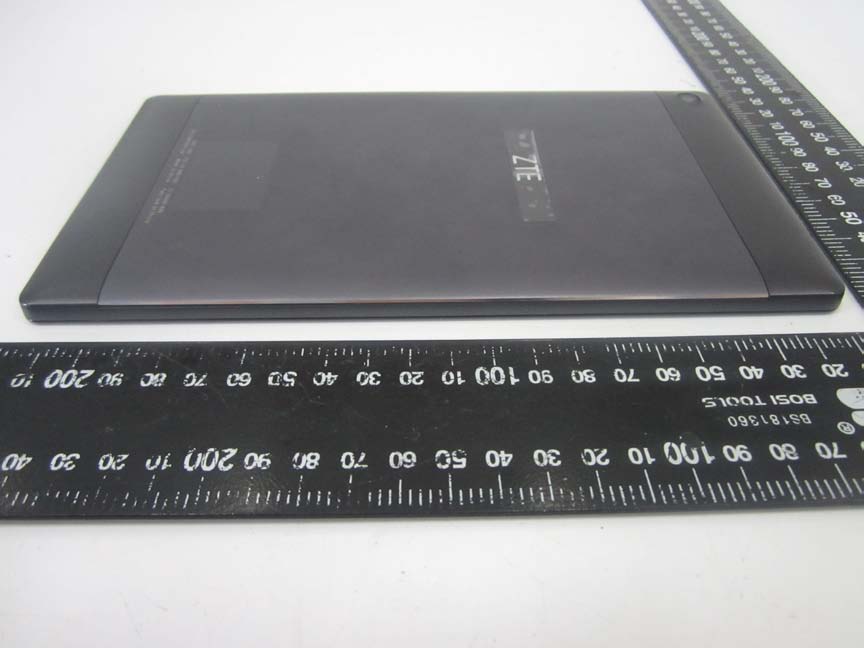

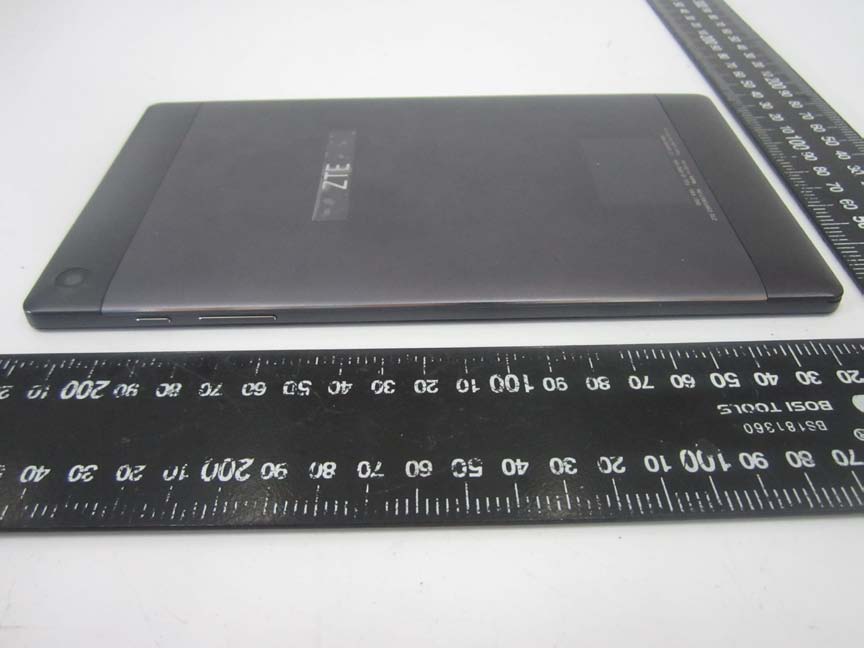

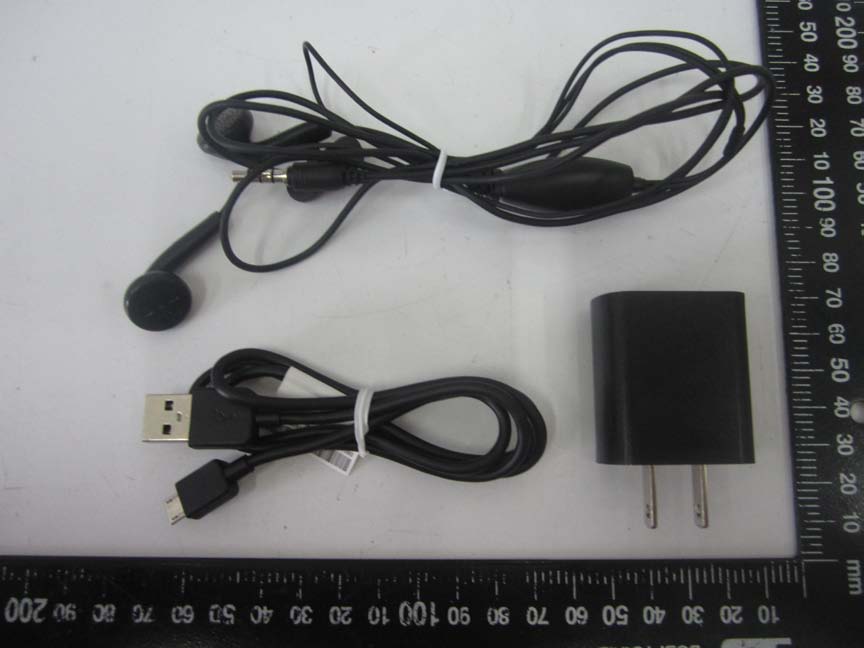

External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view 7. Accessories

FCC label and label location 1. Label 2. Label location

Internal Photos 1. EUT uncover view 2. Mainboard front view 3. Mainboard rear view 4. RF chip view 5. CPU chip view 6. BT/WIFI chip view 7. Main antenna view 8. Diversity antenna view 9. BT/WIFI antenna view 10. GPS antenna view
