SRQ-K87CAMobile Broadband Internet Device

Quick Start Guide 3 6 Setting Up Your Tablet Before exploring all the great features of your tablet, set it up by installing the nano-SIM card and an optional microSDXC card (sold separately). WARNING! To avoid damage to the device, do not use any other kind of SIM cards, or any non-standard nano-SIM card cut from a SIM card. You can get a standard nano-SIM card from your service provider. 1. Open the nano-SIM/microSDXC card slot cover on the back of the tablet. 2. Insert the nano-SIM card and the optional microSDXC card into the respective slot. 3. Close the slot cover tightly. NOTE: Both the nano-SIM card and the microSDXC card can be installed or removed while the device is turned on. You need to unmount the microSDXC card before removing it. See the User Manual for details. Product Safety Information Don’t use at gas stations. Don’t make or receive phone calls while driving. Never text while driving. Your tablet may produce a bright or flashing light. Don’t dispose of your tablet in fire. Small parts may cause choking. Avoid contact with anything magnetic. Your tablet can produce a loud sound. To prevent possible hearing damage, do not listen at high volume levels for long periods. Avoid extreme temperatures. Keep away from pacemakers and other electronic medical devices. Avoid contact with liquids. Keep your tablet dry. Turn off when asked to in hospitals and medical facilities. Do not attempt to disassemble your tablet. Turn off when told to on aircraft and at airports. Don’t rely on your tablet as a primary device for emergency communications. Turn off when near explosive materials or liquids. Only use approved accessories. LEGAL INFORMATION Copyright © 2020 ZTE CORPORATION. All rights reserved. No part of this publication may be quoted, reproduced, translated or used in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. Notice ZTE Corporation reserves the right to make modifications on print errors or update specifications in this guide without prior notice. We offer self-service for our smart terminal device users. Please visit the ZTE official website (at www.ztedevices.com) for more information on self- service and supported product models. Information on the website takes precedence. Visit www.ztedevices.com to download the user manual. Just click Support from the home page and then select the location, product type, and name to search for related support information. Disclaimer ZTE Corporation expressly disclaims any liability for faults and damages caused by unauthorized modifications of the software. Images and screenshots used in this guide may differ from the actual product. Content in this guide may differ from the actual product or software. Trademarks ZTE and the ZTE logos are trademarks of ZTE Corporation. Android™ is a trademark of Google LLC. The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by ZTE Corporation is under license. microSDXC logo is a trademark of SD-3C, LLC. Other trademarks and trade names are the property of their respective owners. Version No. : R1.0 Edition Time : June 15, 2020 1 4 7 Charging the Battery Your new tablet’s battery should have enough power for the device to turn on and find a signal. You should fully charge the battery as soon as possible. WARNING! Use only ZTE-approved chargers and USB cables. The use of unapproved accessories could damage your device or cause the battery to explode. WARNING! Do not remove the back cover. The battery is not removable. Removal may cause fire or explosion. 1. Connect the adapter to the charging jack. 2. Connect the charger to a standard AC power outlet. 3. Disconnect the charger when the battery is fully charged. NOTE: If the battery is extremely low, you may be unable to power on the tablet even when it is being charged. In this case, try again after charging for at least 20 minutes. Contact customer service if you still cannot power on the tablet after prolonged charging. FCC RF Exposure Information (SAR) This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the United States and Industry Canada of Canada. The exposure standard for wireless devices employing a unit of measurement is known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg and 1.6 W/kg by Industry Canada. The FCC has granted an Equipment Authorization for this model device with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model device is on file with the FCC and can be found under the Display Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC ID: SRQ-K87CA. For this device, the highest reported SAR value for usage near the body is 1.16 W/kg. While there may be differences between the SAR levels of various devices and at various positions, they all meet the government requirements. FCC Regulations This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference t…

Text truncated - open the document above for the full version.

ZTE Corporation ZTE Plaza, #55 Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Guangdong Authorization Letter Date: June 10, 2020 To whom it may concern: We, the undersigned, hereby authorize The State Radio_monitoring_center Testing Center (SRTC) to act on our behalf, as our agent, in the following matters related to the FCC approval, IC certification approval of our product: Product Name: Mobile Broadband Internet Device Product Model: K87CA FCC ID: SRQ-K87CA IC : 5200E-K87CA Report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by The State Radio_monitoring_center Testing Center (SRTC) within the scope of this authorization shall have the same effects as our own. This authorization shall expire 2 months from original date. If you have any question regarding the authorization, please don’t hesitate to contact with me. Thank you. Gong Yu ZTE Corporation ZTE Plaza, #55 Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Guangdong Tel: +86-21-68895397 Fax:+86-21-50801070

ZTE Corporation ZTE Plaza, #55 Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Guangdong PHOENIX TESTLAB GmbH Date: 12 June 2020 Product Certification Königswinkel 10 D 32825 Blomberg Subject: Declaration Operating Channel Limitation Product Marketing Name: Grand X View 4 Product Model: K87CA IC Number: 5200E-K87CA FCC ID: SRQ-K87CA To Whom it may concern, This device is acting as a master device in Ad Hoc Mode and/or Hot Spot Mode. The operating channels in 802.11 b/g/n mode for the device marketed to the US/Canada are firmware limited to channel 1 ~ 11 (2412 ~ 2462 MHz). The end- user has no possibility to select any other operating channels. If you have any questions, please feel free to contact me. Thank you. Sincerely, ZTE Corporation ZTE Plaza, #55 Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Guangdong Tel: +86-21-68895397 Fax:+86-21-50801070

ZTE Corporation ZTE Plaza, #55 Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Guangdong Request of Confidentiality Federal Communications Commission Authorization and Evaluation Division Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying of following product: Product Name: Mobile Broadband Internet Device Product Model: K87CA FCC ID: SRQ-K87CA The following information should be held confidential: All Schematics/block diagrams All Parts list for the above schematic diagram Tune-Up Procedure Operational description and technical overview of product The following information should be held for short term confidential: Test set up photos External photos Internal photos User manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Certification Manager: Gong Yu 2020/6/5 ZTE Corporation ZTE Corporation ZTE Plaza, #55 Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Guangdong Address: ZTE Plaza, #55 Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Guangdong Tel: +86-21-68895397 Fax:+86-21-50801070

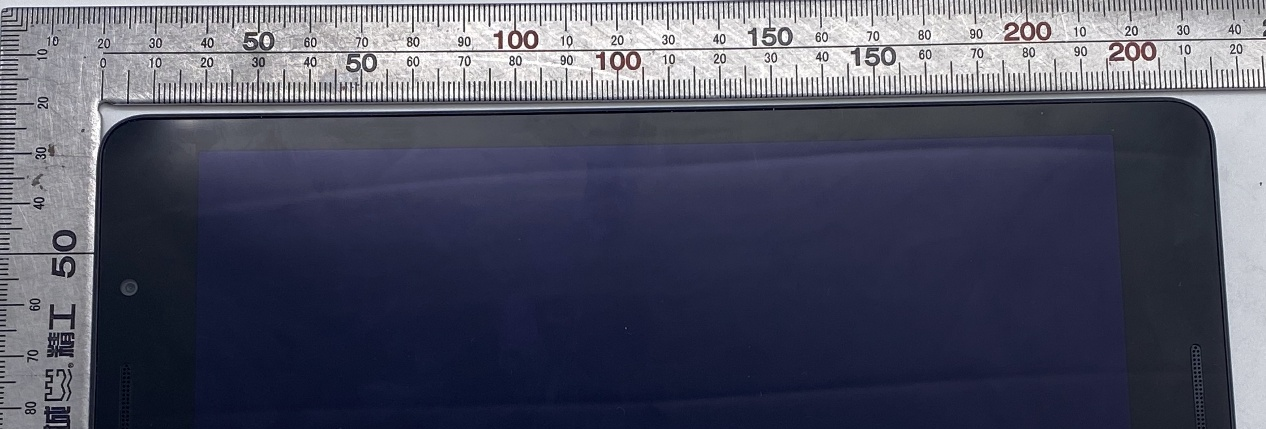

External Photo FCC ID : SRQ‐K87CA IC:5200E‐K87CA 1 / 10 External Photo FCC ID : SRQ‐K87CA IC:5200E‐K87CA 2 / 10 External Photo FCC ID : SRQ‐K87CA IC:5200E‐K87CA 3 / 10 External Photo FCC ID : SRQ‐K87CA IC:5200E‐K87CA 4 / 10 Charger View (Model: STC-A520A-Z made by Ruijing) Charger View (Model: STC-A520A-Z made by Ruijing) External Photo FCC ID : SRQ‐K87CA IC:5200E‐K87CA 5 / 10 Charger View (Model: STC-A520A-Z made by Ruijing) Charger View (Model: STC-A520A-Z made by Ruijing) External Photo FCC ID : SRQ‐K87CA IC:5200E‐K87CA 6 / 10 Charger View (Model: STC-A520A-Z made by Chenyang) Charger View (Model: STC-A520A-Z made by Chenyang) External Photo FCC ID : SRQ‐K87CA IC:5200E‐K87CA 7 / 10 Charger View (Model: STC-A520A-Z made by Chenyang) Charger View (Model: STC-A51D-Z made by AOHAI) External Photo FCC ID : SRQ‐K87CA IC:5200E‐K87CA 8 / 10 Charger View (Model: STC-A51D-Z made by AOHAI) Charger View (Model: STC-A51D-Z made by AOHAI) External Photo FCC ID : SRQ‐K87CA IC:5200E‐K87CA 9 / 10 Charger View (Model: STC-A51D-Z made by Ruijing) Charger View (Model: STC-A51D-Z made by Ruijing) External Photo FCC ID : SRQ‐K87CA IC:5200E‐K87CA 10 / 10 USB Cable made by Shen Zhen Shi Yi HUA XING Electron Co.,Ltd (Model number: USB-MU5-W-100-M) USB Cable made by King Power Electronics Co., Ltd (Model number: USB-MU5-W-100-M)

FCC ID:SRQ ‐ K87CA IC:5200E ‐ K87CA Label and location

Internal Photo FCC ID : SRQ‐K87CA IC:5200E‐K87CA 1 / 8 Internal Photo FCC ID : SRQ‐K87CA IC:5200E‐K87CA 2 / 8 IC Details 1 Internal Photo FCC ID : SRQ‐K87CA IC:5200E‐K87CA 3 / 8 IC Details 2 IC Details 3 Internal Photo FCC ID : SRQ‐K87CA IC:5200E‐K87CA 4 / 8 IC Details 4 IC Details 5 Internal Photo FCC ID : SRQ‐K87CA IC:5200E‐K87CA 5 / 8 IC Details 6 IC Details 7 Internal Photo FCC ID : SRQ‐K87CA IC:5200E‐K87CA 6 / 8 IC Details 8 IC Details 9 Internal Photo FCC ID : SRQ‐K87CA IC:5200E‐K87CA 7 / 8 Battery View 1 Battery View 2 Internal Photo FCC ID : SRQ‐K87CA IC:5200E‐K87CA 8 / 8

No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number: 163 of 240 Tel:86-10-5799618 Fax:86-10-57996388 V3.0.0 ANNEX A – TEST PLOTS System check 750MHz Communication System: UID 0, CW (0) Frequency: 750 MHz; Medium parameters used: f = 750 MHz; σ = 0.923 S/m; ε r = 41.352; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration:  Probe: ES3DV3 - SN3127; ConvF(6.34, 6.34, 6.34) @ 707.5 MHz; Calibrated: 8/27/2019  Sensor-Surface: 3mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 3mm (Mechanical Surface Detection)  Electronics: DAE4 Sn546; Calibrated: 8/28/2019  Phantom: 1660; Type: QD 000 P40 CD; Serial: xxxx  Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7373) System Performance Check at Frequencies 750MHz/d=15mm, Pin=250 mW, dist=3.0mm (ES-Probe)/Area Scan (8x15x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.16 W/kg System Performance Check at Frequencies 750MHz/d=15mm, Pin=250 mW, dist=3.0mm (ES-Probe)/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 41.00 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 3.26 W/kg SAR(1 g) = 2.06 W/kg; SAR(10 g) = 1.37 W/kg Maximum value of SAR (measured) = 2.49 W/kg No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number: 164 of 240 Tel:86-10-5799618 Fax:86-10-57996388 V3.0.0 System check 835MHz Communication System: UID 0, CW (0); Frequency: 835 MHz Medium parameters used (interpolated): f = 835 MHz; σ = 0.911 S/m; ε r = 40.266 ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: ES3DV3 - SN3127; ConvF(6.20, 6.20, 6.20); Calibrated: 8/27/2019;  Sensor-Surface: 3mm (Mechanical Surface Detection)  Electronics: DAE4 Sn546; Calibrated: 8/28/2019  Phantom: 1660; Type: QD 000 P40 CD; Serial: xxxx  Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7373) Configuration 835/835/Area Scan (8x15x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.72 W/kg Configuration 835/835/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 51.67 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 3.58 W/kg SAR(1 g) = 2.39 W/kg; SAR(10 g) = 1.51 W/kg Maximum value of SAR (measured) = 2.75 W/kg No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number: 165 of 240 Tel:86-10-5799618 Fax:86-10-57996388 V3.0.0 System check 1800MHz Communication System: UID 0, CW (0); Frequency: 1800 MHz Medium parameters used: f = 1800 MHz; σ = 1.418 S/m; ε r = 40.688; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: ES3DV3 - SN3127; ConvF(5.10, 5.10, 5.10); Calibrated: 8/27/2019;  Sensor-Surface: 3mm (Mechanical Surface Detection)  Electronics: DAE4 Sn546; Calibrated: 8/28/2019  Phantom: 1660; Type: QD 000 P40 CD; Serial: xxxx  Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7373) Configuration 1800/1800/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 8.31 W/kg Configuration 1800/1800/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 76.60 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 17.5 W/kg SAR(1 g) = 9.49 W/kg; SAR(10 g) = 4.97 W/kg Maximum value of SAR (measured) = 12.1 W/kg No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number: 166 of 240 Tel:86-10-5799618 Fax:86-10-57996388 V3.0.0 System check 2000MHz Communication System: UID 0, CW (0); Frequency: 2000 MHz Medium parameters used: f = 2000 MHz; σ = 1.427 S/m; ε r = 39.844; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: ES3DV3 - SN3127; ConvF(5.02, 5.02, 5.02); Calibrated: 8/27/2019;  Sensor-Surface: 3mm (Mechanical Surface Detection)  Electronics: DAE4 Sn546; Calibrated: 8/28/2019  Phantom: 1660; Type: QD 000 P40 CD; Serial: xxxx  Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7373) Configuration 2000/2000/Area Scan (7x10x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 8.40 W/kg Configuration 2000/2000/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 76.22 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 18.7 W/kg SAR(1 g) = 9.82 W/kg; SAR(10 g) = 4.96 W/kg Maximum value of SAR (measured) = 12.9 W/kg No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number: 167 of 240 Tel:86-10-5799618 Fax:86-10-57996388 V3.0.0 System check 2450MHz Communication System: UID 0, CW (0); Frequency: 2450 MHz Medium parameters used: f = 2450 MHz; σ = 1.866 S/m; ε r = 38.343; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: ES3DV3 - SN3127; ConvF(4.50, 4.50, 4.50); Calibrated: 8/27/2019;  Sensor-Surface: 3mm (Mechanical Surface Detection), z = -3.0, 32.0  Electronics: DAE4 Sn546; Calibrated: 8/28/2019  Phantom: 1660; Type: QD 000 P40 CD; Serial: xxxx  DASY52 52.8.8(1258); SEMCAD X 14.6.10(7373) System Performance Check at Frequencies 2450 MHz/2450/Area Scan (8x11x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 21.2 W/kg System Performance Check at Frequencies 2450 MHz/2450/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 108.3 V/m; Power Drift = 0.19 dB Peak SAR (extrapolated) = 28.2 W/kg SAR(1 g) = 13.5 W/kg; SAR(10 g) = 6.14 W/kg Maximum value of SAR (measured) = 22.6 W/kg No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number: 168 of 240 Tel:86-10-5799618 Fax:86-10-57996388 V3.0.0 System check 2600MHz Communication System: UID 0, CW (0); Frequency: 2600 MHz;Duty Cycle: 1:1 Med…

Text truncated - open the document above for the full version.

No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number:181 of 240 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 ANNEX B – RELEVANT PAGES FROM CALIBRATION REPORTS DAE4 Sn:546 No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number:182 of 240 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number:183 of 240 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number:184 of 240 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number:185 of 240 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number:186 of 240 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 ES3DV3 Sn:3127 No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number:187 of 240 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number:188 of 240 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number:189 of 240 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number:190 of 240 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number:191 of 240 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number:192 of 240 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number:193 of 240 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number:194 of 240 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number:195 of 240 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 D750V3 Sn:1101 No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number:196 of 240 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number:197 of 240 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number:198 of 240 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number:199 of 240 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number:200 of 240 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number:201 of 240 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number:202 of 240 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 D835V2 Sn:4d0232 No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number:203 of 240 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number:204 of 240 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number:205 of 240 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number:206 of 240 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number:207 of 240 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number:208 of 240 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number:209 of 240 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number:210 of 240 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number:211 of 240 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 D1800V2 Sn:2d084 No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number:212 of 240 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number:213 of 240 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_centerTestingCenter (SRTC) Page number:214 of 240 Tel…

Text truncated - open the document above for the full version.

Certificate Number: 5055.02 TEST REPORT FOR SAR TESTING Report No.: SRTC2020-9004(F)-20050601(H) Product Name: Mobile Broadband Internet Device Product Model: K87CA Applicant: ZTE Corporation Manufacturer: ZTE Corporation Specification: Part 2.1093 IEEE Std 1528 KDB Procedures FCC ID: SRQ-K87CA The State Radio_monitoring_center Testing Center (SRTC) 15th Building, No.30 Shixing Street, Shijingshan District, Beijing, P.R. China Tel: 86-10-57996183 Fax: 86-10-57996388 No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_center Testing Center (SRTC) Page number: 1 of 240 Tel: 86-10-57996183 Fax: 86-10-57996388 V3.0.0 Contents 1. GENERAL INFORMATION ............................................................................................................................. 2 1.1 NOTES OF THE TEST REPORT ............................................................................................................................ 2 1.2 INFORMATION ABOUT THE TESTING LABORATORY .............................................................................................. 2 1.3 APPLICANT’S DETAILS ...................................................................................................................................... 2 1.4 MANUFACTURER’S DETAILS .............................................................................................................................. 3 1.5 TEST ENVIRONMENT ......................................................................................................................................... 3 2. DESCRIPTION OF THE DEVICE UNDER TEST ........................................................................................... 4 2.1 FINAL EQUIPMENT BUILD STATUS ..................................................................................................................... 4 2.2 SUPPORT EQUIPMENT ...................................................................................................................................... 5 3. REFERENCE SPECIFICATION ...................................................................................................................... 6 4. TEST CONDITIONS ........................................................................................................................................ 7 4.1 PICTURE TO DEMONSTRATE THE REQUIRED LIQUID DEPTH .................................................................................. 7 4.2 TEST SIGNAL, FREQUENCIES AND OUTPUT POWER ........................................................................................... 7 4.3 SAR MEASUREMENT SET-UP ........................................................................................................................... 7 4.4 PHANTOMS ...................................................................................................................................................... 8 4.5 TISSUE SIMULANTS .......................................................................................................................................... 8 4.6 DESCRIPTION OF THE TEST PROCEDURE .............................................................................................. 9 5 RESULT SUMMAR ........................................................................................................................................ 12 6 TEST RESULT ............................................................................................................................................... 13 6.1 MANUFACTURING TOLERANCE........................................................................................................................ 13 6.2 WCDMA MEASUREMENT RESULT .................................................................................................................. 24 6.3 LTE MEASUREMENT RESULT .......................................................................................................................... 32 6.4 BLUETOOTH MEASUREMENT RESULT .............................................................................................................. 97 6.5 WI-FI MEASUREMENT RESULT ........................................................................................................................ 97 6.6 STANDALONE SAR TEST EXCLUSION CONSIDERATIONS .................................................................................. 98 6.7 RF EXPOSURE CONDITIONS .......................................................................................................................... 100 6.8 SYSTEM CHECKING ...................................................................................................................................... 102 6.9 SAR TEST RESULT .................................................................................................................................. 103 6.10 SAR MEASUREMENT VARIABILITY .............................................................................................................. 151 6.11 SIMULTANEOUS TRANSMISSION SAR ANALYSIS .......................................................................................... 152 7 MEASUREMENT UNCERTAINTY ............................................................................................................... 154 8 TEST EQUIPMENTS .................................................................................................................................... 156 ANNEX A – TEST PLOTS .............................................................................................................................. 162 ANNEX B – RELEVANT PAGES FROM CALIBRATION REPORTS ........................................................... 162 No.: SRTC2020-9004(F)-20050601(H) FCC ID: SRQ-K87CA The State Radio_monitoring_center Testing Center (SRTC) Page number: 2 of 240 Tel: 86-10-57996183 Fax: 86-10-57996388 V3.0.0 1. GENERAL INFORMATION 1.1 Notes of the test report The test report may …

Text truncated - open the document above for the full version.

Certificate Number: 5055.02 TEST REPORT FOR BLE TESTING Report No.: SRTC2020-9004(F)-20050601(E) Product Name: Mobile Broadband Internet Device Product Model: K87CA Applicant: ZTE Corporation Manufacturer: ZTE Corporation Specification: FCC Part 15 Subpart C (2019) FCC ID: SRQ-K87CA The State Radio_monitoring_center Testing Center (SRTC) 15th Building, No.30 Shixing Street, Shijingshan District, Beijing, P.R.China Tel: 86-10-57996183 Fax: 86-10-57996388 No.: SRTC2020-9004(F)-20050601(E) FCC ID…
