SRQ-MC801A5G CPE with WCDMA, LTE, 5GNR and WiFi

1 Gettting started MC80 Let’s with your d 01A go evice. 2 1. Prepare  Avalid nano-SIM card.  View the label on your device to get the default information. The following figure is for reference only. 3 2. Insertthenano-SIM Card Open the slot cover at the bottom of the device and insertthenano-SIM card. 4 3. Power on Your Device Connect the power adapter to your device and then your device willbe powered on and connect to the Internet automatically. 5 4. Access the Internet  Wi-Fi:Get the default SSID and password on the label and connect to the Wi-Fi network with your mobile device, and then access the Internet. 6  Network cable(RJ45):Connect with the computervia LAN portsand then access the Internet. 7 5. Change YourDevice Settings You can change the device settings by logging in to the 5G CPE configuration web page. 1. View the label on your device to get thedefault Device Manager Website IP address and Password. 2. Launch the Internet browser and enter theDevice Manager Website IP addressin the address bar. 3. Input the password and then click Login. 4. After the 5G CPE configuration web page is opened, you can change the Wi-Fi SSID, password or other settings. 8 Internet Wi-Fi Function Your device supports the Internet Wi-Fi function and you can use this function to extend your existing Wi-Fi network. 1. Log in to the 5G CPE configuration page. 2. Select Wi-FiSettings > Internet Wi-Fi. 3. Set the Internet Wi-Fi Switch to Enable, and click Apply. 4. Connect to the Wi-Fi hotspot. The following two methods are for your reference.  Select a Wi-Fi hotspot listed in the Wi-Fi Hotspot area and click Connect. Enter a password in the Password text box and click Yes.  Click Add Network, enter the Wi-Fi hotspot information in the Add Wi-Fi Hotspot area, and click Apply.Click the Wi-Fi hotspot you have added and then click Connect. 5. After the device is connected to the Wi-Fi hotspot successfully, you can access the Internet. Bridge Your device service prov 1. Ensure card a u 2. Log in t 3. Change network NOTE: Please dis c 4. Connec selecte and con NOTE: The cable-conn Internet, but the this client to log Mode e supports the vider to access that your devi c utomatically. to the 5G CPE c e the operation k port. The devi connect from the ct the computer d and the client nnect to the Inte nected client connect ey can communicate g in to the configurati 9 bridge mode an the Internet. ce can connect t configuration we mode to Bridge ce will be restar e Internet first a r or other cable t can obtain the ernet directly. ted to the other LAN with each other. If yo ion page to change t nd you can use to the Internet b eb page. e Modeand sele rted automatica and then you can e-connected clie e IP address from port or the Wi-Fi con ou want to change th he mode. e this service fro by using your na ect the WAN con ally. n change the m ent to the LAN p m the WAN DH nnected clients canno he operation mode, yo om your ano-SIM nnection mode. port you CP host ot visit the ou can use Cable B Your device from your s 1. Connec with a n 2. Log in t 3. Change NOTE: Please dis c 4. Set the 5. Use yo Broadband e supports the c service provider ct either of the tw network cable. to the 5G CPE c e the operation connect from the detailedparame ur clients to acc 10 d Mode cable broadban to access the In wo LAN ports a configuration we mode to Cable e Internet first a etersgiven by yo cess the Interne nd mode and yo nternet. nd the broadba eb page. Broadband M o and then you can our service prov et. ou can use this nd service netw ode. n change the m vider. s service work port mode. 11 Telephone Your device supports the telephone function. Before using the telephone function, connect the telephone and insert the nano-SIM card. To m a k e a c a l l : 1. Pick up the handset. 2. Dial the telephone number. 3. Wait for the call to be connected. 12 WPS Your device supports the WPS function. You can use this function to connect a client to your device. 1. Press the WPS button on your device to activate the WPS function. The WIFI indicator is blinking. 2. Enable the WPS function on your client. 3. Follow the system prompts on your client to establish the connection. 13 Indicator Lights and Interfaces 14 1. SIGNAL (Three lights) On: Three lights show the signal strength. More lights on means better signals. Off: There is no signal or no nano-SIM card inserted. 2. NETWORK Red:The device is powered on but not registered to the mobile network. Blue solid: The device isregistered or connected to the 3G/4Gmobile network. White solid: The device isregistered or connected to the 5G network. 3. WIFI On:WLAN(Wi-Fi) works normally. Blinking: WPS is activating. Off: WLAN(Wi-Fi) is off. 4. POWER On:The device is powered on. Off:The device is powered off. 5. WPS key Press this key to activate the WPS function. 6. External antenna port Connect to external antennas.The antenna connector type is TS-9 and antenna frequency range is from 700MHz to 4200MHz. 7. PHONE port Connect to a telephone. 8. LAN ports Connect to the WAN in the Cable Broadband Mode or connect to a PC. 9. Power port Connect to the power adapter. 10. nano-SIMcard slotandreset hole Insert your nano-SIM card. Reset hole: Press and hold for about 3 seconds to restore your device to the factory settings. 15 Troubleshooting Internet Related Problems Symptoms Possible Problems / Solutions I cannot access the Internet at all.  Please check your configuration settings.  Please wait 1~ 2 minutes for the router to initialize.  Check your network indicators. The download or upload speed is very slow. The speed is dependent on signal strength. Check your signal strength and network type. I cannot visit the 5G CPE configuration web page.  Enter the correct IP address. You can view the label on your device to get the default IP address.  Only use one network adapter in your PC.  Do not use any proxy server. I cannot establish the Wi-Fi connection between my device and the client.  M…

Text truncated - open the document above for the full version.

ZTE Corporation POWER OF ATTORNEY DATE: 1/8/2022 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 We, the undersigned, hereby authorize TA Technology (Shanghai) Co., Ltd. / Yu Hongmei on our behalf, to apply to FCC on our equipment for FCC ID: SRQ-MC801A. Any and all acts carried out by TA Technology (Shanghai) Co., Ltd. / Yu Hongmei on our behalf shall have the same effect as acts of our own. Sincerely, Print name: Yu Gong Company: ZTE Corporation.

ZTE Corporation Request for Confidentiality Date: _2022-1-8_ Subject: Confidentiality Request for: _____ FCC ID: SRQ-MC801A ____ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ ______ ZTE Corporation _____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of __180_ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TCB in the event information regarding the product or the product is made available to the public. TCB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: Yu Gong (Signature/Title 2 ) (Print name)

ZTE Corporation UNII Declaration Letter We have declared below featured for FCC equipment authorization, device FCC ID: SRQ-MC801A (1) DFS Device -- Master, Client with Radar detection capability , Client without radar detection capability, N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 2412 – 2462 MHz Yes, No Yes, No Yes, No Yes, No 2422 – 2452 MHz Yes, No Yes, No Yes, No Yes, No 5745 – 5825 MHz Yes, No Yes, No Yes, No Yes, No 5755 – 5795 MHz Yes, No Yes, No Yes, No Yes, No 5180 – 5240 MHz Yes, No Yes, No Yes, No Yes, No 5190 – 5230 MHz Yes, No Yes, No Yes, No Yes, No 5260 – 5320 MHz Yes, No Yes, No Yes, No Yes, No 5270 – 5310 MHz Yes, No Yes, No Yes, No Yes, No 5500 – 5700 MHz Yes, No Yes, No Yes, No Yes, No 5510 – 5670 MHz Yes, No Yes, No Yes, No Yes, No (3) Country code selection ability - Yes , No If no, pls explain how was implemented : use network utility (4) Meet 15.202 requirement - Yes , No , pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes can not be modified by end user or an installer. Apply , No Apply , (If apply , pls help to provide explanation on how it was implement (By hardware or software , and how software was controlled) If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Signatory Printed Name：Gong Yu

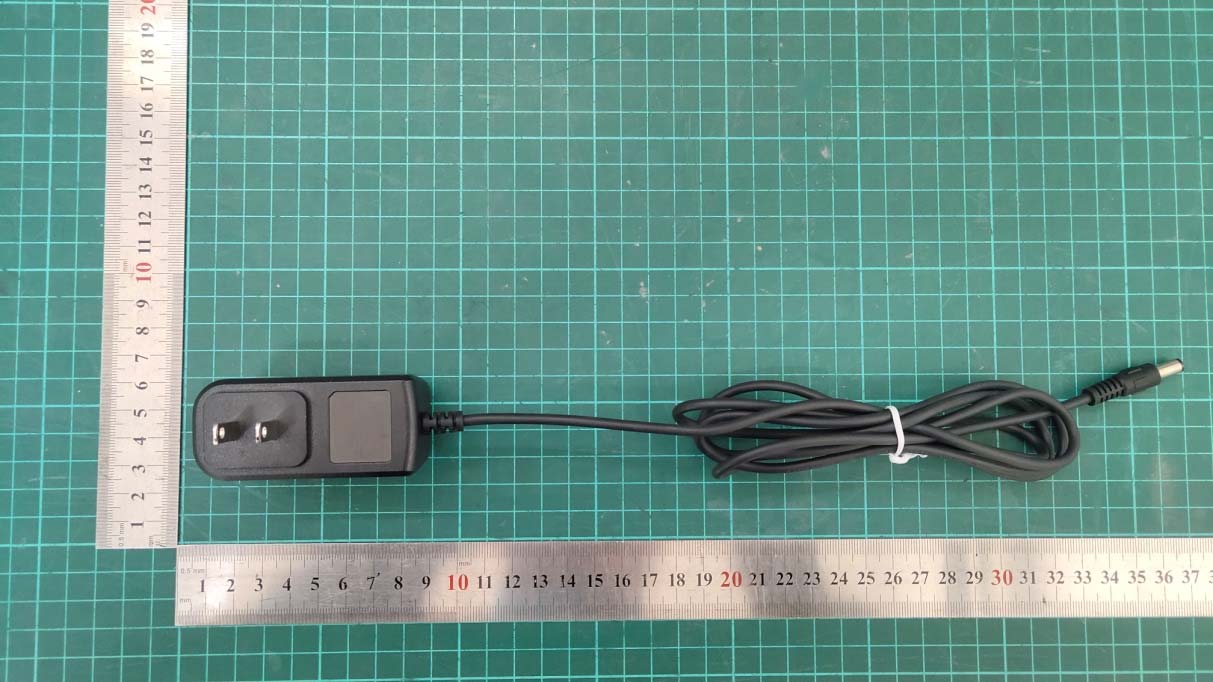

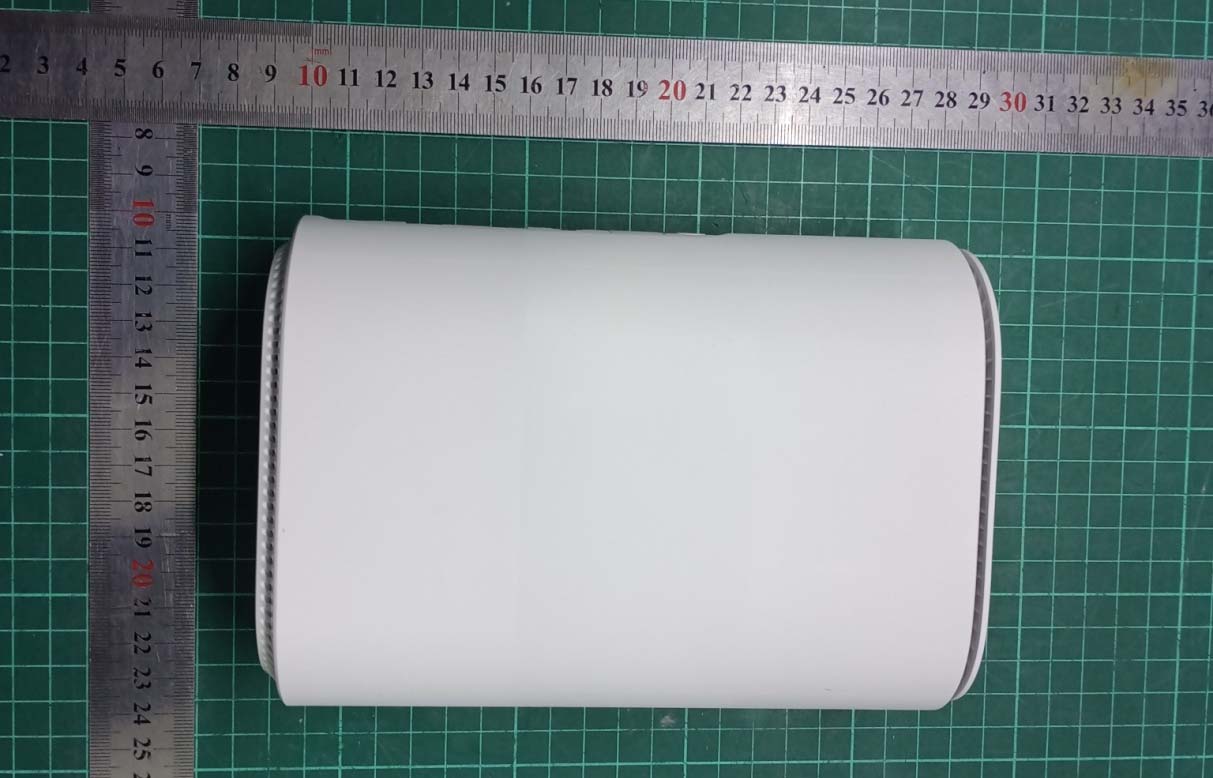

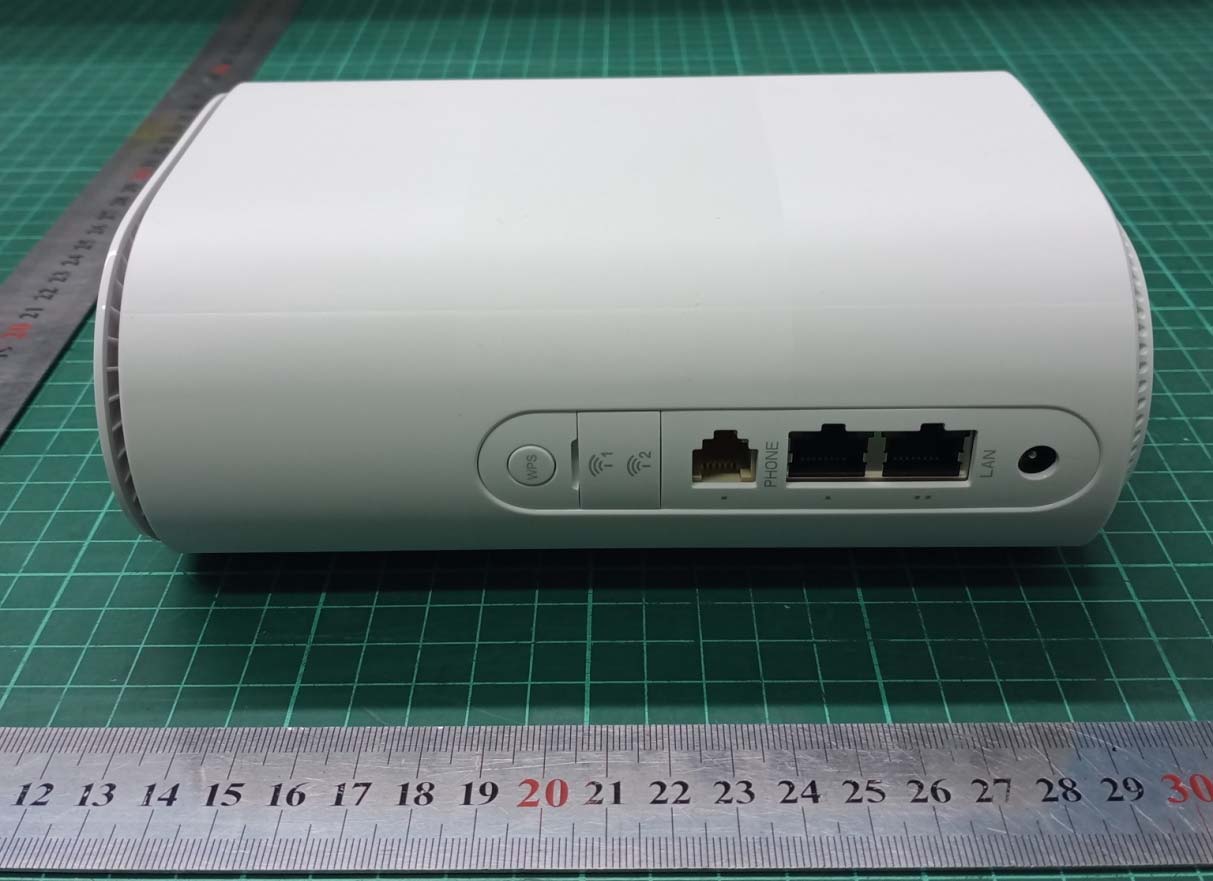

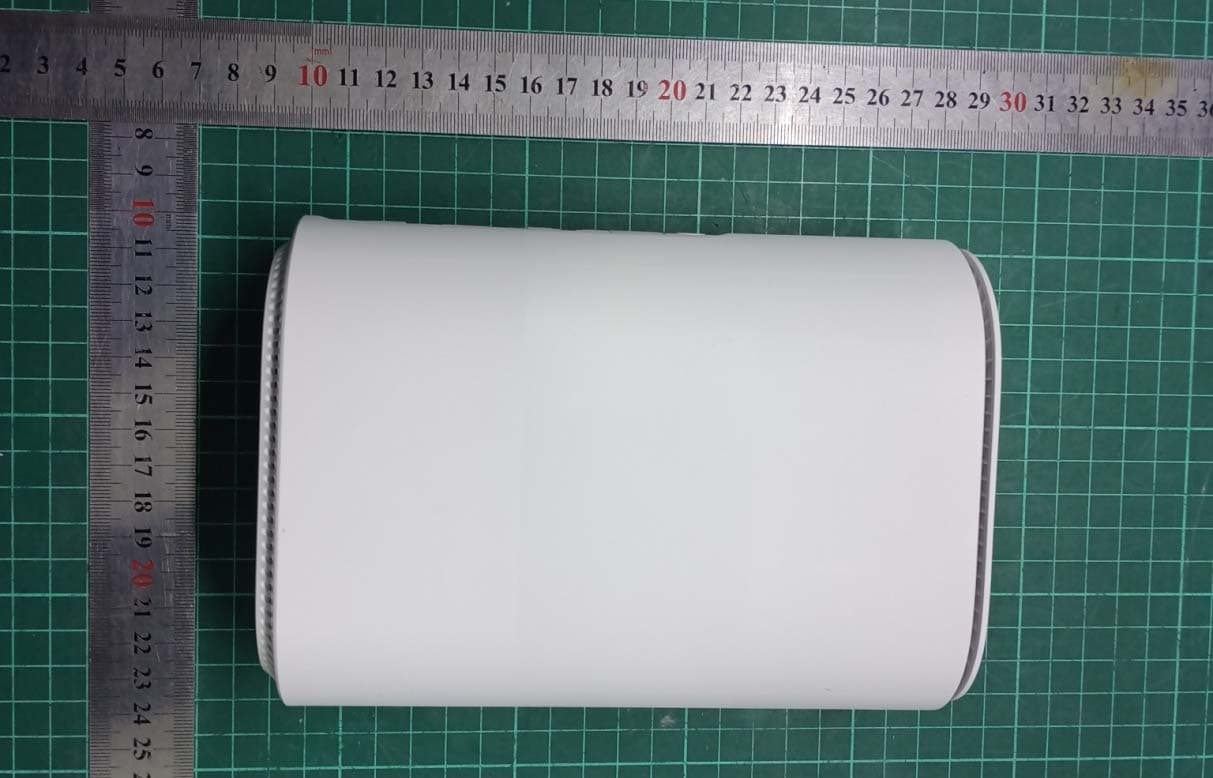

EUT Appearance Report No.: R2112A1085 TA Technology (Shanghai) Co., Ltd. Page 1 of 4 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. EUT Appearance EUT Appearance Report No.: R2112A1085 TA Technology (Shanghai) Co., Ltd. Page 2 of 4 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. EUT Appearance Report No.: R2112A1085 TA Technology (Shanghai) Co., Ltd. Page 3 of 4 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. a: EUT EUT Appearance Report No.: R2112A1085 TA Technology (Shanghai) Co., Ltd. Page 4 of 4 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. b: Adapter Picture 1: Constituents of EUT

Internal photo FCC ID: SRQ-MC801A TA Technology (Shanghai) Co., Ltd. Page 1 of 21 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Internal photo Internal photo FCC ID: SRQ-MC801A TA Technology (Shanghai) Co., Ltd. Page 2 of 21 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Internal photo FCC ID: SRQ-MC801A TA Technology (Shanghai) Co., Ltd. Page 3 of 21 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Internal photo FCC ID: SRQ-MC801A TA Technology (Shanghai) Co., Ltd. Page 4 of 21 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Internal photo FCC ID: SRQ-MC801A TA Technology (Shanghai) Co., Ltd. Page 5 of 21 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Internal photo FCC ID: SRQ-MC801A TA Technology (Shanghai) Co., Ltd. Page 6 of 21 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Internal photo FCC ID: SRQ-MC801A TA Technology (Shanghai) Co., Ltd. Page 7 of 21 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Internal photo FCC ID: SRQ-MC801A TA Technology (Shanghai) Co., Ltd. Page 8 of 21 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Internal photo FCC ID: SRQ-MC801A TA Technology (Shanghai) Co., Ltd. Page 9 of 21 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Internal photo FCC ID: SRQ-MC801A TA Technology (Shanghai) Co., Ltd. Page 10 of 21 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Internal photo FCC ID: SRQ-MC801A TA Technology (Shanghai) Co., Ltd. Page 11 of 21 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Internal photo FCC ID: SRQ-MC801A TA Technology (Shanghai) Co., Ltd. Page 12 of 21 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Internal photo FCC ID: SRQ-MC801A TA Technology (Shanghai) Co., Ltd. Page 13 of 21 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Internal photo FCC ID: SRQ-MC801A TA Technology (Shanghai) Co., Ltd. Page 14 of 21 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Internal photo FCC ID: SRQ-MC801A TA Technology (Shanghai) Co., Ltd. Page 15 of 21 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Internal photo FCC ID: SRQ-MC801A TA Technology (Shanghai) Co., Ltd. Page 16 of 21 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Internal photo FCC ID: SRQ-MC801A TA Technology (Shanghai) Co., Ltd. Page 17 of 21 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Internal photo FCC ID: SRQ-MC801A TA Technology (Shanghai) Co., Ltd. Page 18 of 21 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Internal photo FCC ID: SRQ-MC801A TA Technology (Shanghai) Co., Ltd. Page 19 of 21 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Internal photo FCC ID: SRQ-MC801A TA Technology (Shanghai) Co., Ltd. Page 20 of 21 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Internal photo FCC ID: SRQ-MC801A TA Technology (Shanghai) Co., Ltd. Page 21 of 21 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Antenna location

TA Techno 47 CFR Pa with the req ology (Shangh art 1 1.1310. quirements a Prep TA T No.1 MP Applica FCC ID Produc t Model Report N Issue D hai) Co., Ltd. The test res u s documente pared by: Fa Techn 45, Jintang R PE TE nt Z T SR t 5 G MC No. R 2 ate J a tested the ab ults show that ed in this repo angying Wei ology Rd, Tangzhe TEL: + 8 FAX: +86-0 EST R TE Corpo RQ-MC80 G CPE C801A 2112A10 anuary 12 bove equipme t the equipme ort. A y (Shan n Industry P 86-021-50791 021-5079114 REPO oration 01A 85-M1 2, 2022 ent in accorda ent tested is c pproved by: nghai) ark, Pudong 1141/2/3 41/2/3-8000 ORT ance with the capable of de : Guangchan ) Co., L Shanghai, C e requirement monstrating c ng Fan Ltd. China ts in FCC compliance MP TA Techno This report sh 1 Te s t L 1.1 N 1.2. T 1.3 T 1.4 L 2 Desc 3 Maxi m 4 Te s t R ANNEX A PE Test Report logy (Shangh hall not be repr Laboratory .. Notes of the Test facility . Testing Loca Laboratory E ription of Eq mum tune-u Result ........ A: The EUT A t hai) Co., Ltd. roduced except .................. Test Repo r .................. ation ........... Environment quipment un p tolerance .................. Appearance TA tin full, without Table ................... rt ................. ................... ................... t .................. der Test ...... and antenn .................. . ................... A-MB-01-013S t the written ap e of Con ................... ................... ................... ................... ................... ................... a Gain........ ................... ................... S pproval of TA Te tents .................. .................. .................. .................. .................. .................. .................. .................. .................. Rep echnology (Shan .................. .................. .................. .................. .................. .................. .................. .................. .................. port No.: R2112 Page nghai) Co., Ltd. ................... ................... ................... ................... ................... ................... ................... ................... ................... 2A1085-M1 e 2 of 10 ................ 3 ................ 3 ................ 3 ................ 3 ................ 3 ................ 5 ................ 6 ................ 7 .............. 10 MP TA Techno This report sh 1 Test 1.1 Not This repor (shangha conditions into accou regulatory 1.2. Tes FCC (Des TA Techn list of test 1.3 Tes Compa Addres City: Post c o Country Contac Telepho Fax: Websit e E-mail: 1.4 Lab Te m p er PE Test Report logy (Shangh hall not be repr t Labora tes of the rt shall not b ai) co., Ltd. s and modes unt and are p y compliance st facility signation nu ology (Shan facilities rec sting Loca any: TA s: No Sh ode: 20 y: P. t: F a one: +8 +8 e: ht fa boratory E rature t hai) Co., Ltd. roduced except atory Test Repo be reproduce The results s of operatio published fo e of the app umber: CN1 nghai) Co., L cognized to ation A Technolog o.145, Jinta hanghai 01201 R. China an Guangch 86-021-5079 86-021-5079 ttp://www.ta- nguangchan Environme TA tin full, without ort ed in full or p documented on as describ or informatio licable stand 1179, Test F Ltd. has bee perform m e y (Shangha ng Rd, Tang hang 91141/2/3 91141/2/3-8 -shanghai.co ng@ta-shan ent A-MB-01-013S t the written ap partial, witho d in this repo bed herein . onal purpose dards stated Firm Regist n listed on th easurements i) Co., Ltd. gzhen Indus 000 om nghai.com Min. = 1 8 S pproval of TA Te out the writte ort apply on Measurem e es only. This d above. tration Num he US Fede s. stry Park, Pu 8C, Max. = Rep echnology (Shan en approval ly to the tes t ent Uncertai report is w r mber: 44662 eral Commun udong Shang 25 C port No.: R2112 Page nghai) Co., Ltd. of TA techn ted sample, nties were n ritten to supp 26) nications Co ghai, China 2A1085-M1 e 3 of 10 nology under the not taken port ommission MP TA Techno This report sh Relative Ground Ambien Reflect PE Test Report logy (Shangh hall not be repr e humidity d system res nt noise is ch ion of surrou t hai) Co., Ltd. roduced except sistance hecked and unding objec TA tin full, without found very cts is minim A-MB-01-013S t the written ap Min. = 30 < 0.5  low and in c ized and in S pproval of TA Te 0%, Max. = compliance w compliance Rep echnology (Shan 70% with requirem with require port No.: R2112 Page nghai) Co., Ltd. ment of stan ement of sta 2A1085-M1 e 4 of 10 ndards. andards. MP TA Techno This report sh 2 Des Client In Applica Applica Manufa Manufa General T Model IMEI Hardwa Softwa Date of Note: 1 th e 2. All in Co., Lt d Uncerta PE Test Report logy (Shangh hall not be repr scription nformation ant ant address acturer acturer add Technologie are Version are Version f Sample Re . The EUT i e applicant. dications o f d. based on ainties were t hai) Co., Ltd. roduced except of Equip ZT s ZT D ZT dress Z T D es M 8 n M B eceived D s sent from fPass/Fail in interpretatio not taken in TA tin full, without pment un TE Corporat TE Plaza, K istrict, Shen TE Corporat TE Plaza, K istrict, Shen MC801A 6367104388 MC801AHW- BD_TLCMXM December 1, the applican n this report ons and/or o nto account A-MB-01-013S t the written ap nder Tes tion Keji Road So nzhen, Guan tion Keji Road So nzhen, Guan 81410 -1.0.0 MC801AV1.0 2021 nt to TA and are opinion observations and are pub S pproval of TA Te st outh, Hi-Tech ngdong, 518 outh, Hi-Tech ngdong, 518 0.0B01 d the informa s expressed s of test resu blished for in Rep echnology (Shan h, Industrial 057, P.R.C h h, Industrial 057, P.R.C h ation of the E d by TA Tech ults. Measur nformational port No.: R2112 Page nghai) Co., Ltd. Park, Nans hina Park, Nans hina EUT is decla hnology (Sha rement l purposes o 2A1085-M1 e 5 of 10 han han ared by anghai) only. MP TA Techno This report sh 3 Max The nume Numeric g WC WC WC L L L L LT LT W PE Test Report logy (Shangh hall not be repr ximum tu eric gain …

Text truncated - open the document above for the full version.

Prepared by: Peng Tao Approved by: Kai Xu TA Technology (Shanghai) Co., Ltd. No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai, China TEL: +86‐021‐50791141/2/3 FAX: +86‐021‐50791141/2/3‐8000 RF TEST REPORT Applicant ZTE Corporation FCC ID SRQ-MC801A Product 5G CPE Model MC801A Report No. R2112A1085-R7 Issue Date January 8, 2022 TA Technology (Shanghai) Co., Ltd. tested the above equipment in accordance with the requirements in FCC CFR47 Part 15E (2020). The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. RF Test Report Report No.: R2112A1085-R7 TA Technology (Shanghai) Co., Ltd. TA-MB-04-006R Page 2 of 172 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. TABLE OF CONTENT 1. Test Laboratory ............................................................................................................................ 4 1.1. Notes of the test report ......................................................................................................... 4 1.2. Test facility ........................................................................................................................... 4 1.3. Testing Location ................................................................................................................... 4 2. General Description of Equipment under Test.............................................................................. 5 2.1. Applicant and Manufacturer Information............................................................................... 5 2.2. General information .............................................................................................................. 5 3. Applied Standards ........................................................................................................................ 6 4. Test Configuration ........................................................................................................................ 7 5. Test Case Results ........................................................................................................................ 9 5.1. Occupied Bandwidth ............................................................................................................ 9 5.2. Average Power Output ....................................................................................................... 24 5.3. Frequency Stability ............................................................................................................. 33 5.4. Power Spectral Density ...................................................................................................... 36 5.5. Unwanted Emission ........................................................................................................... 75 5.6. Conducted Emission ........................................................................................................ 167 6. Main Test Instruments .............................................................................................................. 170 ANNEX A: The EUT Appearance .................................................................................................... 171 ANNEX B: Test Setup Photos ......................................................................................................... 172 RF Test Report Report No.: R2112A1085-R7 TA Technology (Shanghai) Co., Ltd. TA-MB-04-006R Page 3 of 172 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Summary of measurement results Number Test Case Clause in FCC rules Verdict 1 Average output power 15.407(a) PASS 2 Occupied bandwidth 15.407(e) PASS 3 Frequency stability 15.407(g) PASS 4 Power spectral density 15.407(a) PASS 5 Unwanted Emissions 15.407(b) PASS 6 Conducted Emissions 15.207 PASS Date of Testing: December 4, 2021 ~ December 16, 2021 Date of Sample Received: December 1, 2021 Note: PASS: The EUT complies with the essential requirements in the standard. FAIL: The EUT does not comply with the essential requirements in the standard. All indications of Pass/Fail in this report are opinions expressed by TA Technology (Shanghai) Co., Ltd. based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. RF Test Report Report No.: R2112A1085-R7 TA Technology (Shanghai) Co., Ltd. TA-MB-04-006R Page 4 of 172 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 1. Test Laboratory 1.1. Notes of the test report This report shall not be reproduced in full or partial, without the written approval of TA technology (shanghai) co., Ltd. The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. Measurement Uncertainties were not taken into account and are published for informational purposes only. This report is written to support regulatory compliance of the applicable standards stated above. 1.2. Test facility FCC (Designation number: CN1179, Test Firm Registration Number: 446626) TA Technology (Shanghai) Co., Ltd. has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. A2LA (Certificate Number: 3857.01) TA Technology (Shanghai) Co., Ltd. has been listed by American Association for Laboratory Accreditation to perform electromagnetic emission measurement. 1.3. Testing Location Company: TA Technology (Shanghai) Co., Ltd. Address: No.145, Jintang Rd, Tangzhen Industry Park, Pudong City: Shanghai Post code: 201201 Country: P. R. China Contact: Xu Kai Telephone: +86-021-50791141/2/3 Fax: +86-021-50791141/2/3-8000 Website: http://www.ta-shanghai.com E-mail: xu…

Text truncated - open the document above for the full version.

RF Test Report Report No.: R2112A1085-R7 TA Technology (Shanghai) Co., Ltd. TA-MB-04-006R Page 100 of 172 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Frequency (MHz) Peak (dBuV/m) Average (dBuV/m) Limit (dBuV/m) Margin (dB) Meas. Time (ms) Height (cm) Polari zation Azimuth (deg) Correct Factor (dB) 1248.733333 47.99 --- 68.20 20.21 500.0 100.0 H 85.0 -8 1440.766667 --- 41.95 54.00 12.05 500.0 200.0 V 335.0 -7 1892.266667 49.44 --- 68.20 18.76 500.0 200.0 H 352.0 -5 2259.066667 --- 41.54 54.00 12.46 500.0 100.0 H 350.0 -4 2686.066667 51.56 --- 68.20 16.64 500.0 200.0 H 359.0 -4 2817.666667 --- 42.22 54.00 11.78 500.0 200.0 H 327.0 -3 3316.766667 53.14 --- 68.20 15.06 500.0 200.0 H 346.0 -3 3987.366667 --- 44.05 54.00 9.95 500.0 200.0 H 184.0 -1 5047.400000 --- 46.30 54.00 7.70 500.0 200.0 H 242.0 2 6021.100000 57.59 --- 68.20 10.61 500.0 200.0 H 359.0 5 6840.100000 60.10 --- 68.20 8.10 500.0 200.0 H 355.0 6 7598.200000 --- 48.64 54.00 5.36 500.0 200.0 H 299.0 7 15671.666667 --- 50.56 54.00 3.44 500.0 200.0 V 51.0 6.1 Remark: 1. Correction Factor = Antenna factor+ Insertion loss (cable loss + amplifier gain) RF Test Report Report No.: R2112A1085-R7 TA Technology (Shanghai) Co., Ltd. TA-MB-04-006R Page 101 of 172 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 802.11n (HT20) CH40 0 20 40 60 80 100 120 1G2G3G4G5G678G 礦 Level in dB /m Frequency in Hz FCC 15E band 1&2A RE PK FCC 15E band 1&2A RE AV Radiates Emission from 1GHz to 8GHz Note: The signal beyond the limit…
