SRQ-MF275UCDMA/EVDO/LTE CPE

MF275U Wireless Router User Manual ZTE CORPORATION NO. 55, Hi-tech Road South, ShenZhen, P.R.China Postcode: 518057 Tel: +86-755-26779999 URL: http://www.ztedevice.com E-mail: [email protected] LEGAL INFORMATION Copyright © 2014 ZTE CORPORATION. All rights reserved. No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice. Version No. : R1.0 Edition Time: May22, 2014 Manual No.: Confidential and Proprietary Information of ZTE CORPORATION 1 Getting Started The router operates on the LTE and CDMA networks and supports voice and data service. Interface Description 1. micro-SIM card slot Insert your micro-SIM card. 2. Reset button Reset your router. 3. External Antenna Connector To get strength SIG. 4. WPS button This button is used to start/end Wi-Fi Protected Setup authentication process and enable/disable the Wi-Fi function.  Hold it for 3 seconds to activate the WPS function. 2 Confidential and Proprietary Information of ZTE CORPORATION  When the WPS function is available, press it to deactivate the WPS function. Press it to enable/disable Wi-Fi WPS function. 5. Phone Standard RJ11 connector for telephone. 6. LAN Ethernet connector to computer. 7. Power Socket Connector to the external power supply. 8. Power Switch Turn your router on or off. 9. Indicators Indicate the status of your router. Indicators Indicator State Description Power Green steady AC power present Off No power VoiceMail Green steady New voicemail waiting Off No new voicemail Battery Green steady More than 50% discharging(charger not present) Green blinking More than 50% charging(charger present) Yellow steady 20% ~50% discharging(charger not present) Yellow blinking 20% ~50% charging(charger present) Red steady Less than 20% discharging(charger not present) Red blinking Less than 20% charging(charger present) Off Battery not present Wi-Fi Green steady Wi-Fi on. Off Wi-Fi off. Data network Green steady Connected to the LTE network Yellow steady Connected to CDMA 1x or EVDO Yellow blinking Roaming Red steady No service, limited service, searching, no micro-SIM card or other abnormal status Voice RSSI Green steady Strong(3,4&5bars) SIG Green blinking Roaming Confidential and Proprietary Information of ZTE CORPORATION 3 Yellow steady Weak(1&2bars) SIG Yellow blinking Roaming Red steady No service, limited service, searching Installing your router 1. Slide the back cover and remove it. 2. Install the battery. 3. Install the micro-SIM card.(Optional) 4 Confidential and Proprietary Information of ZTE CORPORATION IMPORTANT: Your device only supports the micro-SIM card. To avoid damaging the device, please use standard micro-SIM cards. Charge your router You can charge your router by using adapter. 1. Insert the charger lead carefully with the plug arrow facing the bottom of the router. 2. Do not use excessive force to insert the plug. 3. Make sure the plug is the right way round and lined up correctly and insert it gently. Connecting Your Router NOTE: If you want to use the mobile network to connect to Internet, you need to insert your micro-SIM card first. Confidential and Proprietary Information of ZTE CORPORATION 5 Switching on Your Router 1. Press and hold the Power Key to get started. Make sure that the power indicator is on. NOTE: Do not put anything on the top of the router. Do not lay routers to overlap each other during usage. 2. Wait 1～2 minutes after turning the router on before you use the service. The data network indicator should be lit on. NOTE:  When the router is turned off, an incoming caller will hear the prompt like “The number you have dialed is currently unavailable.”  If the data network indicator is red blinking constantly, try to move the router to another location. The router takes 1~2 minutes to initialize, attach to the network and obtain an IP address. Power Supply For normal operation, connect the router to the external power adapter. In case of power failure or when there is no available external power supply, the router will not work. About (U)SIM Card Avoid handling the (U)SIM card unnecessarily. Hold the card by the edges to prevent static damage. Keep the (U)SIM card away from electrical and magnetic appliances. If you cannot get service, make sure that： • You are in an area which has network coverage. • You are using the correct (U)SIM card. Internet Access Configuring Your PC Follow the following steps and figures for Windows XP to configure the Internet Protocol for your connection. NOTE:  Wireless Network Connection is used for Wi-Fi connection.  Local Area Connection is used for Network Cable connection. 1. Right-click My Network Places and then select Properties. 2. Right-click the icon for Connection, and then select Properties. 6 Confidential and Proprietary Information of ZTE CORPORATION 3. Select Internet Protocol(TCP/IP), and then click Properties. 4. Select these two items, and then click OK to finish the configuration. Confidential and Proprietary Information of ZTE CORPORATION 7 Wireless Connection（Optional） If you want to use Wi-Fi to connect your router, please refer to the following steps. 1. Make sure that the Wi-Fi network works normal. Please check the Wi-Fi Setting on the WebGUI Configuration page or check the Wi-Fi indicator . 2. Use your normal Wi-Fi application on the client to search for the available wireless networks. NOTE: Please set the client to obtain an IP address automatically, and the client will get an IP address like “192.168.1.100”. 3. Select the SSID of your router, and then click Connect. 8 Confidential and Proprietary Information of ZTE CORPORATION 4. Input the password, and then click Connect. NOTE: There may require the password …

Text truncated - open the document above for the full version.

RF_160, Issue 03 Declaration of Authorization We Name: <ZTE Corporation> Address: ZTE Plaza, Keji Road South, Shenzhen, China City: Shenzhen Country: China Declare that: Name Representative of agent: Michael Lin (1) Agent Company name: SPORTON INTERNATIONAL (KUNSHAN) INC Address: No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. City: Kunshan Country China is authorized to apply for Certification of the following product(s): Product description: CDMA/EVDO/LTE CPE Model Name: MF275U Trademark: ZTE on our behalf. Date: June 17, 2014 City: China Name: Min Zhang (2) Function: Certification Manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: ZTE Corporation Address : ZTE Plaza, Keji Road South, Shenzhen, China City: Shenzhen Country: China To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: SRQ-MF275U Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: The applicant deems to be trade secrets and proprietary. Planned Release Date STC: 180 days (notes 2, 3, 4, 5) Date: June 16, 2014 Name and signature of applicant: Min Zhang Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

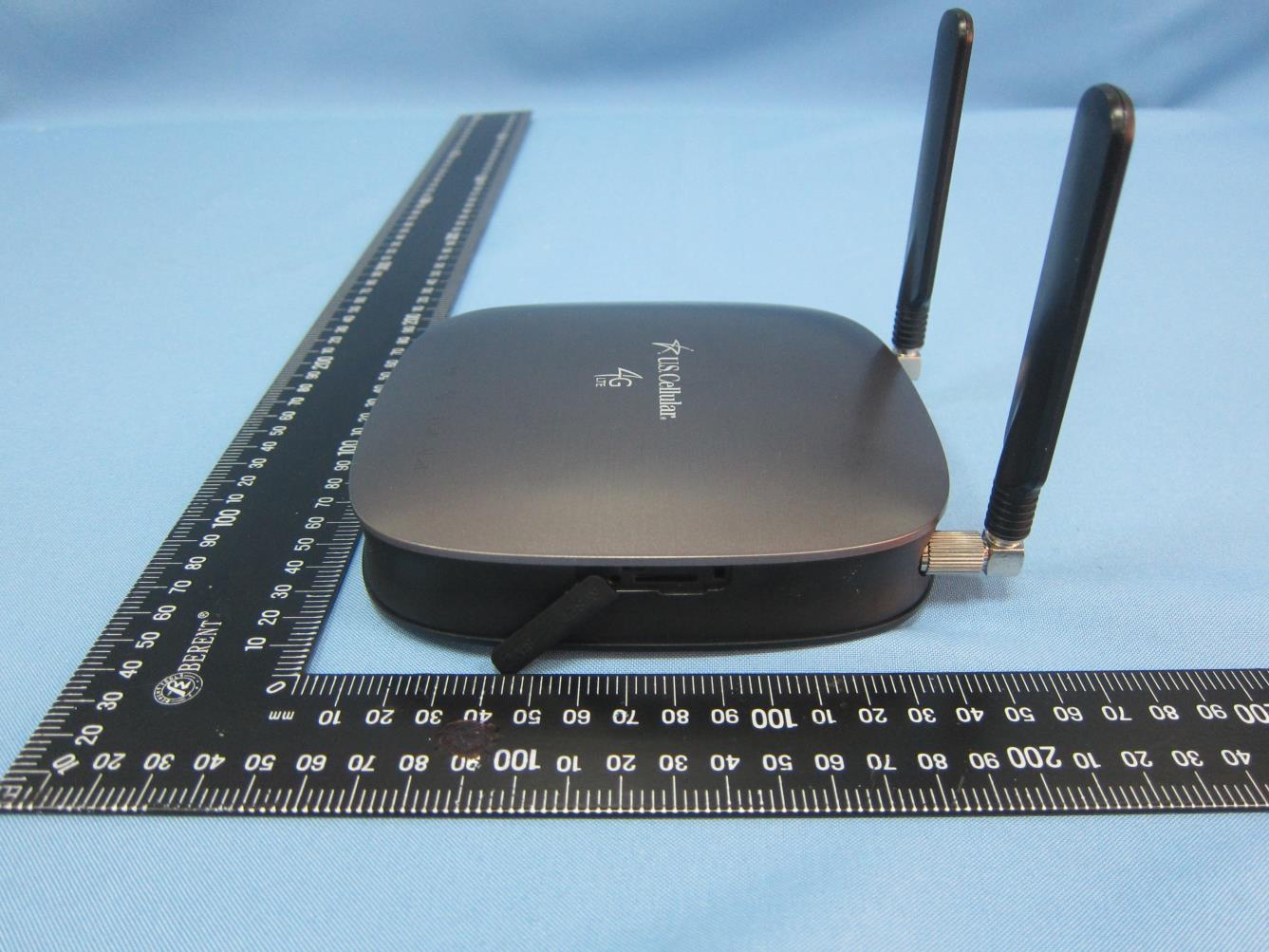

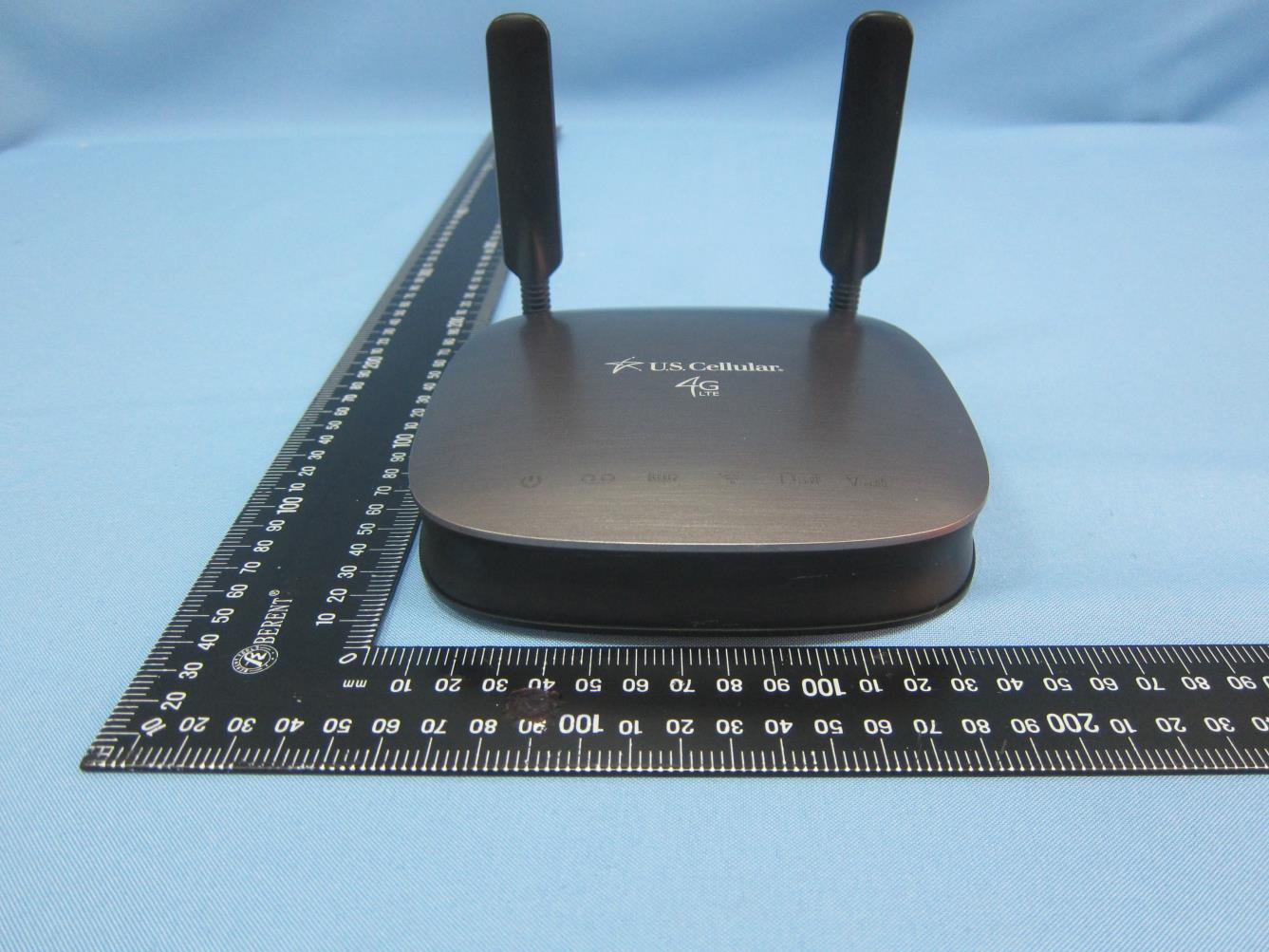

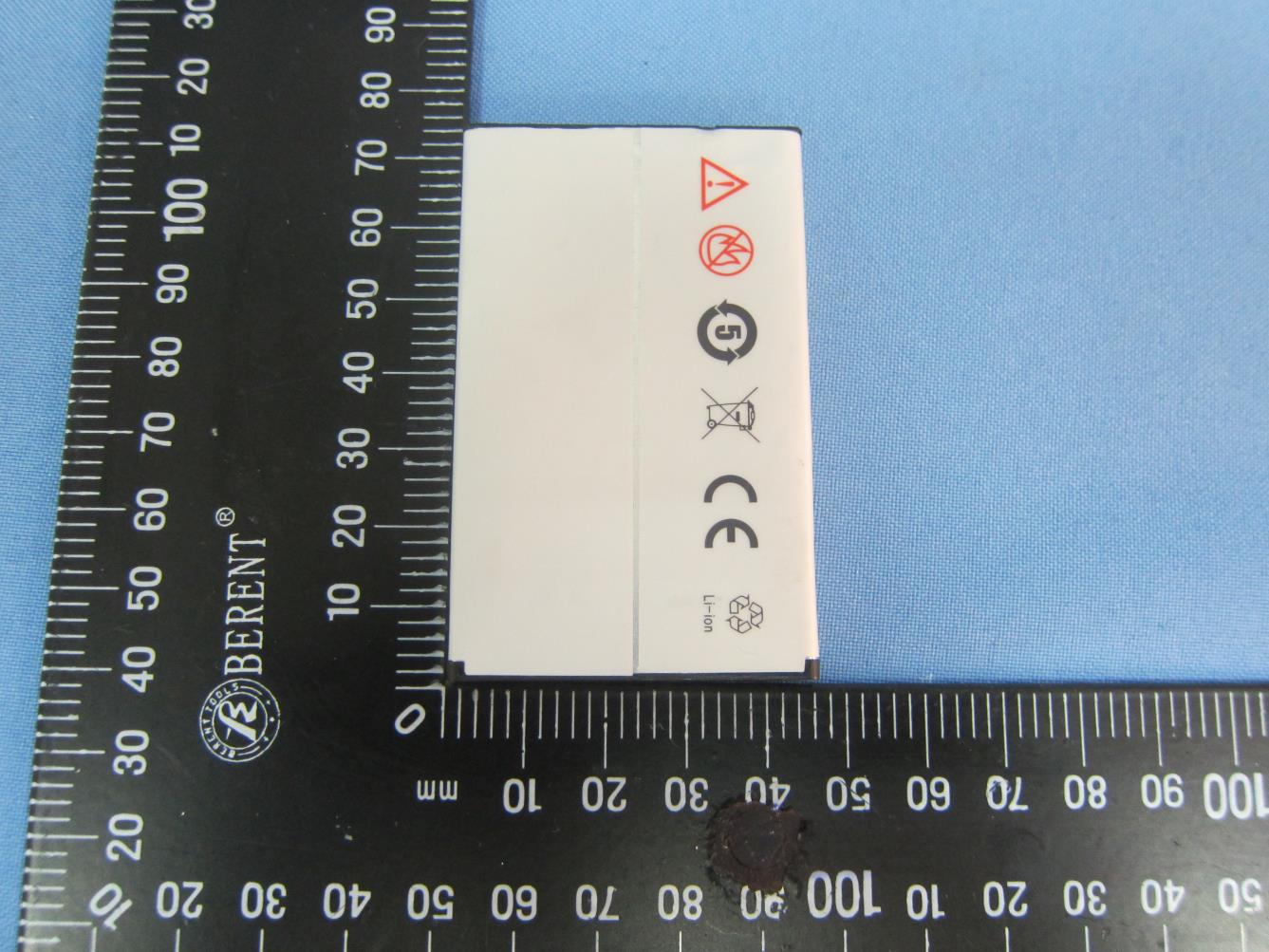

Photographs of EUT Report No.: EP450602 Brand Name: ZTE; Model Name: MF275U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 55 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U 1. External Photograph of EUT Photographs of EUT Report No.: EP450602 Brand Name: ZTE; Model Name: MF275U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 55 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U Photographs of EUT Report No.: EP450602 Brand Name: ZTE; Model Name: MF275U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 55 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U Photographs of EUT Report No.: EP450602 Brand Name: ZTE; Model Name: MF275U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 55 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U Photographs of EUT Report No.: EP450602 Brand Name: ZTE; Model Name: MF275U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 55 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U Photographs of EUT Report No.: EP450602 Brand Name: ZTE; Model Name: MF275U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 55 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U Photographs of EUT Report No.: EP450602 Brand Name: ZTE; Model Name: MF275U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 55 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U Photographs of EUT Report No.: EP450602 Brand Name: ZTE; Model Name: MF275U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 55 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U List of Accessory: Specification of Accessory AC Adapter Brand Name ZTE中兴 Model Name STC-A2O120150C55-C Battery Brand Name ZTE中兴 Model Name Li3723T42P3h704572 USB Cable Signal Line Type 1.5m, shielded cable, without core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP450602 Brand Name: ZTE; Model Name: MF275U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 55 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U 720510 Photographs of EUT Report No.: EP450602 Brand Name: ZTE; Model Name: MF275U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 55 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U AC Adapter Photographs of EUT Report No.: EP450602 Brand Name: ZTE; Model Name: MF275U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 55 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U Battery Photographs of EUT Report No.: EP450602 Brand Name: ZTE; Model Name: MF275U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 55 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U

ZX668.38JA-01/18 ZX668.38JA-01/18 1. 后壳型号标贴2 2 Model: MF275U MEID(D): XXX XXX XXX XXX XXX XXX MEID(H)/IMEI(D): XXX XXX XXX XXX XX FCC ID: SRQ-MF275U SKU: ZTEMF275U Mfg.Date Code: S/N: XXXXXXXXXXXX

Photographs of EUT Report No.: EP450602 Brand Name: ZTE; Model Name: MF275U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 55 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U 3. Internal Photograph of EUT LTE Diversity Antenna <Rx> CDMA Antenna <Tx / Rx> LTE/1XEVDO Antenna <Tx / Rx> 5GHz WLAN Antenna 0<Tx / Rx> 2.4GHz WLAN Antenna 1 <Tx / Rx> GPS Antenna < Rx> 2.4GHz WLAN Antenna 0 <Tx / Rx> 5GHz WLAN Antenna 1 <Tx / Rx> Photographs of EUT Report No.: EP450602 Brand Name: ZTE; Model Name: MF275U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 55 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U Photographs of EUT Report No.: EP450602 Brand Name: ZTE; Model Name: MF275U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 55 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U Photographs of EUT Report No.: EP450602 Brand Name: ZTE; Model Name: MF275U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 55 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U Photographs of EUT Report No.: EP450602 Brand Name: ZTE; Model Name: MF275U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 55 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U Photographs of EUT Report No.: EP450602 Brand Name: ZTE; Model Name: MF275U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 55 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U Photographs of EUT Report No.: EP450602 Brand Name: ZTE; Model Name: MF275U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 55 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U Photographs of EUT Report No.: EP450602 Brand Name: ZTE; Model Name: MF275U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 55 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U Photographs of EUT Report No.: EP450602 Brand Name: ZTE; Model Name: MF275U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 55 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U Photographs of EUT Report No.: EP450602 Brand Name: ZTE; Model Name: MF275U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 55 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U Photographs of EUT Report No.: EP450602 Brand Name: ZTE; Model Name: MF275U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 55 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U Photographs of EUT Report No.: EP450602 Brand Name: ZTE; Model Name: MF275U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 55 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U Photographs of EUT Report No.: EP450602 Brand Name: ZTE; Model Name: MF275U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 55 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U Photographs of EUT Report No.: EP450602 Brand Name: ZTE; Model Name: MF275U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 26 of 55 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U Photographs of EUT Report No.: EP450602 Brand Name: ZTE; Model Name: MF275U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 27 of 55 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U Photographs of EUT Report No.: EP450602 Brand Name: ZTE; Model Name: MF275U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 28 of 55 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U Photographs of EUT Report No.: EP450602 Brand Name: ZTE; Model Name: MF275U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 29 of 55 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U Photographs of EUT Report No.: EP450602 Brand Name: ZTE; Model Name: MF275U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 30 of 55 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U Photographs of EUT Report No.: EP450602 Brand Name: ZTE; Model Name: MF275U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 31 of 55 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U Photographs of EUT Report No.: EP450602 Brand Name: ZTE; Model Name: MF275U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 32 of 55 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U Photographs of EUT Report No.: EP450602 Brand Name: ZTE; Model Name: MF275U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 33 of 55 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U Photographs of EUT Report No.: EP450602 Brand Name: ZTE; Model Name: MF275U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 34 of 55 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-05…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U FCC Test Report Report No. : FC450602 FCC Test Report APPLICANT : ZTE CORPORATION EQUIPMENT : CDMA/EVDO/LTE CPE BRAND NAME : ZTE MODEL NAME : MF275U FCC ID : SRQ-MF275U STANDARD : FCC 47 CFR FCC Part 15 Subpart B CLASSIFICATION : Certification The product was received on May 06, 2014 and testing was completed on May 30, 2014. We, SPORTON INTERNATIONAL (KUNSHAN) INC., would like to declare that the tested sample has been evaluated in accordance with the test procedures given in ANSI C63.4-2003 and has been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Louis Wu / Manager Approved by: Jones Tsai / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P. R. C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U FCC Test Report Report No. : FC450602 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1. GENERAL DESCRIPTION .......................................................................................................................... 5 1.1. Applicant ............................................................................................................................................ 5 1.2. Manufacturer ..................................................................................................................................... 5 1.3. Feature of Equipment Under Test ..................................................................................................... 5 1.4. Product Specification of Equipment Under Test ............................................................................... 6 1.5. Modification of EUT ........................................................................................................................... 7 1.6. Test Site ............................................................................................................................................ 7 1.7. Applied Standards ............................................................................................................................. 7 2. TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 8 2.1. Test Mode ......................................................................................................................................... 8 2.2. Connection Diagram of Test System ................................................................................................ 9 2.3. Support Unit used in test configuration and system .......................................................................... 9 2.4. EUT Operation Test Setup .............................................................................................................. 10 3. TEST RESULT ........................................................................................................................................... 11 3.1. Test of AC Conducted Emission Measurement .............................................................................. 11 3.2. Test of Radiated Emission Measurement ....................................................................................... 15 4. LIST OF MEASURING EQUIPMENT ........................................................................................................ 19 5. UNCERTAINTY OF EVALUATION ........................................................................................................... 20 APPENDIX A. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U FCC Test Report Report No. : FC450602 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FC450602 Rev. 01 Initial issue of report Jun. 06, 2014 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U FCC Test Report Report No. : FC450602 SUMMARY OF TEST RESULT Report Section FCC RuleDescription Limit Result Remark 3.1 15.107 AC Conducted Emission< 15.107 limits PASS Under limit 4.81 dB at 1.590 MHz 3.2 15.109 Radiated Emission < 15.109 limits PASS Under limit 8.42 dB at 42.610 MHz SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U FCC Test Report Report No. : FC450602 1. General Description 1.1. Applicant ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P. R. China 1.2. Manufacturer ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P. R. China 1.3. Feature of Equipment Under Test Product Feature Equipment CDMA/EVDO/LTE CPE Brand Name ZTE Model Name MF275U FCC ID SRQ-MF275U EUT supports Radios application CDMA/EV-DO/LTE/ WLAN 2.4GHz 802.11b/g/n HT20/HT40/ WLAN 5GHz 802.11a/n HT20/HT40 HW Version dcmB SW Version MF275U1.0.3 EUT Stage Identical Prototype Remark: The above EUT's information was declared by …

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : A1 of A2 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U FCC Test Report Report No. : FC450602 Appendix A. Setup Photographs <Conducted Emission> Mode 1 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : A2 of A2 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 06, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF275U FCC Test Report Report No. : FC450602 <Radiated Emission> Mode 1 LF HF
