SRQ-MF64Mobile Hotspot

GETTING TO KNOW YOUR MOBILE HOTSPOT Charging & USB port LCD screen ON/OFF switch WPS keymicro-SIM card slot Part Description Micro-SIM card slot Install the micro-SIM card. WPS key  Double-press to show SNTP time, SSID, Wi-Fi password and software version on the LCD screen. Double-press again to exit.  When the Wi-Fi function is enabled, hold it for less than 3 seconds to disable the Wi-Fi function.  When the Wi-Fi function is enabled, hold it for more than 3 seconds to active the WPS function.  When the Wi-Fi function is disabled, hold it for more than 3 seconds to enable the Wi-Fi function only. ON/OFF switch Slide it to turn on/off the HotSpot. LCD Screen It shows the signal type, signal strength, battery, Wi-Fi, etc. Charging/ USB port  Charge your device.  Connect the client to your device via USB cable. Reset point Insert a pin and hold it for 3 seconds to reset your device. Coverage not available in some areas. Please see coverage details at T-Mobile.com. Device and screen images are simulated. Capable device is required to achieve 4G speed. INDICATORS Indicates that your Mobile HotSpot is on T-Mobile’s 2G network. Indicates how many devices are connected to the Mobile HotSpot. Indicates that your Mobile HotSpot is on T-Mobile’s 3G network. Indicates that the Wi-Fi function is disabled. Indicates that your Mobile HotSpot is on T-Mobile’s 4G network. New text message in your message Inbox. There is no signal. There is no battery installed. Indicates that your device is connected to the Internet. Indicates that the battery power is low. Indicates that your device is disconnected from the Internet. Indicates that the battery power is full. SET UP YOUR MOBILE HOTSPOT 1. Lift SIM cover and Install SIM card. 2. Power on. Slide to turn on Charge your Mobile HotSpot You can charge your Mobile HotSpot using the charger included in the box or by plugging it into your computer using the USB cable. CONNECT & GO Connect your Wi-Fi device to your Mobile HotSpot 1. Power on your Mobile HotSpot. 2. On your computer or other Wi-Fi enabled device, search for available Wi-Fi Networks and select the default Network Name (SSID) for your Mobile HotSpot. 3. Enter the default password and click OK. Note:  It may take up to a minute to establish a connection.  Then the default Network Name (SSID) and password will appear in the screen on your Mobile HotSpot or lift off the battery cover to find your default Network Name (SSID) and password  It may take up to a minute to establish a connection. 4. Open a web browser and go to www.T-Mobile.com/ConnectMe  Simply follow the on-screen instructions to set up your No An- nual Contract data service. Note: Service or use is your agreement to T-Mobile’s Terms and Conditions. T-Mobile requires ARBITRATION of disputes UNLESS YOU OPT-OUT WITHIN 30 DAYS OF ACTIVATION. See T-Mobile’s Terms and Conditions for details at www.T-Mobile.com/terms-condi- tions. USE THE WPS If your client device supports WPS, you don’t have to input the pass- word manually after WPS has been available. Please do the follow- ing steps: 1. Power on your Mobile HotSpot and enable the Wi-Fi function. 2. Press and hold the WPS key on your device for more than 3 sec- onds to start Wi-Fi Protected Setup authentication process. 3. Enable the WPS function on your client to respond to this au- thentication process. 4. Follow the system prompts on your client to finish the connec- tion. Note: For the detailed operations about the client, please refer to the client’s instruction MANAGING YOUR MOBILE HOTSPOT Access T-Mobile 4G Mobile Hotspot You can access your 4G Mobile Hotspot device information, using an Internet browser To access using a browser, do the following: 1. Connect to your hotspot device via Wi-Fi using the network con- nection software on your computer. Provide the Wi-Fi network password, if requested. 2. Open a browser and enter http://mobile.hotspot in the address bar. The T-Mobile 4G Mobile Hotspot login screen appears. 3. Enter your Password in the field provided. The default password is admin. 4. Select the Save Password checkbox if you wish to bypass the login screen in the future. 5. Click Login. If you entered the correct password, the Dashboard screen appears. To access via USB cable, do the following: 1. Connect your hotspot device to the PC with USB cable. 2. Power on your device. 3. The OS detects and recognizes new hardware and finishes the installation automatically. After successful installation, the icon will appear on your desktop. NOTE: If the system does not launch installation automatically, you can run the installation program in path of My Computer > Mobile Hotspot. 4. Double click the icon to open the login screen. 5. Enter your Password in the field provided. The default password is admin. 6. Select the Save Password checkbox if you wish to bypass the login screen in the future. 7. Click Login. If you entered the correct password, the Dashboard screen appears. Change Mobile Hotspot Admin Password 1. Access http://mobile.hotspot 2. Click Settings in the navigation area. 3. Select the Device Settings tab 4. Follow steps under Account Management to update your Pass- word 5. Click Apply. If everything is entered correctly, the Admin Pass- word Changed dialog appears indicating the password was suc- cessfully changed. Change Mobile Hotspot Network Name (SSID) 1. Access http://mobile.hotspot. 2. Click Settings in the navigation.. 3. Select the Wi-Fi Settings tab. 4. Change the name that appears in the Network Name (SSID) field in the Wi-Fi Settings area. 5. Select or deselect the Broadcast Network Name checkbox to enable or disable broadcasting the hotspot’s Network Name (SSID). 6. Click Apply to save your changes on the Wi-Fi Settings tab of the Settings screen. Change Mobile Hotspot Wi-Fi Password 1. Access http://mobile.hotspot. 2. Click Settings in the navigation area. 3. Select the Wi-Fi Settings tab. 4. Change the value that appears in the Pass Phrase field …

Text truncated - open the document above for the full version.

T-Mobile 4G HotSpot Z64 Product Safety and Warranty Information User Manual Copyright © 2014 by ZTE Corporation All rights reserved No part of this publication may be excerpted, reproduced, translated, or utilized in any form or by any means, electronic the prior written permission of ZTE Corporation. ZTE Corporation operates a policy of continuous development. ZTE Corporation reserves the right to make changes and improvements to any of the products described in this document without prior notice. Release: V1.0 Manual No: 079584506641 Contents 1. Health and Safety Information ........................................ 4 General Guidelines ............................................................ 4 Aircraft Safety .................................................................... 7 Hospital Safety................................................................... 7 Road Safety ....................................................................... 7 Vehicles Equipped with an Airbag ..................................... 8 Third Party Equipment ....................................................... 8 ....................................................................... 8 FCC Compliance(FOR PART 15B/PART 15C) .................. 8 RF Exposure Information (SAR) ........................................ 9 CTIA Compliance .............................................................11 Battery Caution ............................................................... 12 2. Consumer Limited Warranty ......................................... 13 1. Health and Safety Information General Guidelines • S o m e e l e c t r o n i c d e v i c e s m a y b e s u s c e p t i b l e t o electromagnetic interference. Locate the device away from TV set, radio and other electronic equipment to avoid electromagnetic interference. • The device may interfere with medical devices like hearing aids and pacemakers. Consult a physician or the manufacturer of the medical device before using the device. • Do not use your device in dangerous environments such as oil terminals or chemical factories where there are explosive gases or explosive products being processed. • Please use original accessories or accessories that are authorized by ZTE. Unauthorized accessories may affect the device performance, damage the device or cause danger to you. • Do not attempt to dismantle the device. There are no user serviceable parts. • Do not allow the device or accessories to come into contact with liquid or moisture at an y time. Do not immerse the device in any liquid. • Do not place objects on top of the device. This may lead to overheating of the device. • The device must be used in ventilated environment. • Do not expose the device to direct sunlight or store it in hot areas. High temperature can shorten the life of electronic devices. • Do not allow children to play with the device. • Use an antistatic cloth to clean the device. Do not use chemical or abrasive cleanser as these could damage the plastic case. • Use the device within the temperature range of -10°C ~ +55°C, and the storage temperature range is -20°C ~ +70°C. The humidity range is 5%~90%. • Do not use your device during a thunderstorm. • Do not take out your (U)SIM card unnecessarily. The (U) SIM card may be easily lost or it can be damaged by static electricity. • Do not place the device alongside computer disks, credit cards, travel cards or other magnetic media. The information contained on the disks or cards may be affected by the device. • Do not paint the device. • Do not drop, throw, or subject the device to rough treatment. • Remember to recycle: The cardboard packing supplied with this device is ideal for recycling. • Do not disassemble or open crush, bend or deform, puncture or shred • Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse or expose to water or • • Only use the battery with a charging system that has been qualified with the system per this standard. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage, or other hazard. • Do not short circuit a battery or allow metallic conductive objects to contact battery terminals. • Replace the battery only with another battery that has been qualified with the system per this standard, IEEE- • Promptly dispose of used batteries in accordance with local regulations • Battery usage by children should be supervised. • Avoid dropping the device or battery. If the device or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service center for inspection. • hazard. For those host devices that utilize a USB port as a charging source, the host device's user manual shall include a statement that the device shall only be connected to CTIA certified adapters, products that bear the USB-IF logo or products that have completed the USB-IF compliance program. Aircraft Safety • Do not use your device before the airplane takes off. In order to protect airplane’s communication system from interference, it is never allowed to use the device when in flight. Get aircrew’s permission if you want to use the device prior to take-off. Hospital Safety • Follow the instructions given by any respective medical facility regarding the use of Wireless devices on their premises. Road Safety • You must exercise proper control of your vehicle at all times. Give your full attention to driving. • Observe all of the recommendations contained in your local • Please check if local laws and/or regulations restrict the use of wireless devices while driving. • Do not use your device at a refueling point, such as a gas station, even if you are not refueling your own car. • the same compartment as the device. • Electronic systems in a vehicle, such as anti-lock brakes, speed control and fuel injection systems are not normally affected by radio transmissions. The manufacturer of such equipment may advise if it is adequately shielded f…

Text truncated - open the document above for the full version.

ZTE Corporation ZTE Plaza, Keji Road South, Shenzhen, China Tel: +86-21-68897541 ; Fax: +86-21-50801070 Date: July 10, 2014 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: SRQ-MF64 To Whom It May Concern: We, ZTE Corporation, declare that MF64 I/O connect can only support charging. It can’t support USB with PC for data transfer. Sincerely yours, Min Zhang

ZTE Corporation ZTE Plaza, Keji Road South, Shenzhen, China Tel: +86-21-68897541 ; Fax: +86-21-50801070 Statement We, ZTE Corporation, states that our device, FCC ID: SRQ-MF64. The label will be put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. Contact Person: Min Zhang Company: ZTE Corporation TEL: +86-21-68897541 FAX: +86-21-50801070 E-mail: [email protected]

RF_160, Issue 03 Declaration of Authorization We Name: <ZTE Corporation> Address: ZTE Plaza, Keji Road South, Shenzhen, China City: Shenzhen Country: China Declare that: Name Representative of agent: Michael Lin (1) Agent Company name: SPORTON INTERNATIONAL (KUNSHAN) INC Address: No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. City: Kunshan Country China is authorized to apply for Certification of the following product(s): Product description: Mobile Hotspot Model Name: MF64 Trademark: ZTE on our behalf. Date: July 10, 2014 City: China Name: Min Zhang (2) Function: Certification Manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: ZTE Corporation Address : ZTE Plaza, Keji Road South, Shenzhen, China City: Shenzhen Country: China To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: SRQ-MF64 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: The applicant deems to be trade secrets and proprietary. Planned Release Date STC: 180 days (notes 2, 3, 4, 5) Date: July 10, 2014 Name and signature of applicant: Min Zhang Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

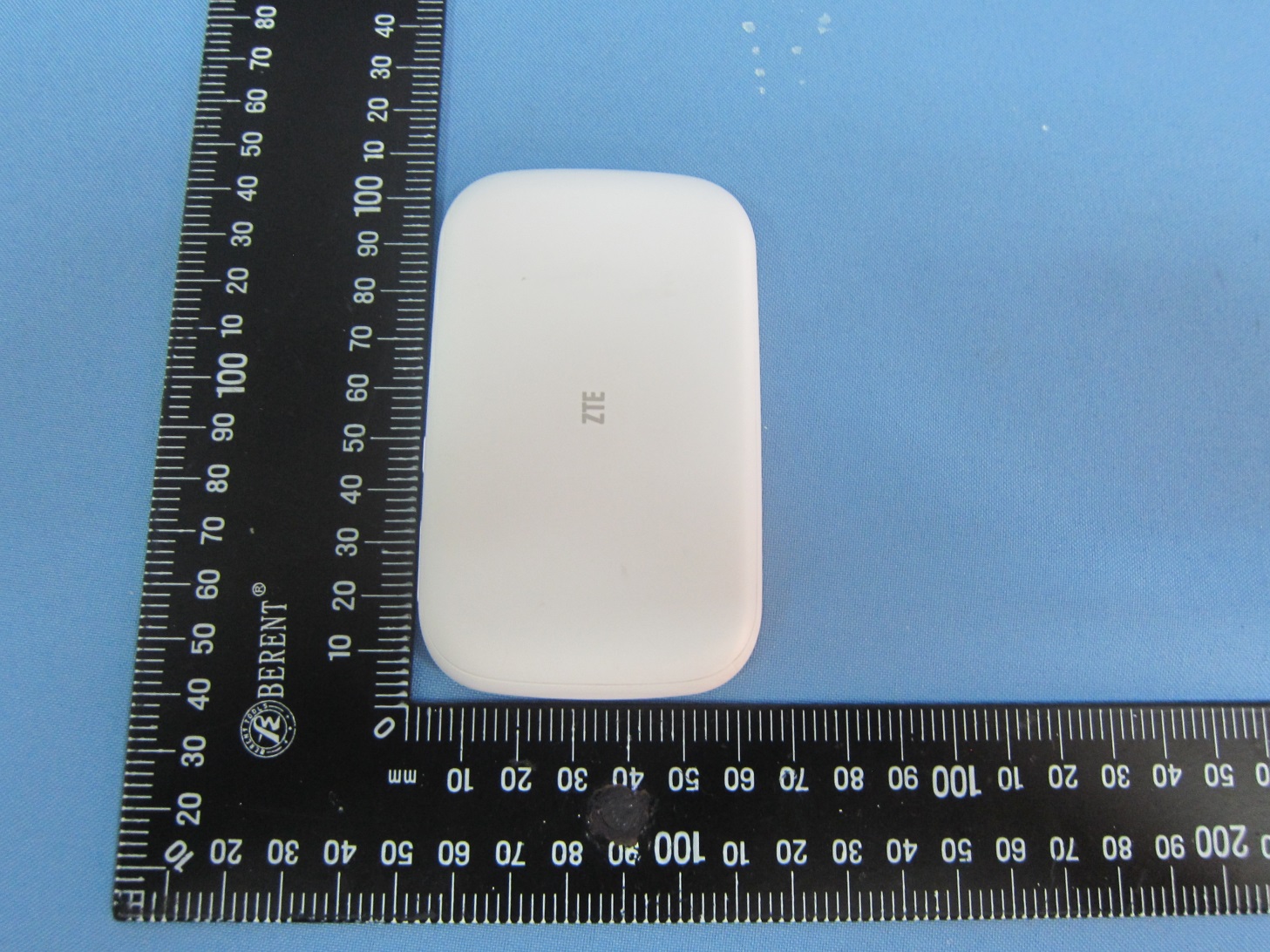

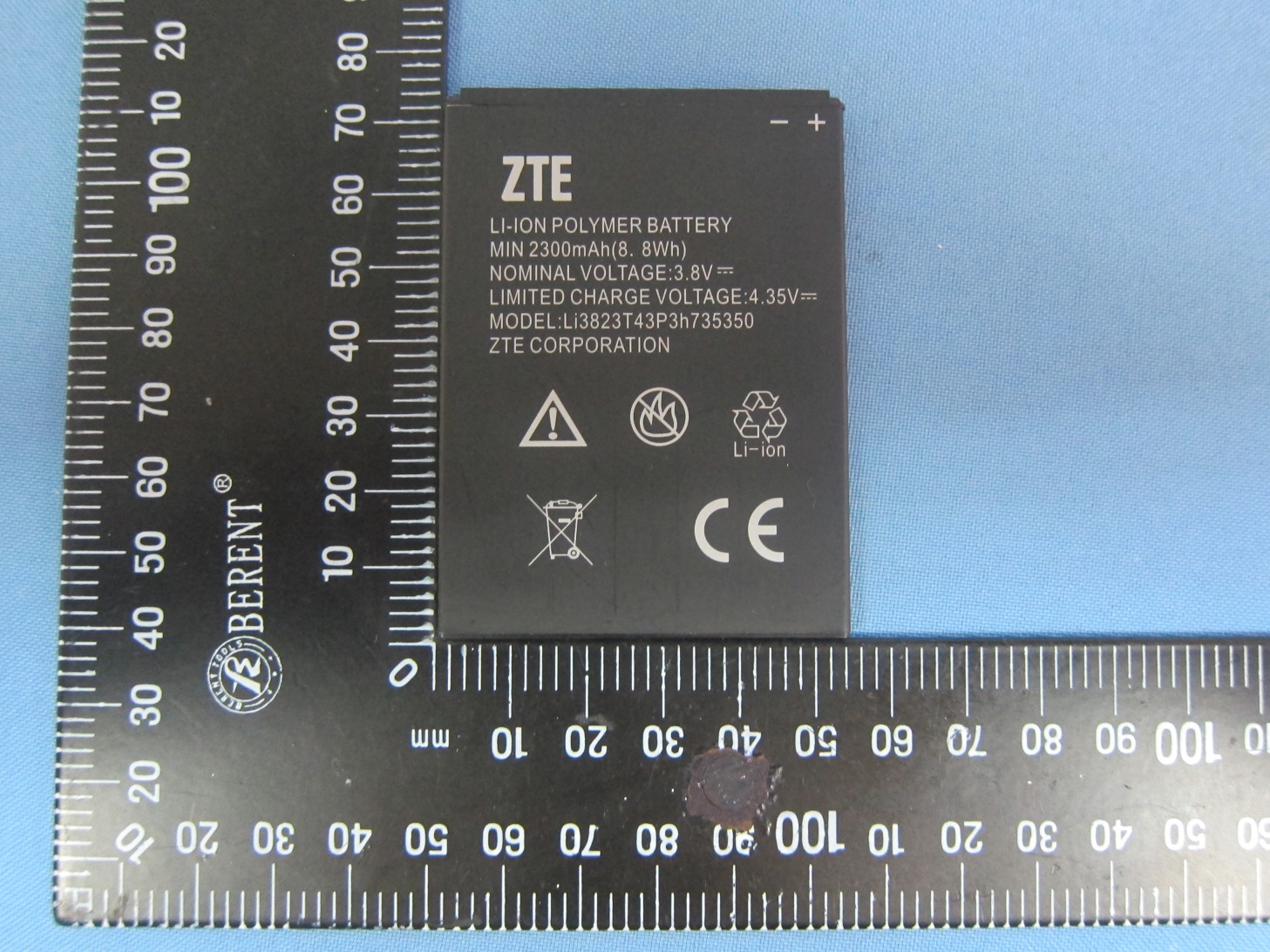

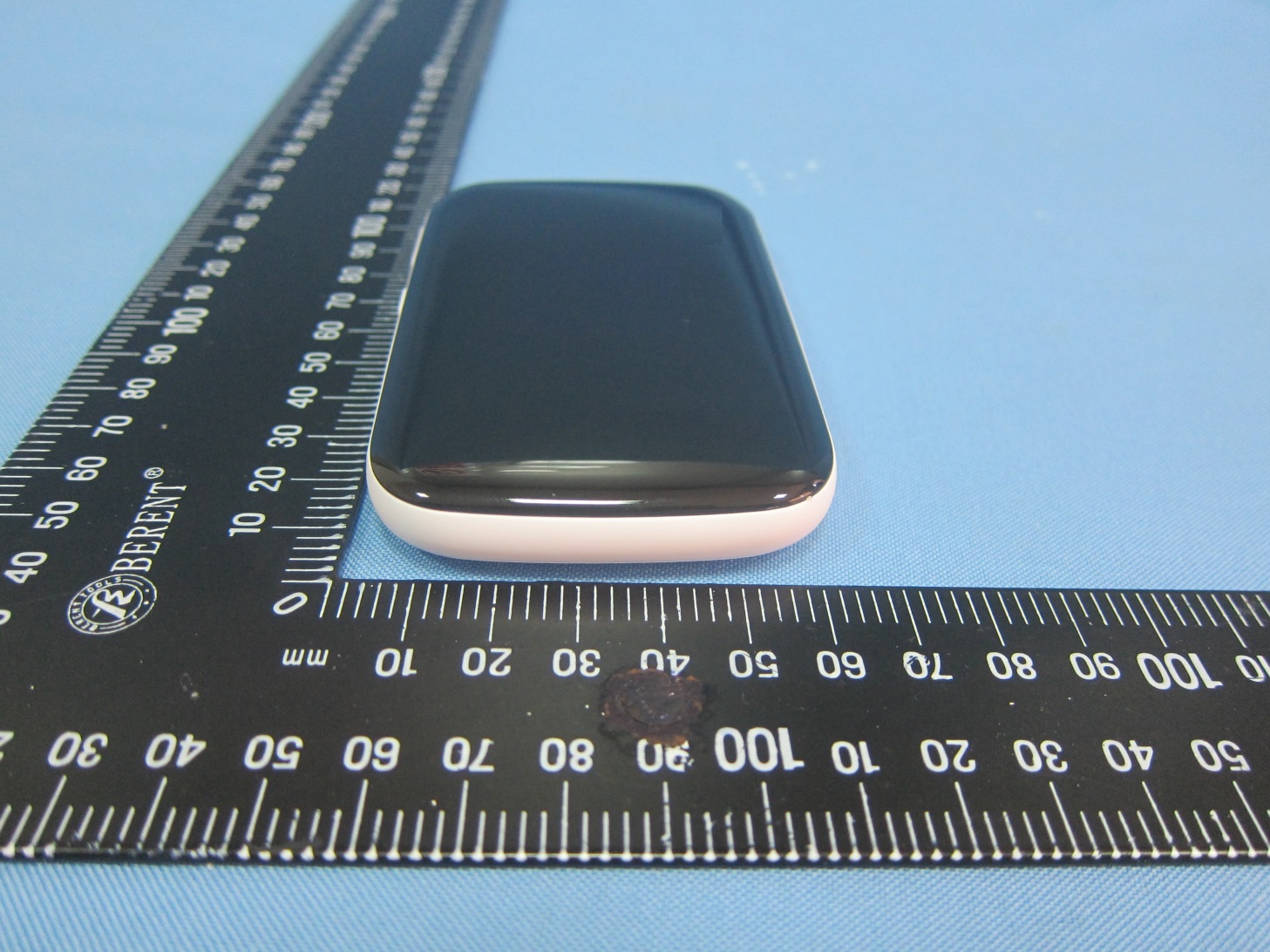

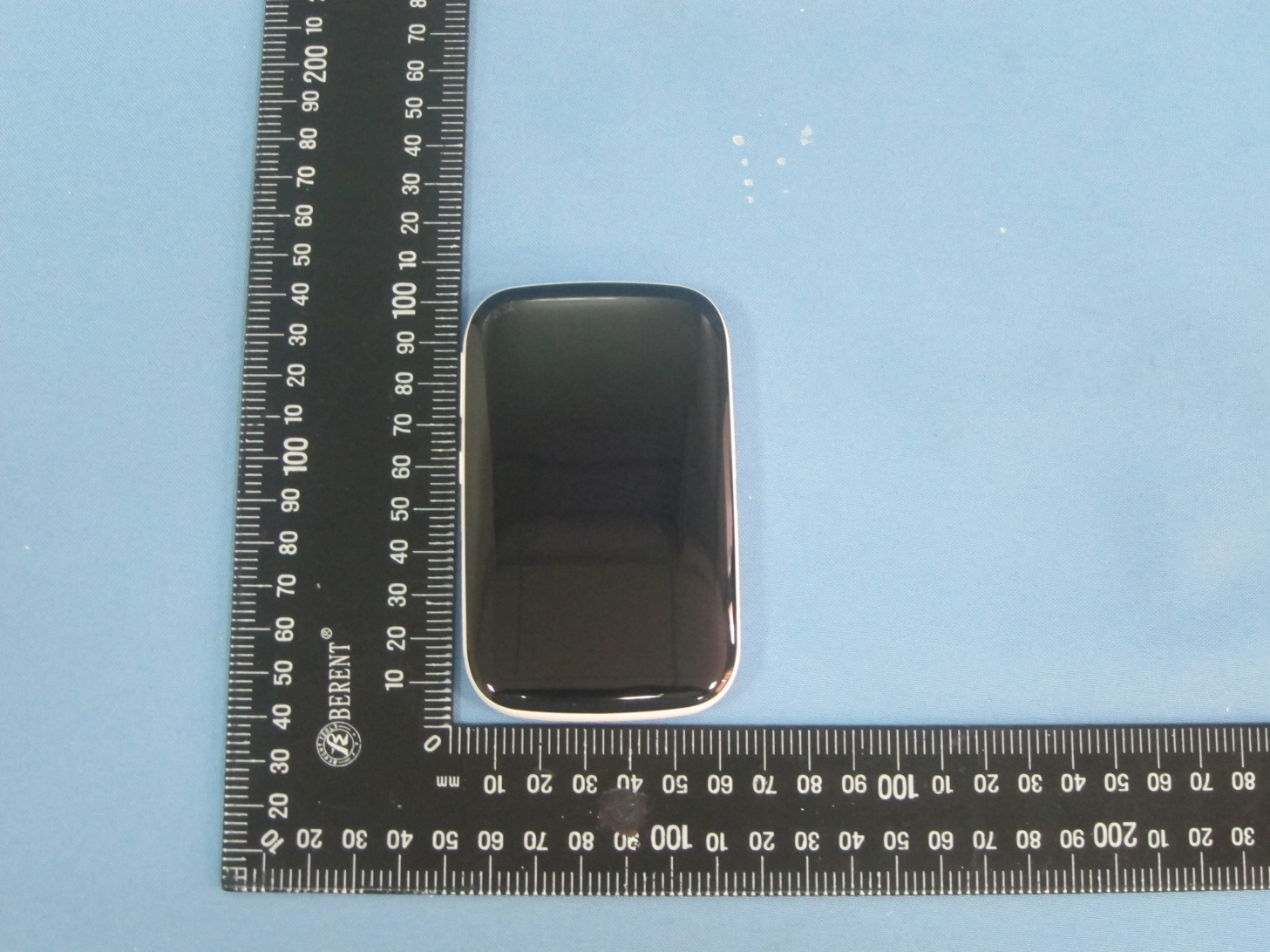

Photographs of EUT Report No.: EP442815 Brand Name: ZTE / Model Name: MF64 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 10, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF64 1. External Photograph of EUT Photographs of EUT Report No.: EP442815 Brand Name: ZTE / Model Name: MF64 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 10, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF64 Photographs of EUT Report No.: EP442815 Brand Name: ZTE / Model Name: MF64 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 10, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF64 Photographs of EUT Report No.: EP442815 Brand Name: ZTE / Model Name: MF64 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 10, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF64 Photographs of EUT Report No.: EP442815 Brand Name: ZTE / Model Name: MF64 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 10, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF64 Photographs of EUT Report No.: EP442815 Brand Name: ZTE / Model Name: MF64 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 10, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF64 Photographs of EUT Report No.: EP442815 Brand Name: ZTE / Model Name: MF64 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 10, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF64 Specification of Accessory AC Adapter Brand Name ZTE中兴 Model Name STC-A51A-Z Battery Brand Name ZTE Model Name Li3823T43P3h735350 USB Cable Signal Line Type 1.0m shielded without core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP442815 Brand Name: ZTE / Model Name: MF64 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 10, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF64 Photographs of EUT Report No.: EP442815 Brand Name: ZTE / Model Name: MF64 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 10, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF64 AC Adapter Photographs of EUT Report No.: EP442815 Brand Name: ZTE / Model Name: MF64 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 10, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF64 Battery Photographs of EUT Report No.: EP442815 Brand Name: ZTE / Model Name: MF64 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 10, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-MF64

1/1 2014/7/10file://192.168.7.2/SportonFiles//////FCC/442...

SPORTON INTERNATIONAL (XI’AN) INC. TEL : +86-029-8860-8767 / FAX : +86-029-8860-8791 Issued Date : Jul. 04, 2014 FCC ID : SRQ-MF64 Page C1 of C1 Form version. : 140422 FCC SAR Test Report Report No. : FA442815 Appendix C. DASY Calibration Certificate The DASY calibration certificates are shown as follows. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 Extended Dipole Calibrations Referring to KDB 865664 D01 v01r03, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Dipole Verification Data> - D835V2, serial no. 4d151(Date of Measurement 03.24.2014) 835MHz - Head 835MHz – Body SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 <Justification of the extended calibration> D835V2 – serial no. 4d151 TSL Head Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 03.25.2013 -31.201 51.736 -2.201 -25.418 47.059 -4.2930 03.24.2014 -30.505 2.2351.767 0.031-2.252 -0.051-25.828 -1.61347.599 0.54 -4.453 -0.16 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 Extended Dipole Calibrations Referring to KDB 865664 D01 v01r03, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Dipole Verification Data> - D1750V2, serial no. 1090(Date of Measurement 03.26.2014) 1750MHz - Head 1750MHz – Body SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 <Justification of the extended calibration> D1750V2 – serial no. 1090 TSL Head Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 03.27.2013 -41.821 49.838 -0.793 -26.2 45.336 0.1797 03.26.2014 -37.025 11.4549.553 -0.2850.808 1.601-26.949 -2.8646.183 0.874 0.87760.698 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 Extended Dipole Calibrations Referring to KDB 865664 D01 v01r03, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Dipole Verification Data> - D1900V2, serial no. 5d170(Date of Measurement 03.26.2014) 1900MHz - Head 1900MHz – Body SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 <Justification of the extended calibration> D1900V2 – serial no. 5d170 TSL Head Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 03.27.2013 -24.733 53.791 4.682 -25.967 49.588 4.996 03.26.2014 -24.628 0.42555.002 1.2113.868 -0.814-26.017 -0.19349.067 -0.521 5.486 0.490 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration.

SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 Extended Dipole Calibrations Referring to KDB 865664 D01 v01r03, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Dipole Verification Data> - D2450V2, serial no. 908(Date of Measurement 03.25.2014) 2450MHz - Head 2450MHz – Body SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 <Justification of the extended calibration> D2450V2 – serial no. 908 TSL Head Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 03.26.2013 -24.251 56.531 -0.125 -30.033 52.631 1.881 03.25.2014 -25.155 -0.37356.061 -0.47-0.059 0.066-29.785 0.82652.379 -0.252 1.510 -0.371 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration.

SPORTON INT TEL : +86-029- FCC ID : SRQ FC We, S has b the ap The t writte repro 1F A Revie TERNATIONAL -8860-8767 / FA -MF64 CC SAR Te SPORTON IN been evalua pplicable tec test results en approval oduced exce F, Building A pproved by ewed by: Eri L (XI’AN) INC. AX : +86-029-88 est Repor FCC APPLICA EQUIPM BRAND MODEL FCC ID STAND A NTERNATIO ted in acco chnical stan in this rep of SPORTO ept in full. SPORTO A3, No. 39 C : Jones Tsa ic Huang / D 860-8791 rt C SAR ANT : MENT : NAME : NAME : : ARD : ONAL (XI’AN rdance with ndards. port apply e ON INTERN ON INTER Chuangye R ai / Manager Deputy Mana Page 1 of R Tes :ZTE COR :Mobile Ho :ZTE :MF64 :SRQ-MF6 :FCC 47 C ANSI/IEE IEEE 152 N) INC., wou h the proced exclusively ATIONAL ( X ERNATION Rd., Xi'an H ager 31 st Re RPORATION otspot 64 CFR Part 2 E C95.1-1 9 8-2003 ld like to de dures and h to the test XI’AN) INC., NAL (XI’A Hi-tech Zone Iss Form eport N (2.1093) 992 eclare that t had been in ed model / the test r e AN) INC. e, Shanxi Pr sued Date : Ju m version. : 14 Report t the tested s n complianc / sample. W eport shall n . Province, P.R l. 04, 2014 0422 t No. : FA442 sample ce with Without not be R.C. 2815 SPORTON INTERNATIONAL (XI’AN) INC. TEL : +86-029-8860-8767 / FAX : +86-029-8860-8791 Issued Date : Jul. 04, 2014 FCC ID : SRQ-MF64 Page 2 of 31 Form version. : 140422 FCC SAR Test Report Report No. : FA442815 Table of Contents 1. Statement of Compliance ..............................................................................................................................................4 2. Administration Data .......................................................................................................................................................5 3. Guidance Standard ........................................................................................................................................................5 4. Equipment Under Test (EUT) ........................................................................................................................................6 4.1 General Information ................................................................................................................................................6 4.2 Maximum Tune-up Limit ..........................................................................................................................................7 5. RF Exposure Limits .......................................................................................................................................................8 5.1 Uncontrolled Environment .......................................................................................................................................8 5.2 Controlled Environment ...........................................................................................................................................8 6. Specific Absorption Rate (SAR) ....................................................................................................................................9 6.1 Introduction .............................................................................................................................................................9 6.2 SAR Definition .........................................................................................................................................................9 7. System Description and Setup ...................................................................................................................................10 8. Measurement Procedures ...........................................................................................................................................11 8.1 Spatial Peak SAR Evaluation ................................................................................................................................ 11 8.2 Power Reference Measurement............................................................................................................................12 8.3 Area Scan .............................................................................................................................................................12 8.4 Zoom Scan ............................................................................................................................................................13 8.5 Volume Scan Procedures ......................................................................................................................................13 8.6 Power Drift Monitoring ...........................................................................................................................................13 9. Test Equipment List .....................................................................................................................................................14 10. System Verification ....................................................................................................................................................15 10.1 Tissue Verification ...............................................................................................................................................15 10.2 System Performance Check Results ...................................................................................................................16 11. RF Exposure Positions ..............................................................................................................................................17 12. Conducted RF Output Power (Unit: dBm) ................................................................................................................18 13. Antenna Location .....................................................................................................................................................…

Text truncated - open the document above for the full version.
