SRQ-MF97BLTE uFi

1 MF97B User Manual 2 LEGAL INFORMATION Copyright © 2014 ZTE CORPORATION. All rights reserved. No part of this publication may be quoted, reproduced, translated or used in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. Notice ZTE Corporation reserves the right to make modifications on print errors or update specifications in this guide without prior notice. We offer self-service for our smart terminal device users. Please visit the ZTE official website (at www.ztedevice.com) for more information on self-service and supported product models. Information on the website takes precedence. Disclaimer ZTE Corporation expressly disclaims any liability for faults and damages caused by unauthorized modifications of the software. Images and screenshots used in this guide may differ from the actual product. Content in this guide may differ from the actual product or software. Trademarks ZTE and the ZTE logos are trademarks of the ZTE Corporation. 3 Google and Android are trademarks of Google, Inc. The Bluetooth ® trademark and logos are owned by the Bluetooth SIG, Inc. and any use of such trademarks by ZTE Corporation is under license. microSDHC Logo is a trademark of SD-3C, LLC. Qualcomm® Snapdragon™ processors are products of Qualcomm Technologies, Inc. Qualcomm and Snapdragon are trademarks of Qualcomm Incorporated, registered in the United States and other countries. Used with permission. Other trademarks and trade names are the property of their respective owners. Version No.: R1.0 Edition Time: November 14, 2014 Manual No.: 4 Getting to Know Your MF97B Projection Lens Focus Sensor Touch Screen Home Key Menu Key Back Key Power Key Volume Up Main Microphone Volume Down 5 USB Port Auxiliary Microphone HDMI Port Power Socket micro-SIM Card Slot Headset Jack microSDHC Card Slot Ventilation Port 6 Projection Lens Project the display on a surface. WARNING! Do not look directly into the projection lens or point the lens toward people or animals’ eyes when the projector is on as this may cause injury to the eyes. Kickstand Speaker 7 Focus Sensor Analyze the clarity of the projected image in order for the projector to adjust its focus automatically. Back Key Touch to go to the previous screen. Home Key  Touch to return to the home screen from any application or screen.  Touch and hold to open the Google app. Menu Key  Touch to get the options for the current screen.  Touch and hold to see recently used apps. Power Button  Press and hold to enable or disable airplane mode, sound, or vibration, power off or restart your MF97B.  Press to turn off or on the screen display. Volume Up/Down Button Press or hold to turn the volume up or down. Main Microphone / Auxiliary Microphone 8 Transmit your voice. The auxiliary microphone is useful for canceling ambient noise. Ventilation Port Exhaust the hot air when the projector is on. WARNING! Do not place anything near the ventilation holes as this may cause internal heat buildup. Do not place your hand near the ventilation holes as this may cause injury. Installing the micro-SIM Card 1. Insert the end of a small paper clip or other eject tool into the hole on the micro-SIM card tray and take the tray out of the slot. 9 2. Place the micro-SIM card on the tray as shown and carefully install the tray back. Installing the microSDHC™ Card (Not Included) A microSDHC card can be installed or removed while MF97B is turned on. You need to unmount the microSDHC card before removing it. 1. Insert the end of a small paper clip or other eject tool into the hole on the microSDHC card tray and take the tray out of the slot. 10 2. Place the microSDHC card on the tray as shown. Then carefully install the tray back. NOTE: 11 Some applications may require a microSDHC card to work normally or may store certain data on it. Therefore, it is recommended that you keep a microSDHC card installed and not remove or replace it randomly. Charging the Battery Your MF97B’s battery should have enough power for it to turn on. You should fully charge the battery as soon as possible. WARNING! Use only ZTE-approved chargers and cables. The use of unapproved accessories could damage your device or cause the battery to explode. CAUTION: Do not remove or change the built-in rechargeable battery in your device by yourself. The battery can only be changed by ZTE or ZTE authorized service provider. 1. Plug the AC adapter into the power socket on your MF97B and then plug the AC adapter into an electrical outlet. 12 2. Disconnect the adapter when the battery is fully charged. NOTE: If the battery is extremely low, you may be unable to power on the device even when it is being charged. In this case, try again after charging the device for at least 20 minutes. Contact the customer service if you still cannot power on the device after prolonged charging. Powering On/Off Ensure that the battery is charged.  Press and hold the Power Button to turn on your MF97B.  To turn it off, press and hold the Power Button to open the options 13 menu. Touch Power off and then touch OK. Restarting Your Device If the screen freezes or takes too long to respond, try pressing and holding the Power Key for about 10 seconds to restart MF97B. Waking Up Your Device Your MF97B automatically goes into sleep mode when it is not in use for some time. The display is turned off to save power and the keys are locked to prevent accidental operations. You can wake up your MF97B by turning on the display and unlocking the keys. 1. Press the Power Key to turn the screen on. 2. Touch and hold the screen. NOTE: If you have set an unlock pattern, a PIN or a password for your device, you’ll need to draw the pattern, or enter the PIN/password to unlock it. Turning On/Off the Projector You can use the projector embedded in your MF97B to project the display 14 onto large surfaces. 1. Slide down the status bar at the top of the screen. 2. Touch P…

Text truncated - open the document above for the full version.

ZTE Corporation ZTE Plaza, Keji Road South, Shenzhen, China Tel: +86‐21‐68897541 ; Fax: +86‐21‐50801070 Date: February 4, 2015 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: SRQ‐MF97B To Whom It May Concern: We hereby attest that, LTE release 10 limitations and support restrictions of FCC ID: SRQ‐MF97B are: a) LTE Rel. 10 Cat 4 FDD / WCDMA Rel. 7/ HSDPA Cat 14/ HSUPA Cat 6 b) LTE Carrier Aggregation (CA) is supported (Downlink Only). c) Enhanced SC‐FDMA is not supported. d) LTE uplink MIMO and other transmit diversity is not supported e) UE category is Rel. 10, Category 4 f) No significant SAR influence was discovered with respect to the hardware or firmware associated with LTE Rel. 10 features. g) Wi‐Fi 802.11 a/b/g/n; Bluetooth 2.1+EDR/ Bluetooth v4.0 with LE in this device. Sincerely yours, Min Zhang [email protected]

RF_160, Issue 03 Declaration of Authorization We Name: <ZTE Corporation> Address: ZTE Plaza, Keji Road South, Shenzhen, China City: Shenzhen Country: China Declare that: Name Representative of agent: Michael Lin (1) Agent Company name: SPORTON INTERNATIONAL (KUNSHAN) INC Address: No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. City: Kunshan Country China is authorized to apply for Certification of the following product(s): Product description: LTE uFi Model Name: MF97B Trademark: ZTE on our behalf. Date: January 27, 2015 City: China Name: Min Zhang (2) Function: Certification Manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: ZTE Corporation Address : ZTE Plaza, Keji Road South, Shenzhen, China City: Shenzhen Country: China To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: SRQ-MF97B Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: The applicant deems to be trade secrets and proprietary. Planned Release Date STC: 180 Days (notes 2, 3, 4, 5) Date: January 27, 2015 Name and signature of applicant: Min Zhang Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

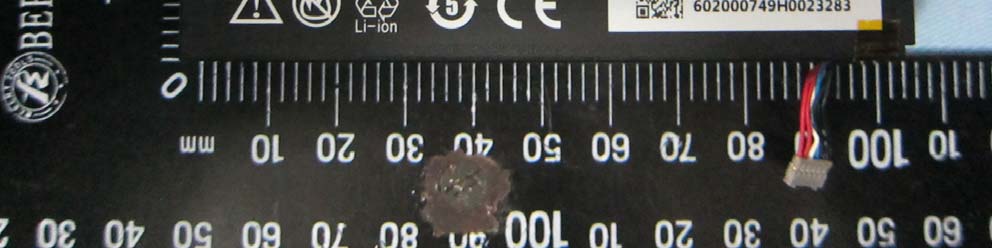

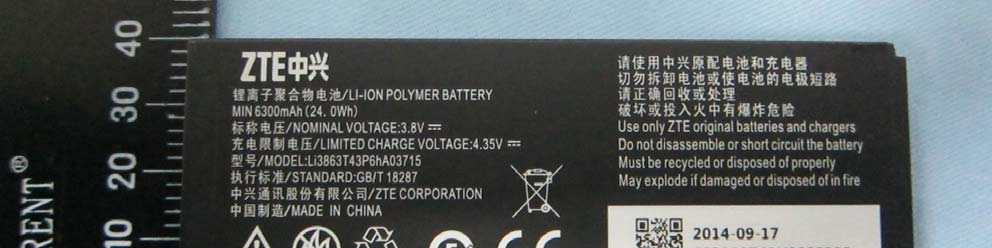

Photographs of EUT Report No.: EP4O2101 Brand Name: ZTE; Model Name: MF97B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 57 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 26, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID：SRQ-MF97B 1. External Photograph of EUT Photographs of EUT Report No.: EP4O2101 Brand Name: ZTE; Model Name: MF97B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 57 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 26, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID：SRQ-MF97B Photographs of EUT Report No.: EP4O2101 Brand Name: ZTE; Model Name: MF97B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 57 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 26, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID：SRQ-MF97B Photographs of EUT Report No.: EP4O2101 Brand Name: ZTE; Model Name: MF97B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 57 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 26, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID：SRQ-MF97B Photographs of EUT Report No.: EP4O2101 Brand Name: ZTE; Model Name: MF97B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 57 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 26, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID：SRQ-MF97B Photographs of EUT Report No.: EP4O2101 Brand Name: ZTE; Model Name: MF97B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 57 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 26, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID：SRQ-MF97B Photographs of EUT Report No.: EP4O2101 Brand Name: ZTE; Model Name: MF97B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 57 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 26, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID：SRQ-MF97B List of Accessory: Specification of Accessory AC Adapter Brand Name ZTE Model Name TDC-A1240C55-Z Battery Brand Name ZTE Model Name Li3863T43P6hA03715 USB Cable Signal Line Type 1.0m shielded without core Power line Signal Line Type 1.52m non-shielded without core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP4O2101 Brand Name: ZTE; Model Name: MF97B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 57 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 26, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID：SRQ-MF97B Photographs of EUT Report No.: EP4O2101 Brand Name: ZTE; Model Name: MF97B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 57 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 26, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID：SRQ-MF97B AC Adapter Photographs of EUT Report No.: EP4O2101 Brand Name: ZTE; Model Name: MF97B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 57 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 26, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID：SRQ-MF97B Battery

MF97B 技术要求： 1 50#亚白PET，黑色，格底； 2 公差+/-0.2mm; 3 单排卷装 Wi-Fi MAC ID. 打样稿 MEID DEC: XXX XXX XXX XXX XXXXXX MEID HEX: XXX XXX XXX XXXXX S/N: XXXXXXXXXXXX Model:MF97B Wi-Fi MAC ID： xxxxxxxxxxxx HW:d96B FCC ID:SRQ-MF97B Made in China ICC ID：XXXXXXXXXXXXX

Photographs of EUT Report No.: EP4O2101 Brand Name: ZTE; Model Name: MF97B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 57 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 26, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID：SRQ-MF97B 3. Internal Photograph of EUT WCDMA B2/5 & LTE B2/4/5/17 ANT TX/RX WLAN 1 TX/RX WLAN 0 TX/RX WCDMA B2/5 & LTE B2/4/5/17 diversity RX Photographs of EUT Report No.: EP4O2101 Brand Name: ZTE; Model Name: MF97B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 57 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 26, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID：SRQ-MF97B Photographs of EUT Report No.: EP4O2101 Brand Name: ZTE; Model Name: MF97B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 57 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 26, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID：SRQ-MF97B Photographs of EUT Report No.: EP4O2101 Brand Name: ZTE; Model Name: MF97B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 57 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 26, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID：SRQ-MF97B Photographs of EUT Report No.: EP4O2101 Brand Name: ZTE; Model Name: MF97B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 57 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 26, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID：SRQ-MF97B Photographs of EUT Report No.: EP4O2101 Brand Name: ZTE; Model Name: MF97B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 57 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 26, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID：SRQ-MF97B Photographs of EUT Report No.: EP4O2101 Brand Name: ZTE; Model Name: MF97B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 57 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 26, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID：SRQ-MF97B Photographs of EUT Report No.: EP4O2101 Brand Name: ZTE; Model Name: MF97B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 57 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 26, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID：SRQ-MF97B Photographs of EUT Report No.: EP4O2101 Brand Name: ZTE; Model Name: MF97B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 57 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 26, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID：SRQ-MF97B Photographs of EUT Report No.: EP4O2101 Brand Name: ZTE; Model Name: MF97B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 57 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 26, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID：SRQ-MF97B Photographs of EUT Report No.: EP4O2101 Brand Name: ZTE; Model Name: MF97B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 57 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 26, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID：SRQ-MF97B Photographs of EUT Report No.: EP4O2101 Brand Name: ZTE; Model Name: MF97B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 57 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 26, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID：SRQ-MF97B Photographs of EUT Report No.: EP4O2101 Brand Name: ZTE; Model Name: MF97B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 57 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 26, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID：SRQ-MF97B Photographs of EUT Report No.: EP4O2101 Brand Name: ZTE; Model Name: MF97B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 57 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 26, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID：SRQ-MF97B Photographs of EUT Report No.: EP4O2101 Brand Name: ZTE; Model Name: MF97B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 57 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 26, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID：SRQ-MF97B Photographs of EUT Report No.: EP4O2101 Brand Name: ZTE; Model Name: MF97B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 26 of 57 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 26, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID：SRQ-MF97B Photographs of EUT Report No.: EP4O2101 Brand Name: ZTE; Model Name: MF97B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 27 of 57 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 26, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID：SRQ-MF97B Photographs of EUT Report No.: EP4O2101 Brand Name: ZTE; Model Name: MF97B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 28 of 57 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 26, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID：SRQ-MF97B Photographs of EUT Report No.: EP4O2101 Brand Name: ZTE; Model Name: MF97B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 29 of 57 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 26, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID：SRQ-MF97B Photographs of EUT Report No.: EP4O2101 Brand Name: ZTE; Model Name: MF97B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 30 of 57 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 26, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID：SRQ-MF97B Photographs of EUT Report No.: EP4O2101 Brand Name: ZTE; Model Name: MF97B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 31 of 57 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 26, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID：SRQ-MF97B Photographs of EUT Report No.: EP4O2101 Brand Name: ZTE; Model Name: MF97B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 32 of 57 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 26, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID：SRQ-MF97B Photographs of EUT Report No.: EP4O2101 Brand Name: ZTE; Model Name: MF97B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 33 of 57 TEL : 86-051…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. TEL : 86-0512-5790-0158 / FAX : 86-0512-5790-0958 Issued Date : Jan. 30, 2015 FCC ID : SRQ-MF97B Page 1 of 69 Form version. : 141020 FCC SAR Test Report Report No. : FA4O2101 FCC SAR Test Report APPLICANT : ZTE CORPORATION EQUIPMENT : LTE uFi BRAND NAME : ZTE MODEL NAME : MF97B FCC ID : SRQ-MF97B STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 We, SPORTON INTERNATIONAL (KUNSHAN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and had been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P. R. C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL (KUNSHAN) INC. TEL : 86-0512-5790-0158 / FAX : 86-0512-5790-0958 Issued Date : Jan. 30, 2015 FCC ID : SRQ-MF97B Page 2 of 69 Form version. : 141020 FCC SAR Test Report Report No. : FA4O2101 Table of Contents 1. Statement of Compliance ..............................................................................................................................................4 2. Administration Data .......................................................................................................................................................5 3. Guidance Standard ........................................................................................................................................................5 4. Equipment Under Test (EUT) ........................................................................................................................................6 4.1 General Information ................................................................................................................................................6 4.2 Maximum Tune-up Limit ..........................................................................................................................................7 4.3 General LTE SAR Test and Reporting Considerations .......................................................................................... 11 5. RF Exposure Limits .....................................................................................................................................................13 5.1 Uncontrolled Environment .....................................................................................................................................13 5.2 Controlled Environment .........................................................................................................................................13 6. Specific Absorption Rate (SAR) ..................................................................................................................................14 6.1 Introduction ...........................................................................................................................................................14 6.2 SAR Definition .......................................................................................................................................................14 7. System Description and Setup ...................................................................................................................................15 8. Measurement Procedures ...........................................................................................................................................16 8.1 Spatial Peak SAR Evaluation ................................................................................................................................16 8.2 Power Reference Measurement............................................................................................................................17 8.3 Area Scan .............................................................................................................................................................17 8.4 Zoom Scan ............................................................................................................................................................18 8.5 Volume Scan Procedures ......................................................................................................................................18 8.6 Power Drift Monitoring ...........................................................................................................................................18 9. Test Equipment List .....................................................................................................................................................19 10. System Verification ....................................................................................................................................................20 10.1 Tissue Verification ...............................................................................................................................................20 10.2 System Performance Check Results ...................................................................................................................21 11. RF Exposure Positions ..............................................................................................................................................22 12. Conducted RF Output Power (Unit: dBm) ................................................................................................................23 13. Bluetooth Exclusions Applied ..................................................................................................................................51 14. Antenna Location ........................................................…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 252 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 30, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : SRQ-MF97B FCC RF Test Report Report No. : FG4O2101B FCC RF Test Report APPLICANT : ZTE CORPORATION EQUIPMENT : LTE uFi BRAND NAME : ZTE MODEL NAME : MF97B FCC ID : SRQ-MF97B STANDARD : 47 CFR Part 2, 22(H), 24(E), 27(L), 27(H) CLASSIFICATION : PCS Licensed Transmitter (PCB) The product was received on Oct. 21, 2014 and testing was completed on Nov. 07, 2014. We, SPORTON INTERNATIONAL (KUNSHAN) INC., would like to declare that the tested sample has been evaluated in accordance with the test procedures given in ANSI / TIA / EIA-603-C-2004 and the testing has shown the tested sample to be in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Joseph Lin / Supervisor Approved by: Jones Tsai / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P. R. China SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 252 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 30, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : SRQ-MF97B FCC RF Test Report Report No. : FG4O2101B TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 6 1.1 Applicant ............................................................................................................................................ 6 1.2 Manufacturer ...................................................................................................................................... 6 1.3 Product Feature of Equipment Under Test ........................................................................................ 6 1.4 Product Specification subjective to this standard .............................................................................. 7 1.5 Modification of EUT ........................................................................................................................... 8 1.6 Maximum ERP/EIRP Power, Frequency Tolerance, and Emission Designator ............................... 8 1.7 Testing Location .............................................................................................................................. 10 1.8 Applicable Standards ....................................................................................................................... 10 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ...................................................................... 11 2.1 Test Mode ........................................................................................................................................ 11 2.2 Connection Diagram of Test System ............................................................................................... 13 2.3 Support Unit used in test configuration and system ........................................................................ 14 2.4 Measurement Results Explanation Example ................................................................................... 14 3 TEST RESULT ........................................................................................................................................... 15 3.1 Conducted Output Power Measurement ......................................................................................... 15 3.2 Peak-to-Average Ratio .................................................................................................................... 25 3.3 Effective Radiated Power and Equivalent Isotropic Radiated Power Measurement ....................... 51 3.4 99% Occupied Bandwidth and 26dB Bandwidth Measurement ...................................................... 57 3.5 Conducted Band Edge Measurement ............................................................................................. 96 3.6 Conducted Spurious Emission Measurement ............................................................................... 170 3.7 Radiated Spurious Emission Measurement .................................................................................. 226 3.8 Frequency Stability Measurement ................................................................................................. 246 4 LIST OF MEASURING E…

Text truncated - open the document above for the full version.
