SRQ-NX501Digital Mobile Phone

nubia NX501 WCDMA Digital Mobile Handset Quick Start Guide 1 Copyright Statement Copyright © 2013 ZTE CORPORATION. All rights reserved. No part of this publication may be quoted, reproduced, translated or used in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. ZTE Corporation reserves the right to make modifications on print errors or update specifications in this manual without prior notic e. Trademarks Android is a trademark of Google, Inc. The Bluetooth word mark and logos are registered trademarks of Bluetooth SIG, Inc., and any use of such marks by ZTE Corporation is under lic ense. The product is manufactured under the license of Dolby Laboratory. Dolby and the double-D symbol are registered trademarks of Dolby Laboratories. The MicroSIM card is a tiny SIM card with the size of 12mmx15mm, which functions the same as the normal SIM cards. The word of MicroSIM is used to clarify the phone's functions and give guidance to consumers. All other trademarks remain the property of their respective owners. Statement of Third-party Applications During the installation process of some third-party applications, the issues of repeated restart or abnormal 2 use of software might be caused by incompatibility of the third-party applications, rather than the phone itself. Version 1.0, Mar. 2013 3 Before you get started Thank you for choosing ZTE Corporation’s digital mobile phone nubia NX501, which we’ll simply call ‘phone’ from now on. Based on the Android TM platform, the phone adopts a quad-core processor with novel appearance and cool user interface, which bring you brandnew experiences. If you’d like your phone to live a long and fruitful life, please read this guide c arefully and keep it for future referenc e. You never know when you might need it. The Quick Start Guide only describes the phone’s basic functions. For more information about thes e functions, please read the built-in User Manual. Turn on your phone and tap ‘User Bible’ to view the User Manual. Don’t worry if the pictures we us e to demonstrate your phone’s functions look a little different from what you see on the screen. It’s the functions that matter. If there is any inc onsistence caus ed by function update between this guide and your phone, please subject to your phone. 4 Earpiece Flashlight Front camera To u c h screen Menu key Home key Back key Volume keys Speaker Power / Lock key SIM card socket Headset jack USB port Light sensor/ Proximity sensor Back camera Getting to know your phone 5 Descriptions of Keys Keys Functions Power/Lock key Press & hold: turn on your phone; open the menu/options. Press & hold for more than 10 seconds: restart your phone. Press: turn off and lock the LCD; or turn on the LCD. Home key Press it to open the home screen. Press & hold the key to open the most rec ently us ed applic ations screen. Menu key Press it to open a menu with items that affect the current screen or application. Back key Press it to open the previous screen you were working in. Volume keys Adjust the volume. Press & hold the UP key to adjust to the maximum volume, and press & hold the DOWN key to adjust to the Vibration/Silenc e mode. 6 Inserting and removing the SIM You must insert a valid SIM card into your phone before use. All information about the establishment of network connection, together with the relevant information saved in the c ard’s Contacts, are stored in the SIM card. 1. Turn off your phone. 2. Use the accompanying card ejector to insert into the hole on the SIM c ard socket, and slightly press inward to eject the c ard socket. 3. Install the SIM card onto the socket and push the socket back to the original position. Turn off your phone before taking out the UIM/SIM card. Note: You can use MicroSIM card only. Charging the battery The battery is not fully charged f or the first time. Pleas e exhaust the capacity of the battery before you recharge it for the first time. To ensure the battery is always in its best condition, pleas e charge the battery 8 hours for the first time and recharge it later at least 2 hours each time. 1. Connect the charger with the phone through the USB port, and plug the charger into a standard power socket. 2. Please unplug the charger from the power s ocket and take up your phone after the charging is completed. Tips: 7  To charge the battery, you c an also c onnect your phone to the PC through the USB cable.  During the process of charging, your phone and charger may normally become hot. Powering on Press & hold the Power key until the power-on animation appears. Powering off Press & hold the Power key and select Power off. Tips: If your SIM card has enabled PIN verification, you need input the correct PIN as you turn on your phone. The PUK code is required to unlock if you have entered incorrect PIN for three cons ecutive times. Pleas e contact your network operator to get your PUK code. If your phone cannot be turned off normally upon an exception, pleas e press & hold the Power key more than 10 seconds to forc efully turn off your phone and restart it. 8 Basic Operation Screen Control You can c ontrol your phone through a series of operations on the screen.  Tap: tap once on an item on the screen to select it or open whatever you tap.  Slide to scroll: slide your fingers on the screen to move through what’s on the screen.  Press & hold: press your finger down and leave it there for a few seconds to open a menu specific to what you're doing.  Drag: drag an item on the screen to perform c ertain operations.  Pinch or stretch: In some applications (e.g., Gallery, Browser), touch the screen with two or more fingers, and then pinch your fingers together on the screen or stretch them apart to zoom out or in.  Rotate: In most screens, rotate your phone sideways to switch the screen from portrait mode to landscape mode. Home screen The home screen appears as the phone is in idl…

Text truncated - open the document above for the full version.

Ad-HocCountry Code Cover Letter We, ZTE Corporation, declare that this EUT (FCC ID: SRQ-NX501) doesn’t have Ad Hoc Mode function on “non-US/Canada frequencies”. In addition, the frequency selection feature is disabled by firmware for device marketed to the US/Canada. For DTS part of this device, only channel 1~11 will be used in North America. Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Zhang Min ZTE Corporation Certification Manager Te l : +86-21-68897541 Fax: +86-21-50801070 Email: [email protected]

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China Tel: +86-755-86360379 ; Fax: +86-755-86360298 Date: August 28, 2013 Power of Attorney To whom it may concern, Please be notified that I, Zhang Min, have designated Ivy.Zhu in Shenzhen Morlab Communications Technology Co., Ltd. and David Gong in ZTE CORPORATION as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Ivy Zhu in Shenzhen Morlab Communications Technology Co., Ltd., and David Gong in ZTE CORPORATION on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: SRQ-NX501 If you have any acknowledgement and response, please send it to Shenzhen Morlab Communications Technology Co., Ltd. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Min Zhang Company: ZTE CORPORATION TEL: +86-21-68897541 FAX: +86-21-68891070 E-mail: [email protected]

Rev. 1/1/03 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China Tel: +86-755-86360379 ; Fax: +86-755-86360298 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: SRQ-NX501 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Parts List Operation Description Tune Up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Yours Sincerely, Zhang Min ZTE product approval manager

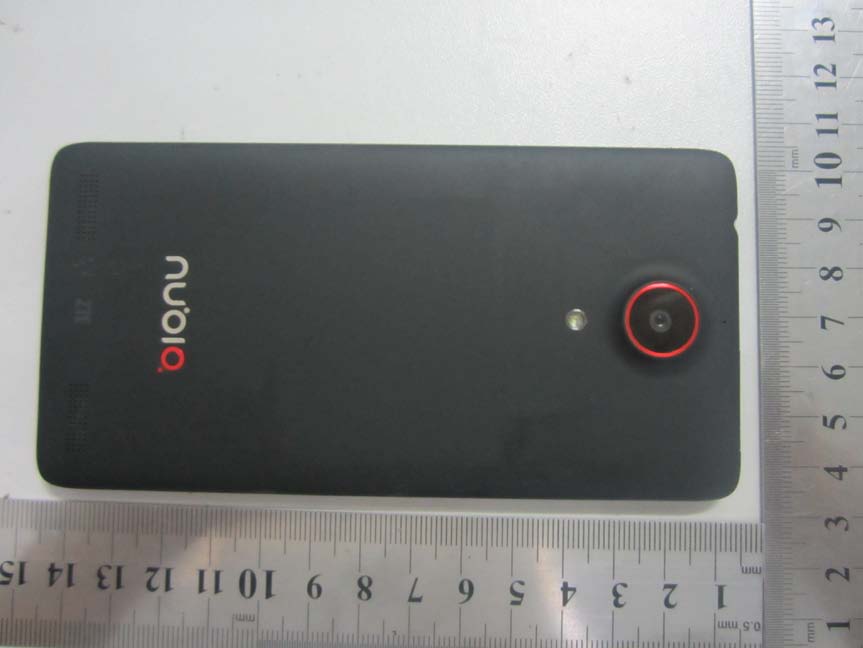

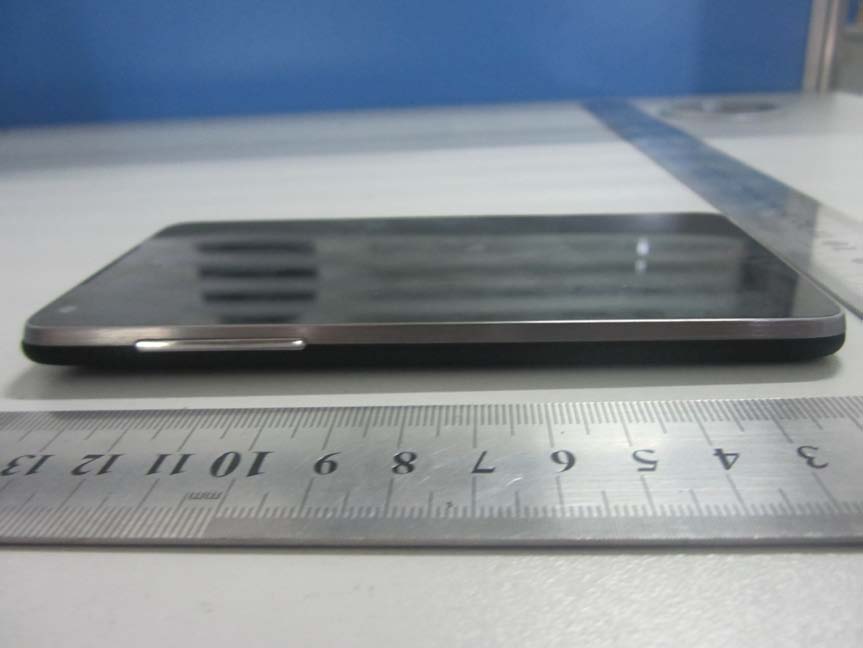

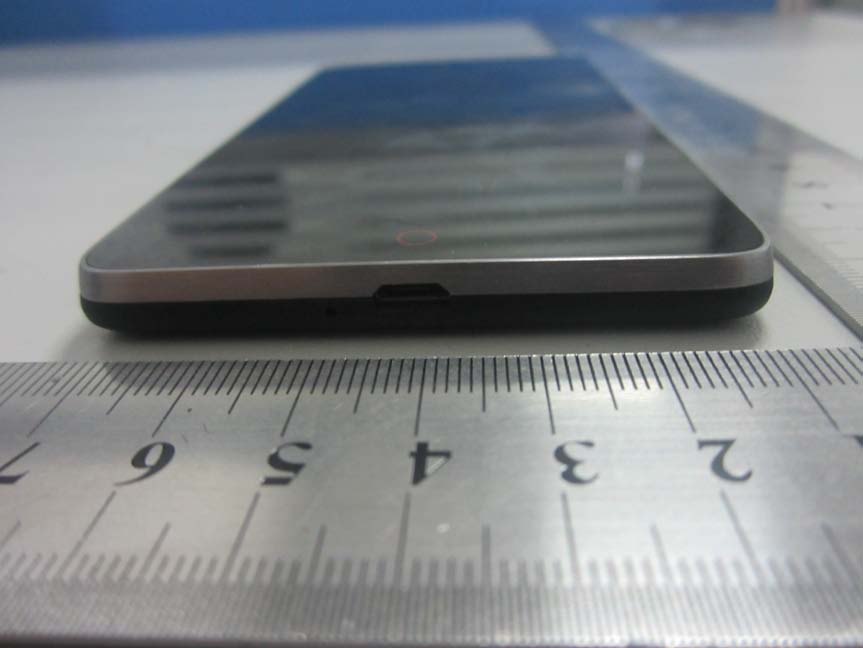

External Photos 1. EUT full view with accessories 2. EUT front view 3. EUT rear view 4. EUT left side view 5. EUT right side view 6. EUT top view 7. EUT bottom view

FCC label and label location 1. Label 2. Label location Label location

In ternal Photos 1. EUT uncover view 2. Mainboard front view with shielding 3. Mainboard rear view with shielding 4. Mainboard front view without shielding 5. Mainboard rear view without shielding 6. GSM/WCDMA chip view 7. CPU chip view 8. BT/WIFI chip view 9. GSM/WCDMA antenna view 10. BT/WIFI antenna view 11. GPS antenna view 12. Receiver antenna view 13. LCD view

SZ13080037S01 Page 2 of 151 DIRECTORY 1. TESTING LABORATORY ......................................................................................................... 4 1.1. Identification of the Responsible Testing Location .............................................................. 4 1.2. Accreditation Certificate ........................................................................................................ 4 1.3. List of Test Equipments .......................................................................................................... 4 2. TECHNICAL INFORMATION ............................................................................................... 5 2.1. Identification of Applicant ..................................................................................................... 5 2.2. Identification of Manufacturer .............................................................................................. 5 2.3. Equipment Under Test (EUT) ................................................................................................ 5 2.3.1. Photographs of the EUT .................................................................................................. 5 2.3.2. Identification of all used EUT ......................................................................................... 6 2.4. Applied Reference Documents ............................................................................................... 6 2.5. Device Category and SAR Limits .......................................................................................... 6 2.6. Test Environment/Conditions ................................................................................................ 7 3. SPECIFIC ABSORPTION RATE (SAR) ................................................................................ 8 3.1. Introduction ............................................................................................................................. 8 3.2. SAR Definition......................................................................................................................... 8 4. SAR MEASUREMENT SETUP ............................................................................................... 9 4.1. The Measurement System ...................................................................................................... 9 4.2. Probe ........................................................................................................................................ 9 4.3. Probe Calibration Process .................................................................................................... 11 4.3.1 Dosimetric Assessment Procedure ........................................................................................ 11 4.3.2 Free Space Assessment Procedure ........................................................................................ 11 4.3.2 Temperature Assessment Procedure..................................................................................... 11 4.4. Phantom ................................................................................................................................. 12 4.5. Device Holder ........................................................................................................................ 12 5. TISSUE SIMULATING LIQUIDS ......................................................................................... 13 6. UNCERTAINTY ASSESSMENT ........................................................................................... 14 6.1. UNCERTAINTY EVALUATION FOR EUT SAR TEST ................................................. 14 6.2. UNCERTAINTY FOR SYSTEM PERFORMANCE CHECK ........................................ 15 7. SAR MEASUREMENT EVALUATION ............................................................................... 17 7.1. System Setup .......................................................................................................................... 17 SZ13080037S01 Page 3 of 151 7.2. Validation Results .................................................................................................................. 18 8. OPERATIONAL CONDITIONS DURING TEST ................................................................ 19 8.1. Information on the testing .................................................................................................... 19 8.2. Body-worn Configurations ................................................................................................... 20 8.3. Measurement procedure ....................................................................................................... 20 8.4. Description of interpolation/extrapolation scheme ............................................................ 21 9. MEASUREMENT OF CONDUCTED PEAK OUTPUT POWER ..................................... 22 10. TEST RESULTS LIST .............................................................................................................. 25 11. HOTSPOT MODE EVALUATION PROCEDURE .............................................................. 29 12. MULTIPLE TRANSMITTERS EVALUATION ................................................................ 30 ANNEX A GRAPH TEST RESULTS ............................................................................................ 33 Change History Issue Date Reason for change 1.0 Aug. 29, 2013 First edition SZ13080037S01 Page 4 of 151 1. Testing Laboratory 1.1. Identification of the Responsible Testing Location Name: Shenzhen Morlab Communications Technology Co., Ltd. Morlab Laboratory Address: FL.3, Building A, FeiYang Science Park, No.8 LongChang Road, Block 67, BaoAn District, ShenZhen, GuangDong Province, P. R. China 518101 1.2. Accreditation Certificate Accredited Testing Laboratory: No. CNAS L3572 1.3. List of Test Equipments No. Instrument Type Cal. Date Cal. Due 1 PC Dell (Pentium IV 2.4GHz, SN:X10-23533) (n…

Text truncated - open the document above for the full version.

Report No.: SZ13080037W01 Page 2 of 156 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................... 3 1.1 EUT Description ......................................................................................................................... 3 1.2 Test Standards and Results ........................................................................................................ 5 1.3 Facilities and Accreditations ...................................................................................................... 6 2. 47 CFR PART 2, PART 22H REQUIREMENTS .................................................................... 7 2.1 Conducted RF Output Power .................................................................................................... 7 2.2 Peak to Average Radio .............................................................................................................. 19 2.3 99% Occupied Bandwidth ....................................................................................................... 25 2.4 Frequency Stability ................................................................................................................... 48 2.5 Conducted Out of Band Emissions ......................................................................................... 55 2.6 Band Edge ................................................................................................................................. 93 2.7 Transmitter Radiated Power (EIRP/ERP) ........................................................................... 107 2.8 Radiated Out of Band Emissions .......................................................................................... 119 Change History Issue Date Reason for change 1.0 2013-8-28 First edition Report No.: SZ13080037W01 Page 3 of 156 1. GENERAL INFORMATION 1.1 EUT Description EUT Type ............................. : WCDMA Digital Mobile Phone Serial No. .............................. : (n.a, marked #1 by test site) Hardware Version ................. : NX501_V1DMB_A Software Version .................. : Applicant .............................. : Manufacturer ........................ : NX501_Z35_EN_XSRPL1DD00E102 ZTE Corporation ZTE Plaza, Keji Road South, Shenzhen, China ZTE Corporation ZTE Plaza, Keji Road South, Shenzhen, China Frequency Range .................. : GSM 850MHz: Tx: 824.20 - 848.80MHz (at intervals of 200kHz); Rx: 869.20 - 893.80MHz (at intervals of 200kHz) GSM 1900MHz: Tx: 1850.20 - 1909.80MHz (at intervals of 200kHz); Rx: 1930.20 - 1989.80MHz (at intervals of 200kHz) WCDMA 850MHz Tx: 826.4 - 846.6MHz (at intervals of 200kHz); Rx: 871.4 - 891.6MHz (at intervals of 200kHz) WCDMA 1900MHz Tx: 1852.4 - 1907.6MHz (at intervals of 200kHz); Rx: 1932.4 - 1987.6MHz (at intervals of 200kHz) Modulation Type................... : GSM,GPRS Mode with GMSK Modulation EDGE Mode with 8PSK Modulation WCDMA Mode with QPSK Modulation HSDPA Mode with QPSK Modulation HSUPA Mode with QPSK Modulation HSPA+ Mode with QPSK Modulation Multislot Class ...................... : GPRS: Multislot Class12,EGPRS: Multislot Class12 Antenna Type ........................ : PIFA Antenna Emission Designators ........... : GSM 850:252KGXW,GSM 1900:253KGXW EGPRS850:253KG7W, EGPRS1900:257KG7W, WCDMA 850:4M19F9W ,WCDMA1900:4M19F9W Note 1: The transmitter (Tx) frequency arrangement of the Cellular 850MHz band used by the EUT can be represented with the formula F(n)=824.2+0.2*(n-128), 128<=n<=251; the lowest, middle, highest channel numbers (ARFCHs) used and tested in this report are separately 128 (824.2MHz), 190 (836.6MHz) and 251 (848.8MHz). Note 2: The transmitter (Tx) frequency arrangement of the PCS 1900MHz band used by the EUT can be represented with the formula F(n)=1850.2+0.2*(n-512), 512<=n<=810; the lowest, Report No.: SZ13080037W01 Page 4 of 156 middle and highest channel numbers (ARFCHs) used and tested in this report are separately 512 (1850.2MHz), 661 (1880.0MHz) and 810 (1909.8MHz). Note 3: The transmitter (Tx) frequency arrangement of the WCDMA 850MHz band used by the EUT can be represented with the formula F(n)=826.4+0.2*(n-4132), 4132<=n<=4233; the lowest, middle and highest channel numbers (ARFCHs) used and tested in this report are separately 4132 (826.4MHz), 4175(835MHz) and 4233 (846.6MHz). Note 4: The transmitter (Tx) frequency arrangement of the WCDMA 1900MHz band used by the EUT can be represented with the formula F(n)=1852.4+0.2*(n-9262), 9262<=n<=9538; the lowest, middle and highest channel numbers (ARFCHs) used and tested in this report are separately 9262 (1852.4MHz), 9400 (1880MHz) and 9538 (1907.6MHz). Note 5: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. Report No.: SZ13080037W01 Page 5 of 156 1.2 Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 2, Part 22 and Part 24 the EUT FCC ID Certification: No. Identity Document Title 1 47 CFR Part 2 (10-1-09 Edition) Frequency Allocations and Radio Treaty Matters; General Rules and Regulations 2 47 CFR Part 22 (10-1-09 Edition) Public Mobile Services 3 47 CFR Part 24 (10-1-09 Edition) Personal Communications Services Test detailed items/section required by FCC rules and results are as below: No. Section Description Result 1 2.1046 Conducted RF Output Power PASS 2. 24.232(d) Peak to average radio PASS 2 2.1049,22.917 24.238 99% Occupied Bandwidth PASS 3 2.1055,22.355 24.235 Frequency Stability PASS 4 2.1051,2.1057 22.917,24.238 Conducted Out of Band Emissions PASS 5 2.1051,2.1057 22.917,24.238 Band Edge PASS 6 22.913,24.232 Transmitter Radiated Power (EIPR/ERP) PASS 7 2.1053,2.1057 22.917,24.238 Radiated Out of Band Emissions PASS NOTE：Measurement method according to TIA/EIA 603.D-2010 Report No.: SZ13080037W01 Page 6 of 156 1.3 Facilities and Accreditations 1.3.1 Facilities…

Text truncated - open the document above for the full version.

FCC ID: SRQ-NX501 1 EUT Right Head Touch Cheek Position 2 EUT Right Head Tilt15 Position FCC ID: SRQ-NX501 3 EUT Left Head Touch Cheek Position 4 EUT Left Head Tilt15 Position FCC ID: SRQ-NX501 5 Side Position with earphone 6 Side Position 10mm 10mm FCC ID: SRQ-NX501 7. Edge A 8. Edge B 10mm 10mm FCC ID: SRQ-NX501 9. Edge C 10. Edge D 10mm 10mm FCC ID: SRQ-NX501 Liquid Level Photo Head Liquid Liquid depth: 15.1cm Liquid Level Photo Body Liquid Liquid depth :15.5cm

Test Setup Photos 1. Conducted Spurious Emission 2. Radiated Spurious Emission
