SRQ-Z3352CALTE/WCDMA/GSM(GPRS) Multi-Mode Digital Mobile Phone

1 Z3352CA Quick Start Guide 2 LEGAL INFORMATION Copyright © 2020 ZTE CORPORATION. All rights reserved. No part of this publication may be quoted, reproduced, translated or used in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. Notice ZTE Corporation reserves the right to make modifications on print errors or update specifications in this guide without prior notice. We offer self-service for our smart terminal device users. Please visit the ZTE official website (at www.ztedevices.com) for more information on self-service and supported product models. Information on the website takes precedence. Visit http://www.ztedevices.com to download the user manual. Just click Support from the home page and then select the location, product type, and name to search for related support information. Disclaimer ZTE Corporation expressly disclaims any liability for faults and damages caused by unauthorized modifications of the software. Images and screenshots used in this guide may differ from the actual product. Content in this guide may differ from the actual product or software. Trademarks ZTE and the ZTE logos are trademarks of ZTE Corporation. Android™ is a trademark of Google LLC. The Bluetooth ® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by ZTE Corporation is under license. microSDHC Logo is a trademark of SD-3C, LLC. Other trademarks and trade names are those of their respective owners. Version No.: R1.0 Edition Time : January 2, 2020 Manual No.: 07958451xxxx 3 Getting to Know Your Phone Front camera Touch screen Earpiece/ Speaker Power key Indicator light Volume key Microphone 4 Setting Up Your Phone The nano-SIM card and the microSDHC card (optional, not included) can be installed and removed while the phone is on. Power off before installing or removing the battery. WARNING! To avoid damage to the phone, do not use any other kind of SIM cards, or any non-standard nano-SIM card cut from a SIM card. You can get a standard nano-SIM card from your service provider. 1. Place your finger in the slot at the lower left of the back cover to lift and remove the cover. Flash Headset jack Back camera Charging/ micro-USB jack 5 2. Hold your nano-SIM card and microSDHC card with the metal contacts facing down and slide them into their respective slots. 3. Insert the battery, making sure the gold contacts line up. Press down gently to secure. nano-SIM card microSDHC card 6 4. Replace the cover over the back of the phone, and then press down along the edges to secure. Make sure there are no gaps. Charging the Phone Your phone’s battery should have enough power for the phone to turn on, find a signal, and make a few calls. You should fully charge the battery as soon as possible. WARNING! Use only ZTE-approved chargers and USB cables. The use of unapproved accessories could damage your phone or cause the battery to explode. 1. Connect the cable to the charging jack. Ensure that the cable is inserted in the correct direction. 7 2. Connect the charger to a standard AC power outlet. 3. Disconnect the charger when the battery is fully charged. NOTE: If the battery is extremely low, you may be unable to power on the phone even when it is being charged. In this case, try again after charging the phone for at least 20 minutes. Contact the customer service if you still cannot power on the phone after prolonged charging. Powering On/Off  Press and hold the Power key to turn on your phone.  To turn it off, press and hold the Power key to open the options menu and touch > . Waking Up Your Phone Your phone automatically goes into sleep mode when it is not in use for some time. The display is turned off to save power and the keys are locked to prevent accidental operations. You can wake up the phone by turning on the display and unlocking the keys. 1. Press the Power key to turn the screen on. 2. Swipe up on the screen. NOTE: 8 If you have set an unlock pattern, a PIN or a password for the phone, you’ll need to draw the pattern or enter the PIN/password to unlock the screen. Product Safety Information Don’t make or receive phone calls while driving. Never text while driving. Keep your phone at least 15 mm away from your body while making calls. Small parts may cause choking. Your phone can produce a loud sound. To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your phone near your ear while the loudspeaker is in use. Avoid contact with anything magnetic. Keep away from pacemakers and other electronic medical devices. Turn off when asked to in hospitals and medical facilities. Turn off when told to on aircraft and at airports. Turn off when near explosive materials or liquids. Don’t use at gas stations. Your phone may produce a bright or flashing light. Don’t dispose of your phone in fire. Avoid extreme temperatures. 9 Avoid contact with liquids. Keep your phone dry. Do not attempt to disassemble your phone. Only use approved accessories. Don’t rely on your phone as a primary device for emergency communications. FCC RF Exposure Information (SAR) This phone is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the United States and Industry Canada of Canada. During SAR testing, this device was set to transmit at its highest certified power level in all tested frequency bands, and placed in positions that simulate RF exposure in usage against the head with no separation, and near the body with the separation of 15 mm. Although the SAR is determined at the highest certified power level, the actual SAR level of the device while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the netw…

Text truncated - open the document above for the full version.

ZTE Corporation ZTE Plaza, Keji Road South, Shenzhen, China Tel: +86-21-68895397 ; Fax: +86-21-50801070 Declaration - MIF for HAC RF Interference Evaluation To whom it may concern: This device, with FCC ID: SRQ-Z3352CA, Hearing Aid Compatibility Requirement is going to be certified under ANSI C63.19 2011 version per Part 20.19. For Radio Frequency Interference, Speag’s Audio Interference Analyzer (AIA) or other indirect or direct measurement was not used to determine the M rating. The M rating was determined by measuring the maximum steady state average E-field values in dB (V/m) as documented in HAC test report exhibit and adding the MIF value in dB (V/m) using pre-determined values provided by Speag. UID Communication System Name MIF(dB) 10021 GSM-FDD(TDMA,GMSK) 3.63 10025 EDGE-FDD (TDMA, 8PSK, TN 0) 3.75 10460 UMTS-FDD(WCDMA, AMR) -25.43 10225 UMTS-FDD (HSPA+) -20.39 10170 LTE-FDD(SC-FDMA,1RB,20MHz,16-QAM) -9.76 We are confirming that the Speag simulation provided represents all the air interface modes applicable for a HAC rating for this handset. Sincerely, _______________ Contact Name: Yu Gong E-mail: [email protected]

ZTE Corporation ZTE Plaza, Keji Road South, Shenzhen, China Tel: +86-21-68895397 ; Fax: +86-21-50801070 Date: March 12, 2020 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for Confidentiality FCC ID: SRQ-Z3352CA To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Part List  Operational Description  Tune-up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705.  External Photos  Internal Photos  Test Setup Photos  User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, ______________________ Yu Gong [email protected]

ZTE Corporation ZTE Plaza, Keji Road South, Shenzhen, China Tel: +86-21-68895397 ; Fax: +86-21-50801070 Date: March 12, 2020 Power of Attorney To whom it may concern, Please be notified that I, Yu Gong, have designated Jim Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jim Tsai in Sporton International Inc., on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C 862. This authorization is limited to the product of as following: FCC ID: SRQ-Z3352CA If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, ____ Contact Person: Yu Gong Company: ZTE Corporation TEL: +86-21-68895397 FAX: +86-21-50801070 E-mail: [email protected]

ZTE Corporation ZTE Plaza, Keji Road South, Shenzhen, China Tel: +86-21-68895397 ; Fax: +86-21-50801070 Date: March 12, 2020 Statement We, ZTE Corporation, states that our device, FCC ID: SRQ-Z3352CA. The label will put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely yours, _______________ Yu Gong

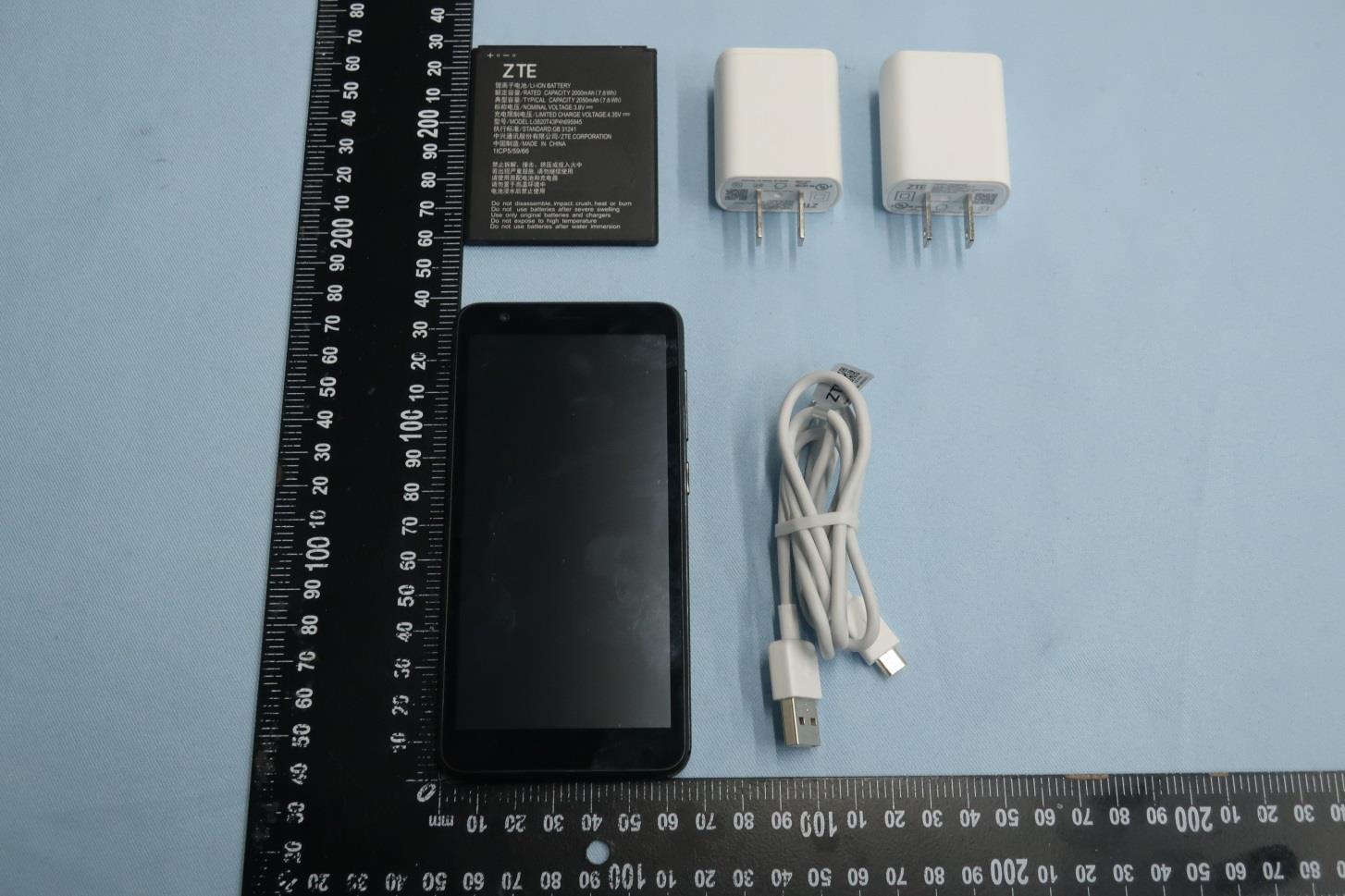

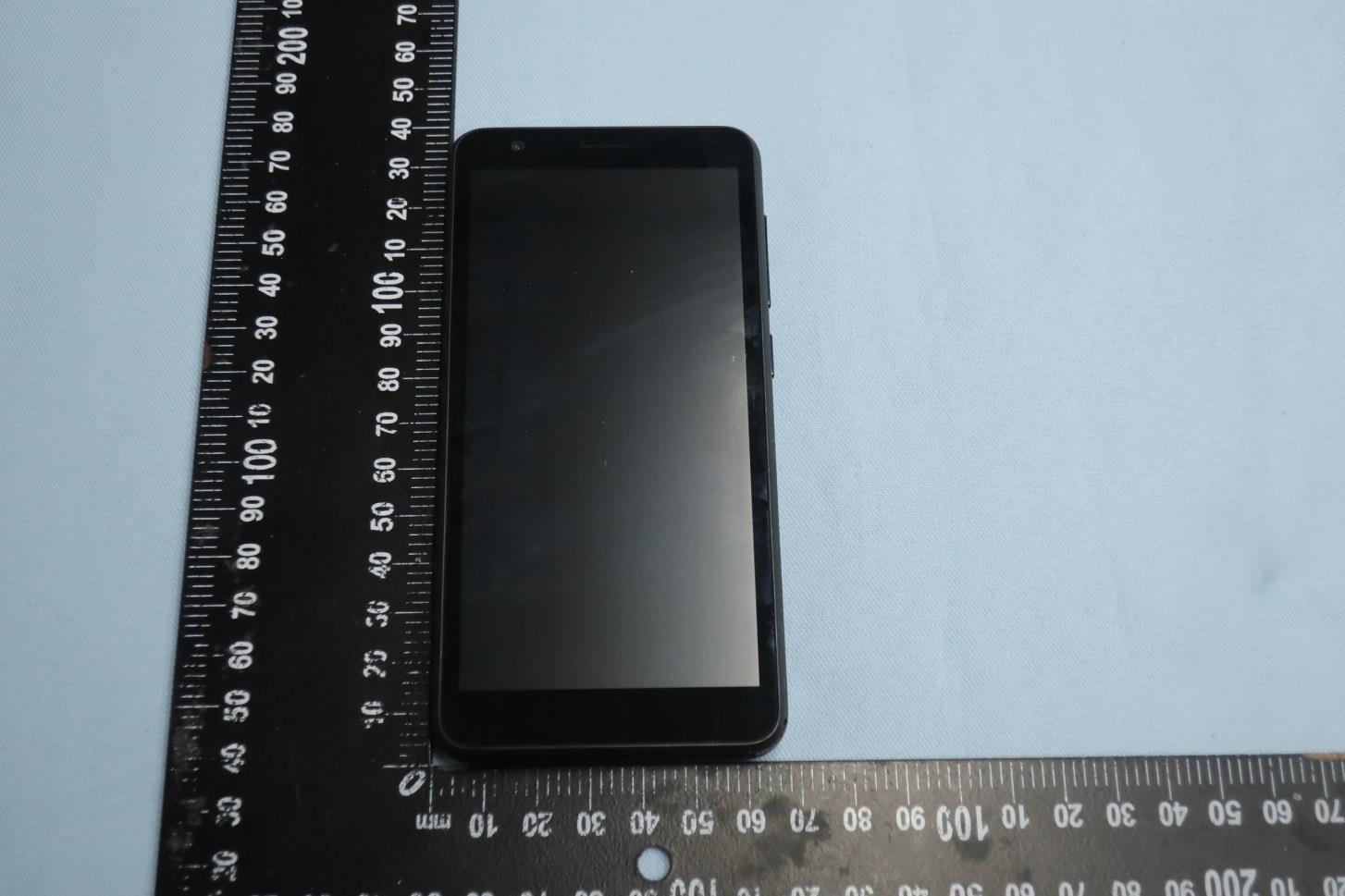

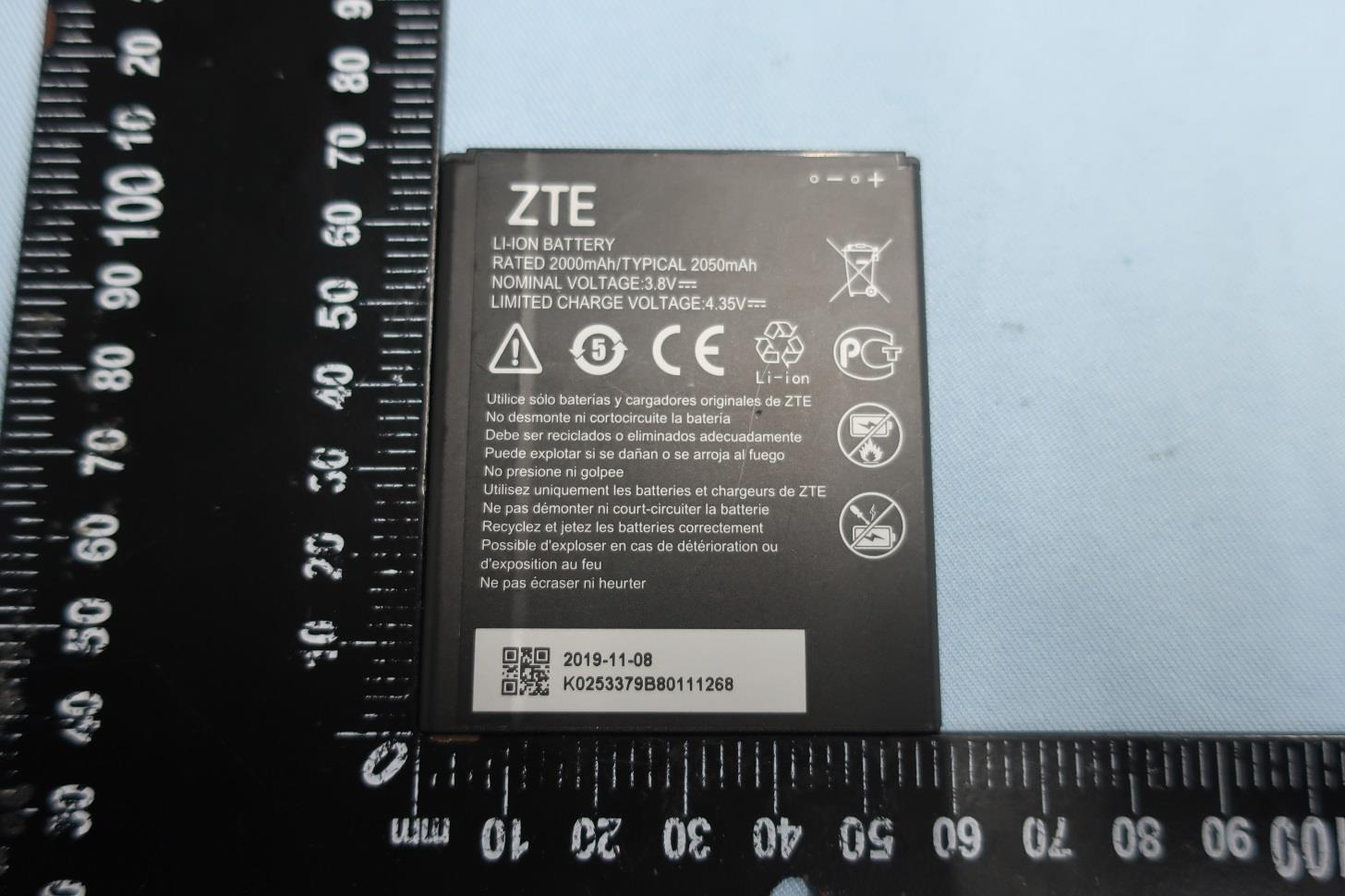

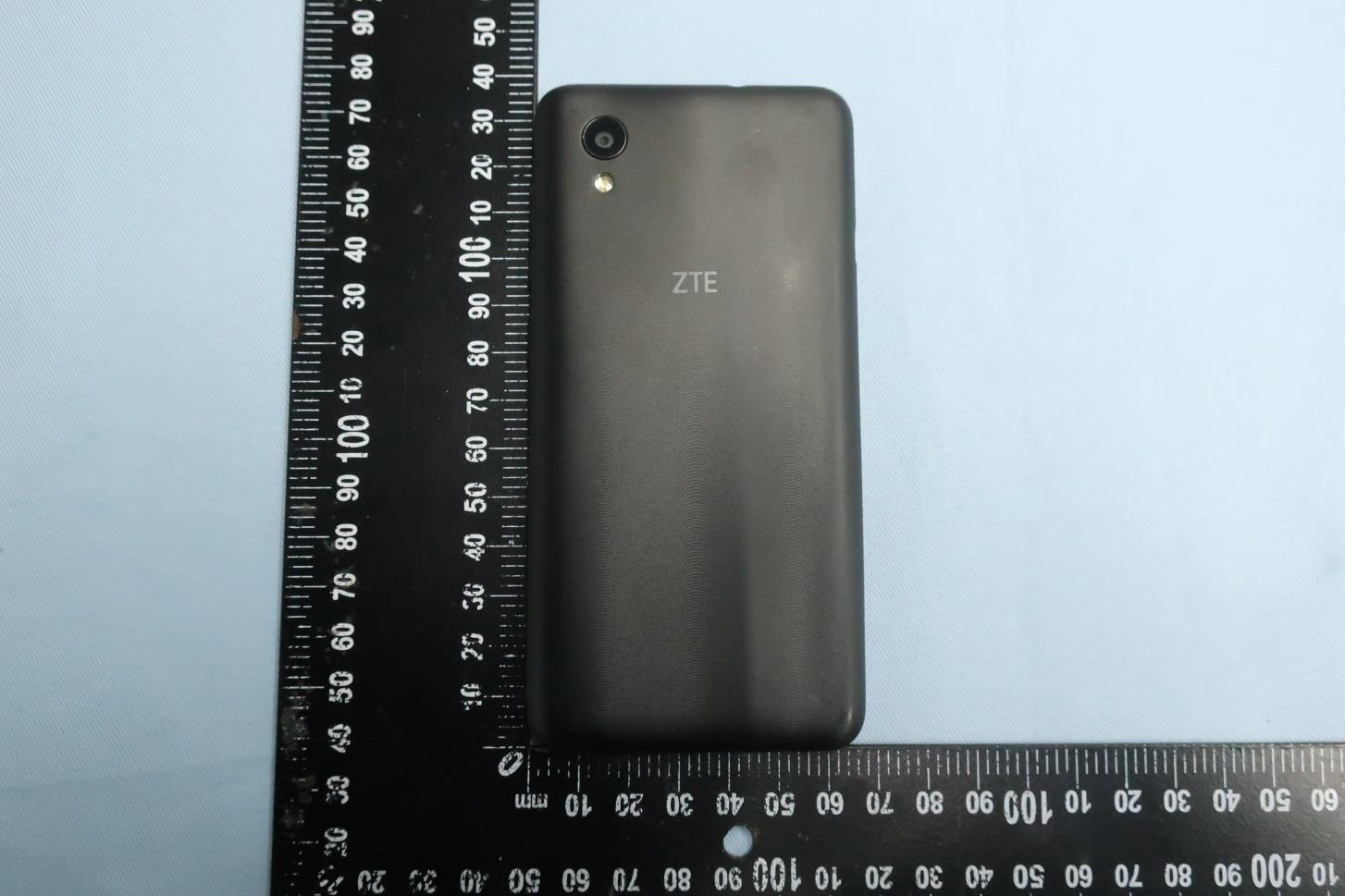

Photographs of EUT Report No.: EP010610 Brand Name: ZTE / Model Name: Z3352CA Sporton International (Kunshan) Inc. Page Number : 1 of 38 TEL : +86-512-57900158 Report Issued Date : Mar. 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-Z3352CA 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP010610 Brand Name: ZTE / Model Name: Z3352CA Sporton International (Kunshan) Inc. Page Number : 2 of 38 TEL : +86-512-57900158 Report Issued Date : Mar. 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-Z3352CA Photographs of EUT Report No.: EP010610 Brand Name: ZTE / Model Name: Z3352CA Sporton International (Kunshan) Inc. Page Number : 3 of 38 TEL : +86-512-57900158 Report Issued Date : Mar. 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-Z3352CA Photographs of EUT Report No.: EP010610 Brand Name: ZTE / Model Name: Z3352CA Sporton International (Kunshan) Inc. Page Number : 4 of 38 TEL : +86-512-57900158 Report Issued Date : Mar. 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-Z3352CA Photographs of EUT Report No.: EP010610 Brand Name: ZTE / Model Name: Z3352CA Sporton International (Kunshan) Inc. Page Number : 5 of 38 TEL : +86-512-57900158 Report Issued Date : Mar. 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-Z3352CA Photographs of EUT Report No.: EP010610 Brand Name: ZTE / Model Name: Z3352CA Sporton International (Kunshan) Inc. Page Number : 6 of 38 TEL : +86-512-57900158 Report Issued Date : Mar. 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-Z3352CA Photographs of EUT Report No.: EP010610 Brand Name: ZTE / Model Name: Z3352CA Sporton International (Kunshan) Inc. Page Number : 7 of 38 TEL : +86-512-57900158 Report Issued Date : Mar. 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-Z3352CA List of Accessory: Specification of Accessory AC Adapter 1 Brand Name ZTE (RUIJING) Model Name STC-A520A-Z Power Rating I/P: 100 - 240 Vac, 50/60Hz, 400mA; O/P: 5.0V, 2000mA AC Adapter 2 Brand Name ZTE (CHENYANG) Model Name STC-A520A-Z Power Rating I/P: 100 - 240 Vac, 50/60Hz, 400mA; O/P: 5.0V, 2000mA Battery Brand Name ZTE Model Name Li3820T43P4h695945 Power Rating 3.8V, 2000mAh (Rated) Type Li-ion USB Cable Brand Name N/A Model Name N/A Signal Line 1.0 meter, shielded cable, without ferrite core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP010610 Brand Name: ZTE / Model Name: Z3352CA Sporton International (Kunshan) Inc. Page Number : 8 of 38 TEL : +86-512-57900158 Report Issued Date : Mar. 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-Z3352CA 720510 Photographs of EUT Report No.: EP010610 Brand Name: ZTE / Model Name: Z3352CA Sporton International (Kunshan) Inc. Page Number : 9 of 38 TEL : +86-512-57900158 Report Issued Date : Mar. 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-Z3352CA AC Adapter 1 Photographs of EUT Report No.: EP010610 Brand Name: ZTE / Model Name: Z3352CA Sporton International (Kunshan) Inc. Page Number : 10 of 38 TEL : +86-512-57900158 Report Issued Date : Mar. 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-Z3352CA AC Adapter 2 Photographs of EUT Report No.: EP010610 Brand Name: ZTE / Model Name: Z3352CA Sporton International (Kunshan) Inc. Page Number : 11 of 38 TEL : +86-512-57900158 Report Issued Date : Mar. 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-Z3352CA Battery Photographs of EUT Report No.: EP010610 Brand Name: ZTE / Model Name: Z3352CA Sporton International (Kunshan) Inc. Page Number : 12 of 38 TEL : +86-512-57900158 Report Issued Date : Mar. 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-Z3352CA Photographs of EUT Report No.: EP010610 Brand Name: ZTE / Model Name: Z3352CA Sporton International (Kunshan) Inc. Page Number : 13 of 38 TEL : +86-512-57900158 Report Issued Date : Mar. 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-Z3352CA USB Cable

Photographs of EUT Report No.: EP010610 Brand Name: ZTE / Model Name: Z3352CA Sporton International (Kunshan) Inc. Page Number : 14 of 38 TEL : +86-512-57900158 Report Issued Date : Mar. 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-Z3352CA 720510 3. Internal Photograph of EUT Bluetooth & WLAN Antenna<Tx/Rx> GNSS Antenna<Rx> WWAN Diversity Antenna <Rx> WWAN Main Antenna <Tx/Rx> Photographs of EUT Report No.: EP010610 Brand Name: ZTE / Model Name: Z3352CA Sporton International (Kunshan) Inc. Page Number : 15 of 38 TEL : +86-512-57900158 Report Issued Date : Mar. 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-Z3352CA Photographs of EUT Report No.: EP010610 Brand Name: ZTE / Model Name: Z3352CA Sporton International (Kunshan) Inc. Page Number : 16 of 38 TEL : +86-512-57900158 Report Issued Date : Mar. 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-Z3352CA Photographs of EUT Report No.: EP010610 Brand Name: ZTE / Model Name: Z3352CA Sporton International (Kunshan) Inc. Page Number : 17 of 38 TEL : +86-512-57900158 Report Issued Date : Mar. 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-Z3352CA Photographs of EUT Report No.: EP010610 Brand Name: ZTE / Model Name: Z3352CA Sporton International (Kunshan) Inc. Page Number : 18 of 38 TEL : +86-512-57900158 Report Issued Date : Mar. 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-Z3352CA Photographs of EUT Report No.: EP010610 Brand Name: ZTE / Model Name: Z3352CA Sporton International (Kunshan) Inc. Page Number : 19 of 38 TEL : +86-512-57900158 Report Issued Date : Mar. 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-Z3352CA Photographs of EUT Report No.: EP010610 Brand Name: ZTE / Model Name: Z3352CA Sporton International (Kunshan) Inc. Page Number : 20 of 38 TEL : +86-512-57900158 Report Issued Date : Mar. 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-Z3352CA Photographs of EUT Report No.: EP010610 Brand Name: ZTE / Model Name: Z3352CA Sporton International (Kunshan) Inc. Page Number : 21 of 38 TEL : +86-512-57900158 Report Issued Date : Mar. 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-Z3352CA Photographs of EUT Report No.: EP010610 Brand Name: ZTE / Model Name: Z3352CA Sporton International (Kunshan) Inc. Page Number : 22 of 38 TEL : +86-512-57900158 Report Issued Date : Mar. 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-Z3352CA Photographs of EUT Report No.: EP010610 Brand Name: ZTE / Model Name: Z3352CA Sporton International (Kunshan) Inc. Page Number : 23 of 38 TEL : +86-512-57900158 Report Issued Date : Mar. 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-Z3352CA Photographs of EUT Report No.: EP010610 Brand Name: ZTE / Model Name: Z3352CA Sporton International (Kunshan) Inc. Page Number : 24 of 38 TEL : +86-512-57900158 Report Issued Date : Mar. 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-Z3352CA Photographs of EUT Report No.: EP010610 Brand Name: ZTE / Model Name: Z3352CA Sporton International (Kunshan) Inc. Page Number : 25 of 38 TEL : +86-512-57900158 Report Issued Date : Mar. 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-Z3352CA Photographs of EUT Report No.: EP010610 Brand Name: ZTE / Model Name: Z3352CA Sporton International (Kunshan) Inc. Page Number : 26 of 38 TEL : +86-512-57900158 Report Issued Date : Mar. 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-Z3352CA Photographs of EUT Report No.: EP010610 Brand Name: ZTE / Model Name: Z3352CA Sporton International (Kunshan) Inc. Page Number : 27 of 38 TEL : +86-512-57900158 Report Issued Date : Mar. 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-Z3352CA Photographs of EUT Report No.: EP010610 Brand Name: ZTE / Model Name: Z3352CA Sporton International (Kunshan) Inc. Page Number : 28 of 38 TEL : +86-512-57900158 Report Issued Date : Mar. 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-Z3352CA Photographs of EUT Report No.: EP010610 Brand Name: ZTE / Model Name: Z3352CA Sporton International (Kunshan) Inc. Page Number : 29 of 38 TEL : +86-512-57900158 Report Issued Date : Mar. 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-Z3352CA Photographs of EUT Report No.: EP010610 Brand Name: ZTE / Model Name: Z3352CA Sporton International (Kunshan) Inc. Page Number : 30 of 38 TEL : +86-512-57900158 Report Issued Date : Mar. 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-Z3352CA Photographs of EUT Report No.: EP010610 Brand Name: ZTE / Model Name: Z3352CA Sporton International (Kunshan) Inc. Page Number : 31 of 38 TEL : +86-512-57900158 Report Issued Date : Mar. 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-Z3352CA Photographs of EUT Report No.: EP010610 Brand Name: ZTE / Model Name: Z3352CA Sporton International (Kunshan) Inc. Page Number : 32 of 38 TEL : +86-512-57900158 Report Issued Date : Mar. 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-Z3352CA Photographs of EUT Report No.: EP010610 Brand Name: ZTE / Model Name: Z3352CA Sporton International (Kunshan) Inc. Page Number : 33 of 38 TEL : +86-512-57900158 Report Issued Date : Mar. 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-Z3352CA Photographs of EUT Report No.: EP010610 Brand Name: ZTE / Model Name: Z3352CA Sporton International (Kunshan) Inc. Page Number : 34 of 38 TEL : +86-512-57900158 Report Issued Date : Mar. 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-Z3352CA Photographs of EUT Report No.: EP010610 Brand Name: ZTE / Model Name: Z3352CA Sporton International (Kunshan) Inc. Page Number : 35 of 38 TEL : +86-512-57900158 Report Issued Date : Mar. 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-Z3352CA Photographs of EUT Report No.:…

Text truncated - open the document above for the full version.

Sporton International (Kunshan) Inc. Report Version : Rev.01 TEL : 86-512-57900158 / FAX : 86-512-57900958 Report Template No.: : 181113 FCC ID : SRQ-Z3352CA Page 1 of 84 Issued Date : Mar. 12, 2019 FCC SAR Test Report Report No. : FA010610 FCC SAR Test Report APPLICANT : ZTE CORPORATION EQUIPMENT : LTE/WCDMA/GSM(GPRS) Multi-Mode Digital Mobile Phone BRAND NAME : ZTE MODEL NAME : Z3352CA FCC ID : SRQ-Z3352CA STANDARD : FCC 47 CFR PART 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2013 The product was received on Jan. 06, 2020 and testing was started from Jan. 12, 2020 and completed on Jan. 18, 2020. We, Sporton International (Kunshan) Inc., would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of Sporton International (Kunshan) Inc., the test report shall not be reproduced except in full. Reviewed by: Rose Wang / Supervisor Approved by: Kat Yin / Manager Sporton International (Kunshan) Inc. No. 1098, Pengxi North Road, Kunshan Economic Development Zone Jiangsu Province 215300 People’s Republic of China Sporton International (Kunshan) Inc. Report Version : Rev.01 TEL : 86-512-57900158 / FAX : 86-512-57900958 Report Template No.: : 181113 FCC ID : SRQ-Z3352CA Page 2 of 84 Issued Date : Mar. 12, 2019 FCC SAR Test Report Report No. : FA010610 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 3. Guidance Applied .......................................................................................................................................................... 5 4. Equipment Under Test (EUT) Information ................................................................................................................... 6 4.1 General Information ............................................................................................................................................... 6 4.2 General LTE SAR Test and Reporting Considerations ........................................................................................... 7 5. RF Exposure Limits....................................................................................................................................................... 9 5.1 Uncontrolled Environment ...................................................................................................................................... 9 5.2 Controlled Environment .......................................................................................................................................... 9 6. Specific Absorption Rate (SAR) ..................................................................................................................................10 6.1 Introduction ...........................................................................................................................................................10 6.2 SAR Definition .......................................................................................................................................................10 7. System Description and Setup ...................................................................................................................................11 7.1 E-Field Probe ........................................................................................................................................................12 7.2 Data Acquisition Electronics (DAE) .......................................................................................................................12 7.3 Phantom ................................................................................................................................................................13 7.4 Device Holder........................................................................................................................................................14 8. Measurement Procedures ...........................................................................................................................................15 8.1 Spatial Peak SAR Evaluation ................................................................................................................................15 8.2 Power Reference Measurement............................................................................................................................16 8.3 Area Scan .............................................................................................................................................................16 8.4 Zoom Scan ............................................................................................................................................................17 8.5 Volume Scan Procedures ......................................................................................................................................17 8.6 Power Drift Monitoring ...........................................................................................................................................17 9. Test Equipment List .....................................................................................................................................................18 10. System Verification ....................................................................................................................................................19 10.1 Tissue Simulating Liquids ..................................................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/1/13 17_WCDMA Band IV_RMC 12.2Kbps_Bottom Side_10mm_Ch1513 Communication System: UID 0, WCDMA (0); Frequency: 1752.6 MHz;Duty Cycle: 1:1 Medium: HSL_1750 Medium parameters used: f = 1752.6 MHz; σ = 1.383 S/m; ε r = 39.67; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: ES3DV3 - SN3293; ConvF(5.53, 5.53, 5.53); Calibrated: 2019/11/25 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2019/11/20 - Phantom: SAM1; Type: SAM; Serial: TP-1839 - Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.11 (7439) Ch1513/Area Scan (41x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.17 W/kg Ch1513/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 28.72 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 1.68 W/kg SAR(1 g) = 0.902 W/kg; SAR(10 g) = 0.465 W/kg Maximum value of SAR (measured) = 1.10 W/kg 0 dB = 1.17 W/kg = 0.68 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020.1.12 18_WCDMA Band II_RMC 12.2Kbps_Bottom Side_10mm_Ch9400 Communication System: UID 0, WCDMA (0); Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: HSL_1900 Medium parameters used: f = 1880 MHz; σ = 1.381 S/m; ε = 39.198; ρ = 1000 r 3 kg/m Ambient Temperature：23.3 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: ES3DV3 - SN3293; ConvF(5.32, 5.32, 5.32); Calibrated: 2019.11.25 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2019.11.20 - Phantom: SAM1; Type: SAM; Serial: TP-1839 - Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.11 (7439) Ch9400/Area Scan (41x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.802 W/kg Ch9400/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 24.34 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 1.16 W/kg SAR(1 g) = 0.652 W/kg; SAR(10 g) = 0.342 W/kg Maximum value of SAR (measured) = 0.820 W/kg 0 dB = 0.820 W/kg = -0.86 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/1/15 19_LTE Band 12_10M_QPSK_1RB_25Offset_Back_10mm_Ch23095 Communication System: UID 0, LTE-FDD (0); Frequency: 707.5 MHz;Duty Cycle: 1:1 Medium: HSL_750 Medium parameters used: f = 707.5 MHz; σ = 0.857 S/m; ε r = 42.072; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.8 °C DASY5 Configuration: - Probe: ES3DV3 - SN3293; ConvF(6.56, 6.56, 6.56); Calibrated: 2019/11/25 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2019/11/20 - Phantom: SAM2; Type: SAM; Serial: TP-1503 - Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.11 (7439) Ch23095/Area Scan (71x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.450 W/kg Ch23095/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 23.42 V/m; Power Drift = 0.0…
