SRQ-Z5158LTE/WCDMA/GSM Multi-Mode Digital Mobile Phone with BT and WiFi

Z5158 QUICK START GUIDE Welcome! This guide will help you get the most out of your new Consumer Cellular Avid 589. You’ll find instructions to help you begin using your device. If you need more assistance, feel free to contact us by using the contact information listed below. We’re always happy to help you! Need More Information? Visit our website at ConsumerCellular.com/Help Call us at (888) 835-6047 3 SETTING UP YOUR PHONE INSTALLING A microSDXC™ CARD The microSDXC card can be installed and removed while the phone is turned on. Unmount the microSDXC card before removing it. 1. Place your finger in the slot at the lower left of the back cover to lift and remove the cover. 2. Hold your microSDXC card with the metal contacts facing down and slide it into the microSDXC card slot. 3. Press the cover gently back into place until you hear a click. CHARGING THE BATTERY You should fully charge the battery as soon as possible. If the battery is low, there will be a pop-up message on the screen. As you charge your phone, the screen will tell you the exact battery level from the status bar. WARNING! Use only ZTE-approved chargers and USB Type-C cables. The use of unapproved accessories could damage your phone or cause the battery to explode. 1. Connect the adapter to the charging port. 2. Connect the charger to a standard AC wall outlet. If the phone is on, you’ll see a charging icon appear in the status bar. 3. Disconnect the charger when the battery is fully charged. 4 GETTING TO KNOW YOUR PHONE Earpiece/Speaker Front Camera Proximity & Light Sensor Indicator Light Volume Key SOS Key Touch Screen Power/Lock Key 5 3.5mm Headset Jack Back Camera Charging/ USB Type-C Jack Microphone Flash Microphone 6 FOR YOUR SAFETY FCC RF EXPOSURE INFORMATION (SAR) This phone is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the United States. During SAR testing, this device was set to transmit at its highest certified power level in all tested frequency bands, and placed in positions that simulate RF exposure in usage against the head with no separation, and near the body with the separation of 0.5 inches (15mm). Although the SAR is determined at the highest certified power level, the actual SAR level of the device while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. The exposure standard for wireless devices employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. This device is complied with SAR for general population/uncontrolled exposure limits in ANSI/IEEE C95.1-1992 and had been tested in accordance with the measurement methods and procedures specified in IEEE1528. The FCC has granted an Equipment Authorization for this model phone with 7 all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of www .fcc .gov/oet/ea/fccid after searching on FCC ID: SRQ-Z5158. For this device, the highest reported SAR value for usage against the head is 0.53W/kg, and for usage near the body is 1.27 W/kg. While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirements. SAR compliance for body-worn operation is based on a separation distance of 15mm between the unit and the human body. Carry this device at least 15mm away from your body to ensure RF exposure level compliant or lower to the reported level. To support body- worn operation, choose the belt clips or holsters, which do not contain metallic components, to maintain a separation of 15mm between this device and your body. RF exposure compliance with any body-worn accessory that contains metal was not tested and certified, and use such body-worn accessory should be avoided. FCC REGULATIONS This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 8 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Contact Customer Service at (888) 835-6047. CAUTION: Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 9 HEARING AID COMPATIBILITY (HAC) REGULATIONS FOR MOBILE PHONES In 2003, the FCC adopted rules to make digital wireless telephones compatible with hearing aids and cochlear implants. Although analog wireless phones do no…

Text truncated - open the document above for the full version.

ZTECorporation. ZTE Plaza, Keji Road South,Hi-Tech, Industrial Park, Nanshan District,Shenzhen, P.R.China Tel: +86-21-68895397 Authorization Letter FCC ID: SRQ‐Z5158 Date: July 26 2021 To whom it may concern: We, the undersigned, hereby authorize The State Radio_monitoring_centerTesting Center (SRTC) to act on our behalf, as our agent, in the following matters related to the FCC approval of our product: Product Name: LTE/WCDMA/GSM Multi‐Mode Digital Mobile Phone Product Model: Z5158 FCC ID: SRQ‐Z5158 Report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by The State Radio_monitoring_center TestingCenter (SRTC) within the scope of this authorization shall have the same effects as our own. This authorization shall expire 2 months from original date. If you have any question regarding the authorization, please don’t hesitate to contact with me. Thank you. Sincerely, Certification Manager: Gong Yu ZTECorporation. Address: ZTE Plaza, Keji Road South,Hi-Tech, Industrial Park, Nanshan District,Shenzhen, P.R.China Tel: +86-21-68895397

ZTE Corporation Address: ZTE Plaza, Keji Road South,Hi-Tech, Industrial Park, Nanshan District,Shenzhen, P.R.China Tel: +86-21-68895397 PHOENIX TESTLAB GmbH Date: 26 July 2021 Product Certification Königswinkel 10 D 32825 Blomberg Subject: Declaration Operating Channel Limitation Product Name: LTE/WCDMA/GSM Multi-Mode Digital Mobile Phone Product Model: Z5158 FCC ID: SRQ-Z5158 To Whom it may concern, The operating channels in 802.11 b/g/n mode for the device marketed to the US/Canada are firmware limited to channel 1 ~ 11 (2412 ~ 2462 MHz). The end-user has no possibility to select any other operating channels. If you have any questions, please feel free to contact me. Thank you. Sincerely, Certification Manager : Gong Yu ZTE Corporation Address: ZTE Plaza, Keji Road South,Hi-Tech, Industrial Park, Nanshan District,Shenzhen, P.R.China Tel: +86-21-68895397

ZTECorporation. Address: ZTE Plaza, Keji Road South,Hi-Tech, Industrial Park, Nanshan District,Shenzhen, P.R.China Tel: +86-21-68895397 Request of Confidentiality Federal Communications Commission Authorization and Evaluation Division Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying of following product: Product Name: LTE/WCDMA/GSM Multi-Mode Digital Mobile Phone Product Model: Z5158 FCC ID: SRQ-Z5158 The following information should be held confidential: All Schematics/block diagrams All Parts list for the above schematic diagram Tune-Up Procedure Operational description and technical overview of product The following information should be held for short term confidential: Test set up photos External photos Internal photos The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. ZTECorporation. Address: ZTE Plaza, Keji Road South,Hi-Tech, Industrial Park, Nanshan District,Shenzhen, P.R.China Tel: +86-21-68895397 July 26, 2021 ZTECorporation. Address: ZTE Plaza, Keji Road South,Hi-Tech, Industrial Park, Nanshan District,Shenzhen, P.R.China Tel: +86-21-68895397

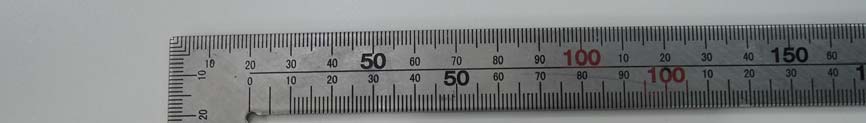

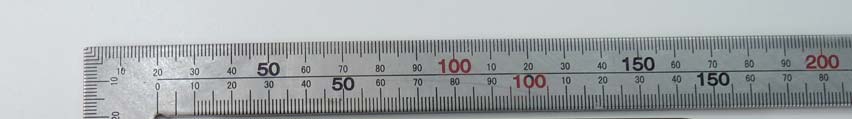

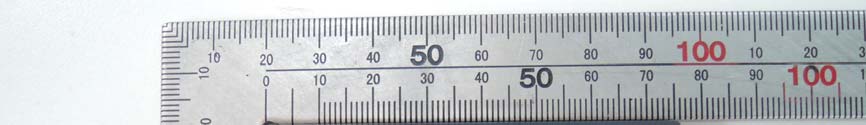

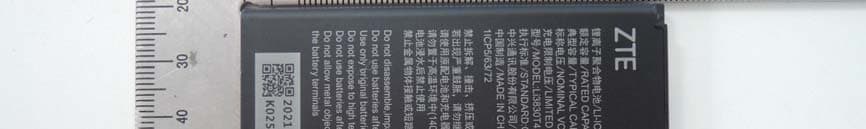

External Photo FCC ID：SRQ-Z5158 1 / 8 External Photo FCC ID：SRQ-Z5158 2 / 8 The Battery View(Jiade Energy Technology(zhuhai) CO., LTD) External Photo FCC ID：SRQ-Z5158 3 / 8 The Battery View(Jiade Energy Technology(zhuhai) CO., LTD) The Charger View(Jiangxi Jian Aohai Technology Co., Ltd.) External Photo FCC ID：SRQ-Z5158 4 / 8 The Charger View(Jiangxi Jian Aohai Technology Co., Ltd.) The Charger View(Jiangxi Jian Aohai Technology Co., Ltd.) The Charger View(Jiangxi Jian Aohai Technology Co., Ltd.) External Photo FCC ID：SRQ-Z5158 5 / 8 The Charger View(SHENZHEN RUIJING INDUSTRIAL CO.,LTD) The Charger View(SHENZHEN RUIJING INDUSTRIAL CO.,LTD) The Charger View(SHENZHEN RUIJING INDUSTRIAL CO.,LTD) External Photo FCC ID：SRQ-Z5158 6 / 8 The Charger View(SHENZHEN RUIJING INDUSTRIAL CO.,LTD) The Charger View(HUIZHOU PUAN ELECTRONICS CO.,LTD) The Charger View(HUIZHOU PUAN ELECTRONICS CO.,LTD) External Photo FCC ID：SRQ-Z5158 7 / 8 The Charger View(HUIZHOU PUAN ELECTRONICS CO.,LTD) The Charger View(HUIZHOU PUAN ELECTRONICS CO.,LTD) External Photo FCC ID：SRQ-Z5158 8 / 8 The USB cable view(Dongwan Kingpower Electronics Co.,LTD) The USB cable view(Luxshare)

Z5158 ALL Label 2021.5.17 SKU: Z5158 Model:Z5158 H/W:Z5158HW1.0 UPC: 855785008730 FCC ID : : Vendor:ZTE Corporation Location:xxxxxx Address:xxxxxx SKU: Z5158 PO#:000001 Made in China Pallet label Size:110*150mm 059162800001 Made in China IMEI:XXXXXXXXXXXXXXX Size:110*28mm SW: XXXXXXXXXXXXXX 55785 00873 Giftbox Label S/N:XXXXXXXXXXXX Model:Z5158 SKU: Z5158 Carton Label QTY:XX SKU:Z5158 SW: XXXXXXXXXXX Carton ID:XXXXXXXXXXXXXXXXXX IMEI:990008870002008 IMEI:990008870002008 IMEI:990008870002008 IMEI:990008870002008 IMEI:990008870002008 XXXXXXXXXXXX Model:Z5158 P/O NO:0000001 Packing Status:Full Weight:xxxxg Dimension: xxxmm*xxxmm*xxxmm S/N : S/N :XXXXXXXXXXXX S/N :XXXXXXXXXXXX S/N :XXXXXXXXXXXX S/N :XXXXXXXXXXXX Made in China 078761002801 SRQ-Z5158 80 QTY:XXXXXX Ship Date DD/MM/YYYY 55785 0087380 MODEL:Z5158 FCC ID: SRQ-Z5158 H/W: IMEI:XXXXXXXXXXXXXXX S/N:XXXXXXXXXXXX SKU:Z5158 MADE IN CHINA Z5158HW1.0

Internal Photo FCC ID：SRQ-Z5158 1 / 8 Internal Photo FCC ID：SRQ-Z5158 2 / 8 Internal Photo FCC ID：SRQ-Z5158 3 / 8 Internal Photo FCC ID：SRQ-Z5158 4 / 8 Internal Photo FCC ID：SRQ-Z5158 5 / 8 Internal Photo FCC ID：SRQ-Z5158 6 / 8 Internal Photo FCC ID：SRQ-Z5158 7 / 8 Internal Photo FCC ID：SRQ-Z5158 8 / 8

No.SRTC2021-9004(F)-21070201(H) FCC ID: SRQ-Z5158 The State Radio_monitoring_center Testing Center (SRTC) Page number: 1 of 21 Tel: 86-10-57996183 Fax: 86-10-57996388 V3.0.0 ANNEX A – TEST PLOTS System check 750MHz Communication System: UID 0, CW (0); Frequency: 750 MHz; Duty Cycle: 1:1 Medium parameters used: f = 750 MHz; σ = 0.87 S/m; ε r = 39.55; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN3708; ConvF(9.75, 9.75, 9.75) @ 750 MHz; Calibrated: 10/30/2020  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn720; Calibrated: 9/30/2020  Phantom: Twin-SAM 1559; Type: QD 000 P40 CD; Serial: xxxx  Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) D750/Dipole 750MHz/Area Scan (5x15x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.51 W/kg D750/Dipole 750MHz/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 55.69 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 2.87 W/kg SAR(1 g) = 2.21 W/kg; SAR(10 g) = 1.22 W/kg Maximum value of SAR (measured) = 2.53 W/kg No.SRTC2021-9004(F)-21070201(H) FCC ID: SRQ-Z5158 The State Radio_monitoring_center Testing Center (SRTC) Page number: 2 of 21 Tel: 86-10-57996183 Fax: 86-10-57996388 V3.0.0 System check 835MHz Communication System: UID 0, CW (0); Frequency: 835 MHz; Duty Cycle: 1:1 Medium parameters used (interpolated): f = 835 MHz; σ = 0.87 S/m; ε r = 39.55;ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN3708; ConvF(9.48, 9.48, 9.48) @ 835 MHz; Calibrated: 10/30/2020  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn720; Calibrated: 9/30/2020  Phantom: Twin-SAM 1559; Type: QD 000 P40 CD; Serial: xxxx  Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Configuration 835/835/Area Scan (8x15x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.72 W/kg Configuration 835/835/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 51.67 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 3.58 W/kg SAR(1 g) = 2.27 W/kg; SAR(10 g) = 1.51 W/kg Maximum value of SAR (measured) = 2.75 W/kg No.SRTC2021-9004(F)-21070201(H) FCC ID: SRQ-Z5158 The State Radio_monitoring_center Testing Center (SRTC) Page number: 3 of 21 Tel: 86-10-57996183 Fax: 86-10-57996388 V3.0.0 System check 900MHz Communication System: UID 0, CW (0); Frequency: 900 MHz; Duty Cycle: 1:1 Medium parameters used: f = 900 MHz; σ = 0.88 S/m; ε r = 41.96; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN3708; ConvF(9.39, 9.39, 9.39) @ 900 MHz; Calibrated: 10/30/2020  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn720; Calibrated: 9/30/2020  Phantom: Twin-SAM 1559; Type: QD 000 P40 CD; Serial: xxxx  Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) D900/Dipole 900MHz/Area Scan (5x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 3.42 W/kg D900/Dipole 900MHz/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 62.05 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 3.94 W/kg SAR(1 g) = 2.52 W/kg; SAR(10 g) = 1.6 W/kg Maximum value of SAR (measured) = 3.46 W/kg No.SRTC2021-9004(F)-21070201(H) FCC ID: SRQ-Z5158 The State Radio_monitoring_center Testing Center (SRTC) Page number: 4 of 21 Tel: 86-10-57996183 Fax: 86-10-57996388 V3.0.0 System check 1800MHz Communication System: UID 0, CW (0); Frequency: 1800 MHz; Duty cycle:1:1 Medium parameters used: f = 1800 MHz; σ = 1.38 S/m; ε r = 38.08; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN3708; ConvF(8.41, 8.41, 8.41) @ 1800 MHz; Calibrated: 10/30/2020  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn720; Calibrated: 9/30/2020  Phantom: Twin-SAM 1559; Type: QD 000 P40 CD; Serial: xxxx  Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Configuration 1800/1800/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 8.31 W/kg Configuration 1800/1800/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 76.60 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 17.5 W/kg SAR(1 g) = 9.56 W/kg; SAR(10 g) = 4.97 W/kg Maximum value of SAR (measured) = 12.1 W/kg No.SRTC2021-9004(F)-21070201(H) FCC ID: SRQ-Z5158 The State Radio_monitoring_center Testing Center (SRTC) Page number: 5 of 21 Tel: 86-10-57996183 Fax: 86-10-57996388 V3.0.0 System check 2000MHz Communication System: UID 0, CW (0); Frequency: 2000 MHz; Duty cycle:1:1 Medium parameters used: f = 2000 MHz; σ = 1.38 S/m; ε r = 40.18; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN3708; ConvF(8.09, 8.09, 8.09) @ 2000 MHz; Calibrated: 10/30/2020  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn720; Calibrated: 9/30/2020  Phantom: Twin-SAM 1559; Type: QD 000 P40 CD; Serial: xxxx  Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Configuration 2000/2000/Area Scan (7x10x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 8.40 W/kg Configuration 2000/2000/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 76.22 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 18.7 W/kg SAR(1 g) = 10.3 W/kg; SAR(10 g) = 4.96 W/kg Maximum value of SAR (measured) = 12.9 W/kg No.SRTC2021-9004(F)-21070201(H) FCC ID: SRQ-Z5158 The State Radio_monitoring_center Testing Center (SRTC) Page number: 6 of 21 Tel: 86-10-57996183 Fax: 86-10-57996388 V3.0.0 System check 2450MHz Communication System: UID 0, CW (0); Frequency: 2450 MHz; Duty cycle:1:1 Medium parameters used: f = 2450 MHz; σ = 1.85 S/m; ε r = 40.04; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: …

Text truncated - open the document above for the full version.

Certificate Num ber: 5055.02 TEST REPORT FOR SAR TESTING Report No：SRTC2021-9004(F)-21070201(H) Product Name: LTE/WCDMA/GSM Multi-Mode Digital Mobile Phone Product Model: Z5158 Applicant: ZTE Corporation Manufacturer: ZTE Corporation Specification: Part 2.1093 IEEE Std 1528 KDB Procedures FCC ID: SRQ-Z5158 The State Radio_monitoring_center Testing Center (SRTC) 15th Building, No.30 Shixing Street, Shijingshan District, Beijing, P.R. China Tel: 86-10-57996183 Fax: 86-10-57996388 No.SRTC2021-9004(F)-21070201(H) FCC ID: SRQ-Z5158 The State Radio_monitoring_center Testing Center (SRTC) Page number: 2 of 107 Tel: 86-10-57996183 Fax: 86-10-57996388 V3.0.0 Contents 1. GENERAL INFORMATION ............................................................................................................................. 3 1.1 NOTES OF THE TEST REPORT ............................................................................................................................ 3 1.2 INFORMATION ABOUT THE TESTING LABORATORY ............................................................................................... 3 1.3 APPLICANT’S DETAILS ....................................................................................................................................... 3 1.4 MANUFACTURER’S DETAILS ............................................................................................................................... 3 1.5 TEST ENVIRONMENT ......................................................................................................................................... 4 2. DESCRIPTION OF THE DEVICE UNDER TEST ........................................................................................... 5 2.1 FINAL EQUIPMENT BUILD STATUS ..................................................................................................................... 5 2.2 SUPPORT EQUIPMENT ...................................................................................................................................... 6 2.3 OTHER EQUIPMENT INFORMATION ..................................................................................................................... 6 3. REFERENCE SPECIFICATION ...................................................................................................................... 7 4. TEST CONDITIONS ........................................................................................................................................ 8 4.1 PICTURE TO DEMONSTRATE THE REQUIRED LIQUID DEPTH .................................................................................. 8 4.2 TEST SIGNAL, FREQUENCIES AND OUTPUT POWER ............................................................................................ 8 4.3 SAR MEASUREMENT SET-UP ............................................................................................................................ 8 4.4 PHANTOMS ...................................................................................................................................................... 9 4.5 TISSUE SIMULANTS .......................................................................................................................................... 9 4.6 DESCRIPTION OF THE TEST PROCEDURE ............................................................................................ 10 5 RESULT SUMMARY ...................................................................................................................................... 12 6 TEST RESULT ............................................................................................................................................... 15 6.1 MEASUREMENT RESULT .................................................................................................................................. 15 6.2 STANDALONE SAR TEST EXCLUSION CONSIDERATIONS ................................................................................... 69 6.3 RF EXPOSURE CONDITIONS ............................................................................................................................ 70 6.4 SYSTEM CHECKING ........................................................................................................................................ 72 6.5 SAR TEST RESULT ..................................................................................................................................... 73 6.6 SAR MEASUREMENT VARIABILITY ................................................................................................................... 98 6.7 SIMULTANEOUS TRANSMISSION SAR ANALYSIS ............................................................................................... 99 7 MEASUREMENT UNCERTAINTY ............................................................................................................... 100 8 TEST EQUIPMENTS .................................................................................................................................... 102 No.SRTC2021-9004(F)-21070201(H) FCC ID: SRQ-Z5158 The State Radio_monitoring_center Testing Center (SRTC) Page number: 3 of 107 Tel: 86-10-57996183 Fax: 86-10-57996388 V3.0.0 1. GENERAL INFORMATION 1.1 Notes of the test report The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written permission of The State Radio_monitoring_center Testing Center (SRTC). The test results relate only to individual items of the samples which have been tested. The certification and accreditation identifiers used in this report shall not be applicable to the tested or calibrated samples thereof. The manufacturer shall not mark the tested samples or items (or a separate part of the item) with the identifiers of certification and accreditation to mislead relevant parties about the tested samples or items. 1.2 Information about the testing laboratory Company: …

Text truncated - open the document above for the full version.

Certificate Number: 5055.02 TEST REPORT FOR BLUETOOTH TESTING Report No.: SRTC2021-9004(F)-21070201(D) Product Name: LTE/WCDMA/GSM Multi-Mode Digital Mobile Phone Product Model: Z5158 Marketing Name: ZTE Avid 589 Applicant: ZTE Corporation. Manufacturer: ZTE Corporation. Specification: FCC Part 15 Subpart C (2020) FCC ID: SRQ-Z5158 The State Radio_monitoring_center Testing Center (SRTC) 15th Building, No.30 Shixing Street, Shijingshan District, Beijing, P.R.China Tel: 86-10-57996183 Fax: 86-10-57996388 No.: SRTC2021-9004(F)-21070201(D) FCC ID: SRQ-Z5158 The State Radio_monitoring_center Testing Center (SRTC) Page number: 1 of 68 Tel: 86-10-5799 6183 Fax: 86-10-57996388 V3.0.0 CONTENTS 1.1 NOTES OF THE TEST REPORT .................................................................................................................................... 2 1.2 INFORMATION ABOUT THE TESTING LABORATORY ..................................................................................................... 2 1.3 APPLICANT’S DETAILS ................................................................................................................................................ 2 1.4 MANUFACTURER’S DETAILS ....................................................................................................................................... 2 1.5 TEST ENVIRONMENT .................................................................................................................................................. 3 2 DESCRIPTION OF THE DEVICE UNDER TEST ............................................................................................... 4 2.1 FINAL EQUIPMENT BUILD STATUS ............................................................................................................................. 4 2.2 DESCRIPTION OF TEST MODES ................................................................................................................................. 5 2.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ................................................................................. 5 2.3 DUTY CYCLE OF TEST SIGNAL ................................................................................................................................... 7 2.4 EUT OPERATING CONDITIONS .................................................................................................................................... 7 2.5 SUPPORT EQUIPMENT................................................................................................................................................ 7 3 REFERENCE SPECIFICATION .......................................................................................................................... 8 4 KEY TO NOTES AND RESULT CODES ............................................................................................................ 8 5 RESULT SUMMARY ........................................................................................................................................... 9 6 TEST RESULT ................................................................................................................................................... 10 6.1 20DB BANDWIDTH .................................................................................................................................................... 10 6.2 CHANNEL SEPARATION ............................................................................................................................................ 11 6.3 PEAK TRANSMITTER OUTPUT POWER ..................................................................................................................... 12 6.4 DWELL TIME ............................................................................................................................................................. 13 6.5 NUMBER OF HOPPING FREQUENCIES ...................................................................................................................... 14 6.6 CONDUCTED OUT OF BAND EMISSION MEASUREMENT ............................................................................................ 15 6.7 BAND-EDGE MEASUREMENT .................................................................................................................................... 16 6.8 SPURIOUS RADIATED EMISSIONS ............................................................................................................................ 17 6.9 AC POWER LINE CONDUCTED EMISSION ................................................................................................................ 22 7 MEASUREMENT UNCERTAINTIES ................................................................................................................ 23 8 TEST EQUIPMENTS ......................................................................................................................................... 24 APPENDIX A – TEST DATA OF CONDUCTED EMISSION ............................................................................... 25 APPENDIX B – TEST DATA OF RADIATED EMISSION ................................................................................... 39 No.: SRTC2021-9004(F)-21070201(D) FCC ID: SRQ-Z5158 The State Radio_monitoring_center Testing Center (SRTC) Page number: 2 of 68 Tel: 86-10-5799 6183 Fax: 86-10-57996388 V3.0.0 1. GENERAL INFORMATION 1.1 Notes of the test report The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written permission of The State Radio_monitoring_center Testing Center (SRTC). The test results relate only to individual items of the samples which have been tested.The certification and accreditation identifiers used in this report shall not be applicable to the tested or calibrated samples thereof. The manufacturer shall not mark the tested samples or items (or a separate part of the item) with th…

Text truncated - open the document above for the full version.

SETUP PHOTOGRAPH Left Cheek Left Tilt Right…
