SRQ-Z930LGSM/WCDMA/LTE MULTI-MODE DIGITAL MOBILE PHONE

Z930L User Manual About This Manual Thank you for choosing this ZTE mobile device. In order to keep your device in its best condition, please read this manual and keep it for future reference. Copyright Copyright © 2012 ZTE CORPORATION All rights reserved. No part of this publication may be quoted, reproduced, translated or used in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. Notice ZTE Corporation reserves the right to make modifications on print errors or update specifications in this guide without prior notice. This manual has been designed with the utmost care to ensure the accuracy of its content. However, all statements, information and recommendations contained therein do not constitute a warranty of any kind, either expressed or implied. Please refer to chapter For Your Safety to be sure to use your phone properly and safely. We offer self-service for our smart terminal device users. Please visit the ZTE official website (at www.zte.com.cn) for more information on self-service and supported product models. Information on the website takes precedence. Disclaimer ZTE Corporation expressly disclaims any liability for faults and damages caused by unauthorized modifications of the software. Images and screenshots used in this manual may differ from the actual product. Content in this manual may differ from the actual product or software. Trademarks ZTE and the ZTE logos are trademarks of the ZTE Corporation. Google and Android are trademarks of Google, Inc. The Bluetooth ® trademark and logos are owned by the Bluetooth SIG, Inc. and any use of such trademarks by ZTE Corporation is under license. The microSD logo is a trademark of the SD Card Association. Other trademarks and trade names are the property of their respective owners. Version No.: R1.0 Edition Time : 2013.3.20 Contents Getting Started ....................................................... 12 Overview ..................................................................... 12 Keys Explained ............................................................ 13 Starting up ................................................................... 14 Installing the SIM/microSD Card and Battery .......... 14 Removing the Battery and SIM/microSD Card ........ 16 Charging the Battery .............................................. 16 Switching Your Phone On/Off ...................................... 17 Setting Up Your Phone for the First Time ............... 17 Switching to Sleep Mode ........................................ 18 Waking up Your Phone .......................................... 19 Getting Around ............................................................ 19 Touch Control ........................................................ 19 Home Screen ......................................................... 20 Status and Notification Icons .................................. 24 Phone Calls ............................................................ 28 How to Make Calls ....................................................... 28 Calling From the Dialer ........................................... 28 Calling From Your Contacts ................................... 28 Calling from Your Call History ................................ 29 Calling from a Text Message .................................. 29 Using Speed Dial ................................................... 29 How to Receive Calls .................................................. 30 Answering a Call .................................................... 30 Rejecting a Call ...................................................... 30 Muting a Call........................................................... 30 Putting a Call on Hold ............................................. 31 Turning the Speakerphone On/Off .......................... 31 Ending a Call .......................................................... 31 Adjusting Your Call Settings ......................................... 31 People ..................................................................... 33 Importing and Exporting Contacts ................................ 33 Import Contacts from the SIM Card or Export to the Card ....................................................................... 33 Import Contacts from the microSD Card or Export to the Card.................................................................. 34 Import Contacts from the Phone Storage or Export to the Storage ............................................................. 34 Sharing Contacts Information ....................................... 35 Creating a Contact ....................................................... 35 Adding a Contact to Favorites ...................................... 35 Searching for a Contact................................................ 36 Creating a New Group ................................................. 36 Entering Text .......................................................... 37 Android Keyboard ........................................................ 37 TouchPal Keyboard...................................................... 38 Choosing Touch Input Settings .................................... 42 Messaging .............................................................. 44 The Message Box ........................................................ 44 Sending an Message ................................................... 44 Changing Message Settings ........................................ 45 Email ....................................................................... 47 Creating an Email Account .......................................... 47 Receiving Emails ......................................................... 47 Composing and Sending an Email ............................... 48 Replying to or Forwarding an Email ............................. 48 Deleting an Account .................................................... 49…

Text truncated - open the document above for the full version.

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Tel: +86-21-68897541 ; Fax: +86-21-68891070 Declaration - MIF for HAC RF Interference Evaluation This device, with FCC ID: SRQ-Z930L, Hearing Aid Compatibility Requirement is going to be certified under ANSI C63.19 2011 version per Part 20.19. For Radio Frequency Interference, Speag’s Audio Interference Analyzer (AIA) or other indirect or direct measurement was not used to determine the M rating. The M rating was determined by measuring the maximum steady state average E-field values in dB (V/m) as documented in HAC test report exhibit and adding the MIF value in dB (V/m) using pre-determined values provided by Speag. UID Air Interface MIF(dB) 10021 GSM-FDD(TDMA,GMSK) 3.63 10011 UMTS-FDD(WCDMA) -27.23 The Speag –reference documentation for supporting the pre-determined MIF value is Schmid & Partner Engineering AG, DASY5 Manual V5.2, March 2013 We are confirming that the Speag simulation provided represents all the air interface modes applicable for a HAC rating for this device. Sincerely yours, Min Zhang [email protected]

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Tel: +86-21-68897541 ; Fax: +86-21-68891070 Statement We, ZTE CORPORATION, states that our device, FCC ID: SRQ-Z930L. The label will be put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. Contact Person: Min Zhang Company: ZTE CORPORATION TEL: +86-21-68897541 FAX: +86-21-68891070 E-mail: [email protected]

Rev. 1/1/03 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Tel: +86-21-68897541 ; Fax: +86-21-68891070 Date: October 22, 2013 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: SRQ-Z930L Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Parts List Operation Description Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Min Zhang

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Tel: +86-21-68897541 ; Fax: +86-21-68891070 Date: October 22, 2013 Power of Attorney To whom it may concern, Please be notified that I, Min Zhang, have designated Jones Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: SRQ-Z930L If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Min Zhang Company: ZTE CORPORATION TEL: +86-21-68897541 FAX: +86-21-68891070 E-mail: [email protected]

1/1 ZTE CORPORATION Date: October 22, 2013 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : SRQ-Z930L To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which ZTE CORPORATION deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Min Zhang Company: ZTE CORPORATION TEL: +86-21-68897541 FAX: +86-21-68891070 E-mail: [email protected]

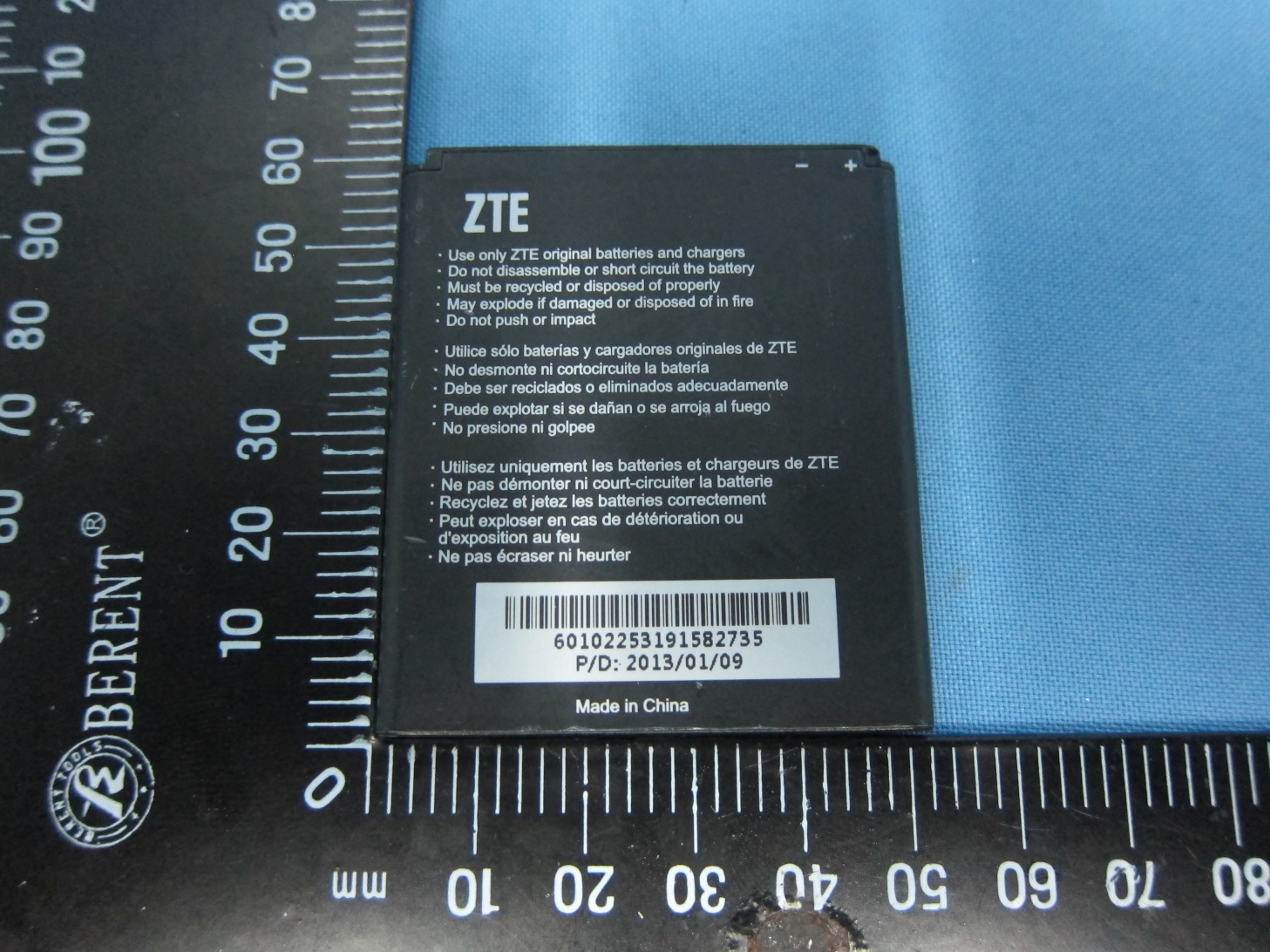

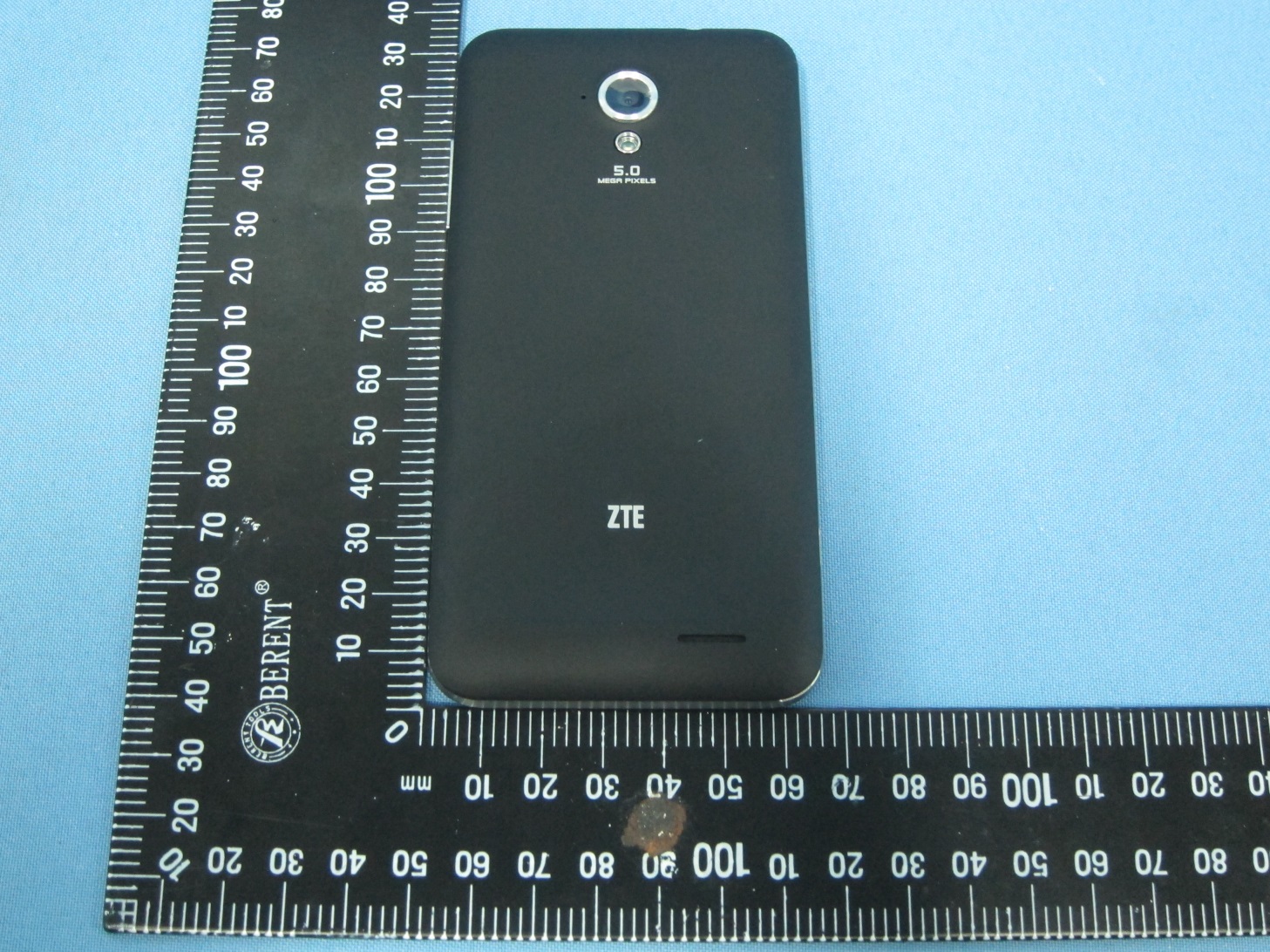

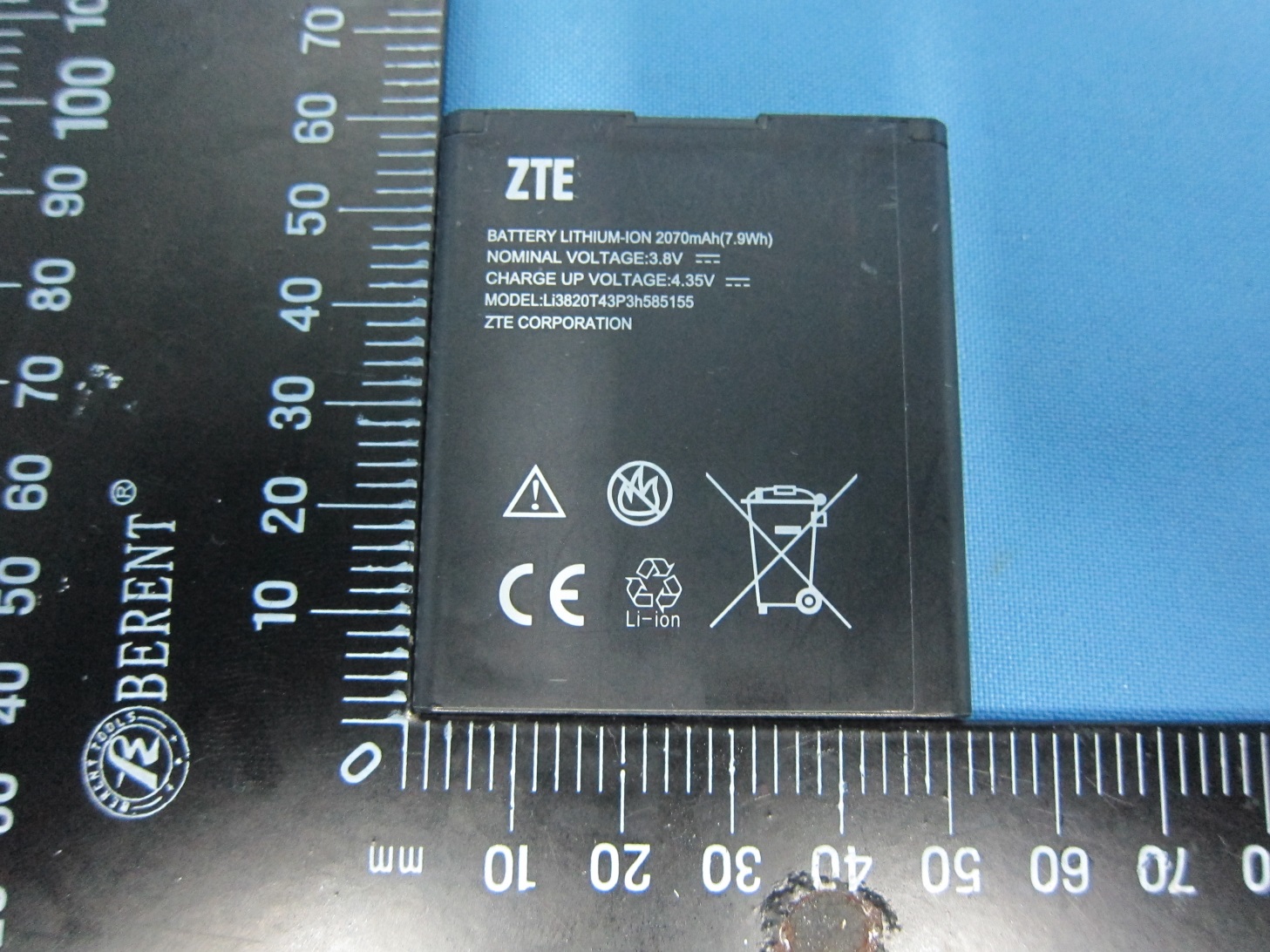

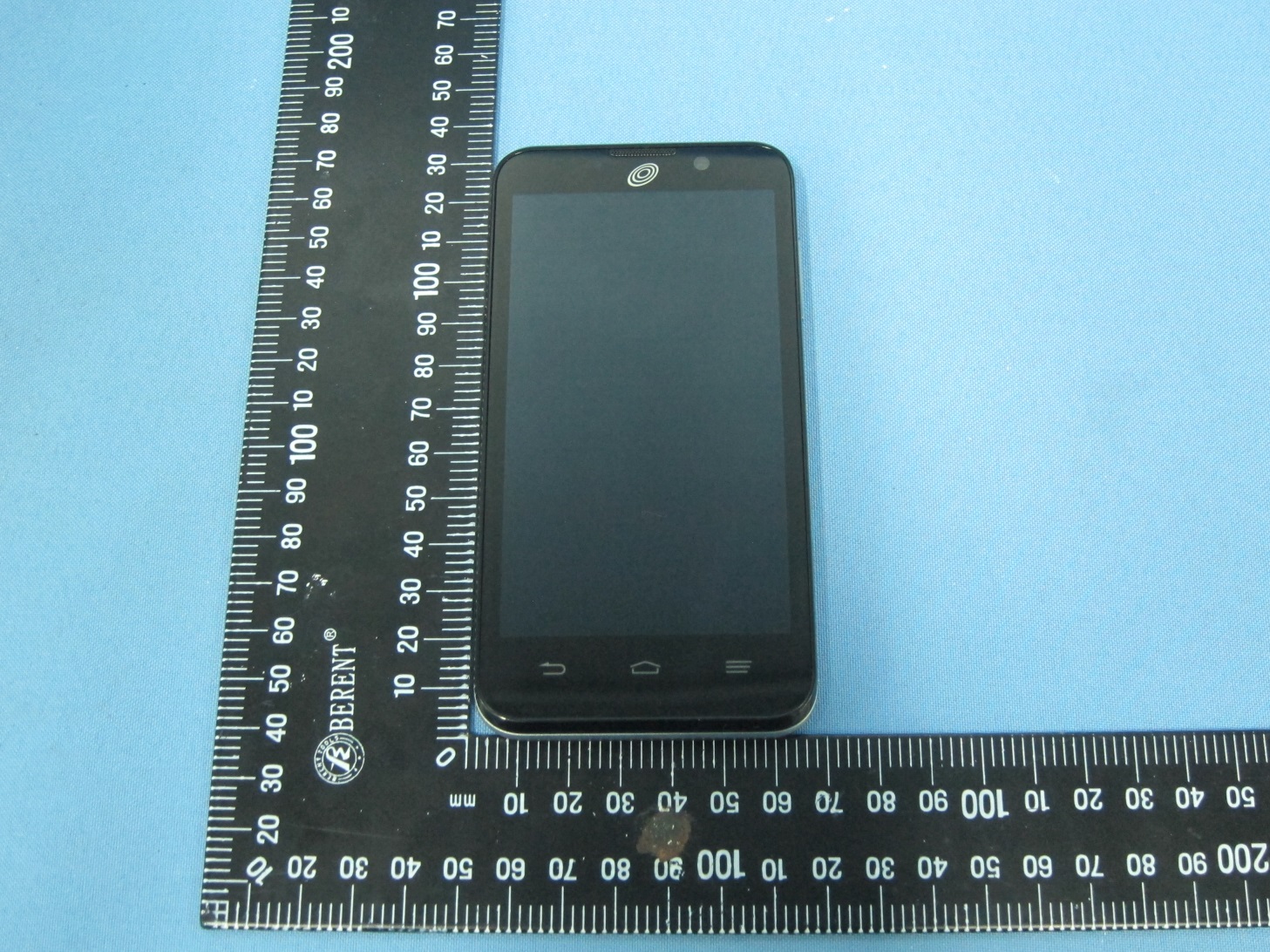

Photographs of EUT Report No.: EP391703 Brand Name: ZTE / Model Name: Z930L SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 34 TEL: +86-0512-5790-0158 Report Issued Date : Oct. 17, 2013 FAX: +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-Z930L 1. External Photograph of EUT Photographs of EUT Report No.: EP391703 Brand Name: ZTE / Model Name: Z930L SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 34 TEL: +86-0512-5790-0158 Report Issued Date : Oct. 17, 2013 FAX: +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-Z930L Photographs of EUT Report No.: EP391703 Brand Name: ZTE / Model Name: Z930L SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 34 TEL: +86-0512-5790-0158 Report Issued Date : Oct. 17, 2013 FAX: +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-Z930L Photographs of EUT Report No.: EP391703 Brand Name: ZTE / Model Name: Z930L SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 34 TEL: +86-0512-5790-0158 Report Issued Date : Oct. 17, 2013 FAX: +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-Z930L Photographs of EUT Report No.: EP391703 Brand Name: ZTE / Model Name: Z930L SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 34 TEL: +86-0512-5790-0158 Report Issued Date : Oct. 17, 2013 FAX: +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-Z930L Photographs of EUT Report No.: EP391703 Brand Name: ZTE / Model Name: Z930L SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 34 TEL: +86-0512-5790-0158 Report Issued Date : Oct. 17, 2013 FAX: +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-Z930L Photographs of EUT Report No.: EP391703 Brand Name: ZTE / Model Name: Z930L SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 34 TEL: +86-0512-5790-0158 Report Issued Date : Oct. 17, 2013 FAX: +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-Z930L Specification of Accessory AC Adapter Brand Name ZTE中兴 Model Name STC-A51A-Z Battery Brand Name ZTE Model Name Li3820T43P3h585155 USB Cable Signal Line Type 125cm shielded without core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP391703 Brand Name: ZTE / Model Name: Z930L SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 34 TEL: +86-0512-5790-0158 Report Issued Date : Oct. 17, 2013 FAX: +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-Z930L Photographs of EUT Report No.: EP391703 Brand Name: ZTE / Model Name: Z930L SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 34 TEL: +86-0512-5790-0158 Report Issued Date : Oct. 17, 2013 FAX: +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-Z930L AC Adapter Photographs of EUT Report No.: EP391703 Brand Name: ZTE / Model Name: Z930L SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 34 TEL: +86-0512-5790-0158 Report Issued Date : Oct. 17, 2013 FAX: +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-Z930L Battery Photographs of EUT Report No.: EP391703 Brand Name: ZTE / Model Name: Z930L SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 34 TEL: +86-0512-5790-0158 Report Issued Date : Oct. 17, 2013 FAX: +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-Z930L

Photographs of EUT Report No.: EP391703 Brand Name: ZTE / Model Name: Z930L SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 34 TEL: +86-0512-5790-0158 Report Issued Date : Oct. 17, 2013 FAX: +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-Z930L 3. Internal Photograph of EUT WLAN & Bluetooth Antenna GSM & WCDMA & LTE B17/B5/B2/B4 Antenna LTE B17//B2/B4 Diversity Antenna LTE B5 Diversity & GPS Antenna Photographs of EUT Report No.: EP391703 Brand Name: ZTE / Model Name: Z930L SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 34 TEL: +86-0512-5790-0158 Report Issued Date : Oct. 17, 2013 FAX: +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-Z930L Photographs of EUT Report No.: EP391703 Brand Name: ZTE / Model Name: Z930L SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 34 TEL: +86-0512-5790-0158 Report Issued Date : Oct. 17, 2013 FAX: +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-Z930L Photographs of EUT Report No.: EP391703 Brand Name: ZTE / Model Name: Z930L SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 34 TEL: +86-0512-5790-0158 Report Issued Date : Oct. 17, 2013 FAX: +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-Z930L Photographs of EUT Report No.: EP391703 Brand Name: ZTE / Model Name: Z930L SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 34 TEL: +86-0512-5790-0158 Report Issued Date : Oct. 17, 2013 FAX: +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-Z930L Photographs of EUT Report No.: EP391703 Brand Name: ZTE / Model Name: Z930L SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 34 TEL: +86-0512-5790-0158 Report Issued Date : Oct. 17, 2013 FAX: +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-Z930L Photographs of EUT Report No.: EP391703 Brand Name: ZTE / Model Name: Z930L SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 34 TEL: +86-0512-5790-0158 Report Issued Date : Oct. 17, 2013 FAX: +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-Z930L Photographs of EUT Report No.: EP391703 Brand Name: ZTE / Model Name: Z930L SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 34 TEL: +86-0512-5790-0158 Report Issued Date : Oct. 17, 2013 FAX: +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-Z930L Photographs of EUT Report No.: EP391703 Brand Name: ZTE / Model Name: Z930L SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 34 TEL: +86-0512-5790-0158 Report Issued Date : Oct. 17, 2013 FAX: +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-Z930L Photographs of EUT Report No.: EP391703 Brand Name: ZTE / Model Name: Z930L SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 34 TEL: +86-0512-5790-0158 Report Issued Date : Oct. 17, 2013 FAX: +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-Z930L Photographs of EUT Report No.: EP391703 Brand Name: ZTE / Model Name: Z930L SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 34 TEL: +86-0512-5790-0158 Report Issued Date : Oct. 17, 2013 FAX: +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-Z930L Photographs of EUT Report No.: EP391703 Brand Name: ZTE / Model Name: Z930L SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 34 TEL: +86-0512-5790-0158 Report Issued Date : Oct. 17, 2013 FAX: +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-Z930L Photographs of EUT Report No.: EP391703 Brand Name: ZTE / Model Name: Z930L SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 34 TEL: +86-0512-5790-0158 Report Issued Date : Oct. 17, 2013 FAX: +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-Z930L Photographs of EUT Report No.: EP391703 Brand Name: ZTE / Model Name: Z930L SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 34 TEL: +86-0512-5790-0158 Report Issued Date : Oct. 17, 2013 FAX: +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-Z930L Photographs of EUT Report No.: EP391703 Brand Name: ZTE / Model Name: Z930L SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 26 of 34 TEL: +86-0512-5790-0158 Report Issued Date : Oct. 17, 2013 FAX: +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-Z930L Photographs of EUT Report No.: EP391703 Brand Name: ZTE / Model Name: Z930L SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 27 of 34 TEL: +86-0512-5790-0158 Report Issued Date : Oct. 17, 2013 FAX: +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-Z930L Photographs of EUT Report No.: EP391703 Brand Name: ZTE / Model Name: Z930L SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 28 of 34 TEL: +86-0512-5790-0158 Report Issued Date : Oct. 17, 2013 FAX: +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-Z930L Photographs of EUT Report No.: EP391703 Brand Name: ZTE / Model Name: Z930L SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 29 of 34 TEL: +86-0512-5790-0158 Report Issued Date : Oct. 17, 2013 FAX: +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-Z930L Photographs of EUT Report No.: EP391703 Brand Name: ZTE / Model Name: Z930L SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 30 of 34 TEL: +86-0512-5790-0158 Report Issued Date : Oct. 17, 2013 FAX: +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-Z930L Photographs of EUT Report No.: EP391703 Brand Name: ZTE / Model Name: Z930L SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 31 of 34 TEL: +86-0512-5790-0158 Report Issued Date : Oct. 17, 2013 FAX: +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-Z930L GSM & WCDMA & LTE B17/B5/B2/B4 Antenna <Tx / Rx> Photographs of EUT Report No.: EP391703 Brand Name: ZTE / Model Name: Z930L SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 32 of 34 TEL: +86-0512-5790-0158 Report Issued Date : Oct. 17, 2013 FAX: +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-Z930L LTE B5 Diversity & GPS Antenna <Rx> Photographs of EUT Report No.: EP391703 Brand Name: ZTE / Model Name: Z930L SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 33 of 34 TEL: +86-0512-5790-0158 Report Issued Date : Oct. 17, 2013 FAX: +86-0512-5790-0958 Report Version …

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (XI’AN) INC. Page Number : 1 of 76 TEL : 86-029-8860-8767 Report Issued Date : Oct. 17, 2013 FAX: 86-029-8860-8791 Report Version : Rev. 01 FCC ID : SRQ-Z930L FCC SAR Test Report Report No. : FA391703 FCC SAR Test Report APPLICANT : ZTE CORPORATION EQUIPMENT : GSM/WCDMA/LTE Multi-Mode Digital Mobile Phone BRAND NAME : ZTE MODEL NAME : Z930L FCC ID : SRQ-Z930L STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 The product was tested on Oct. 04, 2013. We, SPORTON INTERNATIONAL (XI’AN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (XI’AN) INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL (XI’AN) INC. 1F, Building A3, No. 39 Chuangye Rd., Xi'an Hi-teck Zone, Shanxi Province, P.R.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL (XI’AN) INC. Page Number : 2 of 76 TEL : 86-029-8860-8767 Report Issued Date : Oct. 17, 2013 FAX: 86-029-8860-8791 Report Version : Rev. 01 FCC ID : SRQ-Z930L FCC SAR Test Report Report No. : FA391703 Table of Contents 1. Statement of Compliance ..............................................................................................................................................4 2. Administration Data .......................................................................................................................................................6 2.1 Testing Laboratory ...................................................................................................................................................6 2.2 Applicant .................................................................................................................................................................6 2.3 Manufacturer ...........................................................................................................................................................6 2.4 Application Details ...................................................................................................................................................6 3. General Information .......................................................................................................................................................7 3.1 Description of Equipment Under Test (EUT) ...........................................................................................................7 3.2 Maximum RF output power among production units ...............................................................................................8 3.3 Applied Standard ...................................................................................................................................................15 3.4 Device Category and SAR Limits ..........................................................................................................................15 3.5 Test Conditions ......................................................................................................................................................15 4. Specific Absorption Rate (SAR) ..................................................................................................................................16 4.1 Introduction ...........................................................................................................................................................16 4.2 SAR Definition .......................................................................................................................................................16 5. SAR Measurement System ..........................................................................................................................................17 5.1 E-Field Probe ........................................................................................................................................................18 5.2 Data Acquisition Electronics (DAE) .......................................................................................................................18 5.3 Robot ....................................................................................................................................................................19 5.4 Measurement Server .............................................................................................................................................19 5.5 Phantom ................................................................................................................................................................20 5.6 Device Holder .......................................................................................................................................................20 5.7 Data Storage and Evaluation ................................................................................................................................21 5.8 Test Equipment List ...............................................................................................................................................23 6. Tissue Simulating Liquids ...........................................................................................................................................24 7. System Verification Procedures .................................................................................................................................26 7.1 Purpose of System Performance check ................................................................................................................26 7.2 System Setup .........................................................................................…

Text truncated - open the document above for the full version.

TestLaboratory: Sporton International Inc. SAR/HAC TestingLab Date: 2013.10.03 System Check_Head_750MHz_131003 DUT: D750V3 - SN: 1087 Commun ication System: CW;Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750_131003 Medium parameters used: f = 750 MHz; σ = 0.878 S/m; ε r = 40.673; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3911; ConvF(10.59, 10.59, 10.59); Calibrated: 2013.04.11; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1358; Calibrated: 2013.04.08 - Phantom: SAM 1; Type: QD 000 P40 C; Serial: TP-1753 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.59 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 54.627 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 3.04 W/kg SAR(1 g) = 2.02 W/kg; SAR(10 g) = 1.33 W/kg Maximum value of SAR (measured) = 2.58 W/kg 0 dB = 2.58 W/kg TestLaboratory: Sporton International Inc. SAR/HAC TestingLab Date: 2013.09.30 System Check_Head_835MHz_130930 DUT: D835V2 - SN: 4d151 Communication System: CW;Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835_130930 Medium parameters used: f = 835 MHz; σ = 0.919 S/m; ε r = 41.524; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3911; ConvF(10.05, 10.05, 10.05); Calibrated: 2013.04.11; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1358; Calibrated: 2013.04.08 - Phantom: SAM 2; Type: QD 000 P40 C; Serial: TP-1754 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.80 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 55.518 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 3.34 W/kg SAR(1 g) = 2.23 W/kg; SAR(10 g) = 1.47 W/kg Maximum value of SAR (measured) = 2.81 W/kg 0 dB = 2.81 W/kg TestLaboratory: Sporton International Inc. SAR/HAC TestingLab Date: 2013.10.01 System Check_Head_1750MHz_131001 DUT: D1750V2 - SN: 1090 Communication System: CW;Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: HSL_1750_131001 Medium parameters used: f = 1750 MHz; σ = 1.375 S/m; ε r = 41.375; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3911; ConvF(8.59, 8.59, 8.59); Calibrated: 2013.04.11; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1358; Calibrated: 2013.04.08 - Phantom: SAM 1; Type: QD 000 P40 C; Serial: TP-1753 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.9 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 94.359 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 15.1 W/kg SAR(1 g) = 8.76 W/kg; SAR(10 g) = 4.45 W/kg Maximum value of SAR (measured) = 11.9 W/kg 0 dB = 11.9 W/kg TestLaboratory: Sporton International Inc. SAR/HAC TestingLab Date: 2013.09.30 System Check_Head_1900MHz_130930 DUT: D1900V2 - SN: 5d170 Communication System: CW;Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_130930 Medium parameters use…

Text truncated - open the document above for the full version.
