SRQ-Z933WWCDMA Digital Mobile Phone

第1页 Android Mobile Phone User Manual The manual is applicable for the Z933 mobile phone. Copyright © 2014 ZTE CORPORATION. All rights reserved. No part of this publication may be quoted, reproduced, translated or used in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. ZTE Corporation reserves the right to make modifications on print errors or update specifications in this manual without prior notice. Google, Android, Android Market, Google Mail are trademarks of Google, Inc. Other trademarks and trade names are the property of their respective owners. Third-party Software Statement When you install the software from a third-party, the phone might be restarted repeatedly or the software might not be used normally due to the incompatibility of the software itself. It is not the fault of the phone itself. Version 1.0 2014 -1- 第1页 Using your phone Thanks for choosing the Z933, It’s a WCDMA Digital Mobile Phone, which will refer to as ‘phone’ from now on. Powered by Android TM , the phone supports 3G high-speed Internet access, which brings you brand new experiences. Don’t worry if the pictures we use to demonstrate your phone’s functions look a little different from what you see on the screen. It’s the functions that matter. -2- Before getting started Inserting and removing the SIM 1. Switch off your phone and disconnect any external power. 2. Remove the back cover and then the battery. 3. Hold your SIM on the cut corner, and slide it face down into the card holder. 4. Insert the battery. 5. Replace the back cover. Inserting a memory card 1. Remove the back cover. 2. Push tightly until the card is installed in the correct position and replace the back cover. -3- 第3页 Using the battery Inserting the battery 1. Open the battery cover on the back of your phone. 2. Align the battery's contact points with those of the phone and gently press the battery down into place. 3. Replace the battery cover clicking it back into position. Removing the battery 1. Switch off your phone. 2. Open the battery cover. 3. Lift the battery up and out of your phone. -4- Charging the battery The battery is not fully charged when you unpack it for the first time. Please exhaust the capacity of the battery before you recharge it for the first time. To ensure the battery is always in its best condition, please charge the battery 8 hours for the first time and recharge it later at least 2 hours each time. 1. Connect the charger to the phone, and insert the charger to the standard power socket. 2. Please disconnect the charger from the power socket after the charging is completed. Tips:  To charge the battery, you can also connect the phone to the PC through the USB cable.  During charging, the phone and charger may normally become hot. -5- 第5页 Speaker Touch screen Back key Home key Menu key Earpiece Camera Power key Headset jack USB port Volume keys Front camera Getting to know your phone -6- Descriptions of Keys Keys Functions Menu key Touch it to open a menu with items that affect the current screen or application. Home key Touch it to open the home screen. If you’re viewing the left or right extended home screen, Press it to open the central home screen. Back key Touch it to open the previous screen you were working in. If the onscreen keyboard is open, touch it to close the keyboard. Power key Press it to turn on/off the display. Long press it to open a menu with options for Airplane mode, for Silent mode, for Vibration mode, and for powering off and for rebooting the phone. Volume keys Adjust the volume. Long press it to quickly adjust the ring tone volume to maximum or minimum. -7- 第7页 Onscreen icons Icons Descriptions Icons Descriptions Signal strength Full battery Charging In a call Missed calls You have an unread message. You have an unread E-mail. Music playing Connected to a PC Airplane mode Bluetooth ® function is on Alarm clock on Vibration mode Silent mode Wi-Fi function on -8- Power on/off Powering on Long press the Power key until the power-on animation appears. Powering off Long press the Power key to display the phone options and select Power off. -9- 第9页 Basic Operation Screen control You can control your phone through a series of operations on the screen.  Touch: You can touch the items on the screen to select them, to open the applications, or using the keyboard to input characters.  Swipe or slide: Quickly move your finger across the surface of the screen, without pausing when you first touch (so you don't drag something instead).  Touch & hold: You can touch & hold some items to get the item’s available menu.  Drag: You can drag some items on the screen to realize some operations.  Switch between landscape mode and portrait mode: You can switch to the landscape mode by rotating your phone. The landscape mode is only valid under some interfaces, such as text input interface, message viewing interface, etc.  Pinch: In some apps (such as Maps, Browser, and Gallery), you can zoom in and out by placing two fingers on the screen at once and pinching them together (to zoom out) or spreading them apart (to zoom in). -10- Home screen Arrange & work with apps To see all your apps, touch the All Apps Icon on any Home screen. After opening the All Apps, press an icon to enter the corresponding application. Touch the Back key to return to the previous screen. Touch the Home key to return to the home screen. From All Apps, you can:  Explore your widgets: Touch the widgets tab at the top of any All Apps screen.  Get more apps.: Touch the Play Store icon at the top of any All Apps screen. Favorites tray Status bar Shows the signal strength, battery status, etc. Notification bar Drag the notification bar down from the top of the screen to open the notifications panel. -11- 第11页 Switch to a recently used application On the home screen, touch & hold the Home key, opens a list of thumbnail images of apps you've …

Text truncated - open the document above for the full version.

ZTE CORPORATION Product Change Description As the applicant of the below model, [ZTE Corporation] declares that the product, [ZTE Z933 FCC ID: SRQ-Z933W] [ ZTE Corporation] is the variant of the initial certified product, [ZTE Z933 FCC ID: SRQ-Z933] [ ZTE Corporation] [Project Number: P2014ZTEMT010] SOFTWARE MODIFICATIONS: Protocol Stack changes: NO MMS/STK changes: NO JAVA changes: NO Other changes detailed: YES, There are change the UMTS frequency 2100MHz to 1700MHz and Software Version, the change pin to pin duplexer and PA. Bell Z933 walmart Z933 PA SKY77761-12 SKY77764-11 Duplexer SAYRF1G95GC0F 0A SAYRF1G73BA0F0A HARDWARE MODIFICATION: Band changes: NO Power Amplifier changes: YES Antenna changes: NO PCB Layout changes:NO Components on PCB changes: NO LCD changes: NO Speaker changes: NO Camera changes: NO Vibrator changes: NO Bluetooth changes: NO FM changes: NO Other changes: NO MECHANICAL MODIFICATIONS: Use new metal front/back cover or keypad: NO Mechanical shell changes: NO Other changes detailed: NO ACCESSORY MODIFICATIONS: Battery changes:NO AC Adaptor changes:NO Earphone changes:NO APPROVED BY: Bolin Gong Project Manager: Jizhi Jiang Date:2014-7-28 Company: ZTE Corporation Address: ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China Tel:+86-755-86360200 Fax: +86-755-86360298

Rev. 1/1/03 ZTE Corporation Date: August 28, 2014 Federal Communications Commission Authorization and Evaluation Division Dear Sir or Madam, We, ZTE Corporation ZTE Plaza, Keji Road South, Shenzhen, China hereby to do the Justification on FCC application: WCDMA Digital Mobile Phone, ZTE Z933, FCC ID: SRQ-Z933W, as following: The ZTE Z933 (FCC ID: SRQ-Z933) is a WCDMA Digital Mobile Phone and supports Quad-band GSM850/900/1800/1900, Tri-band WCDMA Band I/II/V. And this mobile phone implements such functions as RF signal receiving/transmitting, GSM/WCDMA protocol processing, voice, video, MMS service, Bluetooth, WLAN etc. This application model ZTE Z933(FCC ID: SRQ-Z933W) compared with ZTE Z933 (FCC ID: SRQ-Z933), changed the UMTS frequency 2100MHz to 1700MHz and Software Version, the change pin to pin duplexer and PA, others were the same as ZTE Z933 (FCC ID: SRQ-Z933), so it doesn’t affect all the other RF bands performance. So in this FCC application for ZTE Z933(FCC ID: SRQ-Z933W): FCC Part 15B (JBP part) refer to report” FC452005-01”, added the test data of WCDMA Band IV and verified the worst cases for the sample, others data were refer to Sporton Report Number” FC452005” in FCC application for ZTE Z933(FCC ID: SRQ-Z933), and this data according to Part 15B remains valid and applicable and they are representative of the compliance of this edition ZTE Z933(FCC ID: SRQ-Z933W). Test data for Bluetooth 3.0+EDR(DSS part) refer to report” FR452005-01A” and worse case of Radiated Spurious Emissions for the sample verified, others data were refer to Sporton Report Number” FR452005A” in FCC application for ZTE Z933(FCC ID: SRQ-Z933), and this data according to Part 15C remains valid and applicable and they are representative of the compliance of this edition ZTE Z933(FCC ID: SRQ-Z933W). Test data for Bluetooth 4.0 (DTS part) refer to report” FR452005-01B” and worse case of Radiated Spurious Emissions for the sample verified, others data were refer to Sporton Report Number” FR452005B” in FCC application for ZTE Z933(FCC ID: SRQ-Z933), and this data according to Part 15C remains valid and applicable and they are representative of the compliance of this edition ZTE Z933(FCC ID: SRQ-Z933W). Test data for WLAN (DTS part) refer to report” FR452005-01C” and worse case of Radiated Spurious Emissions for the sample verified, others data were refer to Sporton Report Number” FR452005C” in FCC application for ZTE Z933(FCC ID: SRQ-Z933), and this data according to Part 15C remains valid and applicable and they are representative of the compliance of this edition ZTE Z933(FCC ID: SRQ-Z933W). Test data for FCC Part 22/24/27(PCE part) refer to report” FG452005-01” , added test data of WCDMA Band IV and verified conducted power, and worse case of Radiated Spurious Emissions for the sample, others data were refer to Sporton Report Number” FG452005” in FCC application Rev. 1/1/03 for ZTE Z933(FCC ID: SRQ-Z933), and this data according to FCC Part 22H/24E/27L remains valid and applicable and they are representative of the compliance of this edition ZTE Z933(FCC ID: SRQ-Z933W). Test data for FCC SAR refer to report” FA452005-01” we issued the initial report and performed all new test data. Sincerely, ________________________ Contact Person: Min Zhang Company: ZTE Corporation TEL: +86-21-68897541 FAX: +86-21-50801070 E-mail: [email protected]

ZTE Corporation ZTE Plaza, Keji Road South, Shenzhen, China Tel: +86-21-68897541 ; Fax: +86-21-50801070 Statement We, ZTE Corporation, states that our device, FCC ID: SRQ-Z933W. The label will be put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. Contact Person: Min Zhang Company: ZTE Corporation TEL: +86-21-68897541 FAX: +86-21-50801070 E-mail: [email protected]

Rev. 1/1/03 ZTE Corporation ZTE Plaza, Keji Road South, Shenzhen, China Date: August 27, 2014 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: SRQ-Z933W Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Parts List Operation Description Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _____________________________ Contact Person: Min Zhang Company: ZTE Corporation TEL: +86-21-68897541 FAX: +86-21-50801070 E-mail: [email protected]

ZTE Corporation ZTE Plaza, Keji Road South, Shenzhen, China Tel: +86-21-68897541 ; Fax: +86-21-50801070 Date: August 27, 2014 Power of Attorney To whom it may concern, Please be notified that I, Min Zhang, have designated Michael Lin in Sporton International Inc. as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Michael Lin in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: SRQ-Z933W If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Min Zhang Company: ZTE Corporation TEL: +86-21-68897541 FAX: +86-21-50801070 E-mail: [email protected]

1/1 ZTE Corporation Date: August 27, 2014 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : SRQ-Z933W To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, Public Notice DA 04-1705 of the Commission’s policy. and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which ZTE Corporation deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Min Zhang Company: ZTE Corporation TEL: +86-21-68897541 FAX: +86-21-50801070 E-mail: [email protected]

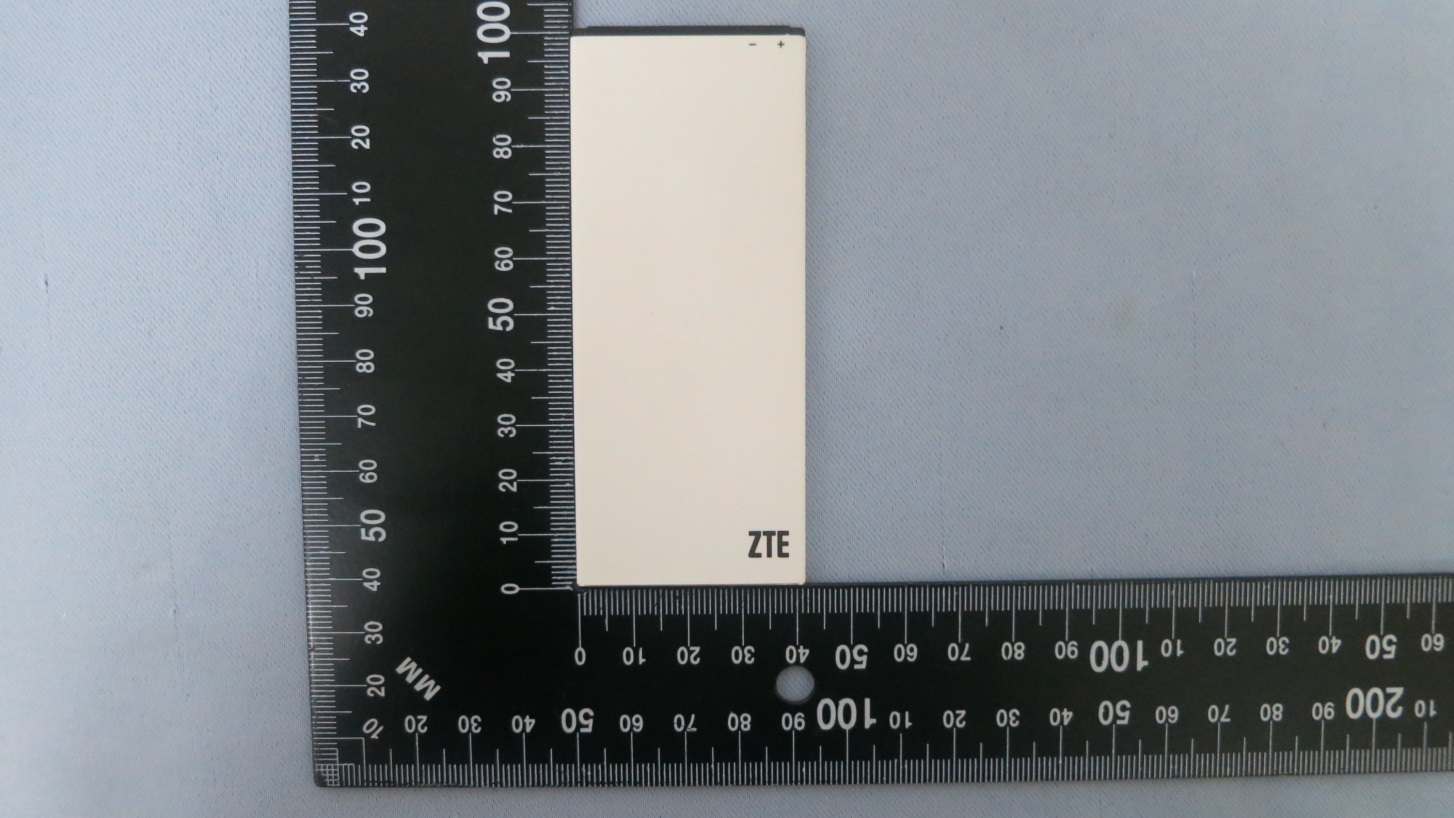

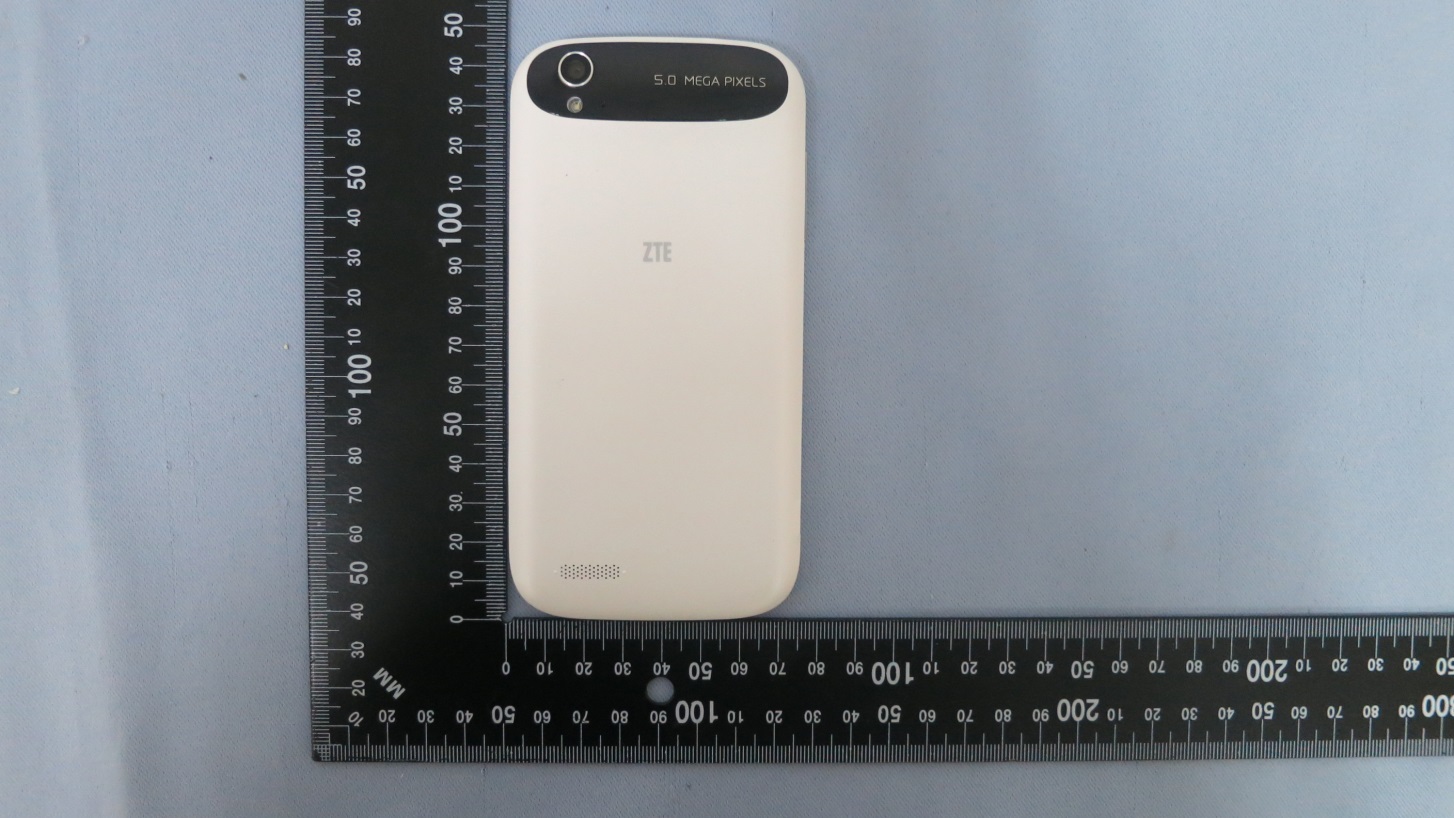

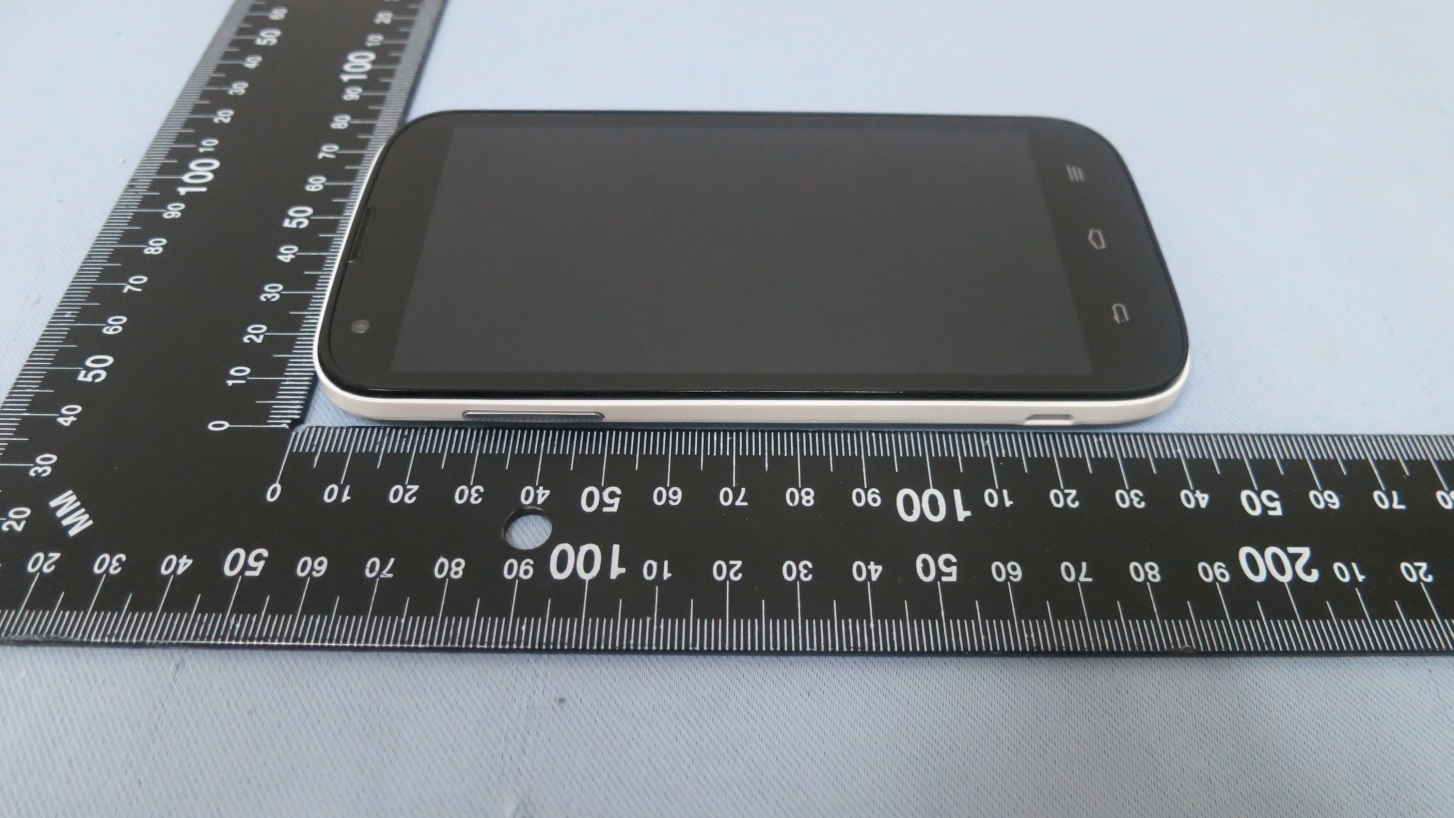

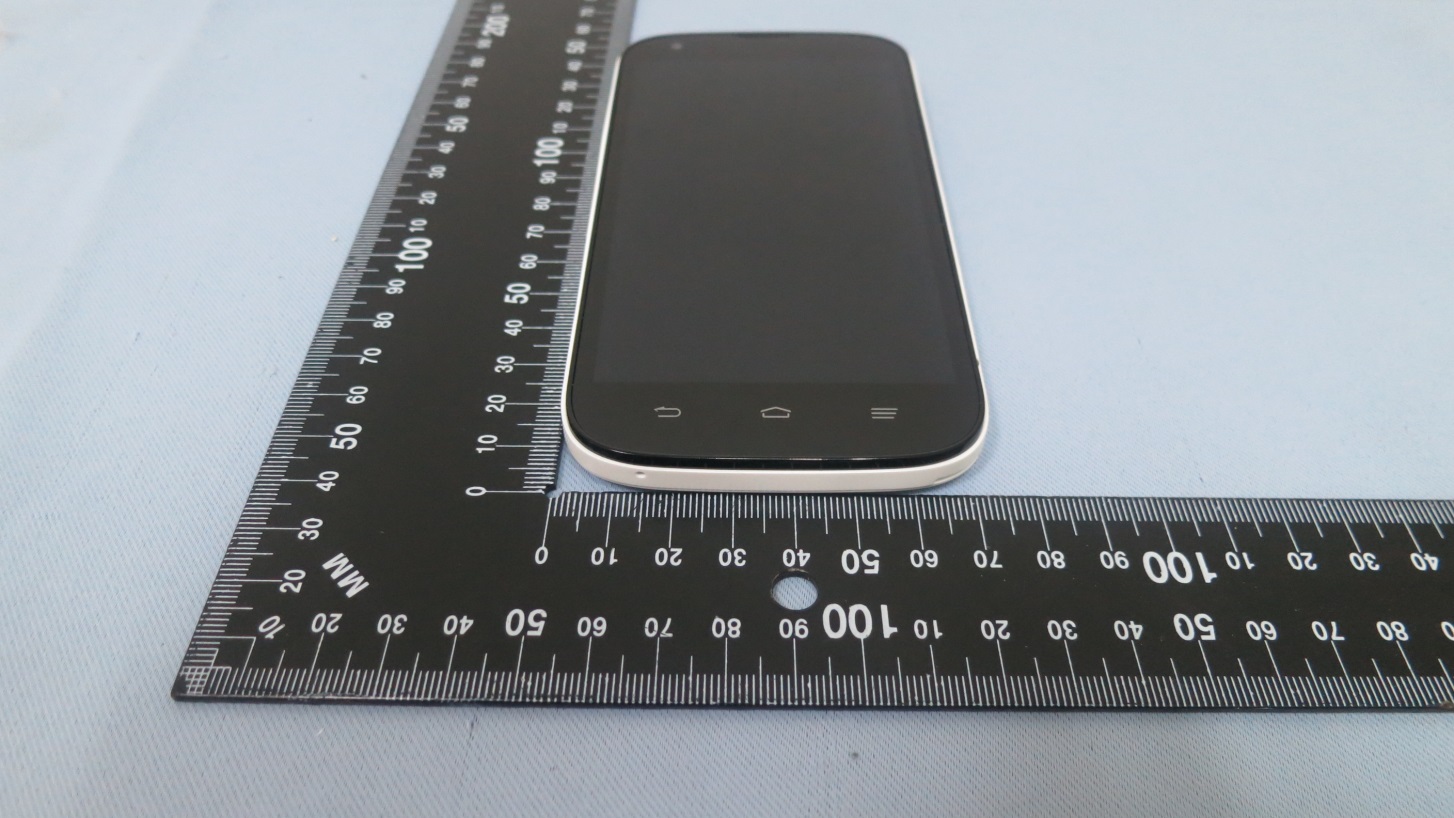

Photographs of EUT Report No.: EP452005-01 Brand Name: ZTE; Model Name: ZTE Z933 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 35 TEL : 86-755- 3320-2398 Report Issued Date : Aug. 28, 2014 FCC ID : SRQ-Z933W Report Version : Rev. 01 1. External Photograph of EUT Photographs of EUT Report No.: EP452005-01 Brand Name: ZTE; Model Name: ZTE Z933 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 35 TEL : 86-755- 3320-2398 Report Issued Date : Aug. 28, 2014 FCC ID : SRQ-Z933W Report Version : Rev. 01 Photographs of EUT Report No.: EP452005-01 Brand Name: ZTE; Model Name: ZTE Z933 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 3 of 35 TEL : 86-755- 3320-2398 Report Issued Date : Aug. 28, 2014 FCC ID : SRQ-Z933W Report Version : Rev. 01 Photographs of EUT Report No.: EP452005-01 Brand Name: ZTE; Model Name: ZTE Z933 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 4 of 35 TEL : 86-755- 3320-2398 Report Issued Date : Aug. 28, 2014 FCC ID : SRQ-Z933W Report Version : Rev. 01 Photographs of EUT Report No.: EP452005-01 Brand Name: ZTE; Model Name: ZTE Z933 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 5 of 35 TEL : 86-755- 3320-2398 Report Issued Date : Aug. 28, 2014 FCC ID : SRQ-Z933W Report Version : Rev. 01 Photographs of EUT Report No.: EP452005-01 Brand Name: ZTE; Model Name: ZTE Z933 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 6 of 35 TEL : 86-755- 3320-2398 Report Issued Date : Aug. 28, 2014 FCC ID : SRQ-Z933W Report Version : Rev. 01 Photographs of EUT Report No.: EP452005-01 Brand Name: ZTE; Model Name: ZTE Z933 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 7 of 35 TEL : 86-755- 3320-2398 Report Issued Date : Aug. 28, 2014 FCC ID : SRQ-Z933W Report Version : Rev. 01 Specification of Accessory AC Adapter Brand Name ZTE 中兴 Model Name STC-A22O50I1000USBA-C Battery Brand Name ZTE Model Name Li3824T43P3hA04147 USB Cable Signal Line Type 1meter, shielded cable, without core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP452005-01 Brand Name: ZTE; Model Name: ZTE Z933 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 8 of 35 TEL : 86-755- 3320-2398 Report Issued Date : Aug. 28, 2014 FCC ID : SRQ-Z933W Report Version : Rev. 01 Photographs of EUT Report No.: EP452005-01 Brand Name: ZTE; Model Name: ZTE Z933 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 9 of 35 TEL : 86-755- 3320-2398 Report Issued Date : Aug. 28, 2014 FCC ID : SRQ-Z933W Report Version : Rev. 01 AC Adapter Photographs of EUT Report No.: EP452005-01 Brand Name: ZTE; Model Name: ZTE Z933 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 10 of 35 TEL : 86-755- 3320-2398 Report Issued Date : Aug. 28, 2014 FCC ID : SRQ-Z933W Report Version : Rev. 01 Battery Photographs of EUT Report No.: EP452005-01 Brand Name: ZTE; Model Name: ZTE Z933 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 11 of 35 TEL : 86-755- 3320-2398 Report Issued Date : Aug. 28, 2014 FCC ID : SRQ-Z933W Report Version : Rev. 01

Photographs of EUT Report No.: EP452005-01 Brand Name: ZTE; Model Name: ZTE Z933 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 12 of 35 TEL : 86-755- 3320-2398 Report Issued Date : Aug. 28, 2014 FCC ID : SRQ-Z933W Report Version : Rev. 01 3. Internal Photograph of EUT Bluetooth & WLAN Antenna WWAN Antenna GPS Antenna Photographs of EUT Report No.: EP452005-01 Brand Name: ZTE; Model Name: ZTE Z933 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 13 of 35 TEL : 86-755- 3320-2398 Report Issued Date : Aug. 28, 2014 FCC ID : SRQ-Z933W Report Version : Rev. 01 Photographs of EUT Report No.: EP452005-01 Brand Name: ZTE; Model Name: ZTE Z933 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 14 of 35 TEL : 86-755- 3320-2398 Report Issued Date : Aug. 28, 2014 FCC ID : SRQ-Z933W Report Version : Rev. 01 Photographs of EUT Report No.: EP452005-01 Brand Name: ZTE; Model Name: ZTE Z933 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 15 of 35 TEL : 86-755- 3320-2398 Report Issued Date : Aug. 28, 2014 FCC ID : SRQ-Z933W Report Version : Rev. 01 Photographs of EUT Report No.: EP452005-01 Brand Name: ZTE; Model Name: ZTE Z933 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 16 of 35 TEL : 86-755- 3320-2398 Report Issued Date : Aug. 28, 2014 FCC ID : SRQ-Z933W Report Version : Rev. 01 Photographs of EUT Report No.: EP452005-01 Brand Name: ZTE; Model Name: ZTE Z933 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 17 of 35 TEL : 86-755- 3320-2398 Report Issued Date : Aug. 28, 2014 FCC ID : SRQ-Z933W Report Version : Rev. 01 Photographs of EUT Report No.: EP452005-01 Brand Name: ZTE; Model Name: ZTE Z933 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 18 of 35 TEL : 86-755- 3320-2398 Report Issued Date : Aug. 28, 2014 FCC ID : SRQ-Z933W Report Version : Rev. 01 Photographs of EUT Report No.: EP452005-01 Brand Name: ZTE; Model Name: ZTE Z933 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 19 of 35 TEL : 86-755- 3320-2398 Report Issued Date : Aug. 28, 2014 FCC ID : SRQ-Z933W Report Version : Rev. 01 Photographs of EUT Report No.: EP452005-01 Brand Name: ZTE; Model Name: ZTE Z933 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 20 of 35 TEL : 86-755- 3320-2398 Report Issued Date : Aug. 28, 2014 FCC ID : SRQ-Z933W Report Version : Rev. 01 Photographs of EUT Report No.: EP452005-01 Brand Name: ZTE; Model Name: ZTE Z933 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 21 of 35 TEL : 86-755- 3320-2398 Report Issued Date : Aug. 28, 2014 FCC ID : SRQ-Z933W Report Version : Rev. 01 Photographs of EUT Report No.: EP452005-01 Brand Name: ZTE; Model Name: ZTE Z933 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 22 of 35 TEL : 86-755- 3320-2398 Report Issued Date : Aug. 28, 2014 FCC ID : SRQ-Z933W Report Version : Rev. 01 Photographs of EUT Report No.: EP452005-01 Brand Name: ZTE; Model Name: ZTE Z933 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 23 of 35 TEL : 86-755- 3320-2398 Report Issued Date : Aug. 28, 2014 FCC ID : SRQ-Z933W Report Version : Rev. 01 Photographs of EUT Report No.: EP452005-01 Brand Name: ZTE; Model Name: ZTE Z933 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 24 of 35 TEL : 86-755- 3320-2398 Report Issued Date : Aug. 28, 2014 FCC ID : SRQ-Z933W Report Version : Rev. 01 Photographs of EUT Report No.: EP452005-01 Brand Name: ZTE; Model Name: ZTE Z933 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 25 of 35 TEL : 86-755- 3320-2398 Report Issued Date : Aug. 28, 2014 FCC ID : SRQ-Z933W Report Version : Rev. 01 Photographs of EUT Report No.: EP452005-01 Brand Name: ZTE; Model Name: ZTE Z933 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 26 of 35 TEL : 86-755- 3320-2398 Report Issued Date : Aug. 28, 2014 FCC ID : SRQ-Z933W Report Version : Rev. 01 Photographs of EUT Report No.: EP452005-01 Brand Name: ZTE; Model Name: ZTE Z933 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 27 of 35 TEL : 86-755- 3320-2398 Report Issued Date : Aug. 28, 2014 FCC ID : SRQ-Z933W Report Version : Rev. 01 Photographs of EUT Report No.: EP452005-01 Brand Name: ZTE; Model Name: ZTE Z933 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 28 of 35 TEL : 86-755- 3320-2398 Report Issued Date : Aug. 28, 2014 FCC ID : SRQ-Z933W Report Version : Rev. 01 Photographs of EUT Report No.: EP452005-01 Brand Name: ZTE; Model Name: ZTE Z933 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 29 of 35 TEL : 86-755- 3320-2398 Report Issued Date : Aug. 28, 2014 FCC ID : SRQ-Z933W Report Version : Rev. 01 Photographs of EUT Report No.: EP452005-01 Brand Name: ZTE; Model Name: ZTE Z933 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 30 of 35 TEL : 86-755- 3320-2398 Report Issued Date : Aug. 28, 2014 FCC ID : SRQ-Z933W Report Version : Rev. 01 Photographs of EUT Report No.: EP452005-01 Brand Name: ZTE; Model Name: ZTE Z933 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 31 of 35 TEL : 86-755- 3320-2398 Report Issued Date : Aug. 28, 2014 FCC ID : SRQ-Z933W Report Version : Rev. 01 Photographs of EUT Report No.: EP452005-01 Brand Name: ZTE; Model Name: ZTE Z933 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 32 of 35 TEL : 86-755- 3320-2398 Report Issued Date : Aug. 28, 2014 FCC ID : SRQ-Z933W Report Version : Rev. 01 Photographs of EUT Report No.: EP452005-01 Brand Name: ZTE; Model Name: ZTE Z933 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 33 of 35 TEL : 86-755- 3320-2398 Report Issued Date : Aug. 28, 2014 FCC ID : SRQ-Z933W Report Version : Rev. 01 WWAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP452005-01 Brand Name: ZTE; Model Name: ZTE Z933 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 34 of 35 TEL : 86-755- 3320-2398 Report Issued Date : Aug. 28, 2014 FCC ID : SRQ-Z933W Report Version : Rev. 01 Bluetooth & WLAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP452005-01 Brand Name: ZTE; Model Name: ZTE Z933 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 35 of 35 TEL : 86-755- 3320-2398 Report Issued Date : Aug. 28, 2014 FCC ID : SRQ-Z933W Report …

Text truncated - open the document above for the full version.

N SPORTON INT TEL: 86-755-8 FCC ID : SRQ FC We, S samp with t The t writte be rep No. 101, Com A Revie TERNATIONAL 637-9589 / FAX -Z933W CC SAR Te APP EQU BRA MOD FCC STA SPORTON IN ple has been the applicab test results en approval produced ex SP mplex Buildi pproved by ewed by: Eri L (SHENZHEN) X: 86-755-8637- est Repor FCC PLICANT UIPMENT AND NAME DEL NAME C ID ANDARD NTERNATIO n evaluated i ble technica in this re p of SPORTO xcept in full PORTON ing C, Guanl : Jones Tsa ic Huang / D INC. -9595 rt C SAR :Z :W E :Z E :Z :S :F A I ONAL (SHEN in accordan l standards port apply e ON INTERNA . INTERNA long Village ai / Manager Deputy Mana Page 1 of 4 R Tes ZTE CORP WCDMA Di ZTE ZTE Z933 SRQ-Z933W FCC 47 CF ANSI/IEEE IEEE 1528- NZHEN) INC nce with the . exclusively ATIONAL (SH NATIONAL e, Xili Town, ager 42 st Re ORATION igital Mobil W R Part 2 ( 2 C95.1-1992 -2003 C., would lik procedures to the test HENZHEN) L (SHEN Nanshan D Iss Form Re eport le Phone .1093) 2 ke to declar s and had be ed model / INC., the tes NZHEN) IN District, Shen sued Date : Au m version. : 14 eport No. : F t re that the een in comp / sample. W st report sh NC. nzhen, Guan ug. 28, 2014 0820 A452005-01 tested pliance Without all not ngdong, P.R R.C. SPORTON INTERNATIONAL (SHENZHEN) INC. TEL: 86-755-8637-9589 / FAX: 86-755-8637-9595 Issued Date : Aug. 28, 2014 FCC ID : SRQ-Z933W Page 2 of 42 Form version. : 140820 FCC SAR Test Report Report No. : FA452005-01 Table of Contents 1. Statement of Compliance ..............................................................................................................................................4 2. Administration Data .......................................................................................................................................................5 3. Guidance Standard ........................................................................................................................................................5 4. Equipment Under Test (EUT) ........................................................................................................................................6 4.1 General Information ................................................................................................................................................6 4.2 Maximum Tune-up Limit ..........................................................................................................................................7 5. RF Exposure Limits .......................................................................................................................................................8 5.1 Uncontrolled Environment .......................................................................................................................................8 5.2 Controlled Environment ...........................................................................................................................................8 6. Specific Absorption Rate (SAR) ....................................................................................................................................9 6.1 Introduction .............................................................................................................................................................9 6.2 SAR Definition .........................................................................................................................................................9 7. System Description and Setup ...................................................................................................................................10 8. Measurement Procedures ...........................................................................................................................................11 8.1 Spatial Peak SAR Evaluation ................................................................................................................................ 11 8.2 Power Reference Measurement............................................................................................................................12 8.3 Area Scan .............................................................................................................................................................12 8.4 Zoom Scan ............................................................................................................................................................13 8.5 Volume Scan Procedures ......................................................................................................................................13 8.6 Power Drift Monitoring ...........................................................................................................................................13 9. Test Equipment List .....................................................................................................................................................14 10. System Verification ....................................................................................................................................................15 10.1 Tissue Verification ...............................................................................................................................................15 10.2 System Performance Check Results ...................................................................................................................16 11. RF Exposure Positions ..............................................................................................................................................17 11.1 Ear and handset reference point .........................................................................................................................17 11.2 Definition of the cheek position .............................................................................................…

Text truncated - open the document above for the full version.

SPORTON INT TEL : 86-755- FCC ID : SRQ This i was r INTER evalu appli c The te appro repro Re v Ap No. 3 Buil TERNATIONAL 3320-2398 -Z933W V…
