SRQ-ZTE8010WCDMA/LTE Multi-Mode Digital Mobile Phone

1 ZTE 8010 Quick Start Guide FCC ID:SRQ-ZTE8010 2 LEGAL INFORMATION Copyright © 2020 ZTE CORPORATION. All rights reserved. No part of this publication may be quoted, reproduced, translated or used in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. Notice ZTE Corporation reserves the right to make modifications on print errors or update specifications in this guide without prior notice. We offer self-service for our smart terminal device users. Please visit the ZTE official website (atwww.ztedevices.mx) for more information on self-service and supported product models. Information on the website takes precedence. Visit https://ztedevices.mx/soporte/ to download the user manual. Disclaimer ZTE Corporation expressly disclaims any liability for faults and damages caused by unauthorized modifications of the software. Images and screenshots used in this guide may differ from the actual product. Content in this guide may differ from the actual product or software. Trademarks ZTE and the ZTE logos are trademarks of ZTE Corporation. Android™ is a trademark of Google LLC. The Bluetooth®word mark and logos are registeredtrademarks owned by the Bluetooth SIG, Inc. and any use of such marks by ZTE Corporation is under license. microSDXC Logo is a trademark of SD-3C, LLC. For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symboltogether are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved. Other trademarks and trade names are those of their respective owners. 3 Version No.: R1.0 Edition Time : April 22, 2020 ManualNo.: 4 Getting to Know Your Phone Front camera Touch screen Earpiece Volume key Power key/Fingerpri nt sensor Charging/USB Type-C jack Headset jack Back cameras and flash Speaker Indicator light nano-SIM/ microSDXC card tray Proximity & light sensor 5 Setting Up Your Phone The nano-SIM card can be installed or removed while the phone is turned on. WARNING! To avoid damage to the phone, do not use any other kind of SIM cards, or any non-standard nano-SIM card cut from a SIM card. You can get a standard nano-SIM card from your service provider. 1. Insert the tip of the tray eject tool into the hole on the card tray. CAUTION: Never replace the included tray eject tool with sharp objects. Ensure that the tray eject tool is perpendicular to the hole. Otherwise, the phone may be damaged. 6 2. Pull out the card tray and place the nano-SIM card and the microSDXC card (optional) on the tray, as shown. Carefully slide the tray back into place. Charging the Phone Your phone’s battery should have enough power for the phone to turn on, find a signal, and make a few calls. You should fully charge the battery as soon as possible. WARNING! Use only ZTE-approved chargers and USB Type-C cables. The use of unapproved accessories could damage your phone or cause the battery to explode. WARNING! Do not remove the back cover. The battery is not removable. Removal may cause fire or explosion. 1. Connect the adapter to the charging jack. nano-SIM card microSDXC card 7 2. Connect the charger to a standard AC power outlet. 3. Disconnect the charger when the battery is fully charged. NOTE: If the battery is extremely low, you may be unable to power on the phone even when it is being charged. In this case, try again after charging the phone for at least 20 minutes. Contact the customer service if you still cannot power on the phone after prolonged charging. Powering On/Off Your Phone Make sure the battery is charged before powering on. • Press and hold the Power key to turn on your phone. • To power off, press and hold the Power key to open the options menu, and touch >. NOTE: If the screen freezes or takes too long to respond, try pressing and holding the Power keyfor about 10seconds to restart the phone. 8 FM Radio Scanning for Channels 1. Plug in a wired headset and open FM Radio. 2. To u c h > Scan. Your phone scans for all available channels and saves them to the All channels list. Listening to FM Radio 1. Open FM Radio while the headset is connected. 2. To u c h > All channels and select a channel. You can also drag the red line along the frequency panel or touch or to switch to other channels, or touch or to adjust the current channel frequency. NOTES: • To u c h to add the channel to favorites. • To u c h to listen to the radio through the phone speaker. • The FM radio feature does not require an Internet connection. 9 Product Safety Information Don’t make or receive phone calls while driving. Never text while driving. Keep your phone at least 10 mm away from your body while making calls. Small parts may cause choking. Your phone can produce a loud sound. To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your phone near your ear while the loudspeaker is in use. Avoid contact with anything magnetic. Keep away from pacemakers and other electronic medical devices. Turn off when asked to in hospitals and medical facilities. Turn off when told to on aircraft and at airports. Turn off when near explosive materials or liquids. Don’t use at gas stations. Your phone may produce a bright or flashing light. Don’t dispose of your phone in fire. Avoid extreme temperatures. Avoid contact with liquids. Keep your phone dry. Do not attempt to disassemble your phone. 10 Only use approved accessories. For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible. Don’t rely on your phone as a primary device for emergency communications. FCC RF Exposure Information (SAR) This phone is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the United States. During SA…

Text truncated - open the document above for the full version.

ZTECorporation. ZTEPlaza,#55KejiRoadSouth,Hi-Tech,IndustrialPark,Nanshan District,Guangdong Tel:+86-21-68895397 AuthorizationLetter FCCID:SRQ-ZTE8010 Date:7July2020 Towhomitmayconcern: We,theundersigned,herebyauthorizeTheStateRadio_monitoring_centerTestingCenter(SRTC)to actonourbehalf,asouragent,inthefollowingmattersrelatedtotheFCCapprovalofourproduct: ProductName:WCDMA/LTEMulti-modeDigitalMobilePhone ProductModel:ZTE8010 FCCID:SRQ-ZTE8010 Reportsubmittal,relatedcorrespondence,thesigningofalldocumentsrelatingtothesematters, andanyotherlawfulactivitynecessarytoobtainsuchcertification.AnyactcarriedoutbyTheState Radio_monitoring_centerTestingCenter(SRTC)withinthescopeofthisauthorizationshallhavethe sameeffectsasourown. Thisauthorizationshallexpire2monthsfromoriginaldate.Ifyouhaveanyquestionregardingthe authorization,pleasedon’thesitatetocontactwithme. Thankyou. Sincerely, ZTECorporation ZTEPlaza,#55KejiRoadSouth,Hi-Tech,IndustrialPark,NanshanDistrict,Guangdong Telephone:+86-21-68895397

ZTECorporation. ZTEPlaza,#55KejiRoadSouth,Hi-Tech,IndustrialPark,Nanshan District,Guangdong Tel:+86-21-68895397 RequestofConfidentiality FederalCommunicationsCommissionAuthorizationandEvaluationDivision PursuanttoSections0.457and0.459oftheCommission’sRules,theApplicant herebyrequestsconfidentialtreatmentofinformationaccompanyingoffollowing product: ProductName:WCDMA/LTEMulti-modeDigitalMobilePhone ProductModel:ZTE8010 FCCID:SRQ-ZTE8010 Thefollowinginformationshouldbeheldconfidential: AllSchematics/blockdiagrams/BOM AllPartslistfortheaboveschematicdiagram Tune-UpProcedure Operationaldescriptionandtechnicaloverviewofproduct Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarily releasedtothepublic.Thepublicdisclosureofthesemattersmightbeharmfultothe applicantandprovideunjustifiedbenefitstoitscompetitors. TheapplicantunderstandsthatpursuanttoRule0.457,disclosureofthis applicationandallaccompanyingdocumentationwillnotbemadebeforethe dateoftheGrantforthisapplication. Sincerely, ZTECorporation ZTEPlaza,#55KejiRoadSouth,Hi-Tech,IndustrialPark,NanshanDistrict,Guangdong Telephone:+86-21-68895397

ZTECorporation ZTEPlaza,#55KejiRoadSouth,Hi-Tech,IndustrialPark,Nanshan District,Guangdong Tel:+86-21-68895397 PHOENIXTESTLABGmbHDate:7July2020 ProductCertification Königswinkel10 D32825Blomberg Subject:DeclarationOperatingChannelLimitation ProductName:WCDMA/LTEMulti-modeDigitalMobilePhone ProductModel:ZTE8010 FCCID:SRQ-ZTE8010 ToWhomitmayconcern, Theoperatingchannelsin802.11b/g/nmodeforthedevicemarketedtothe US/Canadaarefirmwarelimitedtochannel1~11(2412~2462MHz).Theend-user hasnopossibilitytoselectanyotheroperatingchannels. Ifyouhaveanyquestions,pleasefeelfreetocontactme. Thankyou. Sincerely,CertificationManager CompanyName:ZTECorporation Address:ZTEPlaza,#55KejiRoadSouth,Hi-Tech,IndustrialPark,Nanshan District,Guangdong Tel:+86-21-68895397

秘密▲ <以上所有信息均为中兴通讯股份有限公司所有，不得外传> 第1页 Product Change Description ZTE 8010 is divided into two versions: single SIM card slot and double SIM card slot due to different sales areas. The circuit design is completely the same, only the difference is from the card tray. That is: insert a single card tray, a single-SIM card mobile phone; insert a dual card tray, a dual-SIM card mobile phone. Figure: Double card tray on the left, single card tray on the right. Company: ZTE Corporation Address:B109, #889, Bibo Rd, Zhangjiang Hi-Tech Park, Shanghai,China Tel:+86-21-68896840 Fax: +86-21-68896835

秘密▲ <以上所有信息均为中兴通讯股份有限公司所有，不得外传> 第1页 ZTE CORPORATION Product Change Description As the applicant of the below model, [ZTE Corporation] declares that the product, ZTE 8010 [ZTE Corporation] is the variant of the initial certified product, ZTE 8010 [ZTE Corporation] [Project Number:20ZTE0293-1 SOFTWARE MODIFICATIONS: Protocol Stack changes: NO MMS/STK changes: NO 秘密▲ <以上所有信息均为中兴通讯股份有限公司所有，不得外传> 第2页 JAVA changes: NO Other changes detailed: NO HARDWARE MODIFICATION: Band changes: NO Power Amplifier changes: NO Antenna changes: NO PCB Layout changes: NO LCD changes: NO Speaker changes: NO Camera changes: NO Vibrator changes: NO Bluetooth changes: NO FM changes: NO Other changes: YES（Storage changed from 128Gb to 64Gb） MECHANICAL MODIFICATIONS: Use new metal front/back cover or keypad: NO Mechanical shell changes: NO Other changes detailed: NO ACCESSORY MODIFICATIONS: NO 秘密▲ <以上所有信息均为中兴通讯股份有限公司所有，不得外传> 第3页 APPROVED BY: Project Manager: Sun Zhe Date:2020/07/16 Company: ZTE Corporation Address:B109, #889, Bibo Rd, Zhangjiang Hi-Tech Park, Shanghai,China Tel:+86-21-68896840 Fax: +86-21-68896835

ZTE 8010 WIFI MAC: XXXXXXXXXXXXXXX BT MAC: XXXXXXXXXXXXXXX IMEI: XXXXXXXXXXXXXXX 078761001887空白标贴40x50mm 2GGSM850/GSM1900 WCDMABand II/Band IV/Band V LTEBand2/Band4/Band5 Band7/Band26/Band66 FCC ID:SRQ-ZTE8010

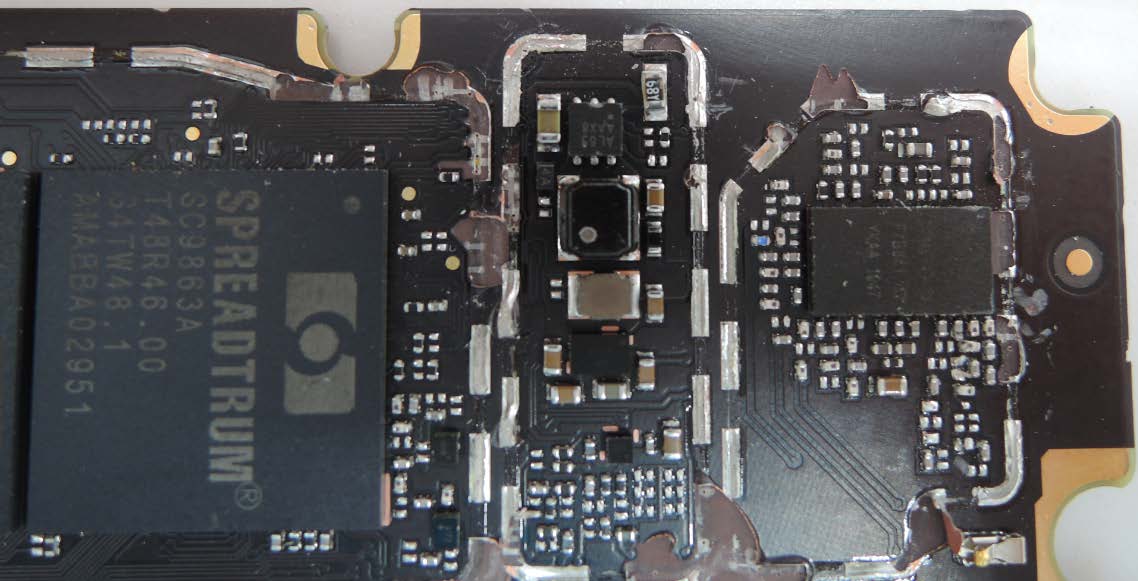

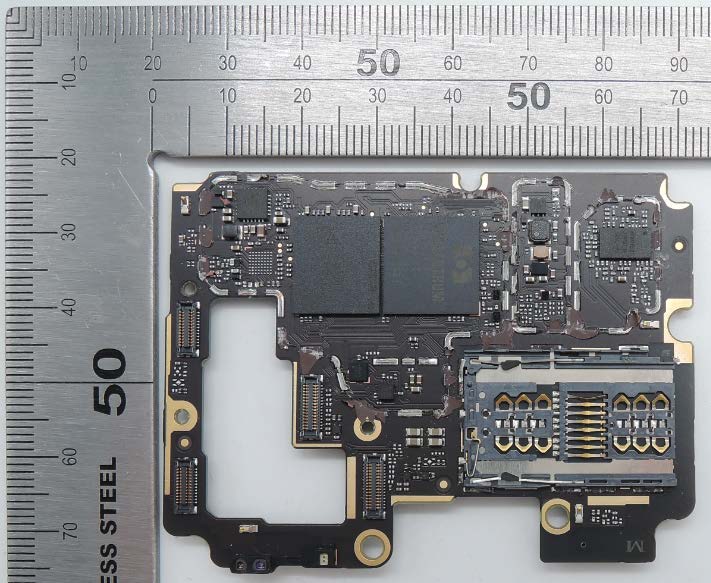

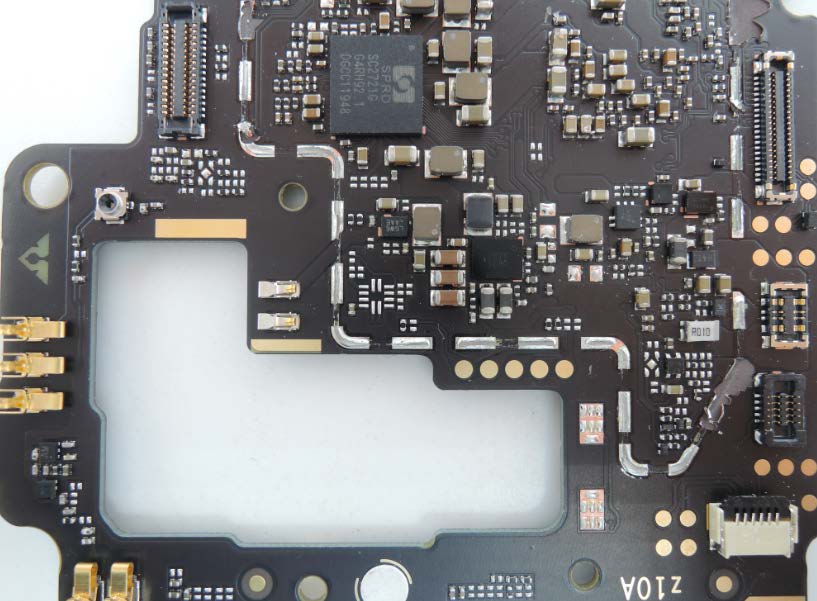

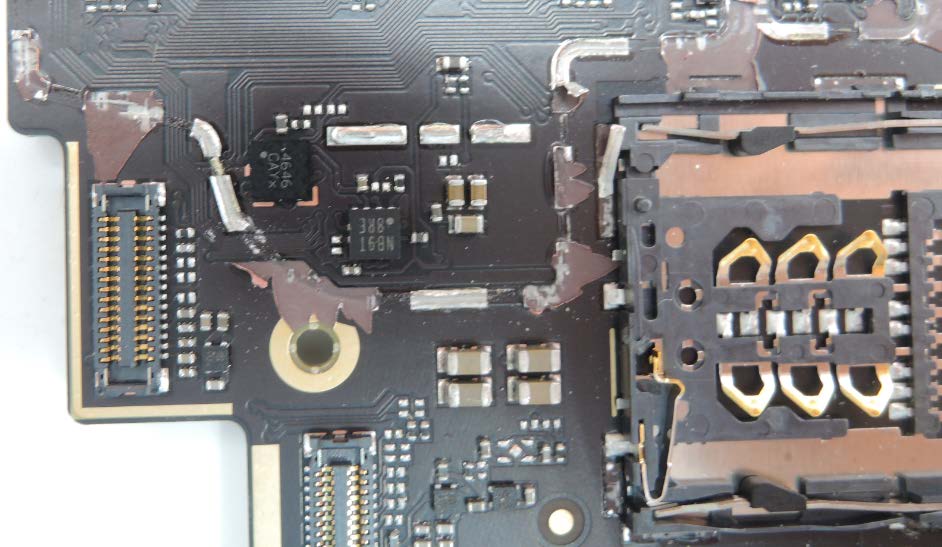

External Photos FCC ID:SRQ-ZTE8010 1 / 8 External Photos FCC ID:SRQ-ZTE8010 2 / 8 IC Details 1 IC Details 2 External Photos FCC ID:SRQ-ZTE8010 3 / 8 IC Details 3 IC Details 4 External Photos FCC ID:SRQ-ZTE8010 4 / 8 IC Details 5 IC Details 6 External Photos FCC ID:SRQ-ZTE8010 5 / 8 IC Details 7 IC Details 8 External Photos FCC ID:SRQ-ZTE8010 6 / 8 IC Details 9 IC Details 10 External Photos FCC ID:SRQ-ZTE8010 7 / 8 IC Details 11 Battery View 1 External Photos FCC ID:SRQ-ZTE8010 8 / 8 Battery View 2

TEST REPORT Report No.: SRTC2020-9003(F)-0022 Product Name: WCDMA/LTE Multi-mode Digital Mobile Phone Model Name: ZTE 8010 Applicant: ZTE Corporation Manufacturer: ZTE Corporation Specification: FCC Part15B (Certification) (2020 edition) FCC ID: SRQ-ZTE 8010 The State Radio_monitoring_center Testing Center (SRTC) 15th Building, No.30 Shixing Street, Shijingshan District, Beijing, China Te l : 86-10-57996183 Fax: 86-10-57996388 No.: SRTC2020-9003(F)-0022 FCC ID: SRQ-ZTE8010 The State Radio_monitoring_centerTesting Center (SRTC) Page number:2 of 43 Tel: 86-10-57996183 Fax:86-10-57996388 Copyright © SRTC CONTENTS 1. General information ......................................................................................... 3 1.1 Notes of the test report ............................................................................................................ 3 1.2 Information about the testing laboratory ................................................................................ 3 1.3 Applicant’s details ..................................................................................................................... 3 1.4 Manufacturer’s details .............................................................................................................. 3 1.5 Application details ..................................................................................................................... 4 1.6 Reference specification ............................................................................................................ 4 1.7 Information of EUT ................................................................................................................... 4 1.7.1 General information ....................................................................................................... 4 1.7.2EUT details ...................................................................................................................... 5 1.7.3 Auxiliary equipment details........................................................................................... 5 2.Test information ................................................................................................ 6 2.1 Summary of the test results .................................................................................................... 7 2.2 Test result ................................................................................................................................... 8 2.2.1Conducted Emissions-FCC Part15.107 ...................................................................... 8 2.2.2RadiatedEmissions-FCC Part15.109 ......................................................................... 16 2.3. List of test equipments .......................................................................................................... 43 No.: SRTC2020-9003(F)-0022 FCC ID: SRQ-ZTE8010 The State Radio_monitoring_centerTesting Center (SRTC) Page number:3 of 43 Tel: 86-10-57996183 Fax:86-10-57996388 Copyright © SRTC 1. General information 1.1 Notes of the test report The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written permission of The State Radio_monitoring_center Testing Center (SRTC). The test results relate only to individual items of the samples which have been tested. 1.2 Information about the testing laboratory Company: The State Radio_monitoring_center Testing Center (SRTC) Address: 15th Building, No.30 Shixing Street, Shijingshan District Testing location： No.80, Zhaojiachang, BeizangCun, Daxing District, Beijing, China. City: Beijing Country or Region: China Contacted person: Liu Jia Te l: +86 10 57996183 Fax: +86 10 57996388 Email: [email protected] 1.3 Applicant’s details Company: ZTE Corporation Address: Electronic Testing Building, No. 43 Shahe Road, Xili street, Nanshan District, Shenzhen,P.R.China City: Shenzhen Country or Region: P.R.China Contacted person: Ren Shijia Te l: + 86- 13709193069 Email: [email protected] 1.4 Manufacturer’s details Company: ZTE Corporation Address: Electronic Testing Building, No. 43 Shahe Road, Xili street, Nanshan District, Shenzhen,P.R.China City: Shenzhen Country or Region: P.R.China Contacted person: Ren Shijia Te l: + 86- 13709193069 Email: [email protected] No.: SRTC2020-9003(F)-0022 FCC ID: SRQ-ZTE8010 The State Radio_monitoring_centerTesting Center (SRTC) Page number:4 of 43 Tel: 86-10-57996183 Fax:86-10-57996388 Copyright © SRTC 1.5 Application details Date of reception of test sample: 23 th June 2020 Date of test: 23 th June 2020 to 3 th July 2020 1.6 Reference specification FCC Part 15B, 2020 (Certification) 1.7 Information of EUT 1.7.1 General information Name of EUT WCDMA/LTE Multi-mode Digital Mobile Phone Model Name ZTE 8010 FCC ID SRQ-ZTE 8010 Frequency Range GSM: GSM850 / PCS1900 WCDMA: FDD II / FDD IV / FDD V LTE: FDD 2/ FDD 4/ FDD 5/ FDD 7/FDD 26/FDD 66 Bluetooth: 2.4~2.4835GHz WiFi: 2.4~2.4835GHz Equipment Class Class B Power Supply Battery or Charger Rated Power Supply Voltage 3.85V Extreme Temperature Lowest: -10°C Highest: +55°C Extreme Voltage Minimum: 3.4V Maximum: 4.4V HW Version z10A SW Version TEL_MX_ZTE_8010V1.0 No.: SRTC2020-9003(F)-0022 FCC ID: SRQ-ZTE8010 The State Radio_monitoring_centerTesting Center (SRTC) Page number:5 of 43 Tel: 86-10-57996183 Fax:86-10-57996388 Copyright © SRTC 1.7.2EUT details Product Name Model Name IMEI Mobile Phone ZTE 8010 EUT1:867805050002066 EUT2:867805050002314 1.7.3 Auxiliary equipment details AE (Auxiliary Equipment) 1#: Laptop Manufacturer Lenovo Model Number E7000 S/N MP1961S2 Input Voltage 100V-240V AC AE (Auxiliary Equipment) 2#: USB Cable1 Manufacturer Shenzhen Luxshare Precision Industry Co.,Lt Model Number USB-TC20-W-100-M-L AE (Auxiliary Equipment) 3#: USB Cable2 Manufacturer King Power Electronics Co.Ltd. Model Number USB-TC20-W-100-M-L AE (Auxiliary Equipment) 4#: Battery1 Type Li-Lon M…

Text truncated - open the document above for the full version.

Appendix1 TEST SETUP Report No.: SRTC2020-9003(F)-0022 Product Name: WCDMA/LTE Multi-mode Digital Mobile Phone Model Name: ZTE 8010 Applicant: ZTE Corporation Manufacturer: ZTE Corporation Specification: FCC Part15B (Certification) (2020 edition) FCC ID: SRQ-ZTE 8010 The State Radio_monitoring_center Testing Center (SRTC) 15th Building, No.30 Shixing Street, Shijingshan District, Beijing, China Te l : 86-10-57996183 Fax: 86-10-57996388 No.: SRTC2020-9003(F)-0022 FCC ID: SRQ-ZTE8010 The State Radio_monitoring_center Testing Center (SRTC) Page number: 2of 4 Te l : 86-10-57996183 Fax: 86-10-57996388 Copyright © SRTC Appendix1 Test Setup Radiated Emissions Test Setup（with laptop）（30-1000MHz） Radiated Emissions Test Setup (with charger) （30-1000MHz） No.: SRTC2020-9003(F)-0022 FCC ID: SRQ-ZTE8010 The State Radio_monitoring_center Testing Center (SRTC) Page number: 3of 4 Te l : 86-10-57996183 Fax: 86-10-57996388 Copyright © SRTC Radiated Emissions Test Setup（with laptop）（above1GHz） Radiated Emissions Test Setup (with charger) （above1GHz） No.: SRTC2020-9003(F)-0022 FCC ID: SRQ-ZTE8010 The State Radio_monitoring_center Testing Center (SRTC) Page number: 4of 4 Te l : 86-10-57996183 Fax: 86-10-57996388 Copyright © SRTC Conducted Emissions Test Setup（with laptop） Conducted Emissions Test Setup (with charger)
