SRQ-ZTEA31LTE/WCDMA/GSM(GPRS) Multi-Mode Digital Mobile with Bluetooth and WiFi

ZTE Blade A31 Quick Start Guide FCC ID： SRQ-ZTEA31 1 LEGAL INFORMATION Copyright © 2021 ZTE CORPORATION. All rights reserved. No part of this publication may be quoted, reproduced, translated or used in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. Notice ZTE Corporation reserves the right to make modifications on print errors or update specifications in this guide without prior notice. We offer self-service for our smart terminal device users. Please visit the ZTE official website (atwww.ztedevices.mx) for more information on self-service and supported product models. Information on the website takes precedence. Visit https://www.ztedevices.mx/soporte/ to download the user manual. Disclaimer ZTE Corporation expressly disclaims any liability for faults and damages caused by unauthorized modifications of the software. Images and screenshots used in this guide may differ from the actual product. Content in this guide may differ from the actual product or software. Trademarks ZTE and the ZTE logos are trademarks of ZTE Corporation. Android™ is a trademark of Google LLC. The Bluetooth® word mark and logos are registeredtrademarks owned by the Bluetooth SIG, Inc. and any use of such marks by ZTE Corporation is under license. microSDXC Logo is a trademark of SD-3C, LLC. Other trademarks and trade names are those of their respective owners. Version No.: R1.0 Edition Time : February 22, 2021 2 Getting to Know Your Phone Front camera Touch screen Earpiece/ Speaker Volume key Power key Charging/ micro-USB jack Headset jack Back camera Indicator light Fingerprint sensor Microphone Flash Back cover 3 Setting Up Your Phone The nano-SIM card can be installed or removed while the phone is turned on. Power off your phone before removing or replacing the battery. WARNING! To avoid damage to the phone, do not use any other kind of SIM cards, or any non-standard nano-SIM card cut from a SIM card. You can get a standard nano-SIM card from your service provider. 1. Place your finger into the slot at the lower left of the back cover, and gently lift and remove the cover. 2. Install the nano-SIM card and the optional microSDXC card into the respective card slots. 4 3. Insert the battery, making sure the connectors align. Gently push down on the battery until it clicks into place. 4. Replace the back cover. Charging the Phone Your phone’s battery should have enough power for the phone to turn on, find a signal, and make a few calls. You should fully charge the battery as soon as possible. WARNING! Use only ZTE-approved chargers and USB cables. The use of unapproved accessories could damage your phone or cause the battery to explode. 1. Connect the adapter to the charging jack. Ensure that the adapter is inserted in the correct direction. 5 2. Connect the charger to a standard AC power outlet. 3. Disconnect the charger when the battery is fully charged. NOTE: If the battery is extremely low, you may be unable to power on the phone even when it is being charged. In this case, try again after charging the phone for at least 20 minutes. Contact the customer service if you still cannot power on the phone after prolonged charging. Powering On/Off Your Phone Make sure the battery is charged before powering on. • Press and hold the Power key to turn on your phone. • To power off, press and hold the Power key to open the options menu, and touch >. NOTE: If the screen freezes or takes too long to respond, reinstall the battery and power on again. 6 FM Radio Scanning for Channels 1. Plug in a wired headset, open the app list and touch FM Radio. 2. Touch > Scan. Your phone scans for all available channels and saves them to the channel list. Listening to FM Radio 1. Open FM Radio while the headset is connected. 2. Touch > All channels and select a channel. You can also drag the red line along the frequency panel or touch or to switch to other channels, or touch or to adjust the current channel frequency. NOTES: • Touch to add the channel to favorites. • Touch to listen to the radio through the phone speaker. • The FM radio feature does not require an Internet connection. 7 Product Safety Information Don’t make or receive phone calls while driving. Never text while driving. Keep your phone at least 15 mm away from your body while making calls. Small parts may cause choking. Your phone can produce a loud sound. To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your phone nea r your ear while the loudspeaker is in use. Avoid contact with anything magnetic. Keep away from pacemakers and other electronic medical devices. Turn off when asked to in hospitals and medical facilities. Turn off when told to on aircraft and at airports. Turn off when near explosive materials or liquids. Don’t use at gas stations. Your phone may produce a bright or flashing light. Don’t dispose of your phone in fire. Avoid extreme temperatures. Avoid contact with liquids. Keep your phone dry. Do not attempt to disassemble your phone. 8 Only use approved accessories. Don’t rely on your phone as a primary device for emergency communications. FCC RF Exposure Information (SAR) This phone is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the United States. During SAR testing, this device was set to transmit at its highest certified power level in all tested frequency bands, and placed in positions that simulate RF exposure in usage against the head with no separation, and near the body with the separation of 15 mm. Although the SAR is determined at the highest certified power level, the actual SAR level of the device while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach …

Text truncated - open the document above for the full version.

ZTECorporation ZTE Plaza, #55 Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Guangdong Telephone: +86-21-68895397 ZTE Corporation. ZTE Plaza, #55 Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Guangdong Tel:+86-21-68895397 Authorization Letter FCC ID: SRQ-ZTEA31 Date: 2021-2-4 To whom it may concern:We, the undersigned, hereby authorize The State Radio_monitoring_centerTesting Center (SRTC) toact on our behalf, as our agent, in the followingmatters related to the FCC approval of our product: Product Name: LTE/WCDMA/GSM(GPRS) Multi-Mode Digital Mobile Phone Product Model: ZTE Blade A31 FCC ID: SRQ-ZTEA31 Report submittal, related correspondence, the signing of all documents relatingto these matters, and any other lawful activity necessary to obtain suchcertification. Any act carried out by The State Radio_monitoring_center TestingCenter (SRTC) within the scope of this authorization shall have the sameeffects as our own.This authorization shall expire 2 months from original date. If you have anyquestion regarding theauthorization, please don’t hesitate to contact with me.Thank you. Sincerely,

ZTECorporation ZTE Plaza, #55 Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Guangdong Telephone: +86-21-68895397 ZTE Corporation. ZTE Plaza, #55 Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Guangdong Tel: +86-21-68895397 Request of Confidentiality Federal Communications Commission Authorization and Evaluation Division Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying of following product: Product Name: LTE/WCDMA/GSM(GPRS) Multi-Mode Digital Mobile Phone Product Model: ZTE Blade A31 FCC ID: SRQ-ZTEA31 The following information should be held confidential: All Schematics/block diagrams/BOM All Parts list for the above schematic diagram Tune-Up Procedure Operational description and technical overview of product The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely,

Company Address ： No. 55, Hi-tech Road South, Shenzhen, P.R.China PHOENIX TESTLAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Company Name : ZTE Corporation Address: No. 55, Hi-tech Road South, Shenzhen, P.R.China Tel: +86-755-26770000 Date:4 Feb2021 Subject: Declaration Operating Channel Limitation Product Name: LTE/WCDMA/GSM(GPRS) Multi-Mode Digital Mobile Phone Product Model: ZTE Blade A31 FCC ID: SRQ-ZTEA31 To Whom it may concern,The operating channels in 802.11 b/g/n mode for the device marketed to the US/Canada arefirmware limited to channel 1 ~ 11 (2412 ~ 2462 MHz). The end-user has no possibility toselect any other operating channels.If you have any questions, please feel free to contact me.Thank you.Sincerely, Certification Manager

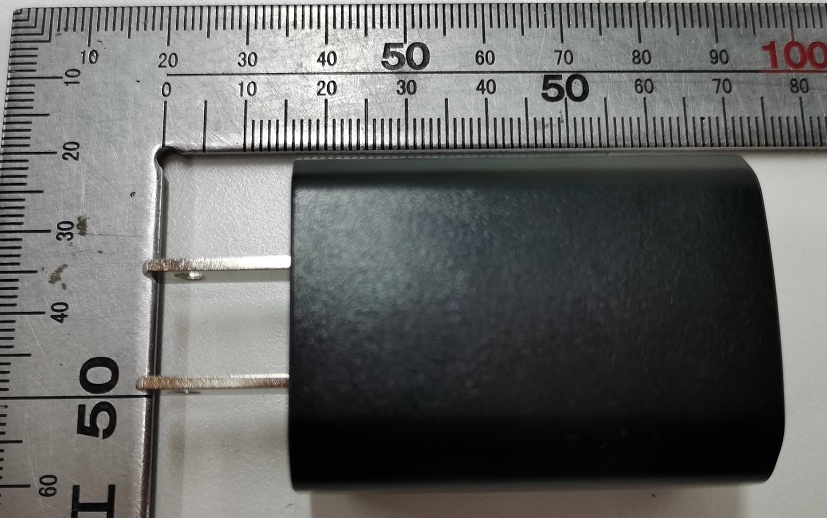

External Photos FCC ID: SRQ-ZTEA31 1 / 19 External Photos FCC ID: SRQ-ZTEA31 2 / 19 External Photos FCC ID: SRQ-ZTEA31 3 / 19 External Photos FCC ID: SRQ-ZTEA31 4 / 19 External Photos FCC ID: SRQ-ZTEA31 5 / 19 External Photos FCC ID: SRQ-ZTEA31 6 / 19 External Photos FCC ID: SRQ-ZTEA31 7 / 19 External Photos FCC ID: SRQ-ZTEA31 8 / 19 External Photos FCC ID: SRQ-ZTEA31 9 / 19 External Photos FCC ID: SRQ-ZTEA31 10 / 19 External Photos FCC ID: SRQ-ZTEA31 11 / 19 External Photos FCC ID: SRQ-ZTEA31 12 / 19 External Photos FCC ID: SRQ-ZTEA31 13 / 19 External Photos FCC ID: SRQ-ZTEA31 14 / 19 External Photos FCC ID: SRQ-ZTEA31 15 / 19 External Photos FCC ID: SRQ-ZTEA31 16 / 19 External Photos FCC ID: SRQ-ZTEA31 17 / 19 External Photos FCC ID: SRQ-ZTEA31 18 / 19 External Photos FCC ID: SRQ-ZTEA31 19 / 19

ZTE Blade A31 GSM: 850/1900 MHz UMTS:B2/B4/B5 LTE:B2/B4/B5/B7/B26/B66 FCC ID:SRQ-ZTEA31 IMEI: XXXXXXXXXXXXXXX

In ternal Photos FCC ID: SRQ- ZTEA31 1 / 12 In ternal Photos FCC ID: SRQ- ZTEA31 2 / 12 In ternal Photos FCC ID: SRQ- ZTEA31 3 / 12 In ternal Photos FCC ID: SRQ- ZTEA31 4 / 12 In ternal Photos FCC ID: SRQ- ZTEA31 5 / 12 In ternal Photos FCC ID: SRQ- ZTEA31 6 / 12 In ternal Photos FCC ID: SRQ- ZTEA31 7 / 12 In ternal Photos FCC ID: SRQ- ZTEA31 8 / 12 In ternal Photos FCC ID: SRQ- ZTEA31 9 / 12 In ternal Photos FCC ID: SRQ- ZTEA31 10 / 12 In ternal Photos FCC ID: SRQ- ZTEA31 11 / 12 In ternal Photos FCC ID: SRQ- ZTEA31 12 / 12

No.: SRTC2021-9004(F)-2 1011203(H) FCC ID: SRQ-ZTEA31 ANNEX A – TEST PLOTS System check 750MHz Communication System: UID 0, CW (0) Frequency: 750 MHz; Duty cycle:1:1 Medium parameters used: f = 750 MHz; σ = 0.91 S/m; ε r = 43.26; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: • Probe: EX3DV4 - SN3708; ConvF(9.75, 9.75, 9.75); Calibrated: 2020/10/30 • Sensor-Surface: 1.4mm (Mechanical Surface Detection), • Electronics: DAE4 Sn720; Calibrated: 2020/9/30 • Phantom: Twin-SAM 1659; Type: QD 000 P40 CD; Serial: 1659 • Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7373) System Performance Check at Frequencies 750MHz/d=15mm, Pin=250 mW, dist=3.0mm (ES-Probe)/Area Scan (8x15x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.42 W/kg System Performance Check at Frequencies 750MHz/d=15mm, Pin=250 mW, dist=3.0mm (ES-Probe)/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 41.50 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 3.25 W/kg SAR(1 g) = 2.16 W/kg; SAR(10 g) = 1.44 W/kg Maximum value of SAR (measured) = 2.49 W/kg SRTC performed system check by using 250mw at antenna port The State Radio_monitoring_centerTestingCenter (SRTC) Page number: 138 of 182 Tel:86-10-5799618 Fax:86-10-57996388 V3.0.0 No.: SRTC2021-9004(F)-2 1011203(H) FCC ID: SRQ-ZTEA31 System check 835MHz Communication System: UID 0, CW (0); Frequency: 835 MHz Duty cycle:1:1 Medium parameters used (interpolated): f = 835 MHz; σ = 0.89 S/m; ε r = 40.45 ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: • Probe: EX3DV4 - SN3708; ConvF(9.39, 9.39, 9.39); Calibrated: 2020/10/30 • Sensor-Surface: 1.4mm (Mechanical Surface Detection), • Electronics: DAE4 Sn720; Calibrated: 2020/9/30 • Phantom: Twin-SAM 1659; Type: QD 000 P40 CD; Serial: 1659 • Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7373) Configuration 835/835/Area Scan (8x15x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.73 W/kg Configuration 835/835/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 51.65 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 3.55 W/kg SAR(1 g) = 2.25 W/kg; SAR(10 g) = 1.61 W/kg Maximum value of SAR (measured) = 2.77 W/kg SRTC performed system check by using 250mw at antenna port The State Radio_monitoring_centerTestingCenter (SRTC) Page number: 139 of 182 Tel:86-10-5799618 Fax:86-10-57996388 V3.0.0 No.: SRTC2021-9004(F)-2 1011203(H) FCC ID: SRQ-ZTEA31 System check 1800MHz Communication System: UID 0, CW (0); Frequency: 1800 MHz; Duty cycle:1:1 Medium parameters used: f = 1800 MHz; σ = 1.43 S/m; ε r = 38.97; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: • Probe: EX3DV4 - SN3708; ConvF(8.27, 8.27, 8.27); Calibrated: 2020/10/30 • Sensor-Surface: 1.4mm (Mechanical Surface Detection), • Electronics: DAE4 Sn720; Calibrated: 2020/9/30 • Phantom: Twin-SAM 1659; Type: QD 000 P40 CD; Serial: 1659 • Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7373) Configuration 1800/1800/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 8.35 W/kg Configuration 1800/1800/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 76.87 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 17.6 W/kg SAR(1 g) = 10.3 W/kg; SAR(10 g) = 4.97 W/kg Maximum value of SAR (measured) = 12.3 W/kg SRTC performed system check by using 250mw at antenna port The State Radio_monitoring_centerTestingCenter (SRTC) Page number: 140 of 182 Tel:86-10-5799618 Fax:86-10-57996388 V3.0.0 No.: SRTC2021-9004(F)-2 1011203(H) FCC ID: SRQ-ZTEA31 System check 2000MHz Communication System: UID 0, CW (0); Frequency: 2000 MHz; Duty cycle:1:1 Medium parameters used: f = 2000 MHz; σ = 1.35 S/m; ε r = 38.66; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: • Probe: EX3DV4 - SN3708; ConvF(7.94, 7.94, 7.94); Calibrated: 2020/10/30 • Sensor-Surface: 1.4mm (Mechanical Surface Detection), • Electronics: DAE4 Sn720; Calibrated: 2020/9/30 • Phantom: Twin-SAM 1659; Type: QD 000 P40 CD; Serial: 1659 • Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7373) Configuration 2000/2000/Area Scan (7x10x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 8.42 W/kg Configuration 2000/2000/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 76.52 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 18.4 W/kg SAR(1 g) = 10.58 W/kg; SAR(10 g) = 4.97 W/kg Maximum value of SAR (measured) = 12.6 W/kg SRTC performed system check by using 250mw at antenna port The State Radio_monitoring_centerTestingCenter (SRTC) Page number: 141 of 182 Tel:86-10-5799618 Fax:86-10-57996388 V3.0.0 No.: SRTC2021-9004(F)-2 1011203(H) FCC ID: SRQ-ZTEA31 System check 2450MHz Communication System: UID 0, CW (0); Frequency: 2450 MHz; Duty cycle:1:1 Medium parameters used: f = 2450 MHz; σ = 1.88 S/m; ε r = 40.22; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: • Probe: EX3DV4 - SN3708; ConvF(7.48, 7.48, 7.48); Calibrated: 2020/10/30 • Sensor-Surface: 1.4mm (Mechanical Surface Detection), • Electronics: DAE4 Sn720; Calibrated: 2020/9/30 • Phantom: Twin-SAM 1659; Type: QD 000 P40 CD; Serial: 1659 • Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7373) System Performance Check at Frequencies 2450 MHz/2450/Area Scan (8x11x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 21.6 W/kg System Performance Check at Frequencies 2450 MHz/2450/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 108.9 V/m; Power Drift = 0.15 dB Peak SAR (extrapolated) = 28.3 W/kg SAR(1 g) = 13.56 W/kg; SAR(10 g) = 6.4 W/kg Maximum value of SAR (measured) = 22.8 W/kg SRTC performed system check by using 250mw at antenna port The State Radio_monitoring_centerTestingCenter (SRTC…

Text truncated - open the document above for the full version.

Certificate Number: 5055.02 TEST REPORT FOR SAR TESTING Report No.: SRTC2021-9004(F)-21011203(H) Product Name: Multi-Mode Digital Mobile Phone Product Model: ZTE Blade A31 Applicant: ZTE Corporation Manufacturer: ZTE Corporation Specification: Part 2.1093 IEEE Std 1528 KDB Procedures FCC ID: SRQ-ZTEA31 The State Radio_monitoring_center Testing Center (SRTC) 15th Building, No.30 Shixing Street, Shijingshan District, Beijing, P.R. China Tel: 86-10-57996183 Fax: 86-10-57996388 No.: SRTC2021-9004(F)-2 1011203(H) FCC ID: SRQ-ZTEA31 Contents 1. GENERAL INFORMATION ......................................................................................................................................... 2 1.1 NOTES OF THE TEST REPORT ......................................................................................................................................... 2 1.2 INFORMATION ABOUT THE TESTING LABORATORY ........................................................................................................ 2 1.3 APPLICANT’S DETAILS ................................................................................................................................................... 2 1.4 MANUFACTURER’S DETAILS .......................................................................................................................................... 2 1.5 TEST ENVIRONMENT ...................................................................................................................................................... 3 2. DESCRIPTION OF THE DEVICE UNDER TEST ..................................................................................................... 3 2.1 FINAL EQUIPMENT BUILD STATUS ................................................................................................................................ 3 2.2 SUPPORT EQUIPMENT .................................................................................................................................................... 4 3. REFERENCE SPECIFICATION.................................................................................................................................. 6 4. TEST CONDITIONS ...................................................................................................................................................... 7 4.1 PICTURE TO DEMONSTRATE THE REQUIRED LIQUID DEPTH .......................................................................................... 7 4.2 TEST SIGNAL, FREQUENCIES AND OUTPUT POWER ..................................................................................................... 7 4.3 SAR MEASUREMENT SET-UP ........................................................................................................................................ 7 4.4 PHANTOMS ..................................................................................................................................................................... 8 4.5 TISSUE SIMULANTS ........................................................................................................................................................ 8 4.6 DESCRIPTION OF THE TEST PROCEDURE ........................................................................................................ 9 5 RESULT SUMMARY ................................................................................................................................................... 12 6 TEST RESULT .............................................................................................................................................................. 14 6.1 MANUFACTURING TOLERANCE .................................................................................................................................... 14 6.2 GSM MEASUREMENT RESULT ..................................................................................................................................... 26 6.3 WCDMA MEASUREMENT RESULT .............................................................................................................................. 29 6.4 LTE MEASUREMENT RESULT ...................................................................................................................................... 36 6.5 BLUETOOTH MEASUREMENT RESULT ......................................................................................................................... 99 6.6 WI-FI MEASUREMENT RESULT .................................................................................................................................. 100 6.7 STANDALONE SAR TEST EXCLUSION CONSIDERATIONS ........................................................................................ 101 6.8 RF EXPOSURE CONDITIONS ....................................................................................................................................... 103 6.9 SYSTEM CHECKING .................................................................................................................................................... 106 6.10 SAR TEST RESULT ............................................................................................................................................. 108 6.11 SAR MEASUREMENT VARIABILITY ......................................................................................................................... 130 6.12 SIMULTANEOUS TRANSMISSION SAR ANALYSIS ................................................................................................... 131 7 MEASUREMENT UNCERTAINTY .......................................................................................................................... 132 8 TEST EQUIPMENTS ................................................................................................................................................. 135 ANNEX – TEST PLOTS ....................................................................…

Text truncated - open the document above for the full version.

Beijing Boomwave Test Service Co. Ltd Page No.: 1 of 46 Tel: +86-010-64711866 Fax: +86-010-64711866-810 FCC PART 90S TEST REPORT Report Number BWTR-2101-NAPCE FCC ID SRQ-ZTEA31 Applicant ZTE CORPORATION Product Name LTE/WCDMA/GSM(GPRS) Multi-Mode Digital Mobile Phone Marketing Name ZTE Blade A31 Brand Name ZTE Model Name ZTE Blade A31 Serial Number No.1: 864210050002302 No.2: 864210050003383 Test Standard FCC 47 CFR Part 90 Subpart S Tested Date Jan. 26, 2021 - Jan. 29, 2021 Report No: BWTR-2101-NAPCE Revision: B Beijing Boomwave Test Service Co. Ltd Page No.: 2 of 46 Tel: +86-010-64711866 Fax: +86-010-64711866-810 CONTENTS 1 Summary of Test Result ................................................................................................................. 4 2 General Information ...................................................................................................................... 5 2.1 Applicant ................................................................................................................................ 5 2.2 Manufacturer .......................................................................................................................... 5 2.3 Product Feature of Equipment Under Test ................................................................................. 5 2.4 Ancillary Equipment ................................................................................................................ 5 2.5 Description of Test Modes ....................................................................................................... 6 2.6 Applicable Standards ............................................................................................................... 7 2.7 Test Facilities .......................................................................................................................... 7 3 Test Result ..................................................................................................................................... 8 3.1 RF Output Power and Effective Radiated Power ........................................................................ 8 3.2 Peak to Average Power Ratio (PAPR) ..................................................................................... 14 3.3 Occupied Bandwidth ............................................................................................................. 25 3.4 Spurious Emission at Antenna Terminal .................................................................................. 37 3.5 Field Strength of Spurious Radiation ....................................................................................... 38 3.6 Band Edge ............................................................................................................................ 40 3.7 Frequency Stability ................................................................................................................ 44 4 Test Instruments .......................................................................................................................... 46 Report No: BWTR-2101-NAPCE Revision: B Beijing Boomwave Test Service Co. Ltd Page No.: 3 of 46 Tel: +86-010-64711866 Fax: +86-010-64711866-810 Revision History Revision Description Issued Date A Initial issue of report 2021/02/01 B Update Applicant and Manufacturer information in section 2.1 and 2.2 2021/02/20 Report No: BWTR-2101-NAPCE Revision: B Beijing Boomwave Test Service Co. Ltd Page No.: 5 of 46 Tel: +86-010-64711866 Fax: +86-010-64711866-810 2 General Information 2.1 Applicant ZTE CORPORATION ZTE Plaza, No. 55 Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China 2.2 Manufacturer ZTE CORPORATION ZTE Plaza, No. 55 Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China 2.3 Product Feature of Equipment Under Test Product Name LTE/WCDMA/GSM(GPRS) Multi-Mode Digital Mobile Phone Marketing Name ZTE Blade A31 Model Name ZTE Blade A31 Sample Status Production Operating Frequency Range 814MHz~824MHz Type of Wireless Technology FDD LTE - Band 26 Modulation Type QPSK, 16QAM, 64QAM Channel Bandwidth 1.4MHz, 3MHz, 5MHz, 10MHz Antenna Type Internal Antenna Antenna Gain -2.11dBi Extreme Operating Temperature Minimum: -10°C Maximum: +55°C Power Supply Normal Voltage: 3.80V Lowest Voltage: 3.40V Highest Voltage: 4.35V Hardware Version zf7A Software Version TEL_MX_ZTE_Blade_A31V1.0 Sample Received Date 2021/01/22 2.4 Ancillary Equipment The EUT has been tested as an independent unit together with other necessary accessories or support units. The following ancillary equipment were used to form a representative test configuration during the tests. Support Unit Li-Lon Battery Manufacturer Guangdong Fenghua New Energy Co.,Ltd. Model Name Li3830T43P8h486375 Capacity 3000mAh Nominal Voltage 3.80V Serial Number M005347ABG0019368 Report No: BWTR-2101-NAPCE Revision: B Beijing Boomwave Test Service Co. Ltd Page No.: 6 of 46 Tel: +86-010-64711866 Fax: +86-010-64711866-810 2.5 Description of Test Modes The EUT was linked by base station simulator to work in continious trasmitting and receiving mode. Pre-Scan has been conducted to determine the worst-case mode from all possible combinations between available modulations, bandwidth, resource block (RB) and RB offset. Following channels were selected for test: Channel Bandwidth Low Channel Mid Channel High Channel Frequency (MHz) Channel No. Frequency (MHz) Channel No. Frequency (MHz) Channel No. 1.4MHz 814.7 26697 819.0 26740 823.3 26783 3MHz 815.5 26705 819.0 26740 822.5 26775 5MHz 816.5 26715 819.0 26740 821.5 26765 10MHz --- 819.0 26740 --- Following modes were selected as the worst case configuration for each test: Test Items Channel BW (MHz) RB Size RB Offset Modulation Antenna Orientation RF Output Power L\M\H 1.4 1\3\6 0\3\5\1 QPSK,16QAM, 64QAM N/A 3 1\8\15 0\8\14\4\7 5 1\12\25 0\12\24\7\13 10 1\25\50 0\25\49\12 Peak to Average Power …

Text truncated - open the document above for the full version.

Report No: BWTR-2101-NAPCE Revision: B Beijing Boomwave Test Service Co. Ltd Page No.: 25 of 46 Tel: +86-010-64711866 Fax: +86-010-64711866-810 3.3 Occupied Bandwidth 3.3.1. Limit FCC 47 CFR Part 90 Subpart S - §90.209 (a) Each authorization issued to a station licensed under this part will show an emission designator representing the class of emission authorized. The designator will be prefixed by a specified necessary bandwidth. This number does not necessarily indicate the bandwidth occupied by the emission at any instant. In those cases where §2.202 of this chapter does not provide a formula for the computation of necessary bandwidth, the occupied bandwidth, as defined in part 2 of this chapter, may be used in lieu of the necessary bandwidth. 3.3.2. Test Setup 3.3.3. Test Procedures 1) The measurement procedure follows ANSI C63.26-2015, clause 5.2.7 2) The RF output of the EUT, BS simulator and spectrum analyzer are connected via a power divider. 3) The nominal RBW of spectrum analyzer shall be in the range of 1% to 5% of the anticipated OBW, and the VBW shall be set ≥ 3 × RBW. 4) Record the measured results of 26dB and 99% bandwidth. 3.3.4. Test Result Test Engineer Xu Dongxu Test Date 2021/01/27 Temperature 20.2°C Relative Humidity 46.9% Pressure 105.1kPa Test Sample Selected No.1 Frequency (MHz) Channel No. BW (MHz) RB Size RB Offset Bandwidth of 99…

Text truncated - open the document above for the full version.
