SRQ-ZTEA32020LTE/WCDMA/GSM (GPRS) Multi-Mode Digital Mobile Phone

1 ZTE Blade A3 2020 Quick Start Guide 2 LEGAL INFORMATION Copyright © 2020 ZTE CORPORATION. All rights reserved. No part of this publication may be quoted, reproduced, translated or used in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. Notice ZTE Corporation reserves the right to make modifications on print errors or update specifications in this guide without prior notice. We offer self‐service for our smart terminal device users. Please visit the ZTE official website (at www.ztedevices.mx) for more information on self‐service and supported product models. Information on the website takes precedence. Visit https://ztedevices.mx/soporte/ to download the user manual. Disclaimer ZTE Corporation expressly disclaims any liability for faults and damages caused by unauthorized modifications of the software. Images and screenshots used in this guide may differ from the actual product. Content in this guide may differ from the actual product or software. Trademarks ZTE and the ZTE logos are trademarks of ZTE Corporation. Android™ is a trademark of Google LLC. The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by ZTE Corporation is under license. microSDXC Logo is a trademark of SD ‐3C, LLC. Other trademarks and trade names are those of their respective owners. Version No.: R1.0 Edition Time : October 23, 2019 Manual No.: 3 Getting to Know Your Phone Front camera Touch screen Earpiece/ Speaker Volume key Power key Charging/ micro‐USB jack Headset jack Back camera Indicator light Flash Back cover 4 Setting Up Your Phone The nano‐SIM card can be installed or removed while the phone is turned on. Power off your phone before removing or replacing the battery. WARNING! To avoid damage to the phone, do not use any other kind of SIM cards, or any non‐standard nano‐SIM card cut from a SIM card. You can get a standard nano‐SIM card from your service provider. 1. Insert your fingernail into the slot at the bottom left of the back cover and lift it up gently. 2. Insert the nano‐SIM card into the right card slot, and insert the microSDXC card (optional) into the left card slot. 5 3. Insert the battery, making sure the connectors align. 4. Replace the back cover. Charging the Phone Your phone’s battery should have enough power for the phone to turn on, find a signal, and make a few calls. You should fully charge the battery as soon as possible. WARNING! Use only ZTE‐approved chargers and USB cables. The use of unapproved accessories could damage your phone or cause the battery to explode. 1. Connect the adapter to the charging jack. Ensure that the adapter is inserted in the correct direction. 2. Connect the charger to a standard AC power outlet. 6 3. Disconnect the charger when the battery is fully charged. NOTE: If the battery is extremely low, you may be unable to power on the phone even when it is being charged. In this case, try again after charging the phone for at least 20 minutes. Contact the customer service if you still cannot power on the phone after prolonged charging. Powering On/Off Your Phone Make sure the battery is charged before powering on.  Press and hold the Power key to turn on your phone.  To power off, press and hold the Power key to open the options menu, and touch > . NOTE: If the screen freezes or takes too long to respond, reinstall the battery and power on again. Waking Up Your Phone Your phone automatically goes into sleep mode when it is not in use for some time. The display is turned off to save power and the keys are locked to prevent accidental operations. You can wake up your phone by turning on the display and unlocking the keys. 1. Press the Power key to turn the screen on. 2. Swipe up on the screen. NOTE: If you have set an unlock pattern, a PIN or a password for your phone, you’ll need to draw the pattern, or enter the PIN/password to unlock your screen. FM Radio Scanning for Channels 1. Plug in a wired headset, and swipe up on the home screen and touch FM Radio. 2. Touch . Touch > Refresh to scan for all available channels and save them to the radio station list. 7 Listening to FM Radio 1. Open FM Radio while the headset is connected. 2. Touch and select a channel. You can also touch or to switch to other channels. Touch or to adjust the channel frequency. NOTES:  Touch to add the channel to favourites.  Touch to listen to the radio through the phone speaker.  The FM radio feature does not require an Internet connection. 8 Product Safety Information Don’t make or receive phone calls while driving. Never text while driving. Keep your phone at least 10 mm away from your body while making calls. Small parts may cause choking. Your phone can produce a loud sound. To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your phone near your ear while the loudspeaker is in use. Avoid contact with anything magnetic. Keep away from pacemakers and other electronic medical devices. Turn off when asked to in hospitals and medical facilities. Turn off when told to on aircraft and at airports. Turn off when near explosive materials or liquids. Don’t use at gas stations. Your phone may produce a bright or flashing light. Don’t dispose of your phone in fire. Avoid extreme temperatures. Avoid contact with liquids. Keep your phone dry. Do not attempt to disassemble your phone. 9 Only use approved accessories. For pluggable equipment, the socket‐outlet shall be installed near the equipment and shall be easily accessible. Don’t rely on your phone as a primary device for emergency communications. FCC RF Exposure Information (SAR) This phone is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the United States. During SAR testing, this device was set to tr…

Text truncated - open the document above for the full version.

Agent Authorization Letter 2019-12-25 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize CCIC Southern Electronic Product Testing (Shenzhen) Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name/title: Yu Gong/Certification Manager Company: ZTE Corporation Address: ZTE Plaza, Keji Road South, Shenzhen, China E-mail: [email protected] Tele: +86-21-68895397

ZTE Corporation Long Term Confidentiality Request Letter 2019-12-25 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR Product: LTE/WCDMA/GSM(GPRS) Multi-Mode Digital Mobile Phone Model: ZTE Blade A3 2020 FCC ID: SRQ-ZTEA32020 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (list the items that are being requested for confidentiality here) required to be submitted with this application be permanently withheld from public review. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure SPECIFY REASON FOR REQUEST (i.e. the above documents are company proprietary information that could never get into the possession of your competition). Please contact me if there is any information you may need. Sincerely, Signature: Name/title: Yu Gong/Certification Manager Company: ZTE Corporation Address: ZTE Plaza, Keji Road South, Shenzhen, China E-mail: [email protected] Tele: +86-21-68895397

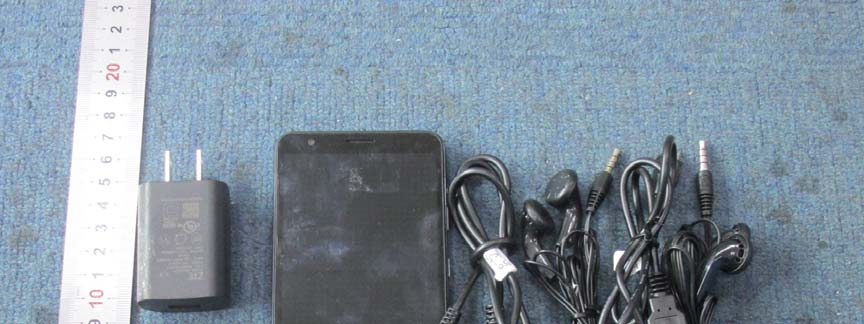

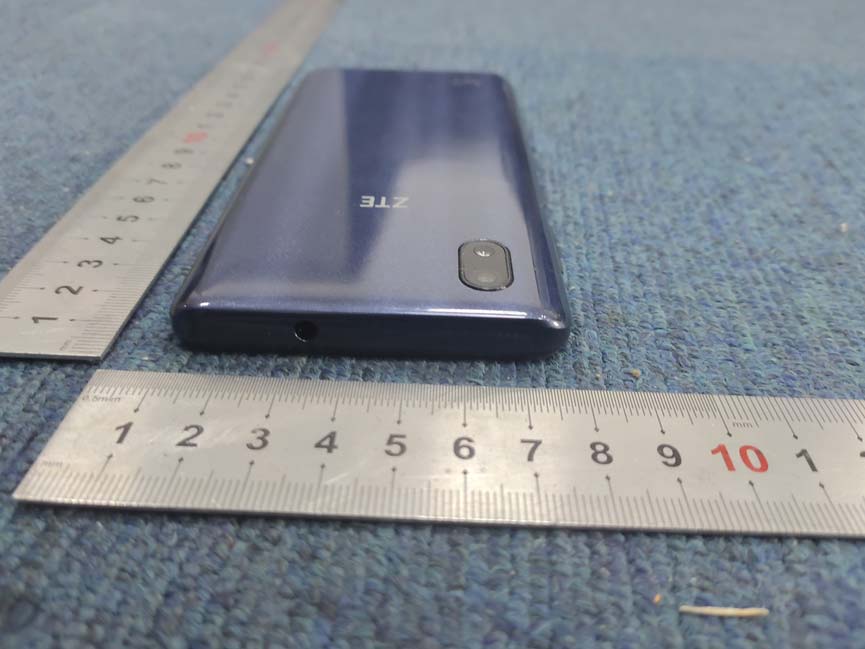

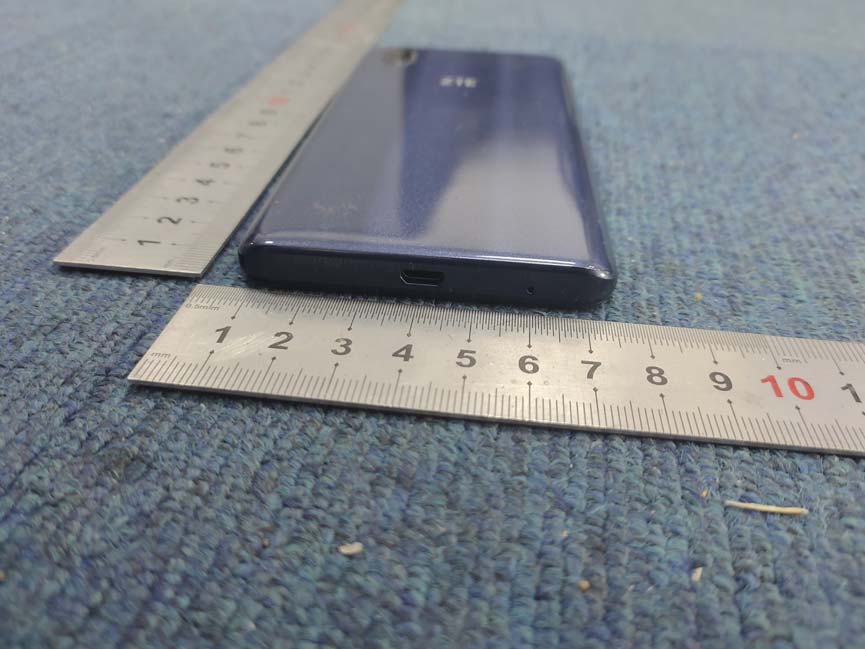

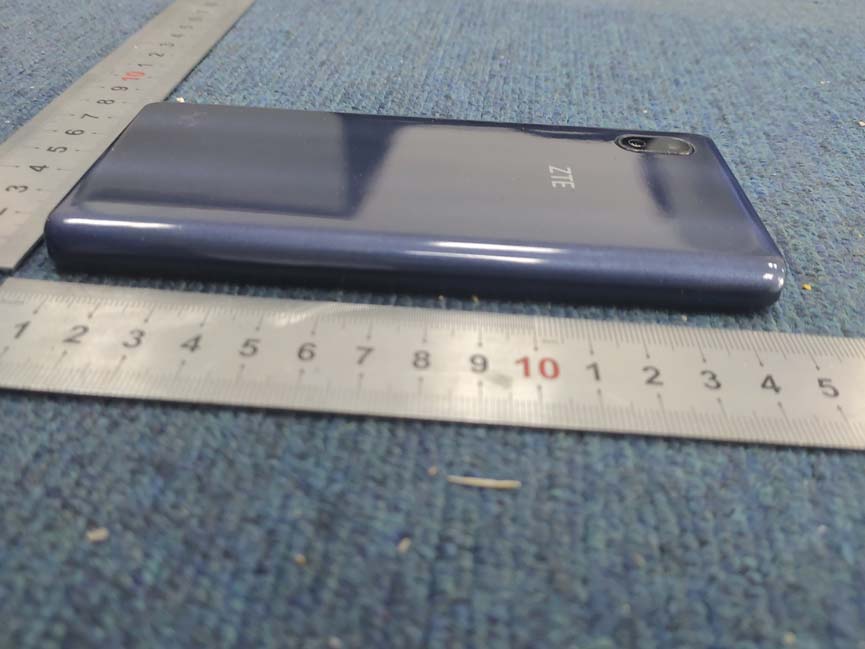

External Photo

Internal Photo LTE Sub ANT WWAN ANT BT/WIFI ANT GPS ANT

Report No. SET2019-16822 CCIC-SET/TRF:ISAR(2019-05-23) 1 / 21 Appendix A: SAR System performance Check Plots Measurement Liquid Frequency Test Date System Check Head 835 2019-12-16 System Check Body 835 2019-12-16 System Check Head 1800 2019-12-17 System Check Body 1800 2019-12-17 System Check Head 1900 2019-12-18 System Check Body 1900 2019-12-18 System Check Head 2450 2019-12-19 System Check Body 2450 2019-12-19 System Check Head 2600 2019-12-20 System Check Body 2600 2019-12-20 Report No. SET2019-16822 CCIC-SET/TRF:ISAR(2019-05-23) 2 / 21 System Performance Check (Head, 835MHz) Type: Phone measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 12/16/2019 Measurement duration: 22 minutes 05 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 5x5x7,dx=8mm dy=8mm dz=5mm Device Position Dipole Band 835MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 835 Relative permittivity (real part) 41.59 Relative permittivity 19.83 Conductivity (S/m) 0.92 Power drift (%) -2.33 Ambient Temperature: 22.2°C Liquid Temperature: 22.6°C ConvF: 1.92 Crest factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=-1.00, Y=-13.00 SAR Peak: 0.15 W/kg SAR 10g (W/Kg) 0.058461 SAR 1g (W/Kg) 0.098813 Report No. SET2019-16822 CCIC-SET/TRF:ISAR(2019-05-23) 3 / 21 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.1480 0.1053 0.0669 0.0412 0.0242 3D screen shot Hot spot position Report No. SET2019-16822 CCIC-SET/TRF:ISAR(2019-05-23) 4 / 21 System Performance Check (Body, 835MHz) Type: Phone measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 12/16/2019 Measurement duration: 22 minutes 02 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 5x5x7,dx=8mm dy=8mm dz=5mm Device Position Dipole Band 835MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 835 Relative permittivity (real part) 55.29 Relative permittivity 21.13 Conductivity (S/m) 0.98 Power drift (%) -2.16 Ambient Temperature: 22.2°C Liquid Temperature: 22.6°C ConvF: 1.99 Crest factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=-1.00, Y=-13.00 SAR Peak: 0.15 W/kg SAR 10g (W/Kg) 0.059511 SAR 1g (W/Kg) 0.101892 Report No. SET2019-16822 CCIC-SET/TRF:ISAR(2019-05-23) 5 / 21 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.1498 0.1068 0.0678 0.0414 0.0240 3D screen shot Hot spot position Report No. SET2019-16822 CCIC-SET/TRF:ISAR(2019-05-23) 6 / 21 System Performance Check (Head, 1800MHz) Type: Validation measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 12/17/2019 Measurement duration: 22 minutes 07 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 5x5x7,dx=8mm dy=8mm dz=5mm Device Position Dipole Band 1800MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 1800 Relative permittivity (real part) 40.61 Relative permittivity 14.10 Conductivity (S/m) 1.41 Power Drift (%) -2.50 Ambient Temperature: 22.1°C Liquid Temperature: 22.6°C ConvF: 2.14 Duty factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=1.00, Y=-10.00 SAR Peak: 0.71 W/kg SAR 10g (W/Kg) 0.196797 SAR 1g (W/Kg) 0.405952 Report No. SET2019-16822 CCIC-SET/TRF:ISAR(2019-05-23) 7 / 21 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.7106 0.4355 0.2250 0.1129 0.0567 3D screen shot Hot spot position Report No. SET2019-16822 CCIC-SET/TRF:ISAR(2019-05-23) 8 / 21 System Performance Check (Body, 1800MHz) Type: Validation measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 12/17/2019 Measurement duration: 22 minutes 04 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 5x5x7,dx=8mm dy=8mm dz=5mm Device Position Dipole Band 1800MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 1800 Relative permittivity (real part) 53.50 Relative permittivity 15.40 Conductivity (S/m) 1.54 Power Drift (%) -2.95 Ambient Temperature: 22.1°C Liquid Temperature: 22.6°C ConvF: 2.22 Duty factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=1.00, Y=-10.00 SAR Peak: 0.72 W/kg SAR 10g (W/Kg) 0.195907 SAR 1g (W/Kg) 0.403010 Report No. SET2019-16822 CCIC-SET/TRF:ISAR(2019-05-23) 9 / 21 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.7173 0.4392 0.2268 0.1138 0.0572 3D screen shot Hot spot position Report No. SET2019-16822 CCIC-SET/TRF:ISAR(2019-05-23) 10 / 21 System Performance Check (Head, 1900MHz) Type: Validation measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 12/18/2019 Measurement duration: 22 minutes 01 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 5x5x7,dx=8mm dy=8mm dz=5mm Device Position Dipole Band 1900MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 1900 Relative permittivity (real part) 40.52 Relative permittivity 13.26 Conductivity (S/m) 1.40 Power Drift (%) -2.67 Ambient Temperature: 22.1°C Liquid Temperature: 22.6°C ConvF: 2.34 Duty factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=2.00, Y=-10.00 SAR Peak: 0.72 W/kg SAR 10g (W/Kg) 0.190294 SAR 1g (W/Kg) 0.398384 Report No. SET2019-16822 CCIC-SET/TRF:ISAR(2019-05-23) 11 / 21 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.7152 0.4346 0.2213 0.1087 0.0530 3D screen shot Hot spot position Report No. SET2019-16822 CCIC-SET/TRF:ISAR(2019-05-23) 12 / 21 System Performance Check (Body, 1900MHz) Type: Validation measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 12/18/2019 Measurement duration: 22 minutes 10 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 5x5x7,dx=8mm dy=8mm dz=5mm Device Po…

Text truncated - open the document above for the full version.

Report No. SET2019-16822 CCIC‐SET/TRF:ISAR(2019‐05‐23) 1 / 45 Appendix B: SAR Measurement results Plots Plot Frequency/Mode Testing Position and Channel Test Date 1 GSM850 Right Cheek Middle 2019/12/16 2 GSM850/GPRS2Tx Body Back, Middle ,10mm 2019/12/16 3 GSM1900 Left Cheek Middle 2019/12/18 4 GSM1900/GPRS3Tx Body Back, Middle ,10mm 2019/12/18 5 WCDMA1900 Left Cheek Middle 2019/12/18 6 WCDMA1900 Body Back, Middle ,10mm 2019/12/18 7 WCDMA1700 Left Cheek High 2019/12/17 8 WCDMA1700 Body Back, High ,10mm 2019/12/17 9 WCDMA850 Right Cheek High 2019/12/16 10 WCDMA850 Body Back, High ,10mm 2019/12/16 11 LTE Band2 Left Cheek Middle 2019/12/18 12 LTE Band2 Body Back, Middle ,10mm 2019/12/18 13 LTE Band4 Left Cheek Middle 2019/12/17 14 LTE Band4 Body Back, Middle ,10mm 2019/12/17 15 LTE Band5 Right Cheek Middle 2019/12/16 16 LTE Band5 Body Back, Middle ,10mm 2019/12/16 17 LTE Band7 Left Cheek Middle 2019/12/20 18 LTE Band7 Body Back, Middle ,10mm 2019/12/20 19 LTE Band66 Right Cheek Middle 2019/12/17 20 LTE Band66 Body Back, Middle ,10mm 2019/12/17 21 WIFI 2.4G 802.11b Left Cheek Middle 2019/12/19 22 WIFI 2.4G 802.11b Body Back, Middle ,10mm 2019/12/19 Report No. SET2019-16822 CCIC‐SET/TRF:ISAR(2019‐05‐23) 2 / 45 Plot 1: GSM850, Right Cheek, Middle Type: Phone measurement Date of measurement: 12/16/2019 Measurement duration: 22 minutes 02 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Right Cheek Band GSM850 Channels 190 Signal GSM (Duty cycle: 1:8.3) B. SAR Measurement Results E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 836.6 Relative permittivity (real part) 41.59 Relative permittivity (imaginary part) 19.83 Conductivity (S/m) 0.92 Variation (%) -2.92 ConvF: 1.92 SURFACE SAR VOLUME SAR Maximum location: X=-54.00, Y=-33.00 SAR Peak: 0.57W/kg SAR 10g (W/Kg) 0.306267 SAR 1g (W/Kg) 0.420120 Report No. SET2019-16822 CCIC‐SET/TRF:ISAR(2019‐05‐23) 3 / 45 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.5008 0.4309 0.3232 0.2462 0.2055 3D screen shot Hot spot position Report No. SET2019-16822 CCIC‐SET/TRF:ISAR(2019‐05‐23) 4 / 45 Plot 2: GPRS850, Back, Middle,10mm Type: Phone measurement Date of measurement: 12/16/2019 Measurement duration: 22 minutes 04 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Back Band GSPRS850_2Tx Channels 190 Signal GPRS(Duty cycle: 1:6.03) B. SAR Measurement Results E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 836.6 Relative permittivity (real part) 55.29 Relative permittivity (imaginary part) 21.13 Conductivity (S/m) 0.98 Variation (%) 3.20 ConvF: 1.99 SURFACE SAR VOLUME SAR Maximum location: X=9.00, Y=-52.00 SAR Peak: 0.68 W/kg SAR 10g (W/Kg) 0.373559 SAR 1g (W/Kg) 0.520320 Report No. SET2019-16822 CCIC‐SET/TRF:ISAR(2019‐05‐23) 5 / 45 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.6778 0.5309 0.3930 0.2958 0.2274 3D screen shot Hot spot position Report No. SET2019-16822 CCIC‐SET/TRF:ISAR(2019‐05‐23) 6 / 45 Plot 3: GSM1900, Left Cheek, Middle Type: Phone measurement Date of measurement: 12/18/2019 Measurement duration: 22 minutes 01 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Left Cheek Band GSM1900 Channels 661 Signal GSM (Duty cycle: 1:8.3) B. SAR Measurement Results E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 1880 Relative permittivity (real part) 40.52 Relative permittivity (imaginary part) 13.26 Conductivity (S/m) 1.40 Variation (%) 1.00 ConvF: 2.34 SURFACE SAR VOLUME SAR Maximum location: X=-58.00, Y=-61.00 SAR Peak: 0.22 W/kg SAR 10g (W/Kg) 0.060014 SAR 1g (W/Kg) 0.127419 Report No. SET2019-16822 CCIC‐SET/TRF:ISAR(2019‐05‐23) 7 / 45 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.2213 0.1382 0.0707 0.0320 0.0115 3D screen shot Hot spot position Report No. SET2019-16822 CCIC‐SET/TRF:ISAR(2019‐05‐23) 8 / 45 Plot 4: GPRS1900, Back, Middle ,10mm Type: Phone measurement Date of measurement: 12/18/2019 Measurement duration: 22 minutes 05 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Back Band GPRS1900_3Tx Channels 661 Signal GPRS(Duty cycle: 1:4.26) B. SAR Measurement Results E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 1880 Relative permittivity (real part) 53.41 Relative permittivity (imaginary part) 14.49 Conductivity (S/m) 1.53 Variation (%) -3.99 ConvF: 2.39 SURFACE SAR VOLUME SAR Maximum location: X=7.00, Y=-40.00 SAR Peak: 0.67W/kg SAR 10g (W/Kg) 0.196989 SAR 1g (W/Kg) 0.401596 Report No. SET2019-16822 CCIC‐SET/TRF:ISAR(2019‐05‐23) 9 / 45 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.6618 0.4418 0.2522 0.1329 0.0616 3D screen shot Hot spot position Report No. SET2019-16822 CCIC‐SET/TRF:ISAR(2019‐05‐23) 10 / 45 Plot 5: WCDMA1900, Left Cheek, Middle,10mm Type: Phone measurement Date of measurement: 12/18/2019 Measurement duration: 22 minutes 08 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Left Cheek Band Band2_WCDMA1900 Channels 9400 Signal WCDMA (Duty cycle: 1:1) B. SAR Measurement Results E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 1880 Relative permittivity (real part) 40.52 Relative permittivity (imaginary 13.26 Conductivity (S/m) 1.40 Variation (%) 1.72 ConvF: 2.34 SURFACE SAR VOLUME SAR Maximum location: X=-57.00, Y=-61.00 SAR Peak: 0.73W/kg SAR 10g (W/Kg) 0.230756 SAR 1g (W/Kg) 0.438719 Report No. SET2019-16822 CCIC‐SET/TRF:ISAR(2019‐05‐23) 11 / 45 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.7308 0.4716 0.2655 0.1493 0.0865 3D screen shot Hot spot position Report No. SET2019-16822 CCIC‐SET/TRF:ISAR(2019‐05‐23) 12 / 45 Plot…

Text truncated - open the document above for the full version.

Report No. SET2019-16822 ANNEX C: Calibration Reports EP261 Probe Calibration Report SID835 Dipole Calibration Report SID1800 Dipole Calibration Report SID1900 Dipole Calibration Report SID2450 Dipole Calibration Report SID2600 Dipole Calibration Report Report No. SET2019-16822 EP261 Probe Calibration Report Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822 SID835 Dipole Calibration Report Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822 SID1800 Dipole Calibration Report Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822 SID1900 Dipole Calibration Report Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822 SID2450 Dipole Calibration Report Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822 Report No. SET2019-16822

Report No. SET2019-16822 CCIC-SET/TRF:ISAR(2019-05-23) 1 / 3 Appendix D: SAR Test Setup Photo 1: Measurement System SATIMO Photo 2: Liquid deep(15cm) Photo 3: Left Cheek Photo 4: Left Tilt 15° Photo 5: Right Cheek Photo 6: Right Tilt 15° Report No. SET2019-16822 CCIC-SET/TRF:ISAR(2019-05-23) 2 / 3 Photo 7: Face Upward 15mm Photo 8: Back Upward 15mm Photo 9: Face Upward 10mm Photo 10: Back Upward 10mm Photo 11: Edge A 10mm Photo 12: Edge B 10mm Report No. SET2019-16822 CCIC-SET/TRF:ISAR(2019-05-23) 3 / 3 Photo 13: Edge C 10mm Photo 14: Edge D 10mm EUT Front View EUT Back View

Report No. SET2019-16822 CCIC-SET/TRF:ISAR(2019-05-23) Page 1 of 75 FCC SAR TEST REPORT Report No.： SET2019-16822 Product： LTE/WCDMA/GSM(GPRS) Multi-Mode Digital Mobile Phone Tra d e Na me: ZTE Model No.： ZTE Blade A3 2020 FCC ID： SRQ-ZTEA32020 Applicant： ZTE CORPORATION Address： ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Issued by： CCIC Southern Testing Co., Ltd Lab Location： Electronic Testing Building, No. 43 Shahe Road Xili Street, Nanshan District，Shenzhen, Guangdong 518055，China Te l： 86 755 26627338 Fax：86 755 26627238 Mail： [email protected] Website：http://www.ccic-set.com This test report consists of 75 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No. SET2019-16822 CCIC-SET/TRF:ISAR(2019-05-23) Page 2 of 75 Te s t R e p o r t Product. ...................: LTE/WCDMA/GSM(GPRS) Multi-Mode Digital Mobile Phone Model No. .................: ZTE Blade A3 2020 Brand Name..............: ZTE FCC ID.......................: SRQ-ZTEA32020 Applicant....................: ZTE CORPORATION Applicant Address.......: ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Manufacturer............: ZTE CORPORATION Manufacturer Address: ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Test Standards..........: 47CFR §2.1093- Radiofrequency Radiation Exposure Evaluation: Portable Devices; ANSI C95.1–1992: Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz – 300 GHz.( IEEE Std C95.1-1991) IEEE 1528–2013: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques Test Result...............: Pass Test Date..................: 2019.12.16-2019.12.20 Tested by ..............: 2019-12-24 Mei Chun, Test Engineer Reviewed by.............: 2019-12-24 Chris You, Senior Engineer Approved by...............: 2019-12-24 Shuangwen Zhang, Manager Report No. SET2019-16822 CCIC-SET/TRF:ISAR(2019-05-23) Page 3 of 75 Contents Test Report ........................................................................................................................................... 2 1. Administrative Data ................................................................................................................... 4 2. Equipment Under Test (EUT) ................................................................................................... 5 3. SAR Summary ............................................................................................................................ 7 4. Specific Absorption Rate (SAR) ............................................................................................... 9 5. Tissue check and recommend Dielectric Parameters ........................................................... 13 6. SAR measurement procedure ................................................................................................. 18 7. Conducted RF Output Power ................................................................................................. 19 8. SAR test Exclusion and estimate SAR calculation: .............................................................. 50 9. Scaling Factor calculation ....................................................................................................... 53 10. Test Results ............................................................................................................................... 56 11. Simultaneous Transmissions Analysis .................................................................................... 68 12. Measurement Uncertainty ....................................................................................................... 70 13. Equipment List ......................................................................................................................... 74 ANNEX A: Appendix A: SAR System performance Check Plots..................................................... 75 ANNEX B: Appendix B: SAR Measurement results Plots................................................................ 75 ANNEX C: Appendix C: Calibration reports .................................................................................... 75 ANNEX D: Appendix D: SAR Test Setup ......................................................................................... 75 Report No. SET2019-16822 CCIC-SET/TRF:ISAR(2019-05-23) Page 4 of 75 1. Administrative Data 1.1 Testing Laboratory Te s t S i t e : CCIC Southern Testing Co., Ltd Address: Electronic Testing Building, No. 43 Shahe Road Xili Street, Nanshan District，Shenzhen, Guangdong 518055，China CNAS Lab Code: CCIC-SET is a third party testing organization accredited by China National Accreditation Service for Conformity Assessment (CNAS) according to ISO/IEC 17025. The accreditation certificate number is L1659. NVLAP Lab Code: CCIC-SET is a third party testing organization accredited by NVLAP according to ISO/IEC 17025. The accreditation certificate number is 201008. FCC Registration: CCIC-SET . EMC Laboratory has been registered and fully described in a report filed with the FCC (Federal Communications Commission). The acceptance letter from the FCC is maintained in our files. Designation Number: CN5031, valid…

Text truncated - open the document above for the full version.

Report No.: SET2019-16345 CCIC-SET/ TRF:IRF(2019-05-23) Page 1 of 141 RF TEST REPORT Report No.: SET2019-16345 Product: LTE/WCDMA/GSM (GPRS) Multi-Mode Digital Mobile Phone FCC ID: SRQ-ZTEA32020 Model No. : ZTE Blade A3 2020 Marketing Name: ZTE Blade A3 2020, Blade A3 2020 Applicant: ZTE Corporation. FCC ID: SRQ-ZTEA32020 Dates of Testing: 11/20/2019 —12/12/2019 Issued by: CCIC Southern Testing Co., Ltd. Lab Location: Electronic Testing Building, No. 43 Shahe Road, Xili Street, Nanshan District, Shenzhen, Guangdong, China. Tel：86 755 26627338 Fax：86 755 26627238 This test report consists of 141 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No.: SET2019-16345 CCIC-SET/ TRF:IRF(2019-05-23) Page 2 of 141 Test Report Product ................................. : LTE/WCDMA/GSM (GPRS) Multi-Mode Digital Mobile Phone Brand Name .......................... : ZTE Trade Name .......................... : ZTE Applicant .............................. : ZTE Corporation. Applicant Address ............... : ZTE Plaza, Keji Road South, Shenzhen, China Manufacturer ........................ : ZTE Corporation. Manufacturer Address ......... : ZTE Plaza, Keji Road South, Shenzhen, China Test Standards ...…

Text truncated - open the document above for the full version.
