SRQ-ZTEA7030LTE/WCDMA/GSM(GPRS) Multi-Mode Digital Mobile Phone (LTE, WCDMA, GSM, 2.4GHz WIFI and Bluetooth)

1 ZTE A7030 Quick Start Guide FCC ID：SRQ-ZTEA7030 2 LEGAL INFORMATION Copyright © 2021 ZTE CORPORATION. All rights reserved. No part of this publication may be quoted, reproduced, translated or used in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. Notice ZTE Corporation reserves the right to make modifications on print errors or update specifications in this guide without prior notice. We offer self-service for our smart terminal device users. Please visit the ZTE official website (atwww.ztedevices.mx) for more information on self-service and supported product models. Information on the website takes precedence. Visit https://ztedevices.mx/soporte/ to download the user manual. Disclaimer ZTE Corporation expressly disclaims any liability for faults and damages caused by unauthorized modifications of the software. Images and screenshots used in this guide may differ from the actual product. Content in this guide may differ from the actual product or software. Trademarks ZTE and the ZTE logos are trademarks of ZTE Corporation. Android™ is a trademark of Google LLC. The Bluetooth® word mark and logos are registeredtrademarks owned by the Bluetooth SIG, Inc. and any use of such marks by ZTE Corporation is under license. microSDXC Logo is a trademark of SD-3C, LLC. Other trademarks and trade names are those of their respective owners. Version No.: R1.0 Edition Time : December 19, 2020 3 Getting to Know Your Phone Front camera Touch screen Earpiece Volume key Power key/ Fingerprint sensor Charging/USB Typ e-C jack Headset jack Back cameras and flash Speaker Indicator light nano-SIM/ microSDXC card tray Proximity & light sensor 4 Setting Up Your Phone The nano-SIM card can be installed or removed while the phone is turned on. WARNING! To avoid damage to the phone, do not use any other kind of SIM cards, or any non-standard nano-SIM card cut from a SIM card. You can get a standard nano-SIM card from your service provider. 1. Insert the tip of the tray eject tool into the hole on the card tray. CAUTION: Never replace the included tray eject tool with sharp objects. Ensure that the tray eject tool is perpendicular to the hole. Otherwise, the phone may be damaged. 2. Pull out the card tray and place the nano-SIM card and the microSDXC card (optional) on the tray, as shown. Carefully slide the tray back into place. nano-SIM card microSDXC card 5 Charging the Phone Your phone’s battery should have enough power for the phone to turn on, find a signal, and make a few calls. You should fully charge the battery as soon as possible. WARNING! Use only ZTE-approved chargers and USB Type-C cables. The use of unapproved accessories could damage your phone or cause the battery to explode. WARNING! Do not remove the back cover. The battery is not removable. Removal may cause fire or explosion. 1. Connect the adapter to the charging jack. 2. Connect the charger to a standard AC power outlet. 3. Disconnect the charger when the battery is fully charged. NOTE: If the battery is extremely low, you may be unable to power on the phone even when it is being charged. In this case, try again after charging the phone for at least 20 minutes. Contact the customer service if you still cannot power on the phone after prolonged charging. 6 Powering On/Off Your Phone Make sure the battery is charged before powering on. • Press and hold the Power key to turn on your phone. • To power off, press and hold the Power key to open the options menu, and touch >. NOTE: If the screen freezes or takes too long to respond, try pressing and holding the Power keyfor over 10 seconds to restart the phone. FM Radio Scanning for Channels 1. Plug in a wired headset and open FM Radio. 2. Touc h > Scan. Your phone scans for all available channels and saves them to the channel list. Listening to FM Radio 1. Open FM Radio while the headset is connected. 2. Touc h > All channels and select a channel. You can also drag the red line along the frequency panel or touch or to switch to other channels, or touch or to adjust the current channel frequency. NOTES: • Touc h to add the channel to favorites. • Touc h to listen to the radio through the phone speaker. • The FM radio feature does not require an Internet connection. 7 Product Safety Information Don’t make or receive phone calls while driving. Never text while driving. Keep your phone at least 10 mm away from your body while making calls. Small parts may cause choking. Your phone can produce a loud sound. To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your phone near your ear while the loudspeaker is in use. Avoid contact with anything magnetic. Keep away from pacemakers and other electronic medical devices. Turn off when asked to in hospitals and medical facilities. Turn off when told to on aircraft and at airports. Turn off when near explosive materials or liquids. Don’t use at gas stations. Your phone may produce a bright or flashing light. Don’t dispose of your phone in fire. Avoid extreme temperatures. Avoid contact with liquids. Keep your phone dry. Do not attempt to disassemble your phone. 8 Only use approved accessories. For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible. Don’t rely on your phone as a primary device for emergency communications. FCC RF Exposure Information (SAR) This phone is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the United States. During SAR testing, this device was set to transmit at its highest certified power level in all tested frequency bands, and placed in positions that simulate RF exposure in usage against the head with no separation, and near the body with the separation of 10 mm. Although the SAR is determined at the highes…

Text truncated - open the document above for the full version.

ZTECorporation. ZTEPlaza,#55KejiRoadSouth,Hi-Tech,IndustrialPark,Nanshan District,Guangdong Tel:+86-21-68895397 AuthorizationLetter FCCID:SRQ-ZTEA7030 Date:2020-12-31 Towhomitmayconcern: We,theundersigned,herebyauthorizeTheStateRadio_monitoring_centerTestingCenter(SRTC)to actonourbehalf,asouragent,inthefollowingmattersrelatedtotheFCCapprovalofourproduct: ProductName:LTE/WCDMA/GSM(GPRS)Multi-ModeDigitalMobilePhone ProductModel:ZTEA7030 FCCID:SRQ-ZTEA7030 Reportsubmittal,relatedcorrespondence,thesigningofalldocumentsrelatingtothesematters, andanyotherlawfulactivitynecessarytoobtainsuchcertification.AnyactcarriedoutbyTheState Radio_monitoring_centerTestingCenter(SRTC)withinthescopeofthisauthorizationshallhavethe sameeffectsasourown. Thisauthorizationshallexpire2monthsfromoriginaldate.Ifyouhaveanyquestionregardingthe authorization,pleasedon’thesitatetocontactwithme. Thankyou. Sincerely, ZTECorporation ZTEPlaza,#55KejiRoadSouth,Hi-Tech,IndustrialPark,NanshanDistrict,Guangdong Telephone:+86-21-68895397

ZTE Corporation Company Address：No. 55, Hi-tech Road South, Shenzhen, P.R.China Tel: +86-755-26770000 PHOENIX TESTLAB GmbH Date: 11 January 2021 Product Certification Königswinkel 10 D 32825 Blomberg Subject: Declaration Operating Channel Limitation Product Name: LTE/WCDMA/GSM(GPRS) Multi-Mode Digital Mobile Phone Product Model: ZTE A7030 FCC ID: SRQ-ZTEA7030 To Whom it may concern, The operating channels in 802.11 b/g/n mode for the device marketed to the US/Canada are firmware limited to channel 1 ~ 11 (2412 ~ 2462 MHz). The end-user has no possibility to select any other operating channels. If you have any questions, please feel free to contact me. Thank you. Sincerely, Certification Manager Company Name : ZTE Corporation Address: No. 55, Hi-tech Road South, Shenzhen, P.R.China Tel: +86-755-26770000

ZTE Corporation. ZTE Plaza, #55 Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Guangdong Tel: +86-21-68895397 Request of Confidentiality Federal Communications Commission Authorization and Evaluation Division Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying of following product: Product Name: LTE/WCDMA/GSM(GPRS) Multi-Mode Digital Mobile Phone Product Model: ZTE A7030 FCC ID: SRQ-ZTEA7030 The following information should be held confidential: All Schematics/block diagrams/BOM All Parts list for the above schematic diagram Tune-Up Procedure Operational description and technical overview of product The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ZTE Corporation ZTE Plaza, #55 Keji Road South, Hi-Tech, Industrial Park, NanshanDistrict,Guangdong Telephone: +86-21-68895397

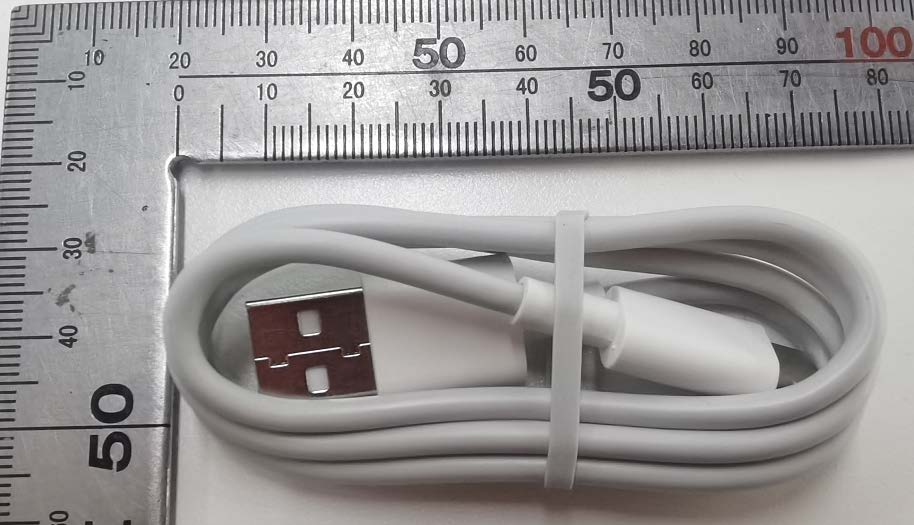

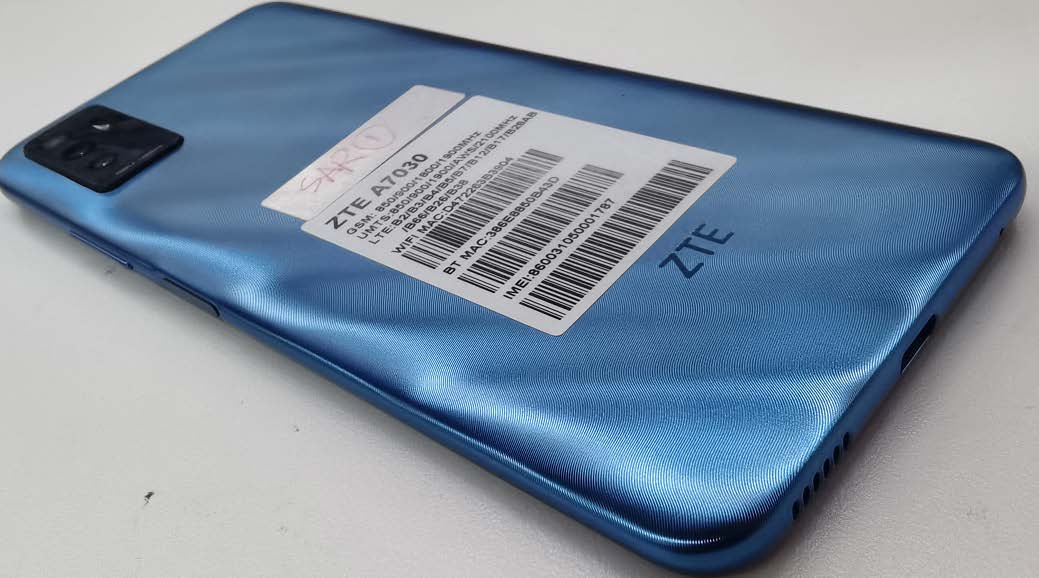

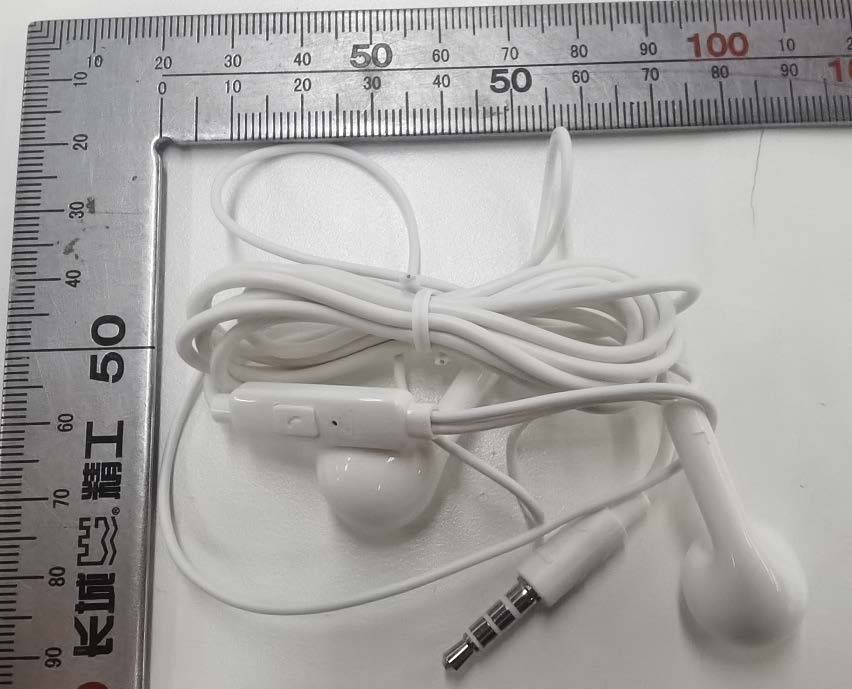

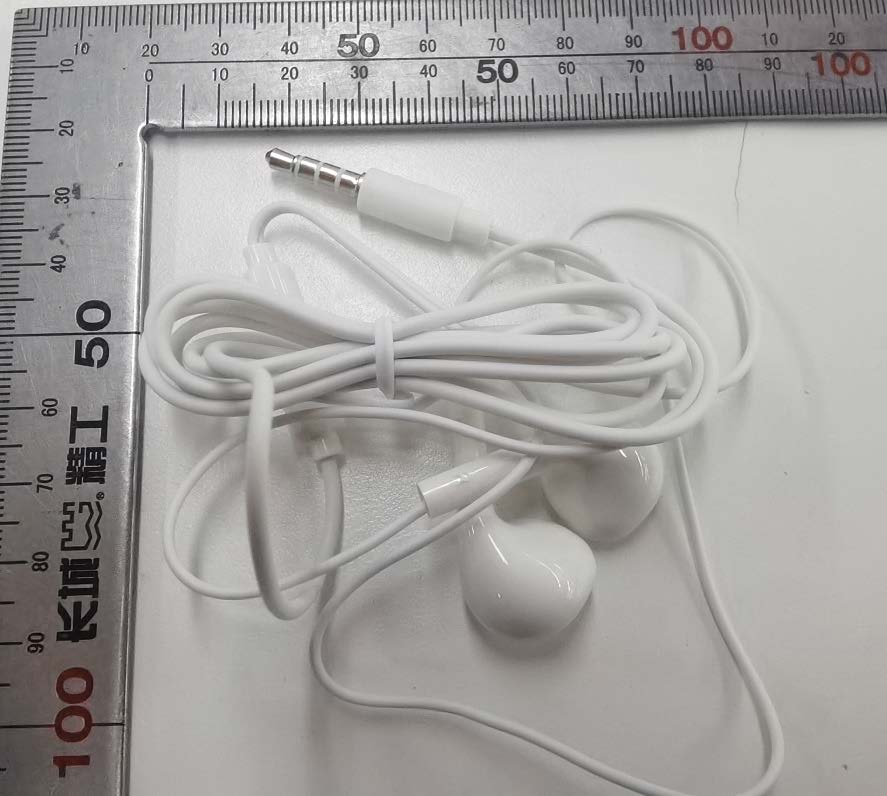

External Photos FCC ID: SRQ-ZTEA7030 1 / 16 External Photos FCC ID: SRQ-ZTEA7030 2 / 16 External Photos FCC ID: SRQ-ZTEA7030 3 / 16 External Photos FCC ID: SRQ-ZTEA7030 4 / 16 External Photos FCC ID: SRQ-ZTEA7030 5 / 16 External Photos FCC ID: SRQ-ZTEA7030 6 / 16 External Photos FCC ID: SRQ-ZTEA7030 7 / 16 External Photos FCC ID: SRQ-ZTEA7030 8 / 16 External Photos FCC ID: SRQ-ZTEA7030 9 / 16 External Photos FCC ID: SRQ-ZTEA7030 10 / 16 External Photos FCC ID: SRQ-ZTEA7030 11 / 16 External Photos FCC ID: SRQ-ZTEA7030 12 / 16 External Photos FCC ID: SRQ-ZTEA7030 13 / 16 External Photos FCC ID: SRQ-ZTEA7030 14 / 16 External Photos FCC ID: SRQ-ZTEA7030 15 / 16 External Photos FCC ID: SRQ-ZTEA7030 16 / 16

<6∋# )5//∗∴ 7/65#95/∗∴ .6∋∃∃∃∃∃∃∃∃∃ 9+(+/#%::::::::::::::: (%%+&543<6∋# ∃6/#%::::::::::::::: +/∋+:::::::::::::::

ZTE A7030 GSM: 850/1900 MHz UMTS:850/1900/AWS MHz LTE:B2/B4/B5/B7/B12/B17/B26/B66/B38 WIFI MAC: XXXXXXXXXXXXXXX FCC ID:SRQ-ZTEA7030 BT MAC: XXXXXXXXXXXXXXX IMEI: XXXXXXXXXXXXXXX 078761001887空白标贴40x50mm

External Photos FCC ID: SRQ- ZTEA7030 1 / 13 External Photos FCC ID: SRQ- ZTEA7030 2 / 13 External Photos FCC ID: SRQ- ZTEA7030 3 / 13 External Photos FCC ID: SRQ- ZTEA7030 4 / 13 External Photos FCC ID: SRQ- ZTEA7030 5 / 13 External Photos FCC ID: SRQ- ZTEA7030 6 / 13 External Photos FCC ID: SRQ- ZTEA7030 7 / 13 External Photos FCC ID: SRQ- ZTEA7030 8 / 13 External Photos FCC ID: SRQ- ZTEA7030 9 / 13 External Photos FCC ID: SRQ- ZTEA7030 10 / 13 External Photos FCC ID: SRQ- ZTEA7030 11 / 13 External Photos FCC ID: SRQ- ZTEA7030 12 / 13 External Photos FCC ID: SRQ- ZTEA7030 13 / 13

No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number: 170 of 267 Tel:86-10-5799618 Fax:86-10-57996388 V3.0.0 ANNEX A – TEST PLOTS System check 750MHz Communication System: UID 0, CW (0) Frequency: 750 MHz; Duty cycle:1:1 Medium parameters used: f = 750 MHz; σ = 0.923 S/m; ε r = 41.352; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: • Probe: EX3DV4 - SN3708; ConvF(9.75, 9.75, 9.75); Calibrated: 2020/10/30 • Sensor-Surface: 1.4mm (Mechanical Surface Detection), • Electronics: DAE4 Sn720; Calibrated: 2020/9/30 • Phantom: Twin-SAM 1659; Type: QD 000 P40 CD; Serial: 1659 • Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7373) System Performance Check at Frequencies 750MHz/d=15mm, Pin=250 mW, dist=3.0mm (ES-Probe)/Area Scan (8x15x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.16 W/kg System Performance Check at Frequencies 750MHz/d=15mm, Pin=250 mW, dist=3.0mm (ES-Probe)/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 41.00 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 3.23 W/kg SAR(1 g) = 2.07 W/kg; SAR(10 g) = 1.40 W/kg Maximum value of SAR (measured) = 2.48 W/kg SRTC performed system check by using 250mw at antenna port No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number: 171 of 267 Tel:86-10-5799618 Fax:86-10-57996388 V3.0.0 System check 835MHz Communication System: UID 0, CW (0); Frequency: 835 MHz Duty cycle:1:1 Medium parameters used (interpolated): f = 835 MHz; σ = 0.911 S/m; ε r = 40.266 ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: • Probe: EX3DV4 - SN3708; ConvF(9.39, 9.39, 9.39); Calibrated: 2020/10/30 • Sensor-Surface: 1.4mm (Mechanical Surface Detection), • Electronics: DAE4 Sn720; Calibrated: 2020/9/30 • Phantom: Twin-SAM 1659; Type: QD 000 P40 CD; Serial: 1659 • Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7373) Configuration 835/835/Area Scan (8x15x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.72 W/kg Configuration 835/835/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 51.67 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 3.56 W/kg SAR(1 g) = 2.38 W/kg; SAR(10 g) = 1.61 W/kg Maximum value of SAR (measured) = 2.76 W/kg SRTC performed system check by using 250mw at antenna port No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number: 172 of 267 Tel:86-10-5799618 Fax:86-10-57996388 V3.0.0 System check 1800MHz Communication System: UID 0, CW (0); Frequency: 1800 MHz; Duty cycle:1:1 Medium parameters used: f = 1800 MHz; σ = 1.418 S/m; ε r = 40.688; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: • Probe: EX3DV4 - SN3708; ConvF(8.27, 8.27, 8.27); Calibrated: 2020/10/30 • Sensor-Surface: 1.4mm (Mechanical Surface Detection), • Electronics: DAE4 Sn720; Calibrated: 2020/9/30 • Phantom: Twin-SAM 1659; Type: QD 000 P40 CD; Serial: 1659 • Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7373) Configuration 1800/1800/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 8.31 W/kg Configuration 1800/1800/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 76.76 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 17.5 W/kg SAR(1 g) = 9.48 W/kg; SAR(10 g) = 4.95 W/kg Maximum value of SAR (measured) = 12.1 W/kg SRTC performed system check by using 250mw at antenna port No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number: 173 of 267 Tel:86-10-5799618 Fax:86-10-57996388 V3.0.0 System check 2000MHz Communication System: UID 0, CW (0); Frequency: 2000 MHz; Duty cycle:1:1 Medium parameters used: f = 2000 MHz; σ = 1.427 S/m; ε r = 39.844; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: • Probe: EX3DV4 - SN3708; ConvF(7.94, 7.94, 7.94); Calibrated: 2020/10/30 • Sensor-Surface: 1.4mm (Mechanical Surface Detection), • Electronics: DAE4 Sn720; Calibrated: 2020/9/30 • Phantom: Twin-SAM 1659; Type: QD 000 P40 CD; Serial: 1659 • Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7373) Configuration 2000/2000/Area Scan (7x10x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 8.40 W/kg Configuration 2000/2000/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 76.22 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 18.7 W/kg SAR(1 g) = 9.83 W/kg; SAR(10 g) = 4.99 W/kg Maximum value of SAR (measured) = 12.9 W/kg SRTC performed system check by using 250mw at antenna port No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number: 174 of 267 Tel:86-10-5799618 Fax:86-10-57996388 V3.0.0 System check 2450MHz Communication System: UID 0, CW (0); Frequency: 2450 MHz; Duty cycle:1:1 Medium parameters used: f = 2450 MHz; σ = 1.866 S/m; ε r = 38.343; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: • Probe: EX3DV4 - SN3708; ConvF(7.48, 7.48, 7.48); Calibrated: 2020/10/30 • Sensor-Surface: 1.4mm (Mechanical Surface Detection), • Electronics: DAE4 Sn720; Calibrated: 2020/9/30 • Phantom: Twin-SAM 1659; Type: QD 000 P40 CD; Serial: 1659 • Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7373) System Performance Check at Frequencies 2450 MHz/2450/Area Scan (8x11x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 21.2 W/kg System Performance Check at Frequencies 2450 MHz/2450/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 108.3 V/m; Power Drift = 0.18 dB Peak SAR (extrapolated) = 28.2 W/kg SAR(1 g) = 13.4 W/kg; SAR(10 g) = 6.34 W/kg Maximum value of SA…

Text truncated - open the document above for the full version.

No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:190 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 ANNEX B – RELEVANT PAGES FROM CALIBRATION REPORTS DAE4 Sn: 720 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:191 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:192 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:193 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 EX3DV4 Sn:3708 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:194 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:195 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:196 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:197 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:198 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:199 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:200 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:201 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0

No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:202 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:203 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:204 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:205 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:206 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:207 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0

No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:208 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:209 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:210 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:211 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:212 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0

No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:213 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:214 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:215 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:216 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 D750V3 SN:1101 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:217 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:218 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:219 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:220 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:221 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:222 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 D835V2 SN:4d023 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:223 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:224 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:225 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:226 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0

No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:227 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:228 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 D1800V2SN:2d084 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:229 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:230 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:231 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:232 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:233 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:234 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 D2450V2Sn:738 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:235 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:236 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:237 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:238 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:239 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0

No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:240 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 D2600V2 Sn: 1166 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:241 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:242 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:243 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:244 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_centerTestingCenter (SRTC) Page number:245 of 244 Tel:86-10-57996183 Fax:86-10-57996388 V3.0.0 -----------------------------------------------End of the test report---------------------------------------------

Certificate Number: 5055.02 TEST REPORT FOR SAR TESTING Report No.: SRTC2020-9004(F)-20121101(H) Product Name: Multi-Mode Digital Mobile Phone Product Model: ZTE A7030 Applicant: ZTE Corporation Manufacturer: ZTE Corporation Specification: Part 2.1093 IEEE Std 1528 KDB Procedures FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_center Testing Center (SRTC) 15th Building, No.30 Shixing Street, Shijingshan District, Beijing, P.R. China Tel: 86-10-57996183 Fax: 86-10-57996388 No.: SRTC2020-9004(F)-20121101(H) FCC ID: SRQ-ZTEA7030 The State Radio_monitoring_center Testing Center (SRTC) Page number: 1 of 267 Tel: 86-10-57996183 Fax: 86-10-57996388 V3.0.0 Contents 1. GENERAL INFORMATION ......................................................................................................................................... 2 1.1 NOTES OF THE TEST REPORT ......................................................................................................................................... 2 1.2 INFORMATION ABOUT THE TESTING LABORATORY ........................................................................................................ 2 1.3 APPLICANT’S DETAILS ................................................................................................................................................... 2 1.4 MANUFACTURER’S DETAILS .......................................................................................................................................... 2 1.5 TEST ENVIRONMENT ...................................................................................................................................................... 3 2. DESCRIPTION OF THE DEVICE UNDER TEST ..................................................................................................... 3 2.1 FINAL EQUIPMENT BUILD STATUS ................................................................................................................................ 3 2.2 SUPPORT EQUIPMENT .................................................................................................................................................... 4 3. REFERENCE SPECIFICATION.................................................................................................................................. 5 4. TEST CONDITIONS ...................................................................................................................................................... 6 4.1 PICTURE TO DEMONSTRATE THE REQUIRED LIQUID DEPTH .......................................................................................... 6 4.2 TEST SIGNAL, FREQUENCIES AND OUTPUT POWER ..................................................................................................... 6 4.3 SAR MEASUREMENT SET-UP ........................................................................................................................................ 6 4.4 PHANTOMS ..............................................................................................…
