SRQ-ZTEBLADEC340WCDMA/GSM (GPRS) Dual-Mode Digital Mobile Phone

ZTE Blade C340 Mobile Phone User Manual Getting Started Overview Front camera Receiver Touch Screen Menu Key Back Key Home Key Distance Sensor Volume Key Power Key Microphone Headest Jack Charing/USB Jack Camera Flash Back Cover Speaker Keys Explained Key Function Power Key Hold to turn on or off Silent or Vibrate or standard or Airplane mode, or to Restart ,or to power off. Press to switch your phone to Sleep mode. Press to wake up your phone. Home Key Press to return to the Home Screen from any application or screen. Hold to see Google search. Menu Key Press to get the options for the current screen. Hold to see recently used applications. Back Key Press to go to the previous screen. Volume Keys Press or hold to turn the volume up or down Switching Your Phone On/Off Make sure the SIM card is in your device and the battery is charged. Hold Power Key to switch on your phone. To switch it off, hold Power Key to get the phone options. Select Power off, and then tap OK. Setting Up Your Phone for the First Time When you first power on your phone after you purchase it or reset it to factory settings (see chapter Sorting out Your Phone Settings –Restore the factory Settings: Reset to Factory Settings), youneed to do some settings before using it. Tap Menu Key in the standby mode, then select SETTINGS > Language & input > Language to change the language you want to use, if needed. Switching to Sleep Mode To save battery power, Sleep Mode suspends your device to alow-power-consumption state while the display is off. Your device also goes into Sleep Mode by itself when the display is automatically turned off after a certain period of time. You can start sleep mode by the following method. Press Power Key to switch to Sleep Mode. Waking Up Your Phone Press Power Key to activate your screen display. Long press icon unlock. NOTE: If you have set an unlock pattern, PIN or password for your phone (see chapter Sorting out Your Phone Settings – Security Settings) you’ll need to draw the pattern or enter the PIN/password to unlock your screen. Touch Control You can use finger gestures to control your phone. The controls on your touch-screen change dynamically depending on the tasks you’re performing. 1. Tap the buttons, icons, or applications to select items or to open applications. 2. Flick the screen to scroll up, down, left or right. 3. Point, drag and drop to move particular items across the screen. 4. Double-tap the screen to zoom in/out an image. NOTE: You can view the phone screen in portrait or landscape orientation simply by holding it upright or turning it on its side. Not all screens are viewable in landscape. Home Screen In the Home screen, besides the shortcut icon is displayed,you can also set your own wallpaper, add the widgets or application shortcuts you need, or remove them as you like. Extended Home Screen The Home Screen extends beyond the screen width, giving you loads more space to add more stuff. Simply slide your finger to the left or right. Choosing Your Wallpaper 1. Press Home Key to return to the Home Screen. 2. Tap Menu Key and select SETTINGS >Display > WALLPAPER. 3. Choose the image or animation you want to use as the wallpaper. Some cropping may be needed for Gallery images. 4. Tap Set wallpaper. Adding Items to Your Home Screen 1. Press Home Key > tap to enter the main menu Application Program Interface 2. In the list of applications, touch and hold the icon until the main screen appears, move the application icon to the idle position, release the finger. Removing Items from Your Home Screen 1. Press Home Key to return to the Home Screen. 2. Tap and hold the item you want to delete until the remove icon appears on the top of the screen. 3. Drag the item to the remove icon and release your finger when the item turns red. Status and Notification Icons Your phone simple icons. Here’s what they mean. USB connected Missed call Airplane mode Signal strength Battery charge New message Meeting mode Wi-Fi network Alarm set Earphone insert Silent mode Signal searching Bluetooth icon USB debugging connected Data Conn off New Wi-Finetwork detected Using the Notification Panel Flick the status bar downwards from across the top of the screen to open the Notification Panel, where you can see your calendar events, new Messages and so on. Tap to open the shortcuts panel from notification panel. To hide the panel, tap on the lower edge of the panel, drag up. Open Recently-Used Applications 1．Press Menu Key from any screen. The phone will display the applications you used recently. 2. Tap the application you want to open. Making Calls There are many ways to make a call with your phone. And they’re all easy to do. Calling from the Phone 1. Press Home key > tap> Phone on the Home Screen. 2. Enter the number you want to call on the dial pad. Tap to delete wrong digits. 3. Tap the dial icon. 4. Select SIM card 1 or SIM card 2 dial. Calling from Your Contacts 1. Press Home key > tap> Contacts. 2. Slide your finger to scroll the contacts list and tap the contact name you want to call, when the contact details appear, click on the number; choose the SIM card to dial. 3. You can search for a contact by tapping on the screen. Calling from Your Call Log 1. If you have opened the dialer, touch the call log tab to open the call records, respectively touch all, dialed, received, missed call button to display a list of the corresponding call records. 2. Tap dial icon on the right side of the current record. Calling from a Text Message If a text message contains a phone number that you want to call, you can make the call while viewing the text message. 1. Press Home key > tap> Messaging. 2. Tap the conversation and then find the message that contains the phone number you need. 3. Tap the message, the phone will list the options. Answering a Call 1. Lock screen to answer the call Drag the icon down to answer the call. 2. Non lock screen to answer the call Tap the icon to answer the call. Rejecting a Call 1.…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 ZTE Corporation 31/07/2015 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, _____ ZTE Corporation _____hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): WCDMA/GSM（GPRS） Dual-Mode Digital Mobile Phone ZTE Blade C340/ ZTE T220/ ZTE V812/ ZTE Blade Q2 3G/ZTE Open C2 FCC ID: SRQ-ZTEBLADEC340 Sincerely, Client’s signature Client’s name / title Min Zhang / Mir Contact information / address ZTE Plaza, Keji Road South, Nanshan District, Shenzhen, China

SCS-F19: Confidentiality Request Letter Page 1 of 3 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 3 Rev 4.0 ZTE Corporation 31/07/2015 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: SRQ-ZTEBLADEC340 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description - Tune up Procedure - Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name & title : Min Zhang / Manager Contact information / address: ZTE Plaza, Keji Road South, Nanshan District, Shenzhen, China SCS-F19: Confidentiality Request Letter Page 3 of 3 Rev 4.0 ZTE Corporation 31/07/2015 To: Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Short Term Confidentiality Request for FCC ID: SRQ-ZTEBLADEC340 To Whom It May Concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days (please check one). - User Manual - Internal Photo - External Photo - Setup Photo The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Client’s signature : Client’s name & title : Min Zhang / Manager Contact information / address : ZTE Plaza, Keji Road South, Nanshan District, Shenzhen, China

To SEMIC We ZTE CORPORATION, ZTE Plaza, Keji Road South, Shenzhen, China Declare under our sole responsibility that the product WCDMA/GSM（GPRS） Dual-Mode Digital Mobile Phone, FCC ID: SRQ-ZTEBLADEC340 We declare that this product has 5 model name that ZTE Blade C340/ ZTE T220/ ZTE V812/ ZTE Blade Q2 3G/ZTE Open C2 due to Marketing requirements, and there is no any deference of this product.. Company Name: ZTE Corporation Address : ZTE Plaza, Keji Road South, Nanshan District, Shenzhen, China Name / Title : Min Zhang / Miss Signature : Phone : +86-21-68897541 Email : [email protected] Date :2015/7/31

DoC Letter ZTE Corporation Date: 31/07/2015 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD This letter is to ascertain that ZTE Corporation， Inc. Product 4 WCDMA/GSM（GPRS） Dual-Mode Digital Mobile Phone has been the units used for conducting FCC compliance testing, the DOC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Model：ZTE Blade C340/ ZTE T220/ ZTE V812/ ZTE Blade Q2 3G/ZTE Open C2 Trade：ZTE FCC ID: SRQ-ZTEBLADEC340 Sincerely, Client’s signature : Client’s name / title : Min Zhang / Manager Address: ZTE Plaza, Keji Road South, Nanshan District, Shenzhen, China

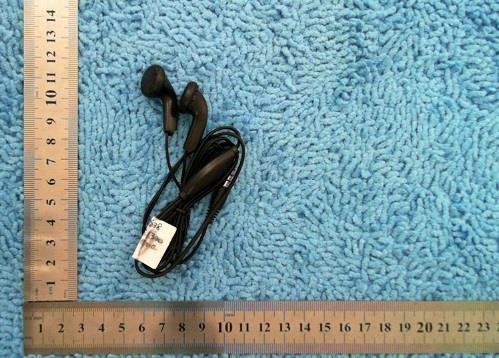

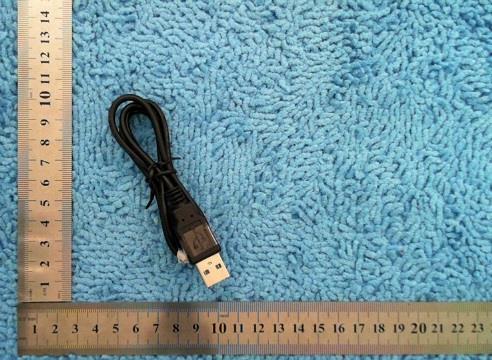

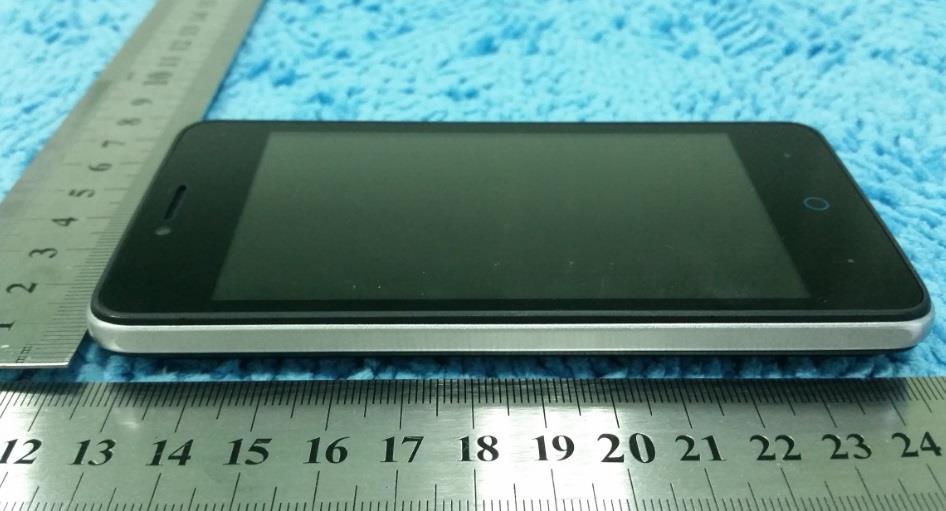

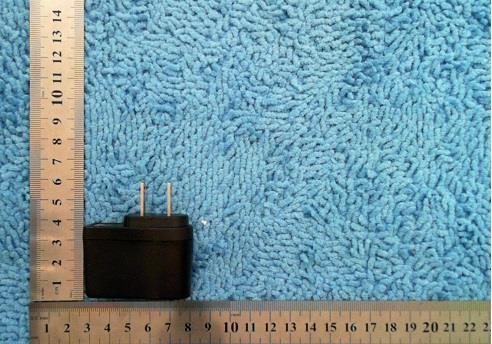

External Photos EUT EUT External Photos EUT External Photos EUT EUT External Photos EUT EUT External Photos EUT EUT External Photos EUT EUT

Label and label location L l Battery Slot Camera SIM CARD slot

Internal Photos EUT EUT WiFi/BT ANTENNA main antenna Internal Photos EUT EUT Internal Photos EUT Internal Photos EUT

No. I15Z41643-SEM01 Page 61 of 117 ©Copyright. All rights reserved by CTTL. Fig. 9-1 Z-Scan at power reference point (2450 MHz) No. I15Z41643-SEM01 Page 62 of 117 ©Copyright. All rights reserved by CTTL. Wifi 802.11b Body Top Channel 11 Date: 2015-07-06 Electronics: DAE4 Sn777 Medium: Body 2450 MHz Medium parameters used (interpolated): f = 2462 MHz; σ = 1.987 S/m; ε r = 53.389; ρ = 1000 kg/m 3 Ambient Temperature: 22.7 o C Liquid Temperature: 22.2 o C Communication System: WLan 2450 Frequency: 2462 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(6.90, 6.90, 6.90) Area Scan (111x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.0124 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 1.160 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 0.0210 W/kg SAR(1 g) = 0.012 W/kg; SAR(10 g) = 0.00683 W/kg Maximum value of SAR (measured) = 0.0135 W/kg Fig.10 2450 MHz No. I15Z41643-SEM01 Page 63 of 117 ©Copyright. All rights reserved by CTTL. Fig. 10-1 Z-Scan at power reference point (2450 MHz) No. I15Z41643-SEM01 Page 64 of 117 ©Copyright. All rights reserved by CTTL. ANNEX B SystemVerification Results 835MHz Date: 2015-07-04 Electronics: DAE4 Sn777 Medium: Head 850 MHz Medium parameters used: f = 835 MHz; σ = 0.914 S/m; ε r = 41.83; ρ = 1000 kg/m 3 Ambient Temperature: 22.8 o C Liquid Temperature: 22.3 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(9.18, 9.18, 9.18) System Validation/Area Scan (61x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 53.736 V/m; Power Drift = -0.05 dB Fast SAR: SAR(1 g) = 2.38 W/kg; SAR(10 g) = 1.59 W/kg Maximum value of SAR (interpolated) = 2.60 W/kg System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.736 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 3.04 W/kg SAR(1 g) = 2.34 W/kg; SAR(10 g) = 1.56 W/kg Maximum value of SAR (measured) = 2.57 W/kg 0 dB = 2.57 W/kg = 4.10 dBW/kg Fig.B.1 validation 835MHz 250mW No. I15Z41643-SEM01 Page 65 of 117 ©Copyright. All rights reserved by CTTL. 835MHz Date: 2015-07-04 Electronics: DAE4 Sn777 Medium: Body 850 MHz Medium parameters used: f = 835 MHz; σ = 0.982 S/m; ε r = 55.97; ρ = 1000 kg/m 3 Ambient Temperature: 22.8 o C Liquid Temperature: 22.3 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(9.09, 9.09, 9.09) System Validation /Area Scan (61x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 51.803 V/m; Power Drift = -0.07 dB Fast SAR: SAR(1 g) = 2.29 W/kg; SAR(10 g) = 1.50 W/kg Maximum value of SAR (interpolated) = 2.54 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 51.803 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 3.05 W/kg SAR(1 g) = 2.32 W/kg; SAR(10 g) = 1.52 W/kg Maximum value of SAR (measured) = 2.56 W/kg 0 dB = 2.56 W/kg = 4.08 dBW/kg Fig.B.2 validation 835MHz 250mW No. I15Z41643-SEM01 Page 66 of 117 ©Copyright. All rights reserved by CTTL. 1900MHz Date: 2015-07-05 Electronics: DAE4 Sn777 Medium: Head 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.393 S/m; ε r = 39.63; ρ = 1000 kg/m 3 Ambient Temperature: 22.7 o C Liquid Temperature: 22.2 o C Communication System: CW Frequency: 1900 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(7.26, 7.26, 7.26) System Validation/Area Scan (81x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 99.117 V/m; Power Drift = 0.06 dB Fast SAR: SAR(1 g) = 10.1 W/kg; SAR(10 g) = 5.31 W/kg Maximum value of SAR (interpolated) = 11.9 W/kg System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 99.117 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 18.61 W/kg SAR(1 g) = 10.3 W/kg; SAR(10 g) = 5.42 W/kg Maximum value of SAR (measured) = 12.1 W/kg 0 dB = 12.1 W/kg = 10.83 dB W/kg Fig.B.3 validation 1900MHz 250mW No. I15Z41643-SEM01 Page 67 of 117 ©Copyright. All rights reserved by CTTL. 1900MHz Date: 2015-07-05 Electronics: DAE4 Sn777 Medium: Body 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.55 S/m; ε r = 52.61; ρ = 1000 kg/m 3 Ambient Temperature: 22.7 o C Liquid Temperature: 22.2 o C Communication System: CW Frequency: 1900 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(7.15, 7.15, 7.15) System Validation/Area Scan (81x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 79.722V/m; Power Drift = -0.02 dB Fast SAR: SAR(1 g) = 10.2 W/kg; SAR(10 g) = 5.29 W/kg Maximum value of SAR (interpolated) = 11.7 W/kg System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 79.722V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 16.83 W/kg SAR(1 g) = 10.4 W/kg; SAR(10 g) = 5.42 W/kg Maximum value of SAR (measured) = 11.9 W/kg 0 dB = 11.9 W/kg = 10.76 dB W/kg Fig.B.4 validation 1900MHz 250mW No. I15Z41643-SEM01 Page 68 of 117 ©Copyright. All rights reserved by CTTL. 2450MHz Date: 2015-07-06 Electronics: DAE4 Sn777 Medium: Head 2450 MHz Medium parameters used: f = 2450 MHz; σ = 1.827 S/m; ε r = 38.38; ρ = 1000 kg/m 3 Ambient Temperature: 22.7 o C Liquid Temperature: 22.2 o C Communication System: CW Frequency: 2450 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(6.56, 6.56, 6.56) System Validation /Area Scan (61x81x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 87.891 V/m; Power Drift = -0.03 dB SAR(1 g) = 13.3 W/kg; SAR(10 g) = 6.17 W/kg Maximum value of SAR (interpolated) = 17.0 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 87.891 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 27.71 W/kg SAR(1 g) = 13.1 W/kg; SAR(10 g) = 6.05 W/kg Maximum value of SAR (measured) = 16.8 W/kg 0 dB = 16.8 W/kg = 12.25 dB W/kg Fig.B.5 validation 2450MHz 250mW No. I15Z41643-SEM01 Page 69 of 117 ©Copyright. All rights reserved by CTTL. 2450MHz Date: …
