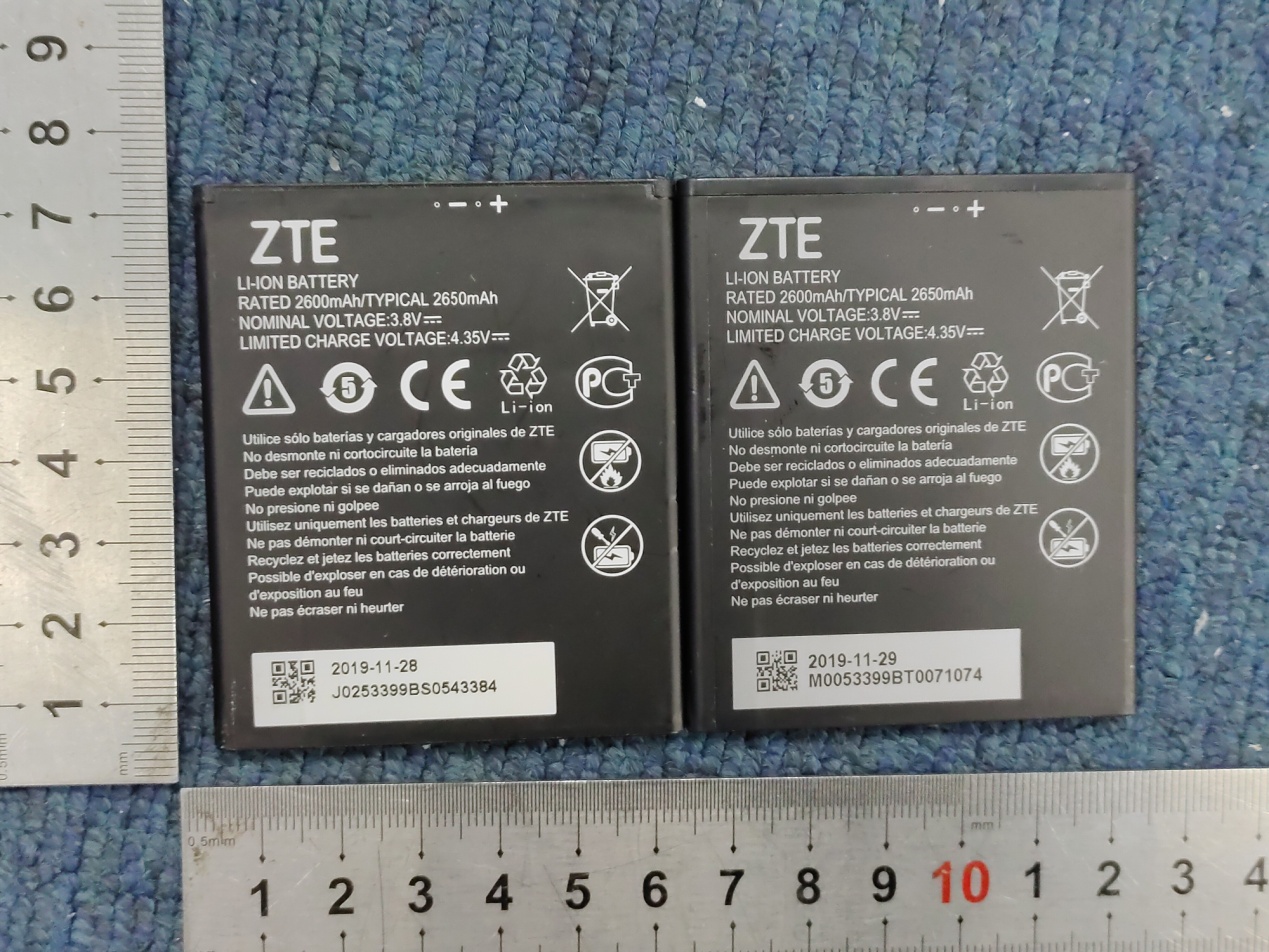

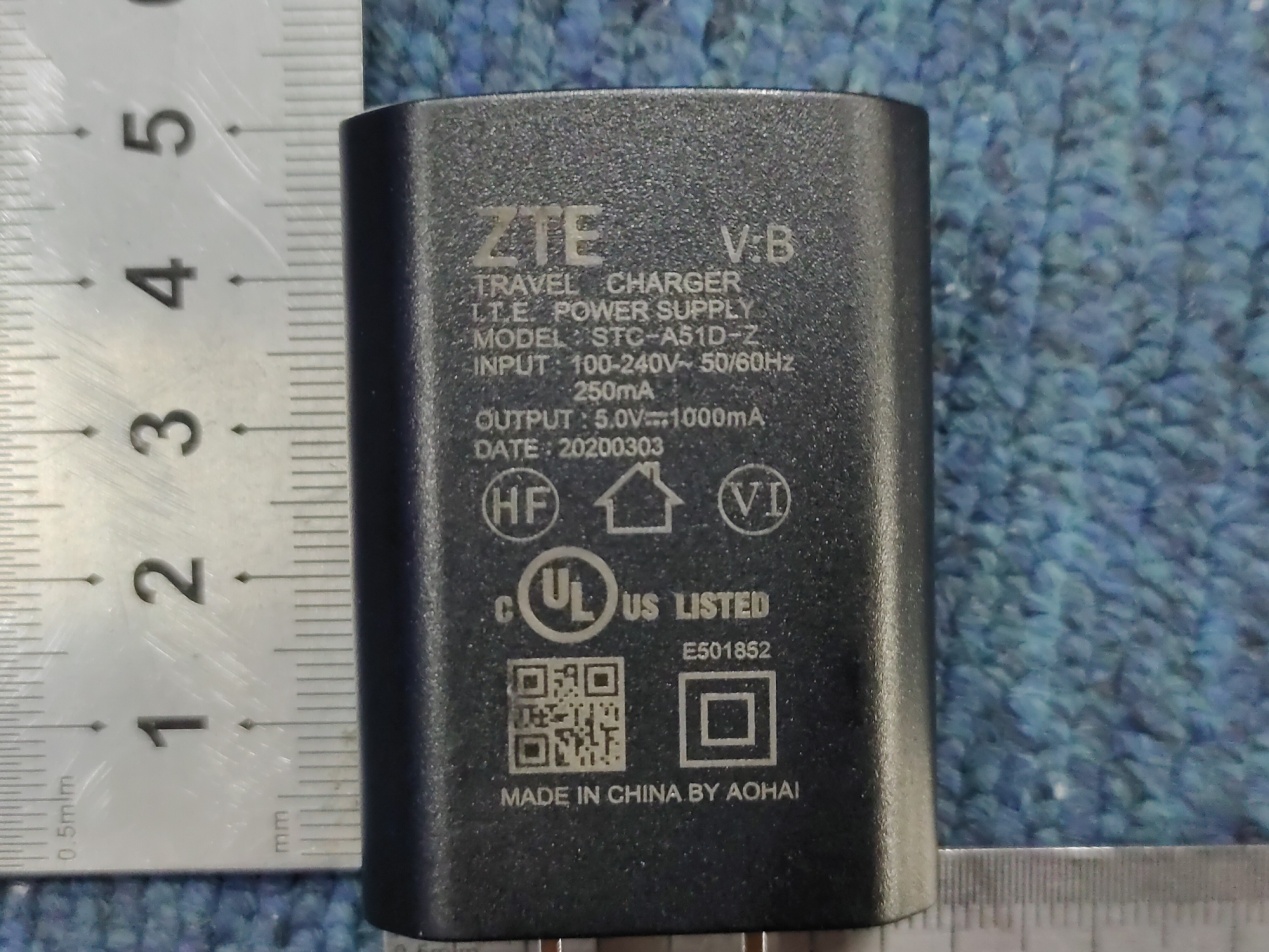

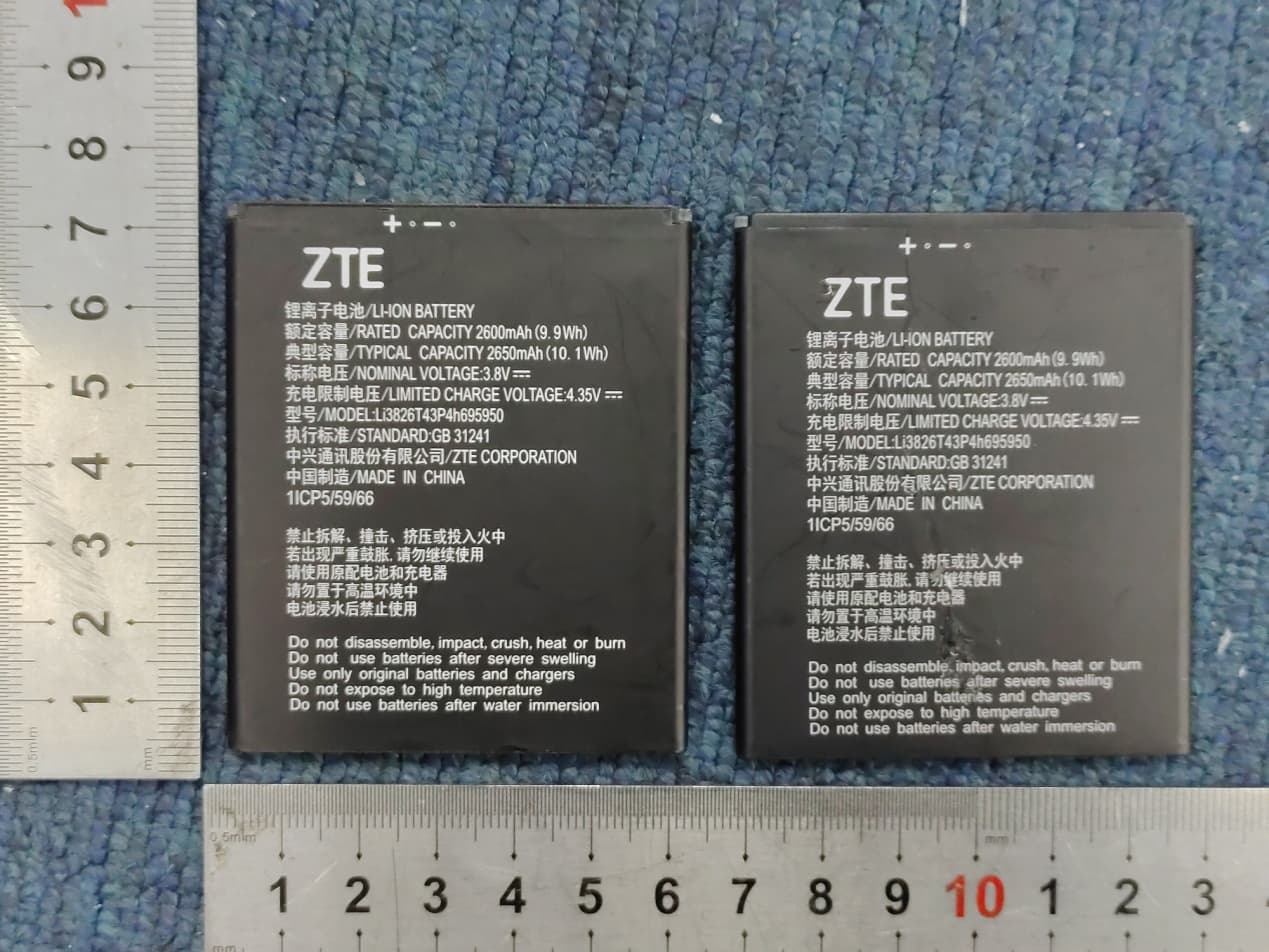

1 ZTE Blade L210 Quick Start Guide 2 LEGAL INFORMATION Copyright © 2020 ZTE CORPORATION. All rights reserved. No part of this publication may be quoted, reproduced, translated or used in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. Notice ZTE Corporation reserves the right to make modifications on print errors or update specifications in this guide without prior notice. We offer self-service for our smart terminal device users. Please visit the ZTE official website (at www.ztedevices.mx) for more information on self-service and supported product models. Information on the website takes precedence. Visit https://ztedevices.mx/soporte/ to download the user manual. Just click Support from the home page and then select the location, product type, and name to search for related support information. Disclaimer ZTE Corporation expressly disclaims any liability for faults and damages caused by unauthorized modifications of the software. Images and screenshots used in this guide may differ from the actual product. Content in this guide may differ from the actual product or software. Trademarks ZTE and the ZTE logos are trademarks of ZTE Corporation. Android™ is a trademark of Google LLC. The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by ZTE Corporation is under license. microSDXC Logo is a trademark of SD-3C, LLC. Other trademarks and trade names are those of their respective owners. Version No.: R1.0 Edition Time : May 6, 2020 Manual No.: 079584xxxxxx 3 Getting to Know Your Phone Front camera Touch screen Earpiece Volume ke y Power key Flash Headset jack Back camera Indicator light Fingerprint sensor Charging/micro -USB jack 4 Setting Up Your Phone The nano-SIM card can be installed or removed while the phone is turned on. Power off your phone before removing or replacing the battery. WARNING! To avoid damage to the phone, do not use any other kind of SIM cards, or any non-standard nano-SIM card cut from a SIM card. You can get a standard nano-SIM card from your service provider. 1. Place your finger into the slot at the bottom of the back cover, and gently lift and remove the cover. 2. Install the nano-SIM card and the microSDXC card (optional) as shown. 3. Insert the battery,making sure the connectors align.Gently push down on the battery until it clicks into place. 5 4. Replace the back cover. Charging the Phone Your phone’s battery should have enough power for the phone to turn on, find a signal, and make a few calls. You should fully charge the battery as soon as possible. WARNING! Use only ZTE-approved chargers and USB cables. The use of unapproved accessories could damage your phone or cause the battery to explode. 1. Connect the adapter to the charging jack. Ensure that the adapter is inserted in the correct direction. 2. Connect the charger to a standard AC power outlet. 3. Disconnect the charger when the battery is fully charged. NOTE: If the battery is extremely low, you may be unable to power on the phone even when it is being charged. In this case, try again after charging the phone for at least 20 6 minutes. Contact the customer service if you still cannot power on the phone after prolonged charging. Powering On/Off Your Phone Make sure the battery is charged before powering on.  Press and hold the Power key to turn on your phone.  To power off, press and hold the Power key to open the options menu, and touch > . NOTE: If the screen freezes or takes too long to respond, reinstall the battery and power on again. FM Radio Scanning for Channels 1. Plug in a wired headset, open the app list and touch FM Radio. 2. Touch > Scan > OK to scan for all available channels and save them to the All channels list. NOTE: When you open the FM Radio app for the first time, it will automatically scan for channels and show the All channels list. You can also touch > All channels to view the list. Listening to FM Radio 1. Open FM Radio while the headset is connected. 2. Touch > All channels and select a channel. You can also drag the red line along the frequency panel or touch or to switch to other channels, or touch or to adjust the current channel frequency. NOTES:  Touch to add the channel to favourites.  Touch to listen to the radio through the phone speaker.  The FM radio feature does not require an Internet connection. 7 Product Safety Information Don’t make or receive phone calls while driving. Never text while driving. Keep your phone at least 10 mm away from your body while making calls. Small parts may cause choking. Your phone can produce a loud sound. To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your phone near your ear while the loudspeaker is in use. Avoid contact with anything magnetic. Keep away from pacemakers and other electronic medical devices. Turn off when asked to in hospitals and medical facilities. Turn off when told to on aircraft and at airports. Turn off when near explosive materials or liquids. Don’t use at gas stations. Your phone may produce a bright or flashing light. Don’t dispose of your phone in fire. Avoid extreme temperatures. Avoid contact with liquids. Keep your phone dry. Do not attempt to disassemble your phone. 8 Only use approved accessories. Don’t rely on your phone as a primary device for emergency communications. FCC RF Exposure Information (SAR) This phone is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the United States. During SAR testing, this device was set to transmit at its highest certified power level in all tested frequency bands, and placed in positions that simulate RF exposure in usage against the head with no separation, and near the body with the separation of 10 mm. Although the SAR is…

Text truncated - open the document above for the full version.

ZTE Corporation Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2020/6/9 Subject; Request for Confidentiality FCC ID: SRQ-ZTEL210 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Bom List Tune up procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Yu Gong Title: Certification Manager

ZTE Corporation. Letter of Authorization Company: ZTE Corporation Address: ZTE Plaza, Keji Road South, Shenzhen, China Product Name: WCDMA/GSM(GPRS) Multi-Mode Digital Mobile Phone Model Number: ZTE Blade L210 FCC Identifier: SRQ-ZTEL210 We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Yu Gong Date: 2020/6/9 Title: Certification Manager Signature of applicant:

WWAN ANT BT/WIFI ANT

Report No. SET2020-04948 CCIC-SET/TRF:ISAR(2019-05-23) 1 / 17 Appendix A: SAR System performance Check Plots Measurement Liquid Frequency Test Date System Check Head 835 2020-05-11 System Check Body 835 2020-05-11 System Check Head 1800 2020-05-13 System Check Body 1800 2020-05-13 System Check Head 1900 2020-05-14 System Check Body 1900 2020-05-14 System Check Head 2450 2020-05-16 System Check Body 2450 2020-05-16 Report No. SET2020-04948 CCIC-SET/TRF:ISAR(2019-05-23) 2 / 17 System Performance Check (Head, 835MHz) Type: Phone measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 05/11/2020 Measurement duration: 22 minutes 09 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 5x5x7,dx=8mm dy=8mm dz=5mm Device Position Dipole Band 835MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_41/18_EPG0330 Frequency (MHz) 835 Relative permittivity (real part) 41.55 Relative permittivity 20.26 Conductivity (S/m) 0.94 Power drift (%) -1.16 Ambient Temperature: 22.2°C Liquid Temperature: 22.6°C ConvF: 1.60 Crest factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=-1.00, Y=-22.00 SAR Peak: 0.14 W/kg SAR 10g (W/Kg) 0.067816 SAR 1g (W/Kg) 0.102181 Report No. SET2020-04948 CCIC-SET/TRF:ISAR(2019-05-23) 3 / 17 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.1424 0.1063 0.0735 0.0511 0.0361 3D screen shot Hot spot position Report No. SET2020-04948 CCIC-SET/TRF:ISAR(2019-05-23) 4 / 17 System Performance Check (Body, 835MHz) Type: Phone measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 05/11/2020 Measurement duration: 22 minutes 03 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 5x5x7,dx=8mm dy=8mm dz=5mm Device Position Dipole Band 835MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_41/18_EPG0330 Frequency (MHz) 835 Relative permittivity (real part) 55.22 Relative permittivity 20.69 Conductivity (S/m) 0.96 Power drift (%) 0.04 Ambient Temperature: 22.2°C Liquid Temperature: 22.6°C ConvF: 1.64 Crest factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=-3.00, Y=-18.00 SAR Peak: 0.15 W/kg SAR 10g (W/Kg) 0.068343 SAR 1g (W/Kg) 0.103444 Report No. SET2020-04948 CCIC-SET/TRF:ISAR(2019-05-23) 5 / 17 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.1450 0.1065 0.0728 0.0512 0.0377 3D screen shot Hot spot position Report No. SET2020-04948 CCIC-SET/TRF:ISAR(2019-05-23) 6 / 17 System Performance Check (Head, 1800MHz) Type: Validation measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 05/13/2020 Measurement duration: 22 minutes 06 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 5x5x7,dx=8mm dy=8mm dz=5mm Device Position Dipole Band 1800MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_41/18_EPG0330 Frequency (MHz) 1800 Relative permittivity (real part) 40.56 Relative permittivity 14.10 Conductivity (S/m) 1.41 Power Drift (%) -0.60 Ambient Temperature: 22.1°C Liquid Temperature: 22.6°C ConvF: 1.74 Duty factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=-10.00, Y=-13.00 SAR Peak: 0.67 W/kg SAR 10g (W/Kg) 0.214960 SAR 1g (W/Kg) 0.403206 Report No. SET2020-04948 CCIC-SET/TRF:ISAR(2019-05-23) 7 / 17 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.6662 0.4307 0.2446 0.1407 0.0851 3D screen shot Hot spot position Report No. SET2020-04948 CCIC-SET/TRF:ISAR(2019-05-23) 8 / 17 System Performance Check (Body, 1800MHz) Type: Validation measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 05/13/2020 Measurement duration: 22 minutes 08 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 5x5x7,dx=8mm dy=8mm dz=5mm Device Position Dipole Band 1800MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_41/18_EPG0330 Frequency (MHz) 1800 Relative permittivity (real part) 53.35 Relative permittivity 15.40 Conductivity (S/m) 1.54 Power Drift (%) -2.43 Ambient Temperature: 22.1°C Liquid Temperature: 22.6°C ConvF: 1.81 Duty factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=-10.00, Y=-12.00 SAR Peak: 0.64 W/kg SAR 10g (W/Kg) 0.225103 SAR 1g (W/Kg) 0.406665 Report No. SET2020-04948 CCIC-SET/TRF:ISAR(2019-05-23) 9 / 17 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.6366 0.4397 0.2701 0.1628 0.0966 3D screen shot Hot spot position Report No. SET2020-04948 CCIC-SET/TRF:ISAR(2019-05-23) 10 / 17 System Performance Check (Head, 1900MHz) Type: Validation measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 05/14/2020 Measurement duration: 22 minutes 02 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 5x5x7,dx=8mm dy=8mm dz=5mm Device Position Dipole Band 1900MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_41/18_EPG0330 Frequency (MHz) 1900 Relative permittivity (real part) 40.50 Relative permittivity 13.26 Conductivity (S/m) 1.40 Power Drift (%) -4.33 Ambient Temperature: 22.1°C Liquid Temperature: 22.6°C ConvF: 2.03 Duty factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=-7.00, Y=-15.00 SAR Peak: 0.61 W/kg SAR 10g (W/Kg) 0.187209 SAR 1g (W/Kg) 0.356377 Report No. SET2020-04948 CCIC-SET/TRF:ISAR(2019-05-23) 11 / 17 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.6045 0.3856 0.2153 0.1224 0.0743 3D screen shot Hot spot position Report No. SET2020-04948 CCIC-SET/TRF:ISAR(2019-05-23) 12 / 17 System Performance Check (Body, 1900MHz) Type: Validation measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 05/14/2020 Measurement duration: 22 minutes 01 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 5x5x7,dx=8mm dy=8mm dz=5mm Device Position Dipole Band 1900MHz Channels Signal CW B. SAR Measurement…

Text truncated - open the document above for the full version.

Report No. SET2020-04948 CCIC-SET/TRF:ISAR(2019-05-23) 1 / 25 Appendix B: SAR Measurement results Plots Plot Frequency/Mode Testing Position and Channel Test Date 1 GSM850 Right Cheek Middle 2020/05/11 2 GSM850/GPRS4Tx Body Back, Middle ,10mm 2020/05/11 3 GSM1900 Right Cheek Middle 2020/05/14 4 GSM1900/GPRS4Tx Body Back, Middle ,10mm 2020/05/14 5 WCDMA1900 Right Cheek Middle 2020/05/14 6 WCDMA1900 Body Back, Middle ,10mm 2020/05/14 7 WCDMA1700 Right Cheek Middle 2020/05/13 8 WCDMA1700 Body Back, Middle ,10mm 2020/05/13 9 WCDMA850 Right Cheek Middle 2020/05/11 10 WCDMA850 Body Back, Middle ,10mm 2020/05/11 11 WIFI 2.4G 802.11b Left Cheek Middle 2020/05/16 12 WIFI 2.4G 802.11b Body Back, Middle ,10mm 2020/05/16 Report No. SET2020-04948 CCIC-SET/TRF:ISAR(2019-05-23) 2 / 25 Plot 1: GSM850, Right Cheek, Middle Type: Phone measurement Date of measurement: 05/11/2020 Measurement duration: 22 minutes 08 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Right Cheek Band GSM850 Channels 190 Signal GSM (Duty cycle: 1:8.3) B. SAR Measurement Results E-Field Probe SATIMO SN_41/18_EPG0330 Frequency (MHz) 836.6 Relative permittivity (real part) 41.55 Relative permittivity (imaginary part) 20.26 Conductivity (S/m) 0.94 Variation (%) -1.28 ConvF: 1.60 SURFACE SAR VOLUME SAR Maximum location: X=-21.00, Y=22.00 SAR Peak: 1.59W/kg SAR 10g (W/Kg) 0.503574 SAR 1g (W/Kg) 0.911741 Report No. SET2020-04948 CCIC-SET/TRF:ISAR(2019-05-23) 3 / 25 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 1.5274 0.9258 0.4835 0.2634 0.1630 3D screen shot Hot spot position Report No. SET2020-04948 CCIC-SET/TRF:ISAR(2019-05-23) 4 / 25 Plot 2: GPRS850, Back, Middle,10mm Type: Phone measurement Date of measurement: 05/11/2020 Measurement duration: 22 minutes 05 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Back Band GSPRS850_4Tx Channels 190 Signal GPRS(Duty cycle: 1:2) B. SAR Measurement Results E-Field Probe SATIMO SN_41/18_EPG0330 Frequency (MHz) 836.6 Relative permittivity (real part) 55.22 Relative permittivity (imaginary part) 20.69 Conductivity (S/m) 0.96 Variation (%) -1.39 ConvF: 1.64 SURFACE SAR VOLUME SAR Maximum location: X=0.00, Y=-21.00 SAR Peak: 0.48 W/kg SAR 10g (W/Kg) 0.188259 SAR 1g (W/Kg) 0.315399 Report No. SET2020-04948 CCIC-SET/TRF:ISAR(2019-05-23) 5 / 25 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.4771 0.3296 0.2068 0.1332 0.0904 3D screen shot Hot spot position Report No. SET2020-04948 CCIC-SET/TRF:ISAR(2019-05-23) 6 / 25 Plot 3: GSM1900, Right Cheek, Middle Type: Phone measurement Date of measurement: 05/14/2020 Measurement duration: 22 minutes 02 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Right Cheek Band GSM1900 Channels 661 Signal GSM (Duty cycle: 1:8.3) B. SAR Measurement Results E-Field Probe SATIMO SN_41/18_EPG0330 Frequency (MHz) 1880 8 Relative permittivity (real part) 40.50 Relative permittivity (imaginary part) 13.26 Conductivity (S/m) 1.40 Variation (%) 4.84 ConvF: 2.03 SURFACE SAR VOLUME SAR Maximum location: X=-24.00, Y=9.00 SAR Peak: 1.30 W/kg SAR 10g (W/Kg) 0.472035 SAR 1g (W/Kg) 0.830672 Report No. SET2020-04948 CCIC-SET/TRF:ISAR(2019-05-23) 7 / 25 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 1.2976 0.8929 0.5488 0.3354 0.2058 3D screen shot Hot spot position Report No. SET2020-04948 CCIC-SET/TRF:ISAR(2019-05-23) 8 / 25 Plot 4: GPRS1900, Back, Middle ,10mm Type: Phone measurement Date of measurement: 05/14/2020 Measurement duration: 22 minutes 04 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Back Band GPRS1900_4Tx Channels 661 Signal GPRS(Duty cycle: 1:2) B. SAR Measurement Results E-Field Probe SATIMO SN_41/18_EPG0330 Frequency (MHz) 1880 8 Relative permittivity (real part) 53.29 Relative permittivity (imaginary part) 14.40 Conductivity (S/m) 1.52 Variation (%) -1.09 ConvF: 2.08 SURFACE SAR VOLUME SAR Maximum location: X=0.00, Y=-30.00 SAR Peak: 1.53 W/kg SAR 10g (W/Kg) 0.491846 SAR 1g (W/Kg) 0.915339 Report No. SET2020-04948 CCIC-SET/TRF:ISAR(2019-05-23) 9 / 25 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 1.5158 0.9696 0.5412 0.3047 0.1800 3D screen shot Hot spot position Report No. SET2020-04948 CCIC-SET/TRF:ISAR(2019-05-23) 10 / 25 Plot 5: WCDMA1900, Right Cheek, Middle Type: Phone measurement Date of measurement: 05/14/2020 Measurement duration: 22 minutes 01 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Right Cheek Band Band2_WCDMA1900 Channels 9400 Signal WCDMA (Duty cycle: 1:1) B. SAR Measurement Results E-Field Probe SATIMO SN_41/18_EPG0330 Frequency (MHz) 1880 Relative permittivity (real part) 40.50 Relative permittivity (imaginary part) 13.26 Conductivity (S/m) 1.40 Variation (%) -2.58 ConvF: 2.03 SURFACE SAR VOLUME SAR Maximum location: X=-23.00, Y=16.00 SAR Peak: 1.25W/kg SAR 10g (W/Kg) 0.407101 SAR 1g (W/Kg) 0.744720 Report No. SET2020-04948 CCIC-SET/TRF:ISAR(2019-05-23) 11 / 25 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 1.2297 0.7976 0.4555 0.2642 0.1616 3D screen shot Hot spot position Report No. SET2020-04948 CCIC-SET/TRF:ISAR(2019-05-23) 12 / 25 Plot 6: WCDMA1900, Back, Middle,10mm Type: Phone measurement Date of measurement: 05/14/2020 Measurement duration: 22 minutes 07 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Back Band Band2_WCDMA1900 Channels 9400 Signal WCDMA (Duty cycle: 1:1) B. SAR Measurement Results E-Field Probe SATIMO SN_41/18_EPG0330 Frequency (MHz…

Text truncated - open the document above for the full version.

Report No. SET2020-04948 ANNEX C: Calibration Reports EPGO 330 Probe Calibration Report SID835 Dipole Calibration Report SID1800 Dipole Calibration Report SID1900 Dipole Calibration Report SID2450 Dipole Calibration Report Report No. SET2020-04948 EPGO330 Probe Calibration Report Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948 SID835 Dipole Calibration Report Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948 SID1800 Dipole Calibration Report Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948 SID1900 Dipole Calibration Report Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948 SID2450 Dipole Calibration Report Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948 Report No. SET2020-04948

Report No. SET2020-04948 CCIC-SET/TRF:ISAR(2019-05-23) Page 1 of 37 FCC SAR TEST REPORT Report No.： SET2020-04948 Product： WCDMA/GSM（GPRS） Multi-Mode Digital Mobile Phone Tra d e Na me: ZTE Model No.： ZTE Blade L210 FCC ID： SRQ-ZTEL210 Applicant： ZTE CORPORATION Address： ZTE Plaza, Keji Road South, Shenzhen, China. Issued by： CCIC Southern Testing Co., Ltd. Lab Location： Electronic Testing Building, No. 43 Shahe Road, Xili Street, Nanshan District, Shenzhen, Guangdong, China. Te l： 86 755 26627338 Fax：86 755 26627238 Mail： [email protected] Website：http://www.ccic-set.com This test report consists of 37 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No. SET2020-04948 CCIC-SET/TRF:ISAR(2019-05-23) Page 2 of 37 Te s t R e p o r t Product. ...................: WCDMA/GSM（GPRS） Multi-Mode Digital Mobile Phone Model No. .................: ZTE Blade L210 Brand Name..............: ZTE FCC ID.......................: SRQ-ZTEL210 Applicant....................: ZTE CORPORATION Applicant Address.......: ZTE Plaza, Keji Road South, Shenzhen, China Manufacturer............: ZTE CORPORATION Manufacturer Address: ZTE Plaza, Keji Road South, Shenzhen, China Test Standards..........: 47CFR §2.1093- Radiofrequency Radiation Exposure Evaluation: Portable Devices; ANSI C95.1–1992: Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz – 300 GHz.( IEEE Std C95.1-1991) IEEE 1528–2013: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques Test Result...............: Pass Test Date..................: 2020.05.11-2020.05.16 Tested by ..............: 2020-06-01 Mei Chun, Test Engineer Reviewed by.............: 2020-06-01 Chris You, Senior Engineer Approved by...............: 2020-06-01 Shuangwen Zhang, Manager Report No. SET2020-04948 CCIC-SET/TRF:ISAR(2019-05-23) Page 3 of 37 Contents Test Report ........................................................................................................................................... 2 1. Administrative Data ......................................................................................................................... 4 2. Equipment Under Test (EUT) .......................................................................................................... 5 3. SAR Summary ................................................................................................................................. 7 4. Specific Absorption Rate (SAR) ...................................................................................................... 8 5. Tissue check and recommend Dielectric Parameters ..................................................................... 12 6. SAR measurement procedure......................................................................................................... 17 7. Conducted RF Output Power ......................................................................................................... 18 8. SAR test Exclusion and estimate SAR calculation: ....................................................................... 21 9. Scaling Factor calculation .............................................................................................................. 23 10. Test Results .................................................................................................................................. 24 11. Simultaneous Transmissions Analysis ......................................................................................... 30 12. Measurement Uncertainty ............................................................................................................ 32 13. Equipment List ............................................................................................................................. 36 ANNEX A: Appendix A: SAR System performance Check Plots..................................................... 37 ANNEX B: Appendix B: SAR Measurement results Plots................................................................ 37 ANNEX C: Appendix C: Calibration reports .................................................................................... 37 ANNEX D: Appendix D: SAR Test Setup ......................................................................................... 37 Report No. SET2020-04948 CCIC-SET/TRF:ISAR(2019-05-23) Page 4 of 37 1. Administrative Data 1.1 Testing Laboratory Te s t S i t e : CCIC Southern Testing Co., Ltd. Address: Electronic Testing Building, No. 43 Shahe Road, Xili Street, Nanshan District, Shenzhen, Guangdong, China CNAS Lab Code: CCIC-SET is a third party testing organization accredited by China National Accreditation Service for Conformity Assessment (CNAS) according to ISO/IEC 17025. The accreditation certificate number is L1659. NVLAP Lab Code: CCIC-SET is a third party testing organization accredited by NVLAP according to ISO/IEC 17025. The accreditation certificate number is 201008-0. FCC Registration: CCIC Southern Electronic Product Testing (Shenzhen) Co., Ltd. EMC Laboratory has been registered and fully described in a report filed with the FCC (Federal Communications Commission). The acceptance letter from the FCC is maintained in our files. Designation Number: CN5031, valid time is until December 31, 2020. ISED Registration: CCIC Southern Electronic Pro…

Text truncated - open the document above for the full version.

Report No.: SET2020-05447 CCIC-SET/ TRF:IRF(2019-05-23) Page 1 of 68 RF TEST REPORT Report No.: SET2020-05447 Product Name: WCDMA/GSM(GPRS) Multi-Mode Digital Mobile Phone FCC ID: SRQ-ZTEL210 Model No. : ZTE Blade L210 Marketing Name: ZTE BLADE L210，ZTE Blade L210，ZTE blade L210 Applicant: ZTE Corporation. Address: ZTE Plaza, Keji Road South, Shenzhen, China. Dates of Testing: 05/10/2020 — 05/28/2020 Issued by: CCIC Southern Testing Co., Ltd. Lab Location: Electronic Testing Building, No. 43 Shahe Road, Xili Street, Nanshan District, Shenzhen, Guangdong, China. Tel: 86 755 26627338 Fax: 86 755 26627238 This test report consists of 68 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No.: SET2020-05447 CCIC-SET/ TRF:IRF(2019-05-23) Page 2 of 68 Test Report Product Name ....................... : WCDMA/GSM(GPRS) Multi-Mode Digital Mobile Phone Brand Name .......................... : ZTE Trade Name ........................... : ZTE Applicant ............................... : ZTE Corporation Applicant Address ................ : ZTE Plaza,Keji Road South, Shenzhen, China. Manufacturer ........................ : ZTE Corporation Manufacturer Address ......... : ZTE Plaza,Keji…
