SRQ-ZTES521GSM Dual-Mode Digital Mobile Phone

1 Legal Information Copyright © 2010 ZTE CORPORATION All Rights Reserved Your mobile phone is made by ZTE CORPORATION. No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of ZTE CORPORATION. Trademarks ZTE and the ZTE logos are trademarks of ZTE CORPORATION. Notice The information in this manual is subject to change without notice. Every effort has been made in the preparation of this manual to ensure accuracy of the contents, but all statements, information, and recommendations in this manual do not constitute a warranty of any kind, expressed or implied. Please read the safety precautions carefully to ensure the correct and safe use of your mobile phone. For detailed information, refer to the section “Safety Precautions”. ZTE CORPORATION Address: NO. 55, Hi-tech Road South, ShenZhen, P.R.China Postcode: 518057 Website: http://www.zte.com.cn Release: V1.0.0 079584501395 2 Security  To protect your mobile phone from illegal use, take the security measures as follows:  Set PIN codes of the SIM card.  Set handset lock code.  Set call restrictions. Safety Precautions This section includes some important information on safe and efficient operation. Please read this information before using the phone. Operational Precautions  Please use your phone properly. When making or receiving a call, please hold your phone as holding a wireline telephone. Make sure that the phone is at least one inch (about two point five centimeters) from your body when transmitting.  Do not touch the antenna when the phone is in use. Touching the antenna area affects call quality and may cause the phone to operate at a higher power level than needed.  Some people may be susceptible to epileptic seizures or blackouts when exposed to flashing lights, such as when watching television or playing video games. If you have experienced seizures or blackouts, or if you have a family history of such occurrences, please consult your doctor before playing video games on your phone or enabling a 3 flashing-light feature on your phone. (The flashing-light feature is not available on all products.)  Keep the phone out of the reach of small children. The phone may cause injury if used as a toy. Precautions While Driving  Please pay attention to the traffic safety. Check the laws and regulations on the use of your phone in the area where you drive. Always obey them.  Use hands-free function of the phone, if available.  Pull off the road and park before making or answering a call if conditions require. Precautions for Medical Devices and Facilities  When using your phone near pacemakers, please always keep the phone more than eight inches (about twenty centimeters) from the pacemaker when the phone is switched on. Do not carry the phone in the breast pocket. Use the ear opposite the pacemaker to minimize the potential for interference. Switch off the phone immediately if necessary.  Some phones may interfere with some hearing aids. In the event of such interference, you may consult your hearing aids manufacturer to discuss alternatives.  If you use any other personal medical device, please consult the manufacturer of your device to determine if it is adequately shielded from RF energy. 4  In those facilities with special demand, such as hospital or health care facilities, please pay attention to the restriction on the use of mobile phone. Switch off your phone if required. Mobile Phone  Please use original accessories or accessories approved by the phone manufacturer. Using any unauthorized accessories may affect your mobile phone’s performance, damage your phone or even cause danger to your body and violate related local regulations about telecom terminals.  Turn off your phone before you clean it. Use a damp or anti-static cloth to clean the phone. Do not use a dry cloth or electrostatically charged cloth. Do not use chemical or abrasive cleaners as these could damage the phone.  As your mobile phone can produce electromagnetic field, do not place it near magnetic items such as computer disks.  Using the phone near electrical appliances such as TV, telephone, radio and personal computer can cause interference.  Do not expose your mobile phone to direct sunlight or store it in hot areas. High temperatures can shorten the life of electronic devices.  Keep your phone dry. Any liquid may damage your phone.  Do not drop, knock or harshly treat the phone. Rough handling can break internal circuit boards.  Do not connect the phone with any incompatible enhancement.  Do not attempt to disassemble the mobile phone or battery. 5  Do not store the phone with flammable or explosive articles.  Do not charge the mobile phone without battery. Precautions for Potentially Explosive Atmospheres  Switch off your phone prior to entering any area with potentially explosive atmospheres, such as fueling areas, fuel or chemical transfer or storage facilities.  Do not remove, install, or charge batteries in such areas. Spark in a potentially explosive atmosphere can cause an explosion or fire resulting in bodily injury or even death.  To avoid possible interference with blasting operations, switch off your phone when you are near electrical blasting caps, in a blasting area, or in areas posted “Turn off electronic devices.” Obey all signs and instructions. Precautions for Electronic Devices  Some electronic devices are susceptible to electromagnetic interference sent by mobile phone if inadequately shielded, such as electronic system of vehicles. Please consult the manufacturer of the device before using the phone if necessary. Safety and General Use in Vehicles  Safety airbag, brake, speed control system and oil eject system shouldn’t be affected by wireless transmission. If you do meet problems above, please contact your automobile provider. Do not place your phone in the area over an airbag or in the 6 airbag deployment area. Airbags inflate with great force. If a…

Text truncated - open the document above for the full version.

THIS MUST BE SIGNED BY THE APPLICANT/AGENT AND SHOULD BE PLACED ON APPROPRIATE LETTERHEAD 022311 – 6 Request for Confidentiality Date: 2013/6/7 Subject: Confidentiality Request for: SRQ-ZTES521 ______ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 2 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ ZTE CORPORATION has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 3 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: __________________________ Min Zhang (Signature/Title 4 ) (Print name) 2 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 3 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 4 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

THIS MUST BE SIGNED BY THE APPLICANT AND SHOULD BE PLACED ON APPLICANTS LETTERHEAD ONLY IF AGENT IS SUBMITTING APPLICATION 022311 – 6 Authority to Act as Agent Date: _2013/5/30 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: East China Institute of Telecommunications / Jarek Liu_ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: ____12 months_____ By: Min Zhang (Signature 1 ) (Print name) Title: Certification Manager On behalf of: ZTE CORPORATION (Company Name) Telephone: 0755-26770345 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

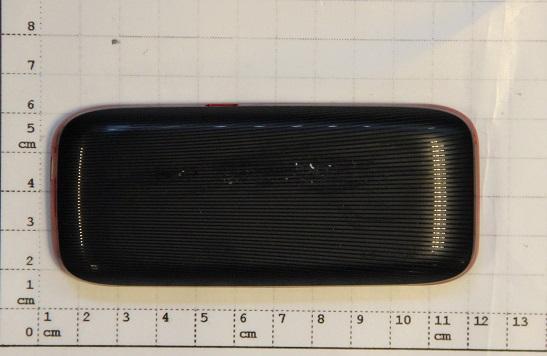

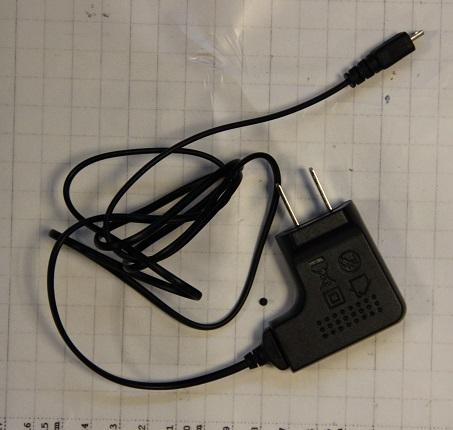

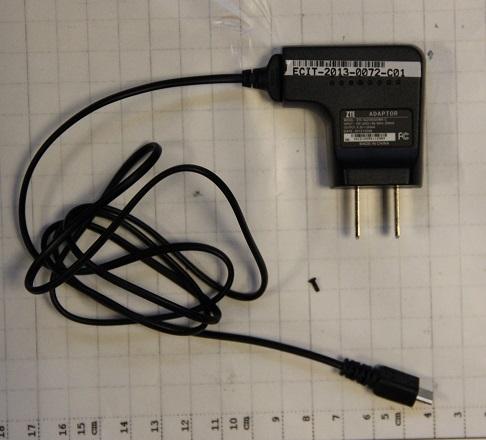

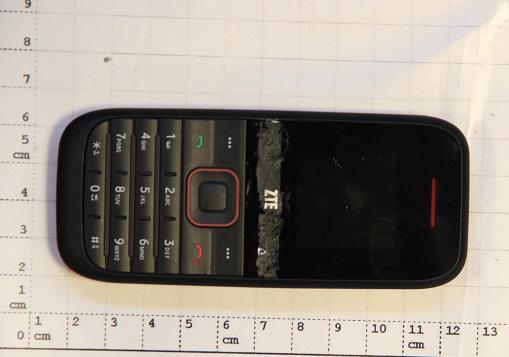

External photo: Mobile phone Mobile phone Mobile phone Mobile phone Mobile phone Mobile phone battery charger charger Charger board Charger board Earphone

Label for ZTE S521 Label location

Internal photo for ZTE S521 Main board Main board Main board Charger board Charger board

Full TEST REPORT No. ECIT-2013-0072-FCC-EMC For Client : ZTE Corporation Production : GSM Dual-Mode Digital Mobile Phone Model Name : ZTE S521 Hardware Version: WC1M11B1-2 Software Version: ZTE_S521_01 FCC ID: SRQ-ZTES521 Issued date: 2013-05-28 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of ECIT Shanghai. Test Laboratory: ECIT Shanghai, East China Institute of Telecommunications Add: 7F, G Area, No.668, Beijing East Road, Huangpu District, Shanghai, P. R. China Tel: (+86)-021-63843300, E-Mail: [email protected] No. ECIT-2013-0072-FCC-EMC Page 2 of 15 CONTENTS 1. TEST LABORATORY ............................................................................................................... 3 1.1. TESTING LOCATION ............................................................................................................... 3 1.2. TESTING ENVIRONMENT ....................................................................................................... 3 1.3. PROJECT DATA ....................................................................................................................... 3 1.4. SIGNATURE ............................................................................................................................. 3 2. CLIENT INFORMATION ........................................................................................................... 4 2.1. APPLICANT INFORMATION ................................................................................................... 4 2.2. MANUFACTURER INFORMATION ......................................................................................... 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................ 5 3.1. ABOUT EUT ............................................................................................................................. 5 3.2. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ......................................... 5 4. REFERENCE DOCUMENTS .................................................................................................... 6 4.1. REFERENCE DOCUMENTS FOR TESTING .......................................................................... 6 5. TEST RESULTS ........................................................................................................................ 7 5.1. SUMMARY OF TEST RESULTS .............................................................................................. 7 5.2. STATEMENTS........................................................................................................................... 7 6. TEST EQUIPMENTS UTILIZED ............................................................................................... 8 6.1 RADIATED EMISSION EQUIPMENTS LIST ............................................................................ 8 6.1 CE EQUIPMENTS LIST ............................................................................................................. 8 7. SYSTEM CONFIGURATION DURING TEST .......................................................................... 9 7.1 TEST MODE ............................................................................................................................... 9 7.2 CONNECTION DIAGRAM OF TEST SYSTEM ......................................................................... 9 8. MEASUREMENT RESULTS .................................................................................................. 11 8.1 RADIATED EMISSION 30MHZ-12.75GHZ ............................................................................. 11 8.2 CONDUCTED EMISSION ........................................................................................................ 14 No. ECIT-2013-0072-FCC-EMC Page 3 of 15 1. Test Laboratory 1.1. Testing Location Company Name: ECIT Shanghai, East China Institute of Telecommunications Address: 7F, G Area, No. 668, Beijing East Road, Huangpu District, Shanghai, P. R. China Postal Code: 200001 Telephone: (+86)-021-63843300 Fax: FCC registration No: (+86)-021-63843301 489729 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 30-60% 1.3. Project data Project Leader: Liujianquan Testing Start Date: 16-05, 2013 Testing End Date: 27-05, 2013 1.4. Signature Zhou Xueqiang (Testing Engineer) Yu Naiping (Reviewed this test report) Zheng Zhongbin Director of the laboratory (Approved this test report) No. ECIT-2013-0072-FCC-EMC Page 4 of 15 2. Client Information 2.1. Applicant Information Company Name: ZTE Corporation Address /Post: ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P. R. China Country: China 2.2. Manufacturer Information Company Name: ZTE Corporation Address /Post: ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P. R. China Country: China No. ECIT-2013-0072-FCC-EMC Page 5 of 15 3. Equipment under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT EUT Description GSM Dual-Mode Digital Mobile Phone Model name ZTE S521 Serial Number or IMEI 004401782608893 TX Frequency GSM850: 824MHz to 849MHz; GSM1900: 1850MHz to 1910MHz; RX Frequency GSM850: 869MHz to 894MHz; GSM1900: 1930MHz to 1990MHz; HW Version WC1M11B1-2 SW Version ZTE_S521_01 3.2. Internal Identification of AE used during the test AE ID* Description Model SN AE1 Adapter STC-A22050I200M5-C NA AE2 Battery Li3704T42P3h463548 NA AE3 Earphone NLD-EM127E-035S NA AE4 Desktop PC DELL 8LPS82S AE5 Data Cable NA NA *AE ID: is used to identify the test sample in the lab internally. No. ECIT-2013-0072-FCC-EMC Page 6 of 15 4. Reference Documents 4.1. Reference Documents for testing The following documents listed in this section are referred for testing. Reference Title Version FCC Part 15, Subpart B Radio frequency devices 10-1-10 Edition ANSI C63.4 Met…

Text truncated - open the document above for the full version.

FCC Part 22H-Test Photograph Description: ERP Test Setup Description: Substitution Antenna for ERP Test Description: EIRP Test Setup Description: Substitution Antenna for EIRP Test Test Photograph Test Mode: Mode 2 Description: Conducted Emission Test Setup Test Mode: Mode 1 Description: Front View of Conducted Emission Test Setup Test Mode: Mode 1 Description: Side View of Conducted Emission Test Setup Test Mode: Mode 2 Description: Radiated Emission Below 1G Test Setup Test Mode: Mode 3 Test Mode: Mode 1 Description: Back View of Radiated Emission Test Setup Test Mode: Mode 1 Description: Front View of Radiated Emission Test Setup
