SRQ-ZTEWP659PLUSGSM Wireless Phone

ZTE WP659+ GSM Wireless Phone User Guide {tc " Know Your Phone" \f E}Know Your Phone {tc " Key Instruction" \f E}Key Instruction Key Description 1. MENU/OK • Enter main menu. • Performs the function indicated at the left bottom of the screen. 2. Number • Use these keys to enter numbers and characters. 3. # , * • Perform different functions under different conditions. 4.Scrolling • Press these keys to scroll cursor to the left, right, up or down when inputting characters or selecting items. • Default functions in standby mode are set in Settings menu. Key Description 5. NAMES/B ACK • To return to upper menu, or cancel • Enter the Phonebook in Idle screen 6. EXIT • To turn ON/OFF the unite 7. MUTE •To mute the voice while communication 8.MESSAG E • This is the shortcut key to enter message menu in standby mode. 9. CALL/RED IAL • Make a call or answer an incoming call. • In standby mode, press this key to enter Dialed calls list. 10.HANDS -FREE • If you are using the handset to call and want to transfer the call to the speakerphone, press this key and hang up the handset to put conversation on the speakerphone. • Press this key to end a hands-free call. Notes: In this manual, “press” a key means to press the key once, “hold” a key means to press the key for 2 or 3 seconds. {tc " Interface Icons" \f E}Interface Icons Ico n Descripti on Ico n Description Signal strength New message Silent Power indicator {tc " Installation" \f E}Installation 1. {tc "Handset" \f A}{tc "Handset" \f B}{tc " Handset" \f E}Handset Connect phone and handset via the phone cord. 2. {tc "External power adapter" \f A}{tc "External power adapter" \f B}{tc " External power adapter" \f E}External power adapter Plug the external power adapter to the external AC socket. 3. {tc "SIM card" \f A}{tc "SIM card" \f B}{tc " SIM card" \f E}SIM card Always switch the phone off before removing or inserting SIM card. Open the bottom cover of the battery. Remove the battery, slide the SIM card into the SIM card slot. Make sure that the contact area of the card is facing down, and the beveled corner matches with the SIM card slot. Put in the battery and install the bottom cover. {tc " How to Power on/off" \f E}How to Power on/off  To power on the phone, connect phone and external power outlet with the power adapter and then hold the EXIT key till the phone is powered on.  To power off the phone, at standby mode, hold the EXIT key till the phone is powered off. Notes: It is strongly recommended to connect the phone to external power outlet, and use internal battery to power your phone only when external power fails or is not available. The phone will charge the internal battery automatically when it is connected to external power outlet. {tc " How to Make a Call" \f E}How to Make a Call There are two methods for making a call.  The first method: 1. Pick up the handset or press the HANDS-FREE key. 2. Enter the phone number, press CALL/REDIAL key to make the call.  The second method: Enter the number or select recipient’s number from Contacts, or press CALL/REDIAL key to select a number from the Dialed calls list, then press CALL/REDIAL key to make the call. Notes: Add the international prefix, country code and area code (without the leading 0) before the number when making an international call. {tc " Message" \f E}Message Select Messaging in Menu. • Select Write message to write message, Press Options select Send to or Save. • Select Inbox to view messages received. • Select Outbox to view the failure messages. • Select Drafts to view the draft messages. • Select Sent messages to view the successfully sent messages. • Select SMS templates to View the template messages. • Select SMS settings to make some necessary short message settings. • Select Memory status under SMS settings to View the message of saved entries and maximum number of entries capacity in phone and SIM. {tc " Phone Code" \f E}Security setting Security setting could prevent your phone from unauthorized use. The default phone code is 1122. Change it to your own as soon as possible. If you change the default phone code to a new one, remember it or place it at secure place. {TC " PIN1 Code and PUK Code" \f "E"}PIN Code and PUK Code • PIN code: PIN code could prevent your SIM card from illegal use. When PIN code is enabled, you should enter the PIN code when powering on the phone again. Change the default PIN code to your own as soon as possible. • PUK code: The SIM card will be locked if you enter a wrong PIN code consecutively for three times. To unlock, you need PUK code. Notes: PIN code and PUK code may be offered together with the SIM card. If not, contact your service provider. {tc " Text Input" \f E}Text Input Operation Method Input digits “123”, press the Number keys to input the digits you want directly. Input letters “Abc”, “abc”, “ABC”, press corresponding letter key till the letter appears. Input words “=ABC”, “=abc”, press the Number keys to input the characters of the word. Then press MENU/SELECT key to confirm. Input symbol Press * key, and then select corresponding symbol by using Scrolling keys. Input space Apart from Numbers input mode, press “0” key to add space. Erase character Press NAMES/BACK key. Hold NAMES/BACK key until the cursor before the character be erased. Move the cursor Press Scrolling keys. Change input mode Press # key to change text input mode. {tc " Menu Function" \f E}Menu Function Hereinafter are brief instructions for menu functions of the phone. Function Description Selection Create message Create message and send to others. Menu→ Messaging→ Write message Read message Read message in Inbox, Outbox, Drafts, Sentbox. Menu→ Messaging→ Inbox/Outbox/Drafts/Sen t messages Message settings Make some necessary short message settings. Menu→ Message→ SMS settings Call history View or dial all recent calls. Menu→ Call history→ Missed calls/Dialed calls/Received calls/Delete call logs Call duration Check the Last call, Received calls, Dialed …

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 Date:May.19, 2015 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name SRQ-ZTEWP659PLUS ZTE WP659+, ZTE WP659PLUS For the product stated above, we request permanent confidentiality for exhibits which contain Operational Description, Block Diagram, Schematics, Parts Lists or Tune Up Information. The above exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (Signed) Name:Min Zhang Company: ZTE CORPORATION Address: ZTE Plaza, Keji Road South, Shenzhen, China Phone: +86-18616587757 Fax: +86-21-50801070 Email:[email protected]

Declaration Letter FCC ID: SRQ-ZTEWP659PLUS Date: May 19 2015 Our ZTE CORPORATION Company declares that the different between the tests sample ZTE WP659 (FCC ID: SRQ-ZTEWP659) and ZTE WP659PLUS (FCC ID: SRQ-ZTEWP659PLUS) as follows: 1. ZTE WP659 (FCC ID: SRQ-ZTEWP659) and ZTE WP659PLUS (FCC ID: SRQ-ZTEWP659PLUS) use same Hardware and software version, Block Diagram, Schematic, Part list etc; 2. ZTE WP659 (FCC ID: SRQ-ZTEWP659) use internal antenna while ZTE WP659PLUS (FCC ID: SRQ-ZTEWP659PLUS) use external antenna, also the maximum antenna gain were difference; 3. Based on this fact, conducted measurements in FCC Part 22H and FCC Part 24E report (report no.I14N01244-2G dated 2014-11-12) issued for FCC ID: SRQ-ZTEWP659 also apply for FCC ID: SRQ-ZTEWP659PLUS. If you have any questions, please feel free to contact us at the address shown below. Sincerely Min Zhang/ Certification Manager Company Name: ZTE Corporation Address: ZTE Plaza, Keji Road South, Shenzhen, China Telephone Number: +86-21-68897541 Fax Number: +86-21-50801070 Email: [email protected]

Declaration FCC ID: SRQ-ZTEWP659PLUS Date: May 19 2015 Our ZTE CORPORATION Company declare electronic schematics, PCB layout and Antenna among ZTE WP659PLUS, ZTE WP659+ are the same. The difference between models and marks are just for marketing purpose and does not have any effect on any other function. Sincerely, (Signed) Name:Min Zhang Company: ZTE CORPORATION Address: ZTE Plaza, Keji Road South, Shenzhen, China Phone: +86-18616587757 Fax: +86-21-50801070 Email:[email protected]

Declaration FCC ID: SRQ-ZTEWP659PLUS Date: May 19 2015 Our ZTE CORPORATION Company declares that our product GSM Wireless Phone’s USB port is only used as charging by the end user and can not used as data transmission. And GSM Wireless Phone’s USB port is only used for updating software of phone and charging in factory Sincerely, (Signed) Name:Min Zhang Company: ZTE CORPORATION Address: ZTE Plaza, Keji Road South, Shenzhen, China Phone: +86-18616587757 Fax: +86-21-50801070 Email:[email protected]

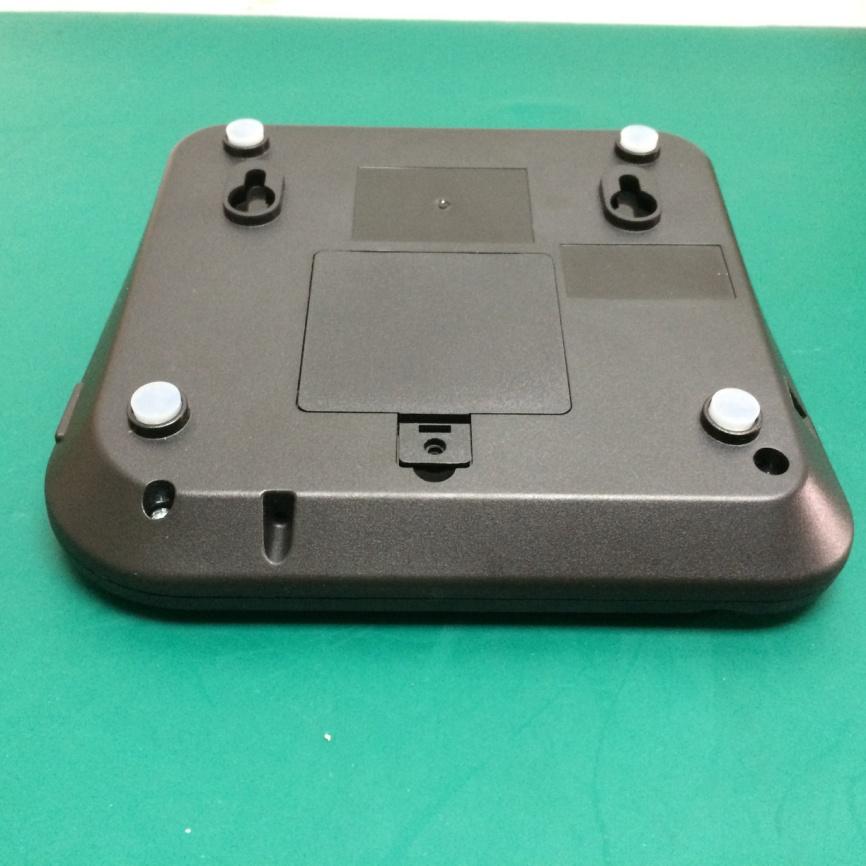

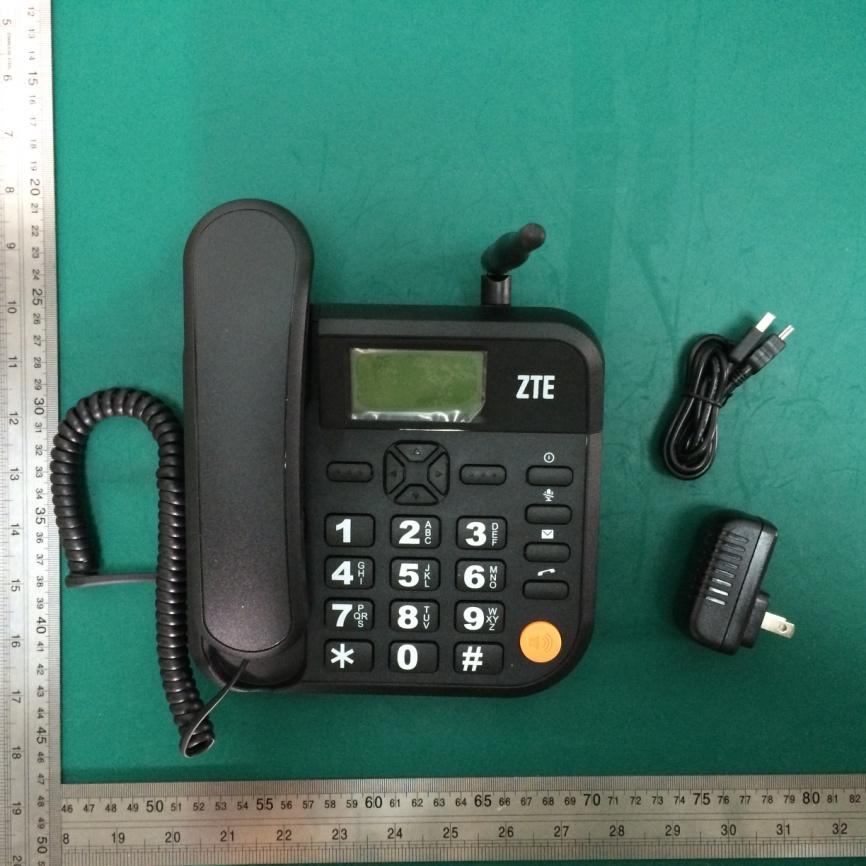

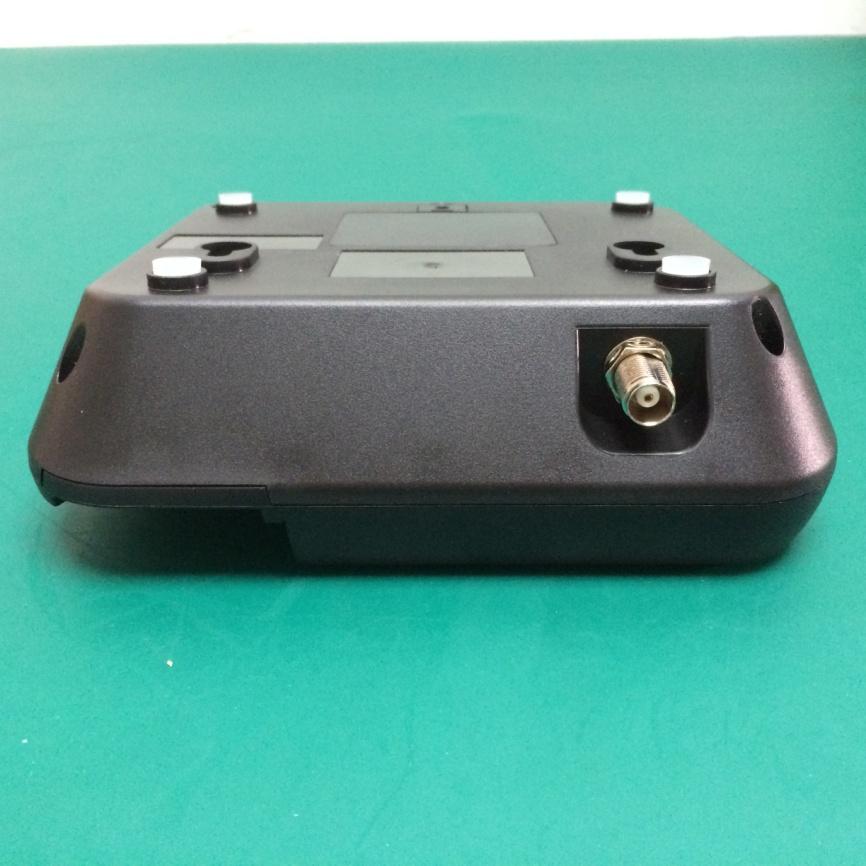

External Photo

ZTE CORPORATION Date:May 19 2015 Declaration Letter Label We, ZTE CORPORATION states that our device, FCC ID:SRQ-ZTEWP659PLUS will label on the back of the EUT and cannot remove. Best Regards! Company: ZTE CORPORATION Address: ZTE Plaza, Keji Road South, Shenzhen, China Contact Person: Min Zhang Title: Manager Telephone: +86-18616587757 Fax: +86-21-50801070 Email: [email protected]

Internal Photo

Report No.: RXA1505-0074MPE01R2 Page 1 of 5 : MPE REPORT Product Name GSM Wireless Phone Model ZTE WP659+/ ZTE WP659PLUS Brand Name ZTE FCC ID SRQ-ZTEWP659PLUS Applicant ZTE CORPORATION Manufacture ZTE CORPORATION Date of issue May 19, 2015 Approved by Kai Xu Director Revised by Jiangpeng Lan SAR Manager Performed by Liang Ye SAR Engineer Test By Company: TA Technology (Shanghai) Co., Ltd. Address: No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai,China Contact: Xu Kai Telephone: +86-021-50791141/2/3 Fax: +86-021-50791141/2/3-8000 Website: http://www.ta-shanghai.com E-mail: [email protected] TA Technology (Shanghai)Co.,Ltd. Test Report Report No.: RXA1505-0074MPE01R2 Page 2 of 5 Maximum Permissible Exposure Type of EUT: GSM Wireless Phone FCC ID: SRQ-ZTEWP659PLUS Manufacturer: ZTE CORPORATION Model: ZTE WP659+/ ZTE WP659PLUS Maximum conducted output power (measured) and antenna Gain: Band Burst Turn up Power(dBm) / Maximum Tune up Average Power(dBm) GSM 850 33.5 -9.03dB 24.47 GSM 1900 31.5 -9.03dB 22.47 Note: Division Factors To average the power, the division factor is as follows: 1Txslot = 1 transmit time slot out of 8 time slots => conducted power divided by (8/1) => -9.03 dB According to section 1.1310 of FCC 47 CFR Part 1, limits for maximum permissible exposure (MPE) are as following TA Technology (Shanghai)Co.,Ltd. Test Report Report No.: RXA1505-0074MPE01R2 Page 3 of 5 Note1. Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational / controlled limits apply provided he or she is made aware of the potential for exposure. Note2: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. TA Technology (Shanghai)Co.,Ltd. Test Report Report No.: RXA1505-0074MPE01R2 Page 4 of 5 The maximum permissible exposure for 300~1500MHz is f/1500, 1500~100,000MHz is 1.So IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. No change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. Band The maximum permissible exposure GSM 850 0.57 mW/cm² GSM 1900 1 mW/cm² TA Technology (Shanghai)Co.,Ltd. Test Report Report No.: RXA1505-0074MPE01R2 Page 5 of 5 RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided. This calculation is based on the conducted power, considering maximum power and antenna gain. The formula shown in KDB 865664 D01 is used in the calculation. Equation from KDB 865664 D01, Edition 97-01 is: S= PG / 4∏R 2 where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = Time-average maximum tune up procedure (in appropriate units, e.g., mW) G = the numeric gain of the antenna R = distance to the center of radiation of the antenna ( 20 cm = limit for MPE) So, the numeric gain (G) of the antenna with a gain specified in dB is determined by GSM 850: P=24.47dBm=279.90mW G =10^(dBi/10)= 10^(0.79dBi /10)=1.20 PG=P*G=279.90mW*1.20=335.88mW GSM 1900: P=22.47dBm=176.60mW G =10^ (dBi/10)= 10^ (2.83dBi /10)=1.92 PG=P*G=176.60mW*1.92=339.072mW Solving for S, the power density at 20 cm is Band Test Result (mW/cm 2 ) Limit Value (mW/cm 2 ) GSM 850 0.067 0.57 mW/cm² GSM 1900 0.067 1 mW/cm² Note: For mobile or fixed location transmitters, minimum separation distance is 20cm, even if calculations indicate MPE distance is less.

Report No.: RXA1505-0074RF01R2 Page 1of 18 TESTING No. L2264 Part 22 TEST REPORT Product Name GSM Wireless Phone Model Name ZTE WP659+/ ZTE WP659PLUS Brand Name ZTE FCC ID SRQ-ZTEWP659PLUS Applicant ZTE CORPORATION Manufacturer ZTE CORPORATION Date of issue May 19, 2015 TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1505-0074RF01R2 Page 2of 18 GENERAL SUMMARY Reference Standard(s) FCC CFR47 Part 2 (2013) Frequency Allocations And Radio Treaty Matters; General Rules And Regulations FCC CFR 47 Part 22H (2013) Public Mobile Services(850MHz) ANSI/TIA-603-C(2004) Land mobile FM or PM Communications Equipment Measurements and Performance Standards. KDB 971168 D01 Power Meas License Digital Systems v02r01 Measurement Guidance for Certification of Licensed Digital Transmitters Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 2 of this test report are below limits specified in the relevant standards. General Judgment: Pass Comment The test result only responds to the measured sample. Approved by Kai Xu Director Revised by Lingling Kang RF Manager Performed by Peng Tao RF Engineer TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1505-0074RF01R2 Page 3of 18 TABLE OF CONTENT 1. General Information ..................................................................................................................... 4 1.1. Notes of the test report ......................................................................................................... 4 1.2. Testing laboratory ................................................................................................................. 5 1.3. Applicant Information ............................................................................................................ 5 1.4. Manufacturer Information ...................................................................................................... 5 1.5. Information of EUT ................................................................................................................ 6 1.6. Test Date .............................................................................................................................. 7 2. Test Information ........................................................................................................................... 8 2.1. Summary of test results ........................................................................................................ 8 2.2. Effective Radiated Power ...................................................................................................... 9 2.3. Radiates Spurious Emission ............................................................................................... 12 3. Main Test Instruments ................................................................................................................ 16 ANNEX A: EUT Appearance and Test Setup ..................................................................................... 17 A.1 EUT Appearance ................................................................................................................ 17 A.2 Test Setup ........................................................................................................................... 18 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1505-0074RF01R2 Page 4of 18 1. General Information 1.1. Notes of the test report TA Technology (Shanghai) Co., Ltd. has obtained the accreditation of China National Accreditation Service for Conformity Assessment (CNAS), and accreditation number: L2264. TA Technology (Shanghai) Co., Ltd. has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. The site recognition number is 428261. TA Technology (Shanghai) Co., Ltd. has been listed by industry Canada to perform electromagnetic emission measurement. The site recognition number is 8510A. TA Technology (Shanghai) Co., Ltd. guarantees the reliability of the data presented in this test report, which is the results of measurements and tests performed for the items under test on the date and under the conditions stated in this test report and is based on the knowledge and technical facilities available at TA Technology (Shanghai) Co., Ltd. at the time of execution of the test. TA Technology (Shanghai) Co., Ltd. is liable to the client for the maintenance by its personnel of the confidentiality of all information related to the items under test and the results of the test. The sample under test was selected by the Client. This report only refers to the item that has undergone the test. The test results in this test report relate only to the devices specified in this report.This report shall not be reproduced except in full without the written approval of TA Technology (Shanghai) Co., Ltd. If the electronic report is inconsistent with the printed one, it should be subject to the latter. TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1505-0074RF01R2 Page 5of 18 1.2. Testing laboratory Company: TA Technology (Shanghai) Co., Ltd. Address: No.145, Jintang Rd, Tangzhen Industry Park, Pudong City: Shanghai Post code: 201201 Country: P. R. China Contact: Xu Kai Telephone: +86-021-50791141/2/3 Fax: +86-021-50791141/2/3-8000 Website: http://www.ta-shanghai.com E-mail: [email protected] 1.3. Applicant Information Company: ZTE CORPORATION Address: ZTE Plaza, Keji Road South, Shenzhen, China 1.4. Manufacturer Information Company: ZTE CORPORATION Address: ZTE Plaza, Keji Road South, Shenzhen, China TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1505-0074RF01R2 Page 6of 18 1.5. Information of EUT General information Product Name: GSM Wireless Phone Product IMEI: / Hardware Version: WP659+ REV: V/1 Software Version: QX_XX_WP659+X.X.XBXX Antenn…

Text truncated - open the document above for the full version.

Report No.: RXA1505-0074RF02R2 Page 1of 17 TESTING No. L2264 Part 24 TEST REPORT Product Name GSM Wireless Phone Model Name ZTE WP659+/ ZTE WP659PLUS Brand Name ZTE FCC ID SRQ-ZTEWP659PLUS Applicant ZTE CORPORATION Manufacturer ZTE CORPORATION Date of issue May 19, 2015 TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1505-0074RF02R2 Page 2of 17 GENERAL SUMMARY Reference Standard(s) FCC CFR47 Part 2 (2013) Frequency Allocations And Radio Treaty Matters; General Rules And Regulations FCC CFR47 Part 24E (2013) Personal Communications Services ANSI/TIA-603-C(2004) Land mobile FM or PM Communications Equipment Measurements and Performance Standards. KDB 971168 D01 Power Meas License Digital Systems v02r01 Measurement Guidance for Certification of Licensed Digital Transmitters Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 2 of this test report are below limits specified in the relevant standards. General Judgment: Pass Comment The test result only responds to the measured sample. Approved by Kai Xu Director Revised by Lingling Kang RF Manager Performed by Peng Tao RF Engineer TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1505-0074RF02R2 Page 3of 17 TABLE OF CONTENT 1. General Information ..................................................................................................................... 4 1.1. Notes of the test report ......................................................................................................... 4 1.2. Testing laboratory ................................................................................................................. 5 1.3. Applicant Information ............................................................................................................ 5 1.4. Manufacturer Information ...................................................................................................... 5 1.5. Information of EUT ................................................................................................................ 6 1.6. Test Date .............................................................................................................................. 7 2. Test Information ........................................................................................................................... 8 2.1. Summary of test results ........................................................................................................ 8 2.2. Effective Isotropic Radiated Power ....................................................................................... 9 2.3. Radiates Spurious Emission ............................................................................................... 11 3. Main Test Instruments ................................................................................................................ 15 ANNEX A: EUT Appearance and Test Setup ..................................................................................... 16 A.1 EUT Appearance ................................................................................................................ 16 A.2 Test Setup ........................................................................................................................... 17 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1505-0074RF02R2 Page 4of 17 1. General Information 1.1. Notes of the test report TA Technology (Shanghai) Co., Ltd. has obtained the accreditation of China National Accreditation Service for Conformity Assessment (CNAS), and accreditation number: L2264. TA Technology (Shanghai) Co., Ltd. has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. The site recognition number is 428261. TA Technology (Shanghai) Co., Ltd. has been listed by industry Canada to perform electromagnetic emission measurement. The site recognition number is 8510A. TA Technology (Shanghai) Co., Ltd. guarantees the reliability of the data presented in this test report, which is the results of measurements and tests performed for the items under test on the date and under the conditions stated in this test report and is based on the knowledge and technical facilities available at TA Technology (Shanghai) Co., Ltd. at the time of execution of the test. TA Technology (Shanghai) Co., Ltd. is liable to the client for the maintenance by its personnel of the confidentiality of all information related to the items under test and the results of the test. The sample under test was selected by the Client. This report only refers to the item that has undergone the test. The test results in this test report relate only to the devices specified in this report.This report shall not be reproduced except in full without the written approval of TA Technology (Shanghai) Co., Ltd. If the electronic report is inconsistent with the printed one, it should be subject to the latter. TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1505-0074RF02R2 Page 5of 17 1.2. Testing laboratory Company: TA Technology (Shanghai) Co., Ltd. Address: No.145, Jintang Rd, Tangzhen Industry Park, Pudong City: Shanghai Post code: 201201 Country: P. R. China Contact: Xu Kai Telephone: +86-021-50791141/2/3 Fax: +86-021-50791141/2/3-8000 Website: http://www.ta-shanghai.com E-mail: [email protected] 1.3. Applicant Information Company: ZTE CORPORATION Address: ZTE Plaza, Keji Road South, Shenzhen, China 1.4. Manufacturer Information Company: ZTE CORPORATION Address: ZTE Plaza, Keji Road South, Shenzhen, China TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1505-0074RF02R2 Page 6of 17 1.5. Information of EUT General information Product Name: GSM Wireless Phone Product IMEI: / Hardware Version: WP659+ REV: V/1 Software Version: QX_XX_WP659+X.X.XBXX Antenna Ty…

Text truncated - open the document above for the full version.

No.I14N01244-2G Page 1 of 56 ©Copyright. All rights reserved by TMC Beijing. TEST REPORT No. I14N01244-2G for ZTE CORPORATION GSM Wireless Phone Model Name: ZTE WP659+ Marketing Name: ZTE FCC ID: SRQ-ZTEWP659 with Hardware Version: WP659+ REV ：V/1 Software Version: QX_XX_WP659+X.X.XBXX Issued Date: 2014-1 1-12 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Shenzhen. Test Laboratory: FCC 2.948 Listed: No.310359 IC O.A.T.S listed: No.6629C-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191 Te l : +86(0)10-62304633-2678, Fax: +86(0)10-62304633-2504 Email:[email protected]. www.emcite.com No. I14N01244-2G Page 2 of 56 ©Copyright. All rights reserved by TMC Beijing. CONTENTS 1. TEST LABORATORY ......................................................................................................................... 3 1.1. TESTING LOCATION .................................................................................................................... 3 1.2. TESTING ENVIRONMENT ........................................................................................................... 3 1.3. PROJECT DATA .............................................................................................................................. 3 1.4. SIGNATURE ..................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. APPLICANT INFORMATION ....................................................................................................... 4 2.2. MANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. ABOUT EUT ..................................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ....................................... 5 3.4. NORMAL ACCESSORY SETTING ............................................................................................... 5 3.5. GENERAL DESCRIPTION ............................................................................................................ 6 4. REFERENCE DOCUMENTS ............................................................................................................. 7 4.1. REFERENCE DOCUMENTS FOR TESTING ............................................................................. 7 5. LABORATORY ENVIRONMENT ..................................................................................................... 8 6. SUMMARY OF TEST RESULT S ....................................................................................................... 9 7. TEST EQUIPMENTS UTILIZED .................................................................................................... 10 ANNEX A: MEASUREMENT RESULTS ................................................................................................. 11 A.1 OUTPUT POWER ............................................................................................................................11 A.2 EMISSION LIMIT ........................................................................................................................... 15 A.3 CONDUCTED EMISSION ............................................................................................................. 21 A.4 FREQUENCY STABILITY ............................................................................................................ 24 A.5 OCCUPIED BANDWIDTH ............................................................................................................ 26 A.6 EMISSION BANDWIDTH ..................…
