SRQ-ZTEZ2316Mobile Phone

1 User Manual No part of this publication may be quoted, reproduced, translated or used in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of. The Company reserves the right to make modifications on print errors or update specifications in this guide without prior notice. Content 1.General Information ................................................................................................................................... 3 1.1 Profile and Safety Precaution ...........................................................................................................................3 1.2 Safety warning and Attentions .........................................................................................................................3 2. Your phone .................................................................................................................................................. 4 2.1Phone overview .................................................................................................................................................4 2.2Functions of Keys ..............................................................................................................................................5 2.3Functions of icons ..............................................................................................................................................5 3.Getting started ............................................................................................................................................ 5 3.1Installing the SIM Card and the Battery ............................................................................................................5 3.2Charging the Battery ..........................................................................................................................................6 3.3Linking to the Networks and devices ................................................................................................................6 3.4Using the touch screen .......................................................................................................................................7 3.5Using the onscreen keypad ................................................................................................................................8 3.6Dialing Calls ......................................................................................................................................................8 4.Using the Menus ......................................................................................................................................... 9 4.1Browser ..............................................................................................................................................................9 4.2Calculator.........................................................................................................................................................10 4.3Calendar ...........................................................................................................................................................10 4.4Camera ............................................................................................................................................................. 11 4.5Clock ................................................................................................................................................................ 11 4.6Downloads ....................................................................................................................................................... 11 4.7Email ................................................................................................................................................................ 11 4.8File Explorer ....................................................................................................................................................12 4.9FlashLight ........................................................................................................................................................12 4.10FM Radio .......................................................................................................................................................12 4.11Gallery ...........................................................................................................................................................12 4.12Gmail .............................................................................................................................................................12 2 4.13Google ...........................................................................................................................................................12 4.14Google Settings ..............................................................................................................................................12 4.15History ...........................................................................................................................................................12 You can see the recent call records .......................................................................................................................12 4.16Maps ..............................................................................................................................................................12 4.17Messages ........................................................................................................................................................12 4.18Play Music .....................................................................................................................................................13 4.19People ..........…

Text truncated - open the document above for the full version.

ZTE Corporation Agent Authorization Company: ZTE Corporation Address: ZTE Plaza, Keji Road South, Shenzhen, China Product Name: Mobile Phone Model Number(s): ZTE Z2316 Product Description: Mobile Phone We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020/03/28 Name: Yu Gong Title: Certification Manager Company: ZTE Corporation

ZTE Corporation Authorization Letter We, (the approval holder) Company name ZTE Corporation Addresss ZTE Plaza, Keji Road South, Shenzhen, China declare that the following representative (agent): Name (person) Bovey Yang Company name Shenzhen STS Test Services Co., Ltd. Addresss 1/F., Building B, Zhuoke Science Park, No.190, Chongqing Road, Fuyong Street, Bao’an District, Shenzhen, Guangdong,China City Shenzhen Country China to act on our behalf on all matters concerning the application and documents submitted to Micom Labs for product certification below Product Description Mobile Phone Type or Model(s) ZTE Z2316 Tradename or Brand(s) ZTE Attestation: City: Date: Name: (this must be a person) Function: Signature: (or official company stamp) China 2020/03/28 Yu Gong Certification Manager

ZTE Corporation Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020/03/28 Subject; Request for Confidentiality FCC ID: SRQ-ZTEZ2316 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. ZTE Corporation OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Yu Gong Title: Certification Manager

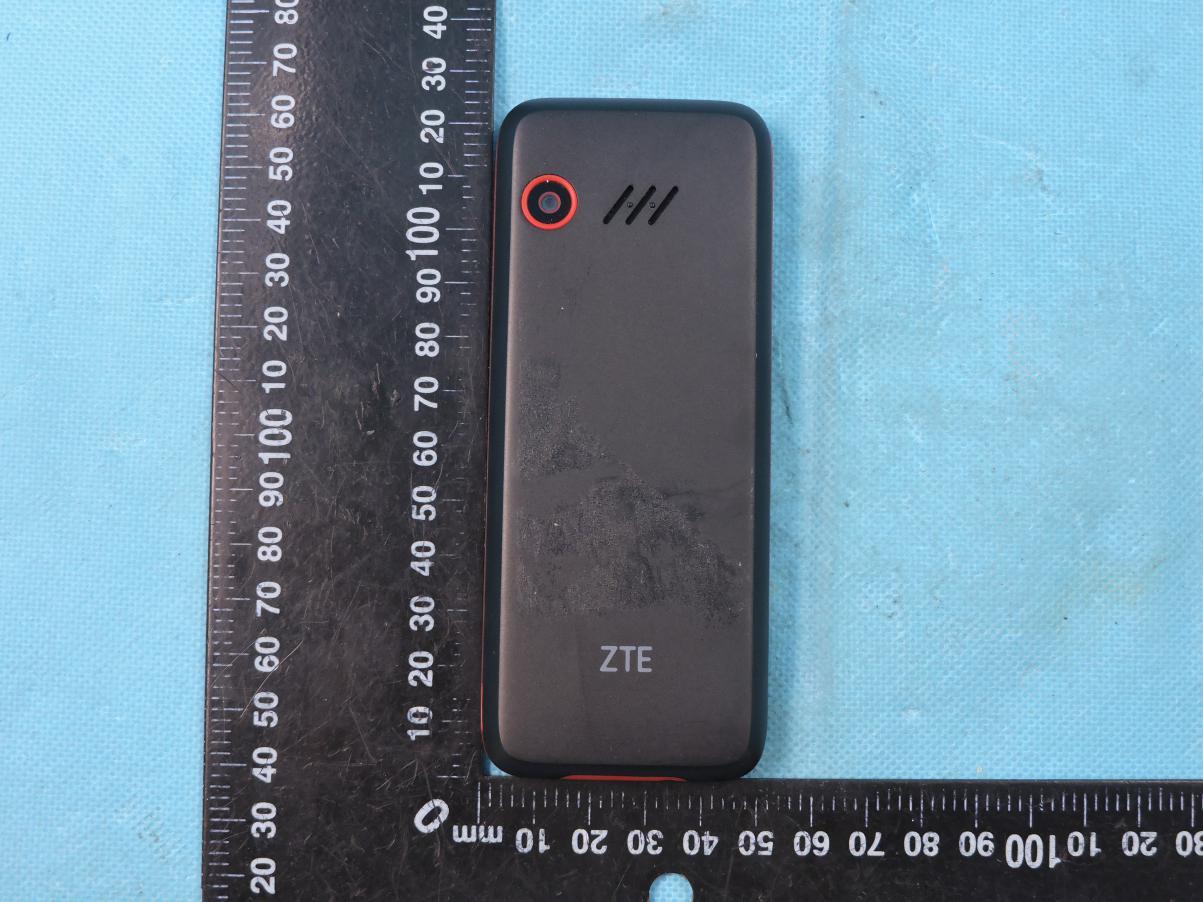

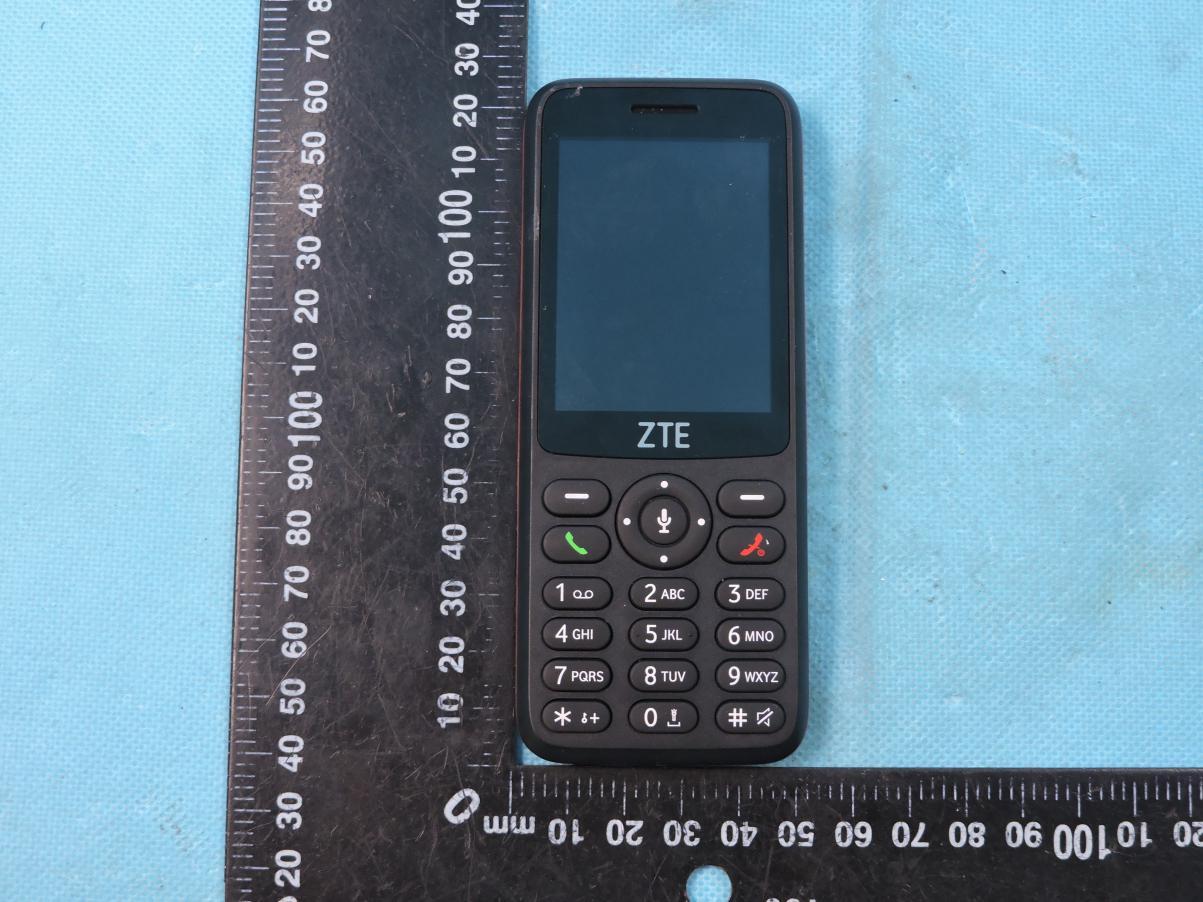

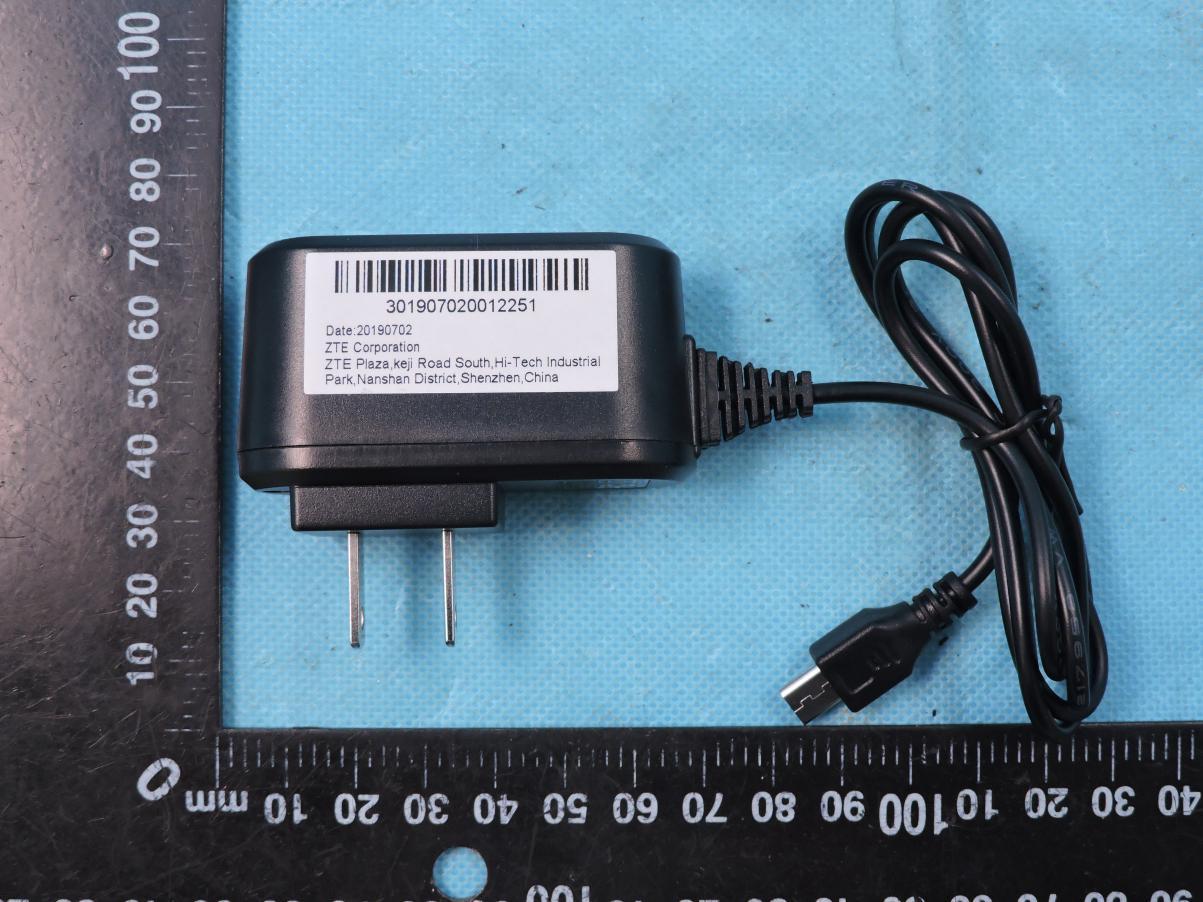

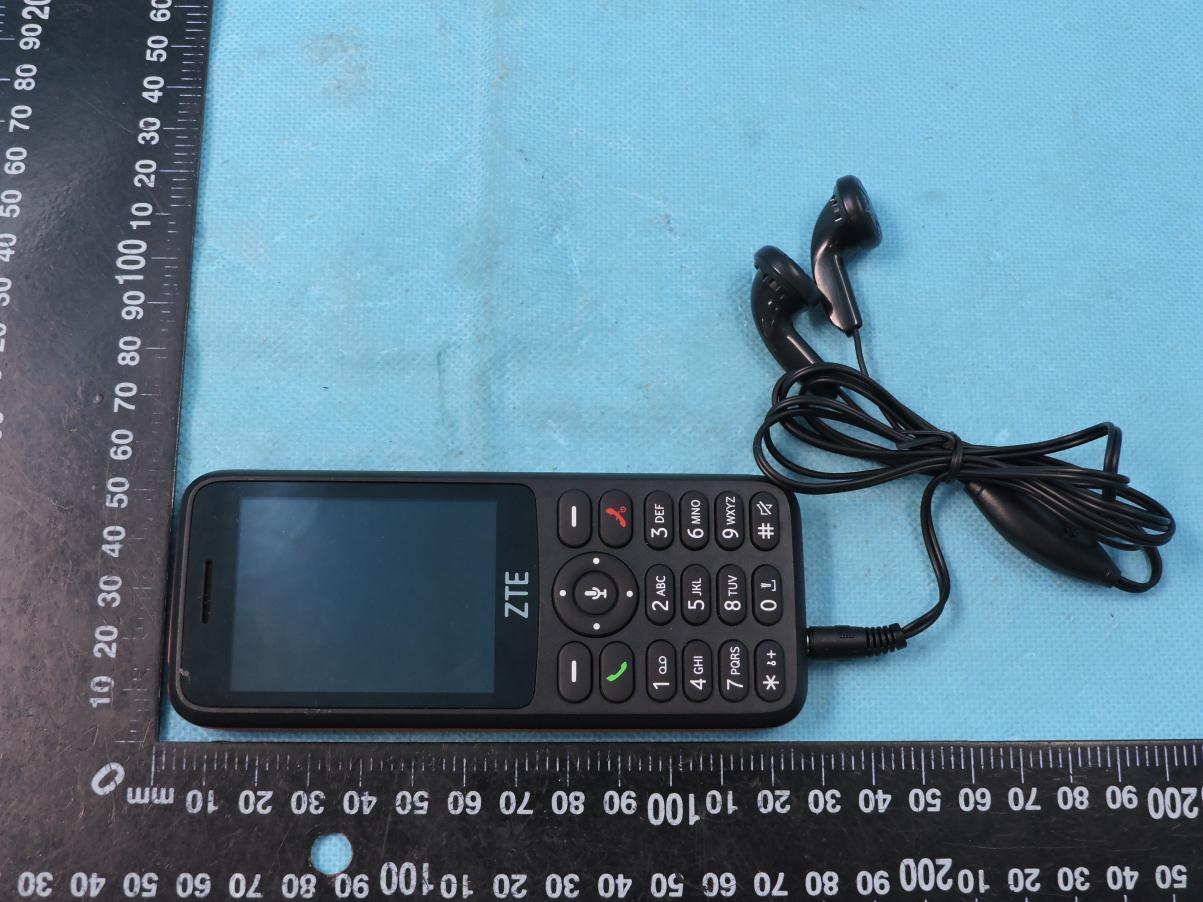

Page 1 of 6 Report No.: STS2002187 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Page 2 of 6 Report No.: STS2002187 Photo 3 Photo 4 Page 3 of 6 Report No.: STS2002187 Photo 5 Photo 6 Page 4 of 6 Report No.: STS2002187 Photo 7 Photo 8 FM Antenna Page 5 of 6 Report No.: STS2002187 Photo 9 Photo 10 Page 6 of 6 Report No.: STS2002187 Photo 11

FCC Label Mobile Phone Model name: ZTE Z2316 FCC ID: SRQ-ZTEZ2316 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. L:20MM W:15MM

Page 1 of 6 Report No.: STS2002187 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 LTE RX Antenna BT/WIFI/GPS Antenna GSM/WCDMA/LTE Antenna Page 2 of 6 Report No.: STS2002187 Photo 3 Photo 4 Page 3 of 6 Report No.: STS2002187 Photo 5 Photo 6 Page 4 of 6 Report No.: STS2002187 Photo 7 Photo 8 Page 5 of 6 Report No.: STS2002187 Photo 9 Photo 10 Page 6 of 6 Report No.: STS2002187 Photo 11 Photo 12

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] FCC Part 15B TEST REPORT Report No.: STS2002187E01 Issued for ZTE Corporation ZTE Plaza, Keji Road South, Shenzhen, China Product Name: Mobile Phone Brand Name: ZTE Model Name: ZTE Z2316 Series Model: N/A FCC ID: SRQ-ZTEZ2316 Test Standard: FCC 47 CFR Part 15: Subpart B S T L A B S Page 2 of 25 Report No.: STS2002187E01 TEST RESULT CERTIFICATION Applicant’s Name .................: ZTE Corporation Address ..................................: ZTE Plaza, Keji Road South, Shenzhen, China Manufacture's Name ............: ZTE Corporation Address ..................................: ZTE Plaza, Keji Road South, Shenzhen, China Product Description .............: Product Name ........................: Mobile Phone Brand Name ...........................: ZTE Model Name .........................: ZTE Z2316 Series Model ........................: N/A Standards..............................: FCC 47 CFR Part 15: Subpart B Test Procedure.....................: ANSI C63.4-2014 This device described above has been tested by STS, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test .......................................... : Date of Performance of Tests ............... : 27 Feb. 2020~02 Mar. 2020 Date of Issue ........................................ : 03 Mar. 2020 Test Result ........................................... : Pass Compiled by : (Mickey Deng) Technical Manager : (Chopin Xiao) Authorized Signatory : (Vita Li) Page 3 of 25 Report No.: STS2002187E01 Table of Contents 1. SUMMARY OF THE TEST RESULTS 5 1.1 TEST FACTORY 5 1.2 MEASUREMENT UNCERTAINTY 5 2. GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF THE EUT 6 2.2 DESCRIPTION OF THE TEST MODES 8 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF THE SYSTEM TESTED9 2.4 DESCRIPTION OF THE SUPPORT UNITS 10 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 11 3. EMC EMISSION TEST 12 3.1 CONDUCTED EMISSION MEASUREMENT 12 3.2 RADIATED EMISSION MEASUREMENT 16 Page 4 of 25 Report No.: STS2002187E01 Revision History Rev. Issue Date Report No. Effect Page Contents 00 03 Mar. 2020 STS2002187E01 ALL Initial Issue Page 5 of 25 Report No.: STS2002187E01 1. SUMMARY OF THE TEST RESULTS Test procedures according to the technical standards: EMISSION Standard Item Result Remarks FCC 47 CFR Part 15 Subpart B Conducted Emission PASS Meet Class B limit Radiated Emission PASS Meet Class B limit NOTE: (1) “ N/A” denotes test is not applicable in this Test Report 1.1 TEST FACTORY Company Name: SHENZHEN STS TEST SERVICES CO.,LTD. Address: A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District,Bao’an District, Shenzhen, Guang Dong, China Telephone: +86-755 3688 6288 Fax: +86-755 3688 6277 Registration No.: FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission (9KHz-150KHz) ±3.37dB 2 Conducted Emission (150KHz-30MHz) ±3.83dB 3 All emissions,radiated(<1G) 30MHz-1000MHz ±5.6dB 4 All emissions,radiated(>1G) 1GHz-6GHz ±5.5dB 5 All emissions,radiated(>1G) 6GHz-18GHz ±5.8dB Page 6 of 25 Report No.: STS2002187E01 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name Mobile Phone Brand Name ZTE Model Name ZTE Z2316 Series Model N/A Product Differences N/A Test Sample Number 2002046-1X Frequency Bands GSM 850:824.2~848.8MHz 1900:1850.2~1909.8MHz WCDMA Band II: 1852.4~1907.6MHz Band V:826.4~846.6MHz Band IV: 1712.4~1752.6MHz LTE Band 2: 1850.7~1909.3MHz Band 4: 1710.7~1754.3MHz Band 5: 824.7~848.3MHz Band 7: 2502.5~2567.5MHz WLAN 802 11b/g/n(HT20):2412~2462MHz Bluetooth 2402~ 2480MHz GPS 1575.42MHz FM 87.5~108MHz Modulation Mode GSM GMSK for GSM/GPRS; GMSK and 8PSK for EDGE WCDMA QPSK; HSDPA:QPSK/16QAM; HSUPA:BPSK LTE QPSK,16QAM WLAN 802.11b(DSSS):CCK,DQPSK,DBPSK 802.11g(OFDM):BPSK,QPSK,16-QAM,64-QAM 802.11n(OFDM):BPSK,QPSK,16-QAM,64-QAM Bluetooth BT(1Mbps): GFSK BT EDR(2Mbps): π/4-DQPSK BT EDR(3Mbps): 8DPSK BLE GFSK GPS BPSK FM FM Page 7 of 25 Report No.: STS2002187E01 Power Source 1. Model: TPA－97050050U01 Input: AC 100-240V,50/60Hz 0.15A Output: DC 5V500mA 2. Model: 50.069EX03 Input: AC 100-240V,50/60Hz 0.2A Output: DC 5V500mA Battery Rated Voltage: 3.7V Charge Limit: 4.2V Capacity: 1400mAh Hardware Version Number S82M020 Software Version Number CO-CLARO-S-P920F50V1.0.0B03T Note: For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 8 of 25 Report No.: STS2002187E01 2.2 DESCRIPTION OF THE TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Pretest Mode Description Mode 1 GSM850 Link + Adapter + USB cable + Earphone + BT Link + GPS Rx Mode 2 PCS19…

Text truncated - open the document above for the full version.

ZTE Z2316 _JBP Setup photo Radiated Measurement Photos 30MHz- 1GHz Above 1GHz Conducted Measurement Photos
