SRQ-ZTEZ23173G Smart Feature Phone

1 Mobile Appearance picture Manufacturer: ZTE Corporation Model：Z2317 2 Table of Contents Moblie Appearance picture ................................. 1 1. Quick start ............................... 6 Install SIM card .......................... Install T-flash card ................................................. 7 Installing Battery ................................................... 8 Battery Charging ................................................... 9 Battery Safety ....................................................... 9 E-waste/Recycle your phone ................................. 9 Care and Maintenance ........................................ 10 2. Menu functions ...................... 12 Contacts ............................................................. 12 Message ............................................................. 12 Call log................................................................ 12 Camera ............................................................... 12 Gallery ................................................................ 13 FM Radio ............................................................ 13 Music .................................................................. 13 File manager ....................................................... 13 Bluetooth ............................................................ 13 STK .................................................................... 14 Calendar ............................................................. 14 Alarm .................................................................. 14 Calculator ........................................................... 14 Settings............................................................... 15 Browser .............................................................. 15 3. Accessories ........................... 17 4. FCC Regulations ................... 18 5. SAR ........................................ 20 3 6. Technical Specifications ....... 21 4 Foreword Honorific mobile phones user, thank you for choosing our mobile phone! Our cellular phones is according with the communication industry standards of PRC, and also according with the standards of European, and are approved for GSM networks. Your phone may be used internationally with various networks depending on your roaming arrangements with your service provider. To use this phone you must subscribe to a GSM service from a provider. We have included many features in this device but their function depends on the features available with your subscribed wireless network. Please contact your service provider for more information. We strongly recommend you carefully read and understand this manual before using your phone in order to keep it under best conditions for your effective usage and utmost satisfaction. Safety Never attempt to disassemble your phone. You alone are responsible for how you use your phone and any consequences of its use. As a general rule, always switch off your phone wherever the use of a phone is prohibited. Use of your phone is subject to safety measures designed to protect users and their environment. Do not use your phone in damp areas (bathroom, swimming pool...). Protect it from liquids and other moisture. Do not expose your phone to extreme temperatures lower than - 10°C and higher than + 55°C. Please note that the ambient temperature range for normal charging of mobile phones is 0 °C ~ 45 °C. Do not charge at an ambient temperature below 0 ° C or above 45 ° C, as this will result in reduced battery performance and reduced life. Charging for too long at too high or too low ambient 5 temperatures can damage unfilled or swelled batteries, and there is a risk of battery explosion The physicochemical processes created by chargers impose temperature limits when charging the battery. Your phone automatically protects the batteries in extreme temperatures. Do not leave your phone within the reach of small children (certain removable parts may be accidentally ingested). Electrical safety Only use the chargers listed in the manufacturer’s catalogue. Using any other charger may be dangerous; it would also invalidate your warranty. Line voltage must be exactly the one indicated on the charger’s serial plate. Aircraft safety When traveling by plane, you will need to switch your phone off when so instructed by the cabin crew or the warning signs. Using a mobile phone may be dangerous to the operation of the aircraft and may disrupt the phone network. Its use is illegal and you could be prosecuted or banned from using cellular networks in the future if you do not abide by these regulations. Explosive materials Please comply with warning signs at petrol station when personnel asking you to switch your phone off. You will need to comply with radio equipment usage restrictions in places such as chemical plants, fuel depots and at any location where blasting operations are under way. Electronic equipment To avoid the risk of demagnetization, do not let electronic devices close to your phone for a long time. Electronic medical equipment Your phone is a radio transmitter which may interfere with electronic medical equipment or implants, such as hearing aids, pacemakers, insulin pumps, etc. It is recommended that a minimum separation of 10mm be maintained between the phone and an implant. Your doctor or the manufacturers of such equipment will be able to give you any advice you may need in 6 this area. Hospitals Always make sure that your phone is switched off in hospitals when so instructed by warning signs or by medical staff. Road safety Do not use your phone when driving. In order to give your full attention to driving, stop and park safely before making a call. You must comply with any current legislation. Distance of operation This phone model has been tested and meets radiofrequency exposure guidelines when used As follows: ·Against the ear: place or receive a phone call and hold the phone as you wo…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 6.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (obsolete) 4.0 5.0 Sep-16-2014 Updated company name & logo (current) 5.0 6.0 Jun-27-2018 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 6.0 ZTE Corporation (2020/3/19) To: BVCPS, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, ZTE Corporation hereby authorize Bureau Veritas Consumer Product Services, Inc. to act as a Certification Body for certifying for the following project(s): FCC ID: SRQ-ZTEZ2317 Product Description: 3G Smart Feature Phone Model: Z2317 We affirm that between Bureau Veritas Consumer Product Services, Inc. and ____ (ZTE Corporation) ___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature: Client’s name / title: Yu Gong Contact information / address : ZTE Plaza, Keji Road South

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 6.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526- 1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (obsolete) 3.0 4.0 March-26-2015 Corrections to STC form. Added reference to KDB (obsolete) 4.0 5.0 Nov-19-2015 Updated company logo (current) 5.0 6.0 Jun-26-2019 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 6.0 (ZTE Corporation) (2020/3/19) To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: SRQ-ZTEZ2317 Pursuant to sections 0.457 and 0.459 of CFR 47, we respectfully request permanent confidential treatment of the following Exhibits accompanying this application as: - Block Diagram - Schematics - Operational Description - Bom The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature: Client’s name / title: Yu Gong Contact information / address : ZTE Plaza, Keji Road South - Tune up procedure

SCS-F190WiFi Channel 12&13 Declaration Letter Page 1 of 2 Rev.2.0 Created by William Graff Approved by Bao-Thuong Nguyen WIFI Channel 12 and 13 Declaration Letter Reason for Amendment Revision History Approved Date From To Initial Release (obsolete) Initial 1.0 December 22, 2015 Modify the select options (current) 1.0 2.0 September 23, 2016 SCS-F190WiFi Channel 12&13 Declaration Letter Page 2 of 2 Rev.2.0 Created by William Graff Approved by Bao-Thuong Nguyen ZTE Corporation WIFI Channel 12 and 13 Declaration Letter We declare the equipment identified below with regards to Channel 12 and 13 capabilities for FCC ID: SRQ-ZTEZ2317 Declaration Product hardware does not have the capability to operate on Channel 12 and 13. Product hardware has the capability to operate on Channel 12 and 13. However, these two channels will be disabled via software and will not be accessible to user. Product hardware has the capability to operate on Channel 12 and 13. However,all the operated channels can’t be changed in the RF parameter via software. All channels have complied with all of the requirements sets out in FCC Part 15.247. Product hardware has the capability to operate on WiFi Channel 12 and 13, and meets the requirements of KDB 594280 D01 v02r01. Please note: 1.) By default, this device operates in a mode that is compliant with the U.S. requirements. 2.) This device will also use supplemental information such as geo-location data to determine that it is operating outside the U.S., if necessary, to change its power. Such supplemental data will be derived from the following: Global Navigation Satellite System (GNSS)7 sensors in the device Mobile Country Code (MCC),8 or MCC with a Mobile Network code (MNC), received from a CMRS9 carrier and received directly by a receiver on the device Country information derived from multiple adjacent access points (for example using IEEE Std 802.11d provisions) may be permitted on case-by-case basis Other suitable geo-location data based on IP addresses or other reliable source. Name / Title: Name / title : Yu Gong Signature: Telephone: +86 21-68895397 Fax No.: +86 21-50801070 Date:2020-03-19

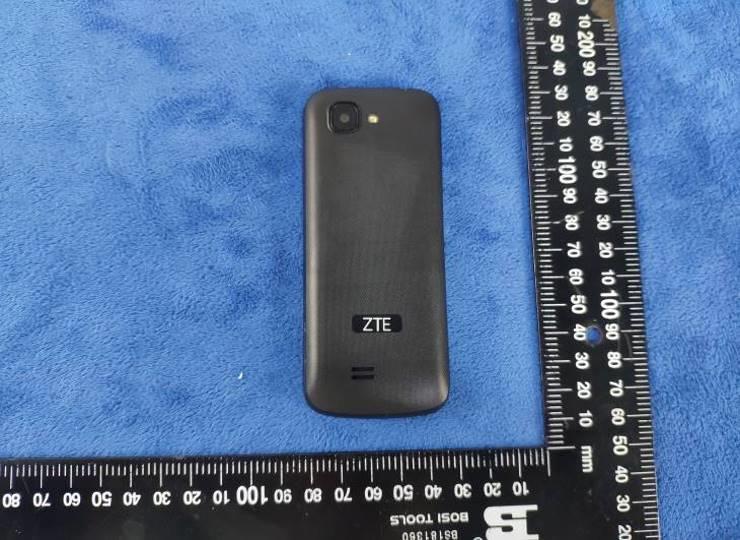

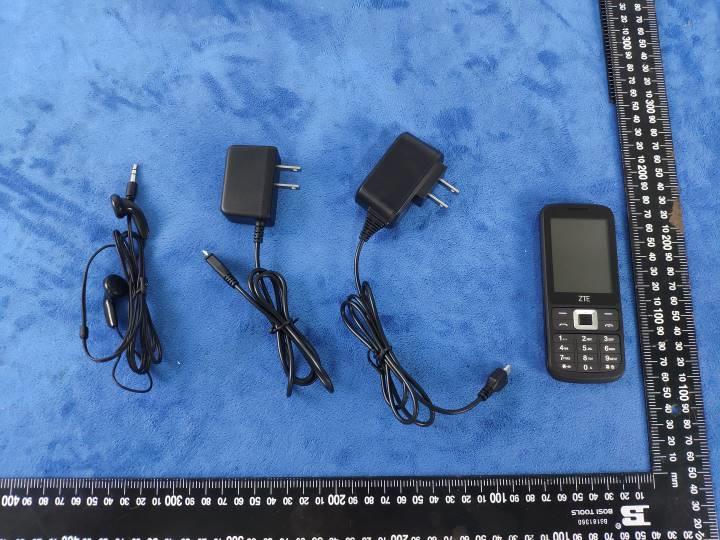

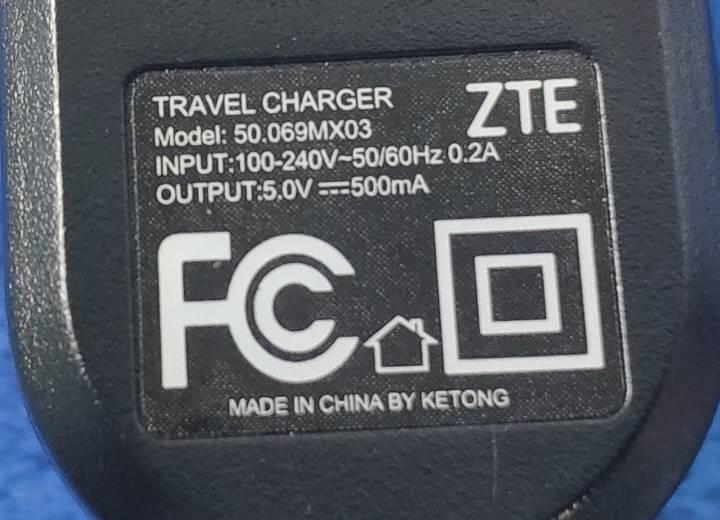

Test Report No. Q200102S012 Page 1 of 6 Photographs OF THE EUT EUT External Photo Whole Package View Test Report No. Q200102S012 Page 2 of 6 EUT - Front View EUT - Rear View Test Report No. Q200102S012 Page 3 of 6 EUT - Top View EUT - Bottom View Test Report No. Q200102S012 Page 4 of 6 EUT - Right View EUT - Left View Test Report No. Q200102S012 Page 5 of 6 Adapter1 View1 Adapter1 View2 Test Report No. Q200102S012 Page 6 of 6 Adapter2 View

Pallet label: Delivery Date/Time: DD.MM.YYYY QTY:XX Weight: xxxkg EAN: X XXXXXX XXXXXX Pallet ID:XXX XX/XXX Sale box label ZTE Z2317 Made in China by ZTE Corporation QTY: XX X XXXXXX XXXXXX EAN ZTE Z2317 IMEI1:XXXXXXXXXXXXXXX IMEI1:XXXXXXXXXXXXXXX IMEI1:XXXXXXXXXXXXXXX IMEI1:XXXXXXXXXXXXXXX IMEI1:XXXXXXXXXXXXXXX IMEI1:XXXXXXXXXXXXXXX IMEI2:XXXXXXXXXXXXXXX IMEI2:XXXXXXXXXXXXXXX IMEI2:XXXXXXXXXXXXXXX IMEI2:XXXXXXXXXXXXXXX IMEI2:XXXXXXXXXXXXXXX IMEI2:XXXXXXXXXXXXXXX XXXX Black CODE: XXXXXXXXXXXX CODE: XXXXXXXXXXXX XXXXXXXXXXXX SAP CODE: IMEI1:XXXXXXXXXXXXXXX EAN: X XXXXXX XXXXXX Model: ZTE Z2317 S/N:XXXXXXXXXXXXXXX :60*35mm Made in China by ZTE Corporation IMEI2:XXXXXXXXXXXXXXX IMEI:XXXXXXXXXXXXXXX IMEI:XXXXXXXXXXXXXXX GSM: 850/900/ 1800/1900MHz UMTS: 850/1900/2100MHz IMEI label FCC ID :SRQ-ZTEZ2317 label location

Test Report No. Q200102S012 Page 1 of 7 Photographs OF THE EUT EUT Internal Photo 1 2 Test Report No. Q200102S012 Page 2 of 7 3 4 Test Report No. Q200102S012 Page 3 of 7 5 6 Test Report No. Q200102S012 Page 4 of 7 7 8 Test Report No. Q200102S012 Page 5 of 7 9 10 Test Report No. Q200102S012 Page 6 of 7 11 12 2g&3g Antenna Test Report No. Q200102S012 Page 7 of 7 13 wifi&bt Antenna

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. ShenZhen STS Test Services Co.,Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] FCC SAR TEST REPORT Report No.: STS2002161H01 Issued for ZTE Corporation ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R. China Product Name: 3G Smart Feature Phone Brand Name: ZTE Model Name: Z2317 Series Model: N/A FCC ID: SRQ-ZTEZ2317 Test Standard: ANSI/IEEE Std. C95.1 FCC 47 CFR Part 2 ( 2.1093) IEEE 1528: 2013 Max. Report SAR (1g): Head: 1.315 W/kg Body: 1.348 W/kg S T L A B S Page 2 of 72 Report No.: STS2002161H01 Test Report Certification Applicant’s name ................. : ZTE Corporation Address ................................. : ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R. China Manufacture's Name ............ : ZTE Corporation Address ................................. : ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R. China Product description Product name ........................ : 3G Smart Feature Phone Brand name ......................... : ZTE Model name ......................... : Z2317 Series Model .......................... : N/A Standards ............................. : ANSI/IEEE Std. C95.1-1992 FCC 47 CFR Part 2 ( 2.1093) IEEE 1528: 2013 The device was tested by Shenzhen STS Test Services Co., Ltd. in accordance with the measurement methods and procedures specified in KDB 865664 The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Date of Test Date (s) of performance of tests ............. : 13 Mar. 2020~18 Mar. 2020 Date of Issue .......................................... : 19 Mar. 2020 Test Result .............................................. : Pass Testing Engineer : ( Aaron Bu) Technical Manager : (Jason Lu) Authorized Signatory : (Vita Li) Page 3 of 72 Report No.: STS2002161H01 Table of Contents 1.General Information 5 1.1 EUT Description 5 1.2 Test Environment 6 1.3 Test Factory 6 2.Test Standards And Limits 7 3. SAR Measurement System 8 3.1 Definition of Specific Absorption Rate (SAR) 8 3.2 SAR System 8 4. Tissue Simulating Liquids 11 4.1 Simulating Liquids Parameter Check 11 5. SAR System Validation 13 5.1 Validation System 13 5.2 Validation Result 13 6. SAR Evaluation Procedures 14 7. EUT Antenna Location Sketch 15 7.1 SAR test exclusion consider table 16 8. EUT Test Position 17 8.1 Define Two Imaginary Lines On The Handset 17 8.2 Hotspot mode exposure position condition 18 9. Uncertainty 19 9.1 Measurement Uncertainty 19 9.2 System validation Uncertainty 20 10. Conducted Power Measurement 21 10.1 Test Result 21 10.2 Tune-up Power 24 10.3 SAR Test Exclusions Applied 25 11. EUT And Test Setup Photo 26 11.1 EUT Photo 26 11.2 Setup Photo 29 12. SAR Result Summary 35 12.1 Head SAR 35 12.2 Body-worn and Hotspot SAR 37 12.3 repeated SAR measurement 40 13. Equipment List 43 Appendix A. System Validation Plots 44 Appendix B. SAR Test Plots 60 Appendix C. Probe Calibration And Dipole Calibration Report 72 Page 4 of 72 Report No.: STS2002161H01 Revision History Rev. Issue Date Report No. Effect Page Contents 00 19 Mar. 2020 STS2002161H01 ALL Initial Issue Note: Format version of the report - V01 Page 5 of 72 Report No.: STS2002161H01 1. General Information Environmental evaluation measurements of specific absorption rate (SAR) distributions in emulated human head and body tissues exposed to radio frequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 1.1 EUT Description Product Name 3G Smart Feature Phone Brand Name ZTE Model Name Z2317 Series Model N/A FCC ID SRQ-ZTEZ2317 Model Difference N/A Battery Rated Voltage: 3.7V Charge Limit: 4.2V Capacity: 1000mAh Device Category Portable Product stage Production unit RF Exposure Environment General Population / Uncontrolled IMEI 867669040003067 Hardware Version V00 Software Version V01 Frequency Range GSM 850: 824.2~848.8MHz PCS1900: 1850.2~1909.8MHz WCDMA Band II: 1852.4~1907.6MHz WCDMA Band IV:1712.4~1752.6 MHz WCDMA Band V: 826.4~846.6MHz WLAN 802.11b/g/n(HT20/40): 2412~2462MHz Bluetooth: 2402~ 2480MHz Max. Reported SAR(1g): (Limit:1.6W/kg) Band Mode Head (W/kg) Body Worn and Hotspot(W/kg) PCE GSM 850 1.315 1.348 PCE GSM 1900 0.965 0.947 PCE WCDMA Band II 1.122 1.043 PCE WCDMA Band IV 0.806 1.010 PCE WCDMA Band V 0.949 0.946 DTS 2.4GHz WLAN 0.263 0.159 DSS Bluetooth Note 0.265 0.132 1-g Sum SAR 1.578 1.507 FCC Equipment Class Licensed Portable Transmitter Held to Ear (PCE) Part 15 Spread Spectrum Transmitter (DSS) Digital Transmission System (DTS) Operating Mode GSM: GSM Voice; GPRS Class 12 WCDMA: RMC, HSDPA, HSUPA Release 6 WLAN: 802.11 b/g/n(HT20/40) Bluetooth: V4.2 + EDR (GFSK, π/4DQPSK, 8DPSK) BLE Antenna Specification GSM,WCDMA: PIFA Antenna BT,WLAN: PIFA Antenna SIM Card Only support single card Page 6 of 72 Report No.: STS2002161H01 Hotspot Mode Support DTM Mode Not Support Note: 1. Bluetooth SAR was estimated 2. The EUT battery must be fully charged and checked periodically during the test to ascertain uniform power 1.2 Test Environment Ambient conditions in the SAR laboratory: Items Required Temperature (°C) 18-25 Humidity (%RH) 30-70 1.3 Test Factory ShenZhen STS Test Services Co.,Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen…

Text truncated - open the document above for the full version.

Ref : ACR.345.3.19.SATU.A SHENZHEN STS TEST SERVICES CO., LTD. 1/F, BUILDING 2, ZHUOKE SCIENCE PARK, CHONGQING ROAD FUYONG, BAO’ AN DISTRICT, SHENZHEN,CHINA MVG COMOSAR DOSIMETRIC E-FIELD PROBE SERIAL NO.: SN 41/18 EPGO334 Calibrated at MVG US 2105 Barrett Park Dr. - Kennesaw, GA 30144 Calibration Date: 06/04/2019 Summary: This document presents the method and results from an accredited COMOSAR Dosimetric E-Field Probe calibration performed in MVG USA using the CALISAR / CALIBAIR test bench, for use with a COMOSAR system only. All calibration results are traceable to national metrology institutions. COMOSAR E-Field Probe Calibration Report COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.345.3.19.SATU.A Page: 2/10 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. Name Function Date Signature Prepared by : Jérôme LUC Product Manager 12/11/2019 Checked by : Jérôme LUC Product Manager 12/11/2019 Approved by : Kim RUTKOWSKI Quality Manager 12/11/2019 Customer Name Distribution : Shenzhen STS Test Services Co., Ltd. Issue Date Modifications A 12/11/2019 Initial release COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.345.3.19.SATU.A Page: 3/10 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. TABLE OF CONTENTS 1 Device Under Test ..................................................................................................... 4 2 Product Description ................................................................................................... 4 2.1 General Information _______________________________________________________ 4 3 Measurement Method ................................................................................................ 4 3.1 Linearity ________________________________________________________________ 4 3.2 Sensitivity _______________________________________________________________ 5 3.3 Lower Detection Limit _____________________________________________________ 5 3.4 Isotropy _________________________________________________________________ 5 3.5 Boundary Effect __________________________________________________________ 5 4 Measurement Uncertainty .......................................................................................... 5 5 Calibration Measurement Results .............................................................................. 6 5.1 Sensitivity in air __________________________________________________________ 6 5.2 Linearity ________________________________________________________________ 7 5.3 Sensitivity in liquid ________________________________________________________ 7 5.4 Isotropy _________________________________________________________________ 8 6 List of Equipment .................................................................................................... 10 COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.345.3.19.SATU.A Page: 4/10 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 1 DEVICE UNDER TEST Device Under Test Device Type COMOSAR DOSIMETRIC E FIELD PROBE Manufacturer MVG Model SSE2 Serial Number SN 41/18 EPGO334 Product Condition (new / used) New Frequency Range of Probe 0.45 GHz-6GHz Resistance of Three Dipoles at Connector Dipole 1: R1=0.191 M Dipole 2: R2=0.216 M Dipole 3: R3=0.197 M A yearly calibration interval is recommended. 2 PRODUCT DESCRIPTION 2.1 GENERAL INFORMATION MVG’s COMOSAR E field Probes are built in accordance to the IEEE 1528 and CEI/IEC 62209 standards. Figure 1 – MVG COMOSAR Dosimetric E field Dipole Probe Length 330 mm Length of Individual Dipoles 2 mm Maximum external diameter 8 mm Probe Tip External Diameter 2.5 mm Distance between dipoles / probe extremity 1 mm 3 MEASUREMENT METHOD The IEEE 1528 and CEI/IEC 62209 standards provide recommended practices for the probe calibrations, including the performance characteristics of interest and methods by which to assess their affect. All calibrations / measurements performed meet the fore mentioned standards. 3.1 LINEARITY The evaluation of the linearity was done in free space using the waveguide, performing a power sweep to cover the SAR range 0.01W/kg to 100W/kg. COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.345.3.19.SATU.A Page: 5/10 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 3.2 SENSITIVITY The sensitivity factors of the three dipoles were determined using a two step calibration method (air and tissue simulating liquid) using waveguides as outlined in the standards. 3.3 LOWER DETECTION LIMIT The lower detection limit was assessed using the same measurement set up as used for the linearity measurement. The required lower detection limit is 10 mW/kg. 3.4 ISOTROPY The axial isotropy was evaluated by exposing the probe to a reference wave from a standard dipole with the dipole mounted under the flat phantom in the test configuration suggested for system validations and checks. The probe was rotated along its main axis from 0 - 360 degrees in 15 degree steps. The hemispherical isotropy is determined by inserting the probe in a thin plastic box filled with tissue-equivalent liquid, with the plastic box illuminated with the fields from a half wave dipole. The…

Text truncated - open the document above for the full version.

RF TEST REPORT Report No.: Q200102S012-FCC-R2 Supersede Report No.: N/A Applicant ZTE Corporation Product Name 3G Smart Feature Phone Model No. Z2317 Serial No. N/A Test Standard FCC Part 15.247, ANSI C63.10: 2013 Test Date Sep 02 to 09, 2019 Issue Date Jan. 21, 2020 Test Result Pass Fail Equipment complied with the specification Equipment did not comply with the specification Aaron Liang Test Engineer David Huang Checked By This test report may be reproduced in full only Test result presented in this test report is applicable to the tested sample only Issued by: BUREAU VERITAS (SHENZHEN) CONSUMER PRODUCTS SERVICES CO., LTD Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 Phone: +86 0755 2601 4629801 Email: [email protected] Test Report No. Q200102S012-FCC-R2 Page 2 of 54 This page has been left blank intentionally. Test Report No. Q200102S012-FCC-R2 Page 3 of 54 CONTENTS 1. REPORT REVISION HISTORY ............................................................................................................................ 4 2. CUSTOMER INFORMATION ................................................................................................................................ 4 3. TEST SITE INFORMATION ................................................................................................................................... 4 4. EQUIPMENT UNDER TEST (EUT) INFORMATION ......................................................................................... 5 5. TEST SUMMARY .................................................................................................................................................... 7 6. MEASUREMENTS, EXAMINATION AND DERIVED RESULTS ..................................................................... 8 6.1 ANTENNA REQUIREMENT ..................................................................................................................................... 8 6.2 DTS (6 DB&20 DB) CHANNEL BANDWIDTH ....................................................................................................... 9 6.3 MAXIMUM OUTPUT POWER ............................................................................................................................... 16 6.4 POWER SPECTRAL DENSITY ............................................................................................................................. 19 6.5 BAND-EDGE & UNWANTED EMISSIONS INTO RESTRICTED FREQUENCY BANDS ............................ 23 6.6 AC POWER LINE CONDUCTED EMISSIONS ................................................................................................... 29 6.7 RADIATED SPURIOUS EMISSIONS & RESTRICTED BAND ......................................................................... 33 6.8 ON TIME AND DUTY CYCLE ................................................................................................................................ 42 ANNEX A. TEST INSTRUMENT ................................................................................................................................. 47 ANNEX B. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................ 50 ANNEX C. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PARTLIST/ DECLARATION OF SIMILARITY ..................................................................................................................................................................... 54 Test Report No. Q200102S012-FCC-R2 Page 4 of 54 1. Report Revision History Report No. Report Version Description Issue Date Q200102S012-FCC-R2 NONE Original Jan. 21, 2020 2. Customer information Applicant Name ZTE Corporation Applicant Add ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R. China Manufacturer ZTE Corporation Manufacturer Add ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R. China 3. Test site information Lab performing tests BUREAU VERITAS (SHENZHEN) CONSUMER PRODUCTS SERVICES CO., LTD Lab Address Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 FCC Test Site No. 535293 IC Test Site No. 4842E-1 Test Software Radiated Emission Program-To Shenzhen v2.0 Test Report No. Q200102S012-FCC-R2 Page 5 of 54 4. Equipment under Test (EUT) Information Description of EUT: 3G Smart Feature Phone Main Model: Z2317 Serial Model: N/A Date EUT received: Aug 28, 2019 Test Date(s): Sep 02 to 09, 2019 Equipment Category： DTS Antenna Gain: GSM850: -1dBi PCS1900: -1.5dBi UMTS-FDD Band V: -1dBi UMTS-FDD Band II: -1.5dBi WIFI: 0dBi Bluetooth/BLE: 0dBi Antenna Type: PIFA Antenna Type of Modulation: GSM / GPRS: GMSK EGPRS: GMS…

Text truncated - open the document above for the full version.
