ZW20 User Guide LEGAL INFORMATION Thank you for choosing this ZTE mobile device. In order to keep your device in its best condition, please read this manual and keep it for future reference. Copyright Copyright © 2019 ZTE CORPORATION All rights reserved. No part of this publication may be quoted, reproduced, translated or used in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. Notice ZTE Corporation reserves the right to make modifications on print errors or update specifications in this guide without prior notice. This manual has been designed with the utmost care to ensure the accuracy of its content. However, all statements, information, and recommendations contained therein do not constitute a warranty of any kind, either expressed or implied. Please refer to For Your Safety to be sure to use your phone properly and safely. We offer self-service for our smart terminal device users. Please visit the ZTE official website (at http://www.ztedevices.com/) for more information on self-service and supported product models. Information on the website takes precedence. Disclaimer ZTE Corporation expressly disclaims any liability for faults and damages caused by unauthorized modifications of the software. Images and screenshots used in this manual may differ from the actual product. Content in this manual may differ from the actual product or software. Trademarks ZTE and the ZTE logos are trademarks of ZTE Corporation. Other trademarks and trade names are those of their respective owners. Version No.: R1.0 Edition Time: November 18, 2019 About your watch Wrist band Touch screen Speaker Back button Microphone Power button Charging contacts Setting up your watch Charging your watch Before turning on your watch, charge it fully. 1. Align the gold pins on the charging dock with the gold charging contacts on the back of the watch. 2. Plug the other end of the cord into the charging adapter and plug the adapter into an electrical outlet. WARNING! Only use approved chargers with your device. Use of incompatible chargers or tempering with the charger port could damage your device and void the warranty. Preparing your watch Download the GizmoHub app from the Google Play Store or the Apple App Store. The GizmoHub app lets you set up, call, message, find, and control your child’s watch. Turning your watch on and off To turn your watch on, press and hold the Power button until the screen lights up. To turn it off, press and hold the Power button until you see “Do you want to turn off?” on the screen. Then touch to turn off your watch. Setting up your watch Follow the instructions in the GizmoHub app and on your watch to complete setup. Using your watch Adjusting the volume Swipe to the right from the watch face to the Settings screen. Touch to go to the Volume screen. Then drag the to adjust the volume. You can also touch to turn off the sound or turn it back on. Making a call 1. From the watch face, swipe left to the Contacts list. Then touch the contact you want to call. 2. Touch to make a call. To end the call, touch . NOTE: Your watch can only make and receive calls from phone numbers on the Contacts list. You can manage the contacts in the GizmoHub app on your phone. Receiving a call When someone calls the watch, it will ring and the caller name will be shown on the screen.  Touch to answer the call.  Touch to reject or end the call.  To adjust the volume during the call, touch . NOTE: Making and receiving calls and messages require a network connection. Sending a message 1. From the watch face, swipe left to the Contacts list. Then touch the contact you want to message. 2. Touch to create a new message. Then:  To choose from a list of pre-written messages, touch .  To choose an emoji, touch .  To create a voice message, touch . Receiving a message When the watch receives a new message, it will appear on the screen. Touch to reply or to close the message. NOTE: The watch can only exchange messages with contacts whose permission is Guardian, Caregiver, or GizmoBuddy. You can manage contact permissions with the GizmoHub app. For Your Safety Don’t use while walking or running. Pay attention to the traffic. Don’t use at gas stations. Your device may produce a bright or flashing light. Don’t dispose of your device in fire. Your device can produce a loud sound. To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding the device near your ear. Avoid contact with anything magnetic. Avoid extreme temperatures. Keep away from pacemakers and other electronic medical devices. Avoid contact with liquids. Keep your device dry. Turn off when asked to in hospitals and medical facilities. Don’t take your device apart. Turn off when told to in aircraft and airports. Only use approved accessories. Turn off when near explosive materials or liquids. FCC RF Exposure Information (SAR) This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the United States. The exposure standard for wireless devices employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg for 1g SAR and 4.0W/kg for 10g SAR. The FCC has granted an Equipment Authorization for this model device with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model device is on file with the FCC and can be found under the Display Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC ID: SRQ-ZW20. For this device, the highest reported mouth SAR value is 0.44W/kg and the highest wrist-worn SAR value is 0.90W/kg. This device has been tested and meets RF exposure guidelines when used with an accessory that contains no metal and that positions the mobile device a minimu…

Text truncated - open the document above for the full version.

ZTE Corporation ZTE Plaza, Keji Road South, Shenzhen, China Tel: +86-21-68895397 ; Fax: +86-21-50801070 Date: November 28, 2019 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for Confidentiality FCC ID: SRQ-ZW20 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Part List  Operational Description  Tune-up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705.  External Photos  Internal Photos  Test Setup Photos  User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, ______________________ Yu Gong [email protected]

ZTE Corporation ZTE Plaza, Keji Road South, Shenzhen, China Tel: +86-21-68895397 ; Fax: +86-21-50801070 Date: November 28, 2019 Power of Attorney To whom it may concern, Please be notified that I, Yu Gong, have designated Michael Lin in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Michael Lin in Sporton International Inc., on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C 862. This authorization is limited to the product of as following: FCC ID: SRQ-ZW20 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, ____ Contact Person: Yu Gong Company: ZTE Corporation TEL: +86-21-68895397 FAX: +86-21-50801070 E-mail: [email protected]

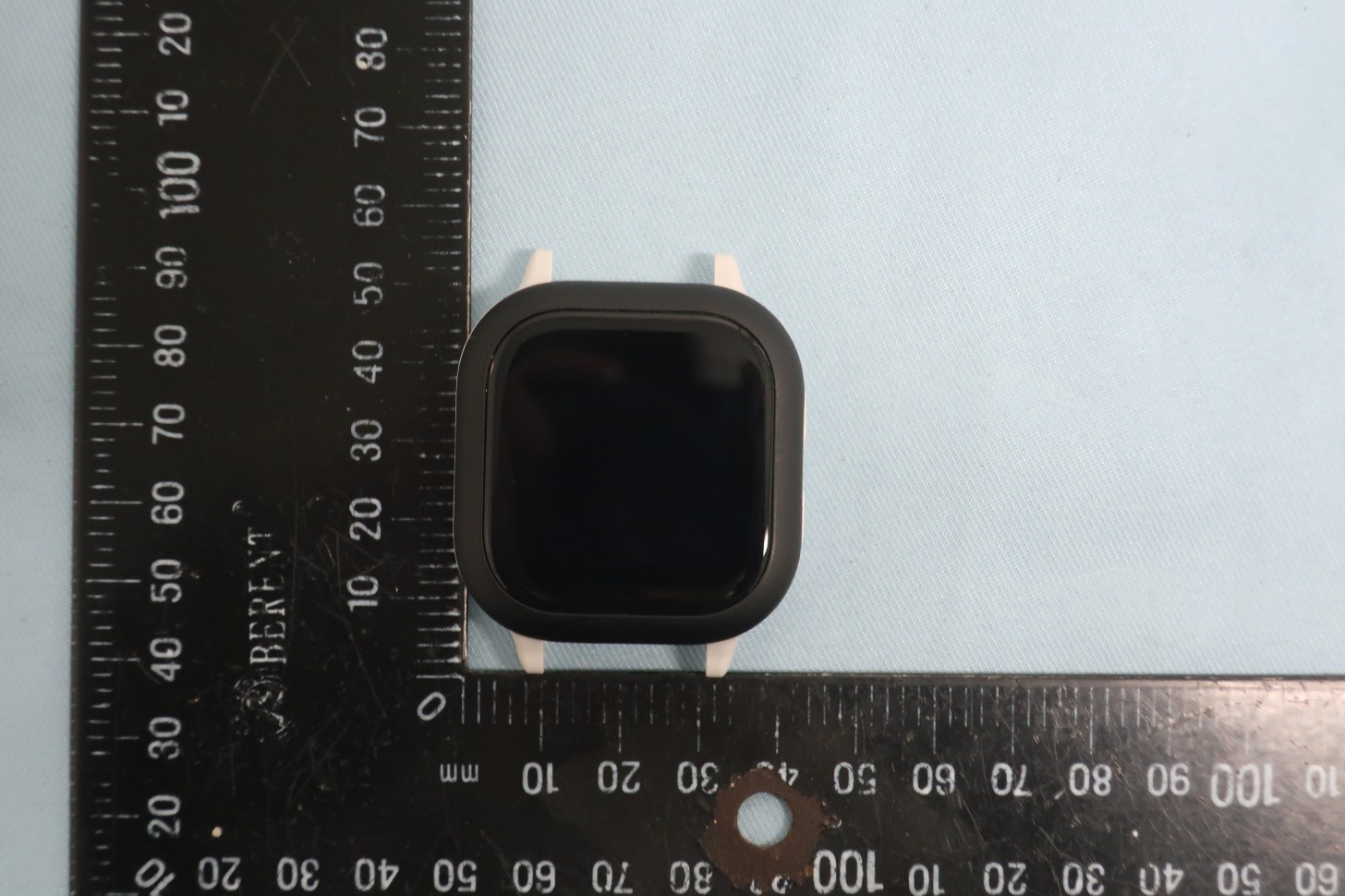

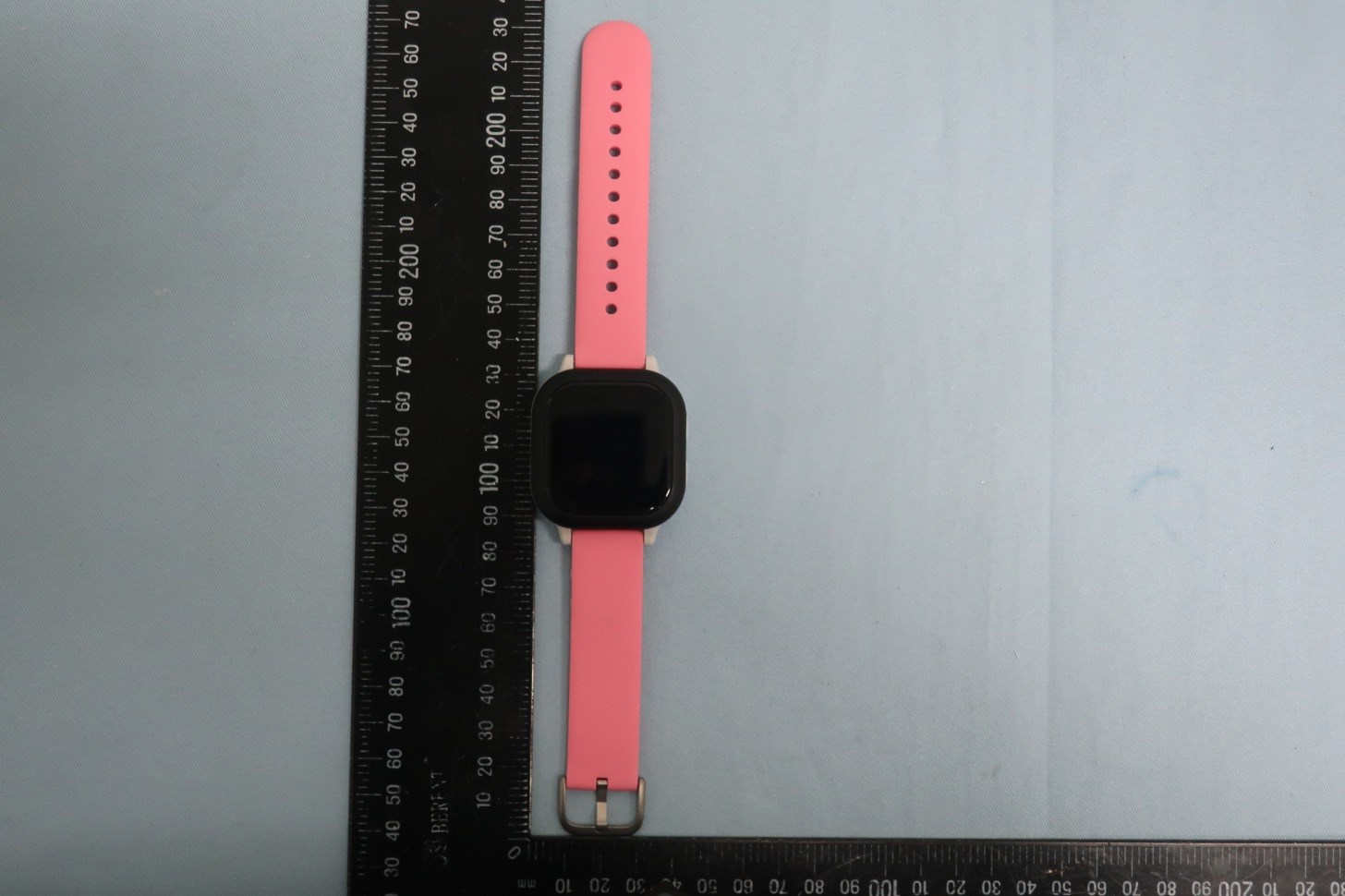

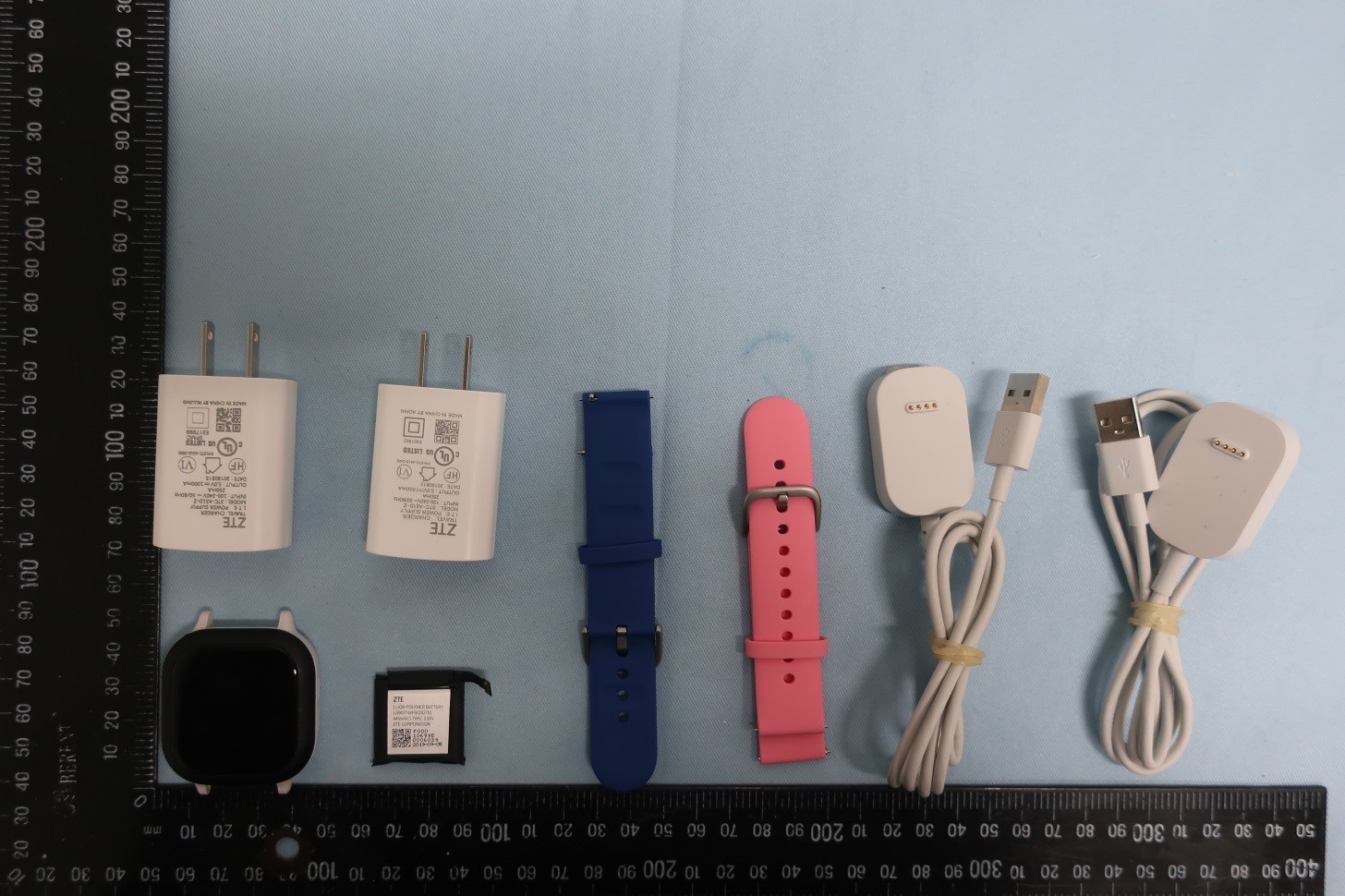

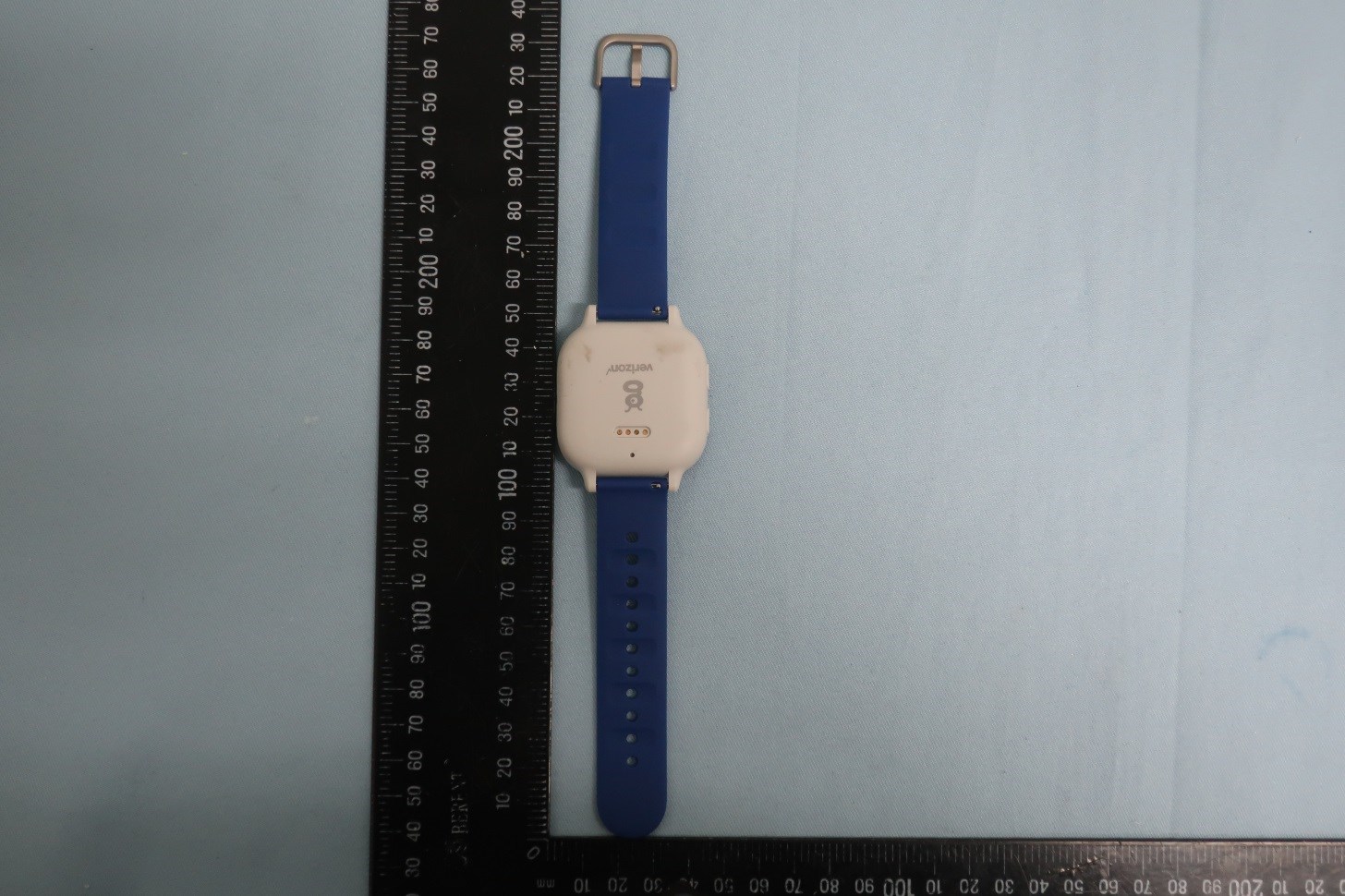

Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 1 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 2 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 3 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 4 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 5 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 6 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 7 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Pink Watchband Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 8 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 9 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 10 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 11 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 12 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 13 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Blue Watchband Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 14 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 15 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 16 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 17 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 18 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 19 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 List of Accessory： Specification of Accessory AC Adapter 1 Brand Name ZTE Model Name STC-A51D-Z Power Rating I/P: 100 - 240 Vac~50/60Hz, 0.25 A; O/P: 5V-1A AC Adapter 2 Brand Name ZTE Model Name STC-A51D-Z Power Rating I/P: 100 - 240 Vac~50/60Hz, 0.25 A; O/P: 5V-1A Battery Brand Name ZTE Model Name Li3905T44P8h292753 Power Rating 3.85V, 445mAh Type Li-ion USB Cable 1 Brand Name ZTE Model Name USB-POGO-W-100-HF Signal Line 1.0 meter, shielded cable, without ferrite core USB Cable 2 Brand Name ZTE Model Name USB-POGO-W-100-HF Signal Line 1.0 meter, shielded cable, without ferrite core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 20 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 720510 Photographs …

Text truncated - open the document above for the full version.

Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 27 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 720510 3. Internal Photograph of EUT Bluetooth & WLAN Antenna <Tx/Rx> WWAN Antenna <Tx/Rx> GNSS Antenna<Rx> Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 28 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 29 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 30 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 31 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 32 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 33 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 34 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 35 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 36 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 37 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 38 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 39 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 40 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 41 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 42 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 43 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 44 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 45 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 46 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 47 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 GNSS Antenna<Rx> Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. Page Number : 48 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2019 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 WWAN Antenna<Tx/Rx> Photographs of EUT Report No.: EP9O0913 Brand Name: ZTE / Model Name: ZW20 Sporton International (KunShan) Inc. P…

Text truncated - open the document above for the full version.

Sporton International (Kunshan) Inc. Page Number : 1 of 21 TEL : +86-512-57900158 Report Issued Date : Nov. 28, 2019 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Report Template No.: BU5-FC15B Version 3.0 FCC Test Report Report No. : FC9O0913 FCC Test Report APPLICANT : ZTE CORPORATION EQUIPMENT : Smart Watch BRAND NAME : ZTE MODEL NAME : ZW20 FCC ID : SRQ-ZW20 STANDARD : 47 CFR Part 15 Subpart B CLASSIFICATION : Certification The product was received on Oct. 09, 2019 and testing was completed on Nov. 06, 2019. We, Sporton International (Kunshan) Inc., would like to declare that the tested sample has been evaluated in accordance with the test procedures given in ANSI C63.4-2014 and has been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of Sporton International (Kunshan) Inc., the test report shall not be reproduced except in full. Reviewed by: Jason Jia / Supervisor Approved by: James Huang / Manager Sporton International (Kunshan) Inc. No. 1098, Pengxi North Road, Kunshan Economic Development Zone Jiangsu Province 215300 People’s Republic of China Sporton International (Kunshan) Inc. Page Number : 2 of 21 TEL : +86-512-57900158 Report Issued Date : Nov. 28, 2019 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Report Template No.: BU5-FC15B Version 3.0 FCC Test Report Report No. : FC9O0913 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1. GENERAL DESCRIPTION .......................................................................................................................... 5 1.1. Applicant ............................................................................................................................................ 5 1.2. Manufacturer ..................................................................................................................................... 5 1.3. Product Feature of Equipment Under Test ....................................................................................... 5 1.4. Product Specification of Equipment Under Test ............................................................................... 6 1.5. Modification of EUT ........................................................................................................................... 6 1.6. Test Location ..................................................................................................................................... 7 1.7. Applicable Standards ........................................................................................................................ 7 2. TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 8 2.1. Test Mode ......................................................................................................................................... 8 2.2. Connection Diagram of Test System ................................................................................................ 9 2.3. Support Unit used in test configuration and system ........................................................................ 10 2.4. EUT Operation Test Setup .............................................................................................................. 10 3. TEST RESULT ........................................................................................................................................... 11 3.1. Test of AC Conducted Emission Measurement .............................................................................. 11 3.2. Test of Radiated Emission Measurement ....................................................................................... 15 4. LIST OF MEASURING EQUIPMENT ........................................................................................................ 20 5. UNCERTAINTY OF EVALUATION ........................................................................................................... 21 APPENDIX A. SETUP PHOTOGRAPHS Sporton International (Kunshan) Inc. Page Number : 3 of 21 TEL : +86-512-57900158 Report Issued Date : Nov. 28, 2019 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Report Template No.: BU5-FC15B Version 3.0 FCC Test Report Report No. : FC9O0913 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FC9O0913 Rev. 01 Initial issue of report Nov. 28, 2019 Sporton International (Kunshan) Inc. Page Number : 4 of 21 TEL : +86-512-57900158 Report Issued Date : Nov. 28, 2019 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Report Template No.: BU5-FC15B Version 3.0 FCC Test Report Report No. : FC9O0913 SUMMARY OF TEST RESULT Report Section FCC Rule Description Limit Result Remark 3.1 15.107 AC Conducted Emission < 15.107 limits PASS Under limit 4.94 dB at 0.486 MHz 3.2 15.109 Radiated Emission < 15.109 limits PASS Under limit 8.33 dB at 54.250 MHz Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Sporton International (Kunshan) Inc. Page Number : 5 of 21 TEL : +86-512-57900158 Report Issued Date : Nov. 28, 2019 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 Report Template No.: BU5-FC15B Version 3.0 FCC Test Report Report No. : FC9O0913 1. General Description 1.1. Applicant ZTE C…

Text truncated - open the document above for the full version.

Sporton International (Kunshan) Inc. Page Number : A1 of A2 TEL : +86-512-57900158 Report Issued Date : Nov. 28, 2019 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 FCC Test Report Report No. : FC9O0913 Appendix A. Setup Photographs <Conducted Emission> Mode 1 Sporton International (Kunshan) Inc. Page Number : A2 of A2 TEL : +86-512-57900158 Report Issued Date : Nov. 28, 2019 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : SRQ-ZW20 FCC Test Report Report No. : FC9O0913 <Radiated Emission> Mode 2 LF HF
