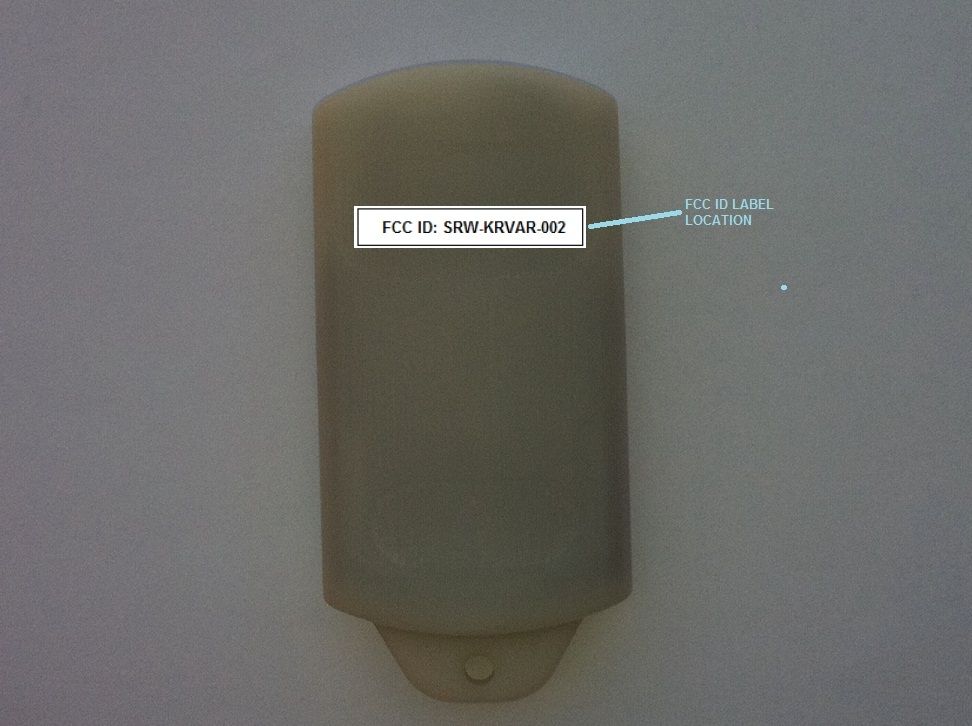

SRW-KRVAR-002AM/FM DUAL FUNCTION KEYFOB

920 Rockmoor Drive Georgetown, TX 78628 Phone: 877-619-3136 Fax: 208-475-6230 [email protected] USER'S MANUAL INFORMATION (PRELIMINARY) The KeylessRide SRW-KRVAR002 is a replacement remote for original equipment and aftermarket automotive keyless entry systems. The features and functions associated with each of the six channels of the KeylessRide remote are dependent on the year, make and model of the vehicle. Such functions include remote control operation of the vehicle’s lock, unlock, horn, trunk, dome light, rear hatch, remote start and power side door functions. The functions are activated by pressing the corresponding button on the remote control. Selection from a variety of appropriately labeled button pads which correspond to the features of the vehicle shall be used for function identification. The remote control may be configured to operate more than one receiver. To toggle between receivers, press and hold switch 3 and 4 simultaneously for 1 second. The bi-color LED light on the transmitter will change to a different color mode and momentarily flash 3X indicating it has toggled to the next receiver. A user may toggle between receivers as often as necessary. The battery is a single 3-Volt CR1632. Reduced effective range may be indicative of a low battery condition. Simply replace the current battery with a new CR1632 replacement battery, paying attention to the polarity marking on the remote control. Pairing the remote control to a vehicle receiver is dependent on the year, make and model of the vehicle(s). Programming the remote control to more than one receiver will require programming it to the first receiver, then toggling (via simultaneously holding switch 3 and 4 for one second) to operate the next receiver and then programming it to the next receiver. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. 9 2 0 R O C K M O O R D R I V E – G E O R G E T O W N – T X - 78628

CONFIDENTIALITY FORM KeylessRide Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) pertaining to confidential material. KeylessRide would like the following documents regarding this submission for FCC ID: KRVAR002 to be kept confidential. 1. All Schematics. 2. Block Diagrams. 3. Circuit Descriptions. The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, David Zima, RF Laboratories

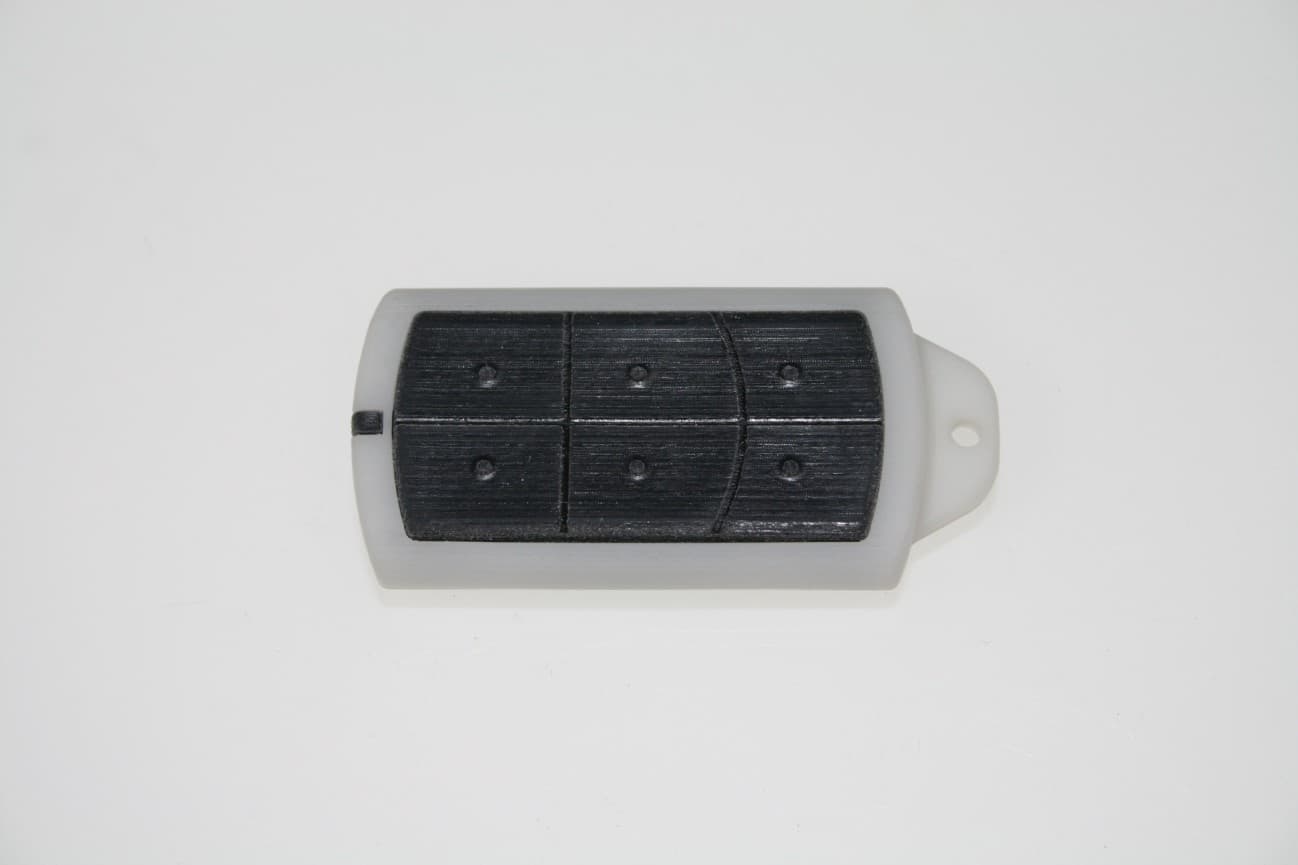

APPLICANT: KEYLESS RIDE FCC ID: SRW-KRVAR-002 EXTERNAL PHOTOS

APPLICANT: KEYLESS RIDE FCC ID: SRW-KRVAR-002 INTERNAL PHOTOS

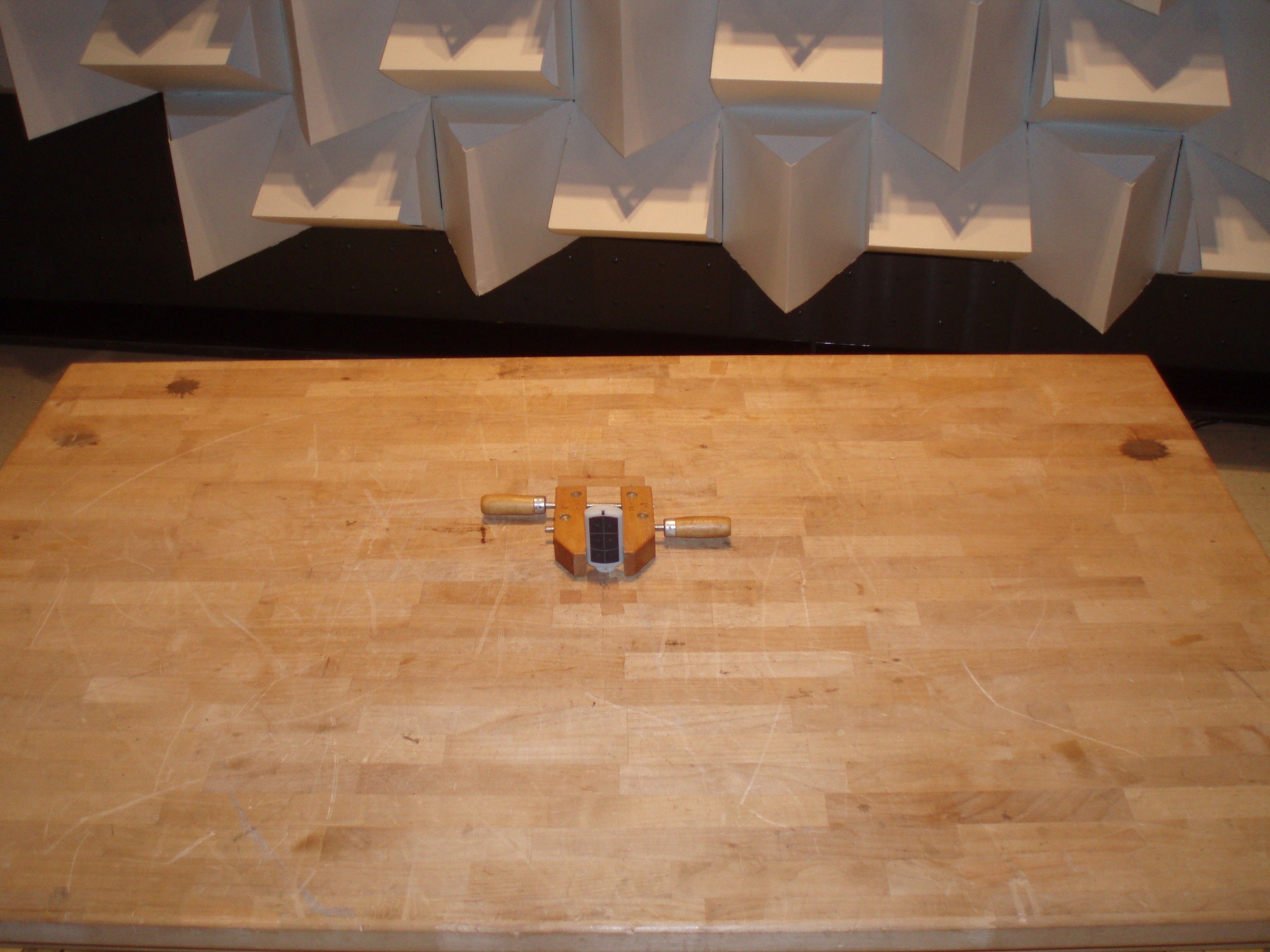

APPLICANT: KEYLESS RIDE FCC ID: SRW-KRVAR-002 REPORT: Y:\K\KEYLESS_RIDE\2875UT10\Extra2875UT10\2875AT10TestReport 2.doc Page 2 of 15 mdea 09.20.2007 FCC PART 15.231 TEST REPORT LOW POWER UNLICENSED TRANSMITTER Applicant KEYLESS RIDE Address 920 ROCKMOOR DRIVE GEORGETOWN TX 78628 USA FCC ID SRW-KRVAR-002 Product Description AM/FM DUAL FUNCTION KEYFOB Date Sample Received 1/7/2011 Date Tested 1/10/2011 Tested By Joe Scoglio Approved By Mario R. de Aranzeta Timco Report No. 2875AT10TestReport 2.PDF Test Results Pass Fail THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP: //WWW.TIMCOENGR.COM Certificate # 0955-01 APPLICANT: KEYLESS RIDE FCC ID: SRW-KRVAR-002 REPORT: Y:\K\KEYLESS_RIDE\2875UT10\Extra2875UT10\2875AT10TestReport 2.doc Page 2 of 15 mdea 09.20.2007 TABLE OF CONTENTS GENERAL REMARKS .................................................................................................... 3 REPORT SUMMARY ...................................................................................................... 4 TEST ENVIRONMENT .................................................................................................... 4 TEST SETUP ................................................................................................................. 4 DUT SPECIFICATION .................................................................................................... 5 MANUFACTURE DECLARATION OF COMPLIANCE WITH PART 15.231(A) ...................... 6 TEST EQUIPMENT LIST ................................................................................................ 7 TEST PROCEDURES ..................................................................................................... 8 RADIATION INTERFERENCE ......................................................................................... 9 CALCULATION OF DUTY CYCLE ................................................................................. 13 OCCUPIED BANDWIDTH ............................................................................................. 14 POWER LINE CONDUCTED INTERFERENCE .............................................................. 15 APPLICANT: KEYLESS RIDE FCC ID: SRW-KRVAR-002 REPORT: Y:\K\KEYLESS_RIDE\2875UT10\Extra2875UT10\2875AT10TestReport 2.doc Page 3 of 15 mdea 09.20.2007 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Mario de Aranzeta C.E.T. Compliance Engineer/ Lab. Supervisor Date: 1/10/2011 APPLICANT: KEYLESS RIDE FCC ID: SRW-KRVAR-002 REPORT: Y:\K\KEYLESS_RIDE\2875UT10\Extra2875UT10\2875AT10TestReport 2.doc Page 4 of 15 mdea 09.20.2007 REPORT SUMMARY Disclaimer The test results only relate to the item tested. Applicable Rule(s) FCC Pt 15.231, Pt 15.209, Pt 15.207, ANSI C63.4: 2003 TEST ENVIRONMENT Test Facility The test sites are located at 849 NW State Road 45 Newberry, FL 32669 USA. Test Condition: Temperature: 26ºC Relative humidity: 50% TEST SETUP Test Exercise (e.g software description, test signal, etc.): The DUT was placed in continuous transmit mode of operation. Deviation from the standard(s) No deviation from the standard(s) Modification to the DUT: No modification was made to the DUT. Supporting Peripheral Equipment Not applicable. The device is a stand-alone remote control radio. APPLICANT: KEYLESS RIDE FCC ID: SRW-KRVAR-002 REPORT: Y:\K\KEYLESS_RIDE\2875UT10\Extra2875UT10\2875AT10TestReport 2.doc Page 5 of 15 mdea 09.20.2007 DUT SPECIFICATION Applicant KEYLESS RIDE Description AM/FM DUAL FUNCTION KEYFOB FCC ID SRW-KRVAR-002 DUT Power Source 110–120Vac/50– 60Hz DC Power Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable APPLICANT: KEYLESS RIDE FCC ID: SRW-KRVAR-002 REPORT: Y:\K\KEYLESS_RIDE\2875UT10\Extra2875UT10\2875AT10TestReport 2.doc Page 6 of 15 mdea 09.20.2007 MANUFACTURE DECLARATION OF COMPLIANCE WITH PART 15.231(A) Item Description Yes No 1 Does this device transmit a signal that is only used to control another device? X 2 Does this device send data with this control signal? X 3 Does this device send data? Data is, things like: temperature, wind direction, fluid amount, rate of flow, etc. X 4 Does this device transmit continuously or automatically? X 5 If manually operated does this device stop transmitting within 5 seconds of releasing the button? X 6 If automatically operated does it deactivate 5 seconds after activation? X 7 Does it transmit at regular predetermined intervals? X 8 Does it poll or send supervisory information? X If yes does it do a system integrity check? How often? 9 Is this a fire, security or safety of life device? X If YES does the device stop transmitting after the alarm condition is satisfied? 10 Duty cycle: Maximum on-time? 100% If YES, on-time in 100 ms? If Other, please specify here On time in 11 Modulation technique: Please specify the modulation of the test sample, FM, or AFSK, or FSK, or on-off keying, or others? FSK APPLICANT: KEYLESS RI…

Text truncated - open the document above for the full version.

FCC PART 15.231 TEST REPORT LOW POWER UNLICENSED TRANSMITTER Applicant KEYLESS RIDE Address 920 ROCKMOOR DRIVE GEORGETOWN TX 78628 USA FCC ID SRW-KRVAR-002 Product Description AM/FM DUAL FUNCTION KEYFOB Date Sample Received 12/20/2010 Date Tested 1/10/2011 Tested By Joe Scoglio Approved By Mario R. de Aranzeta Timco Report No. 2875UT10TestReport 1.pdf Test Results Pass Fail THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP: //WWW.TIMCOENGR.COM Certificate # 0955-01 APPLICANT: KEYLESS RIDE FCC ID: SRW-KRVAR-002 REPORT: Y:\K\KEYLESS_RIDE\2875UT10\Extra2875UT10\2875UT10TestReport 1.doc Page 2 of 16 mdea 09.20.2007 TABLE OF CONTENTS GENERAL REMARKS .................................................................................................... 3 REPORT SUMMARY ...................................................................................................... 4 TEST ENVIRONMENT .................................................................................................... 4 TEST SETUP ................................................................................................................. 4 DUT SPECIFICATION .................................................................................................... 5 MANUFACTURE DECLARATION OF COMPLIANCE WITH PART 15.231(A) ...................... 6 TEST EQUIPMENT LIST ................................................................................................ 7 TEST PROCEDURES ..................................................................................................... 8 RADIATION INTERFERENCE ......................................................................................... 9 CALCULATION OF DUTY CYCLE ................................................................................. 13 OCCUPIED BANDWIDTH ............................................................................................. 15 POWER LINE CONDUCTED INTERFERENCE .............................................................. 16 APPLICANT: KEYLESS RIDE FCC ID: SRW-KRVAR-002 REPORT: Y:\K\KEYLESS_RIDE\2875UT10\Extra2875UT10\2875UT10TestReport 1.doc Page 3 of 16 mdea 09.20.2007 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Mario de Aranzeta C.E.T. Compliance Engineer/ Lab. Supervisor Date: 1/10/2011 APPLICANT: KEYLESS RIDE FCC ID: SRW-KRVAR-002 REPORT: Y:\K\KEYLESS_RIDE\2875UT10\Extra2875UT10\2875UT10TestReport 1.doc Page 4 of 16 mdea 09.20.2007 REPORT SUMMARY Disclaimer The test results only relate to the item tested. Applicable Rule(s) FCC Pt 15.231, Pt 15.209, Pt 15.207, ANSI C63.4: 2003 TEST ENVIRONMENT Test Facility The test sites are located at 849 NW State Road 45 Newberry, FL 32669 USA. Test Condition: Temperature: 26ºC Relative humidity: 50% TEST SETUP Test Exercise (e.g software description, test signal, etc.): The DUT was placed in continuous transmit mode of operation. Deviation from the standard(s) No deviation from the standard(s) Modification to the DUT: No modification was made to the DUT. Supporting Peripheral Equipment Not applicable. The device is a stand-alone remote control radio. APPLICANT: KEYLESS RIDE FCC ID: SRW-KRVAR-002 REPORT: Y:\K\KEYLESS_RIDE\2875UT10\Extra2875UT10\2875UT10TestReport 1.doc Page 5 of 16 mdea 09.20.2007 DUT SPECIFICATION Applicant KEYLESS RIDE Description AM/FM DUAL FUNCTION KEYFOB FCC ID SRW-KRVAR-002 DUT Power Source 110–120Vac/50– 60Hz DC Power Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable APPLICANT: KEYLESS RIDE FCC ID: SRW-KRVAR-002 REPORT: Y:\K\KEYLESS_RIDE\2875UT10\Extra2875UT10\2875UT10TestReport 1.doc Page 6 of 16 mdea 09.20.2007 MANUFACTURE DECLARATION OF COMPLIANCE WITH PART 15.231(A) Item Description Yes No 1 Does this device transmit a signal that is only used to control another device? X 2 Does this device send data with this control signal? X 3 Does this device send data? Data is, things like: temperature, wind direction, fluid amount, rate of flow, etc. X 4 Does this device transmit continuously or automatically? X 5 If manually operated does this device stop transmitting within 5 seconds of releasing the button? X 6 If automatically operated does it deactivate 5 seconds after activation? X 7 Does it transmit at regular predetermined intervals? X 8 Does it poll or send supervisory information? X If yes does it do a system integrity check? How often? X 9 Is this a fire, security or safety of life device? X If YES does the device stop transmitting after the alarm condition is satisfied? 10 Duty cycle: Maximum on-time? 100 If YES, on-time in 100 ms? If Other, please specify here On time in 11 Modulation technique: Please specify the modulation of the test sample, FM, or AFSK, or FSK, or on-off keying, or others? ASK APPLICANT: KEYLESS RIDE FCC ID: SRW-KRVAR-002 REPORT: Y:\K\KEYLESS_RIDE\2875UT10\Extra2875UT10\2875UT10TestReport 1.doc Page 7 of 16 mdea 09.20.2007 TEST EQUIPMENT LIS…

Text truncated - open the document above for the full version.
